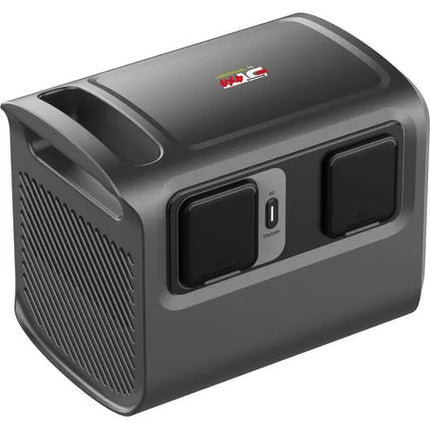

Drivetech 4x4 DT-02300 288Wh LiFePO4 Portable Lithium Battery with 300W Inverter
The Drivetech 4x4 DT-02300 is a 288Wh LiFePO4 portable lithium battery with a built-in 300W inverter (600W surge), colour touchscreen, wireless app monitoring, and 240VAC input charging. It accepts up to 120W of solar input, provides one 240VAC output, multiple USB outputs, and a 10A power socket. Weighing 3.5kg and measuring 212 x 147 x 170mm, it is a compact and portable power solution for camping, 4WD, and off-grid applications. A one-year warranty is included.
Product overview
The DT-02300 is a compact self-contained portable power station suited to camping, 4WD, and light off-grid applications where a lightweight and easily transported power source is needed. The 24Ah LiFePO4 battery provides 288Wh of usable energy, and the 300W inverter with 600W surge capacity handles common camping and field loads from the single 240VAC output point.
Charging options include 240VAC mains input, up to 120W of solar, and 15A DC input via DC-DC charger or cigarette lighter. Wireless app monitoring provides real-time control and status from a mobile device, and over-air updates keep the firmware current. UL94-V0 fire protection is included for safe operation in enclosed spaces.
Features and benefits
288Wh LiFePO4 battery capacity: A 24Ah LiFePO4 lithium iron phosphate battery provides 288Wh of usable energy with superior cycle life, thermal stability, and safety compared to standard lithium-ion chemistries.
300W inverter with 600W surge: The built-in 300W inverter with 600W surge capacity handles common camping and field loads from a single 240VAC output point.
120W solar input: Accepts up to 120W of solar input for off-grid recharging during extended remote use without mains or vehicle charging access.
15A DC input: Accepts 15A DC input via DC-DC charger, solar, or cigarette lighter for flexible vehicle-based charging options.
240VAC input charger: Recharges from standard 240VAC mains power for fast and convenient top-up charging at home, at camp, or at a powered site.
Wireless app monitoring and control: Built-in wireless connectivity allows real-time monitoring and control via a mobile app, providing charge status, output management, and system diagnostics remotely.
Colour touchscreen: The integrated colour touchscreen provides a clear and intuitive interface for managing inputs, outputs, and system status directly on the unit.
Over-air updates: Firmware updates are delivered over the air, keeping the unit current with the latest features and improvements without requiring physical service.
UL94-V0 fire protection: UL94-V0 rated fire protection provides confidence in safe operation during charging and discharging in enclosed spaces such as vehicle cabins and tents.
Compact and lightweight: At 3.5kg and 212 x 147 x 170mm, the DT-02300 is significantly more portable than larger power station units, making it practical for backpacking, day trips, and vehicle storage where space and weight are priorities.
Technical specs
| Specification |
Detail |
| SKU |
DT-02300 |
| Brand |
Drivetech 4x4 |
| Battery Type |
LiFePO4 lithium iron phosphate |
| Battery Capacity |
288Wh (24Ah at 12V) |
| Inverter Output |
300W continuous, 600W surge |
| 240VAC Outputs |
1 |
| USB-A Outputs |
2 x 18W |
| USB-C Outputs |
2 x 100W |
| Power Socket Output |
1 x 10A |
| DC Input |
15A via DC-DC, solar or cigarette lighter |
| Solar Input |
Up to 120W |
| 240VAC Charge Input |
Yes |
| Display |
Colour touchscreen |
| App Connectivity |
Wireless monitoring and control |
| Over-Air Updates |
Yes |
| Fire Protection |
UL94-V0 |
| Weight |
3.5kg |
| Dimensions |
212 x 147 x 170mm |
| Warranty |
One year |
| Unit of Measure |
Each |
Frequently asked questions
How does the DT-02300 differ from the DT-021200?
The DT-02300 is a compact 288Wh unit weighing 3.5kg with a 300W inverter, suited to light camping and day trip applications. The DT-021200 is a larger 1167Wh unit with a 2400W inverter, Fusion Mode, and significantly more output options for extended off-grid and heavy load applications.
Can the DT-02300 be charged from solar panels while in use?
Yes. The DT-02300 accepts up to 120W of solar input, allowing simultaneous solar charging and power output for extended off-grid use.
Is the DT-02300 safe to use inside a tent or vehicle?
The DT-02300 carries a UL94-V0 fire protection rating, providing confidence in safe operation during charging and discharging in enclosed spaces. Contact us for further guidance on ventilation requirements for your specific use case.
What USB outputs does the DT-02300 provide?
The DT-02300 includes two 18W USB-A outputs and two 100W USB-C outputs for charging phones, tablets, laptops, and other USB-powered devices.
What warranty is included with the DT-02300?
The DT-02300 is covered by a one-year warranty. Contact us for further information on warranty terms and conditions.
