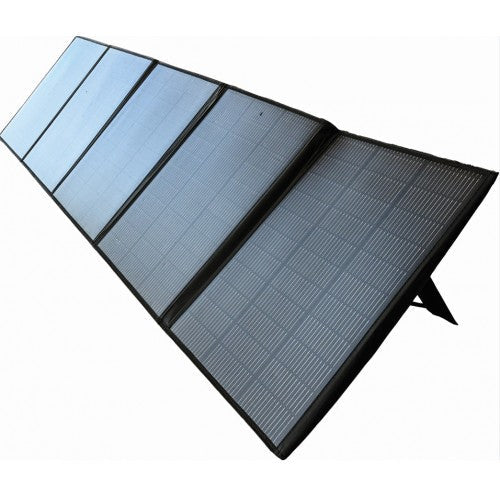

Drivetech 4x4 DT-SB250-1 250W Foldable Solar Blanket Kit - Premium Portable Solar Panel with MPPT 20A Charge Controller, Anderson Connectors, and Complete Wiring Kit for High-Output 4WD Camping, Caravan, and Off-Grid Battery Charging

Description

Drivetech 4x4 DT-SB250-1 250W Foldable Solar Blanket Kit - Premium Portable Solar Panel with MPPT 20A Charge Controller, Anderson Connectors, and Complete Wiring Kit for High-Output 4WD Camping, Caravan, and Off-Grid Battery Charging

Maximize your off-grid power generation with Drivetech 4x4 DT-SB250-1 250W Foldable Solar Blanket Kit—featuring premium 250W monocrystalline solar panel delivering up to 12.19A charging current for maximum-speed auxiliary battery charging at campsite, advanced MPPT 20A solar charge controller extracting 15-30% more power than PWM controllers through intelligent maximum power point tracking technology, portable foldable design packing from large 2500mm × 680mm deployed size to narrow 510mm × 680mm × 80mm folded dimensions for efficient storage and transport, complete professional-grade wiring kit with 5m heavy-duty 4mm² cable and Anderson-style quick-disconnect plugs enabling convenient setup and connection to auxiliary battery systems, additional 0.5m alligator clip adapter providing direct battery terminal connection without permanent wiring, durable Polish PET (polyethylene terephthalate) construction providing weather resistance, UV protection, and impact resistance for harsh outdoor environments, maximum power voltage 20.2V and open circuit voltage 24.5V optimized for 12V battery charging through advanced MPPT regulation, maximum power current 12.19A providing highest charging capacity in Drivetech 4x4 portable solar range recovering battery capacity rapidly during daylight hours, short circuit current 13.45A with controller protection preventing damage during wiring faults, slim 10mm thickness when deployed creating manageable storage volume when folded, integrated carry handle and protective storage case simplifying transport and preventing panel damage during transit, quick deployment design enabling setup in minutes without tools or complex installation, Anderson connector compatibility with common auxiliary battery systems and DC-DC chargers, MPPT 20A charge controller LCD display showing charging status, battery voltage, charging current, and system diagnostics with superior efficiency compared to PWM technology, automatic multi-stage charging algorithm (bulk, absorption, float) optimizing battery health and charging efficiency, suitable for high-consumption camping trips requiring rapid battery recovery, caravan installations with large battery banks and extensive power requirements, off-grid work-from-vehicle setups powering laptops and equipment, dual fridge installations consuming 40-60Ah daily, full-time touring requiring comprehensive renewable power generation, and professional applications demanding maximum portable solar performance, eliminates generator noise and fuel costs providing silent high-output renewable power generation, significantly faster charging than 200W and smaller panels enabling complete battery recovery within single optimal sunlight day, weatherproof construction withstanding rain, dust, and harsh outdoor conditions, MPPT technology maximizing power extraction during variable light conditions including clouds, morning/evening reduced intensity, and non-optimal panel angles, includes comprehensive user manual with setup instructions and MPPT controller operation guidance, ideal for 100-150Ah auxiliary battery systems and high-consumption applications exceeding 60Ah daily, Drivetech 4x4 Australian designed for extreme outback touring and professional remote applications, 12-month or 20,000km warranty covering manufacturing defects, and providing ultimate portable high-output solar charging solution for serious off-grid adventurers and full-time travelers.

Product Overview

Drivetech 4x4 DT-SB250-1 250W Foldable Solar Blanket Kit represents premium portable solar technology delivering maximum charging performance for demanding off-grid applications. 250W output with 12.19A maximum power current exceeds 200W panels (9-11A) by 20-35% providing fastest available portable solar charging—critical advantage for large battery banks, high consumption setups, and rapid recovery requirements. Charging capacity sufficient for comprehensive power needs—dual fridges, inverter loads, extensive lighting, communication equipment, and continuous device charging—without depleting auxiliary battery capacity.

Advanced MPPT (Maximum Power Point Tracking) 20A charge controller delivers 15-30% more power extraction compared to PWM (Pulse Width Modulation) controllers included with lower-tier solar blankets. MPPT technology continuously tracks solar panel maximum power point adjusting voltage and current for optimal power transfer regardless of battery state of charge, temperature, or light conditions. Particularly effective during variable light conditions—morning/evening reduced intensity, partial clouds, non-optimal panel angles—where PWM loses significant efficiency. MPPT investment justified for 250W high-output applications maximizing panel performance and accelerating battery recovery.

Unique 2500mm × 680mm deployed dimensions create long narrow panel configuration differing from square 200W blankets (1110×1105mm). Long narrow format advantages: easier positioning in linear spaces (alongside vehicles, on narrow ground strips), better wind resistance (lower profile), simplified cable routing (panel end aligns with vehicle connection point). Folded dimensions 510mm × 680mm × 80mm create narrow profile convenient for storage behind seats, in narrow storage compartments, or stacked vertically. Different fold configuration from 200W blankets—choose based on storage space geometry and deployment preferences.

MPPT Technology Advantage: MPPT charge controller extracts maximum available power from solar panel under all conditions. MPPT operation: panel generates 20.2V at maximum power point, battery requires 14.4V charging voltage (typical AGM absorption), MPPT converts excess 5.8V into additional charging current rather than wasting as heat (PWM approach). Result: 15-30% more charging current reaching battery—250W panel with MPPT generates 12-14A charging current, same panel with PWM generates 10-11A. Daily difference: 250W MPPT generates 65-80Ah optimal conditions vs 55-65Ah with PWM—meaningful advantage for high-consumption applications requiring maximum daily generation. MPPT particularly valuable for 250W investment maximizing return on premium panel purchase.

Maximum Charging Performance: 12.19A maximum power current delivers professional-grade charging rivaling small fixed installations. Charging rate adequate for recovering extensive daily consumption—dual fridges 6-8A continuous (36-48Ah daily combined), inverter loads for laptops, tools, appliances (15-25Ah), extensive LED lighting (10-15Ah evening), water pump frequent use (3-5Ah), USB devices and communication equipment (4-6Ah). Total daily consumption 68-99Ah—250W MPPT panel recovers 65-80Ah during optimal 6-hour sunlight maintaining battery capacity with minimal deficit covered by occasional DC-DC charging during driving. Enables true off-grid sustainability for comprehensive power requirements impossible with smaller panels.

Ideal for High-Consumption Applications: 250W output sized perfectly for: dual fridge setups consuming 40-60Ah daily maintaining refrigeration and freezing simultaneously, full-time vehicle dwelling requiring continuous power for living systems, work-from-vehicle setups powering laptops, monitors, Starlink internet, and office equipment, professional photography/videography requiring battery charging for cameras and drones, communication-dependent applications (emergency services, field research, remote work) requiring reliable power, and comprehensive touring rigs with extensive auxiliary systems. Single 250W panel eliminates need for multiple smaller panels simplifying deployment and cable management.

Complete Professional Wiring Kit: Included 5m 4mm² cable with Anderson-style plugs provides heavy-duty connection from panel to battery/controller. 5m length enables flexible panel positioning—place panel in optimal sun exposure (away from vehicle shade, angled toward sun) while maintaining connection to battery system. Anderson quick-disconnect plugs enable rapid setup and breakdown—connect panel arriving at campsite, disconnect when departing—no tools required. Additional 0.5m alligator clip adapter connects directly to battery terminals for installations without permanent Anderson connectors—immediate solar charging capability without wiring modifications. Professional-grade components ensuring reliable long-term operation.

Polish PET Construction: Durable PET (polyethylene terephthalate) substrate provides weather resistance, UV protection, and impact resistance. Flexible construction withstands folding and unfolding cycles without cracking or delamination—rigid panels suffer glass breakage and frame damage during rough handling. PET surface resists scratching and cleaning—wipe with damp cloth removing dust and dirt maintaining efficiency. Weatherproof construction withstands rain, dew, and humid conditions—leave deployed overnight or during weather changes without damage. Significantly more durable than budget fabric-backed panels prone to delamination and water ingress. Professional-grade construction justifying premium 250W investment.

Rapid Deployment and Storage: Quick-setup design enables full deployment in under 3 minutes without tools. Unfold long narrow panel, position for optimal sun exposure, connect Anderson plug to battery system, verify MPPT controller display showing charging—complete setup. Folding reverses process—disconnect Anderson plug, fold panels into narrow bundle, secure with integrated straps, store in protective case. Long narrow fold pattern differs from square 200W blankets—assess storage space determining preferred configuration. Most users appreciate narrow 510×680mm fold fitting behind seats and in narrow storage areas.

MPPT Controller LCD Display: Advanced LCD display shows comprehensive charging information—battery voltage (monitoring state of charge), charging current (verifying panel output), daily amp-hours generated (tracking total daily production), charging stage (bulk/absorption/float), and fault codes (diagnosing issues). MPPT display provides significantly more information than basic PWM controllers enabling performance optimization and troubleshooting. Monitor daily generation comparing to specifications—consistently low output indicates shading problems, dirty panel, or equipment issues requiring attention.

Multiple Battery Compatibility: MPPT controller supports 12V and 24V battery systems with automatic voltage detection. Charges lead-acid, AGM, gel, and lithium (LiFePO4) batteries with programmable charging profiles. Lithium compatibility particularly valuable for modern auxiliary battery systems—MPPT regulates voltage precisely matching lithium requirements (14.2-14.6V) preventing overcharge. AGM profile default for most camping applications—controller automatically progresses through optimal charging stages maximizing battery health and lifespan.

Drivetech 4x4 Quality and Support: Drivetech 4x4 Australian designed for extreme outback touring and professional applications. Components engineered for harsh Australian conditions—extreme heat, dust, and UV exposure. 12-month or 20,000km warranty providing peace of mind for premium equipment investment. Australian-based technical support assisting with setup, MPPT controller configuration, and performance optimization. Quality assurance for critical power generation equipment enabling extended off-grid adventures.

Technical Specifications
SKU DT-SB250-1
Product Type Foldable Solar Blanket with MPPT Controller
Brand Drivetech 4x4
Maximum Power Output 250W
Maximum Power Voltage 20.2V
Maximum Power Current 12.19A
Open Circuit Voltage 24.5V
Short Circuit Current 13.45A
Charge Controller MPPT 20A (included)
Controller Compatibility 12V and 24V systems
Panel Construction Polish PET (Polyethylene Terephthalate)
Deployed Dimensions 2500mm (L) × 680mm (W) × 10mm (H)
Folded Dimensions 510mm (L) × 680mm (W) × 80mm (H)
Cable Length 5m (4mm² with Anderson plugs)
Alligator Clip Adapter 0.5m (2.5mm² to Anderson)
Connector Type Anderson-style quick-disconnect
Weight Lightweight portable design
Battery Compatibility 12V/24V Lead-Acid, AGM, Gel, Lithium (LiFePO4)
Weather Resistance Weatherproof (rain and dust resistant)
Ideal Battery Size 100-150Ah auxiliary batteries
Daily Generation 65-80Ah (optimal 6-hour sunlight with MPPT)
Warranty 12 months or 20,000km
Applications High-Consumption 4WD Camping, Full-Time Touring, Dual Fridges, Work-from-Vehicle, Professional Applications

Frequently Asked Questions

Q: What's the advantage of MPPT controller over PWM controller in other solar blankets?

A: MPPT (Maximum Power Point Tracking) extracts 15-30% more power from solar panel compared to PWM (Pulse Width Modulation) technology. MPPT continuously adjusts panel operating voltage tracking maximum power point regardless of battery voltage, light conditions, or temperature. PWM simply switches panel voltage on/off matching battery voltage—works adequately in ideal conditions but loses efficiency during variable light (clouds, morning/evening, non-optimal angles). For 250W panel: MPPT generates 12-14A charging current extracting full panel capacity, PWM generates 10-11A wasting 2-3A potential output. Daily difference significant: MPPT 65-80Ah generation vs PWM 55-65Ah—additional 10-15Ah daily justifies MPPT investment for premium 250W panel. MPPT particularly valuable for serious off-grid applications requiring maximum power extraction from limited solar capacity.

Q: How long does it take to fully charge a 100Ah auxiliary battery with this panel?

A: Charging time depends on battery state of charge and sunlight conditions. Example: 100Ah AGM battery depleted to 50% capacity (50Ah consumed) in optimal conditions with MPPT controller generates 11-12A charging current during peak hours. Bulk charging phase at 11-12A recovers approximately 33-36Ah in 3 hours. Absorption phase tapers current recovering remaining 14-17Ah in 2-3 hours. Total charging time approximately 5-6 hours optimal sunlight—significantly faster than 200W panels (6-7 hours) and dramatically faster than 120W panels (8-10 hours). Real-world conditions extend time to 6-8 hours. For daily camping operation with high consumption: deplete battery 60-75% overnight (60-75Ah from 100Ah battery), recover completely during single optimal sunlight day maintaining sustainable indefinite off-grid operation without alternator charging.

Q: Is this panel suitable for full-time vehicle dwelling and work-from-vehicle setups?

A: Yes, 250W MPPT represents optimal portable solar solution for full-time living and work-from-vehicle applications. Output adequate for comprehensive power requirements: dual fridges maintaining refrigeration and freezing (40-50Ah daily), laptop and monitor for remote work (15-20Ah daily 8-hour workday), Starlink or mobile internet (10-15Ah daily), extensive lighting and USB devices (8-12Ah evening), water pump and auxiliary systems (5-8Ah). Total consumption 78-105Ah daily—250W MPPT generates 65-80Ah optimal conditions with 15-40Ah deficit covered by occasional DC-DC charging during driving or driving every 2-3 days supplementing solar. Most full-time travelers find 250W portable plus 160-200W fixed roof panel provides comprehensive power independence. 250W portable deployed optimally at campsite, fixed roof panel generates during driving and parking—combined approach provides 400-450W total capacity supporting full-time living requirements.

Q: How does the long narrow fold compare to square 200W blanket fold?

A: 250W blanket folds to 510mm × 680mm × 80mm (long narrow profile) vs 200W blanket 530mm × 385mm × 105mm (more square profile). Long narrow fold advantages: fits behind seats in narrow gap between seat back and cargo area, stores vertically in narrow spaces, matches shape of roof rack bags and storage containers. Square fold advantages: more compact footprint (530×385mm vs 510×680mm), easier to stack with other camping gear, fits underseat storage in some vehicles. Choose based on storage space geometry: narrow vertical spaces prefer 250W fold, wide shallow spaces prefer 200W fold. Deployed dimensions also differ: 250W deploys 2500×680mm (long narrow) suitable for positioning alongside vehicles or in linear spaces, 200W deploys 1110×1105mm (square) suitable for open ground areas. Both effective—selection based on storage and deployment preferences matching individual camping setup.

Q: Can I upgrade from PWM to MPPT controller with my existing solar blanket?

A: Yes, MPPT controller upgrades significantly improve existing solar blanket performance. Any solar panel benefits from MPPT technology—120W PWM blanket upgraded to MPPT controller generates 15-30% more power (6.5-7.5A vs 5.97A), 200W PWM blanket upgraded generates 11-13A vs 9-10A. Purchase standalone MPPT controller (20-30A capacity, MC4 or Anderson connections) connecting between existing panel and battery—disconnect PWM controller, install MPPT controller, reconnect panel and battery. MPPT upgrade cost typically $150-300 depending on controller brand—Victron, Redarc, CTEK popular choices. Upgrade justified for: existing panels used extensively (frequent camping justifying investment), high-consumption applications requiring maximum output, users noticing inadequate charging with PWM particularly during variable light conditions. Alternatively, purchase new 250W MPPT blanket (DT-SB250-1) gaining both higher panel output and MPPT efficiency—more expensive but maximum performance solution.

Legendary Products & Support From Authorized Dealers

When you choose Frankies BrandBeast, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

▸ Expert Knowledge & Training
Only authorized Frankies BrandBeast dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

▸ Authorized Warranty Protection
We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don’t be misled by unauthorized sellers who can’t provide genuine warranty support.

▸ Reliable Customer Support
If you ever run into an issue, you’re backed by Frankies BrandBeast’s official manufacturer’s warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

▸ Protect Your Investment
Buying from an authorized dealer ensures you’re getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few bucks worth losing all that?

Choose wisely. Buy from Frankies BrandBeast today!
