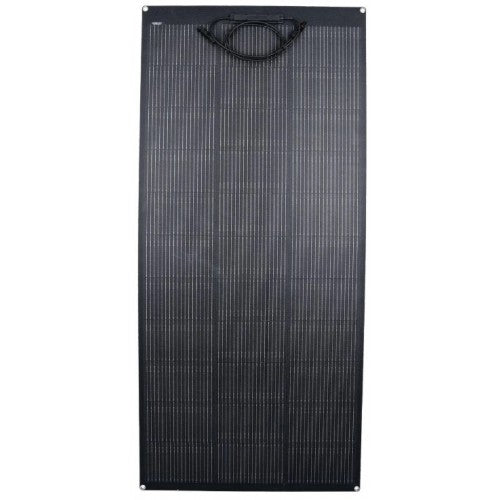

Drivetech 4x4 DT-SPF200-1 200W Semi-Flexible Solar Panel - Ultra-Thin ETFE Coated High-Output Panel with MC4 Connectors for Permanent Vehicle Roof, Caravan, Marine, and Curved Surface Solar Installations
Maximize your vehicle solar charging with Drivetech 4x4 DT-SPF200-1 200W Semi-Flexible Solar Panel—featuring ultra-thin 3mm profile enabling mounting on curved surfaces including vehicle roofs, caravan roofs, boat decks, and RV tops impossible with rigid glass panels, high-efficiency 200W monocrystalline cells delivering up to 10.8A charging current for continuous high-output auxiliary battery charging while parked and driving, premium ETFE (Ethylene Tetrafluoroethylene) coating providing superior weather resistance, UV protection, and self-cleaning properties exceeding traditional glass panel durability, anti-crack film construction preventing cell damage from flexing and impact ensuring reliable long-term performance on mobile installations, lightweight flexible design conforming to curved roof profiles up to 30-degree bend radius, stainless steel mounting eyelets providing corrosion-resistant permanent installation points around panel perimeter, 90cm integrated cable with industry-standard MC4 quick-disconnect connectors simplifying connection to solar charge controller and battery system, maximum power voltage 18.5V and open circuit voltage 22.68V optimized for 12V battery charging through MPPT or PWM controllers, maximum power current 10.8A providing substantial continuous charging maintaining auxiliary battery capacity without engine operation, short circuit current 11.2A with proper controller protection, large 1520mm × 680mm panel area maximizing solar collection in limited roof space, ultra-thin 3mm thickness creating minimal aerodynamic profile reducing wind resistance and noise compared to thick rigid panels, suitable for permanent installation on 4WD vehicle roofs providing automatic charging during parking and travel, caravan and motorhome roof mounting supplementing shore power and generator with renewable solar charging, boat deck installation providing reliable marine power generation, camper trailer roof mounting enabling off-grid camping without generator dependence, and commercial vehicle installations maintaining auxiliary systems during layover periods, eliminates daily panel deployment required with portable panels providing set-and-forget automatic charging, higher 200W output ideal for larger 100Ah+ battery systems and high-consumption applications, ETFE coating resists scratching, environmental contamination, and degradation maintaining efficiency over years of outdoor exposure, flexible construction withstands vehicle vibration, roof flex, and impact from branches and debris impossible with brittle glass panels, stainless steel eyelets resist saltwater corrosion in marine applications, MC4 connectors enable professional weatherproof wiring connection to charge controller (sold separately), requires MPPT or PWM solar charge controller for battery connection preventing overcharge damage, panel generates power during all daylight hours automatically maintaining auxiliary battery eliminating alternator charging dependency, ideal for vehicles with large auxiliary battery systems requiring continuous high-output charging during extended parking periods, Drivetech 4x4 Australian designed for extreme outback conditions and harsh marine environments, 12-month or 20,000km warranty covering manufacturing defects, and providing essential high-output permanent solar charging solution for vehicle-based power independence.
Product Overview
Drivetech 4x4 DT-SPF200-1 200W Semi-Flexible Solar Panel provides high-output permanent roof-mounted solar charging transforming auxiliary battery management for large battery systems and high-consumption applications. 200W output with 10.8A maximum power current significantly exceeds 160W panels (8.65A) delivering 25% more charging capacity—critical advantage for larger 100-150Ah battery banks and high-consumption setups running multiple fridges, inverters, and equipment simultaneously. Permanent installation eliminates daily portable panel deployment—solar panel automatically generates power whenever daylight present maintaining auxiliary battery capacity during parking, camping, and driving.
Ultra-thin 3mm profile enables mounting on curved surfaces impossible with rigid glass panels (typically 35-50mm thick). Flexible construction conforms to vehicle roof curves, caravan aerodynamic profiles, and boat deck contours maintaining contact across entire panel area. Bend radius up to 30 degrees accommodates moderate roof curvature—flat to gently curved surfaces. Significantly more versatile than rigid panels requiring perfectly flat mounting surface with complex brackets. Flexible installation follows roof profile creating low-profile aerodynamic installation minimizing wind resistance and noise.
Premium ETFE coating provides superior weather protection exceeding traditional glass panel durability. ETFE (Ethylene Tetrafluoroethylene) fluoropolymer offers exceptional UV resistance—maintains transparency and efficiency over decades of sun exposure without yellowing or degradation. Self-cleaning properties prevent dirt and dust adhesion—rain naturally cleans surface maintaining efficiency without manual cleaning. Impact resistance prevents damage from hail, branches, and debris—flexible substrate absorbs impact energy instead of shattering like glass. Saltwater corrosion resistance ideal for marine installations—ETFE resists saltwater spray and coastal environmental exposure.
High-Output 200W Performance: 10.8A maximum power current provides substantial continuous charging for larger auxiliary battery systems and high-consumption applications. Daily generation example: 6 hours quality sunlight generates 55-65Ah maintaining large battery capacity. Sufficient for offsetting significant camping consumption—dual fridges 6-8A continuous (36-48Ah daily combined), LED lighting extensive use (8-12Ah evening), water pump frequent use (2-4Ah), inverter loads (10-20Ah for laptops, tools, appliances), USB devices (3-4Ah). Total consumption 59-88Ah daily—200W panel output maintains battery capacity enabling comprehensive off-grid camping without alternator charging dependency. Ideal for full-time travelers, work-from-vehicle setups, and comprehensive touring rigs.
Permanent Installation Advantages: Roof-mounted solar eliminates portable panel deployment chores. Arrive at campsite—solar already working, no setup required. Leave campsite—solar secured on roof, no packing required. Panel generates power during driving and parking automatically maintaining battery. Particularly valuable for: full-time travelers requiring continuous high-output charging, urban parking between trips maintaining large battery banks, work vehicles requiring substantial auxiliary system power during equipment operation, boats moored at marina maintaining house battery without shore power connection, commercial vehicles with refrigeration or equipment requiring continuous power.
200W vs 160W Panel Comparison: 200W panel delivers 25% more power (10.8A vs 8.65A maximum current) from 22% larger panel area (1520×680mm vs 1245×670mm). Choose 200W for: larger battery banks (100Ah+), high consumption exceeding 50Ah daily, dual fridge installations, inverter-dependent setups, full-time living requiring comprehensive power, limited roof space requiring maximum output from single panel. Choose 160W for: moderate battery systems (75-100Ah), consumption 30-50Ah daily, single fridge installations, weekend/occasional camping, vehicles with limited roof space, budget-conscious installations. Both panels share identical construction quality—decision based on power requirements and available mounting space.
ETFE vs Glass Panel Comparison: ETFE flexible panels advantages—lightweight (50% lighter than glass), impact resistant (no shattering), conforms to curves, thinner profile, withstands flexing. Glass rigid panels advantages—slightly higher efficiency (1-2%), lower cost, proven long-term performance (20+ years documented). For mobile applications (vehicles, caravans, boats), flexible panels superior due to weight savings, impact resistance, and curved surface mounting. For fixed ground installations, rigid glass panels cost-effective. Vehicle roof installations benefit significantly from flexible panel advantages—particularly 200W output eliminating need for multiple panels.
Stainless Steel Eyelet Mounting: Eyelets around panel perimeter provide multiple mounting points enabling secure attachment to various roof profiles. Typical installation: marine-grade VHB adhesive tape bonding panel to clean roof surface, supplemental eyelet fasteners through roof (with proper sealing) for high-security mounting, or combination approach (adhesive primary, eyelets backup). Stainless steel resists corrosion from weather exposure and saltwater spray. Mounting flexibility accommodates different roof materials—painted metal, fiberglass, aluminum, composite—with appropriate adhesives and fasteners. Larger 200W panel requires additional mounting points preventing center sag and wind uplift.
MC4 Connector Integration: Industry-standard MC4 connectors simplify professional solar installation wiring. MC4 connectors weatherproof, secure, and tool-free connection/disconnection (with proper MC4 tools). Connect panel MC4 output to solar charge controller MC4 input, controller output to battery. MC4 system enables series/parallel panel connections for multi-panel installations—series connection increases voltage (2× 200W = 37V, suitable for MPPT controllers), parallel connection increases current (2× 200W = 21.6A). MC4 compatibility ensures professional installation standards and future expandability. High-output 200W panels often paired with second panel creating 400W roof arrays for comprehensive power requirements.
Requires Separate Charge Controller: Panel does not include charge controller—designed for permanent installations with separate MPPT or PWM controller. MPPT controller strongly recommended for 200W panel maximizing efficiency (15-30% more power extraction than PWM). Controller prevents overcharging, regulates charging voltage, and prevents reverse discharge at night. Never connect panel directly to battery—22.68V open circuit voltage exceeds safe battery charging voltage causing damage. High-output 200W panel benefits significantly from MPPT technology extracting maximum power during variable light conditions. Minimum 20A controller required (10.8A panel output plus safety margin), 30A controller recommended enabling future expansion to dual-panel 400W array.
Professional Installation Recommended: Roof-mounted solar installation requires: roof penetration sealing (if fastening through roof), proper adhesive selection for large panel, cable routing through vehicle/boat, charge controller installation and wiring, waterproofing and strain relief. Professional installers ensure watertight installation preventing leaks and corrosion. Competent DIY installers achieve successful results with careful planning, proper materials, and attention to waterproofing details. Critical: test installation with water hose before finalizing—identify leaks early preventing interior damage. Larger 200W panel requires careful positioning and secure mounting preventing wind uplift during highway driving.
Drivetech 4x4 Quality and Support: Drivetech 4x4 Australian designed for extreme outback conditions and harsh marine environments. Components engineered for mobile installation vibration and environmental exposure. 12-month or 20,000km warranty providing peace of mind. Australian-based technical support assisting with installation planning and technical questions. Quality assurance for critical permanent installations.
Technical Specifications
|
|
| SKU |
DT-SPF200-1 |
| Product Type |
Semi-Flexible Solar Panel |
| Brand |
Drivetech 4x4 |
| Maximum Power Output |
200W |
| Maximum Power Voltage |
18.5V |
| Maximum Power Current |
10.8A |
| Open Circuit Voltage |
22.68V |
| Short Circuit Current |
11.2A |
| Panel Construction |
ETFE coating with anti-crack film |
| Cell Type |
Monocrystalline |
| Panel Dimensions |
1520mm (L) × 680mm (W) × 3mm (H) |
| Panel Thickness |
3mm (ultra-thin) |
| Bend Radius |
Up to 30 degrees |
| Mounting |
Stainless steel eyelets (adhesive + fasteners) |
| Cable Length |
90cm (4mm²) |
| Connector Type |
MC4 (industry standard) |
| Weight |
Lightweight flexible design |
| Charge Controller |
Not included (MPPT strongly recommended) |
| Weather Resistance |
ETFE coating (UV resistant, waterproof) |
| Ideal Battery Size |
100-150Ah auxiliary batteries |
| Warranty |
12 months or 20,000km |
| Applications |
Vehicle Roof, Caravan Roof, Boat Deck, RV, Curved Surface Installations |
| Installation Type |
Permanent mounting (adhesive and/or fasteners) |
Frequently Asked Questions
Q: How much more power does the 200W panel generate compared to the 160W panel?
A: 200W panel generates approximately 25% more power—10.8A maximum current vs 8.65A for 160W panel. Real-world daily generation: 200W generates 55-65Ah optimal conditions (6 hours quality sun) vs 45-52Ah for 160W panel—difference of 10-13Ah daily. Significant advantage for high-consumption applications: dual fridges consuming 40-50Ah daily, inverter loads for laptops and tools, extensive lighting and device charging. Larger panel dimensions (1520×680mm vs 1245×670mm) require more roof space—verify available mounting area before ordering. Calculate consumption requirements determining adequate panel size: consumption under 45Ah daily—160W adequate, consumption 45-65Ah daily—200W appropriate, consumption exceeding 65Ah daily—consider dual 200W panels (400W total) or supplemental DC-DC charging.
Q: Will this panel fit on my vehicle roof?
A: Panel dimensions 1520mm × 680mm require approximately 1.6m × 0.7m clear roof space plus margin for mounting and cable routing. Typical fitment: most full-size 4WDs, wagons, SUVs with roof racks accommodate 200W panel, dual-cab utes with canopies accommodate panel on canopy roof, caravans and motorhomes easily accommodate 200W panel with space for additional panels. Compact vehicles, small SUVs, and vehicles with extensive roof equipment (roof racks, awnings, roof tents) may have inadequate space—measure carefully before purchasing. Consider roof obstructions: antennas, vents, air conditioners, solar fans, roof hatches—position panel avoiding shade from obstructions maximizing output. Professional installers assist with optimal positioning balancing available space, shade avoidance, and cable routing convenience.
Q: What charge controller should I use with this 200W panel?
A: MPPT (Maximum Power Point Tracking) controller strongly recommended for 200W panel extracting maximum power. Recommended controllers: 20-30A MPPT (Victron SmartSolar 100/20, Redarc BCDC1225D with solar input, CTEK D250SE) providing adequate capacity for single 200W panel with expansion capability. MPPT advantages for 200W: 15-30% efficiency gain over PWM (additional 2-3A output), superior low-light performance, handles higher input voltage enabling future series panel additions. Minimum controller specifications: 20A output capacity (10.8A panel plus safety margin), 12V/24V auto-detect, MPPT technology, MC4 input connectors. Budget alternative: 20A PWM controller adequate but sacrifices 15-30% potential output—PWM acceptable for basic installations, MPPT investment justified for 200W high-output applications maximizing panel investment.
Q: Can I install two 200W panels together for 400W total?
A: Yes, dual 200W panel installation creates 400W roof array generating 110-130Ah daily—sufficient for comprehensive off-grid living with extensive power consumption. Installation configurations: parallel connection (both panels 18.5V, combined 21.6A current) using MC4 Y-branch parallel connectors, series connection (combined 37V, 10.8A current) for MPPT controllers supporting higher voltage input. Parallel connection simpler requiring 30-40A MPPT controller handling combined current. Roof space requirements: 1.6m × 1.4m approximately for two panels side-by-side, or 3.2m × 0.7m for panels end-to-end. Professional installation highly recommended for dual-panel arrays ensuring proper wiring, secure mounting, balanced load distribution, and optimized positioning. Dual 200W arrays support: dual fridges, inverter-dependent work-from-vehicle setups, full-time living, comprehensive electronics and appliances, eliminating alternator and generator charging dependency.
Q: How do I maintain and clean the panel to maximize efficiency?
A: ETFE coating resists dirt adhesion but periodic cleaning maintains maximum efficiency. Cleaning procedure: rinse panel with fresh water removing loose dust and dirt, wash with mild soap solution and soft cloth/sponge (avoid abrasive materials scratching ETFE surface), rinse thoroughly removing soap residue, squeegee or air-dry preventing water spots. Cleaning frequency: monthly for dusty/dirty environments (outback touring, work sites), quarterly for normal conditions, after extended rain/dust storms. Morning dew naturally cleans surface—ETFE self-cleaning properties reduce manual cleaning requirements compared to glass panels. Inspect panel during cleaning: check adhesive bond integrity, verify mounting fastener tightness, inspect cable and MC4 connections for damage or corrosion, verify no shade obstructions from new roof equipment. Efficiency loss indicators: charging current significantly below expected (verify with battery monitor), dirty/contaminated surface visible, bird droppings or tree sap accumulation. Clean panel maintains 95-100% rated output, dirty panel drops to 70-85% output.
