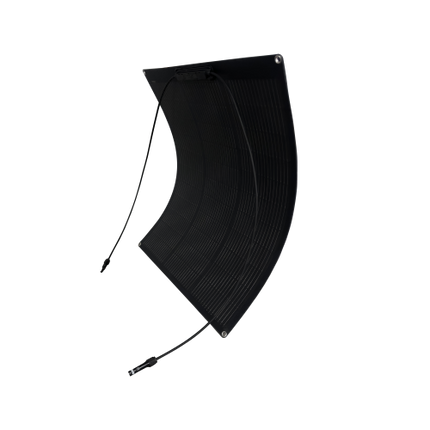

Drivetech 4x4 DT-SPF80-1 80W Semi-Flexible Solar Panel - Compact Ultra-Thin ETFE Coated Panel with MC4 Connectors for Small Vehicle Roof, Motorcycle, Compact Caravan, and Space-Limited Curved Surface Solar Installations

Description

Drivetech 4x4 DT-SPF80-1 80W Semi-Flexible Solar Panel - Compact Ultra-Thin ETFE Coated Panel with MC4 Connectors for Small Vehicle Roof, Motorcycle, Compact Caravan, and Space-Limited Curved Surface Solar Installations

Add permanent solar charging to compact vehicles with Drivetech 4x4 DT-SPF80-1 80W Semi-Flexible Solar Panel—featuring ultra-thin 3mm profile enabling mounting on curved surfaces including small vehicle roofs, compact caravan roofs, motorcycle trailers, boat decks, and space-limited installations impossible with rigid glass panels, efficient 80W monocrystalline cells delivering up to 4.38A charging current for continuous auxiliary battery charging while parked and driving, premium ETFE (Ethylene Tetrafluoroethylene) coating providing superior weather resistance, UV protection, and self-cleaning properties exceeding traditional glass panel durability, anti-crack film construction preventing cell damage from flexing and impact ensuring reliable long-term performance on mobile installations, lightweight flexible design conforming to curved roof profiles up to 30-degree bend radius, stainless steel mounting eyelets providing corrosion-resistant permanent installation points around panel perimeter, 90cm integrated cable with industry-standard MC4 quick-disconnect connectors simplifying connection to solar charge controller and battery system, maximum power voltage 18.5V and open circuit voltage 21.5V optimized for 12V battery charging through MPPT or PWM controllers, maximum power current 4.38A providing reliable continuous charging maintaining smaller auxiliary battery capacity without engine operation, short circuit current 4.87A with proper controller protection, compact 845mm × 690mm panel area maximizing solar collection in limited roof space on smaller vehicles, ultra-thin 3mm thickness creating minimal aerodynamic profile reducing wind resistance and noise compared to thick rigid panels, suitable for permanent installation on compact 4WD vehicle roofs, small wagons, motorcycles with trailers, compact caravans and camper trailers, small boats and tenders, and any space-limited installation requiring quality permanent solar charging, eliminates daily panel deployment required with portable panels providing set-and-forget automatic charging, ideal for smaller 50-75Ah battery systems and moderate consumption applications consuming 25-35Ah daily, ETFE coating resists scratching, environmental contamination, and degradation maintaining efficiency over years of outdoor exposure, flexible construction withstands vehicle vibration, roof flex, and impact from branches and debris impossible with brittle glass panels, stainless steel eyelets resist saltwater corrosion in marine applications, MC4 connectors enable professional weatherproof wiring connection to charge controller (sold separately), requires MPPT or PWM solar charge controller for battery connection preventing overcharge damage, panel generates power during all daylight hours automatically maintaining auxiliary battery eliminating alternator charging dependency, perfect for budget-conscious installations requiring quality permanent solar without oversized capacity investment, enables multi-panel installations with multiple 80W panels creating scalable solar arrays matching growing power requirements, compact dimensions fit tight roof spaces on small vehicles impossible for larger 160-200W panels, Drivetech 4x4 Australian designed for extreme outback conditions and harsh marine environments, 12-month or 20,000km warranty covering manufacturing defects, and providing essential compact permanent solar charging solution for small vehicles and space-limited installations.

Product Overview

Drivetech 4x4 DT-SPF80-1 80W Semi-Flexible Solar Panel provides permanent roof-mounted solar charging optimized for compact vehicles, smaller battery systems, and space-limited installations. 80W output with 4.38A maximum power current perfectly sized for typical 50-75Ah auxiliary battery systems and moderate consumption applications—single fridge consuming 18-28Ah daily, LED lighting (4-8Ah evening), water pump occasional use (1-2Ah), USB devices (2-3Ah). Total typical consumption 25-41Ah daily—80W panel generates 24-30Ah during optimal 6-hour sunlight maintaining battery capacity during weekend and extended camping trips. Right-sized solution avoiding over-investment in excess solar capacity for typical recreational camping requirements.

Compact 845mm × 690mm dimensions enable installation on vehicles where larger 160-200W panels physically impossible. Perfect for: compact SUVs with limited roof space, small wagons and hatchbacks, dual-cab utes with canopy roofs, pop-top caravans with limited mounting area, motorcycles with camping trailers, small tinnies and tenders, camper trailers with compact roofs. Multiple 80W panels accommodate varied roof configurations—install two 80W panels (160W total) on roofs too narrow for single 200W panel, install in gaps between roof racks and equipment, configure around roof vents and hatches impossible with large rigid panels.

Premium ETFE coating provides identical weather protection to larger semi-flexible panels. ETFE (Ethylene Tetrafluoroethylene) fluoropolymer offers exceptional UV resistance—maintains transparency and efficiency over decades of sun exposure without yellowing or degradation. Self-cleaning properties prevent dirt and dust adhesion—rain naturally cleans surface maintaining efficiency without manual cleaning. Impact resistance prevents damage from hail, branches, and debris—flexible substrate absorbs impact energy instead of shattering like glass. Saltwater corrosion resistance ideal for marine installations—ETFE resists saltwater spray and coastal environmental exposure. Compact panel receives same premium construction as larger models ensuring quality investment regardless of size.

Ideal for 50-75Ah Battery Systems: 80W output perfectly matched to smaller auxiliary battery installations common in recreational camping and weekend touring. 4.38A charging current provides approximately 24-30Ah daily recovery during optimal sunlight conditions—adequate for typical camping consumption without depleting battery. Larger 100Ah+ battery systems benefit from 160-200W panels' higher output, smaller 50-75Ah systems well-served by 80W panel's efficient charging without excess capacity. Budget-friendly entry to permanent solar charging avoiding oversized panel investment for moderate power requirements. Start with single 80W panel, add second panel later if consumption increases—modular approach matching solar capacity to actual requirements.

Compact Installation Advantages: Small 845×690mm dimensions fit tight spaces impossible for larger panels. Typical applications: compact SUV roofs with roof racks leaving 900×700mm clear space, pop-top caravan roofs with limited area between pop-top mechanism and front/rear, motorcycle trailer roofs requiring low-profile lightweight installation, small boat decks with limited mounting area, camper trailer roofs between roof vents and edges. Enables permanent solar on vehicles previously requiring portable panels due to roof space constraints. Lightweight construction minimizes added weight on small vehicles and trailers sensitive to weight increases affecting handling and fuel economy.

Multi-Panel Scalability: Multiple 80W panels create scalable solar arrays matching growing power requirements. Two 80W panels parallel-connected (160W total, 8.76A combined) adequate for larger batteries and higher consumption. Three 80W panels (240W total, 13.14A combined) approach 250W blanket performance in permanent installation. Four 80W panels (320W total) provide comprehensive power for extensive auxiliary systems. Advantages over single large panel: flexible positioning on complex roofs, distributed weight reducing stress on single mounting point, redundancy if one panel damaged or shaded, scalable investment growing with power requirements. Professional installers configure multi-panel arrays optimizing roof space utilization and cable management.

Permanent Installation Advantages: Roof-mounted solar eliminates portable panel deployment chores. Arrive at campsite—solar already working, no setup required. Leave campsite—solar secured on roof, no packing required. Panel generates power during driving and parking automatically maintaining battery. Particularly valuable for: weekend warriors requiring simple camping power without daily setup routines, compact vehicles lacking storage space for portable panels, theft-prone camping locations where permanent installation secured and less visible than portable panels, users prioritizing convenience over maximum power generation flexibility.

ETFE vs Glass Panel Comparison: ETFE flexible panels advantages—lightweight (50% lighter than glass), impact resistant (no shattering), conforms to curves, thinner profile, withstands flexing. Glass rigid panels advantages—slightly higher efficiency (1-2%), lower cost per watt, proven long-term performance (20+ years documented). For compact mobile applications (small vehicles, motorcycles, compact caravans, small boats), flexible panels superior due to weight savings, impact resistance, curved surface mounting, and space efficiency. 80W semi-flexible panel perfect for applications where weight and size constraints critical.

Stainless Steel Eyelet Mounting: Eyelets around panel perimeter provide multiple mounting points enabling secure attachment to various roof profiles. Typical installation: marine-grade VHB adhesive tape bonding panel to clean roof surface, optional eyelet fasteners through roof (with proper sealing) for high-security mounting, or combination approach (adhesive primary, eyelets backup). Stainless steel resists corrosion from weather exposure and saltwater spray. Mounting flexibility accommodates different roof materials—painted metal, fiberglass, aluminum, composite—with appropriate adhesives and fasteners. Smaller panel requires fewer mounting points simplifying installation and reducing roof penetration concerns.

MC4 Connector Integration: Industry-standard MC4 connectors simplify professional solar installation wiring. MC4 connectors weatherproof, secure, and tool-free connection/disconnection (with proper MC4 tools). Connect panel MC4 output to solar charge controller MC4 input, controller output to battery. MC4 system enables series/parallel panel connections for multi-panel installations—parallel connection increases current (2× 80W = 8.76A), series connection increases voltage (2× 80W = 37V, suitable for MPPT controllers). MC4 compatibility ensures professional installation standards and future expandability adding panels as requirements grow.

Requires Separate Charge Controller: Panel does not include charge controller—designed for permanent installations with separate MPPT or PWM controller. PWM controller economical for single 80W panel (10A PWM adequate), MPPT controller recommended for multi-panel arrays or maximum efficiency applications. Controller prevents overcharging, regulates charging voltage, and prevents reverse discharge at night. Never connect panel directly to battery—21.5V open circuit voltage exceeds safe battery charging voltage causing damage. Single 80W panel PWM controller acceptable cost-effective solution, multiple 80W panels benefit from MPPT technology maximizing combined output.

Professional Installation Recommended: Roof-mounted solar installation requires: roof penetration sealing (if fastening through roof), proper adhesive selection, cable routing through vehicle/boat, charge controller installation and wiring, waterproofing and strain relief. Professional installers ensure watertight installation preventing leaks and corrosion. Competent DIY installers achieve successful results with careful planning, proper materials, and attention to waterproofing details. Critical: test installation with water hose before finalizing—identify leaks early preventing interior damage. Smaller 80W panel simplifies DIY installation compared to large heavy panels requiring additional handling precautions.

Drivetech 4x4 Quality and Support: Drivetech 4x4 Australian designed for extreme outback conditions and harsh marine environments. Components engineered for mobile installation vibration and environmental exposure. 12-month or 20,000km warranty providing peace of mind. Australian-based technical support assisting with installation planning and technical questions. Quality assurance for critical permanent installations regardless of panel size—80W panel receives identical construction quality as premium 200W models.

Technical Specifications

SKU DT-SPF80-1
Product Type Semi-Flexible Solar Panel
Brand Drivetech 4x4
Maximum Power Output 80W
Maximum Power Voltage 18.5V
Maximum Power Current 4.38A
Open Circuit Voltage 21.5V
Short Circuit Current 4.87A
Panel Construction ETFE coating with anti-crack film
Cell Type Monocrystalline
Panel Dimensions 845mm (L) × 690mm (W) × 3mm (H)
Panel Thickness 3mm (ultra-thin)
Bend Radius Up to 30 degrees
Mounting Stainless steel eyelets (adhesive + fasteners)
Cable Length 90cm (4mm²)
Connector Type MC4 (industry standard)
Weight Lightweight compact design
Charge Controller Not included (PWM or MPPT required)
Weather Resistance ETFE coating (UV resistant, waterproof)
Ideal Battery Size 50-75Ah auxiliary batteries
Daily Generation 24-30Ah (optimal 6-hour sunlight)
Warranty 12 months or 20,000km
Applications Compact Vehicle Roof, Small Caravan, Motorcycle Trailer, Small Boat, Space-Limited Installations
Installation Type Permanent mounting (adhesive and/or fasteners)

Frequently Asked Questions

Q: Is 80W enough solar power for my camping needs?

A: 80W adequate for moderate consumption camping with single fridge and basic accessories. Calculate daily consumption: fridge 3A × 24 hours × 30-40% duty cycle = 18-24Ah, LED lighting 2A × 4 hours = 8Ah, water pump occasional = 1Ah, USB devices = 2-3Ah. Total 29-36Ah daily—80W panel generates 24-30Ah optimal conditions maintaining battery during weekend camping with occasional DC-DC charging during driving. Adequate for: weekend camping (Friday-Sunday), single fridge installations, 50-75Ah batteries, moderate consumption habits. Insufficient for: dual fridges, extensive inverter use, large 100Ah+ batteries, high consumption exceeding 40Ah daily. If consumption consistently exceeds 35Ah, consider 160W panel providing faster recovery and higher margin. If consumption below 30Ah, 80W provides excellent value without oversized capacity investment.

Q: Can I install multiple 80W panels together for more power?

A: Yes, multiple 80W panels create scalable solar array matching roof space and power requirements. Configuration examples: two 80W panels parallel (160W total, 8.76A combined) adequate for larger batteries and higher consumption, three 80W panels parallel (240W total, 13.14A combined) providing substantial charging capability, four 80W panels (320W total) comprehensive power for extensive systems. Parallel connection using MC4 Y-branch connectors combining current while maintaining 18.5V voltage. Requires charge controller sized for total current—two panels require 10-15A controller, three-four panels require 15-20A controller. Multi-panel approach advantages: flexible positioning on complex roofs, distributed weight, scalable investment. Example application: compact caravan with 900mm × 1400mm roof area—impossible for single 200W panel (1520×680mm) but perfect for two 80W panels side-by-side creating 160W array with optimal space utilization.

Q: What size charge controller do I need for this 80W panel?

A: Single 80W panel requires minimum 10A charge controller (4.38A panel output plus safety margin). Recommended controllers: 10A PWM (economical, adequate for single panel) or 10-20A MPPT (maximum efficiency, enables future expansion). PWM controller examples: basic 10A PWM solar controller ($50-100 typical), adequate for single 80W panel budget installation. MPPT controller examples: 10-15A MPPT units ($150-250), extract 15-30% more power worth investment for premium applications or multi-panel future expansion. For multiple panels: two 80W panels require 10-15A controller, three-four panels require 15-20A controller. MPPT strongly recommended for multi-panel arrays maximizing combined output. Ensure controller voltage rating accommodates panel voltage (21.5V open circuit requires controller rated minimum 25V input, typical controllers 50-100V adequate).

Q: Will this panel fit on my compact SUV or small caravan roof?

A: 845×690mm dimensions fit most compact vehicles and caravans. Typical fitment: compact SUVs with roof racks leaving 900×700mm clear space—perfect fit, small wagons with 1000×700mm roof area—adequate space with margin, pop-top caravans with limited roof area between pop-top mechanism—often suitable, motorcycle trailers with 1000×800mm roofs—excellent fit with space remaining, small boats with limited deck space—appropriate size for compact installations. Measure available roof space before ordering: length × width clear area, account for roof racks, vents, hatches, antennas, and other obstructions. Panel requires approximately 850×700mm minimum clear area plus margin for mounting and cable routing. Professional installers assist with measurements and positioning optimization.

Q: Can I use this for marine applications on small boats?

A: Yes, 80W semi-flexible panel ideal for small boat applications—tinnies, tenders, small sailboats, dinghies requiring compact reliable solar charging. ETFE coating resists saltwater spray and marine environmental exposure. Stainless steel eyelets prevent corrosion in harsh saltwater environment. Flexible construction withstands boat flex and impact from waves and docking. Compact size fits limited deck space on small boats where larger panels impractical. Marine installation considerations: position panel avoiding foot traffic and equipment storage areas, secure mounting preventing movement during rough water, cable routing through deck glands with proper waterproofing, charge controller installation in protected location (cabin, battery compartment) avoiding direct water exposure. 80W output adequate for maintaining house battery, running navigation lights, charging electronics, and powering bilge pump on small recreational boats. Insufficient for liveaboard vessels requiring comprehensive power—consider multiple 80W panels or larger 160-200W panels for extensive marine systems.
