Drivetech4X4 DTSB200 200W Foldable Solar Blanket

Description

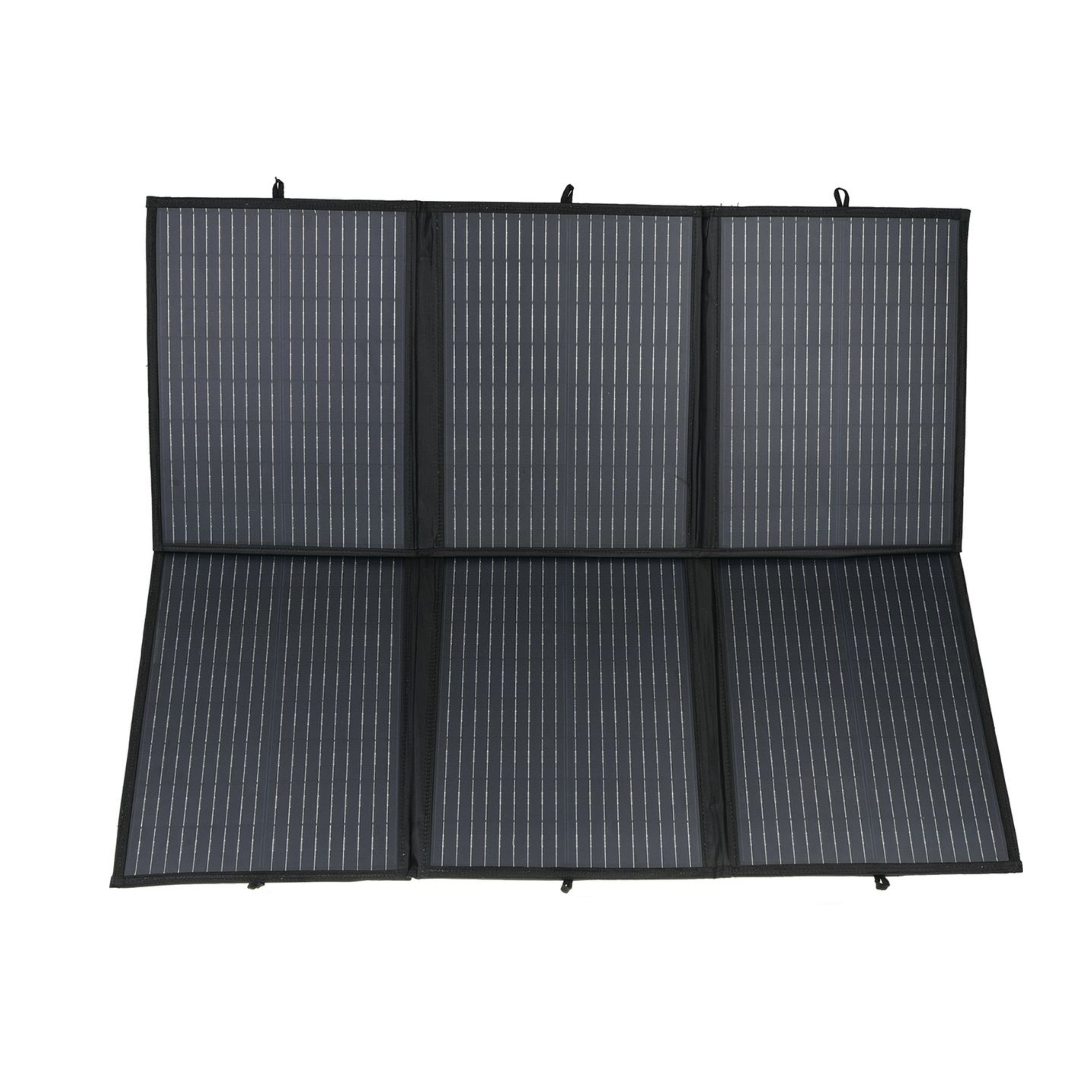

200W Foldable Solar Blanket


High-quality, lightweight solar panels and solar blankets designed for camping and 4WD off-roading.
Backed by a 12-month guarantee and crafted with high-quality, lightweight and durable materials, you can be sure it will last the distance.
Each panel is manufactured with monocrystalline solar cells which provide better sunlight absorption and more power when compared to traditional polycrystalline panels. Ideal for caravans, camper trailers, boats and 4x4s.
Features:

  • Monocrystalline

  • PWM regulator

  • Open measurements 1110 x 1105 x 5mm

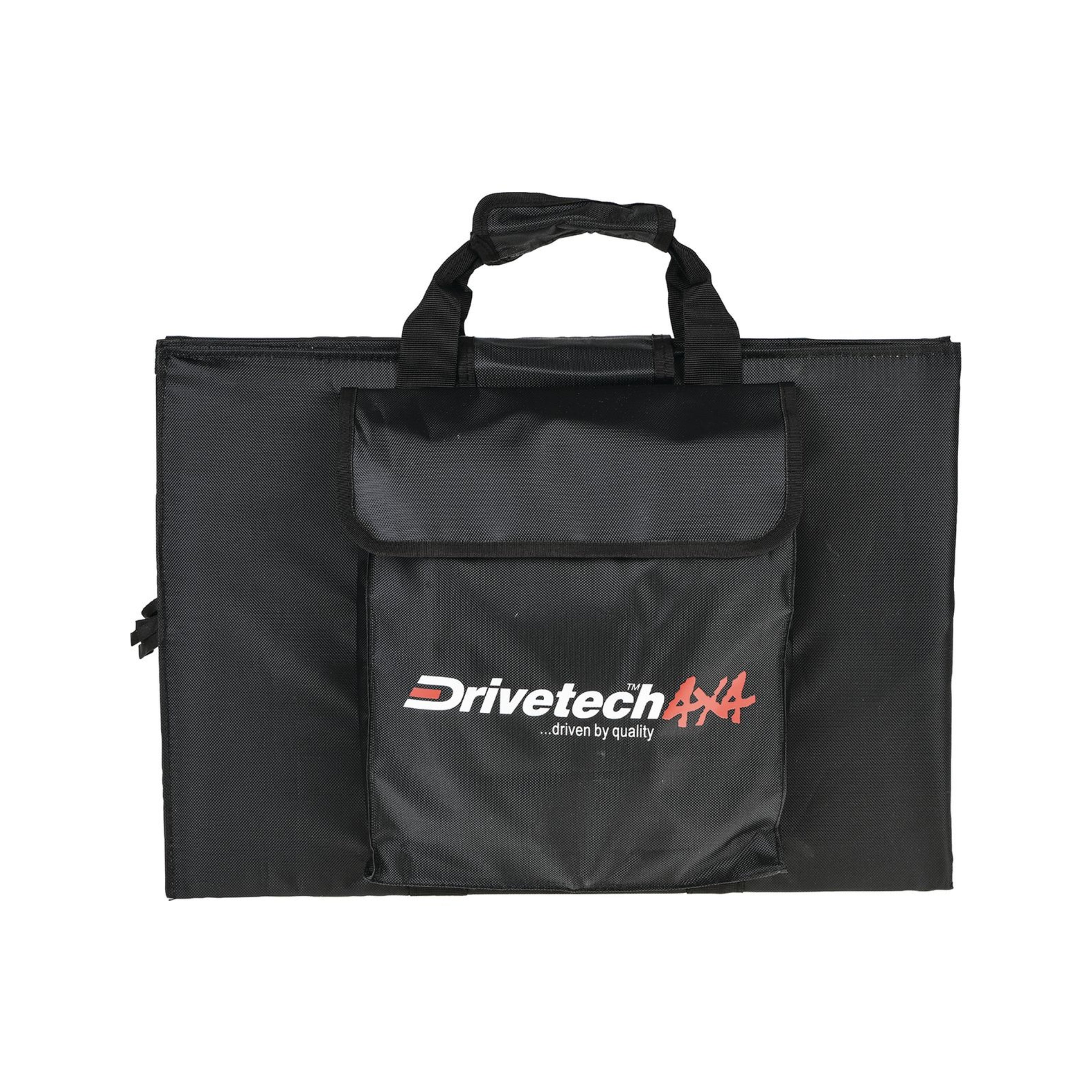

  • Closed measurements 530 x 385 x 105mm

  • Open circuit voltage 22.1V

  • Short Circuit current 11.53A

  • Portable, compact and lightweight, the 200W Foldable Solar Blanket is the perfect way to charge your batteries while allowing you to power your inverter, fridge, lights and mobile devices


Specifications:

  • Part Number: DTSB200

  • Rated Maximum Power (PM): 200W

  • Voltage at Pmax VMP: 18.70V

  • Current at Pmax IMP: 10.86A

  • Open-Circuit Voltage VOC: 22.51V

  • Short-Circuit Current ISC: 11.53A

  • Maximum Series Fuse Rating: 20A

  • Dimensions (Open): 1100x1105x5mm (HxWxD)

  • Dimensions (Closed): 530x385x105mm (HxWxD)

  • Solar Cell Type: Monocrystalline

  • Tolerance: ¬± 3%

  • Normal Operating Cell Temp (NOCT): 47 ¬± 2¬∞C

  • Maximum System Voltage: 1000VDC

  • Operating Temperature Solar Blanket: -40¬∞C to +85¬∞C

  • Connections: 50A Power Connectors

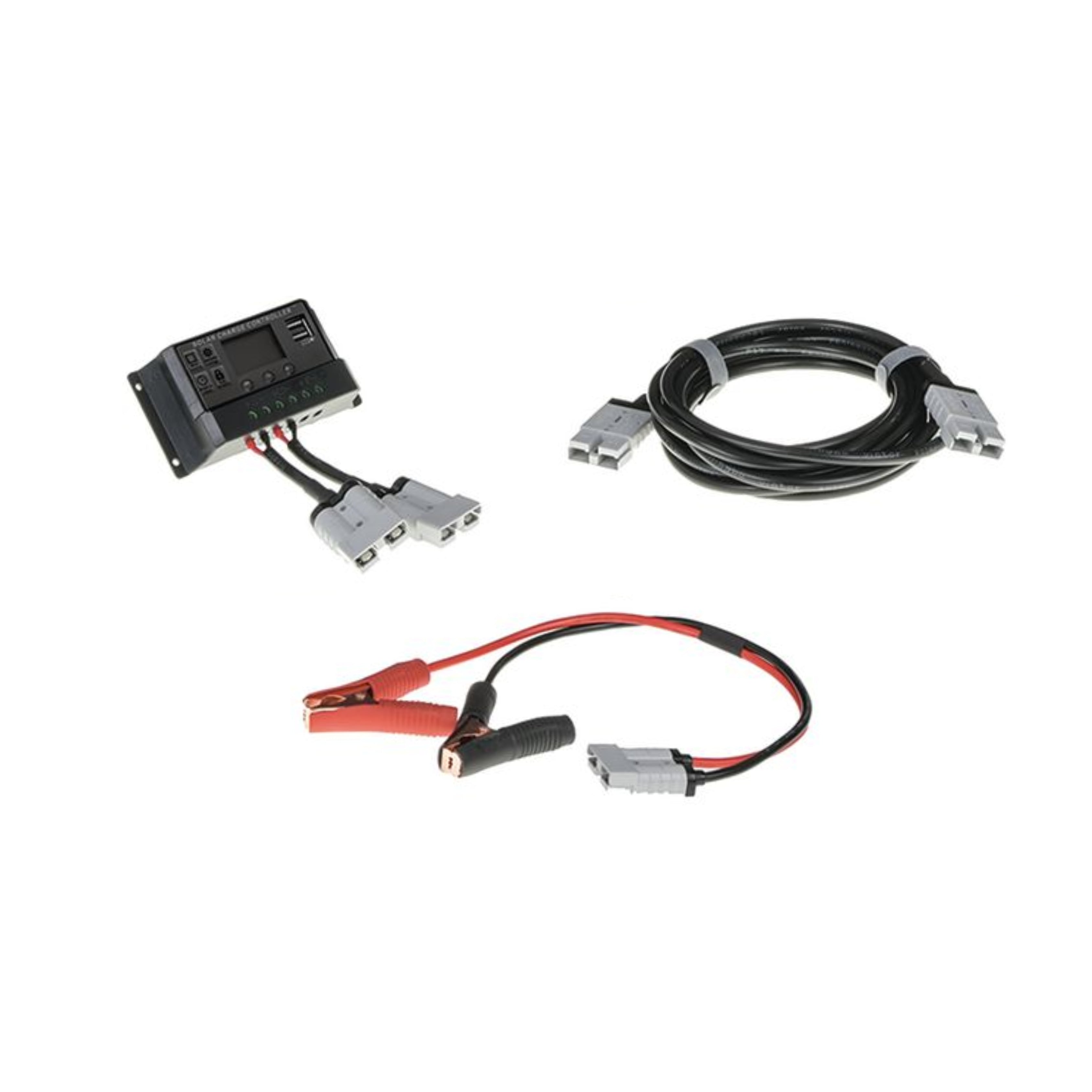

  • Regulator Type: PWM (pulse width modulation)

  • Regulator Current Rating: 20A

  • Maximum Regulator Voltage Input: 50V

  • Float Charge: 13.7V - Default, Adjustable

  • Discharge Stop: 10.7V - Default, Adjustable

  • Discharge Reconnect: 12.6V - Default, Adjustable

  • USB Output: 5V 3A

  • Kit Weight Including Panel and Accessories: 5.95kg


Legendary Products & Support From Authorized Dealers

When you choose Drivetech4X4, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized Drivetech4X4 dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by Drivetech4X4's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized Drivetech4X4 dealer today!
