Description

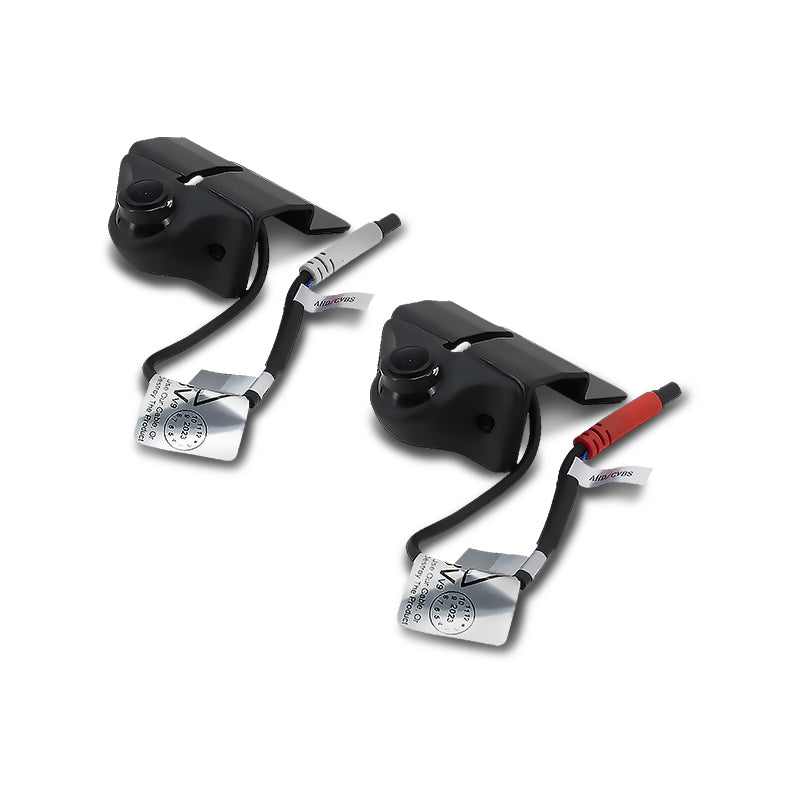

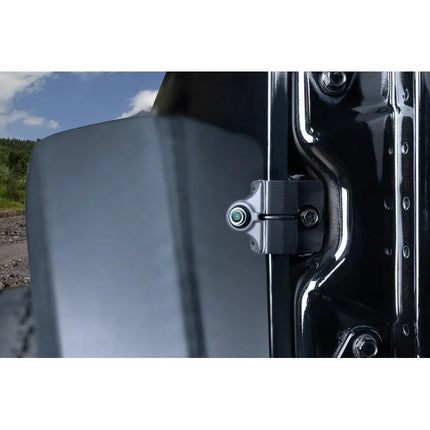

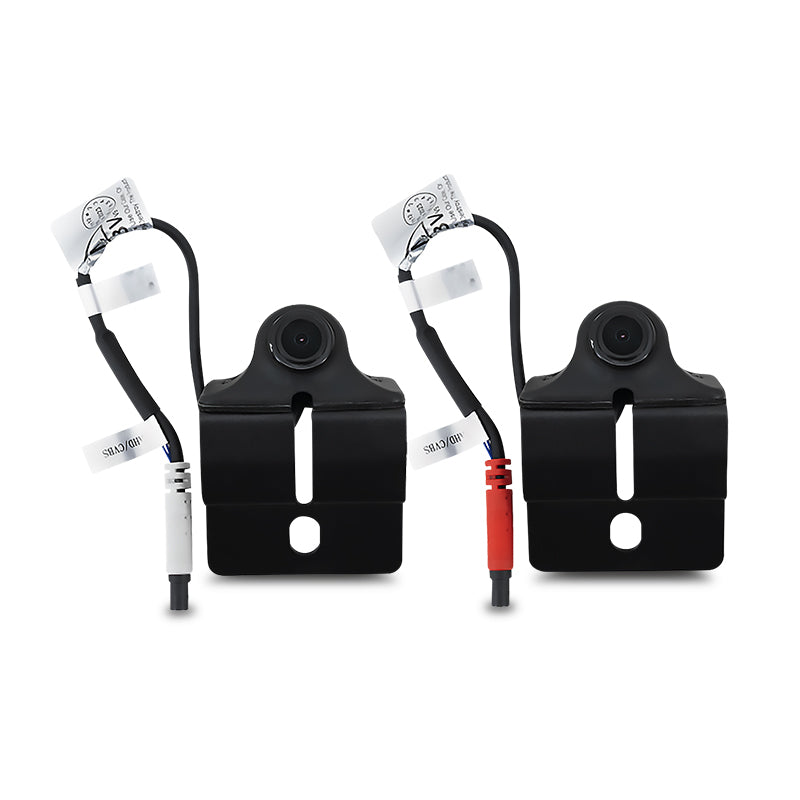

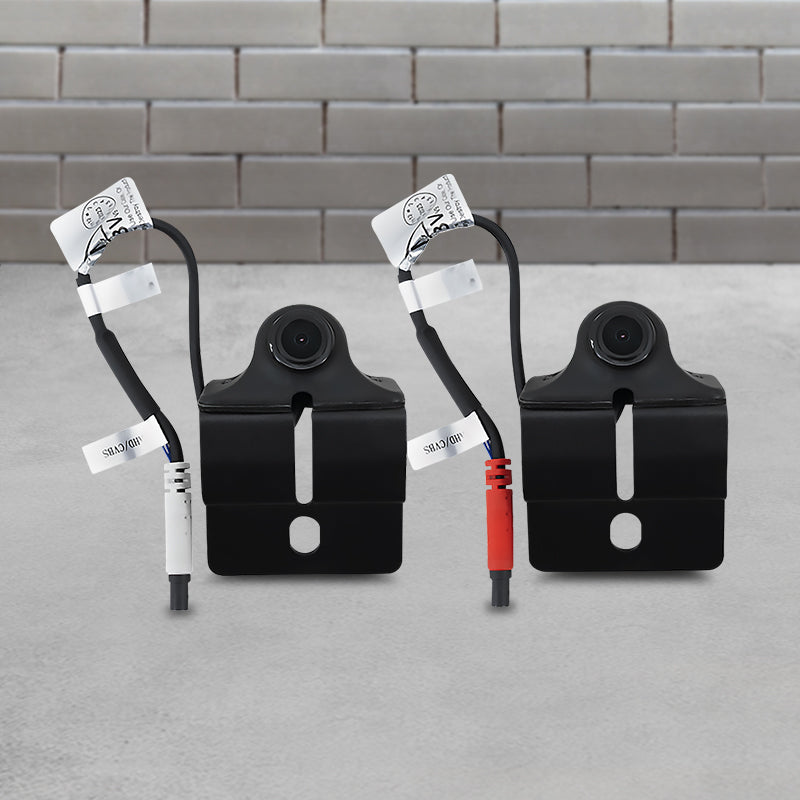

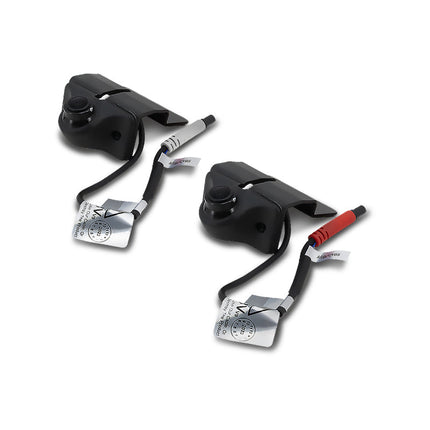

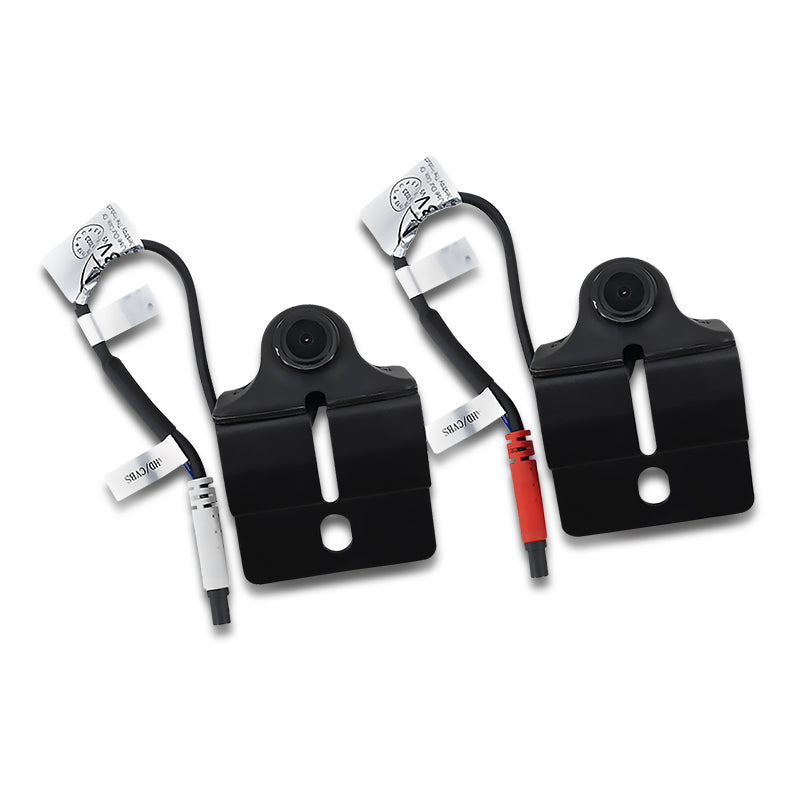

Echomaster HDBJK Blind Spot Camera Kit Suitable for Jeep Wrangler JK
Enhance your driving confidence and safety with the Echomaster HDBJK Blind Spot Camera Kit — designed for seamless installation on Jeep Wrangler JK and JKU models.
The Echomaster Blind Spot Camera Kit provides a clear view of your vehicle’s sides, reducing blind spots and improving lane change safety. Perfect for off-road adventures or city driving, this kit is designed for simple installation with pre-assembled vehicle-specific brackets and cameras. Whether your Jeep’s doors are on or off, you’ll have dependable visibility when it matters most.
Key Features & Benefits:
-
Added Safety: Gain better side visibility to avoid dangerous lane changes and improve situational awareness.
-
Works With Doors On or Off: Perfect for Jeep Wrangler JK and JKU owners who frequently go doorless.
-
Pre-Assembled Kit: Includes cameras, brackets, and harnesses for straightforward installation.
-
Standard 5-Pin Echomaster Connector: Comes with a 6.9ft extension harness for flexible setup.
-
Reversible Installation: Mount without permanent modifications to the vehicle.
-
Foam-Backed Mounts: Protects your Jeep’s paint during installation.
-
Selectable AHD or Composite Video Output: Compatible with aftermarket monitors and Echomaster’s HEIGH10® system.
-
Compatible With Multiple Displays: Works with any monitor featuring a composite NTSC input (AVS41 adapter required, sold separately).
-
Durable & Reliable: IP67 waterproof rating, rugged design, and a 3-year warranty.
Technical Specifications:
-
Model: HDBJK
-
SKU: HDBJK
-
Brand: Echomaster
-
Type: Blind Spot Camera Kit
-
Resolution: AHD 720P (selectable) / CVBS 480P (selectable)
-
Sensor: CMOS
-
Viewing Angle: 80°
-
Image Options: Mirrored or non-mirrored (selectable)
-
Parking Lines: On/Off selectable
-
Light Sensitivity: Operates at 0.1 LUX
-
Water/Dust Resistance: IP67 rated
-
Output Formats: AHD / Composite NTSC
-
Compatibility: Jeep Wrangler JK (2-door) and JKU (4-door)
-
Warranty: 3 years

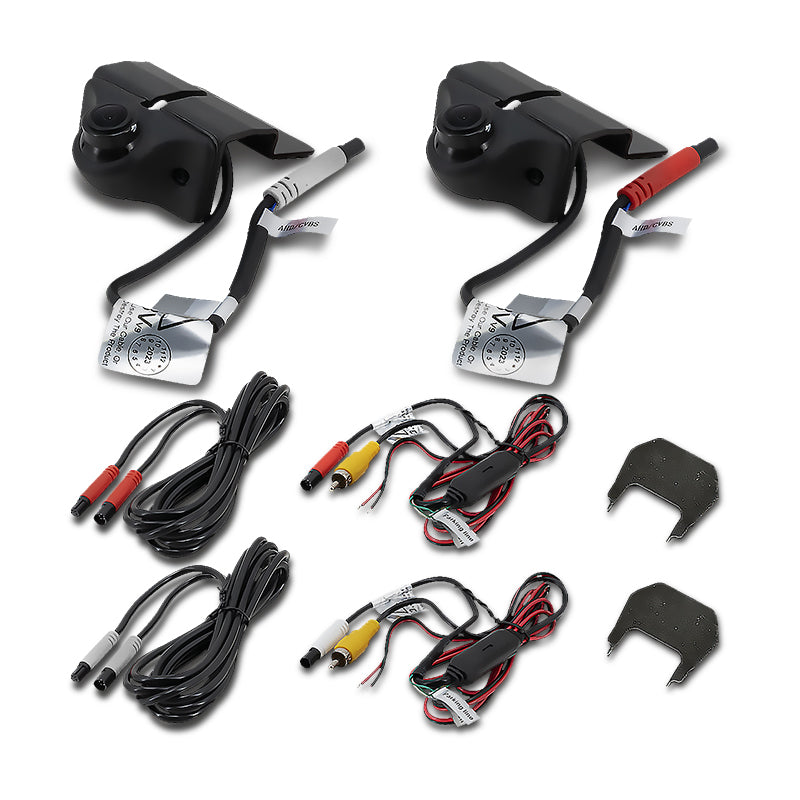

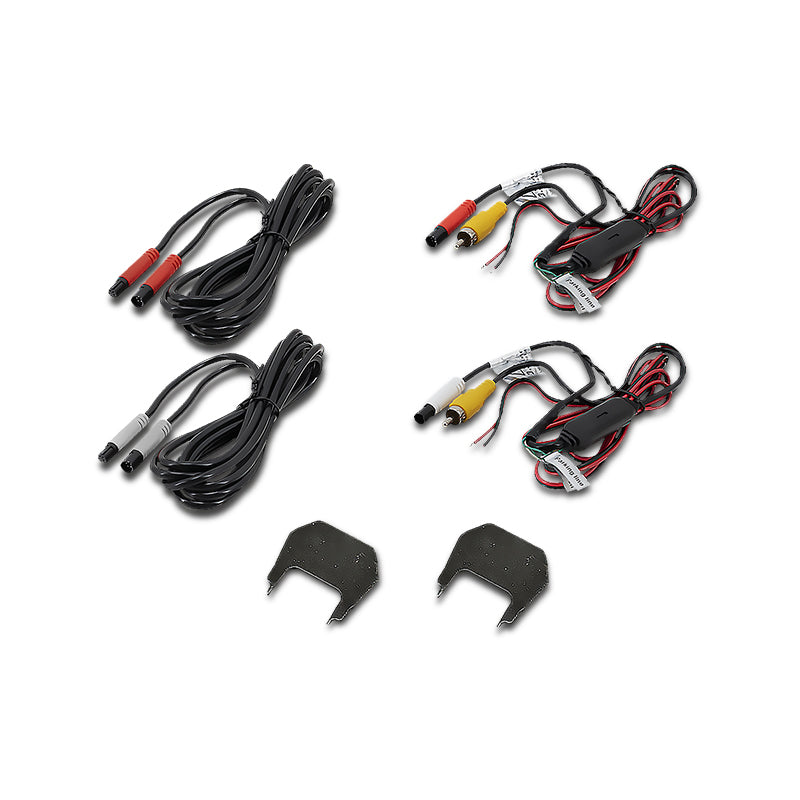

What's Included in the Kit:
- 2x Blind Spot Cameras
- 2x Mounting Brackets
- 2x Camera Extension Cables
- 2x Camera Power/Video Adapters
- 1x U-Shaped Camera Angle Adjustment Tool
- 1x Warranty Card
Installation Applications:
-
Blind Spot Monitoring: Reduce dangerous lane-change blind spots.
-
Off-Road Visibility: Improve side awareness when tackling challenging trails.
-
Customizable Setup: Works with Echomaster HEIGH10® or any compatible aftermarket display.
Frequently Asked Questions
-
Will this work if I remove my Jeep’s doors?
Yes, the kit is designed for full functionality with or without doors installed.
-
Is this kit pre-assembled?
Yes, it includes pre-mounted cameras and brackets for fast installation.
-
Can I connect these cameras to an aftermarket display?
Yes, they work with compatible monitors and the Echomaster HEIGH10®. An AVS41 adapter is required for composite NTSC monitors (sold separately).
-
Is it weatherproof?
Yes, the cameras have an IP67 rating for dust and water protection.
-
Does it come with a warranty?
Yes, it includes a full 3-year Echomaster warranty for peace of mind.
