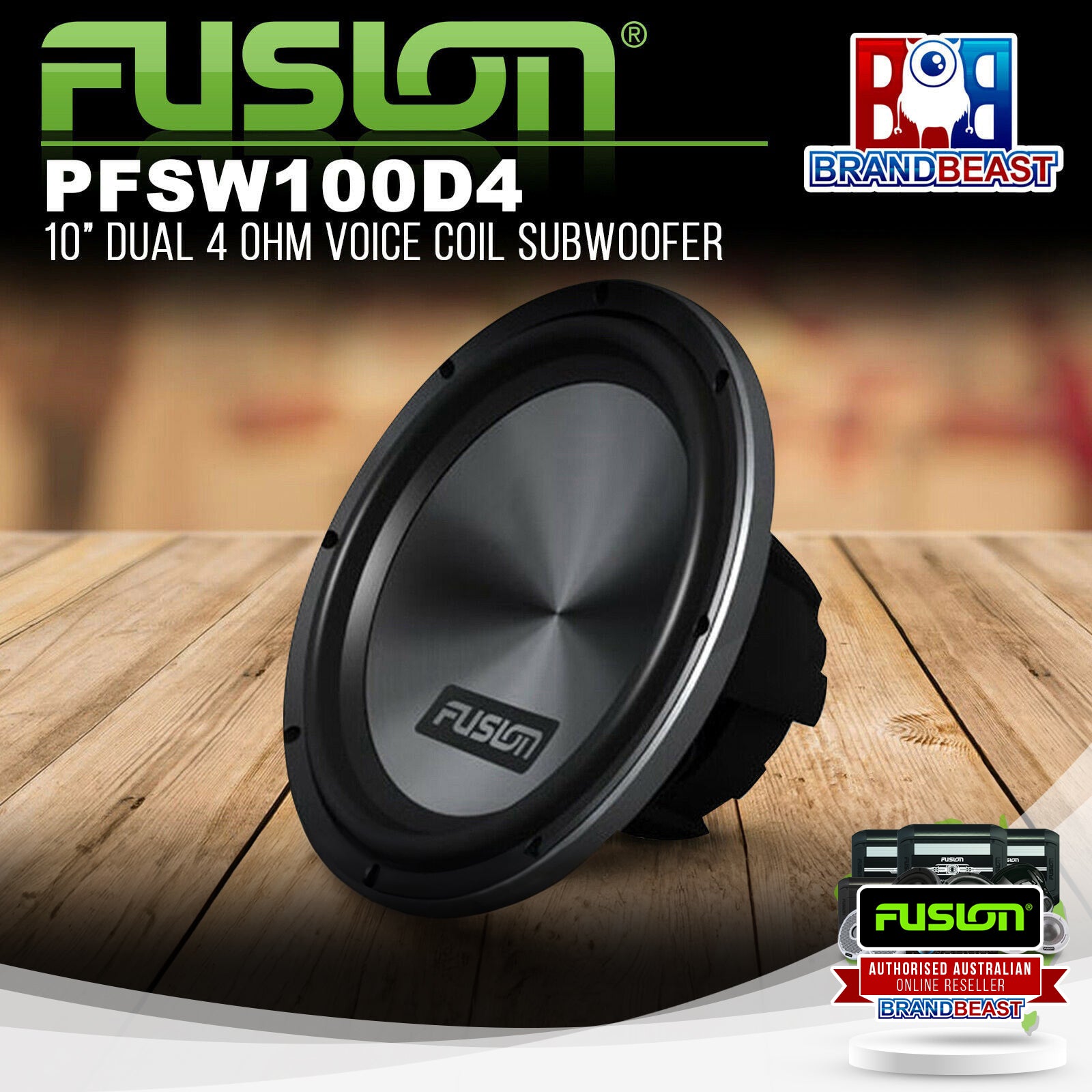

Fusion PF-SW100D4 10" Dual 4 Ohm Voice Coil Subwoofer

Description

10” Dual 4 Ohm Voice Coil Subwoofer

Specifications:
  • Peak Power (Watts) 1400
  • Rated Power (Watts) 350
  • Frequency Response 38Hz - 1.5kHz
  • Sensitivity (dB) 87
  • Cone Size 10"
  • Cone Material Pressed Paper
  • Surround Material Butyl Rubber
  • Basket Pressed Steel
  • D.C. Coil Resistance (Re) (?) 4.18 Ohms
  • Free Air Resonance (Fs) 45.30
  • Cone Area (SD) (cm¬≤) 356.33
  • Cone Area (SD) (In¬≤) 55.23
  • Linear Excurson (XMAX) (mm) 6.00
  • Linear Excurson (XMAX) (In) 0.24
  • Mechanical Excursion (mm) 9.00
  • Mechanical Excursion (In) 0.35
  • VAS (L) 19.31
  • VAS (CUFT) 0.07
  • Compliance (CMS) (?M/N) 107.00u M/N
  • Force Factor (BI) (TM) 12.73
  • Mechanical Q (QMS) 2.72
  • Electrical Q (QES) 0.84
  • Total Loudspeaker Q (QTS) 0.64
  • Voice Coil Impedance 2 x 4 Ohm
  • Mounting Depth 145mm (5-11/16")
  • Mounting Diameter 230mm (9-1/16")
