Description

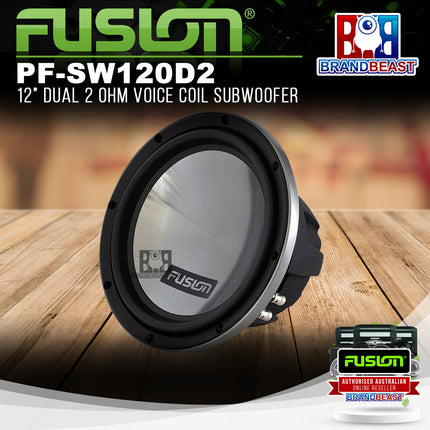

Fusion PF-SW120D2 12” Dual 2 Ohm Voice Coil Subwoofer
The Performance subwoofer range delivers massive bass performance. A carefully balanced Bi-Spatial composite cone and full excursion butyl rubber surround combined with the ultimate in motor assembly construction, results in a subwoofer package that delivers ground-shaking performance on all fronts.
The Dual 2 Ohm voice coil configuration offers versatility when creating the optimum load for your FUSION amplifier, ensuring maximum output is delivered for higher SPL. This 12" Subwoofer delivers a massive 1600 Watts of power, now thats high performance!!
Engineered with thermally efficient exhaust vents to diffuse heat and offer greater reliability and higher power handling, the Performance subwoofer range is designed for the true audio enthusiast. Great Looks, Easy Installation and Thumping Bass, there's nothing quite like the FUSION Performance Series.
Fusion PF-SW120D2 Specifications:
- Peak Power (Watts) 1600
- Rated Power (Watts) 400
- Frequency Response 30Hz - 1.2kHz
- Sensitivity (dB) 89
- Cone Material Pressed Paper
- Surround Material Butyl Rubber
- Basket Pressed Steel
- D.C. Coil Resistance (Re) (?) 4.47 Ohm
- Free Air Resonance (Fs) 38.30
- Cone Area (SD) (cm²) 530.93
- Cone Area (SD) (In²) 82.29
- Linear Excurson (XMAX) (mm) 6.00
- Linear Excurson (XMAX) (In) 0.24
- Mechanical Excursion (mm) 9.00
- Mechanical Excursion (In) 0.35
- VAS (L) 44.69
- VAS (CUFT) 1.58
- Compliance (CMS) (?M/N) 112.00u M/N
- Force Factor (BI) (TM) 14.04
- Mechanical Q (QMS) 2.93
- Electrical Q (QES) 0.84
- Total Loudspeaker Q (QTS) 0.65
- Voice Coil Impedance 2 x 2 Ohm
- Mounting Depth 158mm (6-1/4")
- Mounting Diameter 279mm (11")
