Description

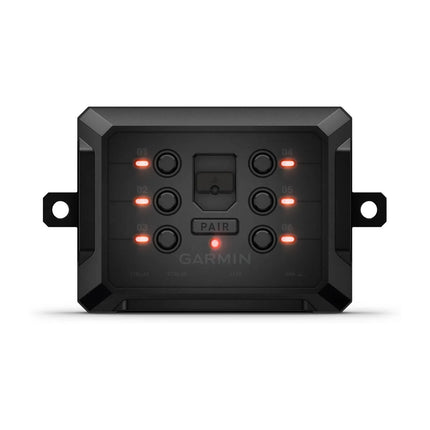

Garmin 010-02466-00 PowerSwitch Digital Switch Box 6-Output Bluetooth 12V
A compact Bluetooth digital switch box providing centralised wireless control of up to six 12V vehicle accessories from a compatible Garmin navigator or smartphone app, the Garmin 010-02466-00 PowerSwitch delivers six switch outputs at up to 30 amps each, IPX7 weather resistance, and in-dash connectivity via Apple CarPlay and Android Auto.
Product Overview

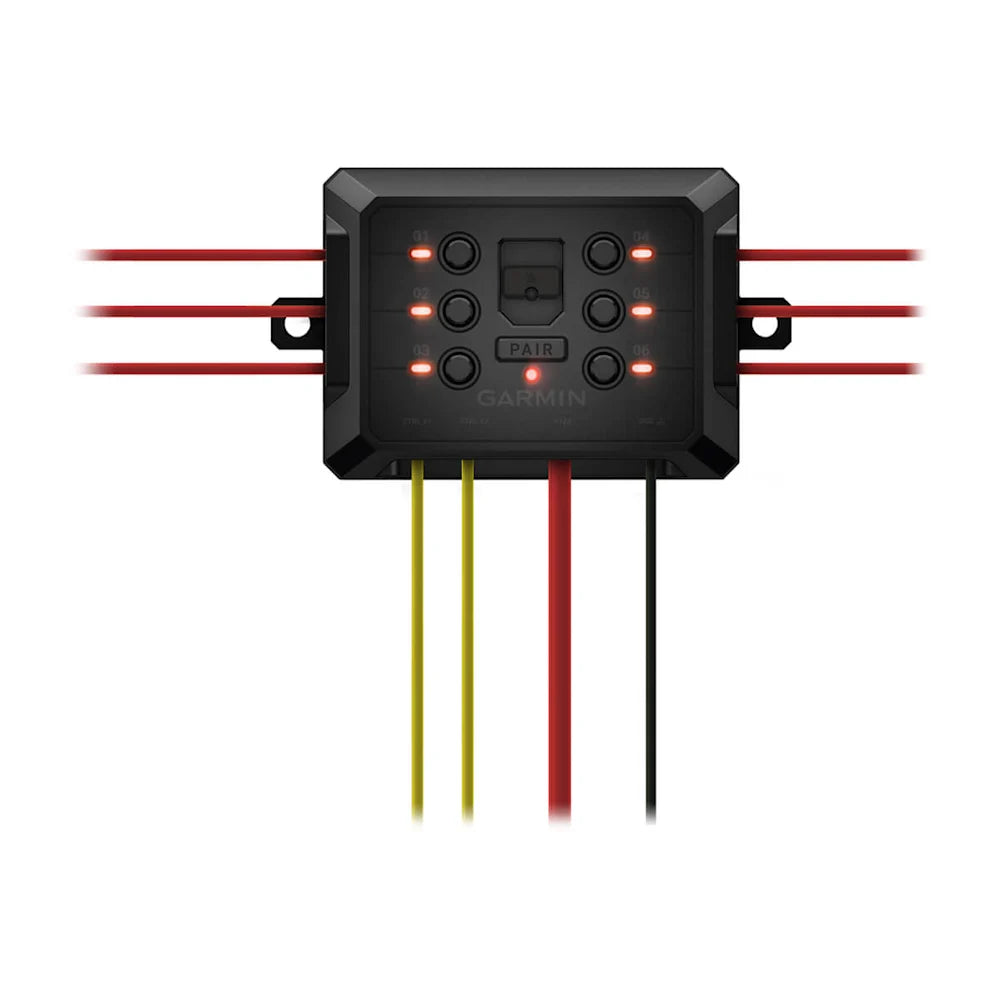

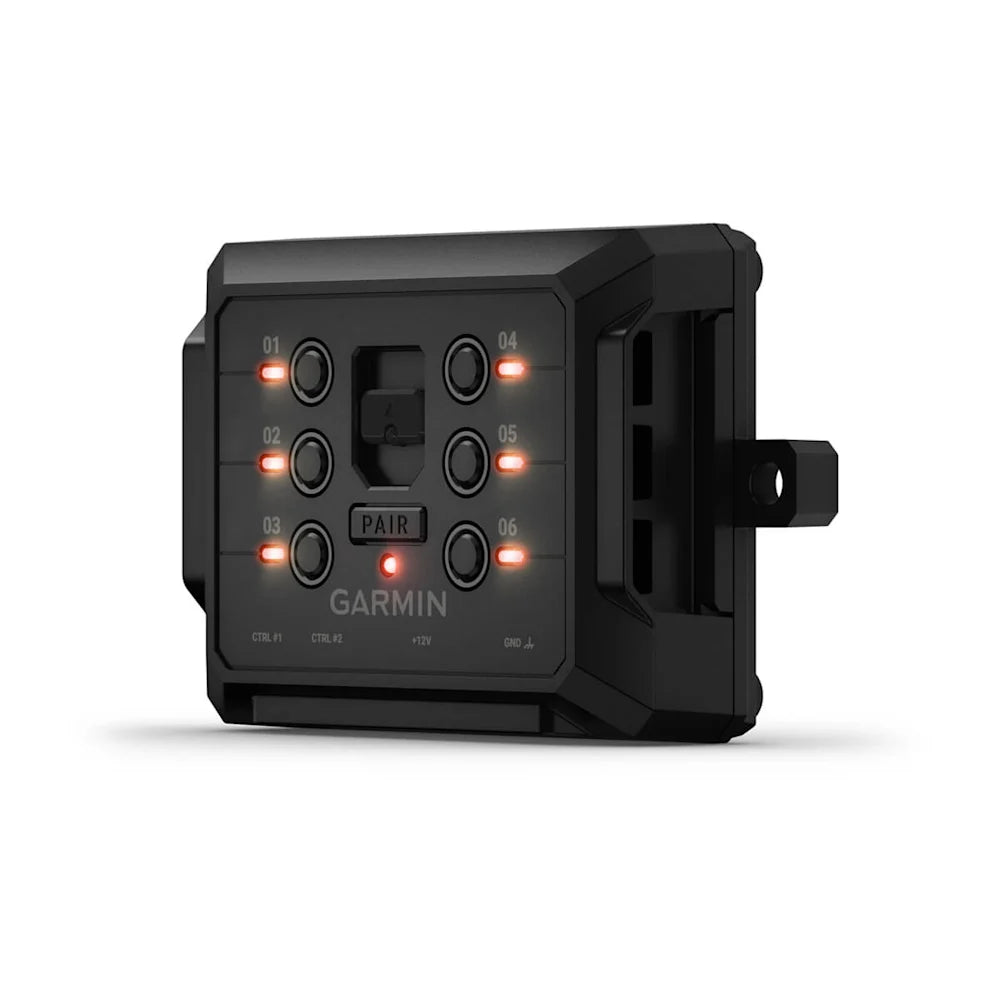

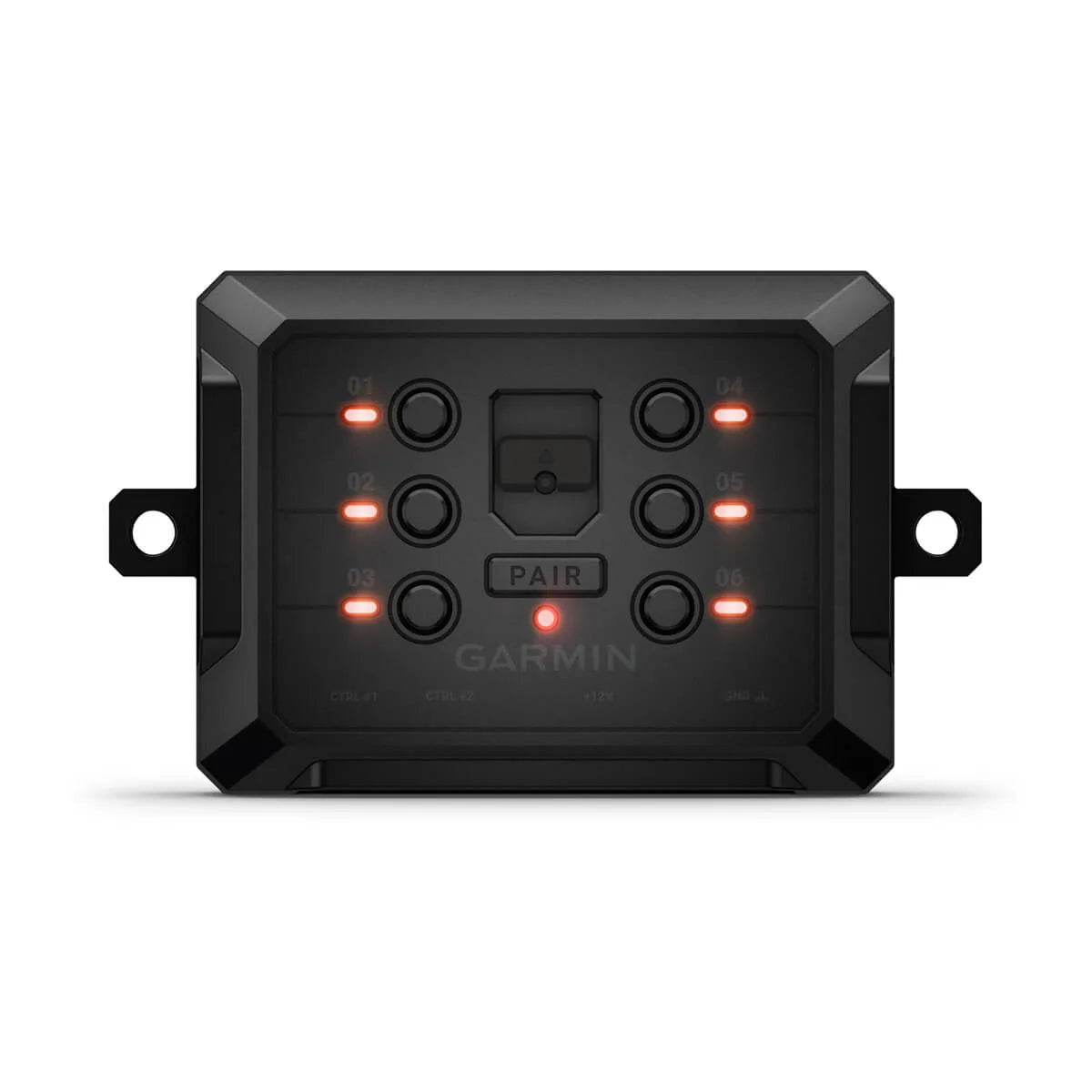

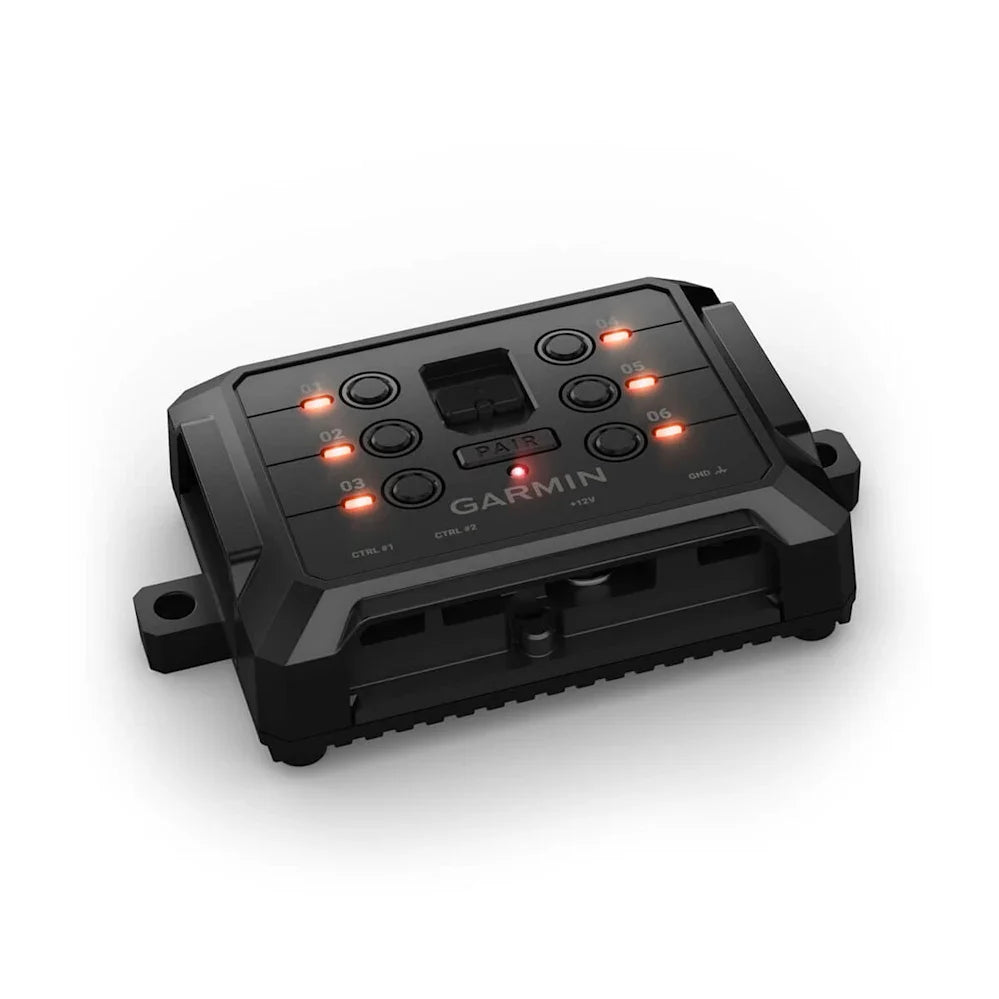

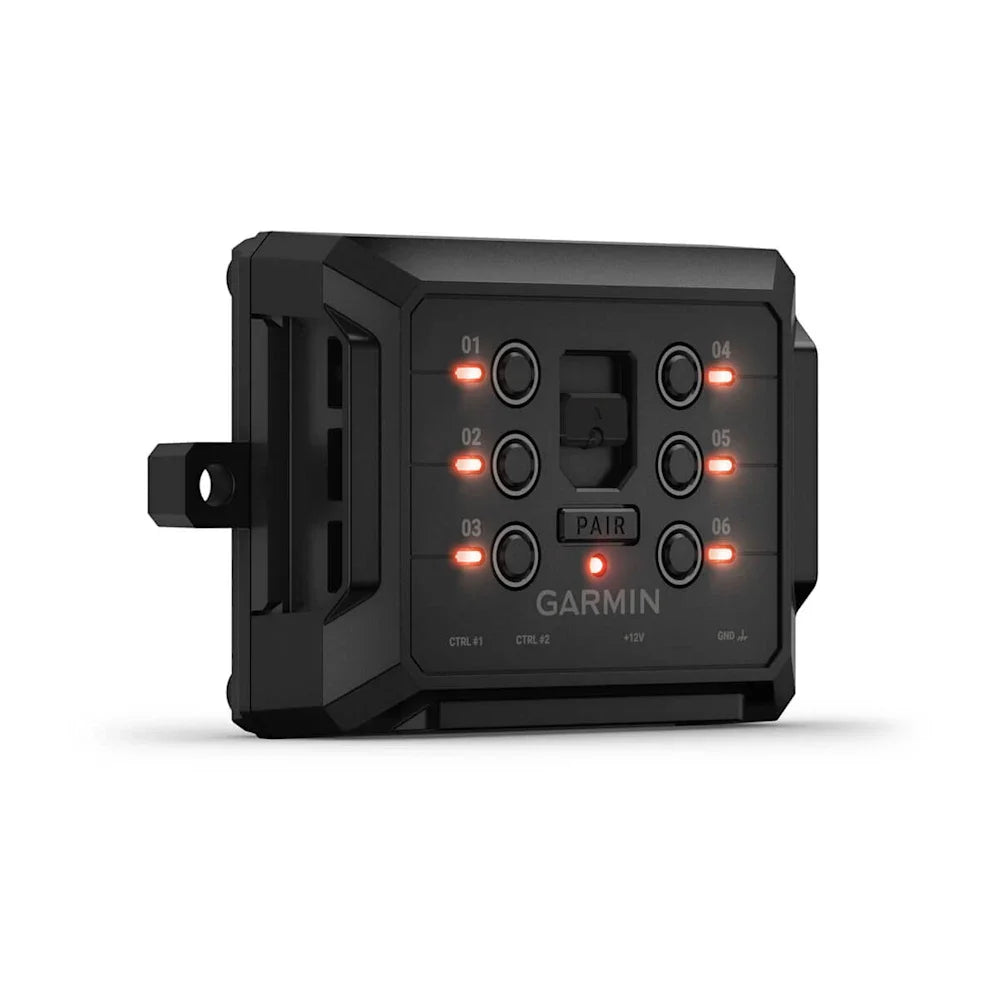

The Garmin 010-02466-00 PowerSwitch is a digital switch box that replaces traditional manual switch panels with wireless touchscreen control of up to six 12V accessory circuits from a compatible Garmin navigator or smartphone running the Garmin PowerSwitch app. Each of the six switch outputs is rated at up to 30 amps, with a total system capacity of 100 amps across all outputs. Installation requires no cutting into the dashboard or routing wires through the firewall, and does not interfere with existing vehicle electronics.
Control is via Bluetooth wireless connectivity to compatible Garmin navigators or smartphones. Up to four controllers can be paired to one PowerSwitch device, and up to four PowerSwitch devices can be controlled from a single controller. The Garmin PowerSwitch app supports Apple CarPlay and Android Auto, allowing switching functions to be accessed from a compatible in-dash infotainment display. Two hardwire control inputs accept signals from 3.3V to 18V for automatic output triggering, such as connecting the vehicle ignition to turn accessories on automatically at startup. Custom virtual switch panels with labels, icons, channel groups, dimming, and flashing controls are configurable through the app.
The 010-02466-00 measures 12.5 x 3.2 x 7.5cm and weighs 283g, providing a compact footprint suited to mounting in side-by-sides, UTVs, ATVs, 4WDs, and snowmobiles. The unit is IPX7 weather resistant. The Garmin 010-02466-00 PowerSwitch is not intended for controlling motors with reverse polarity.
Features & Benefits
Six 30-Amp Switch Outputs - 100 Amps Total: The 010-02466-00 provides six independent switch outputs rated at up to 30 amps each, with a combined total capacity of 100 amps, allowing a wide range of 12V accessories including light bars, compressors, refrigerators, and communication radios to be controlled from a single device.
Bluetooth Wireless Control via Compatible Garmin Navigator or Smartphone: The 010-02466-00 connects to compatible Garmin navigators or smartphones via Bluetooth, enabling wireless touchscreen control of all six outputs without physical switch panels or dashboard modifications.

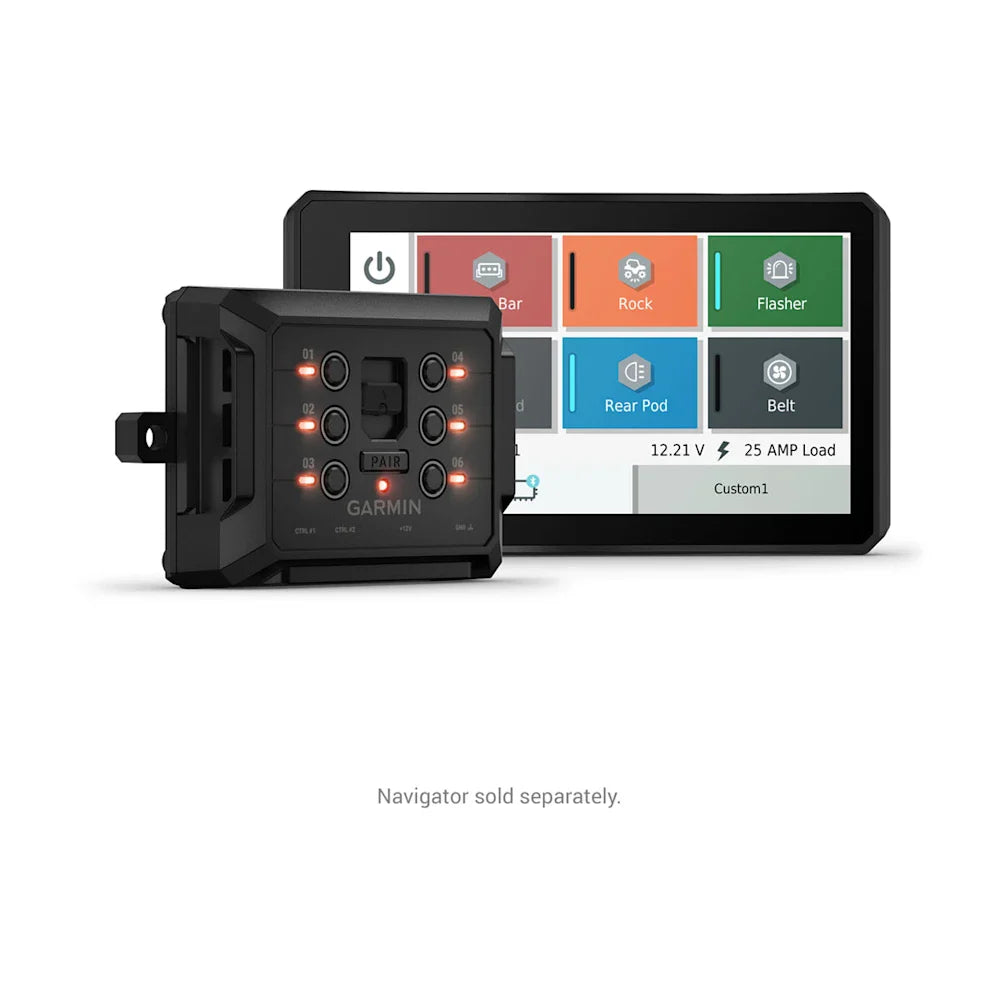

Garmin PowerSwitch App with Apple CarPlay and Android Auto Support: The Garmin PowerSwitch app enables control of switching functions and provides in-dash connectivity via Apple CarPlay and Android Auto on compatible in-dash infotainment displays, keeping accessory control accessible within the driver's existing touchscreen environment.
Two Hardwire Control Inputs: The 010-02466-00 includes two hardwire control inputs that detect signals from 3.3V to 18V to trigger customisable outputs automatically. Common applications include connecting the vehicle ignition switch to automatically activate accessories at startup.
Up to Four Controllers and Four Devices: Up to four controllers can be paired to one PowerSwitch device, and a single controller can manage up to four PowerSwitch devices simultaneously, providing scalability for complex accessory control setups.
Customisable Virtual Switch Panels: The Garmin PowerSwitch app allows custom virtual switch panels to be created with user-defined labels, icons, and channel groups. Dimming and flashing controls for lighting systems are also supported, making light bar, rock light, and emergency flasher management straightforward from the touchscreen.
IPX7 Weather Resistance: The 010-02466-00 is IPX7 rated, providing protection against water immersion up to 1 metre for 30 minutes, making it suitable for installation in exposed or outdoor vehicle environments including 4WDs, ATVs, and snowmobiles.
No Dashboard Cutting or Firewall Routing Required: The installation process requires no cutting into the dashboard or routing of wires through the vehicle firewall, simplifying the installation and avoiding interference with existing vehicle electronics.
Compact Form Factor for Flexible Mounting: At 12.5 x 3.2 x 7.5cm and 283g, the 010-02466-00 is compact enough to mount in a wide range of vehicle types and locations including side-by-sides, UTVs, ATVs, 4WDs, and snowmobiles.
Technical Specs
| Specification |
Detail |
| SKU |
010-02466-00 |
| Brand |
Garmin |
| Dimensions |
12.5 x 3.2 x 7.5cm (4.9 x 1.3 x 3.0") |
| Weight |
283g (10 oz) |
| Water Rating |
IPX7 |
| Number of Switch Outputs |
6 |
| Max Amps Per Switch Output |
30A |
| Max Total Amps |
100A |
| Number of Hardwire Inputs |
2 |
| Hardwire Input Voltage Range |
3.3V to 18V |
| Input Voltage |
12V DC |
| Wireless Connectivity |
Bluetooth |
| Max Controllers per PowerSwitch |
4 |
| Max PowerSwitch Devices per Controller |
4 |
| CarPlay / Android Auto Support |
Yes (via Garmin PowerSwitch app) |
| Customisable Switch Panels |
Yes (labels, icons, channel groups, dimming, flashing) |
| Compatible App |
Garmin PowerSwitch App |
| Reverse Polarity Motor Control |
Not intended for use |
What's in the Box
- Garmin 010-02466-00 PowerSwitch
- Power Cable
- Ground Cable
- Terminals
- Documentation
Compatible With
The Garmin 010-02466-00 PowerSwitch is compatible with the following Garmin navigators: Alpha XL, dēzl OTR610, OTR620, OTR710, OTR720, OTR810, OTR820, OTR1010, OTR1020, dēzlCam OTR710, dēzlCam OTR725, Overlander, RV 795, RV 890, RV 895, RV 1090, RV 1095, RVcam 795, Tread, Tread Base Edition, Tread Overland Edition, Tread SxS Edition, Tread 2, Tread 2 Overland Edition, Tread 2 SxS Edition, Tread XL Baja Chase Edition, Tread XL Baja Race Edition, Tread XL Overland Edition, zūmo XT, zūmo XT2, zūmo XT3. The Garmin PowerSwitch app is also available for compatible smartphones for wireless control without a dedicated Garmin navigator. The 010-02466-00 is not intended for controlling motors with reverse polarity.
Frequently Asked Questions
Does the Garmin 010-02466-00 PowerSwitch require a Garmin navigator to operate?

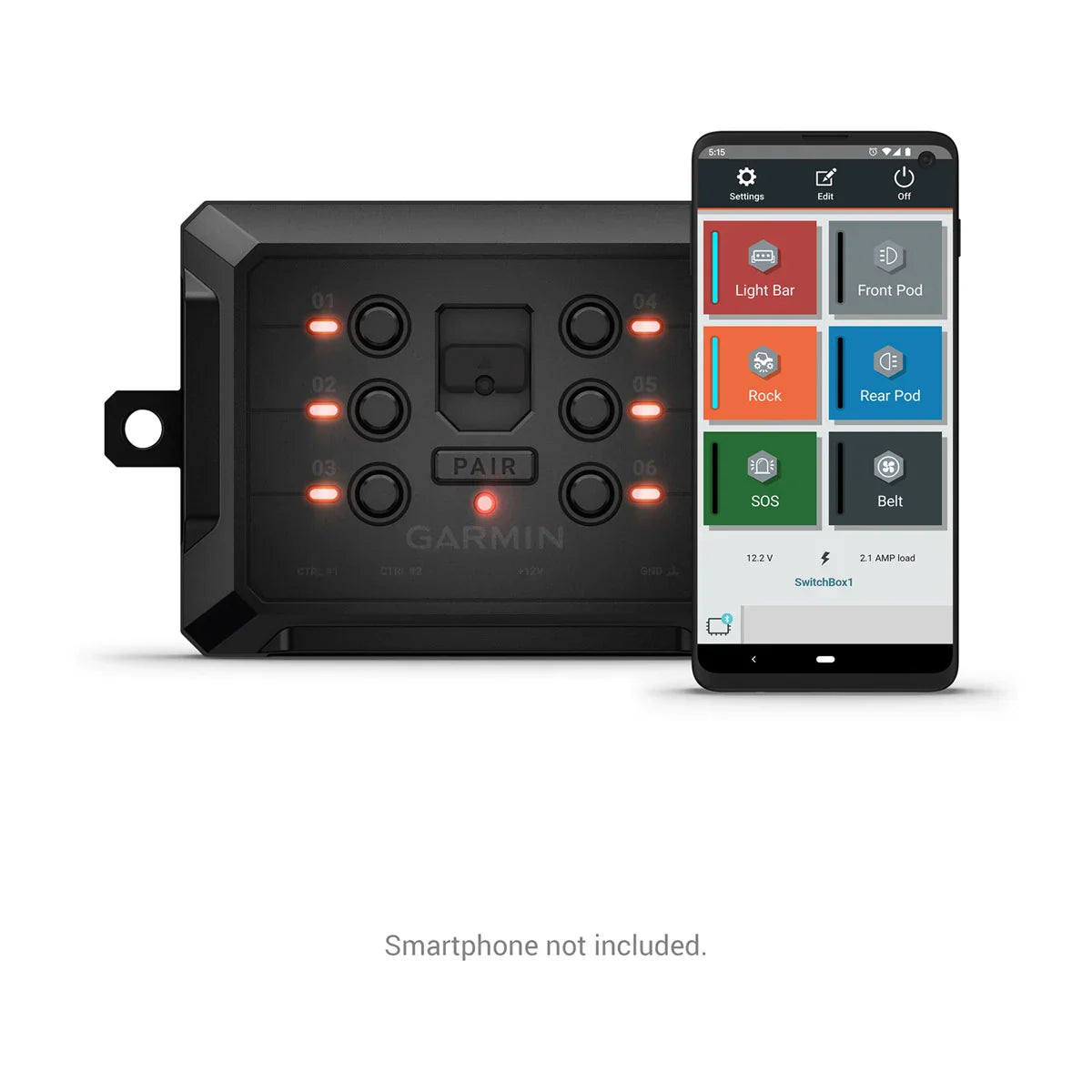

No. The 010-02466-00 can be controlled via the Garmin PowerSwitch app on a compatible smartphone in addition to compatible Garmin navigators. A compatible device running the Garmin PowerSwitch app and paired to the PowerSwitch via Bluetooth is required for wireless control.
How many accessories can be controlled from one Garmin 010-02466-00?
One 010-02466-00 provides six independent switch outputs at up to 30 amps each. For larger setups, up to four PowerSwitch devices can be controlled from a single compatible navigator or smartphone, providing up to 24 independently controlled outputs from one display.
Does the Garmin 010-02466-00 work with Apple CarPlay and Android Auto?
Yes. The Garmin PowerSwitch app supports Apple CarPlay and Android Auto connectivity, allowing switching functions to be accessed and controlled from a compatible in-dash infotainment display that supports these platforms.
Does installing the Garmin 010-02466-00 require cutting the dashboard or routing wires through the firewall?
No. The 010-02466-00 is designed for installation without cutting into the dashboard or routing cables through the firewall, and does not interfere with existing vehicle electronics.
What are the hardwire control inputs used for?
The two hardwire control inputs accept signals from 3.3V to 18V and can be used to automatically trigger configured outputs. A common application is connecting the vehicle ignition switch to a control input so that selected accessories activate automatically each time the vehicle is started.
