Description

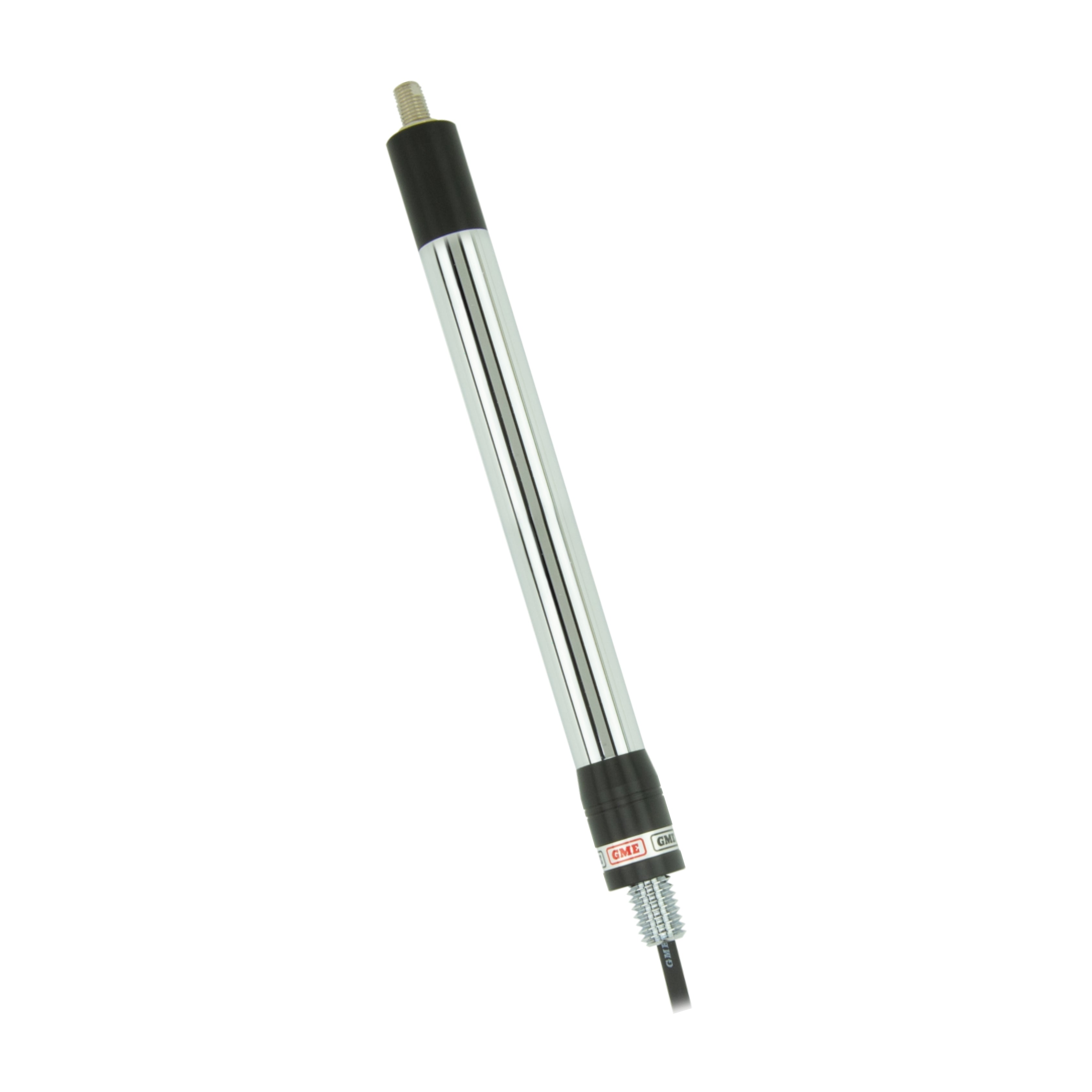

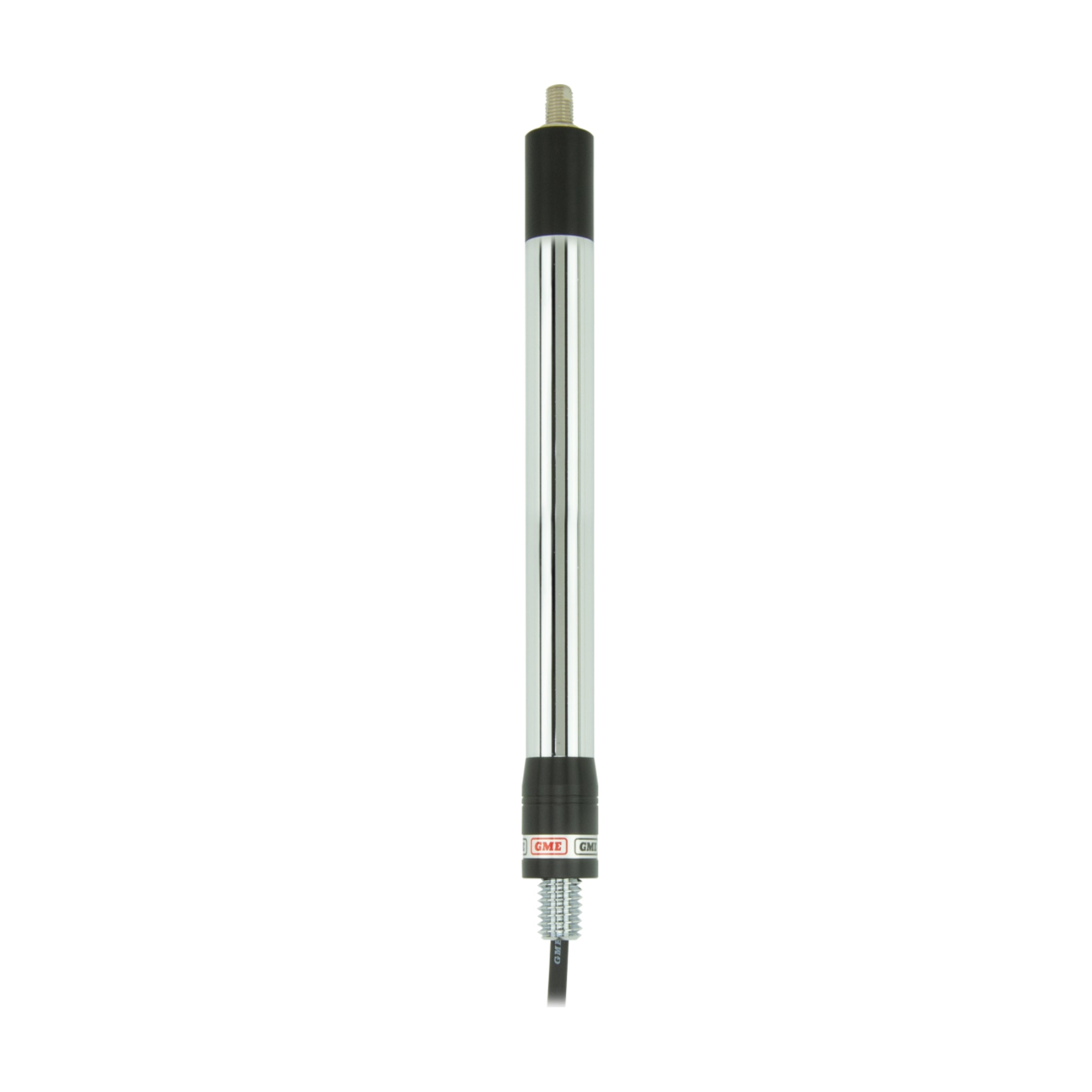

GME ABL002F Elevated-Feed Stainless Steel Antenna Base with FME Termination Ground Independent
The FME-connector variant of the GME ABL002 elevated-feed stainless steel antenna base, the ABL002F shares the same ground-independent elevated-feed design, stainless steel construction, BSW thread, and 4.5 metres of low-loss foam coaxial cable as the ABL002, with a pre-terminated FME connector in place of a PL259 or other standard plug.
Product overview
The GME ABL002F is the FME-connector variant of the ABL002 elevated-feed stainless steel antenna base. It shares the same ground-independent elevated-feed design, stainless steel construction, BSW thread, and 4.5m low-loss foam coaxial cable as the ABL002. The key difference is the pre-terminated FME connector rather than a PL259 or other standard plug.
The FME connector is a compact coaxial connector used by certain GME radio models with an FME antenna input. The "F" suffix in the SKU and the FME Terminated designation confirm the connector type. Confirm that your GME radio has an FME antenna input before purchasing. If your radio uses a PL259 input, the ABL002 or ABL001 will be more appropriate.
The ground-independent design means the ABL002F does not require a conductive steel vehicle or vessel body for antenna ground plane, making it suitable for fibreglass boats, aluminium canopies, and non-metallic mounting surfaces.
Note: the BSW thread differs from the 5/16" TPI standard used on other GME antenna bases including the AB001, AB406, and ABL001. Confirm your antenna uses a BSW base thread before purchasing.
Features and benefits

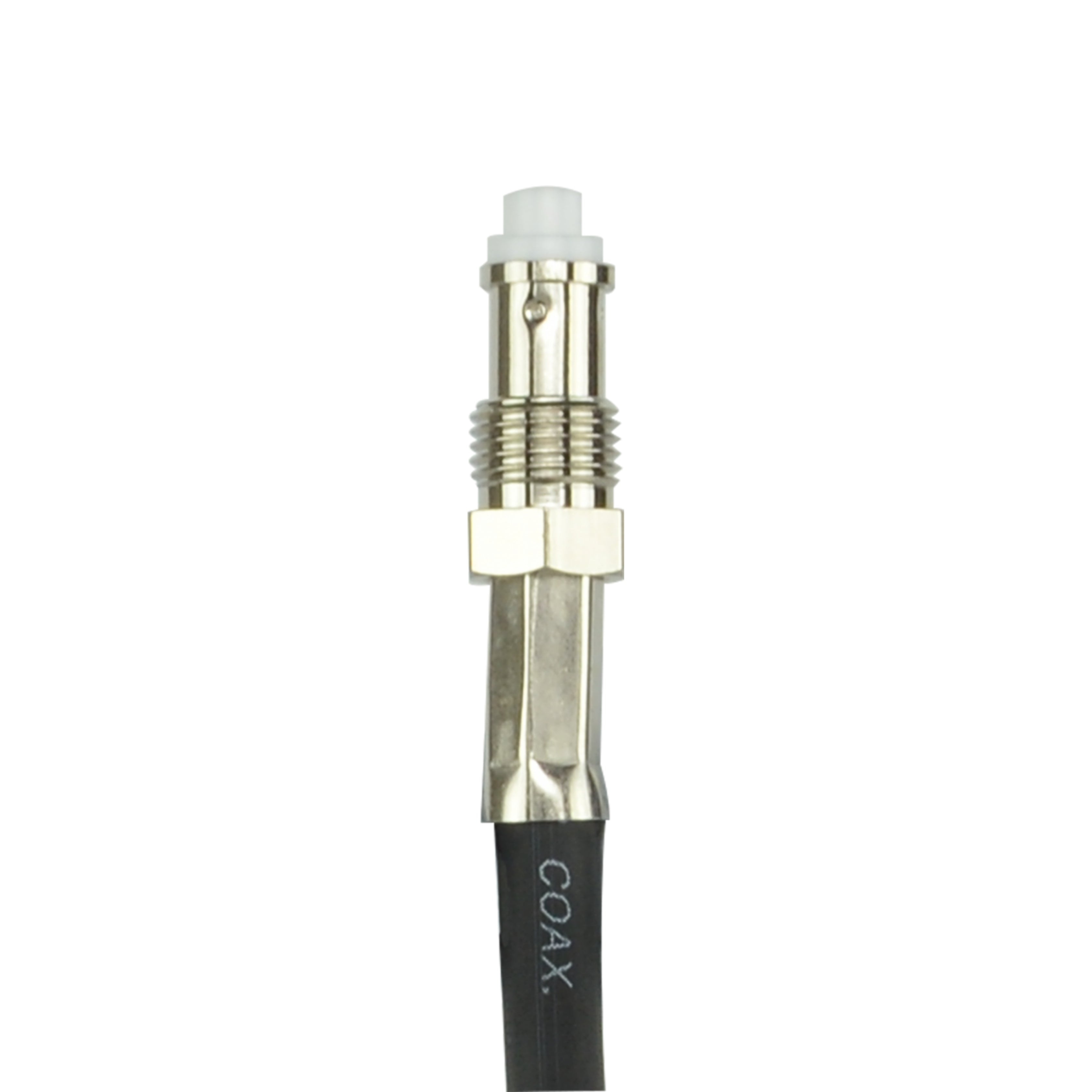

Pre-terminated FME connector - ready to connect: A factory-fitted FME connector is ready to connect to GME and compatible radios with FME antenna inputs, with no additional connector fitting required.
Ground-independent elevated-feed design - suits non-metallic bodies: Does not rely on a conductive vehicle body for ground plane, making the ABL002F suitable for fibreglass, aluminium, and non-metallic surfaces as well as conventional steel bodies.
Stainless steel construction - corrosion resistant: Stainless steel construction provides corrosion resistance suited to marine, coastal, and outdoor 4WD environments.
4.5m low-loss foam coaxial cable: Minimises signal loss over the full cable run for improved signal performance between the radio and antenna.
BSW thread: Uses a British Standard Whitworth thread, differing from the 5/16" TPI thread used on other GME antenna bases. Confirm your antenna uses a BSW thread before purchasing.
Technical specs
| Specification |
Detail |
| SKU |
ABL002F |
| Brand |
GME |
| Type |
Elevated-Feed Antenna Base and Lead |
| Lead Length |
4.5m |
| Cable Type |
Low-Loss Foam Coaxial |
| Connector |
FME (Pre-Terminated) |
| Thread |
BSW (British Standard Whitworth) |
| Design |
Ground Independent (Elevated Feed) |
| Construction |
Stainless Steel |
Compatible with
The ABL002F is compatible with GME radios and devices with an FME antenna input. Confirm your specific radio model uses FME before purchasing. Requires an antenna with a BSW thread base. Suitable for fibreglass, aluminium, steel, and non-metallic vehicle and vessel bodies, including 4WD, marine, and recreational installations where ground-dependent bases are not suitable.
Frequently asked questions
What is an FME connector and which GME radios use it?
FME (Female Miniature Equivalent) is a compact coaxial connector used in space-constrained or miniaturised antenna applications. Some GME handheld and compact radio models use FME antenna sockets rather than the larger PL259 standard connector. Confirm your specific GME radio's antenna input type before purchasing. If it uses PL259, the standard ABL002 is the correct choice.
How does the ABL002F differ from the ABL002?
The ABL002F is identical to the ABL002 in all specifications, sharing the same 4.5m low-loss foam coax, ground-independent elevated-feed design, stainless steel construction, and BSW thread, except for the connector termination. The ABL002F is explicitly pre-terminated with an FME connector. Choose the ABL002F if your radio has an FME antenna input.
Why does the BSW thread differ from 5/16" TPI on other GME bases?
GME's antenna range spans different thread standards depending on the base design. The BSW thread on the elevated-feed ABL002 and ABL002F series is not the same as the 5/16" TPI thread used on the AB001, AB406, and ABL001 bases. A BSW-based antenna is required for both ABL002 variants. Mixing thread types can result in cross-threading or an unreliable connection.
What applications particularly suit an FME-terminated base?
FME-terminated cables suit radios with compact form factors that use FME antenna sockets, common in certain GME portable and compact mobile radios. The FME connector also suits applications where low-profile antenna cable routing is needed. If connecting to a standard mobile radio with a PL259 socket, a PL259-terminated base is the correct choice.
Does the ground-independent design make the ABL002F suitable for a fibreglass boat?
Yes. The elevated-feed, ground-independent design is specifically the correct choice for fibreglass boats, aluminium tenders, and other non-metallic vessels where a conventional ground-dependent base would perform poorly. The base generates its own effective ground plane without relying on the vessel structure.
