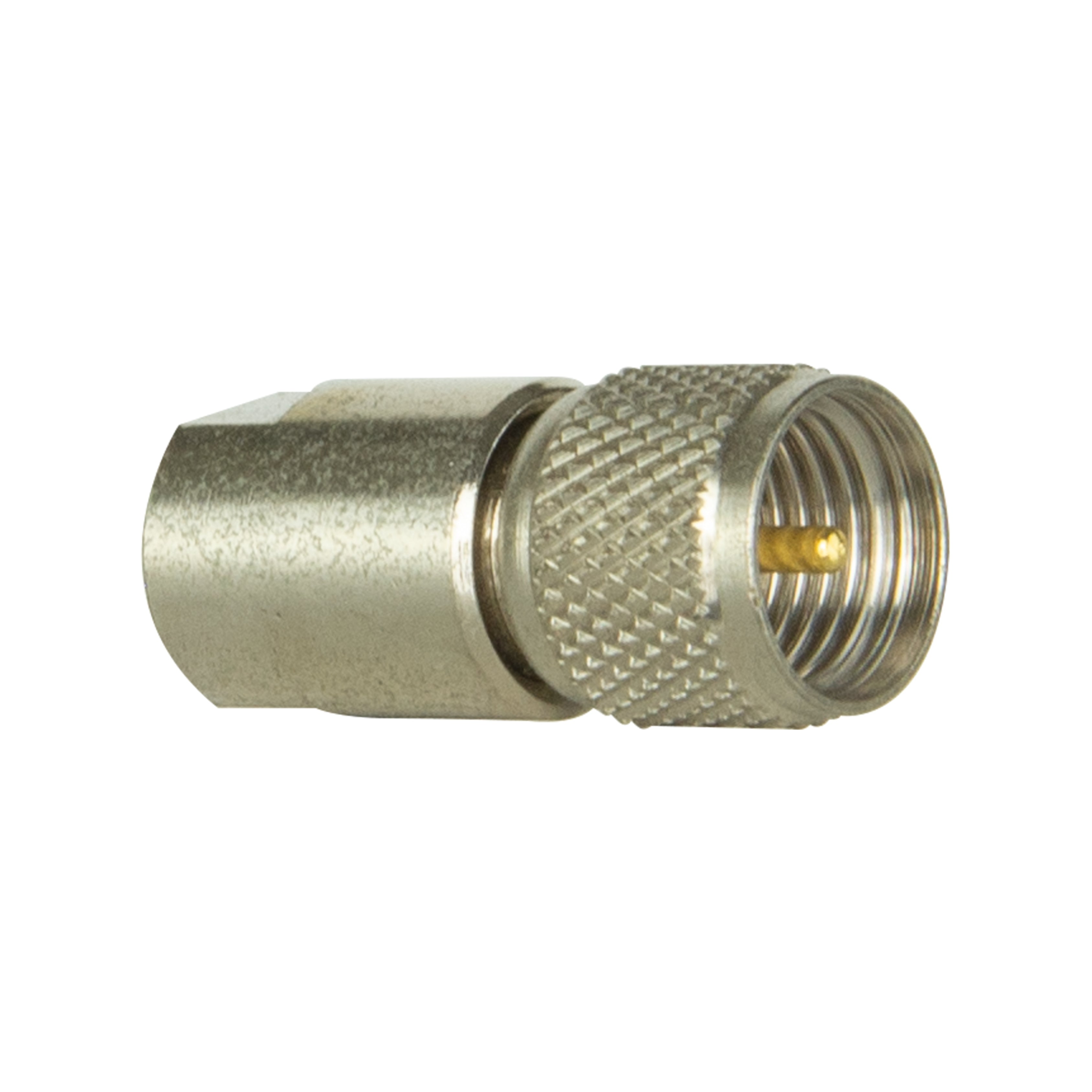

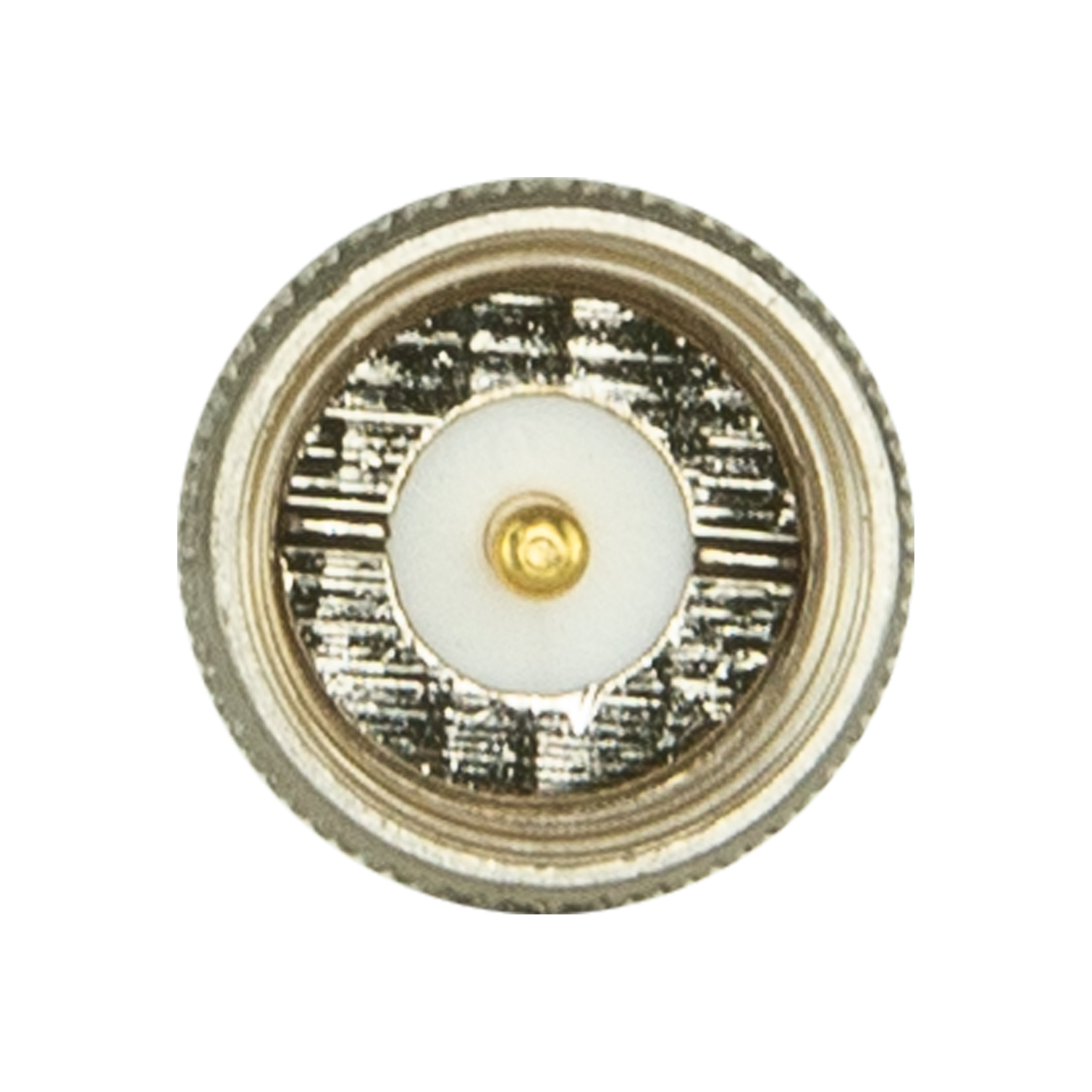

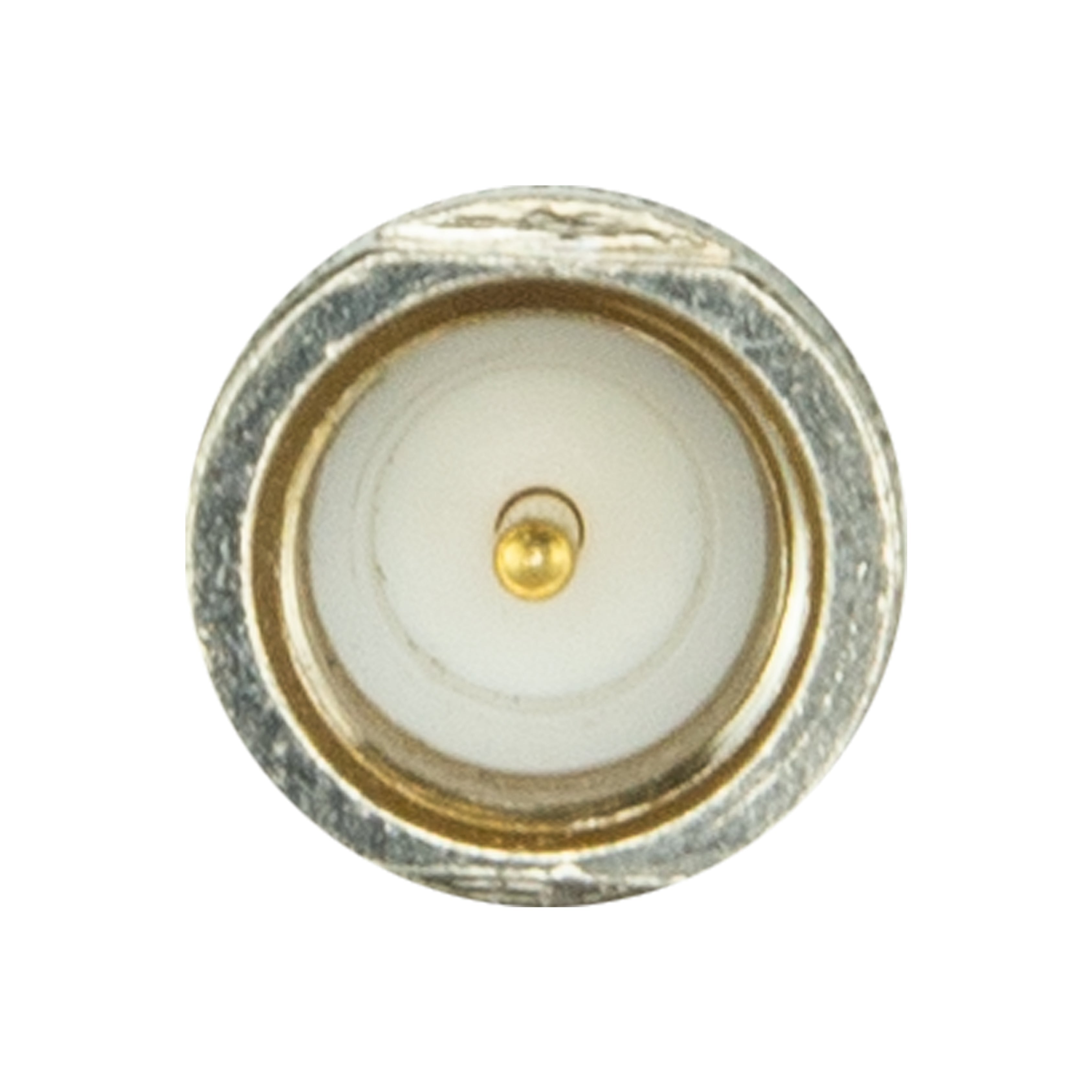

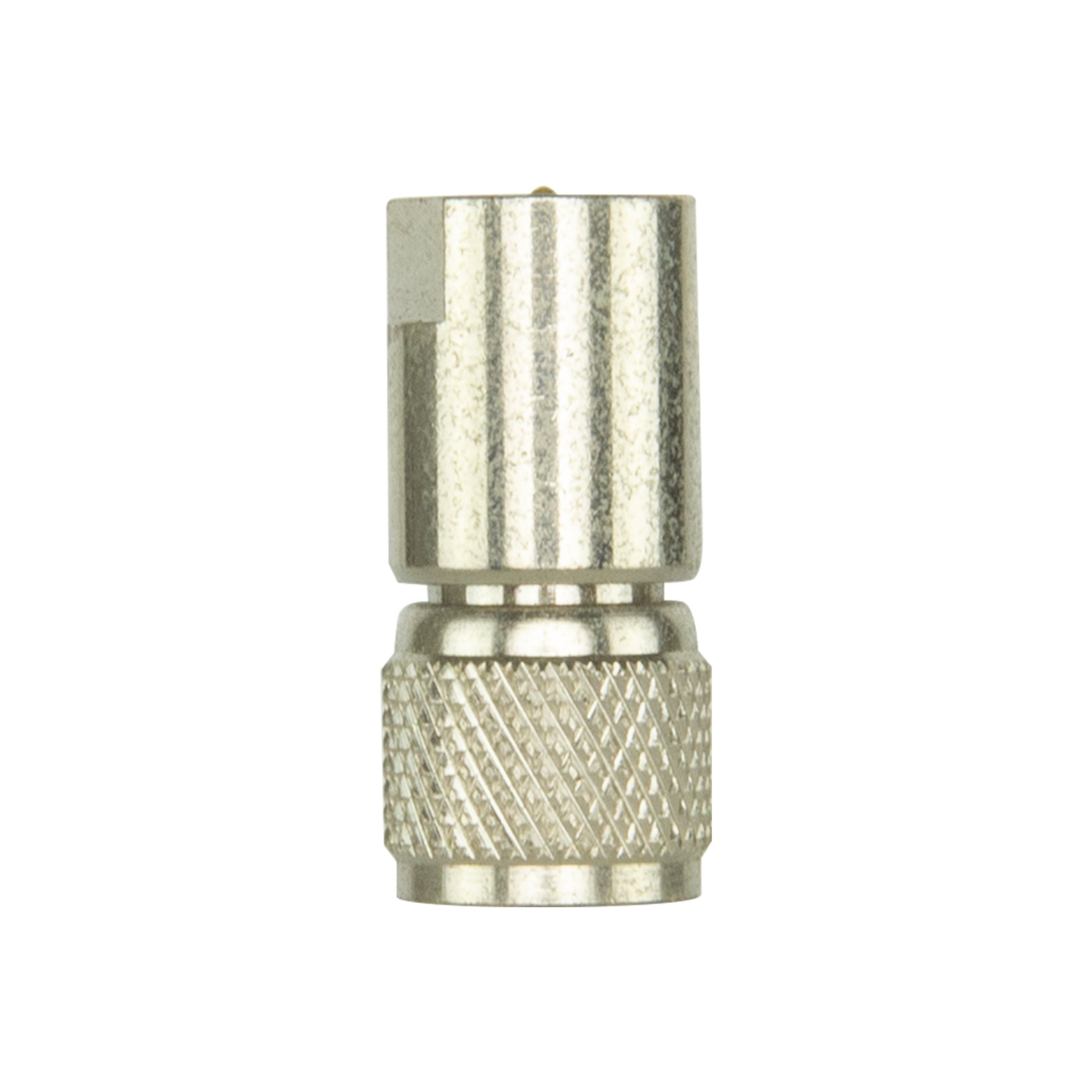

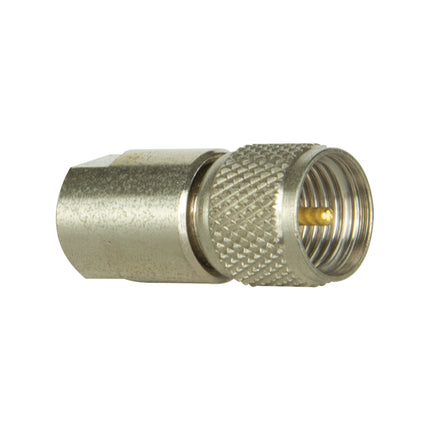

GME AD505 FME Male to Mini UHF Adaptor
A genuine coaxial RF connector adaptor from GME, the AD505 is the final adaptor in the GME AD5xx FME series, bridging FME and Mini UHF connector types to allow GME FME-terminated cables and accessories to connect to equipment using Mini UHF connectors.
Product overview
The GME AD505 is the final adaptor in the GME AD5xx FME series, an FME male to Mini UHF adaptor that allows GME FME-terminated cables and accessories to connect to equipment using Mini UHF connectors. The FME male plug end connects to an FME female socket on the cable or GME accessory, while the Mini UHF end connects to Mini UHF-terminated equipment.
Mini UHF is a scaled-down version of the standard UHF (PL259/SO239) connector family, used in certain handheld radios, mobile antennas, and cellular antenna applications where the standard PL259 size is too large.
Features and benefits
FME male to Mini UHF: Bridges GME's compact FME connector system with Mini UHF-connected handheld radios, mobile antennas, and cellular antenna equipment.
Genuine GME accessory: A manufacturer-supplied adaptor for GME FME-connected products.
Technical specs
| Specification |
Detail |
| SKU |
AD505 |
| Brand |
GME |
| Type |
Coaxial RF Connector Adaptor |
| Connector - End 1 |
FME Male (Plug) |
| Connector - End 2 |
Mini UHF |
Compatible with
The AD505 is compatible with GME FME-based antenna cables and accessories, and equipment with Mini UHF antenna connections including handheld radios, mobile antennas, and cellular antenna equipment. Confirm the Mini UHF end gender with us before purchasing.
Frequently asked questions
What is Mini UHF and how does it differ from standard UHF?
Mini UHF is a smaller variant of the standard UHF coaxial connector family, PL259/SO239. It uses the same threaded coupling mechanism as the standard UHF connector but in a reduced body size, making it suitable for equipment where the full-size PL259/SO239 is too large, such as handheld radios, compact mobile antennas, and certain cellular antenna inputs. Mini UHF is not interchangeable with standard UHF without an adaptor.
Is the Mini UHF end of the AD505 male or female?
The gender of the Mini UHF end is not confirmed in the available source data. Contact us to confirm before purchasing.
How does the AD505 complete the GME AD5xx FME adaptor series?
The AD5xx series provides GME FME male adaptors to a range of other coaxial connector standards: the AD501 with FME female crimp termination, the AD502 with FME male to BNC, the AD503 with FME male to PL259, the AD504 with FME male to TNC, and the AD505 with FME male to Mini UHF. Together they allow GME's FME antenna system to interface with virtually any RF connector standard encountered in marine, 4WD, GPS, and cellular antenna applications.
What equipment uses Mini UHF connectors?
Mini UHF connectors are found on certain GME and other brand handheld radios, compact mobile antennas, and some cellular and antenna booster accessories. Contact us to confirm whether your specific equipment uses Mini UHF before purchasing the AD505.
Is the AD505 sold as a single piece?
One adaptor is included per purchase.
