Description

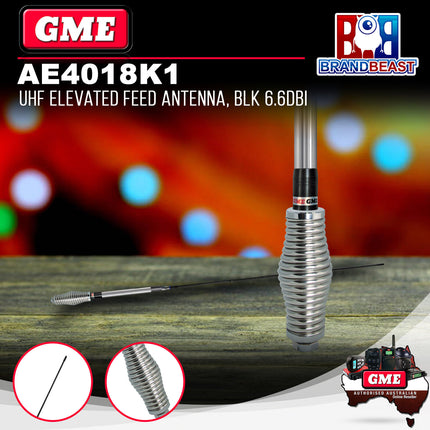

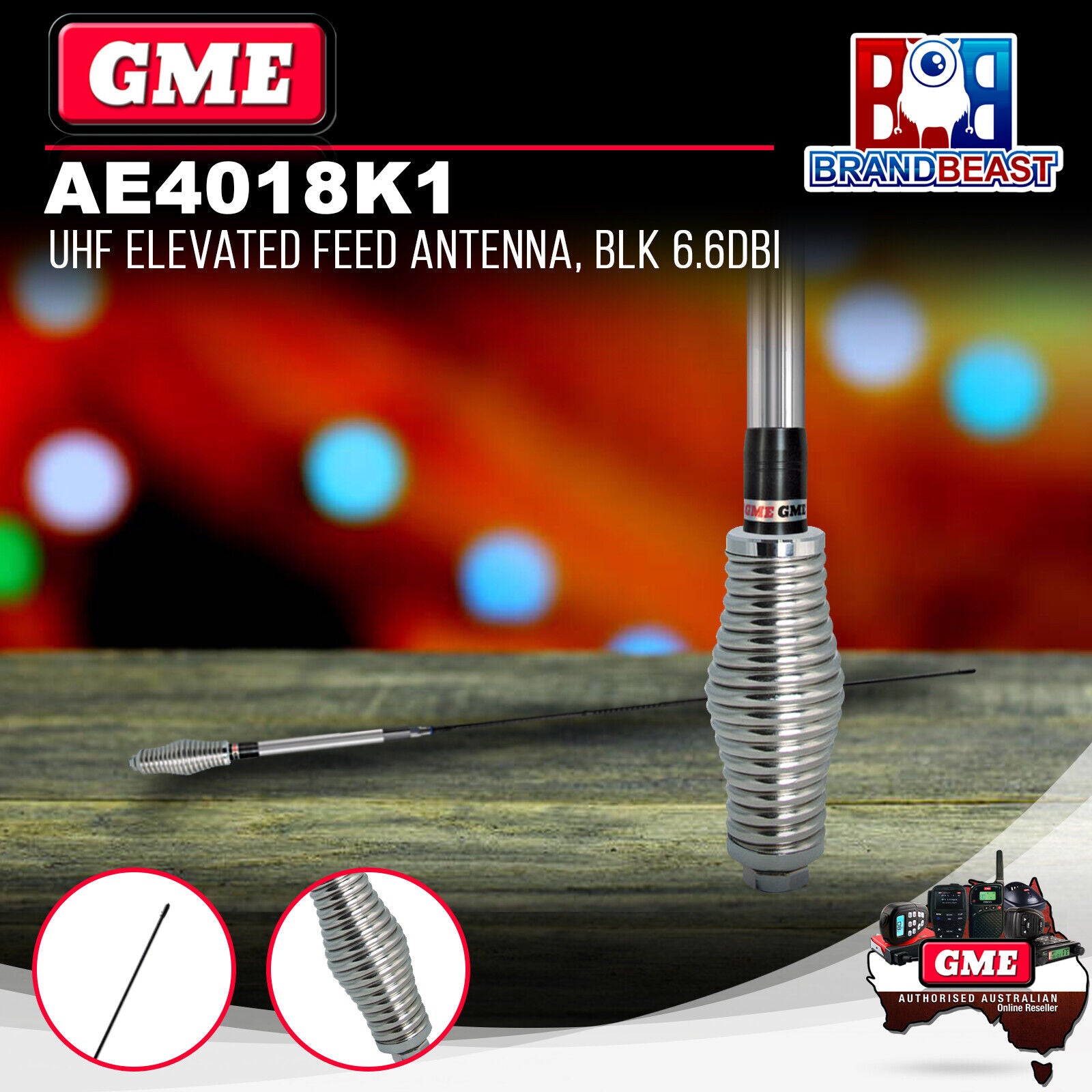

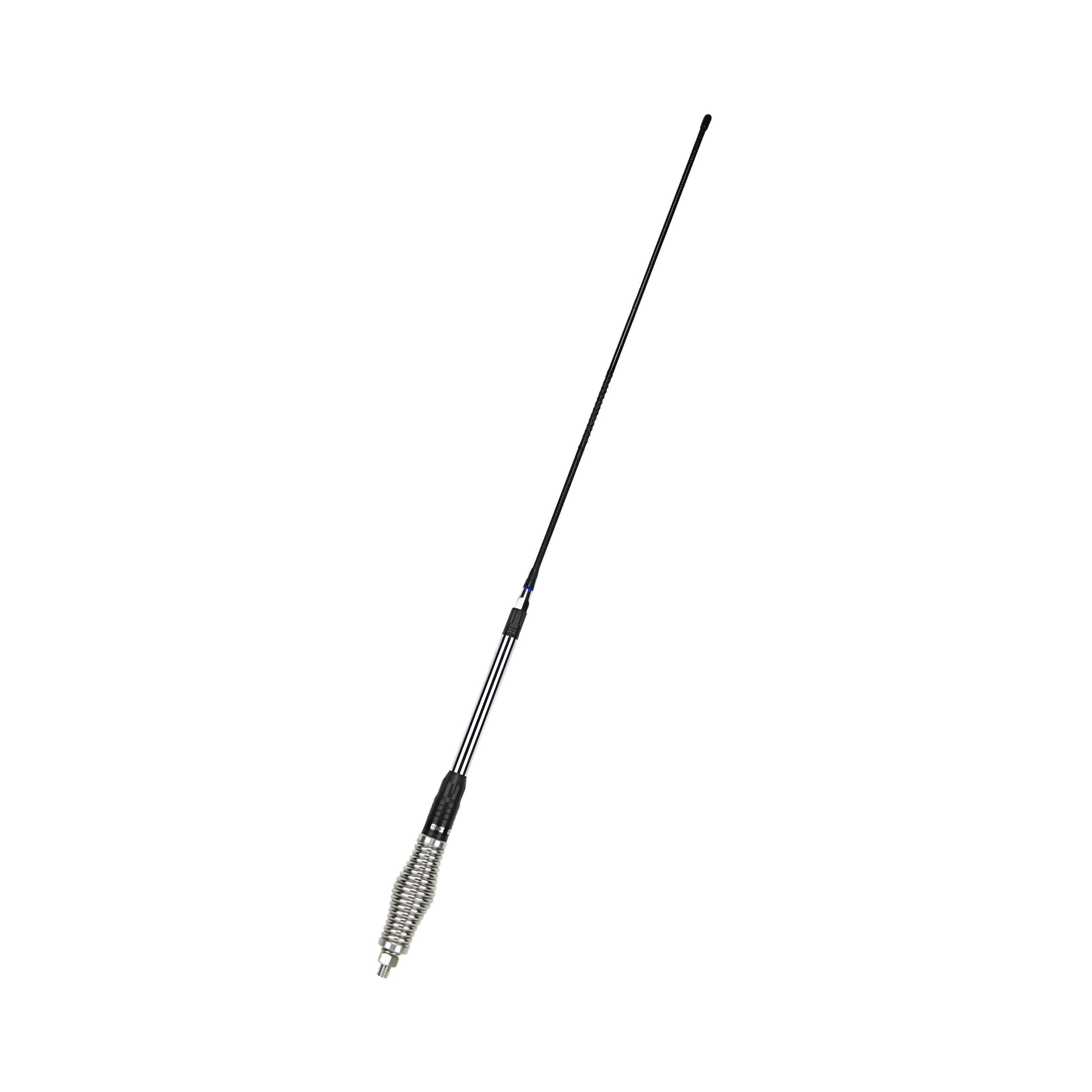

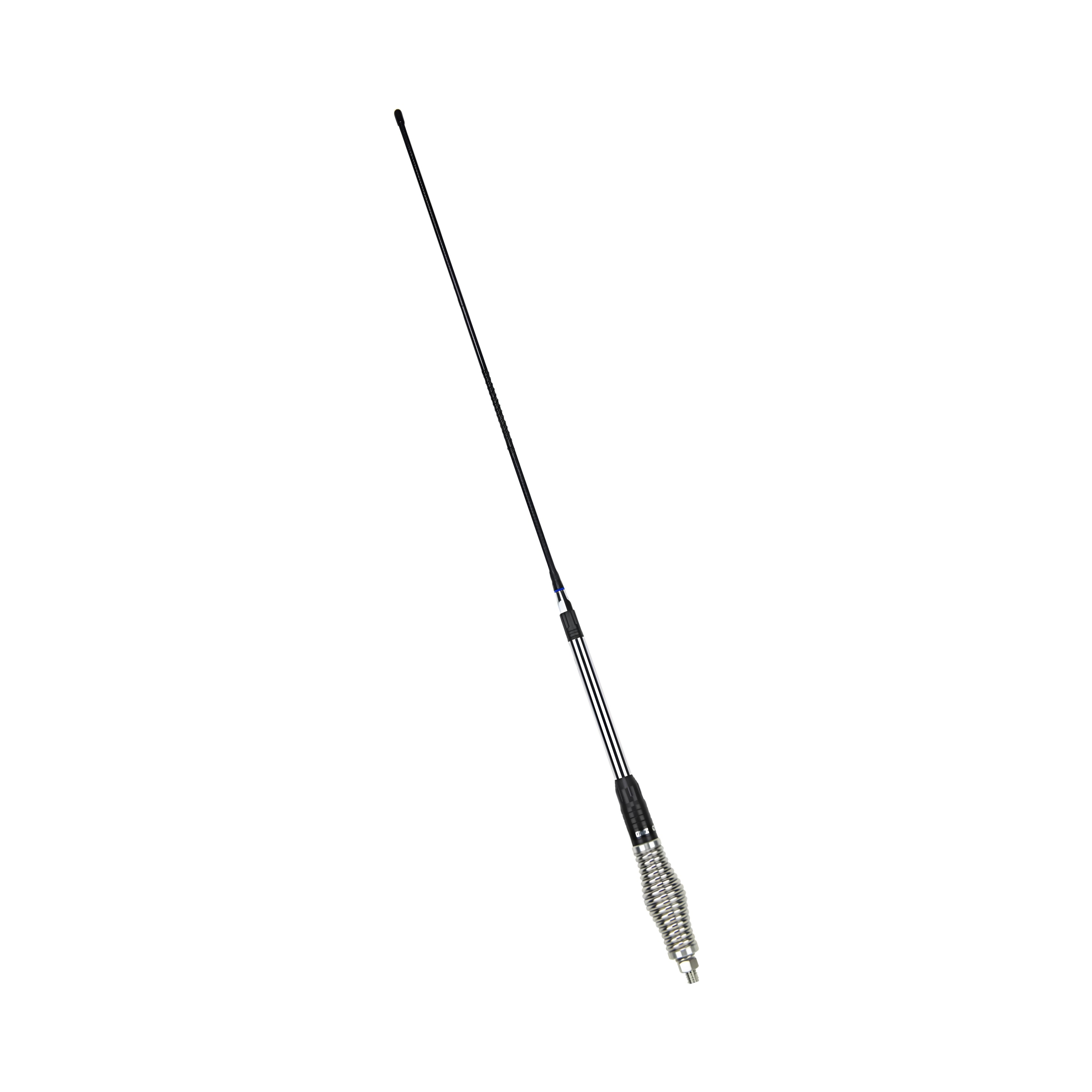

GME AE4018K1 850mm Black Elevated-Feed UHF CB Antenna Kit No Spring
The no-spring version of GME's elevated-feed UHF CB 477MHz antenna kit, the AE4018K1 combines the ABL002 elevated-feed base with a black fibreglass braided copper whip and chrome-plated ferrule, delivering ground-independent performance at 850mm total length.
Product overview
The GME AE4018K1 is the no-spring version of the elevated-feed AE4018 antenna kit, combining the ABL002 elevated-feed base with GME's fibreglass braided copper whip in black heat shrink and a chrome-plated ferrule. At 850mm total, it is shorter than the AE4018BK1 at 970mm, which includes a barrel spring below the base.
This version suits most mounting requirements and styling preferences where a spring option is not required. Installations on sturdy, low-vibration mounts such as permanent body panels, gutter brackets, or fender positions are appropriate candidates.
The elevated-feed design provides ground-independent performance in any mounting position without a steel ground plane.
Features and benefits
Elevated-feed, ground-independent design: Performs correctly from any mounting position without a steel vehicle body ground plane.
850mm black fibreglass whip: Durable fibreglass with a braided precision wound copper element and black heat shrink.
Chrome-plated ferrule: Provides corrosion resistance and a polished appearance at the antenna base connection point.
No spring: Suited to installations where the mounting is already stable and shock and vibration absorption from the antenna is not required.
6.6dBi gain: Balanced performance for 4WD and fleet vehicle UHF CB use.
ABL002 elevated-feed base included: Provides the ground-independent elevated-feed function of the kit.
Technical specs
| Specification |
Detail |
| SKU |
AE4018K1 |
| Brand |
GME |
| Type |
UHF CB Elevated-Feed Antenna Kit |
| Length |
850mm Total |
| Gain |
6.6dBi |
| Whip |
Black Fibreglass, Heat Shrink, Braid Copper Element |
| Ferrule |
Chrome Plated |
| Spring |
None |
| Design |
Ground Independent |
| Base |
ABL002 Elevated-Feed Base |
Compatible with
The AE4018K1 is compatible with GME UHF CB radios, fibreglass, aluminium, and steel vehicle bodies due to its ground-independent design, and stable, low-vibration mounting positions. Confirm connector type with us before purchasing.
Frequently asked questions
How does the AE4018K1 differ from the AE4018BK1?
The AE4018K1 is the no-spring version, combining the ABL002 base with the fibreglass whip at 850mm total with a chrome-plated ferrule. The AE4018BK1 adds a barrel-style black stainless steel spring below the base, bringing the total to 970mm. Both use the same black fibreglass and braid copper whip and ABL002 elevated-feed base. Choose the AE4018BK1 for installations subject to vibration and impact, or the AE4018K1 for stable mounts where additional height from the spring is not wanted.
What is a chrome-plated ferrule and how does it differ from the black stainless on the AE4018B?
The AE4018B standalone whip uses a black stainless steel ferrule, while the AE4018K1 kit version uses a chrome-plated ferrule, a cosmetic and corrosion-resistance difference. Chrome plating provides a bright polished appearance and reasonable corrosion resistance, while black stainless provides a colour-matched appearance. Both are suitable for outdoor use, but black stainless is generally more corrosion-resistant for long-term marine or coastal applications.
When would I choose the no-spring version over the spring version?
Spring-mounted antennas add height and mechanical compliance, useful for off-road, rough terrain, and installations exposed to vibration or contact with obstacles. The no-spring AE4018K1 is appropriate where the mount position is stable, such as a permanently fixed body panel, gutter, or fender, the terrain is not extreme, and the extra height of a spring is not desired. Permanent urban, highway fleet, and station use are typical applications for no-spring elevated-feed antennas.
What base does the AE4018K1 use?
The AE4018K1 uses the ABL002, GME's elevated-feed stainless steel antenna base. This is consistent with the rest of the AE4018 kit range, which uses the ABL002 base.

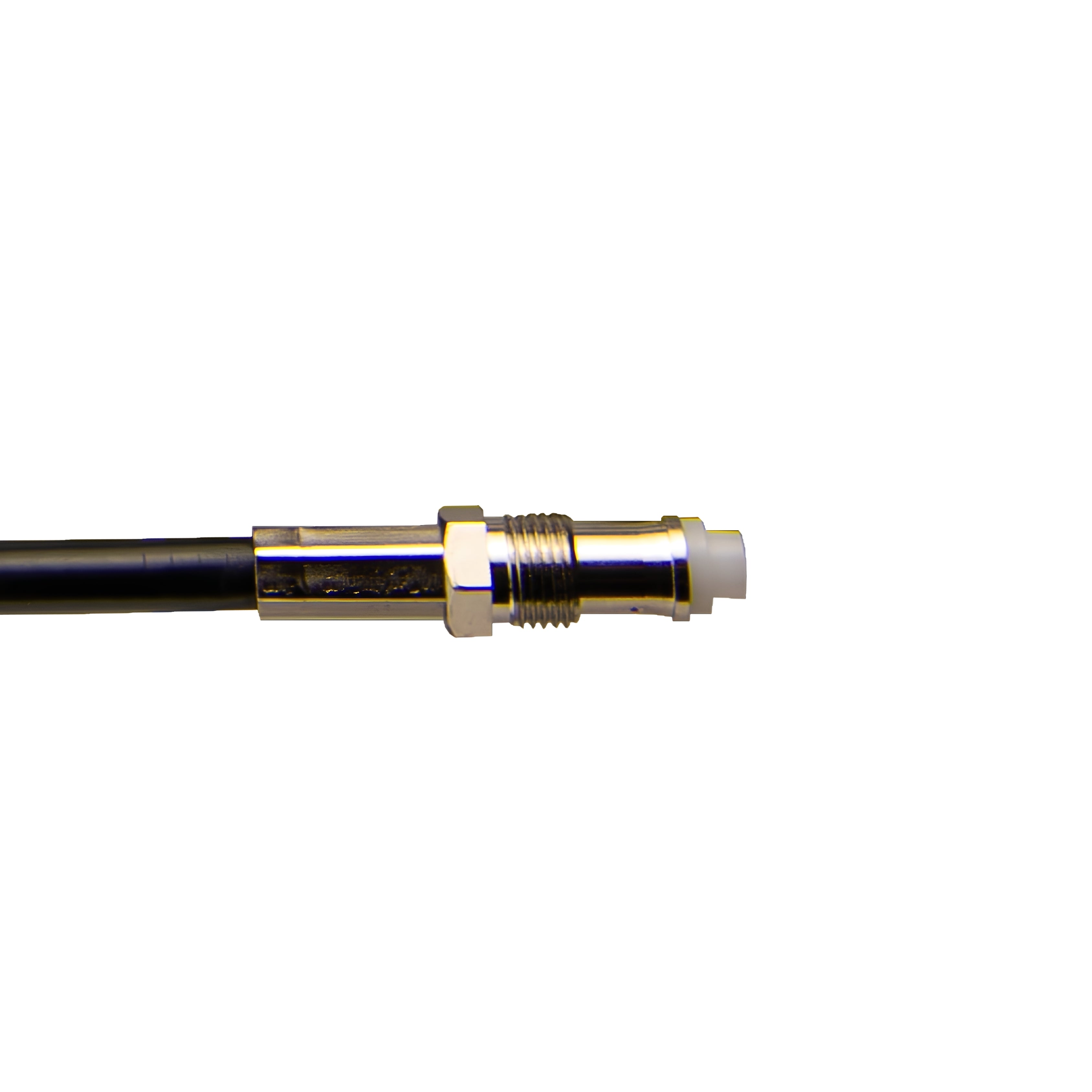

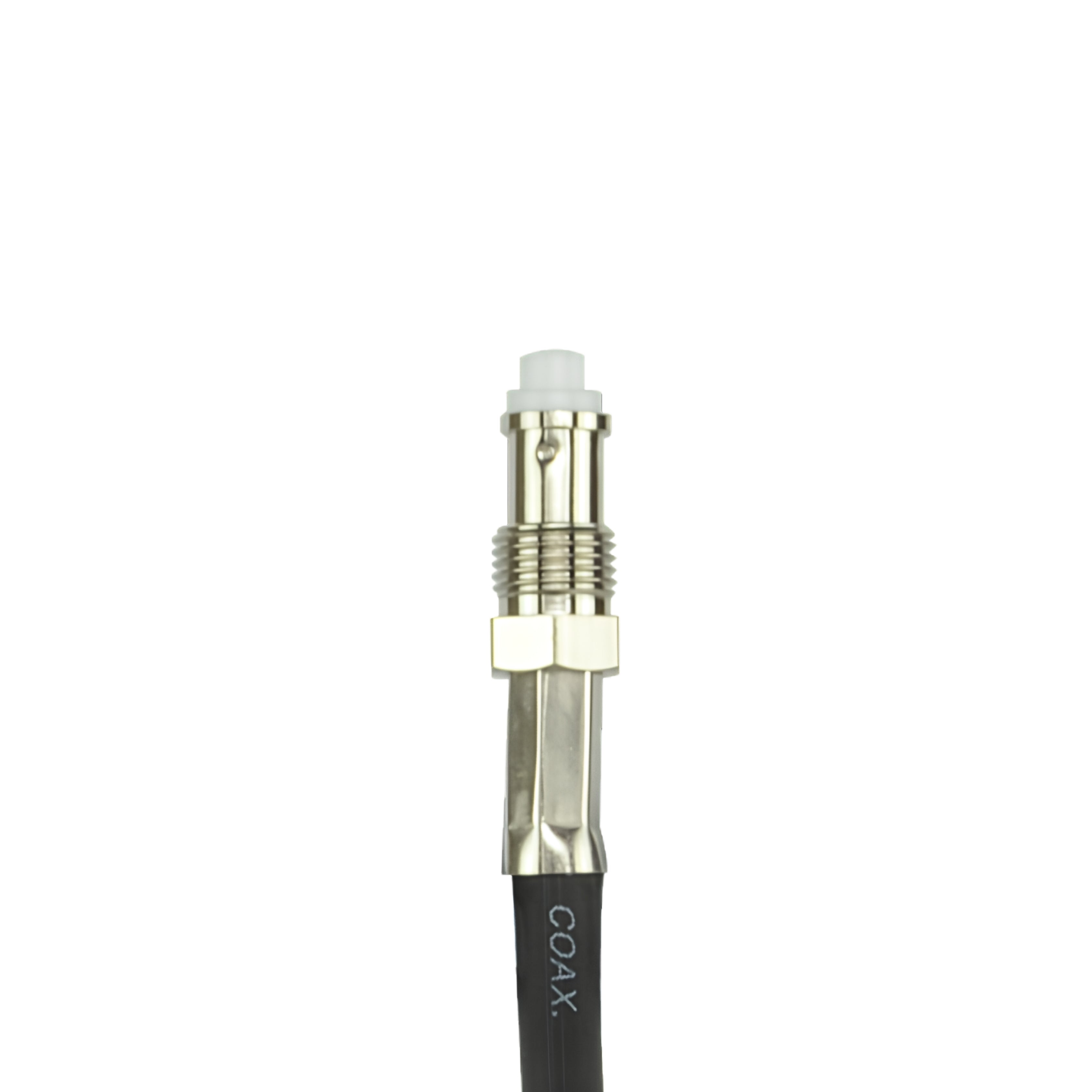

What connector does the AE4018K1 kit use?
The connector type, whether FME, PL259, or other, is not confirmed in the available source data for the AE4018K1. Contact us to confirm the connector specification and whether an FME to PL259 adaptor is included before purchasing.
