Description

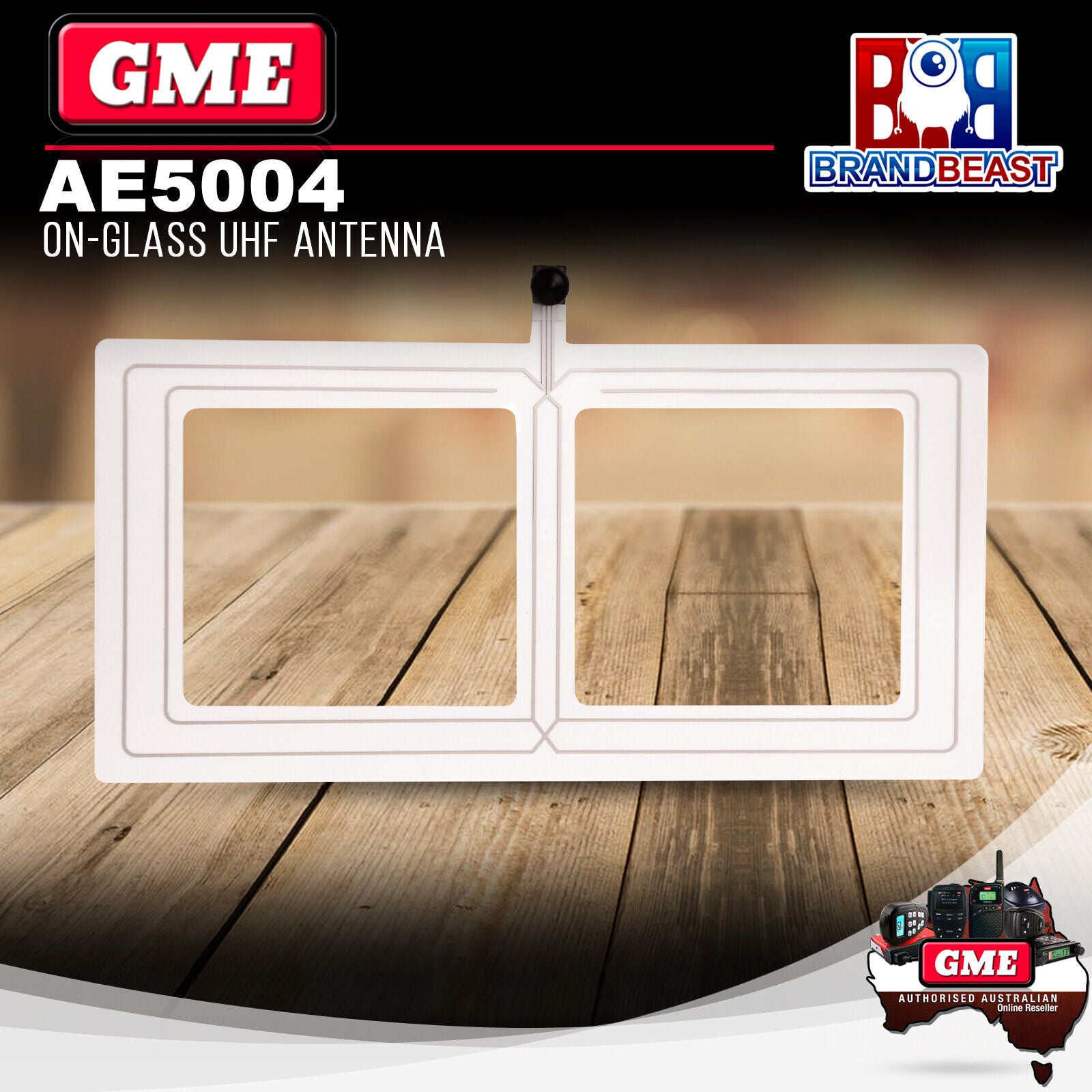

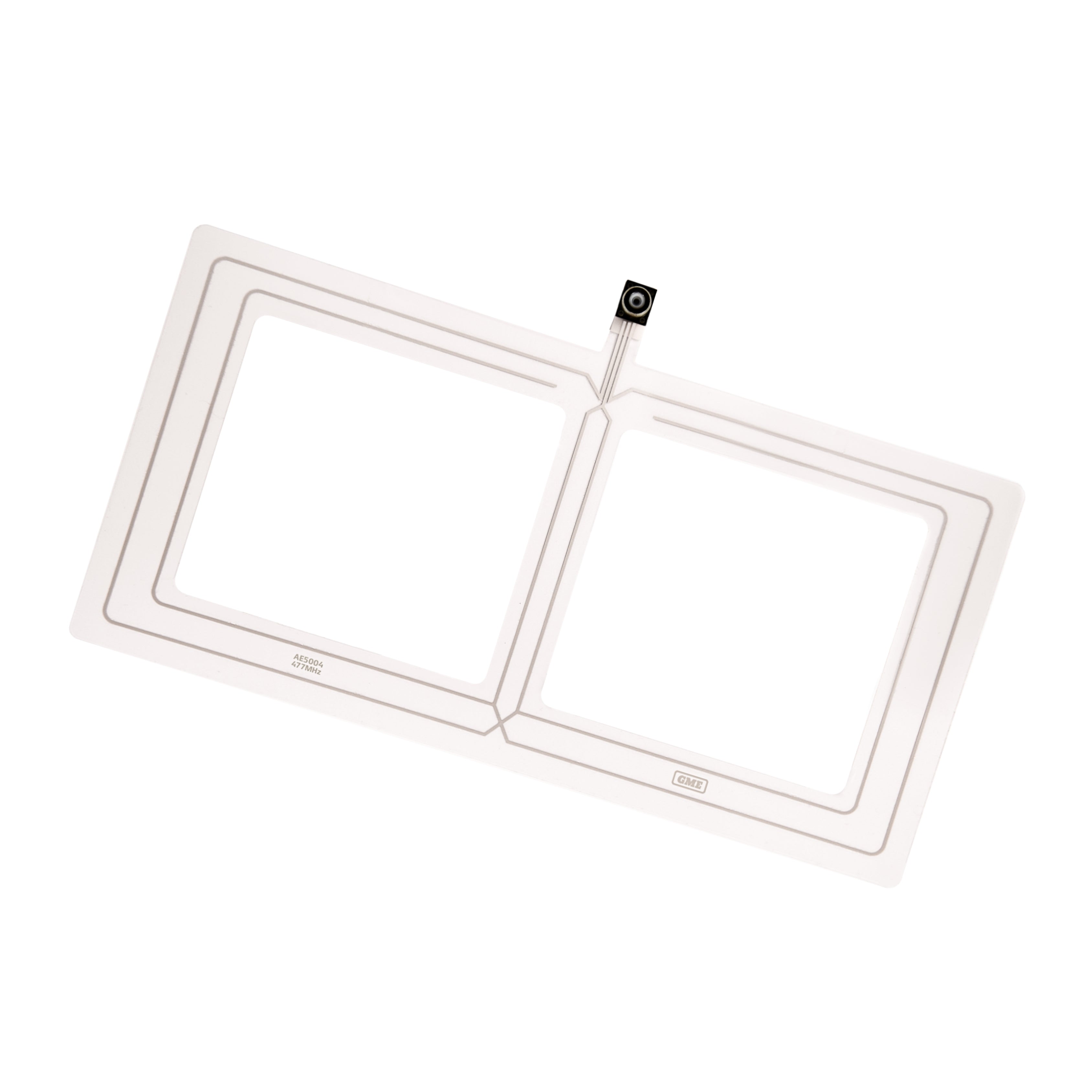

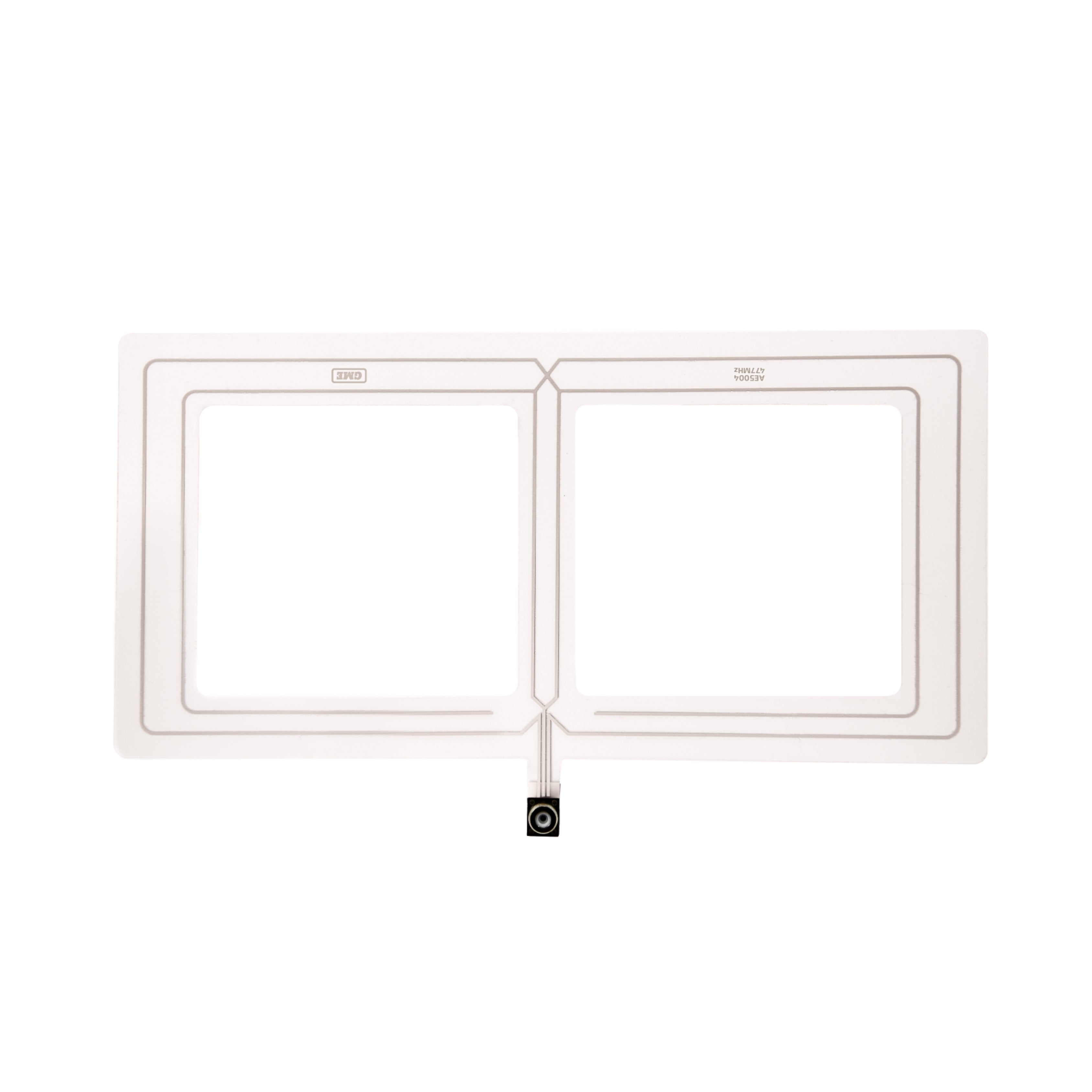

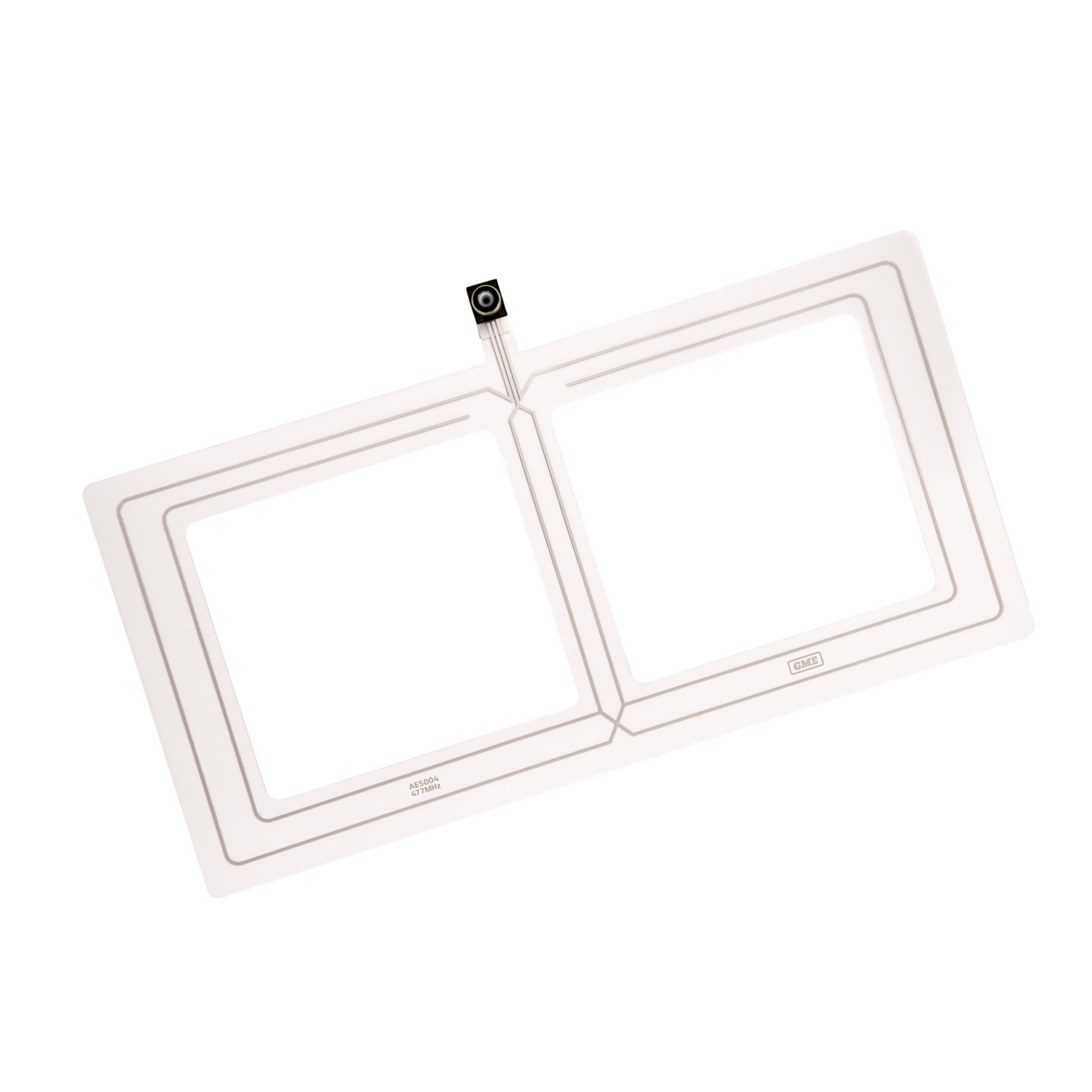

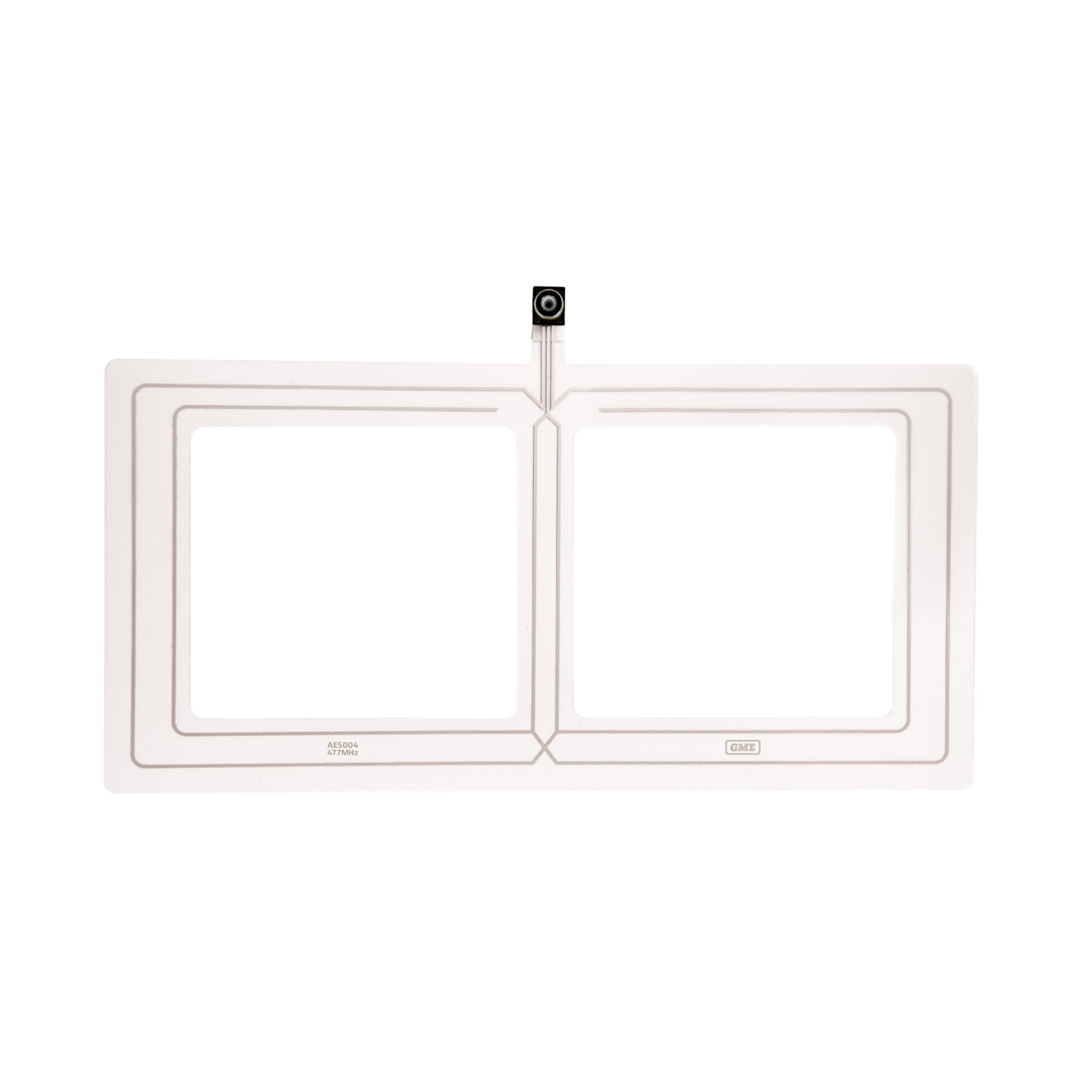

GME AE5004 Transparent On-Glass UHF CB Antenna 4.5dBi
The Australian made GME AE5004 is a transparent on-glass UHF CB antenna with 4.5dBi gain, pre-tuned to 477MHz, mounted on the inside of the windshield for a fully covert installation with a pre-terminated FME connector.
Product Overview
GME's range of on-glass antennas is designed to be discreet and unobtrusive whilst delivering outstanding performance and quality. The AE5004 is an Australian made transparent on-glass antenna, pre-tuned to 477MHz and offering 4.5dBi gain.
Due to the transparent design of the antenna, it's ideal for users in need of an unobtrusive or covert UHF antenna setup. As GME's transparent on-glass antennas are mounted on the inside of the windshield, there is no opportunity for theft or vandalism, and no creation of wind noise. The AE5004 is suited to a wide range of vehicles, from 4WD and luxury vehicles through to agricultural and earth-moving equipment.
Features & Benefits
Covert On-Glass Mounting: Mounted on the inside of the windshield, the transparent design keeps the antenna fully covert and virtually invisible.
Higher 4.5dBi Gain: The higher 4.5dBi gain suits users wanting improved performance from a covert on-glass antenna.
No Opportunity for Theft or Vandalism: Since the antenna is mounted inside the vehicle, there's no exposed hardware for theft or vandalism to target.
No Wind Noise: With no external whip or coupling box, the AE5004 creates no wind noise while driving.
Pre-Tuned to 477MHz: Pre-tuned to the 477MHz UHF CB band, the AE5004 is ready to perform without additional tuning.
Ground Independent Design: The ground independent design performs reliably without depending on a specific vehicle ground plane.
Pre-Terminated FME Connector: The pre-terminated FME connector simplifies connection to a range of radio installations.
Suited to a Wide Range of Vehicles: Suitable for 4WD and luxury vehicles through to agricultural and earth-moving equipment.
Made in Australia: The AE5004 is designed and manufactured in Australia.
Technical Specs
| Specification | Detail |
| SKU | AE5004 |
| Brand | GME |
| Description | Transparent On-Glass UHF CB Antenna (4.5dBi Gain) |
| Gain | 4.5dBi |
| Dimensions | 271mm (L) x 165mm (W) |
| Tuning | Pre-Tuned to 477MHz |
| Mounting | Covert On-Glass (Inside Windshield) |
| Design | Ground Independent |
| Connector | FME (Pre-Terminated) |
| Country of Origin | Australia |
| In the Box | On-Glass Antenna, 3m Low Loss Coaxial Cable with FME Termination, 1m RG174 Cable with FME Termination, Mounting Instructions |
Compatible With
The AE5004 is compatible with GME UHF CB radios via its pre-terminated FME connector, and suits a wide range of vehicles from 4WD and luxury vehicles through to agricultural and earth-moving equipment. Confirm your intended windshield mounting location and available space (271mm x 165mm) before purchase.
Frequently Asked Questions
What is the AE5004 used for?
The AE5004 is a transparent on-glass UHF CB antenna, giving a fully covert alternative to a roof-mounted antenna for a wide range of vehicles.
What is the difference between the AE5004 and AE5003?
The AE5004 offers higher gain at 4.5dBi compared to the AE5003's 2.5dBi, with a larger footprint of 271mm x 165mm compared to the AE5003's 265mm x 20mm.
Does the AE5004 create wind noise?
No. Since the antenna is mounted entirely inside the windshield, the AE5004 creates no wind noise while driving.
What's included with the AE5004?
The AE5004 includes the on-glass antenna, a 3m low loss coaxial cable with FME termination, a 1m RG174 cable with FME termination, and mounting instructions.
Which vehicles suit the AE5004?
The AE5004 suits a wide range of vehicles, from 4WD and luxury vehicles through to agricultural and earth-moving equipment.
