Modular Black Box VHF Marine Radio Hidden Main Unit, LCD Controller Microphone, 25/1W, IPX7, White
Product Overview

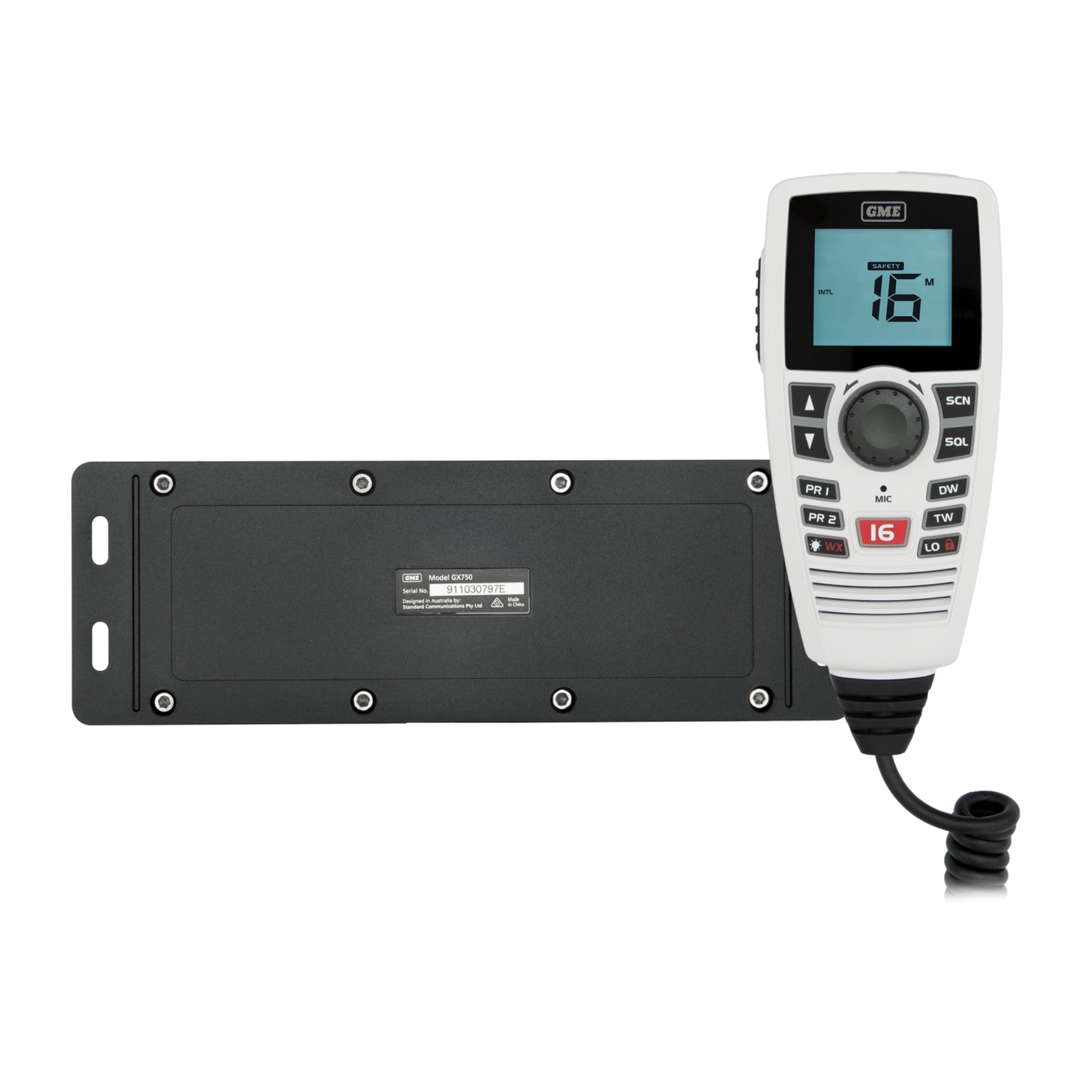

The GME GX750W is a "black box" modular VHF marine radio a fundamentally different installation approach from conventional fixed-mount radios. Instead of a front-panel radio unit mounted at the helm, the GX750W separates into two components: a compact main unit (the "black box" transceiver) that can be hidden in a locker, bilge, or under-dash location, and a full-function LCD controller microphone that mounts in a convenient flush-mount position at the helm via the included 500mm interconnecting lead or optional 6m extension cable (LE107).
This modular approach is ideal for vessels where dash space is extremely limited or where a clean, uncluttered helm appearance is preferred only the controller microphone is visible at the helm. The LCD display on the controller mic features large, easy-to-read numbers with adjustable brightness and colour options.
Full VHF specifications match the GX700 range: IPX7 waterproofing, 25/1W switchable power, dual and triple watch, programmable priority channels, programmable scan, and complete International, USA, and Canadian channel sets.
Also available in black (GX750B).
Features & Benefits
-

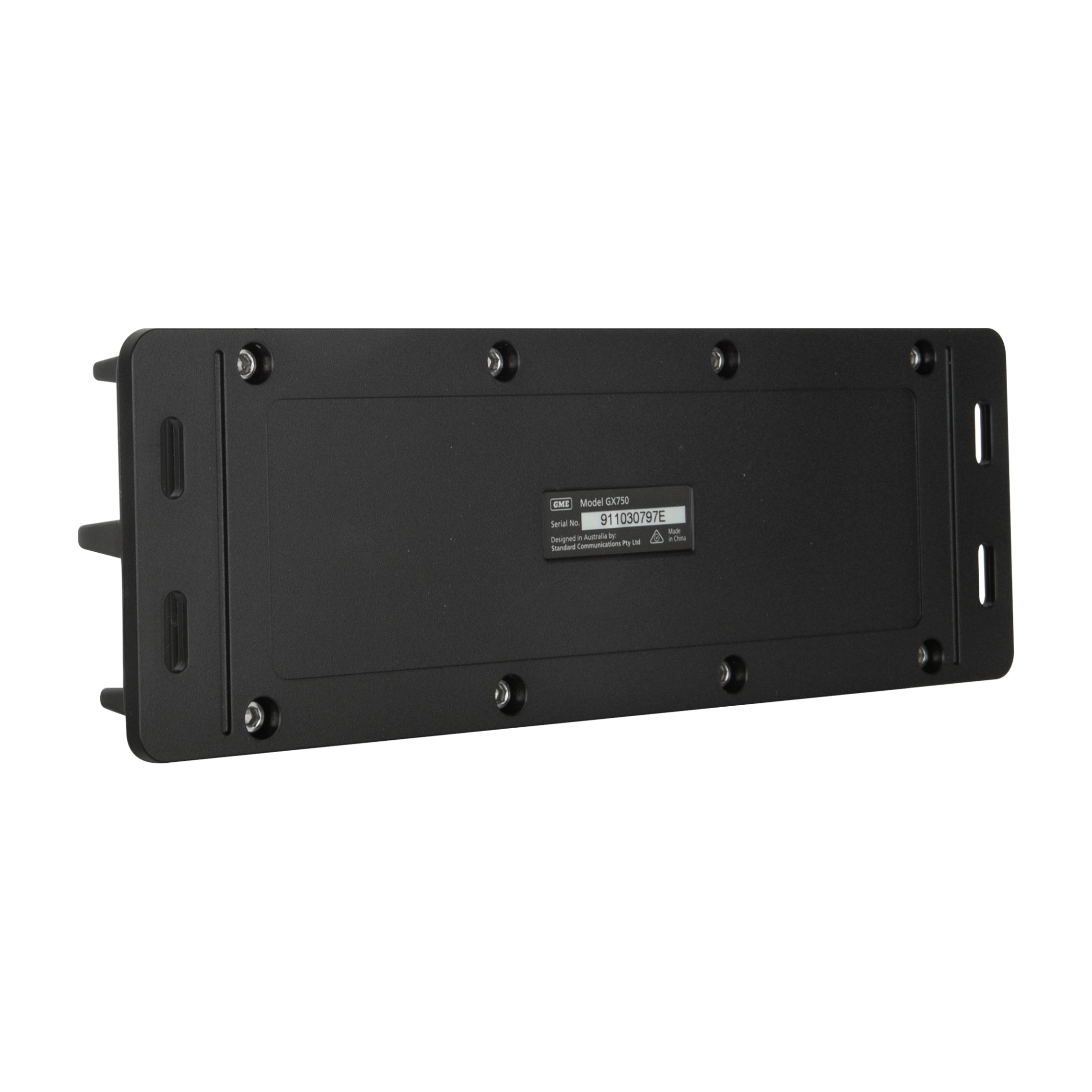

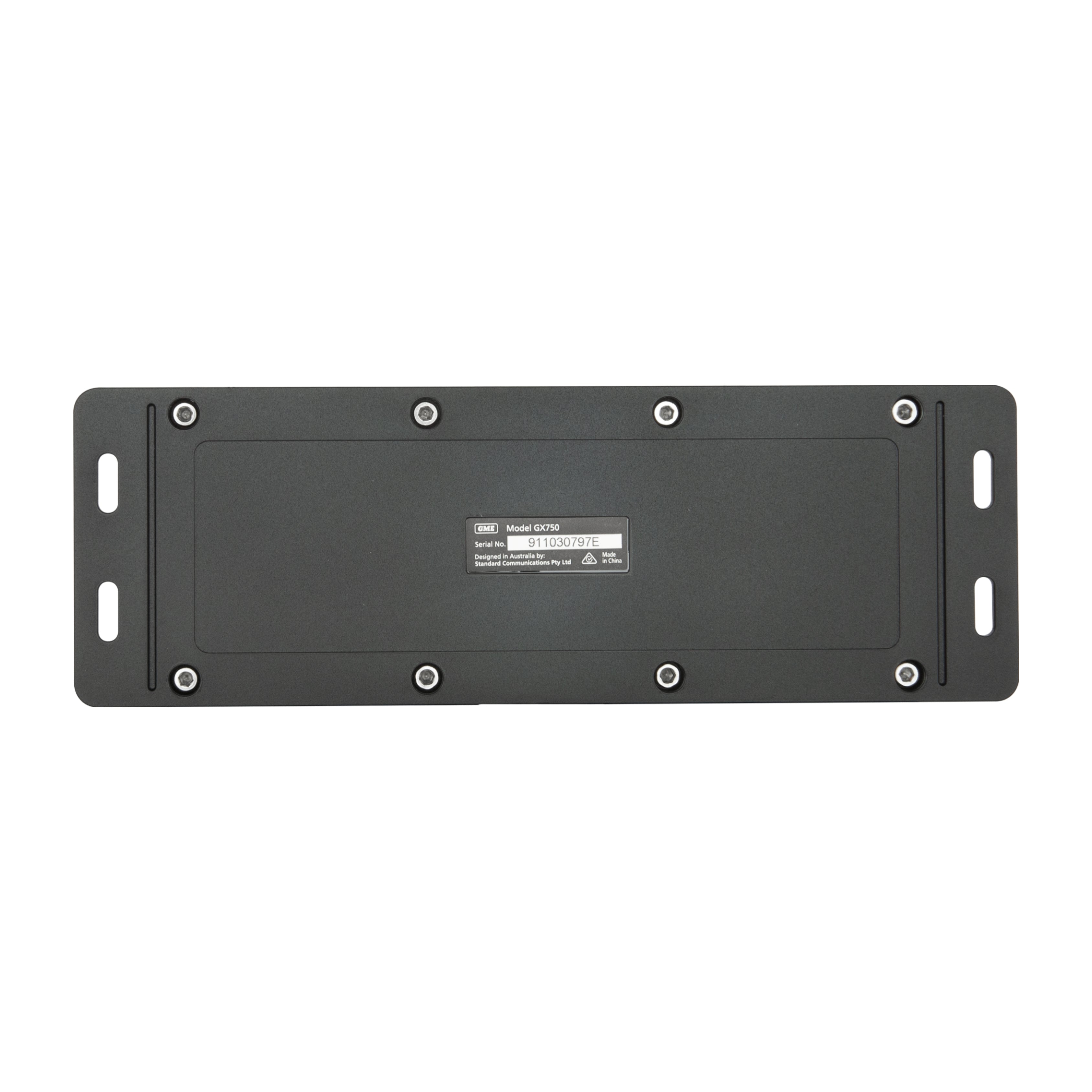

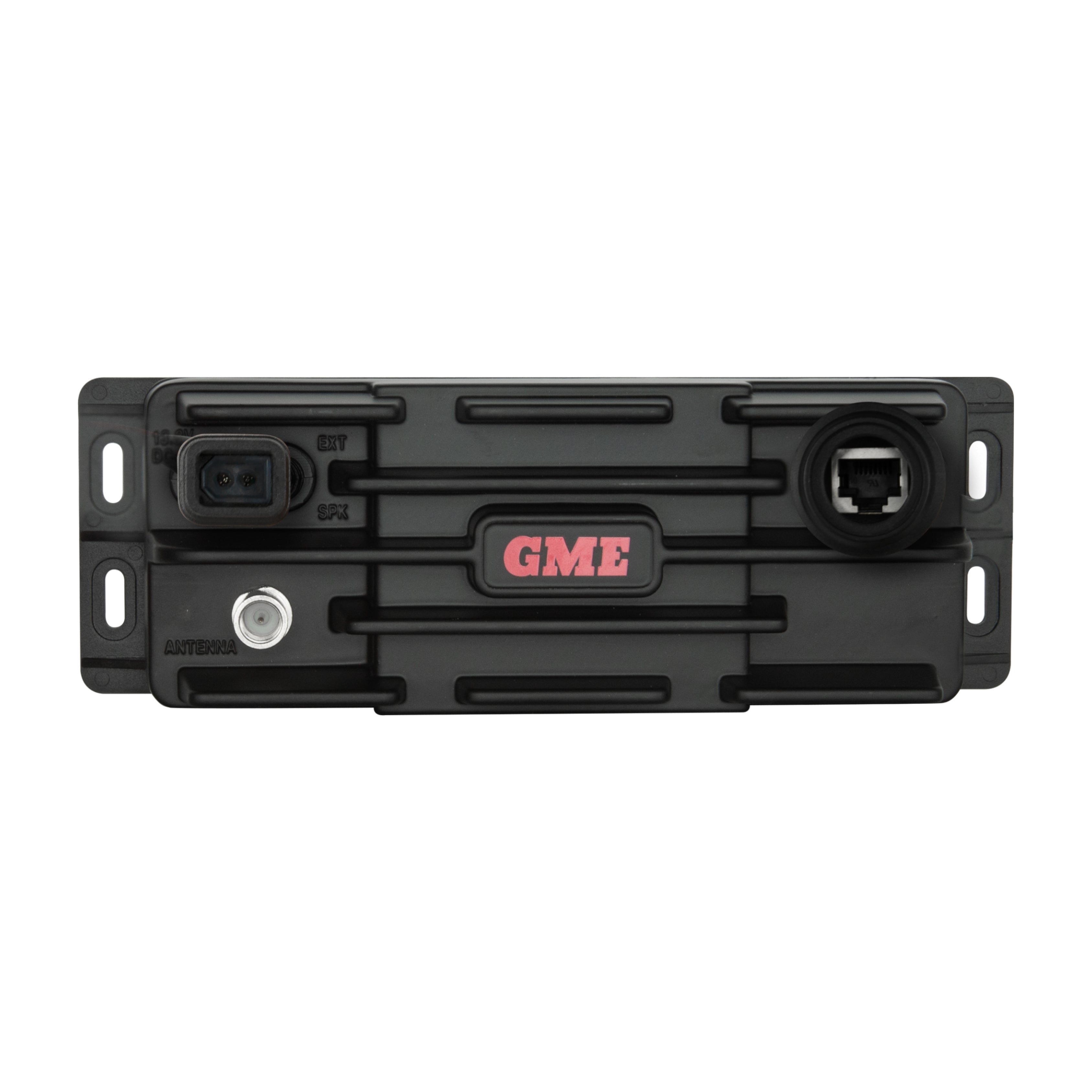

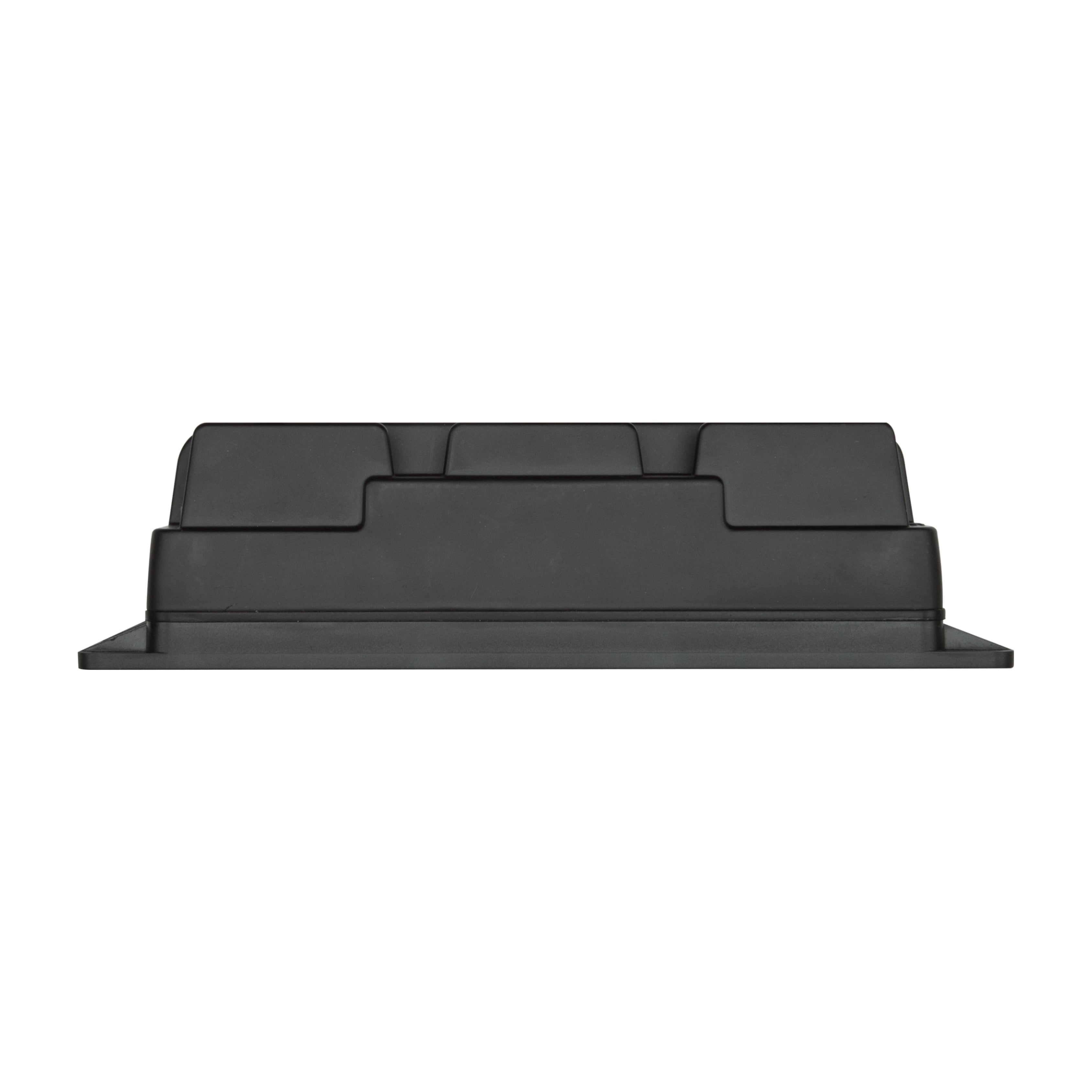

Modular black box design — main unit hidden in locker, bilge, or under-dash; only the LCD controller mic is visible at the helm
-

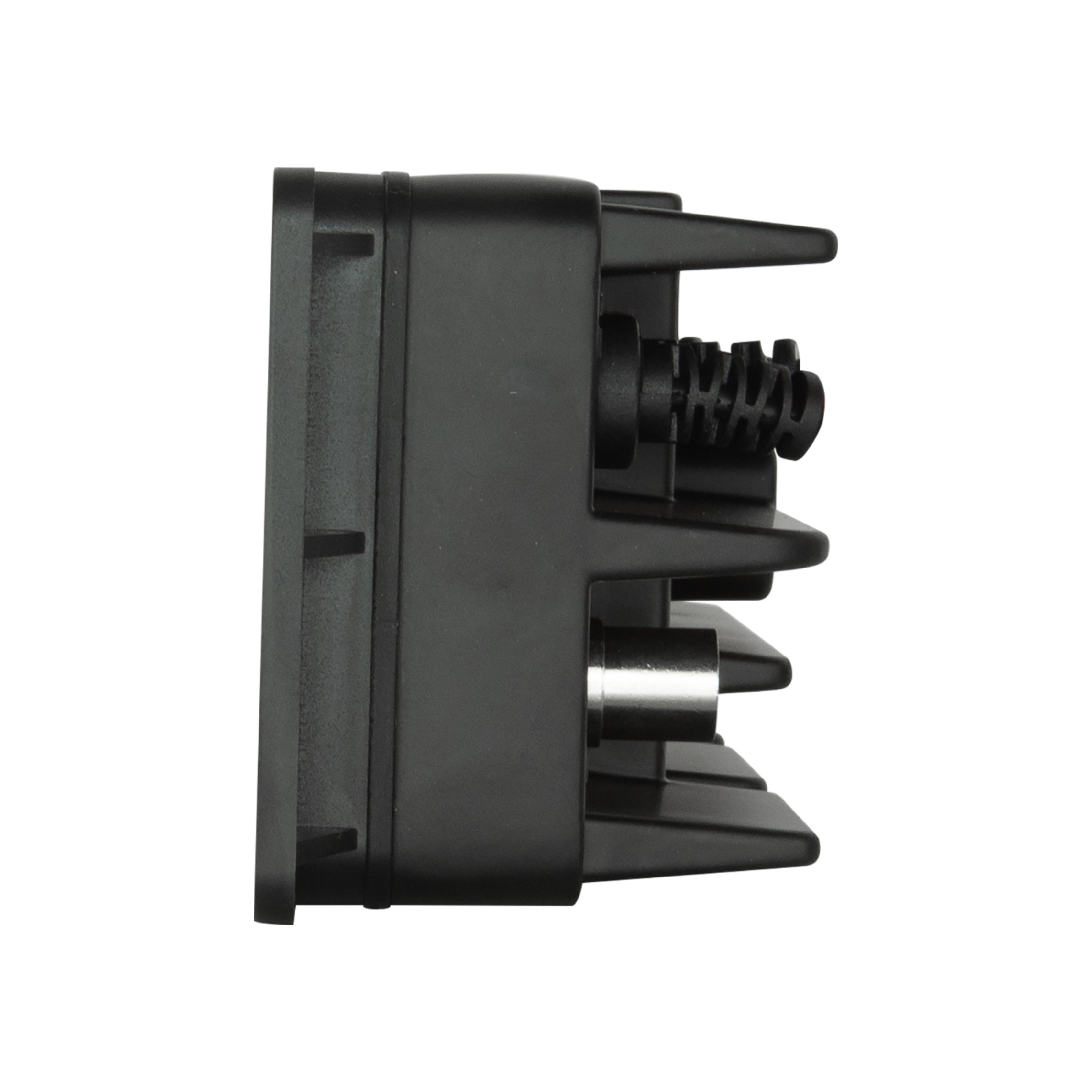

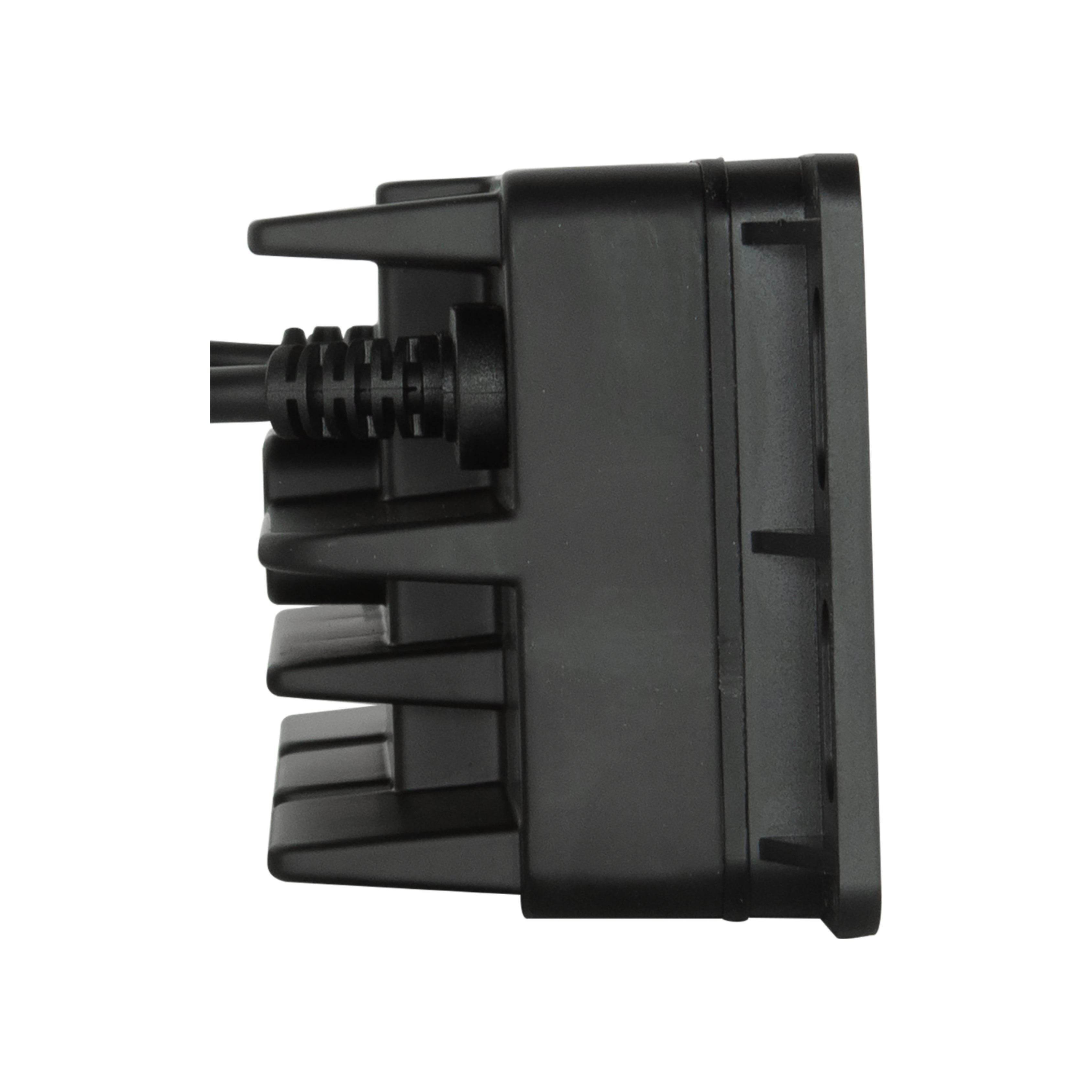

MK013W flush-mount microphone socket — installs in the helm panel for clean waterproof mic connection
-
500mm interconnecting lead included — standard separation between main unit and controller socket; optional LE107 6m cable for greater separation
-

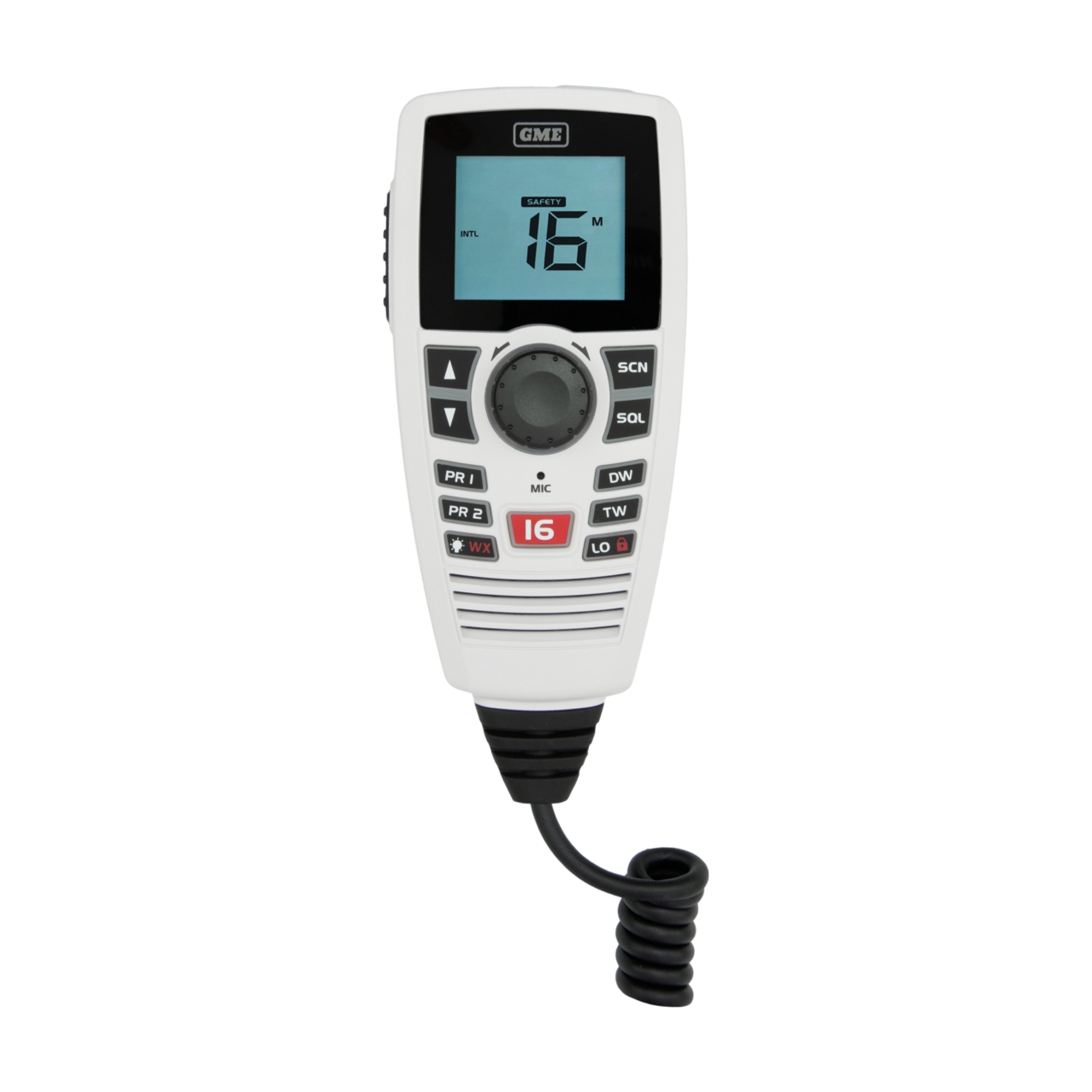

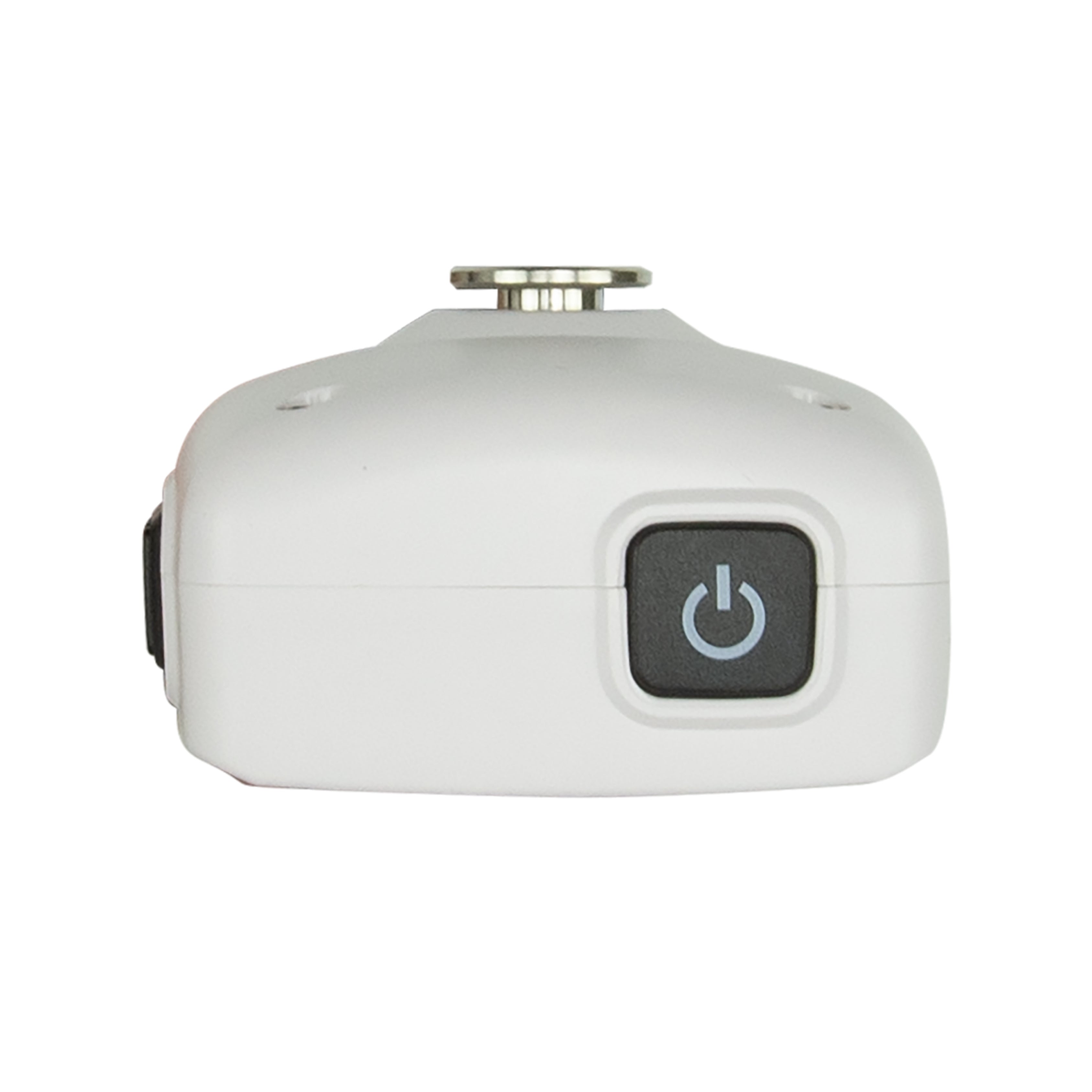

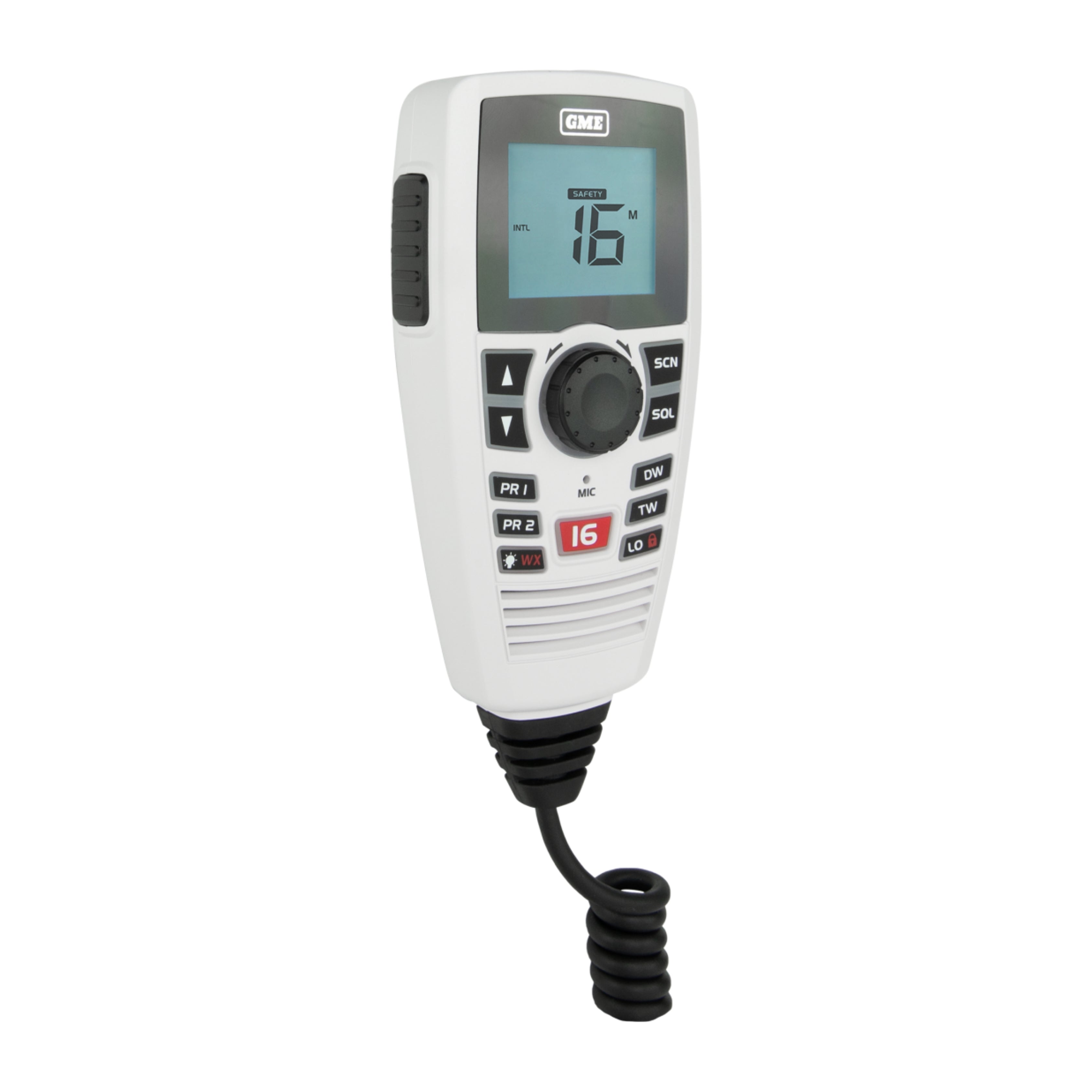

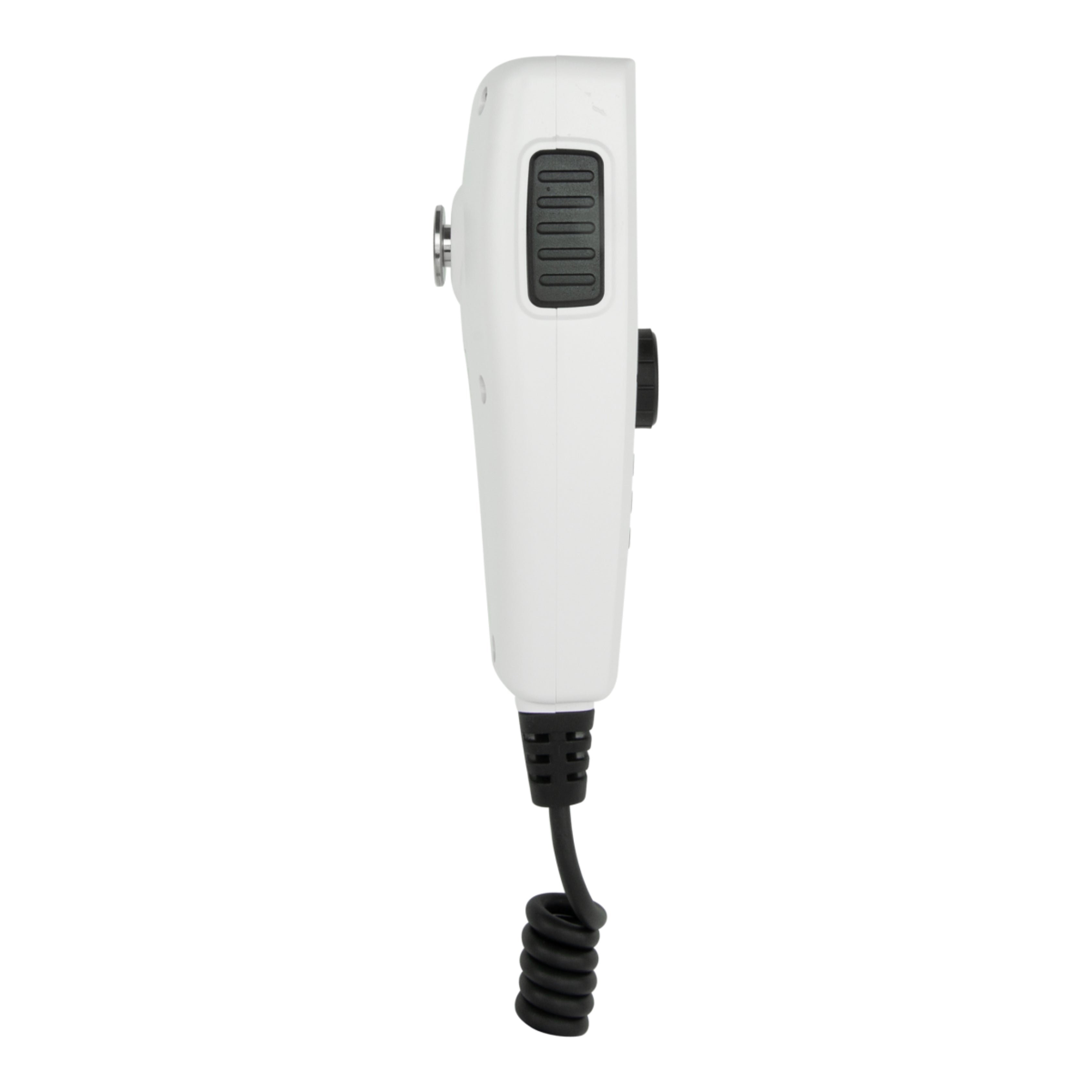

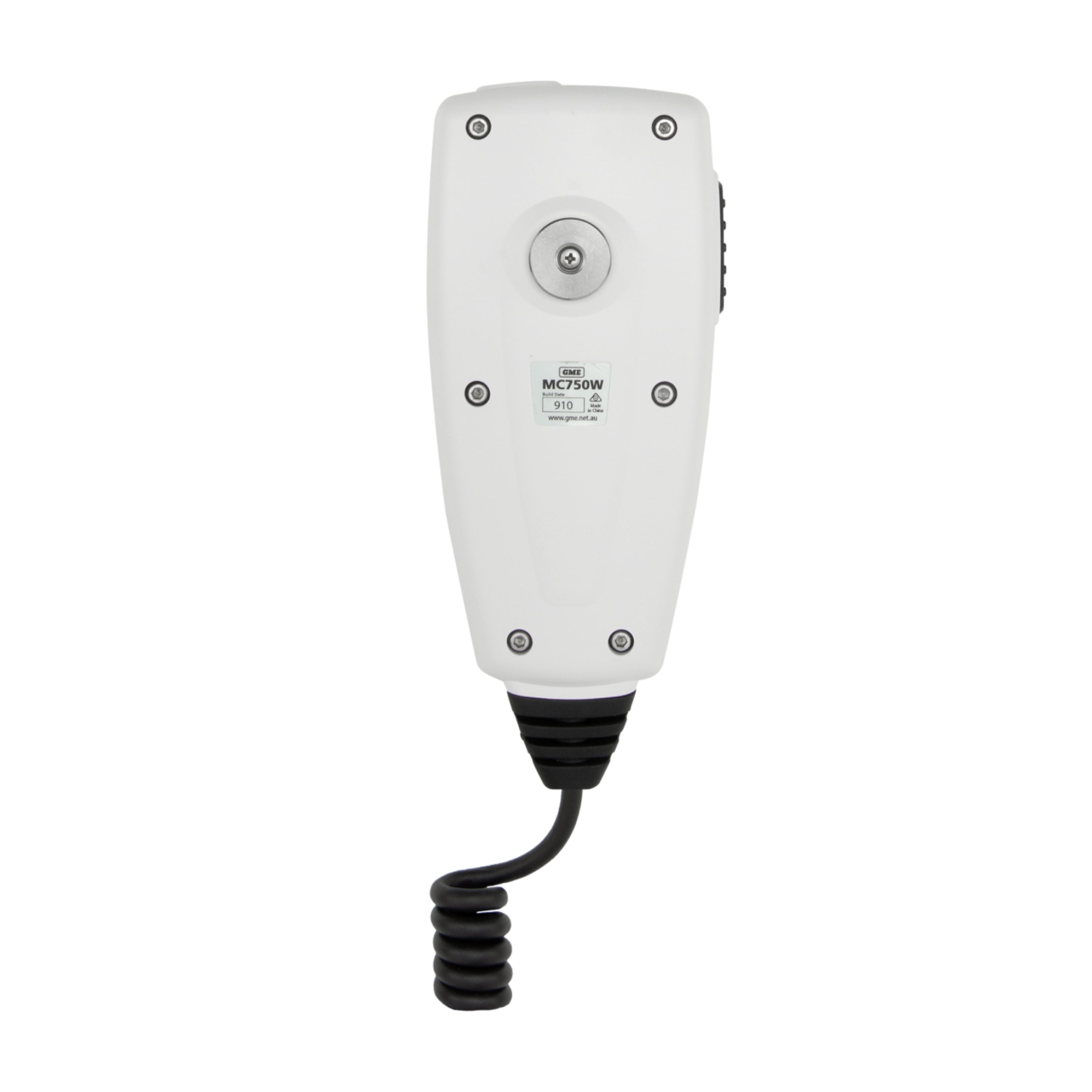

Full-function LCD controller microphone — display with large numbers, adjustable brightness and colour options; full radio control from the microphone
-
25/1W switchable power — 25W for full range; 1W for close range and power conservation
-
IPX7 ingress protection — waterproof to 1 metre submersion for 30 minutes
-
Waterproof speaker microphone — audio delivered via the controller mic
-
Dual watch, triple watch, two priority channels — simultaneous multi-channel monitoring
-
Two working channel memories — quick access to frequently used channels
-
Programmable channel scan — scans user-defined channels and stops on active transmissions
-
International, USA and Canadian channel sets — complete marine VHF coverage
-
White finish — suits white vessel helms and interiors
-
Black version available — GX750B
Technical Specs
| Specification |
Detail |
| Brand |
GME |
| Part number |
GX750W |
| Product type |
Black box (modular) VHF marine radio |
| Colour |
White |
| Output power |
25W / 1W switchable |
| Waterproof rating |
IPX7 |
| Design |
Modular — hidden main unit + controller microphone |
| Controller display |
LCD, adjustable brightness and colour |
| Mic socket |
MK013W flush-mount waterproof socket |
| Interconnecting lead |
500mm (included) |
| Extended cable |
LE107 optional 6m cable |
| Watch functions |
Dual watch, triple watch |
| Priority channels |
2 programmable |
| Working channel memories |
2 |
| Scanning |
Programmable channel scan |
| Channel sets |
International, USA, Canadian |
| Extension speaker |
Optional (GME extension speaker) |
| Black version |
GX750B |
| Weight |
Not specified |
Compatible With / Goes Well With
- LE107 optional 6m interconnecting cable (for greater main unit–controller separation)
- GME extension speaker (confirm SKU with GME)
- Vessels with limited dash space or preference for clean helm aesthetics
Weight
Not specified
Frequently Asked Questions
What is a "black box" VHF marine radio and how does it differ from a conventional fixed-mount?
A conventional fixed-mount radio (such as the GX700) is a single unit mounted at the helm with the display, controls, and microphone all integrated. A black box radio separates the transceiver (main unit) from the user interface — the main unit can be hidden in any protected location on the vessel, and only a compact controller microphone is mounted at the helm. This frees significant dash space, allows the main unit to be located away from exposure, and produces a very clean helm installation.
Where can the GX750W main unit be installed?
The main unit can be mounted in any location protected from the elements — under-dash panels, lockers, electrical compartments, or bilge areas. The main unit is IPX7 rated, but dry installation is preferable for longevity. The 500mm interconnecting lead (included) or optional 6m LE107 cable connects the main unit to the MK013W flush-mount socket at the helm.
What does the LE107 optional 6m cable provide?
The standard 500mm interconnecting lead allows separation of approximately half a metre between the main unit and the controller mic socket. The optional LE107 6m cable extends this separation to 6 metres — allowing the main unit to be installed much further from the helm, such as in an engine room, stern locker, or deep below-deck location, giving greater installation flexibility on larger vessels.
Does the controller microphone have full radio control?
Yes — the LCD controller microphone is a full-function interface for the GX750W. All standard radio functions (channel selection, watch functions, scan, priority channels, display adjustments) are accessible from the controller mic. The display shows large, easily readable numbers with adjustable brightness and colour options.
Is there a black version of the GX750W?
Yes — the GX750B is the black version with identical specifications.
