Description
GME LE05PL 5 Metre Marine Grade RG58 Coaxial Antenna Extension Lead with PL259 Connectors for Marine VHF and UHF CB Installations
The GME LE05PL is a 5-metre marine grade RG58 coaxial antenna extension lead with PL259 connectors, designed to extend antenna cable runs in marine VHF and UHF CB installations where the standard lead is insufficient to reach the radio. PL259 is the standard large-body coaxial connector used across most fixed marine VHF radios, HF systems, and antenna bases with SO239 sockets. The marine grade RG58 jacket is UV and salt spray resistant for reliable long-term performance in marine environments.
Product overview
The LE05PL adds 5 metres to an existing PL259 antenna installation, suited to fixed marine VHF radios and antenna bases with SO239 sockets including GME GX700W, GX700B, and other fixed VHF radios and UHF CB antenna bases using the PL259/SO239 connector standard.

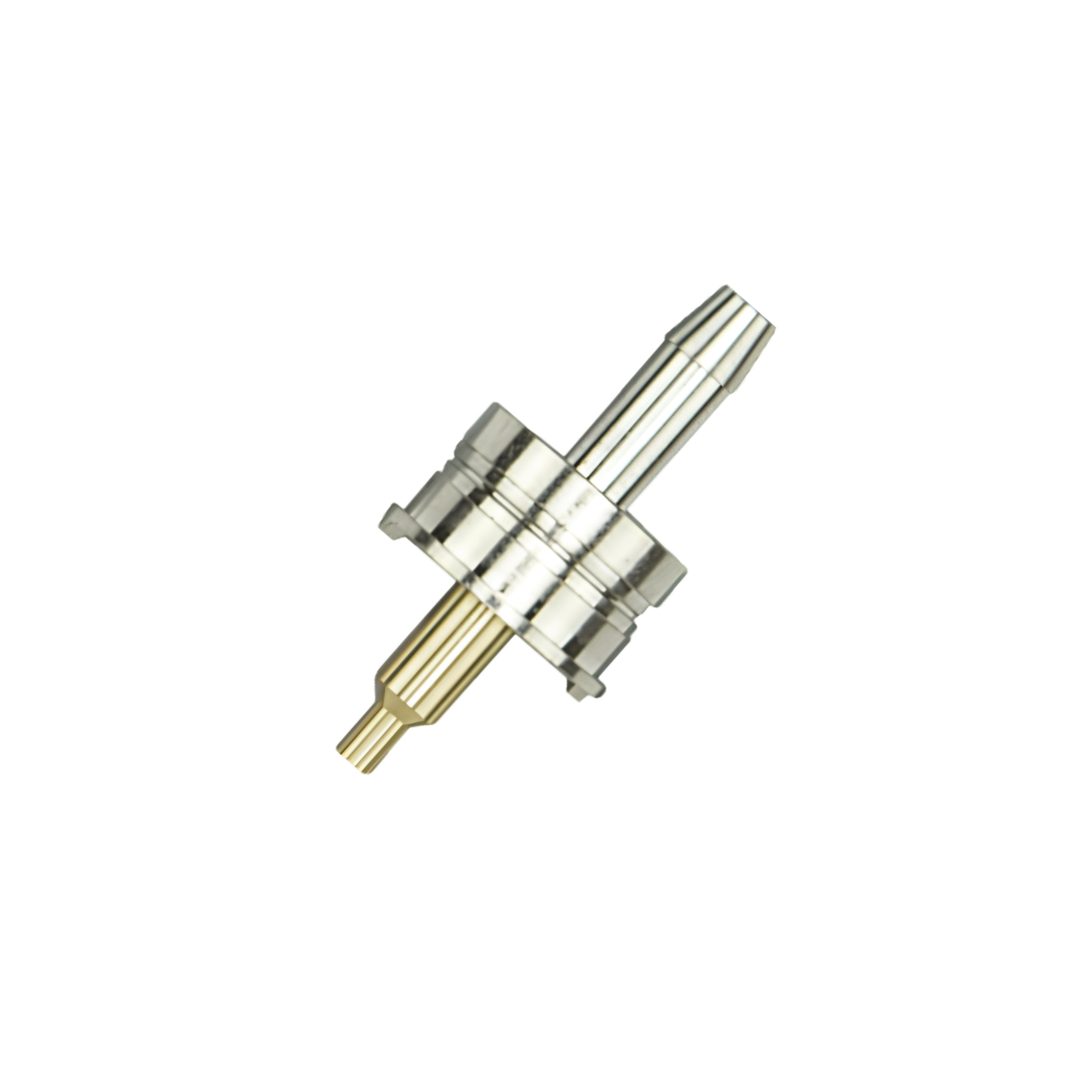

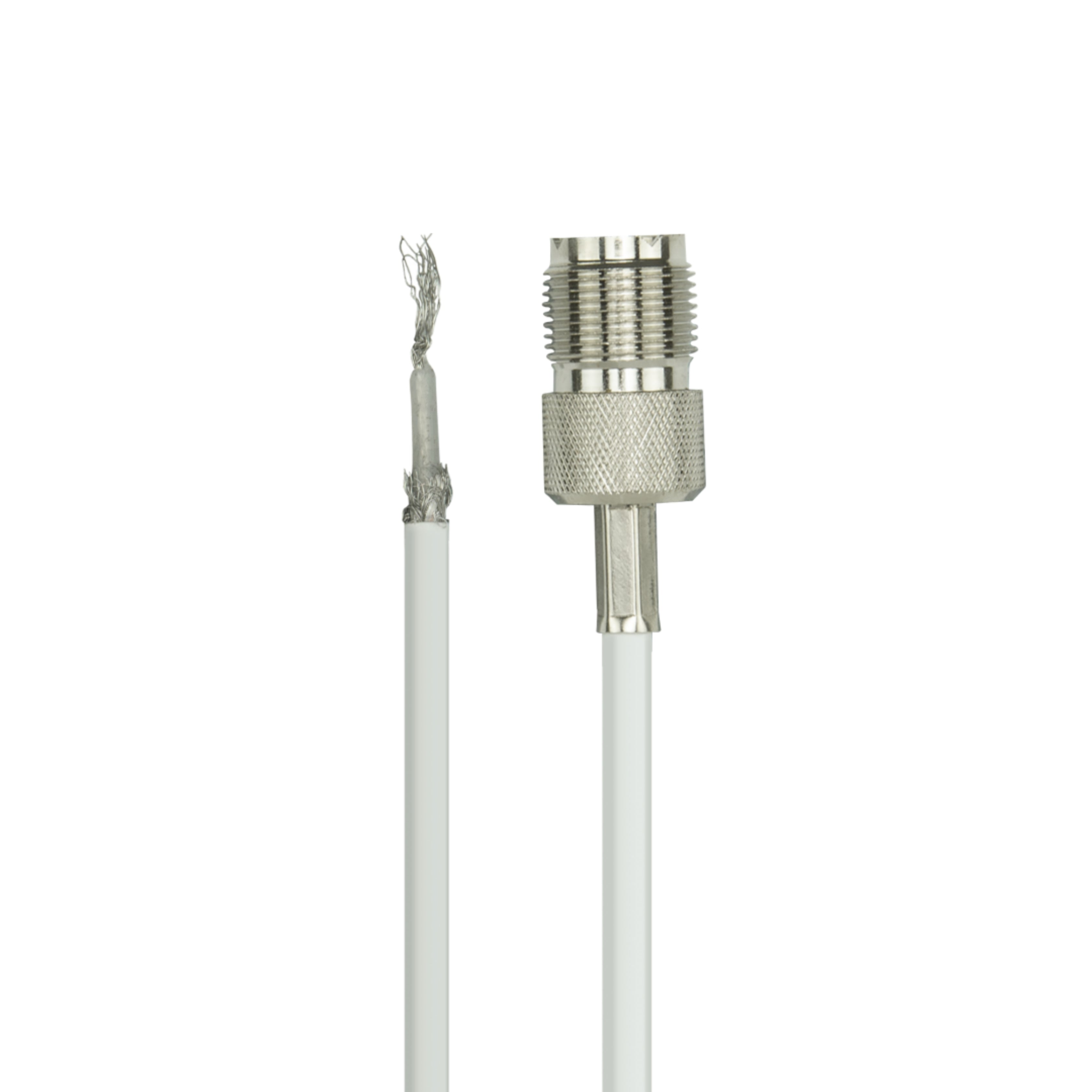

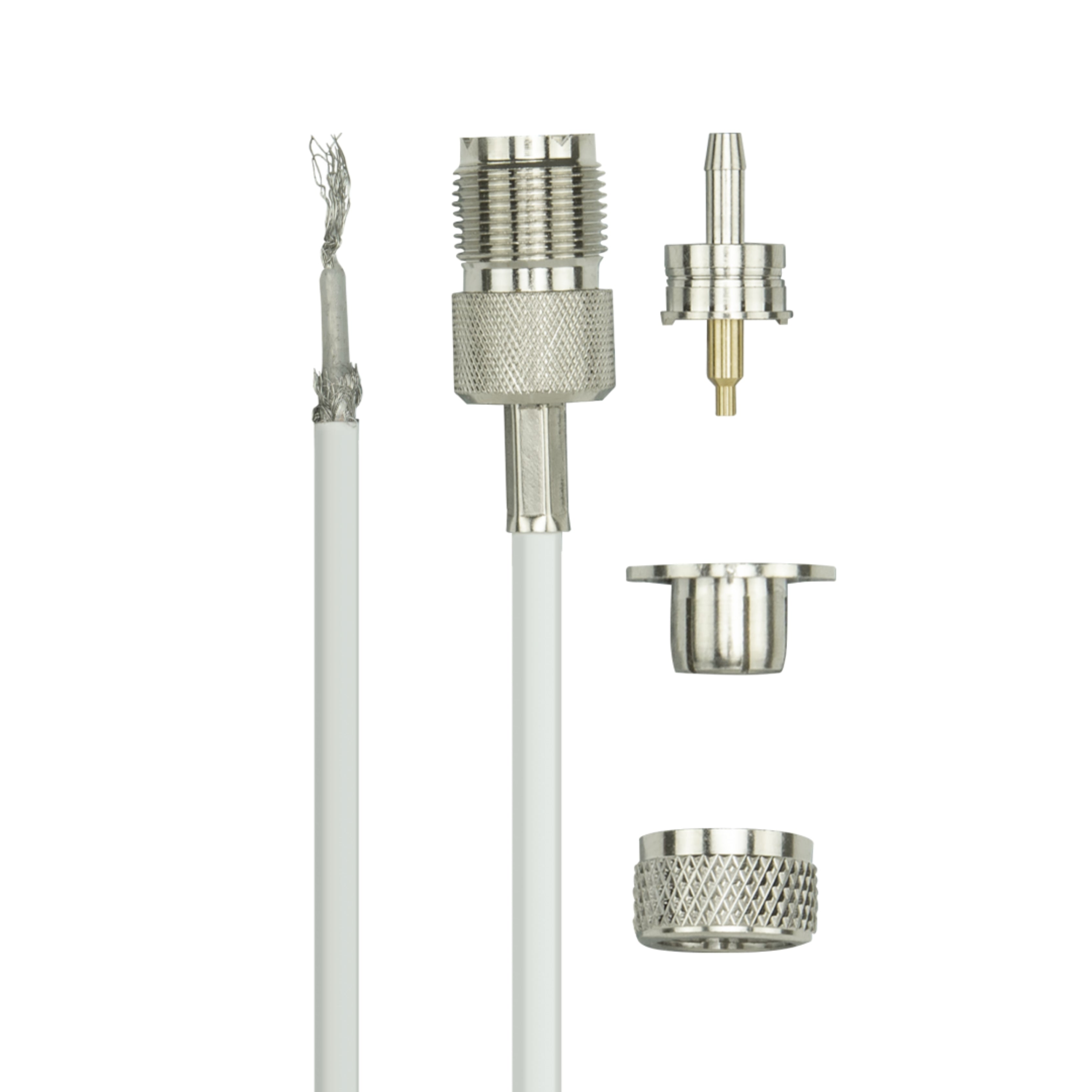

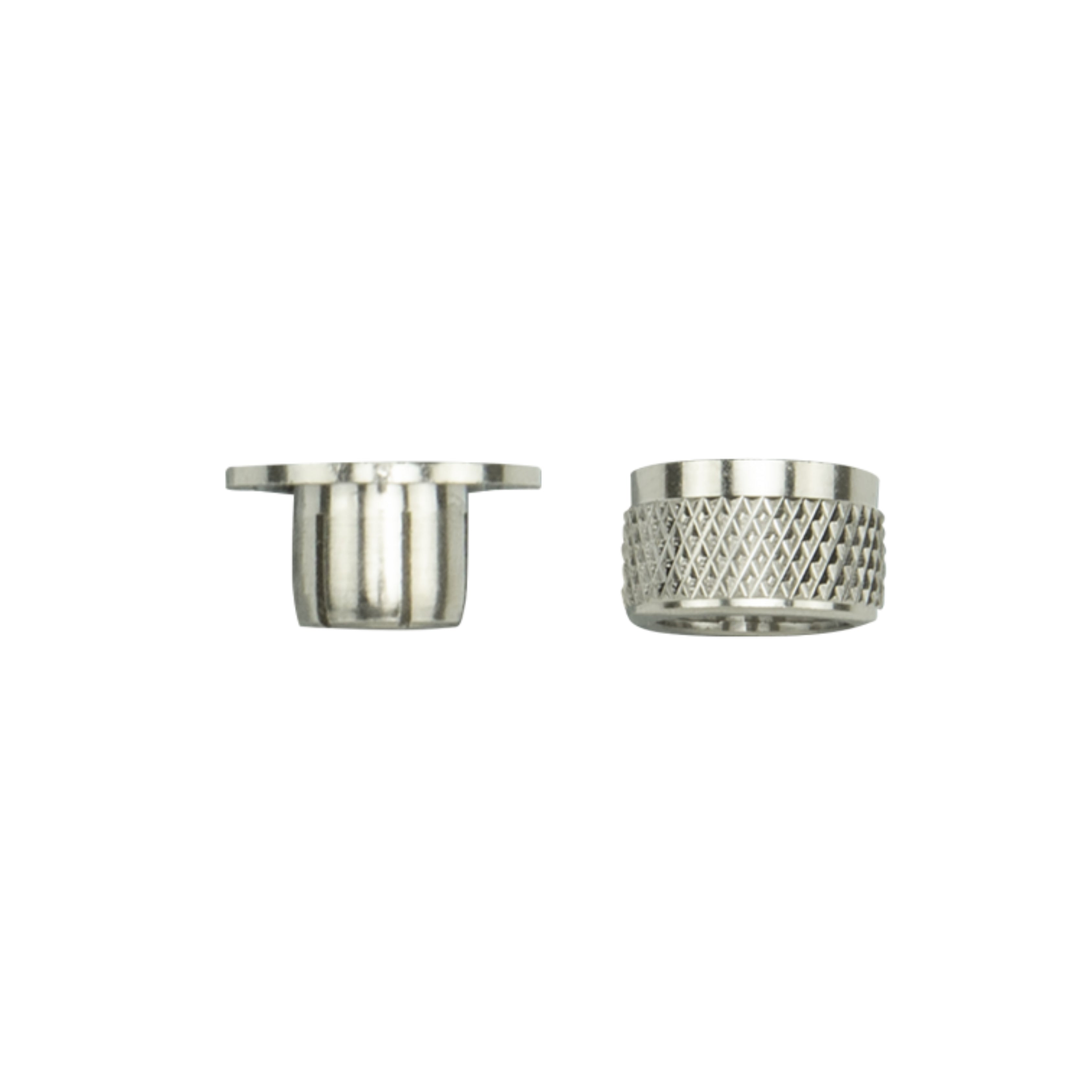

The PL259 (also called UHF plug) is the male connector; the SO239 is the matching female socket found on the radio's antenna input and on many antenna base assemblies. Marine grade construction means the outer jacket and insulation withstand UV radiation, salt spray, moisture, and the general corrosive marine environment for reliable long-term service on vessels.
For FME-based GME antenna systems, the LE05FME is the matching extension using FME connectors rather than PL259. Confirm which connector type your equipment uses before purchasing.
Features and benefits
5m marine grade RG58 coaxial cable: 50-ohm coaxial cable with a marine-rated jacket for UV and salt spray resistance in vessel installations.
PL259 connectors suits SO239 antenna sockets: Standard large-body coaxial connector used across most fixed marine VHF radios, HF transceivers, and antenna bases. Not compatible with FME-based equipment without an adaptor.
Extends marine antenna cable runs by 5 metres: Adds reach from the antenna to the radio where the standard lead is insufficient.
Marine environment rated: UV, salt spray, and moisture-resistant construction for reliable long-term performance in vessel installations.
Technical specs
| Specification |
Detail |
| SKU |
LE05PL |
| Brand |
GME |
| Type |
Marine Antenna Extension Lead |
| Cable Length |
5 metres |
| Cable Type |
Marine grade RG58 coaxial |
| Connector Type |
PL259 |
Frequently asked questions
What is the PL259 connector and what equipment uses it? The PL259 (also called UHF plug) is the large-body threaded coaxial connector used as the standard on most fixed marine VHF radios, HF transceivers, and many UHF CB antenna bases. The SO239 is the matching female socket. The LE05PL extends PL259/SO239 installations by 5 metres.
What is the difference between the LE05PL and the LE05FME? Both are 5-metre marine grade RG58 coaxial antenna extension leads. The LE05PL uses PL259 connectors suited to fixed marine VHF radios and antenna bases with SO239 sockets. The LE05FME uses FME connectors suited to GME's FME-based antenna systems including UHF CB and portable VHF marine accessories. Confirm which connector type your equipment uses before purchasing.
What is marine grade RG58? RG58 is a standard 50-ohm coaxial cable. Marine grade means the outer jacket and insulation are treated to withstand UV radiation, salt spray, moisture, and the corrosive marine environment, extending the cable's reliable service life in vessel installations compared to standard automotive RG58.
Can multiple LE05PL leads be connected in series for a longer run? Extension leads can be chained to extend the run further, but each additional metre and connector joint introduces signal attenuation. For longer cable runs, consider the LE503 (10m RG213/U) or LE504 (15m RG213/U) for lower overall attenuation. Contact us for advice on the correct cable solution for your specific installation.
Can the LE05PL be used with FME equipment? The LE05PL terminates in PL259. A GME AD503 FME-to-PL259 adaptor bridges the two connector standards for connection to FME-based GME equipment. Contact us to confirm the correct adaptor for your specific installation.
