Description
GME TH10 12V Telephone Intercom System
The GME TH10 is a 12V telephone intercom, supporting between 2 and 10 stations with a maximum cable run of 500 metres, drawing 10mA per unit when talking and 45mA when paging.
Product Overview
For over 60 years GME has designed and manufactured an extensive range of high quality accessories to suit a wide variety of applications. From 4WDing to boating and fishing, GME has a genuine accessory to meet every need. The TH10 is a 12V telephone intercom, providing wired communication between multiple stations across a property, vessel, or worksite.
The system requires a minimum of 5 wires for a 2 station setup, scaling up to a maximum of 13 wires for a full 10 station configuration. Powered from a 12V DC supply at 100mA, the TH10 draws just 10mA per unit while talking and 45mA when paging, keeping power demands modest across the whole network. The system supports a maximum cable length of 500 metres, giving flexibility for larger installations.
Features & Benefits
Supports 2 to 10 Stations: The TH10 scales from a simple 2 station intercom up to a full 10 station network, suiting setups of varying size.
Low Operating Current: Drawing just 10mA per unit when talking and 45mA when paging, the TH10 keeps power demands low across the network.
12V DC Power Supply: Runs from a 12V DC supply at 100mA, suiting standard vehicle, marine, or low-voltage property power systems.
Maximum 500m Cable Length: A maximum cable length of 500 metres allows the TH10 to cover larger properties, vessels, or worksites.
Genuine GME Accessory: Backed by over 60 years of GME's design and manufacturing experience across 4WDing, boating, fishing, and other applications.
Technical Specs
| Specification | Detail |
| SKU | TH10 |
| Brand | GME |
| Description | 12V Telephone Intercom |
| Wires Required | Minimum 5 (2 Stations), Maximum 13 (10 Stations) |
| Operating Current | 10mA Per Unit (Talking), 45mA (Paging) |
| Power Supply | 12V DC @ 100mA |
| Maximum Cable Length | 500m |

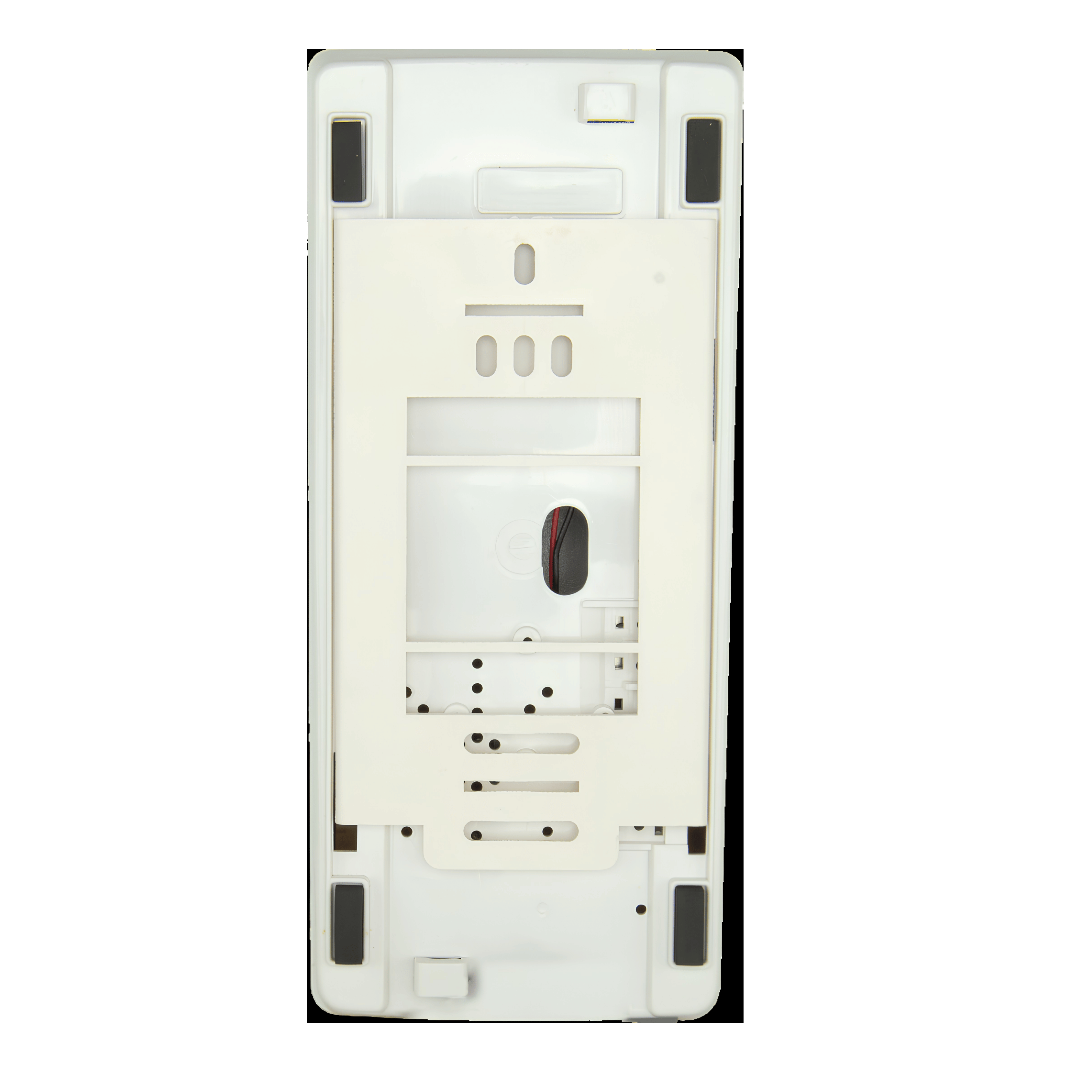

| In the Box | TH10 Telephone Intercom, Mounting Bracket |
Compatible With
The TH10 runs from a 12V DC power supply and requires between 5 and 13 wires depending on the number of stations, from 2 up to 10. Confirm your intended number of stations, wiring run, and total cable length (up to 500m) before purchase.
Frequently Asked Questions
How many stations can the TH10 support?
The TH10 supports between 2 and 10 stations, requiring a minimum of 5 wires for 2 stations up to a maximum of 13 wires for a full 10 station setup.
How far can the TH10 run?
The TH10 supports a maximum cable length of 500 metres, suiting larger properties, vessels, or worksites.
What power supply does the TH10 need?
The TH10 runs from a 12V DC power supply at 100mA.
How much current does each unit draw?
Each TH10 unit draws 10mA when talking and 45mA when paging.
What's included with the TH10?
The TH10 comes with a mounting bracket.
