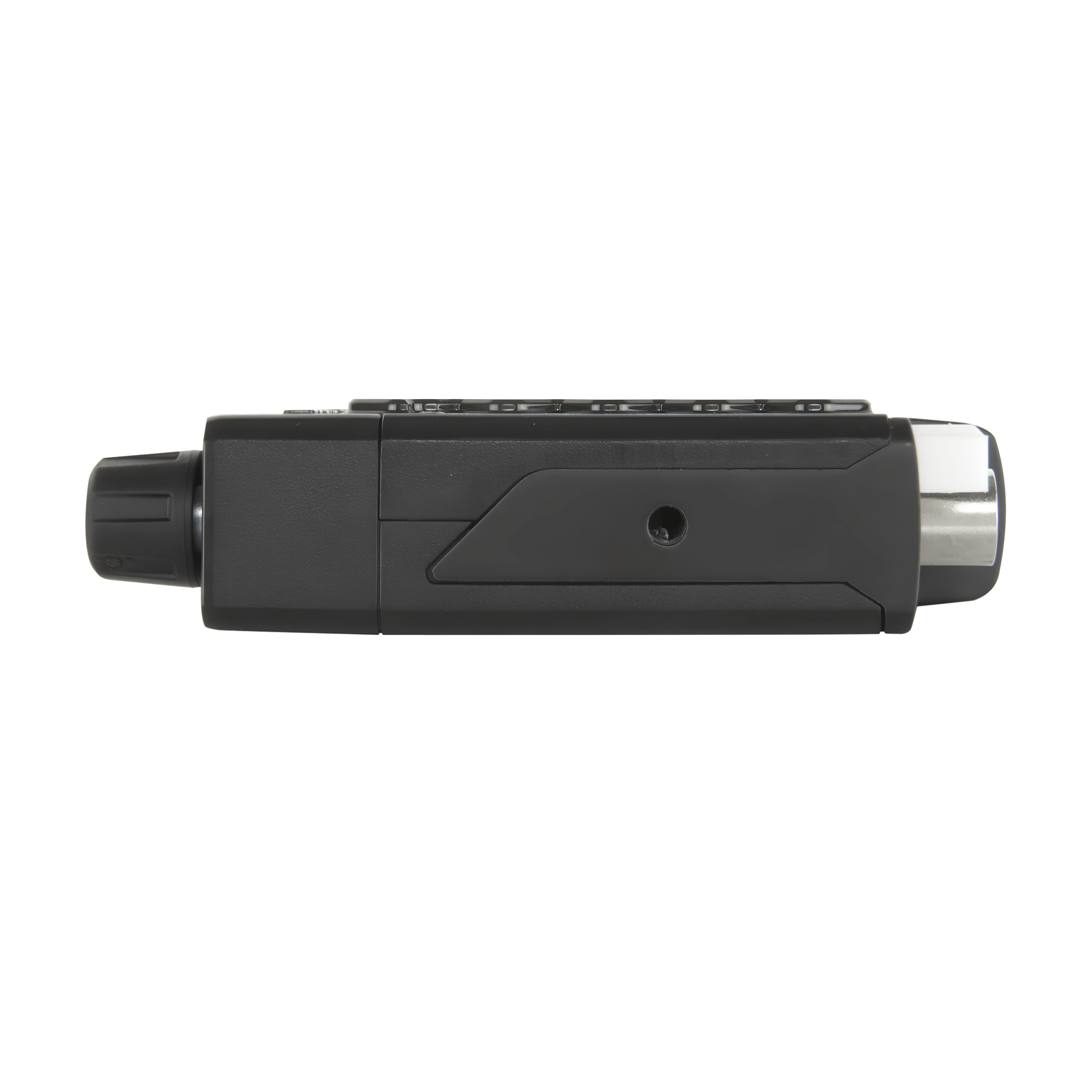

GME TX3120S Super Compact UHF CB With ScanSuite - 80 Channel

Description

GME TX3120S Super Compact UHF CB With ScanSuite: Synonymous with Quality and Reliability

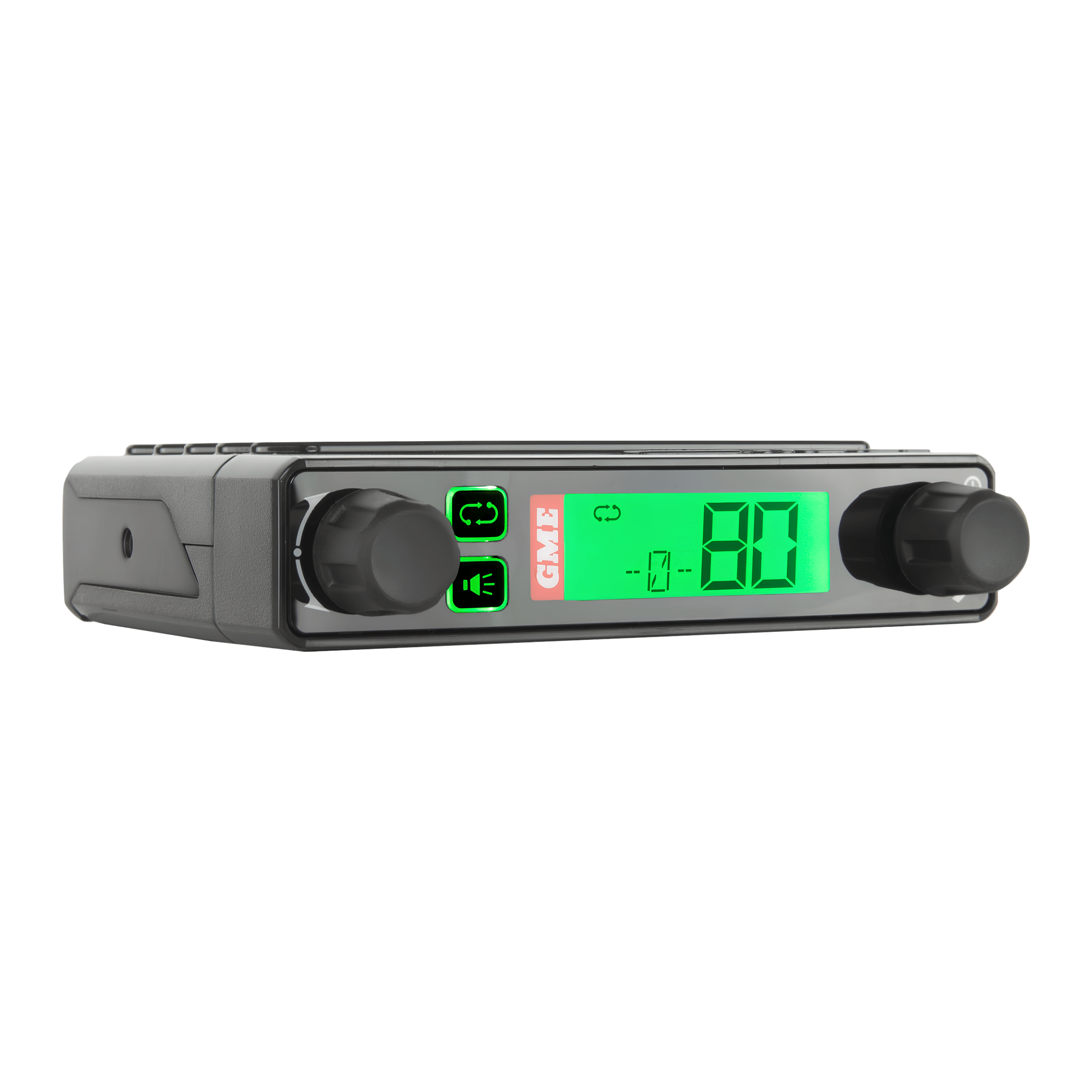

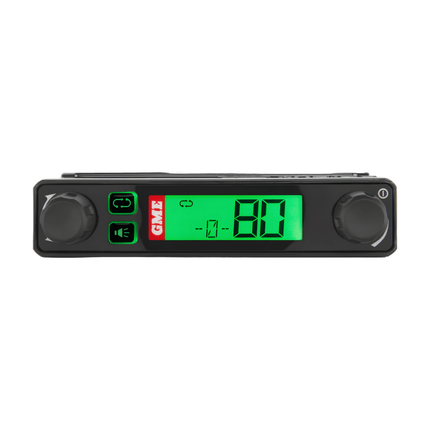

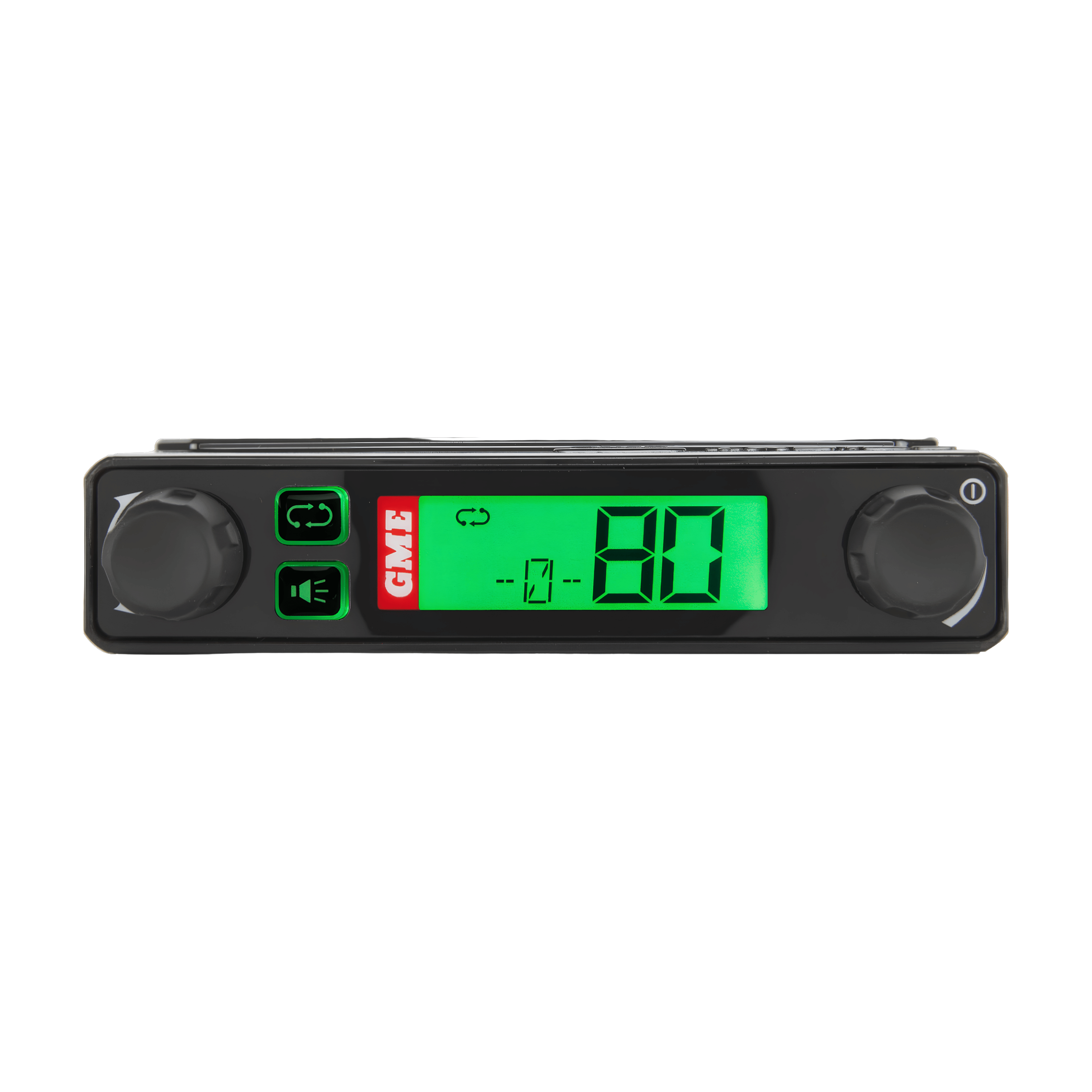

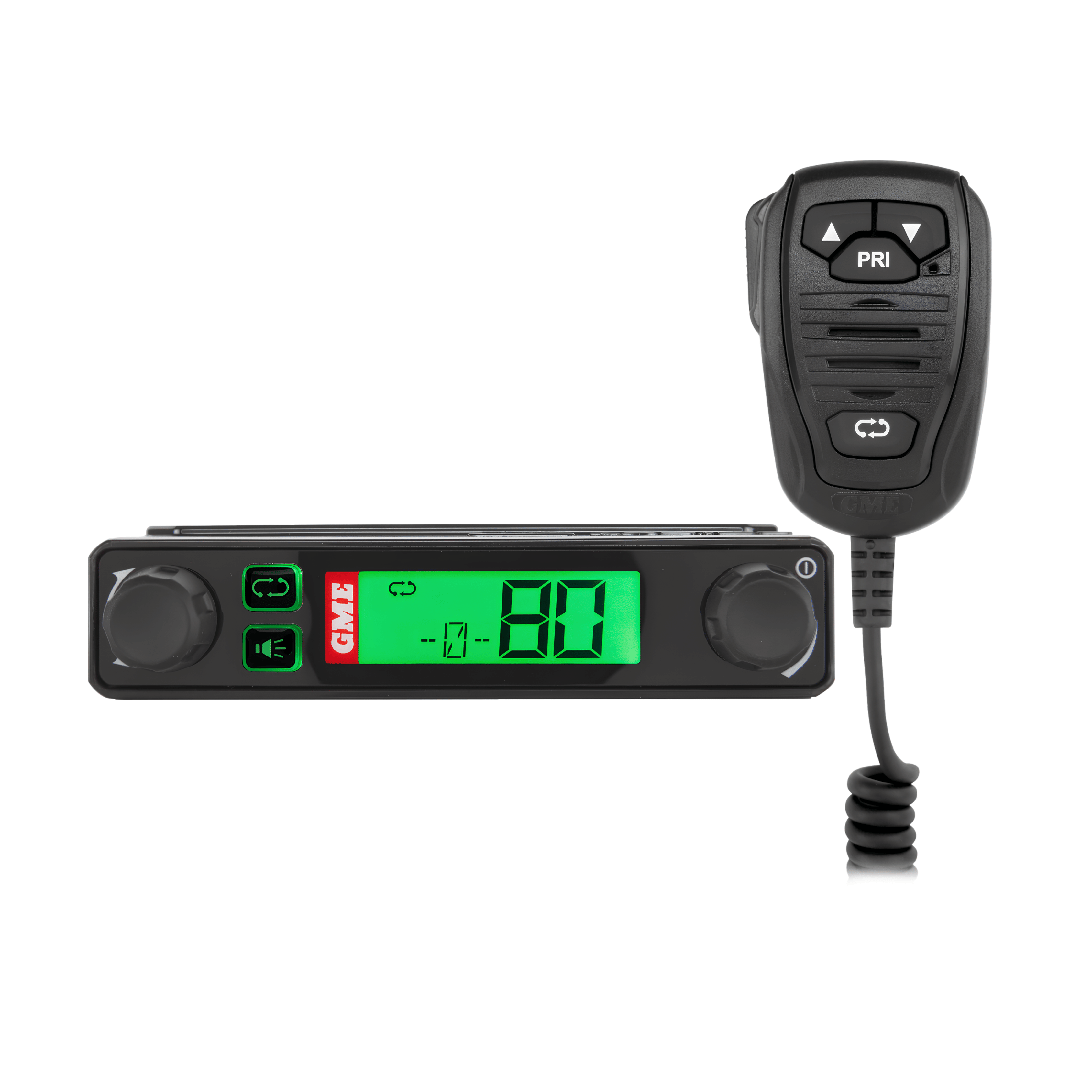

Equipped with GMEs newest digital scanning technology - ScanSuite™ and an impressive feature list that includes Digital Signal Processing, Advanced Signal Management and Dynamic Volume Control. With CTCSS and DCS, this radio ensures more privacy and less interruption. This 5-watt robust radio is engineered to maximise features in limited space. This new super compact radio has separate rotary user controls for volume and channel change, the widest LCD screen available on any super compact-sized UHF and a new dynamic speaker microphone. These new and unique features improve useability and audio quality for a better UHF experience. GME TX3120S Specifications:
  • Compliant Specification: Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
  • Frequency Range TX: 476.425 - 477.4125 MHz
  • Number of Channels: 80 UHF CB
  • Channel Spacing: 12.5 kHz
  • Operation Mode: Simplex channels 1-80, Semi duplex channels 1–8, 41–48.
  • Scanning Speed: 20 channels per second
  • Antenna Impedance: 50 Ohms nominal
  • Nominal Battery Voltage: 13.8 volts DC
  • Operating Voltage Range: 10-15 volts DC
  • Overvoltage Protection: 25 volts DC max At 18 volts DC the RF power is reduced, and the words ‚ÄòHi DC' flash.
  • Overcurrent Protection: In-line 2A Fuse
  • Frequency stability: ¬±2.5 PPM
Transmitter:
  • RF Output: 5.0 watts max
  • Spurious Emission: < -70 dBc
  • Modulation: FM
  • Maximum Deviation: < ¬± 2.5 kHz at + 20 dB limiting
  • Transmit Frequency Response: +6 dB per octave 300 Hz to 3 kHz +1-3 dB
  • Demodulated Audio Signal to Noise: > 45 dB
  • Current Consumption: 1.5 amps with 50 Ohms termination

RECEIVER:

  • Intermediate Frequencies: 1st – 38.85 MHz 2nd – 450 kHz
  • Sensitivity: 123 dBm for 12 dB SINAD unweighted
  • Selectivity: -6 dB at + 3.5 kHz ‚Äë ‚Äë ‚Äë 60 dB at ¬± 12.5 kHz
  • Intermodulation Immunity: 73 dB
  • Blocking Immunity: 100 dB
  • Spurious Response Immunity: 70 dB
  • Audio Output Power: 3 watts average into 4 Ohms
  • Audio Signal to Noise: > 45 dB
  • Current consumption: < 180 mA muted 600 mA @ max. A.F output
  • Receive Frequency: ‚Äë6 dB/Octave de‚Äëemphasis 300 Hz to 3 kHz + 1-3 dB
  • Conducted Spurious Emission: < -57 dBm
  • Power Supply/Supply Voltage: MIL STD 810 method
GME TX3120S Product Details:
  • ScanSuite
  • Dynamic Volume Control
  • Selectable priority channel
  • Voice inversion scrambler
  • Memory channel quick select
  • CTCSS & DCS
  • Advanced signal management
  • Full spectrum backlighting
  • Active channel transmitted in scan
  • 5-year warranty
  • Digital signal processing
  • Open and group scan mode
What's In the Box:
  • Mounting Bracket
  • Speaker Microphone
  • Microphone Clip
  • DC Lead
  • Screw pack and adaptor
  • Instruction manual

Legendary Products & Support From Authorized Dealers

When you choose GME, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized GME dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by GME's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized GME dealer today!
