GME TX3345 Super Compact UHF CB Radio With LCD Mic - 80 Channel

Description

GME Super Compact UHF CB Radio With LCD Mic - 80 Channel: UHF CB Radios for Sale Australia Wide

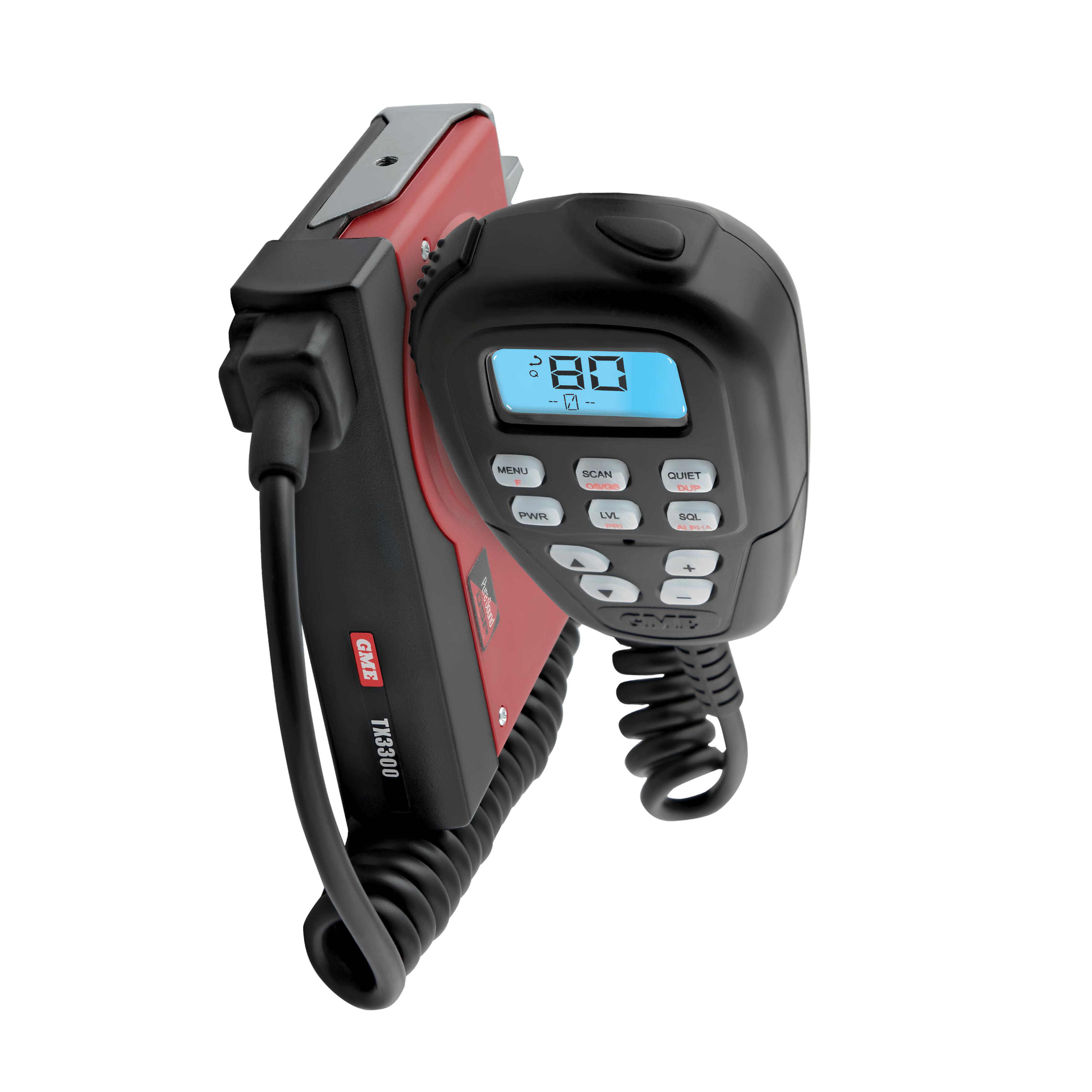

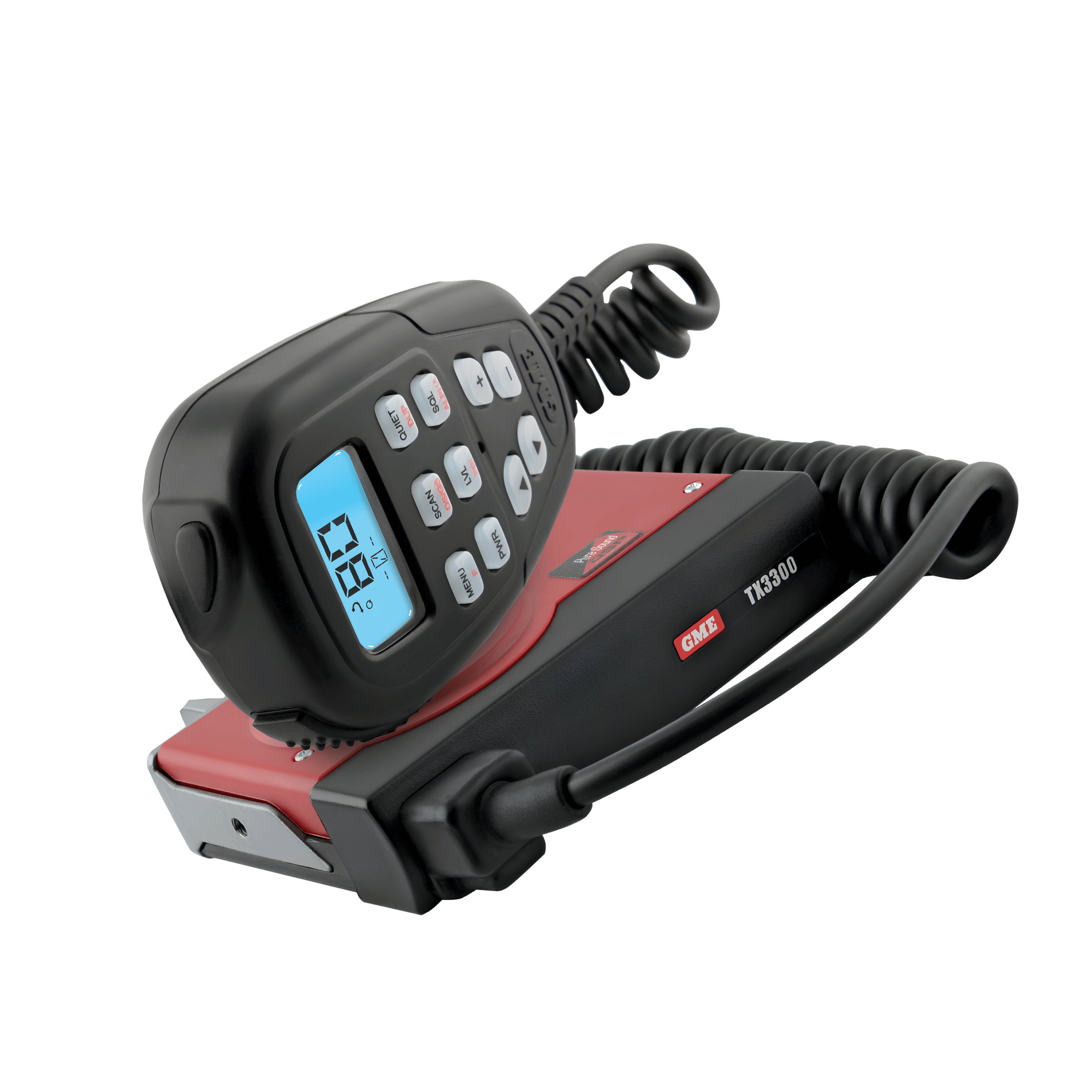

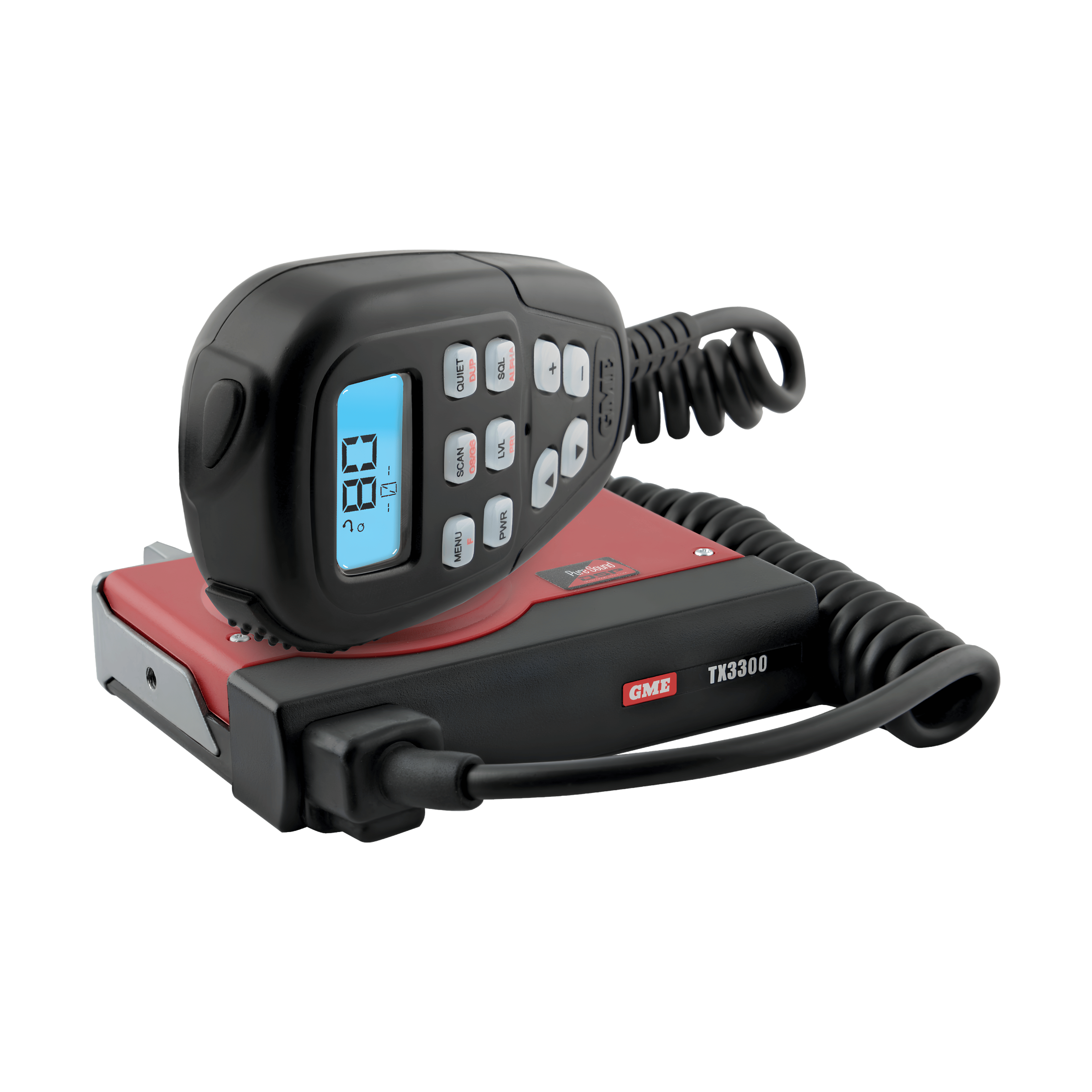

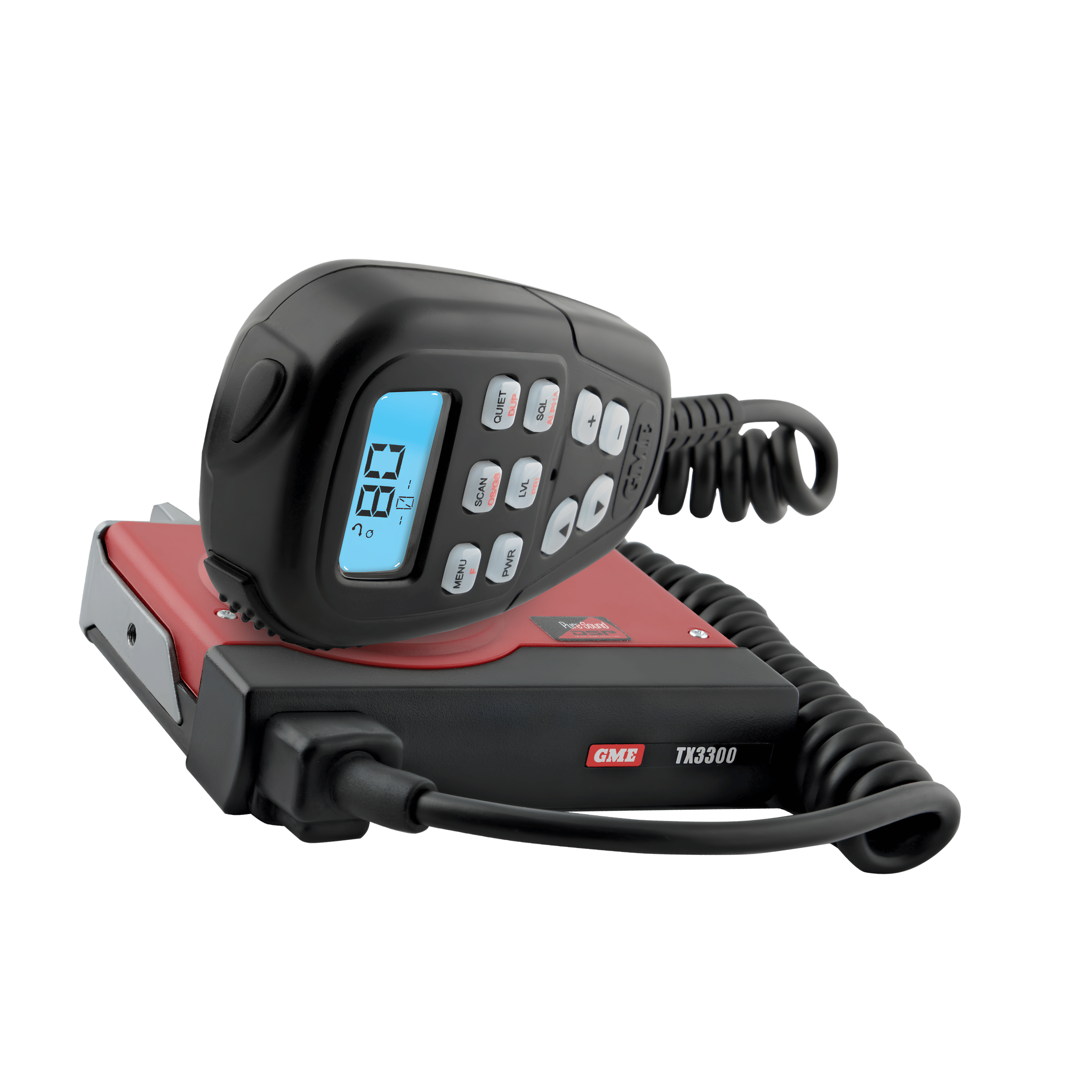

The TX3345 is a 80 channel, feature packed super compact UHF CB radio with the same Digital Signal Processing technology found in the TX3100. The remote LCD controller microphone has full spectrum backlighting and tactile button response and can be unobtrusively mounted in modern vehicles. The extremely small radio case allows it be mounted in almost any location.Australian made GME radios have a 5 year warranty.

GME TX3345 Features:

  • Powered by Pure Sound DSP engine
  • Full spectrum backlit LCD microphone
  • User selectable open and group scan
  • User adjustable squelch
  • User selectable duplex channels
  • User selectable priority channel
  • 104 in-built DCS codes
  • 50 in-built CTCSS codes
  • 5 digit selcall with quiet mode
  • Five year warranty
  • Australian design and manufacture
GME TX3345 Specifications:
  • Compliant Specification
  • Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
  • Frequency Range TX
  • 476.425 – 477.4125 MHz
  • Number of Channels
  • 80 UHF CB
  • Channel Spacing
  • 12.5 kHz
  • Operation Mode
  • simplex channels 1-80, Semi Duplex channels 1‑8, 41-48
  • Scanning Speed
  • 20 channels per second
  • Antenna Impedance
  • 50 Ohms nominal
  • Nominal Battery Voltage
  • 13.8 volts DC
  • Operating Voltage Range
  • 10-15 volts DC
  • Overvoltage Protection
  • 25 volts DC max At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.
  • Overcurrent Protection
  • In-line 2A Fuse
  • Frequency stability
  • ±2.5 PPM
  • Modulation
  • FM
  • TRANSMITTER
  • RF Output
  • 5.0 watts max
  • Maximum Deviation
  • < ± 2.5 kHz at + 20 dB limiting
  • Transmit Frequency Response
  • +6 dB per octave, 300 Hz to 3 kHz + 1-3 dB
  • Current Consumption
  • 1.5 amps with 50 Ohms termination
  • RECEIVER
  • Intermediate Frequencies
  • 1st - 21.54, MHz 2nd - 450 kHz
  • Sensitivity
  • - 123 dBm for 12 dB SINAD unweighted
  • Selectivity
  • - 6 dB at + 3.5 kHz, ‑ 60 dB at ± 12.5 kHz
  • Intermodulation Immunity
  • 73 dB
  • Blocking Immunity
  • 100 dB
  • Spurious Response Immunity
  • 70 dB
  • Audio Output Power
  • 3 watts average into 4 Ohms
  • Current consumption
  • < 180 mA muted 600 mA @ max. A.F output
  • Receive Frequency
  • ‑6 dB/Octave de‑emphasis, 300 Hz to 3 kHz + 1-3 dB
  • Conducted Spurious Emission
  • < - 57 dBm
  • MECHANICAL SPECIFICATIONS
  • Dimensions
  • 102 (W) x 87 (D) x 23 (H) mm
  • Weight
  • 158 grams
What's In the Box:
  • Radio unit
  • Mounting cradle
  • 524B LCD microphone
  • Microphone clip
  • DC lead
  • Screw pack
  • Instruction manual

Legendary Products & Support From Authorized Dealers

When you choose GME, you're choosing quality and performance. But just as important as what you buy is where you buy it from. Here's why purchasing from an authorized dealer is always the right choice:

  • ▸ Expert Knowledge & Training

    Only authorized GME dealers are factory-trained to sell and install our products. They have the expertise to ensure your purchase is set up correctly and meets your expectations.

  • ▸ Authorized Warranty Protection:

    We offer one of the best warranties in the industry, but only purchases made through authorized dealers are covered. Don't be misled by unauthorized sellers who can't provide genuine warranty support.

  • ▸ Reliable Customer Support:

    If you ever run into an issue, you're backed by GME's official manufacturer's warranty. No need to deal with overseas returns—our local team takes care of everything quickly and efficiently.

  • ▸ Protect Your Investment:

    Buying from an authorized dealer ensures you're getting genuine products, full warranty coverage, and expert support. Ask yourself—is saving a few dollars worth losing all that?

Choose wisely. Buy from an authorized GME dealer today!

GME TX3345 Super Compact UHF CB Radio With LCD Mic - 80 Channel

Product form
