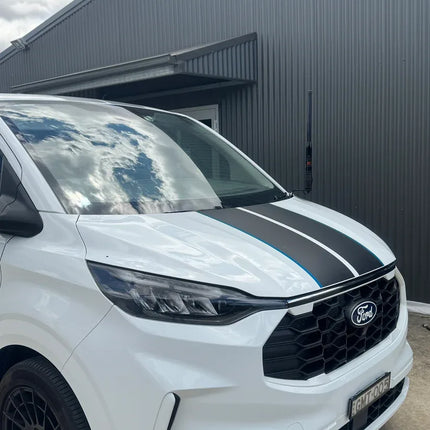

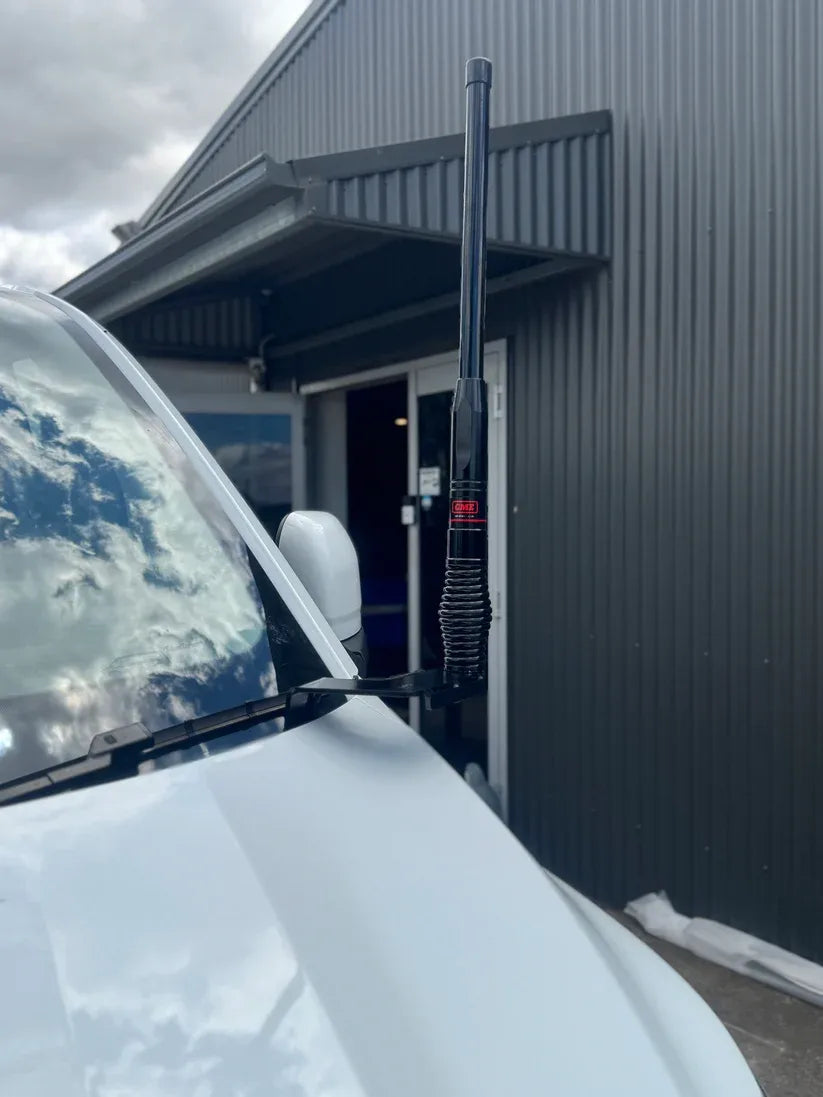

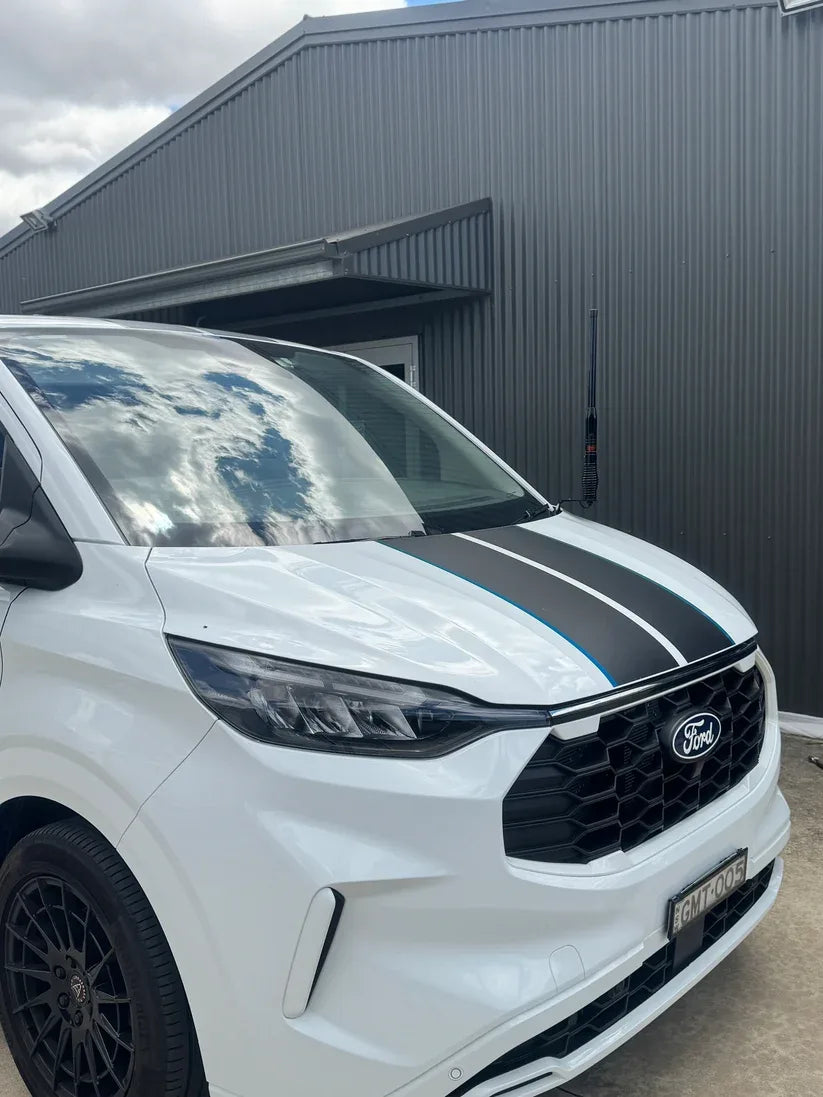

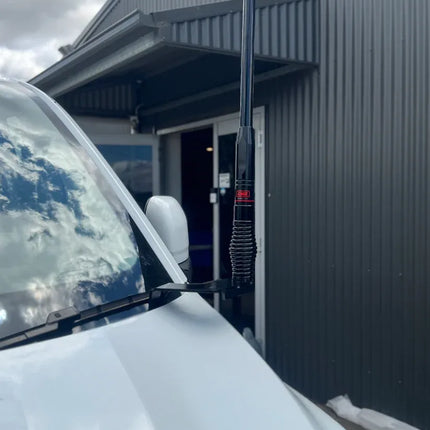

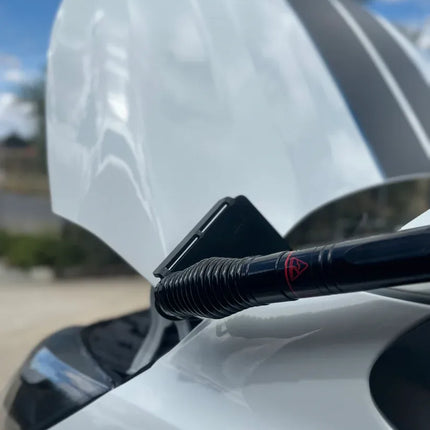

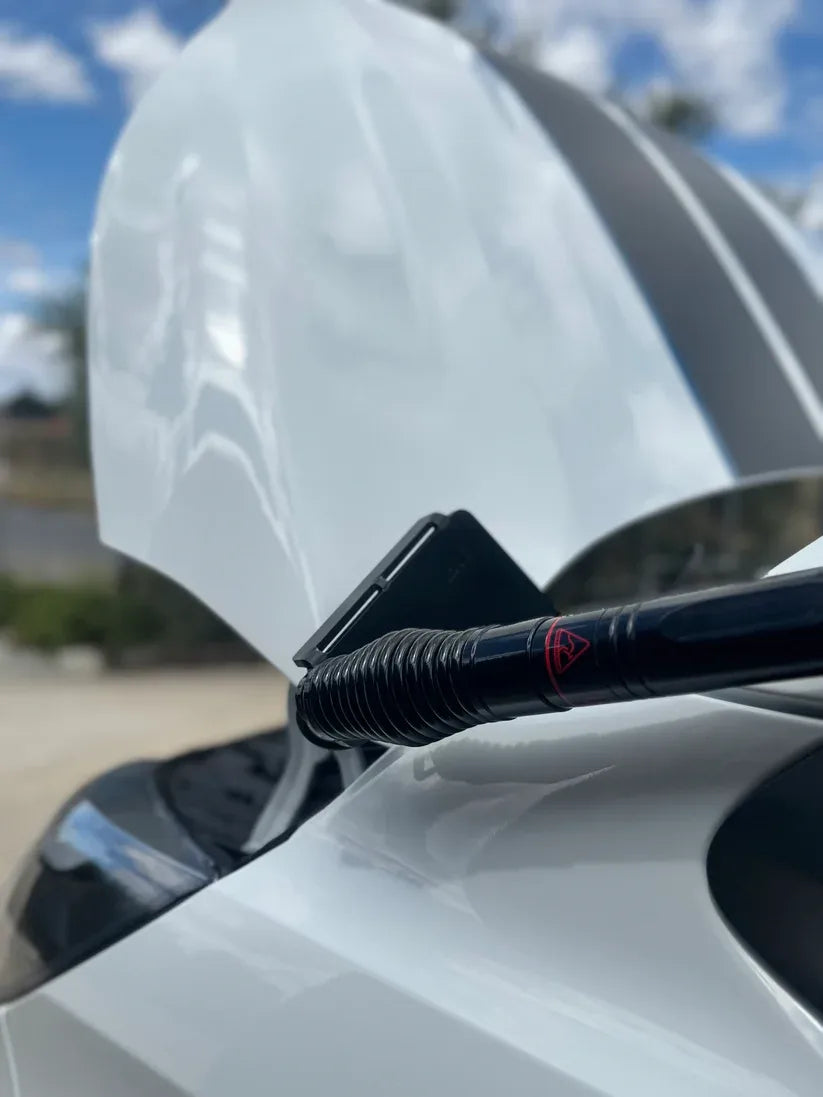

GMF4x4 256-BB Bonnet UHF Antenna Bracket for Ford Transit Custom 2022.5-2025
A vehicle-specific bonnet antenna bracket for the Ford Transit Custom, covering model years 2022.5 to 2025. Pressed from 5mm steel and finished in black powder coat, it bolts directly to the passenger-side bonnet hinge using the factory bonnet bolts with no drilling required.
Product overview
The GMF4x4 256-BB is designed and manufactured in Australia for a precise fit on the Ford Transit Custom (2022.5-2025). It mounts to the passenger-side bonnet hinge using the existing factory bolts, so no modifications to the body or bonnet are needed. The bracket does not interfere with bonnet opening or windscreen wiper operation, and all standard 4WD UHF antennas are compatible with the mount point.
GMF4x4 is the original creator of the bonnet mount UHF bracket design and holds registered designs, patents, and trademarks in Australia and internationally.
Features and benefits
Passenger-side bonnet hinge mount: Attaches to the factory bonnet hinge bolts on the passenger side, requiring no drilling, cutting, or modification to the vehicle body.
5mm pressed steel construction: Formed from 5mm steel plate for maximum strength and rigidity, built to handle the demands of commercial and off-road use.
Black powder coat finish: Arrives ready to bolt on with a durable black powder coat finish that holds up in Australian conditions.
No drilling required: Uses the existing factory bonnet hinge bolts for a clean, reversible installation with no modifications to the vehicle.
No bonnet or wiper interference: The bracket profile is designed so bonnet operation and windscreen wiper function are completely unaffected after fitting.
Universal UHF antenna compatibility: All standard 4WD UHF antennas fit the bracket without adapters or modifications.
Australian made: Designed and manufactured in Australia by GMF4x4, the original company producing bonnet mount UHF brackets.
Technical specs
| Specification |
Detail |
| SKU |
256-BB |
| Brand |
GMF4x4 |
| Compatible Vehicle |
Ford Transit Custom 2022.5-2025 |
| Mount Location |
Passenger-side bonnet hinge |
| Material |
5mm pressed steel |
| Finish |
Black powder coat |
| Fitment |
Bolt-on using factory bonnet bolts, no drilling |
| Country of Manufacture |
Australia |
Compatible with
The GMF4x4 256-BB is designed specifically for the Ford Transit Custom (2022.5-2025). It is not a universal bracket and is not confirmed to fit other Ford models or variants outside this specification.
Frequently asked questions
Does the 256-BB require any drilling or modification to the Ford Transit Custom?
No drilling or body modification is required. The bracket uses the existing factory bonnet hinge bolts on the passenger side for a clean, reversible installation.
Does fitting the 256-BB affect how the bonnet opens or the wipers operate?
No. The bracket profile is specifically designed to avoid interference with both bonnet operation and windscreen wiper function.
What UHF antennas are compatible with the 256-BB bracket?
All standard 4WD UHF antennas are compatible with this bracket. No adapters are required for a standard UHF antenna mount.
Is this bracket suitable for the driver-side bonnet hinge?
The 256-BB is designed for the passenger-side bonnet hinge only. Contact us if you need further guidance on mounting options for your setup.
Is the GMF4x4 256-BB covered by any design protection?
Yes. GMF4x4 holds registered designs, patents, and trademarks covering this bracket in Australia and internationally. Contact us for further information.
