Description

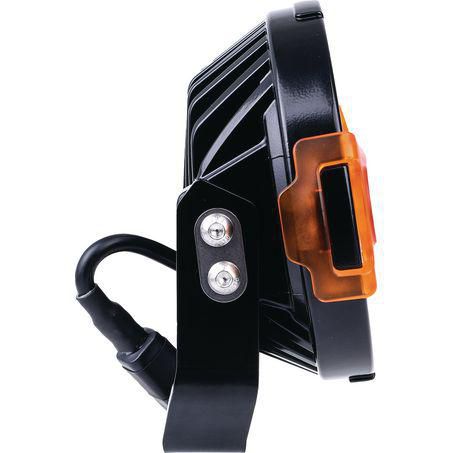

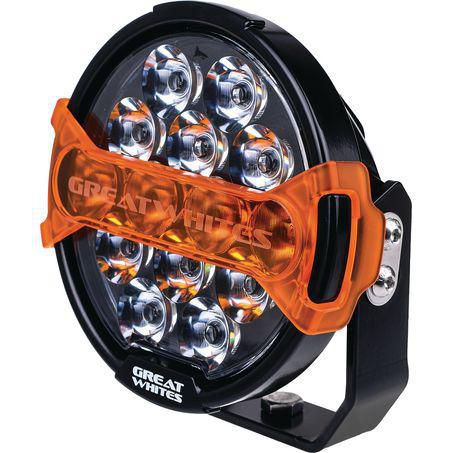

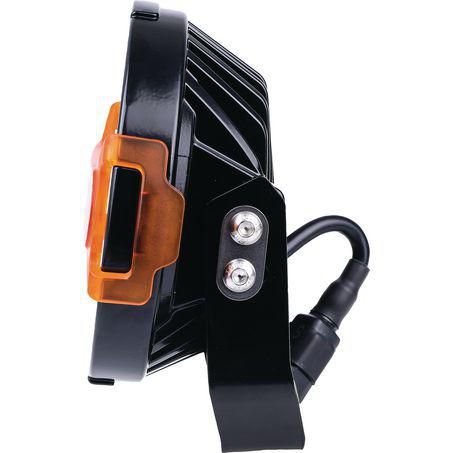

Great Whites GWR7145KIT 170MM Adjustable Beam Driving Light Kit
Illuminate the road ahead with the Great Whites GWR7145KIT 170mm adjustable beam driving light kit delivering 5080 lumens maximum output from 14 precision LEDs, field-adjustable combination beam pattern for versatile lighting configurations, IP68 and IP69K dual-rated waterproof and dustproof housing for the most demanding off-road and marine environments, 98W low-draw high-output performance at 8.2A maximum on 12V, polycarbonate lens with aluminium body construction for rugged durability, 6 pin DT connector for secure plug-and-play wiring, 12/24V compatibility for passenger and commercial vehicle fitment, and Great Whites' industry-leading five-year warranty backing every kit.
Product Overview
The Great Whites GWR7145KIT is a professional-grade 170mm round LED driving light kit designed to deliver serious forward illumination for 4WD, off-road, agricultural, and commercial vehicle applications where reliable, high-output lighting is a safety and performance requirement in low-light and no-light conditions. The 5080 lumen maximum output generated by 14 dedicated LEDs provides powerful illumination that dramatically extends the effective visibility range beyond standard vehicle headlights, reducing driver fatigue and improving hazard detection on outback tracks, rural roads, and challenging off-road terrain encountered throughout Australia. A standout feature of the GWR7145KIT is the field-adjustable combination beam pattern, allowing the operator to configure the light output between spot, flood, and combination settings to suit the specific driving environment — tight spot beam for high-speed highway and open country driving, wide flood beam for slow-speed technical off-road navigation and camp approaches, or combination for a versatile blend of both. The dual IP68 and IP69K environmental rating is the highest waterproof and dustproof protection available in the industry, certifying the GWR7145KIT for continuous immersion and protection against high-pressure, high-temperature wash-down — making these lights equally at home mounted on a snorkel-depth river crossing vehicle or a commercial wash-down machine. The 12/24V dual-voltage compatibility allows fitment across the full spectrum of passenger vehicles, 4WD, light commercial, heavy trucks, agricultural equipment, and marine vessels without requiring voltage-specific variants. The 6 pin DT connector provides a secure, moisture-resistant, vibration-rated plug-and-play connection system that is widely used in professional automotive and marine wiring, simplifying installation and enabling easy light removal or replacement without cutting wiring. Great Whites backs the GWR7145KIT with a five-year warranty — one of the strongest warranty periods available on driving lights in the Australian market — reflecting the brand's confidence in the product's long-term durability and performance.
Features & Benefits
5080 Lumen Maximum Output Fourteen precision LEDs deliver powerful forward illumination that extends effective visibility range well beyond standard headlights, improving hazard detection and reducing driver fatigue on outback tracks, rural roads, and technical off-road terrain.
Field-Adjustable Combination Beam Pattern Configurable between spot, flood, and combination beam settings without tools, allowing the driver to optimise light output for the specific terrain and driving conditions encountered without purchasing separate spot and flood light sets.
IP68 and IP69K Dual-Rated Protection The highest waterproof and dustproof protection rating available, certifying the GWR7145KIT for continuous submersion and high-pressure high-temperature wash-down, enabling installation on vehicles operating in the most demanding water crossing, marine, and wash-down environments.
98W High-Output Low-Draw Performance Delivers 5080 lumens from a 98W draw at only 8.2A maximum on 12V, providing exceptional lumen-per-watt efficiency that minimises electrical system load compared to equivalent-output halogen driving lights.
12/24V Dual Voltage Compatibility Single light kit suits the full range of 12V passenger and 4WD vehicles through to 24V commercial trucks, agricultural equipment, and heavy machinery without requiring voltage-specific variants for different vehicle types.
Aluminium Body with Polycarbonate Lens Rugged aluminium housing provides excellent heat dissipation and impact resistance for off-road use, while the polycarbonate lens delivers superior impact resistance and UV stability compared to glass alternatives in harsh Australian conditions.
6 Pin DT Connector Industry-standard DT-series waterproof connector provides a secure, vibration-resistant, moisture-proof plug-and-play connection that simplifies installation and allows easy light removal without cutting wiring.
Five-Year Warranty One of the strongest warranty periods available on driving lights in the Australian market, reflecting Great Whites' confidence in long-term product durability and providing genuine peace of mind for a significant lighting investment.
Technical Specs
| Specification |
Detail |
| Brand |
Great Whites |
| SKU |
GWR7145KIT |
| Light Output |
5080 Lumen Max |
| LEDs |
14 |
| Wattage |
98W |
| Current Draw |
8.2A @ 12V Max |
| Voltage |
12/24V |
| Beam Pattern |
Adjustable Combination |
| Size |
170mm Round |
| Height |
190mm |
| Body Material |
Aluminium |
| Lens Material |
Polycarbonate |
| IP Rating |
IP68 / IP69K |
| Vibration Rating |
21.2G rsm |
| Connector |
6 Pin DT |
| Pack Quantity |
2 Lights |
| Warranty |
5 Years |
Compatible With / Goes Well With
The Great Whites GWR7145KIT is compatible with 12V and 24V vehicles including passenger 4WD, light and heavy commercial vehicles, trucks, agricultural machinery, and marine vessels. Suitable for bull bar, A-pillar bracket, roof rack, and bonnet-top driving light mounting positions accepting 170mm round light bodies. Pairs well with Great Whites and compatible driving light mounting brackets, OEX and compatible relay wiring harnesses for driving lights, OEX switch panels and rocker switches for light control, OEX circuit breakers and inline fuse holders for circuit protection, and OEX Anderson plug assemblies and automotive cable for clean wiring installations.
Frequently Asked Questions
How does the adjustable beam pattern work on the GWR7145KIT and what settings are available?
The GWR7145KIT features a field-adjustable combination beam mechanism that allows the light's internal optic or beam adjuster to be configured between spot, flood, and combination beam patterns to suit different driving environments. Spot beam concentrates light output into a long, narrow high-intensity beam ideal for high-speed driving on open roads and outback tracks where maximum forward distance illumination is the priority. Flood beam spreads light output wide and low for slow-speed off-road navigation, camp approaches, and obstacle detection at close range. Combination beam blends both for general-purpose driving in varied conditions. Refer to the included instructions for the specific adjustment procedure for the GWR7145KIT.
What does the IP68 and IP69K dual rating mean and why does it matter for driving lights?
IP68 certifies continuous submersion protection beyond 1 metre depth, while IP69K certifies protection against high-pressure, high-temperature water jets as used in industrial and agricultural wash-down applications. Carrying both ratings simultaneously means the GWR7145KIT is protected against both deep water crossings and the most aggressive cleaning conditions — a combination relevant to serious 4WD and agricultural vehicle applications in Australia. Many driving lights carry IP67 or IP68 alone but not both, making the dual IP68/IP69K rating of the GWR7145KIT a genuine differentiator in terms of environmental protection.
Will the GWR7145KIT work on my 24V truck or agricultural equipment?
Yes. The 12/24V dual voltage rating means the GWR7145KIT is fully compatible with 24V commercial trucks, heavy equipment, and agricultural machinery without requiring modification or a voltage-specific variant. Always ensure the wiring harness and relay used to connect the lights are also rated for 24V operation, and size the circuit protection and cable appropriately for the actual current draw at 24V — which will be approximately half the 12V current draw (around 4.1A per light at 24V) for the same wattage output.
What wiring and circuit protection do I need to install the GWR7145KIT?
The GWR7145KIT uses a 6 pin DT connector for the light connection, so a compatible DT-series wiring harness with relay is recommended for a clean, reliable installation. Each light draws up to 8.2A at 12V, so the pair draws a maximum of approximately 16.4A combined — a 20A relay harness and 20A fuse or circuit breaker on the driving light circuit is appropriate for most installations. Always run the power feed directly from the battery via a relay triggered by a cab switch rather than powering lights directly through the switch, to avoid voltage drop and switch overloading. OEX wiring accessories, fuse holders, and circuit breakers are well matched for driving light circuit installations.
Does the GWR7145KIT come with mounting hardware and a wiring harness included?
The GWR7145KIT is supplied as a pack of 2 lights with 6 pin DT connectors fitted. Please refer to the product packaging or contact F.A.E. to confirm exactly what hardware and accessories are included in the kit, as wiring harnesses and mounting brackets may be included or available separately depending on the specific kit configuration. F.A.E. stocks compatible driving light wiring harnesses, mounting brackets, and circuit protection accessories to complete the installation.
