Description

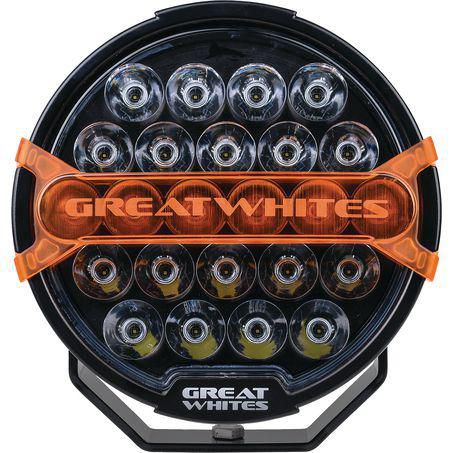

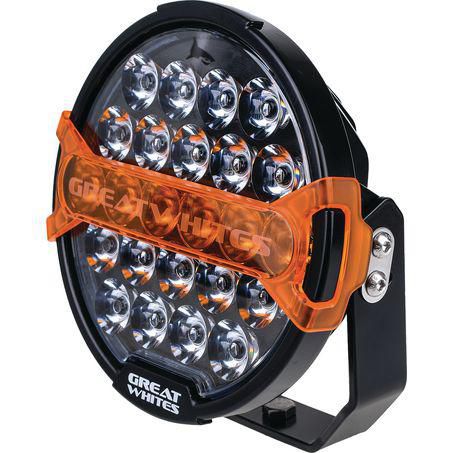

Great Whites GWR7245KIT 220MM Adjustable Beam Driving Light Kit
Step up your forward lighting with the Great Whites GWR7245KIT 220mm adjustable beam driving light kit delivering 8640 lumens maximum output from 24 precision LEDs, field-adjustable combination beam pattern for versatile lighting configurations across all driving conditions, IP68 and IP69K dual-rated waterproof and dustproof housing for the most demanding off-road and marine environments, 168W high-output performance at 14A maximum on 12V, polycarbonate lens with rugged aluminium body construction, 6 pin DT connector for secure plug-and-play wiring, 12/24V compatibility for passenger and commercial vehicle fitment, and Great Whites' industry-leading five-year warranty backing every kit.
Product Overview
The Great Whites GWR7245KIT is a high-output 220mm round LED driving light kit engineered for serious forward illumination in demanding 4WD, off-road, agricultural, and commercial vehicle applications where maximum visibility range is a safety-critical requirement in outback, rural, and remote driving environments. Stepping up significantly from the 170mm GWR7145KIT, the GWR7245KIT's larger 220mm light body houses 24 LEDs delivering 8640 lumens maximum output — a 70% increase in light output over the 170mm kit — extending effective visibility range dramatically further down the road and across the verge, providing greater lead time for hazard detection at highway speeds and in wildlife-heavy driving conditions across Australia. The field-adjustable combination beam pattern allows the operator to configure the light output between spot, flood, and combination beam settings to match the specific terrain and driving environment — tight spot beam for maximum distance penetration on open outback tracks and highways, wide flood beam for slow-speed technical terrain navigation and camp approaches, or combination for a versatile all-purpose blend suited to mixed-condition driving. The dual IP68 and IP69K environmental rating certifies the GWR7245KIT for continuous submersion and protection against high-pressure high-temperature wash-down — the highest standard of waterproof protection available on driving lights, ensuring reliable performance whether the vehicle is negotiating deep river crossings or being cleaned with an industrial pressure washer. At 168W and 14A maximum draw per light on 12V, the GWR7245KIT delivers exceptional lumen-per-watt efficiency with 8640 lumens from a combined 28A draw for the pair — a relatively modest electrical demand for the substantial illumination output provided. The 12/24V dual-voltage compatibility suits the full spectrum of passenger vehicles, 4WD, light and heavy commercial vehicles, agricultural machinery, and marine vessels, and the 6 pin DT connector provides a widely-used professional-grade waterproof connection for installation and easy light servicing. Great Whites backs the GWR7245KIT with a five-year warranty, one of the strongest available on driving lights in the Australian market.
Features & Benefits
8640 Lumen Maximum Output Twenty-four precision LEDs deliver a 70% increase in light output over the 170mm GWR7145KIT, dramatically extending forward visibility range for improved hazard detection and driver confidence at highway speeds and on remote outback tracks.
Field-Adjustable Combination Beam Pattern Configurable between spot, flood, and combination beam settings without tools, allowing the driver to optimise light output for specific terrain and driving conditions without purchasing separate spot and flood light sets.
IP68 and IP69K Dual-Rated Protection The highest waterproof and dustproof protection rating available on driving lights, certifying the GWR7245KIT for continuous submersion and high-pressure high-temperature wash-down in the most demanding water crossing, marine, and agricultural wash-down environments.
168W High-Output Performance Delivers 8640 lumens from a 168W per light draw at 14A maximum on 12V, providing exceptional lumen-per-watt efficiency that far exceeds the output of equivalent-wattage halogen driving lights while maintaining a manageable electrical system load.
12/24V Dual Voltage Compatibility Single light kit suits the full range of 12V passenger and 4WD vehicles through to 24V commercial trucks, agricultural equipment, and heavy machinery without requiring voltage-specific variants for different vehicle types.

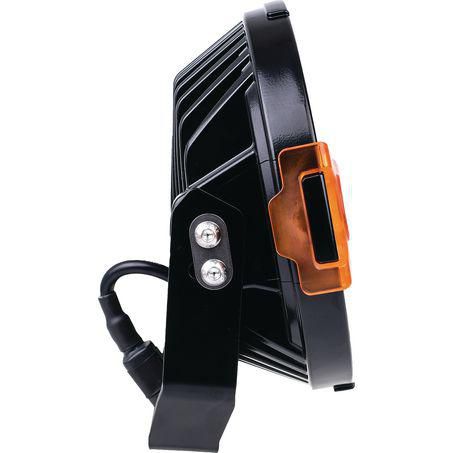

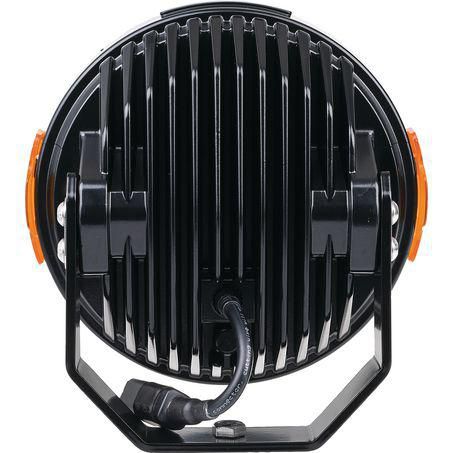

Aluminium Body with Polycarbonate Lens The larger 220mm aluminium housing provides excellent heat dissipation for the higher 168W output, while the polycarbonate lens delivers superior impact resistance and UV stability compared to glass alternatives in harsh Australian operating conditions.
6 Pin DT Connector Industry-standard DT-series waterproof connector provides a secure, vibration-resistant, moisture-proof plug-and-play connection that simplifies installation and allows easy light removal without cutting wiring.
Five-Year Warranty One of the strongest warranty periods available on driving lights in the Australian market, reflecting Great Whites' confidence in long-term product durability and providing genuine peace of mind for a significant lighting investment.
Technical Specs
| Specification |
Detail |
| Brand |
Great Whites |
| SKU |
GWR7245KIT |
| Light Output |
8640 Lumen Max |
| LEDs |
24 |
| Wattage |
168W |
| Current Draw |
14A @ 12V Max |
| Voltage |
12/24V |
| Beam Pattern |
Adjustable Combination |
| Size |
220mm Round |
| Height |
239mm |
| Body Material |
Aluminium |
| Lens Material |
Polycarbonate |
| IP Rating |
IP68 / IP69K |
| Vibration Rating |
21.2G rsm |
| Connector |
6 Pin DT |
| Pack Quantity |
2 Lights |
| Warranty |
5 Years |
Compatible With / Goes Well With
The Great Whites GWR7245KIT is compatible with 12V and 24V vehicles including passenger 4WD, light and heavy commercial vehicles, trucks, agricultural machinery, and marine vessels. The 220mm round light body suits bull bar, A-pillar bracket, roof rack, and bonnet-top driving light mounting positions designed to accommodate 220mm round lights. Pairs well with Great Whites and compatible 220mm driving light mounting brackets, OEX and compatible relay wiring harnesses for driving lights rated to 14A per light or 28A combined, OEX switch panels and rocker switches for light control, OEX circuit breakers and inline fuse holders for circuit protection, and OEX Anderson plug assemblies and automotive cable for clean, professional wiring installations.
Frequently Asked Questions
How does the GWR7245KIT 220mm compare to the GWR7145KIT 170mm and when should I choose the larger kit?
The GWR7245KIT delivers 8640 lumens from 24 LEDs compared to 5080 lumens from 14 LEDs on the GWR7145KIT — a 70% increase in light output from a light body that is 50mm larger in diameter. Choose the GWR7245KIT when maximum visibility range is the priority, particularly for high-speed outback and highway driving, remote touring in areas with high wildlife activity, agricultural and mining vehicle applications, or any situation where maximum forward illumination distance is a safety requirement. The GWR7145KIT remains an excellent choice for vehicles with limited mounting space or where a smaller, more discreet light profile is preferred without sacrificing genuine high-output performance.
What wiring and circuit protection do I need for the GWR7245KIT?
Each light in the GWR7245KIT draws up to 14A at 12V, so the pair draws a maximum of 28A combined. A dual-output relay wiring harness rated to at least 30A total, with a 30A fuse or circuit breaker protecting the main feed, is recommended for a safe and reliable installation. The 6 pin DT connector on each light requires a compatible DT-series harness. Always power the lights via a relay triggered by a cab switch rather than running power directly through the switch, to prevent voltage drop and switch overloading on a 28A combined circuit. At 24V, current draw per light drops to approximately 7A, with approximately 14A combined, so a 20A harness and fuse is appropriate for 24V installations.
How does the adjustable beam pattern work on the GWR7245KIT?
The GWR7245KIT features a field-adjustable combination beam mechanism configurable between spot, flood, and combination beam patterns. Spot beam concentrates output into a long, narrow high-intensity beam for maximum distance on open roads and outback tracks. Flood beam spreads output wide and low for slow-speed off-road navigation, obstacles, and camp approaches at close range. Combination blends both for general-purpose mixed-condition driving. Adjustment can typically be made without tools — refer to the included instructions for the specific procedure for the GWR7245KIT.
What does the IP68 and IP69K dual rating mean for driving light installations?
IP68 certifies continuous submersion protection beyond 1 metre depth, while IP69K certifies protection against high-pressure, high-temperature water jets as used in agricultural and industrial wash-down applications. Carrying both ratings simultaneously means the GWR7245KIT is protected against deep water crossings and the most aggressive wash-down conditions — a combination that many driving lights rated IP67 or IP68 alone cannot match. For serious 4WD, agricultural, and commercial vehicle installations in Australian conditions, the dual IP68/IP69K rating provides meaningful real-world protection beyond what a single IP rating achieves.
Does the GWR7245KIT come with mounting hardware and a wiring harness included?
The GWR7245KIT is supplied as a pack of 2 lights with 6 pin DT connectors fitted. Please refer to the product packaging or contact F.A.E. to confirm exactly what hardware and accessories are included in the kit, as wiring harnesses and mounting brackets may be included or available separately depending on the specific kit configuration. F.A.E. stocks compatible driving light wiring harnesses, 220mm mounting brackets, and circuit protection accessories to complete your installation.
