Description

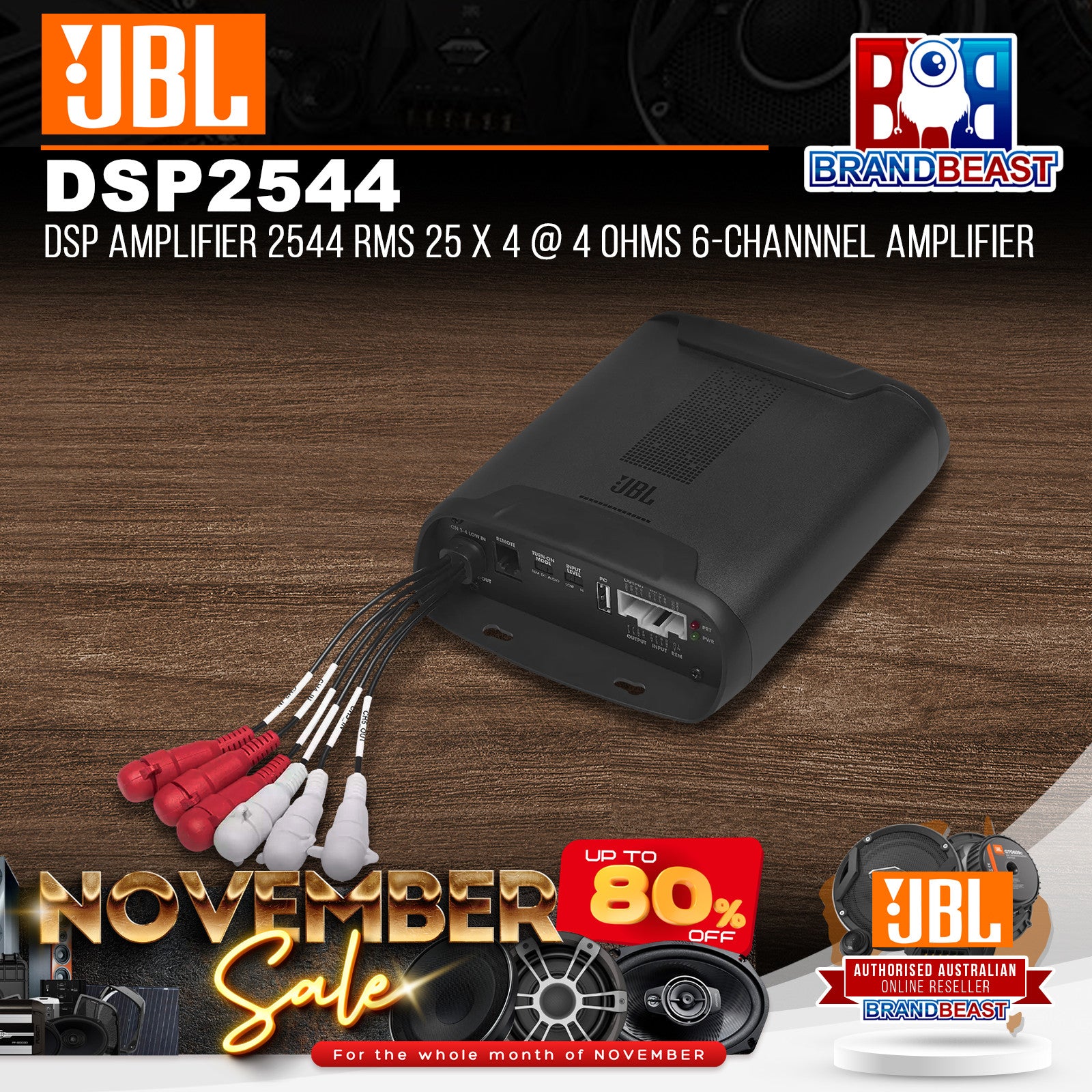

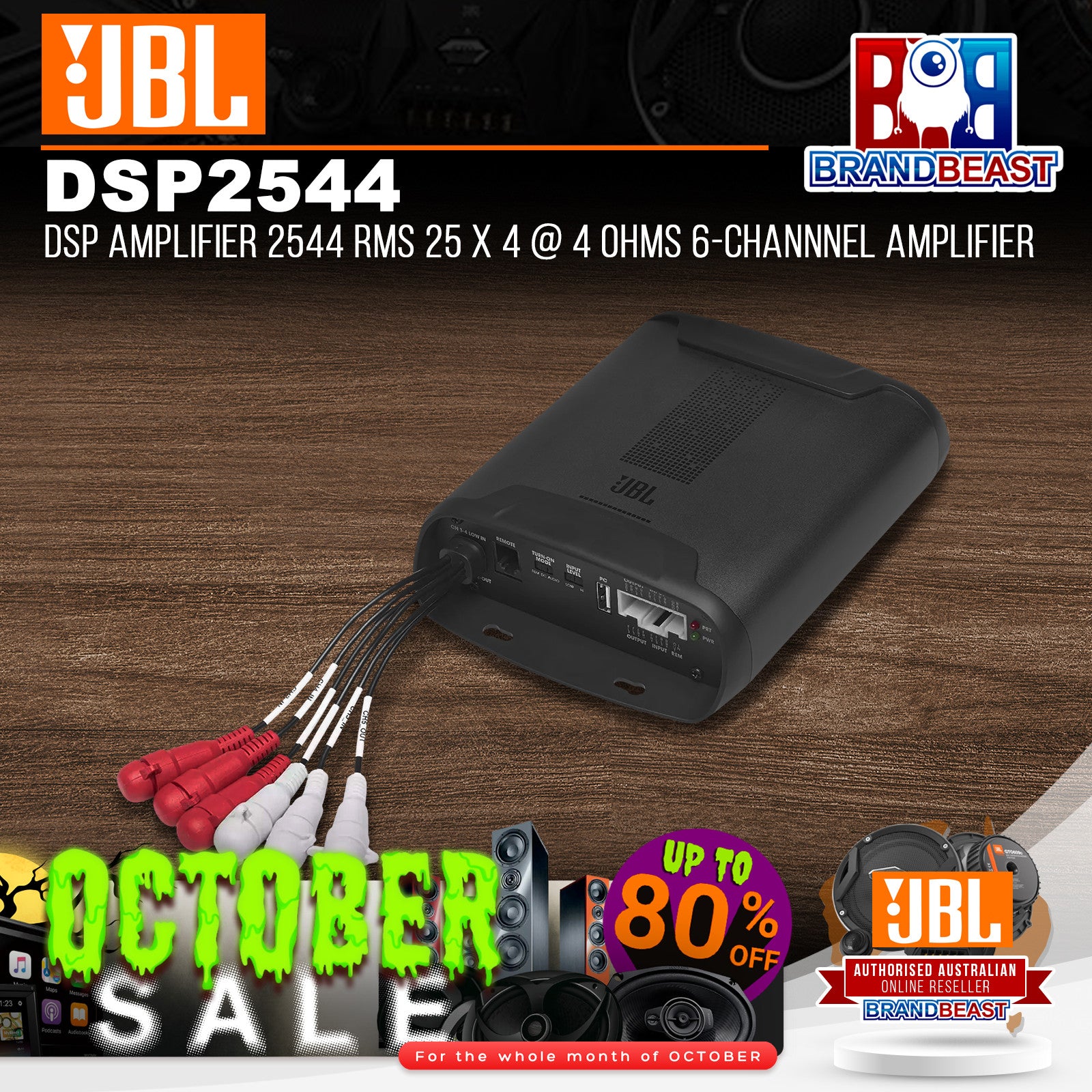

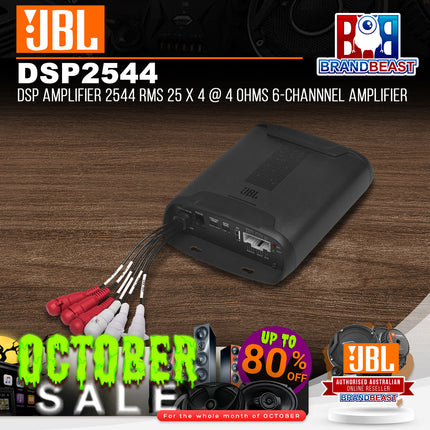

6-Channel Car Amplifier with Digital Signal Processing from JBL!
The JBL DSP Amplifier is an audio processor for fine-tuning of aftermarket audio systems. It is a self-contained audio system with 4-channel powered audio outputs and 2-channel preamp outputs, an easy-to-use tuning interface a novice can understand, and detailed tuning capabilities to satisfy even experienced installers. With a USB connection to access the tuning interface using a Windows PC, you can control fully variable crossovers, selectable 0-to-48 dB slopes, time delay, 31-band parametric or graphic EQ adjustment, assignable input-to-output mixer with input channel summing, channel gain, master volume control, clipping indicator to ensure the audio output is not distorted, and ability to save up to 10 presets.
Specifications:
- RMS Power Output (Watts x Channel) @ 4-ohm: 25W x 4
- RMS Power Output (Watts x Channel) @ 2-ohm: 35W x 4
- Amplifier Class: Class A/B
- Battery Voltage Range (Volts): 8V to 16V
- Selectable Turn-on Modes: 12V, Audio Signal Sense, DC Offset, 12V remote output
- LED Indicator: red/green
- Frequency Response: 10Hz to 22kHz @ -3dB
- Signal-to-Noise Ratio: >80dB
- Signal-to-Noise Ratio (CEA-2006): 68dB
- THD+N @ 4-ohm: <10%
- Input Sensitivity, selectable: High-level or low-level
- Input Sensitivity – Low Level: 680mV to 6V
- Input Sensitivity – High Level: 1.6V to 15V
- Channel 5 & 6 pre-out voltage: 4V
- Variable Crossovers: All Channels: HPF, LPF, Band-pass w/ selectable 0 to 48dB slope
- Gain, variable: All Channels with PC
- Subwoofer level, variable: Channels 5 & 6 in PC software or using accessory remote control from -30dB to +6dB
- Fuse Rating: 15A
- Minimum Recommended Power/Ground Wire Gauge: 8awg
- Speaker Level Inputs: Yes
- Remote Bass Control: Yes, JBL RBC sold separately
- Length: 9-3/8″ (237.5mm)
- Width: 5-11/16″ (144mm)
- Height: 1-15/16″ (49.5mm)
- Weight: Approx. 1000g
- Protection: DC, OVP, UVP, OCP, OTP
What's in the Box:
- 1x amplifier
- 4x tie wraps
- Stainless steel
- mounting hardware
- 1x spare fuse
- 2x JBL stickers
- 1x power/speaker cable
- 1x USB to PC cable
- 1x owner's manual
