Bass Delivered with Style!
Class D Design Every Stadium amplifier, including the full-range models, features high-efficiency Class D topology. This technology allows JBL to engineer amplifiers that are more compact, generate less heat, and draw less current from the vehicle's electrical system.
Low Distortion JBL Stadium amplifiers have been engineered to deliver the lowest distortion possible, enhancing the audio experience regarldess of output level.
Full On-Board Protection JBL Stadium amplifiers have on-board circuitry to protect from shorts, temperature, overvoltage and undervoltage. An LED indicator is included on all five models to let the user know when one of these conditions exists.
Proprietary High-Conductivity Terminals All JBL Stadium amplifiers come equipped with newly introduced E.A.R.L terminal for better grounding. For 5-channel and mono amplifiers, adapter connector is available in the box for easy installation.
Compact footprint With it becoming more and more difficult to find spacious locations for amplifier mounting, JBL Stadium amplifiers have been developed in a small compact form factor to allow more location versatility.
Sleek design Sometimes, an amp can be as stylish as it is powerful. JBL Stadium amplifiers have a clean, streamlined industrial design.
Remote Bass Control The 5-channel and mono amplifiers come with a remote bass control. This allows for increasing or decreasing bass independent of the head units tone controls. The benefit is total control over just the bass output . The tuning is right at the driver's finger tips.
Uncover Great Sound (The Unveiling of Sound) Stadium mono and full-range, multi-channel amplifiers deliver the efficiency and power you expect from Class D amplifiers – and the performance you expect from JBL. The comprehensive all new E.A.R.L terminal and power adapter (5-channel & mono block) enables easy installation and optimized performance. For the 5-channel and mono amplifier models, the remote bass control allows the user to increase and decrease bass output independent of head unit tone controls. The industrial design not only provides an elegant look, but also enhances power dissipation to ensure long term reliability. Stadium amplifiers give you power to shape your car audio experience in new ways.

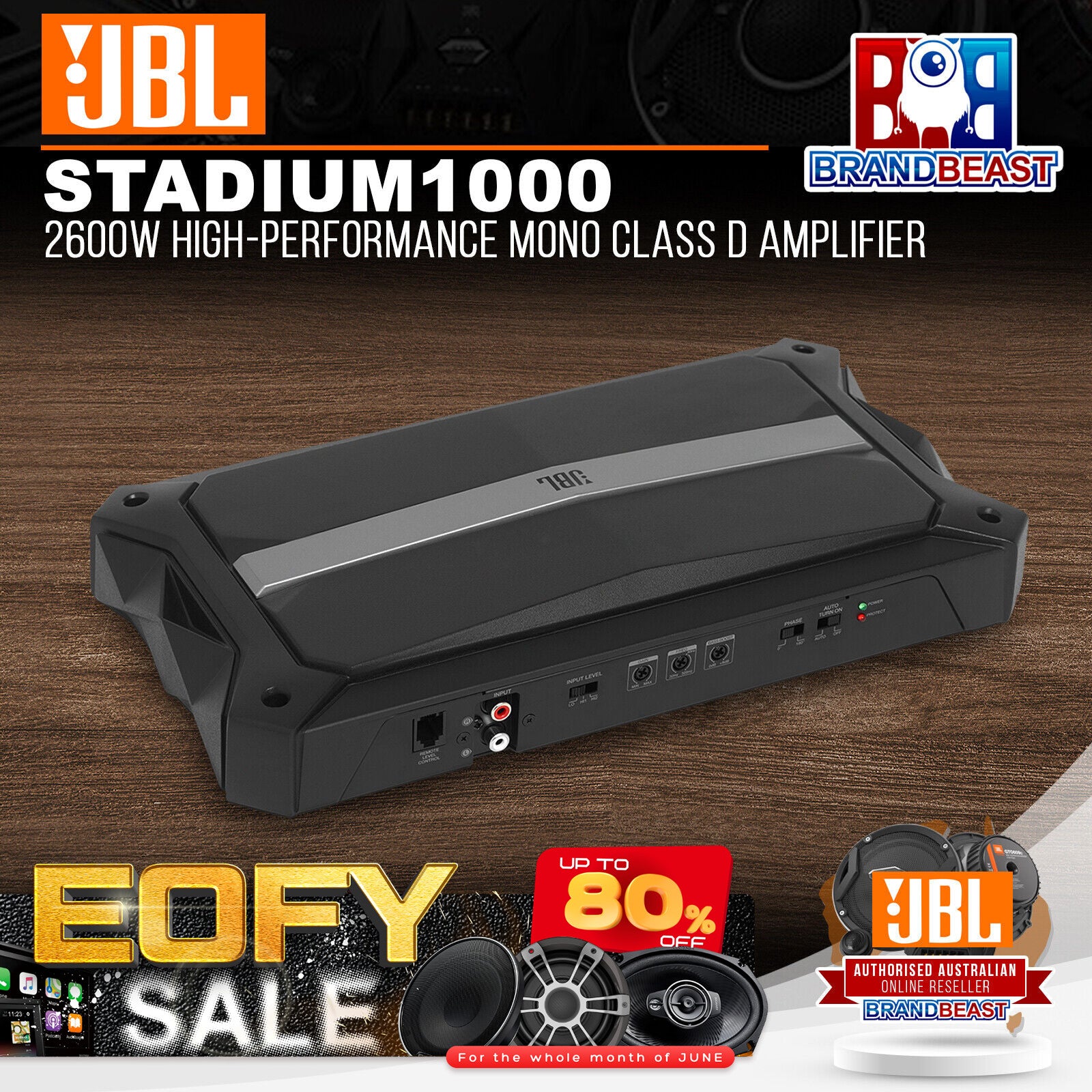

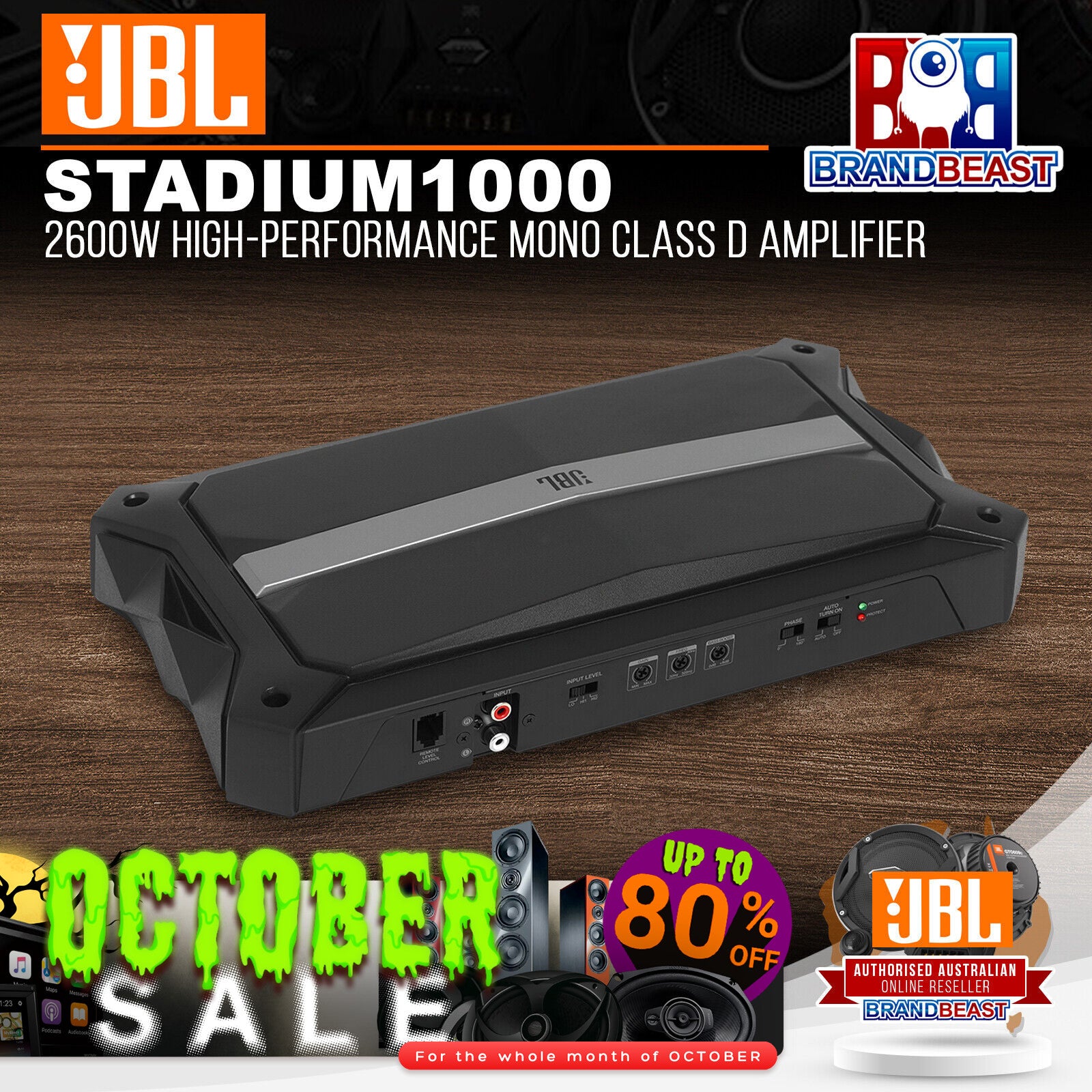

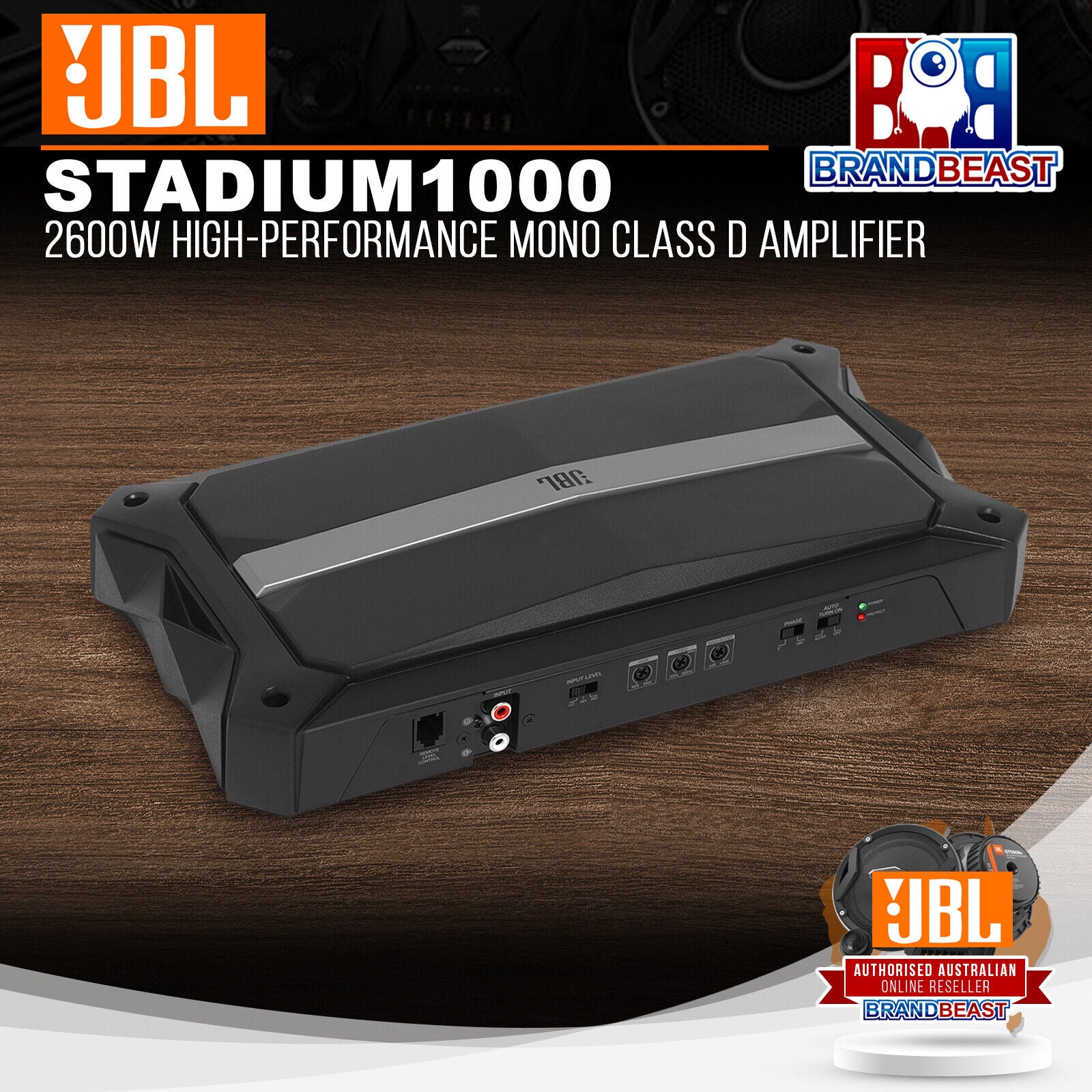

Specifications: General Specifications - High-performance, mono Class D subwoofer
- High-Efficiency, Low Distortion Class D
- Active LPF, variable 32 – 320Hz
- Variable Line-Level and Speaker-Level Inputs (0.2 to 20V input range)
Audio Specifications - Max Power 2600W Peak
- Power Output, 2Ω 1000Wrms x 1, <0.1% THD+N
- Power Output, 4Ω 700Wrms x 1, <0.1% THD+N
- Signal-to-Noise Ratio >=80dB (ref 1W output @ 2Ω)
What's in the box: - 1x Amplifier
- 2x Differential Speaker-Level Adapter
- 1x E.A.R.L Terminal
- 1 x Owner's manual
