Description

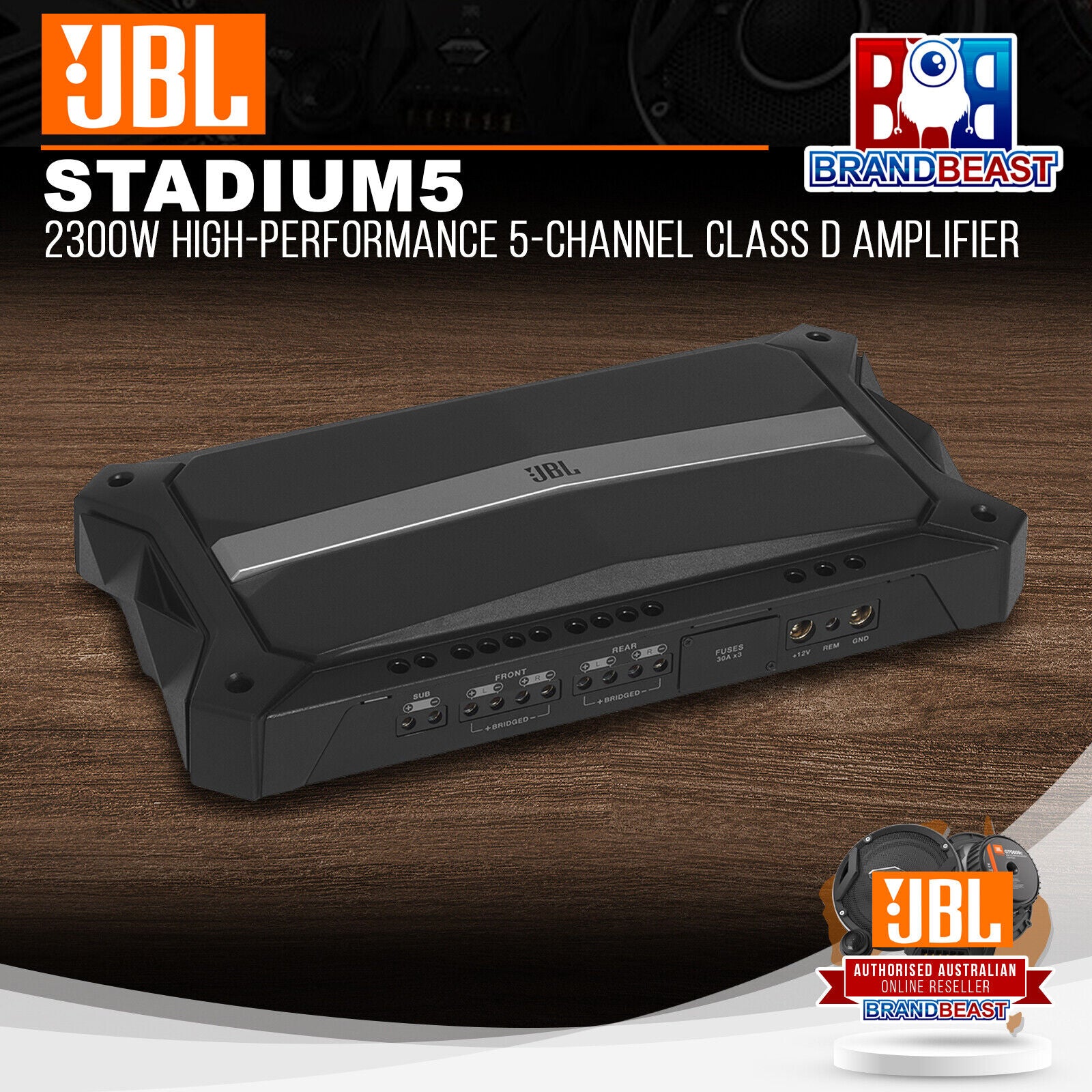

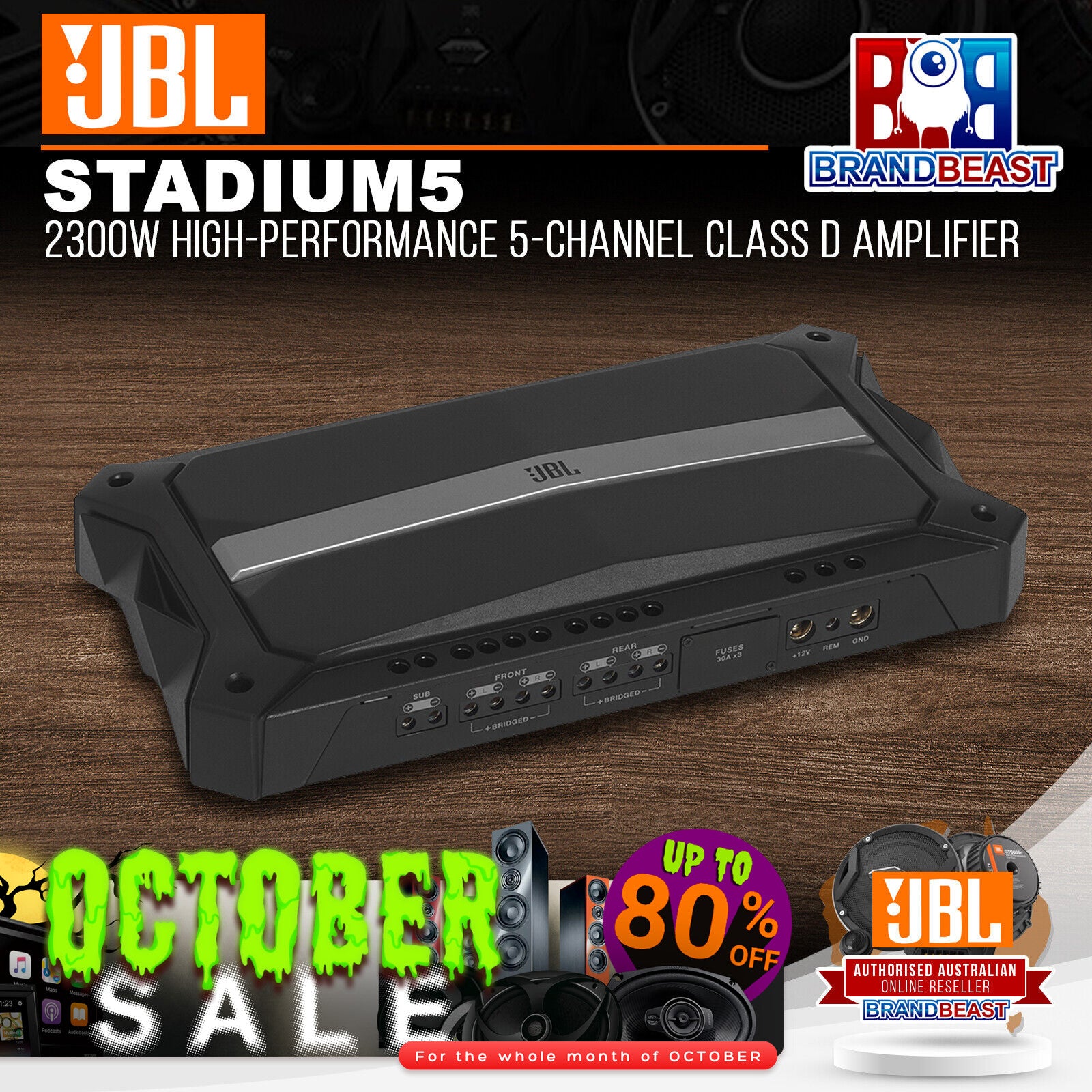

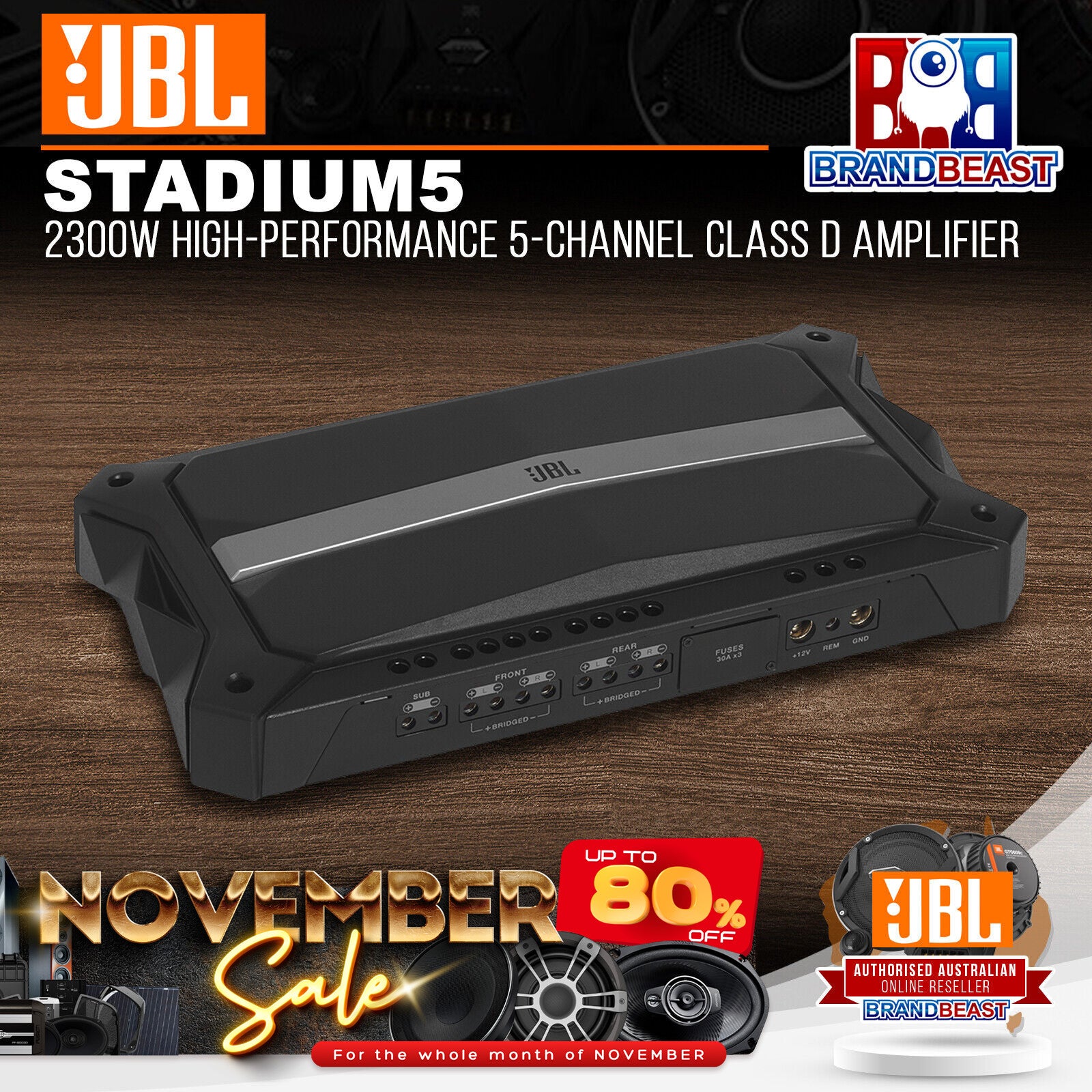

High-Performance Multi-Channel Class D Amplifier from JBL!
Class D Design Every Stadium amplifier, including the full-range models, features high-efficiency Class D topology. This technology allows JBL to engineer amplifiers that are more compact, generate less heat, and draw less current from the vehicle's electrical system.
Low Distortion JBL Stadium amplifiers have been engineered to deliver the lowest distortion possible, enhancing the audio experience regarldess of output level.
Full On-Board Protection JBL Stadium amplifiers have on-board circuitry to protect from shorts, temperature, overvoltage and undervoltage. An LED indicator is included on all five models to let the user know when one of these conditions exists.
Proprietary High-Conductivity Terminals All JBL Stadium amplifiers come equipped with newly introduced E.A.R.L terminal for better grounding. For 5-channel and mono amplifiers, adapter connector is available in the box for easy installation.
Compact footprint With it becoming more and more difficult to find spacious locations for amplifier mounting, JBL Stadium amplifiers have been developed in a small compact form factor to allow more location versatility.
Sleek design Sometimes, an amp can be as stylish as it is powerful. JBL Stadium amplifiers have a clean, streamlined industrial design.
Full-Range Line Outputs The full-range Stadium amplifiers (Stadium 5, Stadium 4 and Stadium 2) include full-range line outputs. This allows the audio signal to be routed to additional amplifiers or self-powered subwoofer solutions, increasing your system configuration options.
Uncover Great Sound (The Unveiling of Sound) Stadium mono and full-range, multi-channel amplifiers deliver the efficiency and power you expect from Class D amplifiers – and the performance you expect from JBL. The comprehensive all new E.A.R.L terminal and power adapter (5-channel & mono block) enables easy installation and optimized performance. For the 5-channel and mono amplifier models, the remote bass control allows the user to increase and decrease bass output independent of head unit tone controls. The industrial design not only provides an elegant look, but also enhances power dissipation to ensure long term reliability. Stadium amplifiers give you power to shape your car audio experience in new ways.
Specifications: - JBL Stadium 5
- Class-D Full Range 4-Ohm Stable 5-Channel Amplifier
- RMS Power Rating:
- 4 ohms: 75 watts x 4 chan. (200 watts x 1 chan.)
- 2 ohms: 100 watts x 4 chan. (350 watts x 1 chan.)
- 1 ohm: _ watts x _ chan.
- 1 ohm: ————N/A————
- Bridged, 4 ohms: 200 watts x 2 chan. (350 watts x 1)
- Total power output: 2300 watts
- CEA-2006 Compliant Amplifier
- Pulse Width Modulated MOSFET power supply
- Wired remote bass level control included
- LED power (green) and protect (red) indicators
- Soft start turn-on
- EARL Ground Terminal and Power Block
- 5/4/3/2 channel operation
- Speaker-level (high-level) inputs
- Preamp RCA outputs to daisy chain multiple amps
- 3-way protection circuitry (thermal, overload, and speaker short protection)
- Dual speaker terminals simplify the hookup of multiple speakers
- Heavy duty aluminum alloy heat-sink for extreme heat dissipation
- Input sensitivity: 0.2V – 2V
- Frequency Response: 10 – 320 Hz
- Total Harmonic Distortion (THD): 0.01%
- Signal to Noise Ratio: 80dB
- Variable high-pass filter: 32 – 320 Hz, 12 dB/octave
- Variable low-pass filter: 32 – 320 Hz, 12 dB/octave
- Variable Bass Boost: 0 to +9 dB bass boost at 45 Hz
- Fuse Rating: 30 A x 3
- 4 gauge power and ground wiring is recommended for installation
Power Specifications – Full Range Channels - RMS Power @ 4 ohms 75 watts x 4 channel
- RMS Power @ 2 ohms 100 watts x 4 channel
- Bridged RMS Power 200 watts x 2 channel
Power Specifications – Subwoofer Channel - RMS Power @ 4 ohms 200 watts x 1 channel
- RMS Power @ 2 ohms 350 watts x 1 channel
- RMS Power @ .5 ohm
Power Specifications – Subwoofer Channel Amplifier Specifications - Amplifier Series JBL Stadium Series
- Marine Certified No
- Amplifier Class D
- Number of Channels 5
- Total Peak Power Output 2300 watts
- Maximum Input Gauge Size 4 AWG
- Minimum Impedance Unbridged 2 ohms
- Minimum Impedance Bridged 4 ohms
- Speaker Level Inputs Yes
- Preamp Outputs 1 pair
- Built-in Crossover Low-Pass (LP), High-Pass (HP)
- High-Pass Crossover Frequency 32 – 320 Hz
- Low-Pass Crossover Frequency 32 – 320 Hz
- Signal-to-Noise Ratio 80 dB
- Bass Boost 0 – 9 dB
- Remote bass/level controller Yes
- Fan Cooled No
- Fuse Rating 30A x 3
- Total Fuse Rating 90
- Strappable No
- CEA-2031 Compliant Yes
- Amp Bluetooth Connectivity No
- Hi-Res Certified No
What's in the box: - Amplifier
- Wired gain knob (wire attached)
- Mounting screws (4)
- Three spare fuses
- User manual
