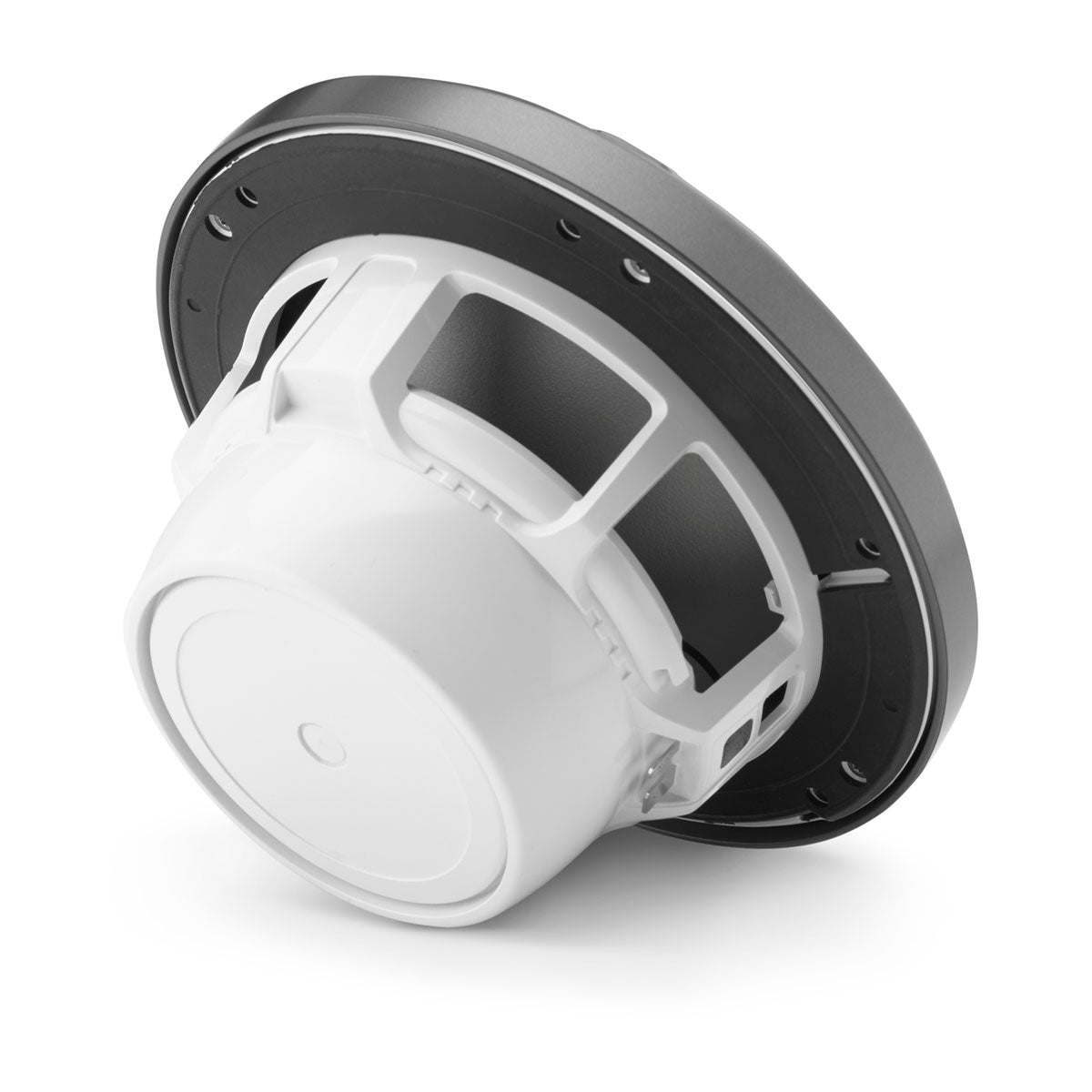

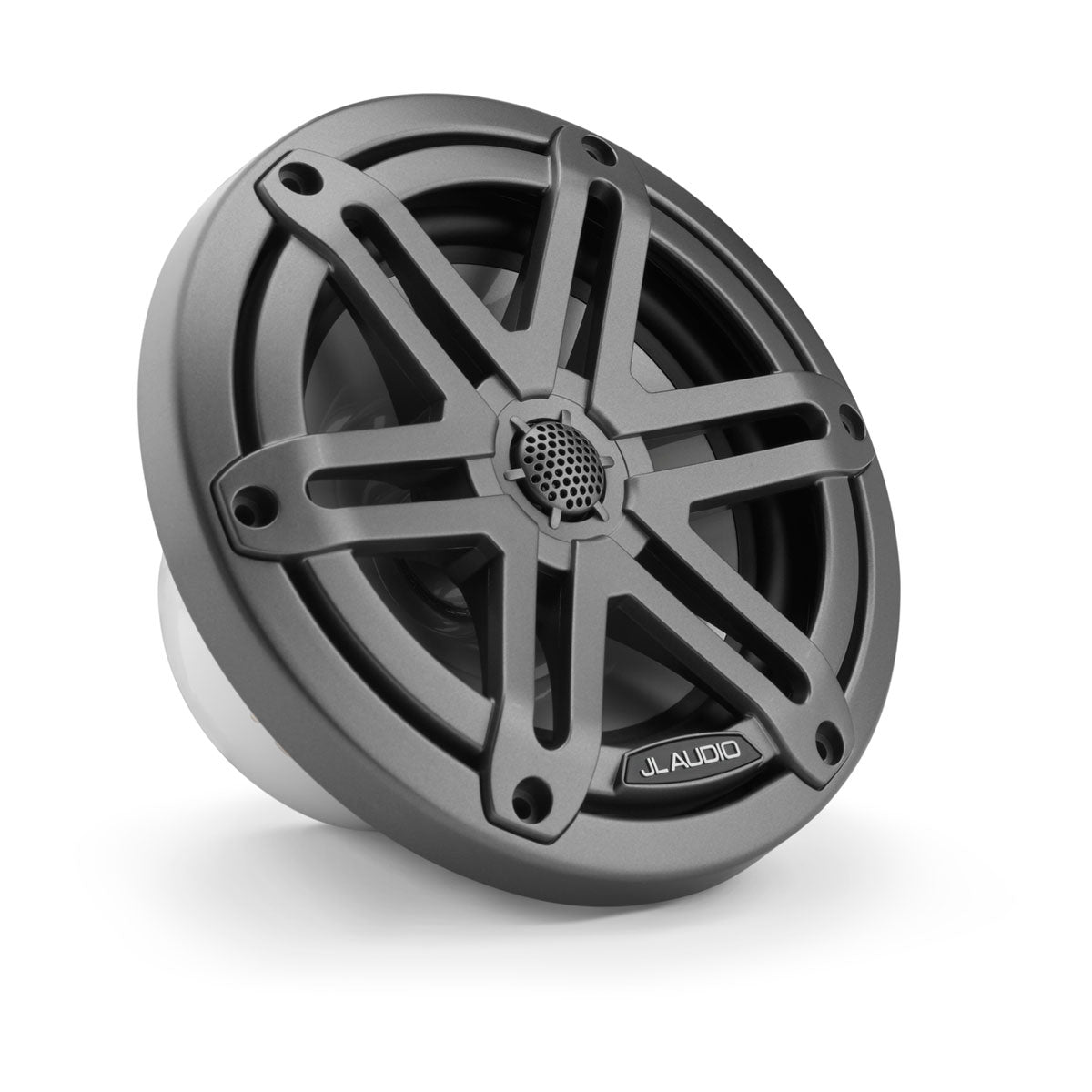

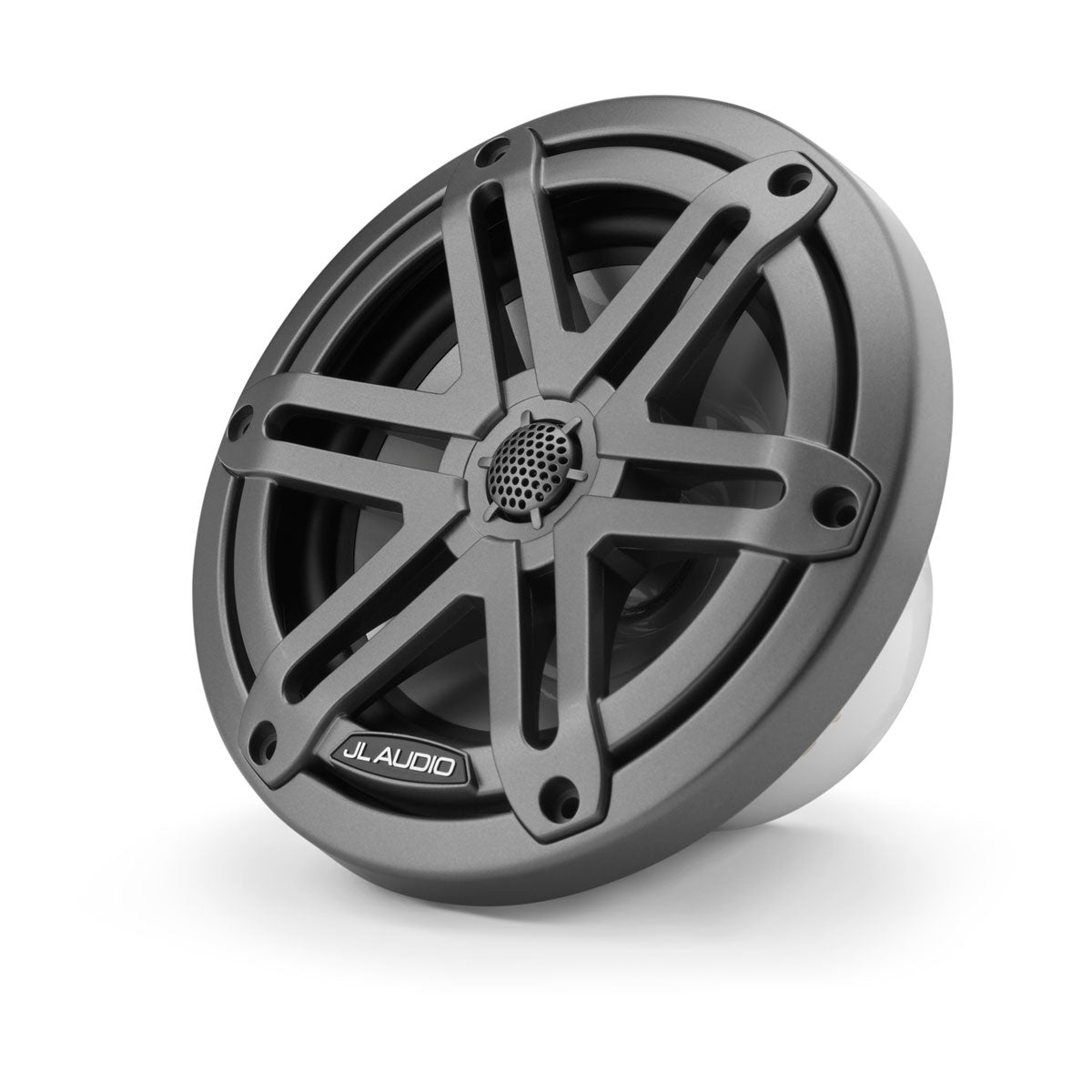

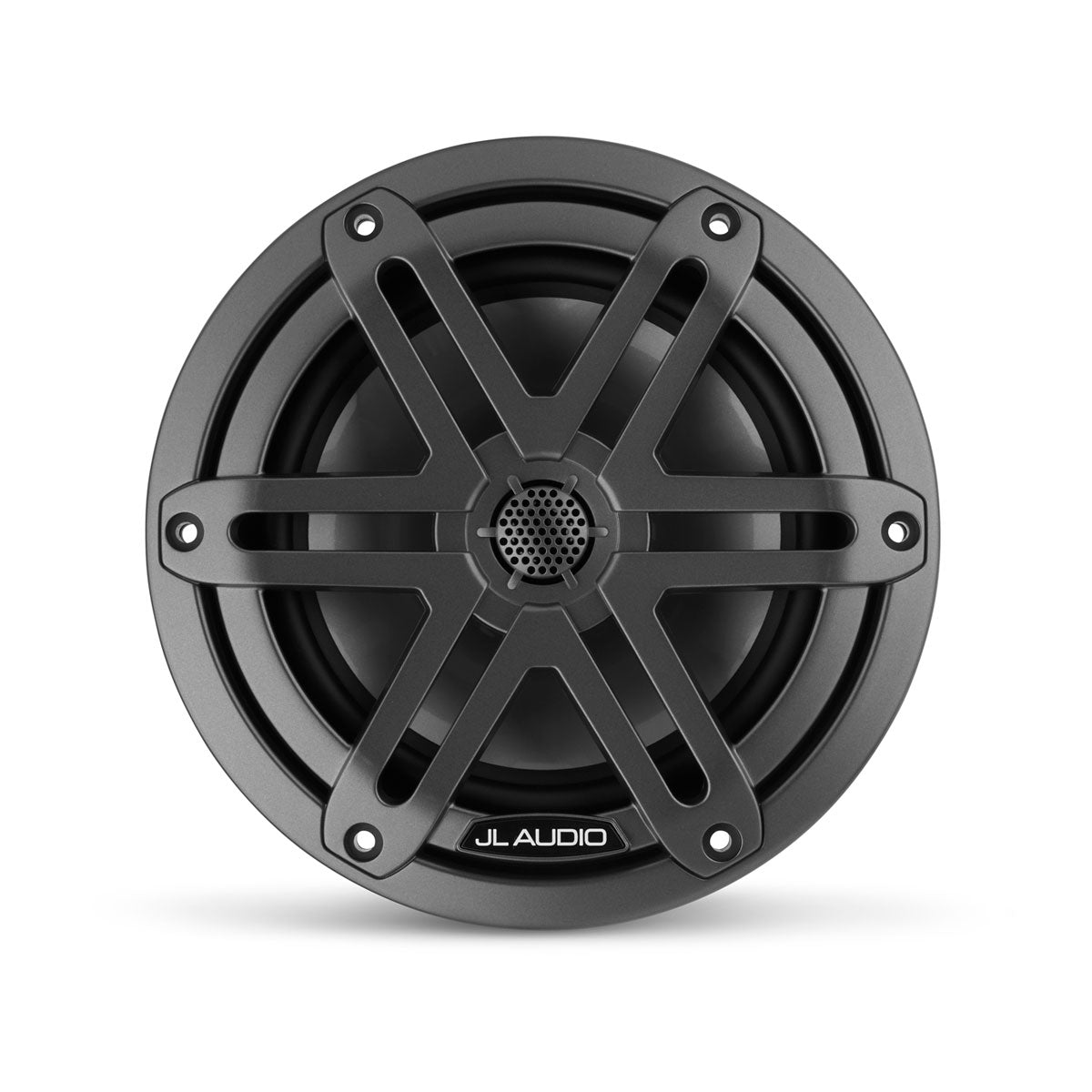

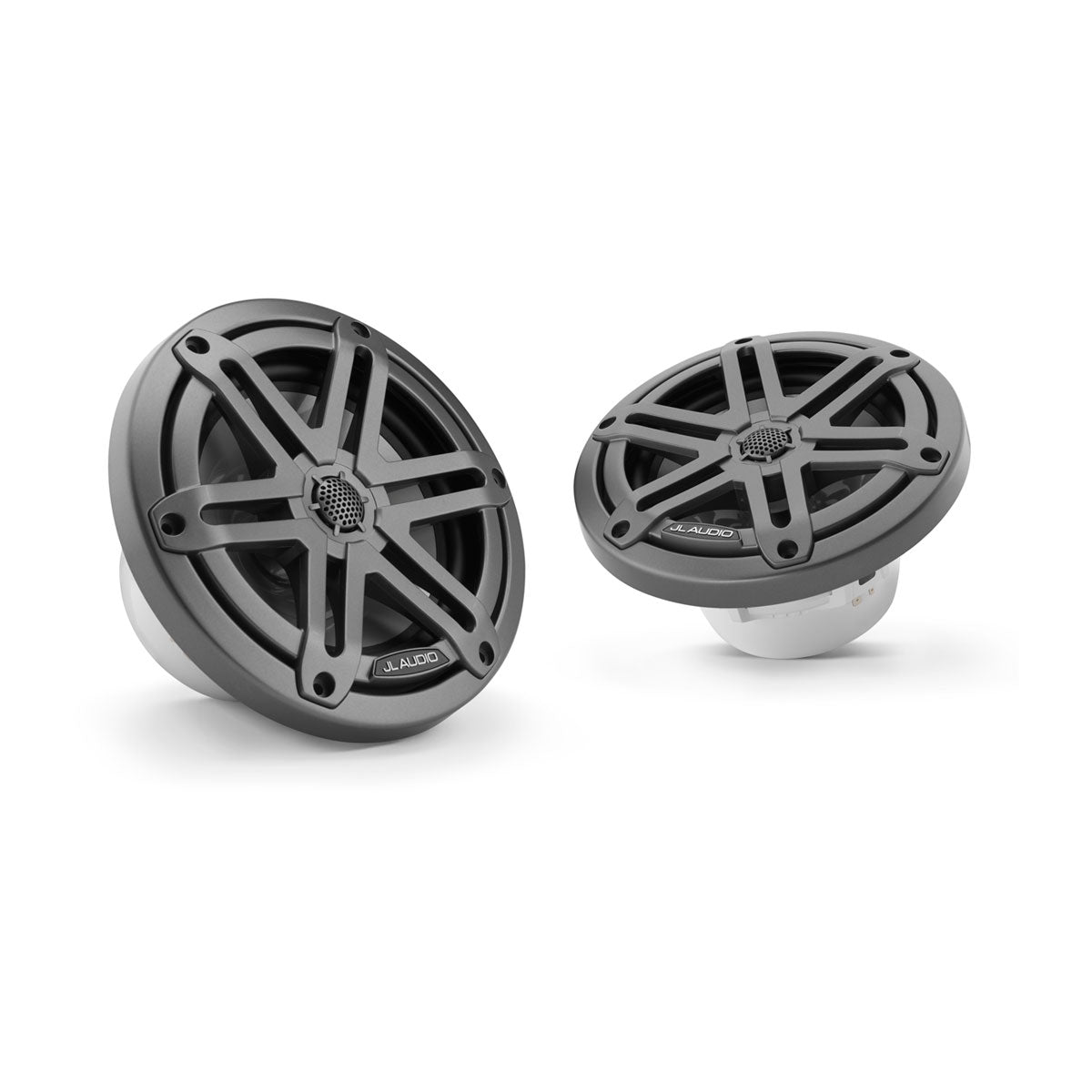

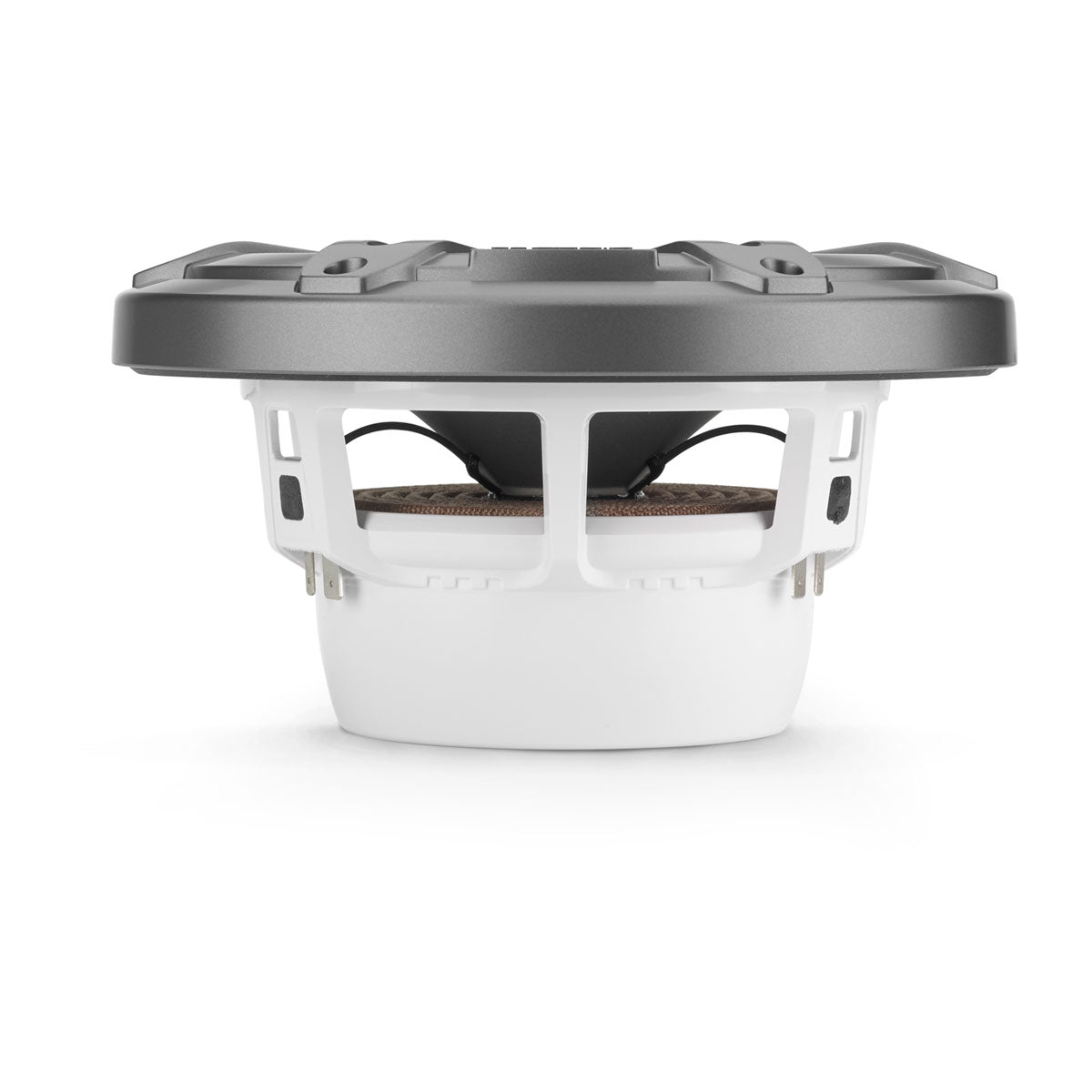

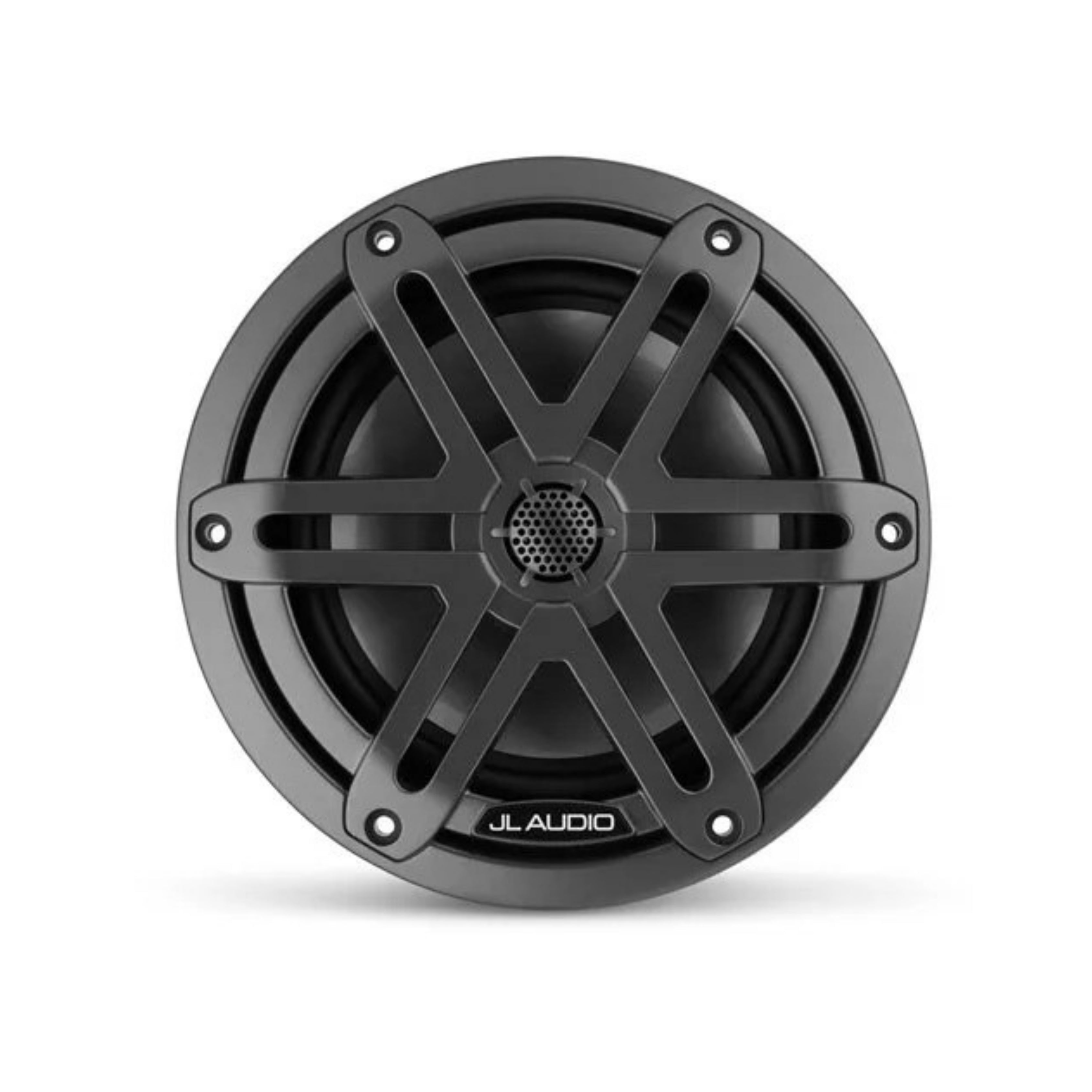

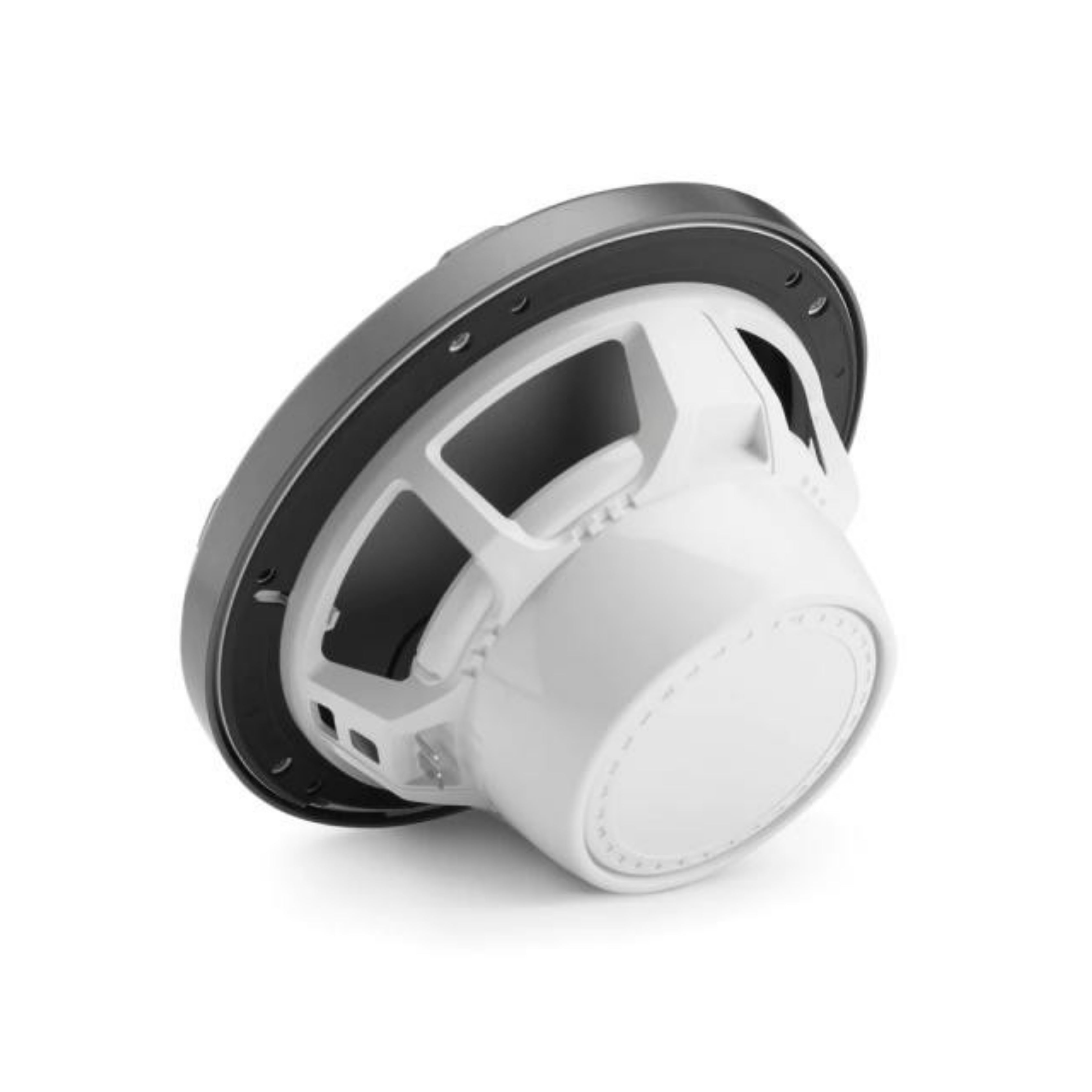

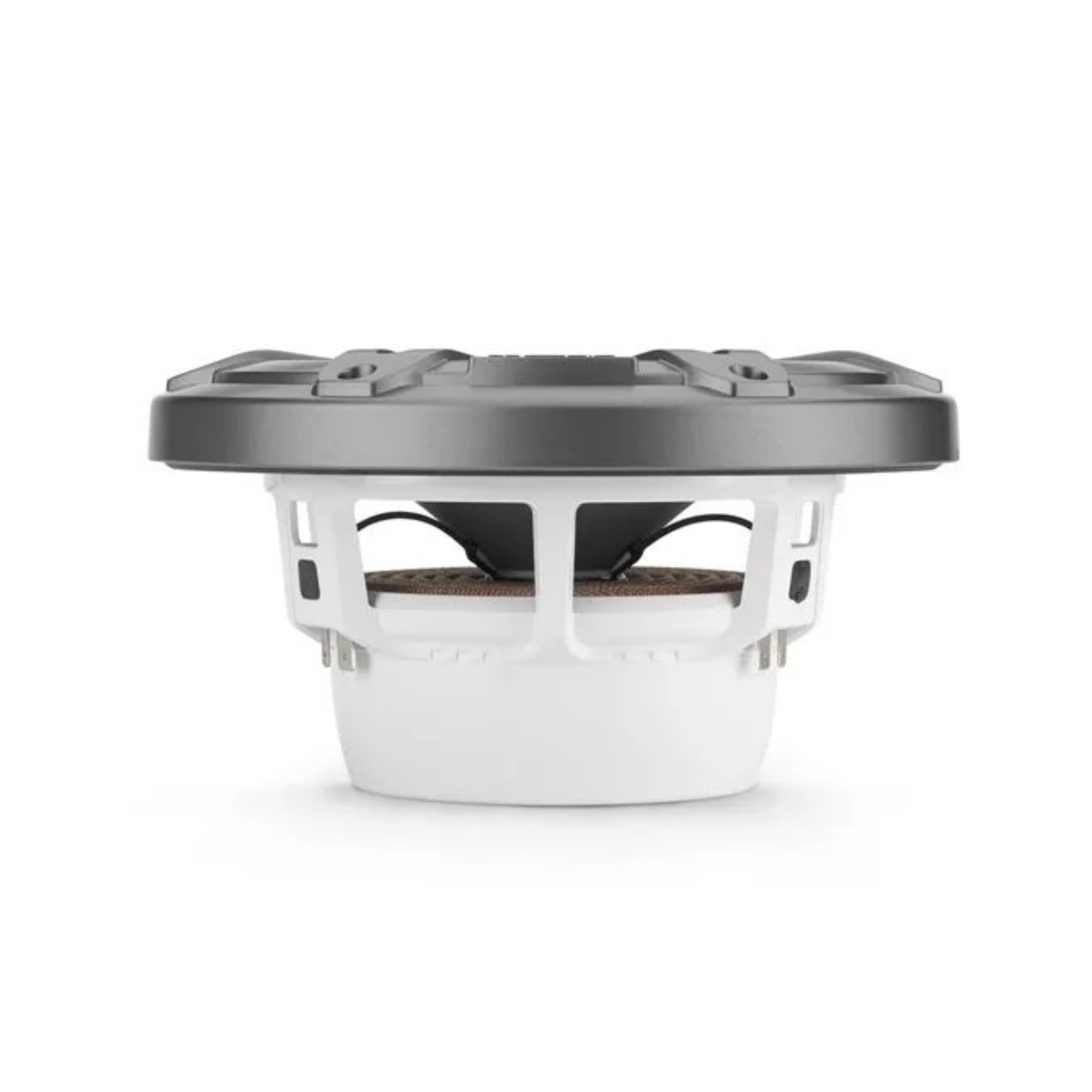

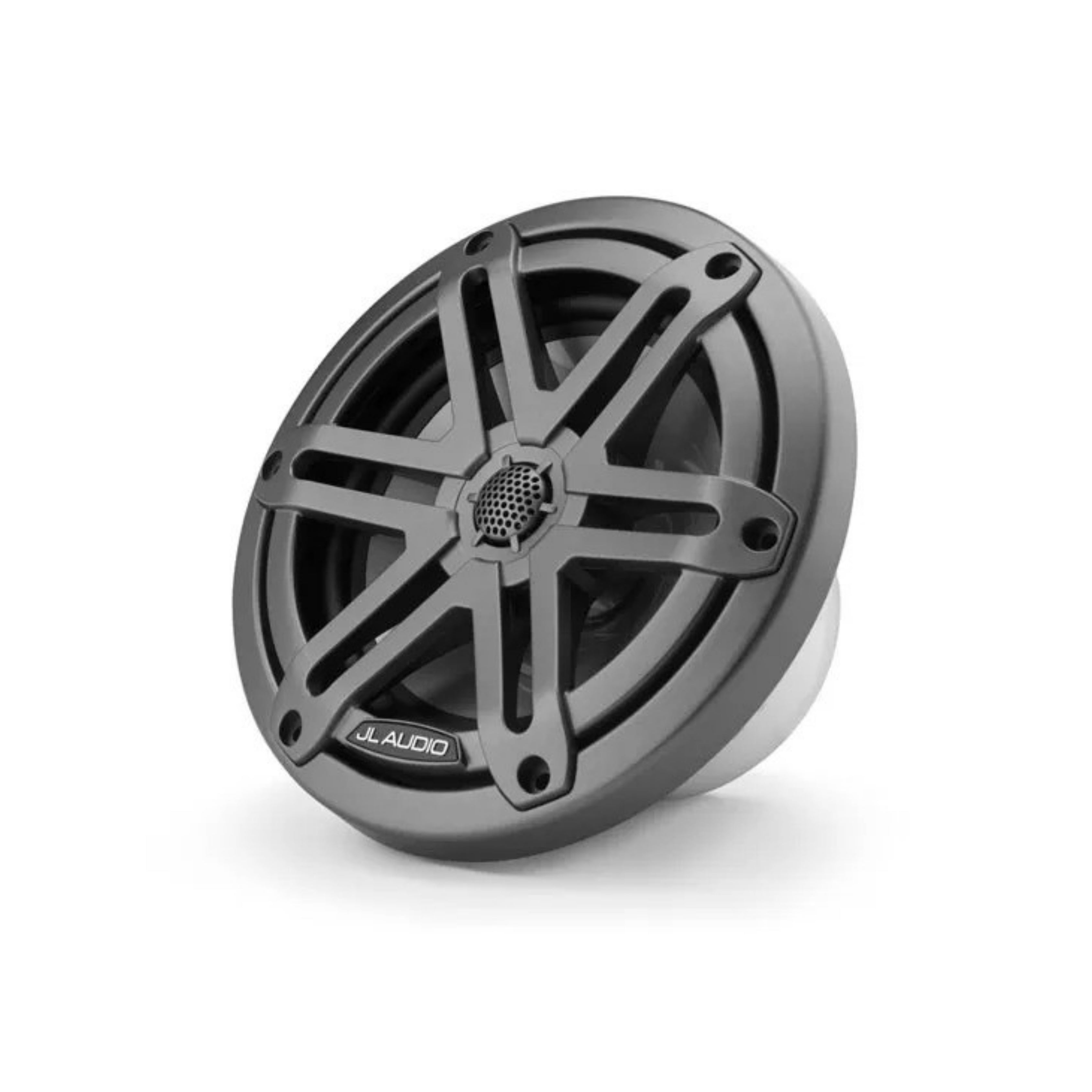

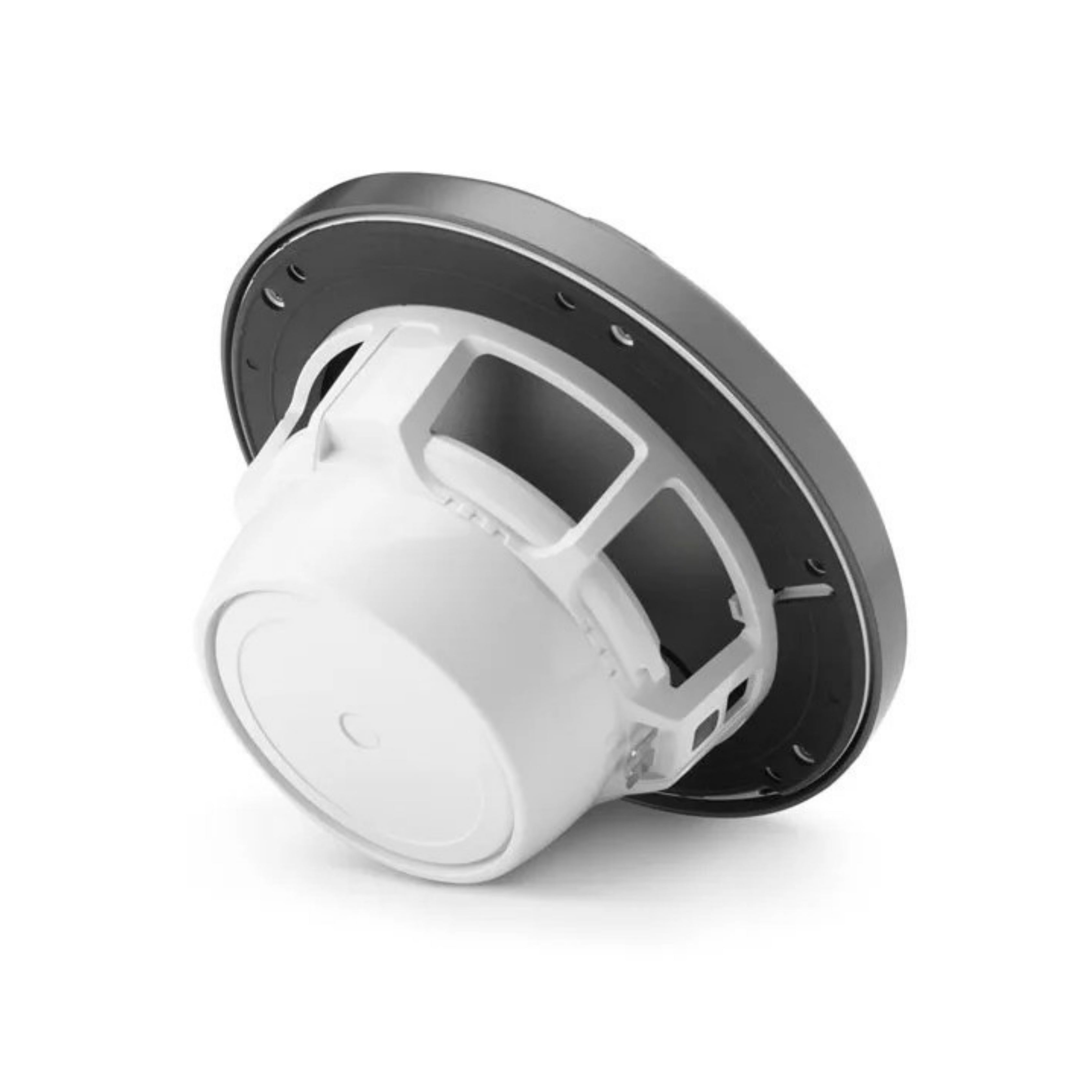

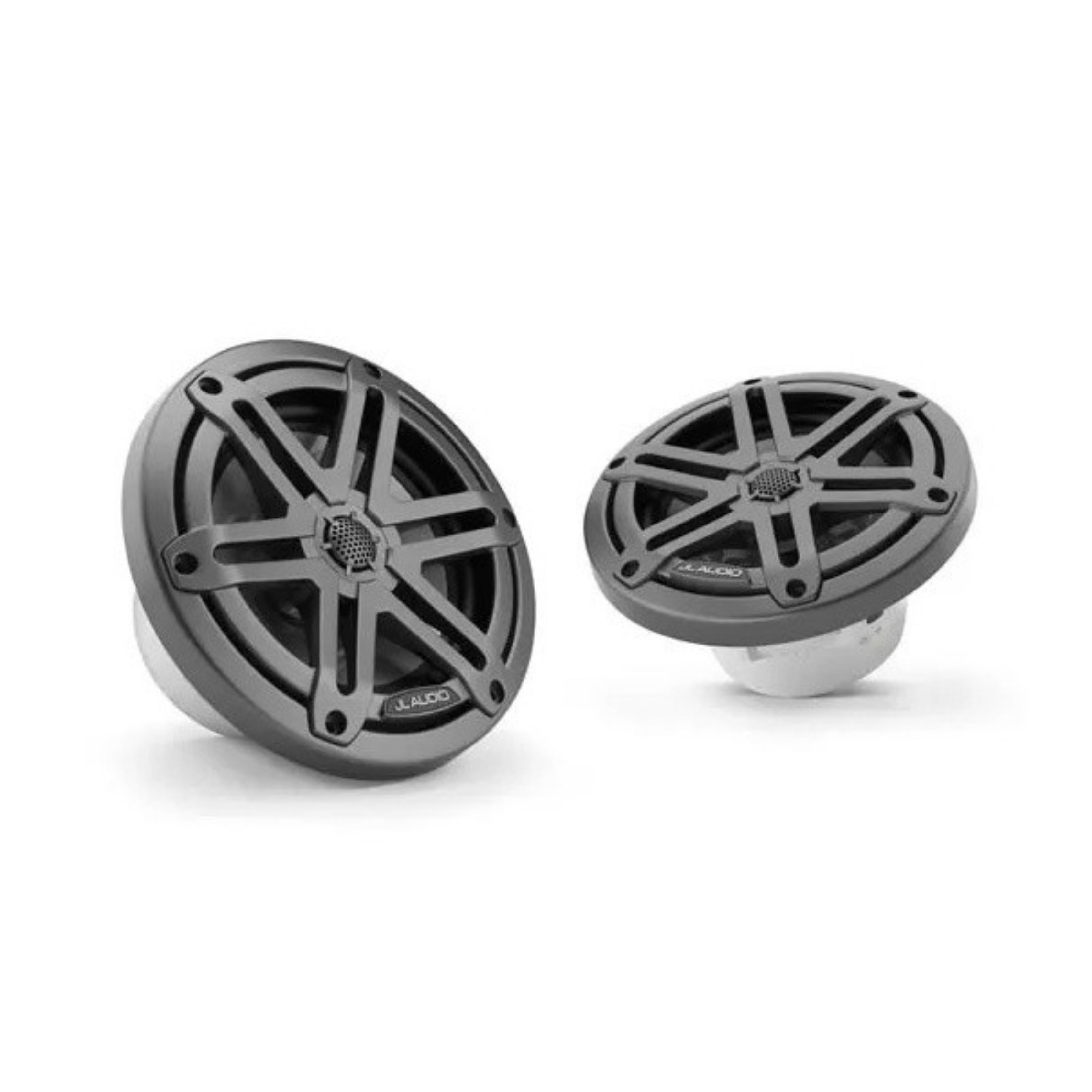

JL Audio JLA-010-03061-00 M3 6.5" Marine Speakers - Grey Sport Grille
Premium marine audio engineered for Australian conditions RGB illumination meets serious offshore performance.
Product Overview
The JL Audio M3 6.5" marine speakers deliver professional-grade sound quality with customisable RGB LED lighting in a corrosion-resistant package. Built with injection-moulded mica-filled polypropylene cones and 19mm silk dome tweeters, these coaxial speakers handle 60W RMS continuous power with 89.5 dB sensitivity across a 55 Hz-25 kHz frequency range. The grey sport grille provides UV-resistant protection while the stainless steel mounting hardware ensures long-term reliability in harsh saltwater environments. Designed for boats, personal watercraft, and marine applications where audio clarity and visual impact matter equally.
Key Specifications
- 6.5" marine-grade coaxial speaker with grey sport grille
- 60W RMS continuous power handling with 4Ω nominal impedance
- RGB LED lighting system (10-14.4 VDC supply voltage, 108mA max current)
- 89.5 dB sensitivity rating at 1W/1m
- 55 Hz-25 kHz frequency response (±3 dB)
- 19mm silk dome tweeter with injection-moulded polypropylene cone
- 175mm overall diameter with 96mm mounting depth
- 127-133mm mounting hole compatibility with 156mm bolt circle
- Spade connector terminals with flying lead LED connection
- Stainless steel mounting hardware included (screws, washers, template)
- 3-year manufacturer warranty
- Part Number: JLA-010-03061-00
Features & Benefits
Corrosion-Resistant Marine Construction: Mica-filled polypropylene cones and stainless steel hardware withstand constant saltwater exposure, UV radiation, and temperature extremes common in Australian coastal waters and offshore fishing applications.
RGB LED Illumination System: Customisable lighting operates on 10-14.4 VDC with 108mA draw, allowing colour-matched cockpit aesthetics for night fishing, wakeboarding sessions, or dockside entertaining without draining house batteries.
Wide Frequency Response: 55 Hz-25 kHz range delivers clear vocal reproduction and extended bass response critical for cutting through engine noise, wind, and water splash during high-speed cruising or offshore work.
Efficient Power Handling: 60W RMS rating with 89.5 dB sensitivity means strong output from moderate amplifier power (20-120W recommended), preserving battery capacity during extended trips away from shore power.
Universal Mounting Compatibility: 127-133mm mounting hole range fits standard 5"-5.25" marine speaker cutouts in fibreglass consoles, hardtops, and tower enclosures without custom fabrication or oversized mounting rings.
Silk Dome Tweeter Design: 19mm soft dome provides smooth high-frequency extension without the harshness common in metal tweeters, reducing listening fatigue during long fishing runs or multi-day coastal cruising.
Technical Specs
| Specification |
Value |
| Speaker Type |
2-way coaxial marine speaker |
| Woofer Size |
165mm (6.5") |
| Tweeter Size |
19mm (0.75") silk dome |
| Continuous Power Handling |
60W RMS |
| Recommended Amplifier Power |
20-120W per channel |
| Nominal Impedance |
4Ω |
| Sensitivity |
89.5 dB (1W/1m) |
| Frequency Response |
55 Hz-25 kHz (±3 dB) |
| Overall Diameter |
175mm (6.90") |
| Mounting Depth |
96mm (3.79") |
| Mounting Depth Clearance Required |
71mm (2.78") |
| Frontal Grille Protrusion |
26mm (1.01") |
| Mounting Hole Diameter |
127-133mm (5.00"-5.25") |
| Bolt Hole Circle |
156mm (6.125") |
| Cone Material |
Injection-moulded mica-filled polypropylene |
| Grille Colour |
Grey sport finish |
| LED Supply Voltage |
10-14.4 VDC |
| LED Maximum Current Draw |
108mA at 14.4 VDC |
| Speaker Connection |
Spade connectors |
| LED Connection |
Flying lead with 4-conductor 22 AWG wire |
| Mounting Hardware |
Stainless steel screws and washers included |
| Warranty Period |
3 years |
| Part Number |
JLA-010-03061-00 |
Compatible With / Goes Well With
- JL Audio marine amplifiers (M-Series, MX-Series)
- Marine head units with 4V+ preamp outputs
- RGB LED controllers (12V DC compatible)
- Boats with 127-133mm (5"-5.25") speaker cutouts
- Fibreglass hardtops, consoles, and tower enclosures
- Personal watercraft (PWC) audio systems
- Wakeboard towers and T-top installations
- Centre console fishing boats
- Aluminium marine craft with sealed speaker housings
Caution: Verify mounting depth clearance (71mm minimum) before installation. LED functionality requires separate wiring to 12V DC power source and optional controller.
Frequently Asked Questions
Will these speakers fit my existing 6.5" marine speaker cutouts?
These speakers accommodate 127-133mm (5.00"-5.25") mounting holes with a 156mm bolt circle, fitting most standard marine speaker installations without modification.
How much amplifier power do I need to drive these speakers?
JL Audio recommends 20-120W RMS per channel with the 60W RMS rating providing optimal performance around 40-80W from a quality marine amplifier.
Are the LED lights controllable separately from the audio?
The RGB LED system operates independently via flying lead connection, allowing integration with vessel lighting controllers or standalone RGB control modules.
What mounting depth clearance is required behind the speaker?
You'll need 71mm clearance behind the mounting surface, with the speaker requiring 96mm total depth including the 26mm frontal grille protrusion.
Can these speakers handle full saltwater immersion?
While marine-grade and corrosion-resistant, these speakers are designed for splash-resistant mounting locations, not continuous submersion—install in cockpit areas protected from direct water pooling.
