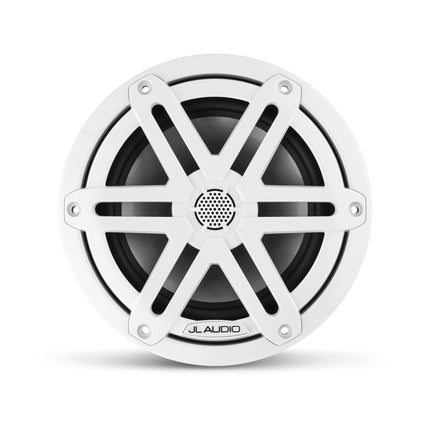

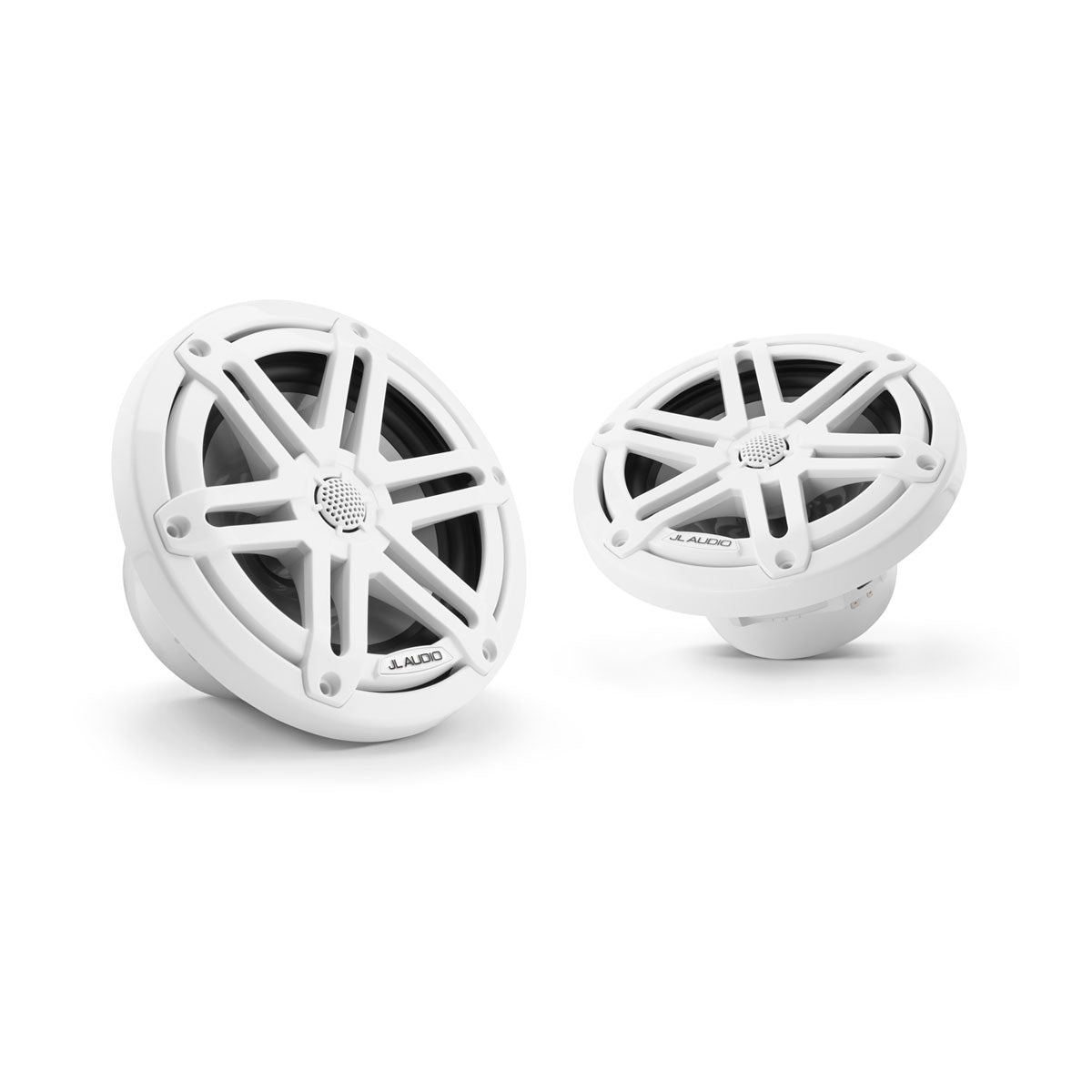

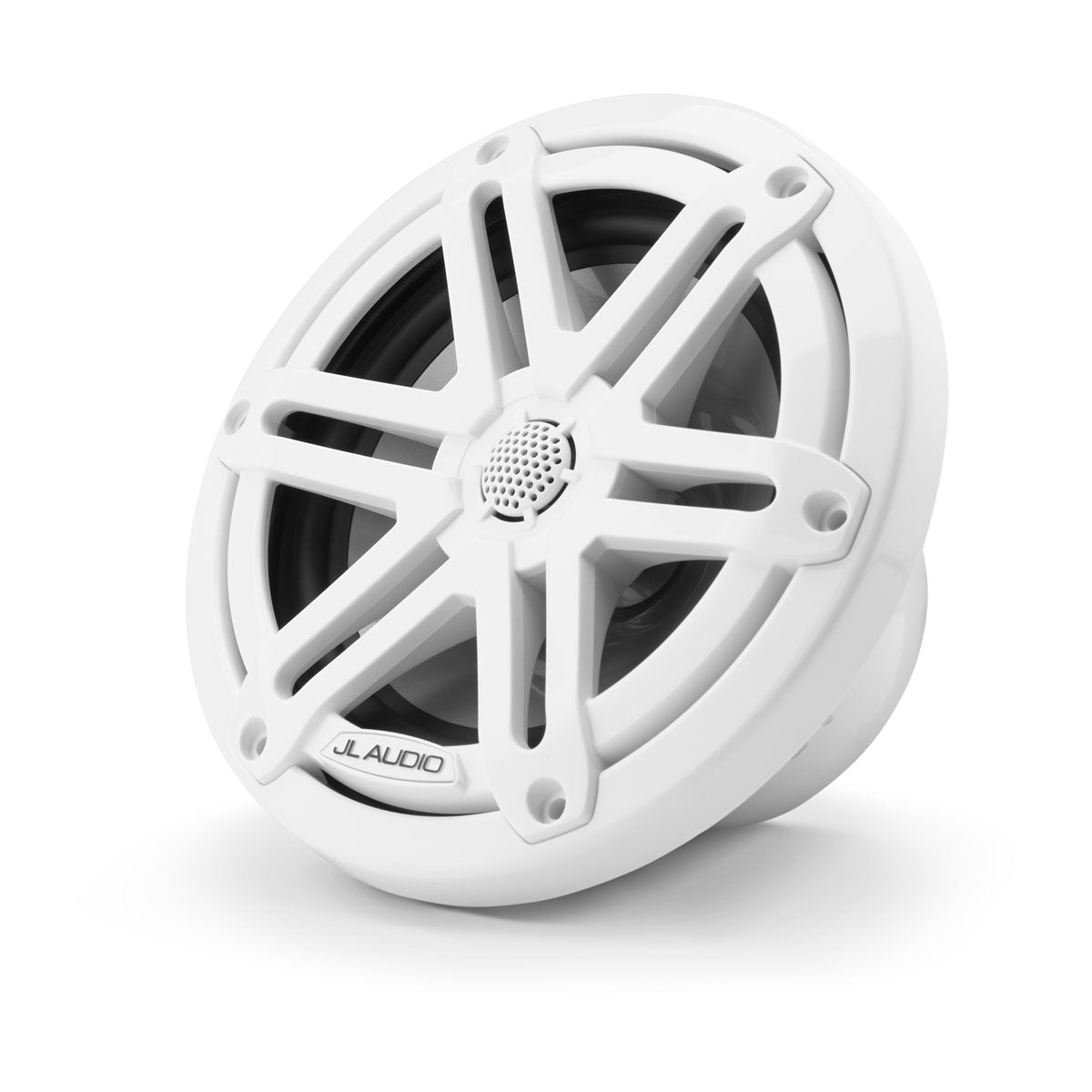

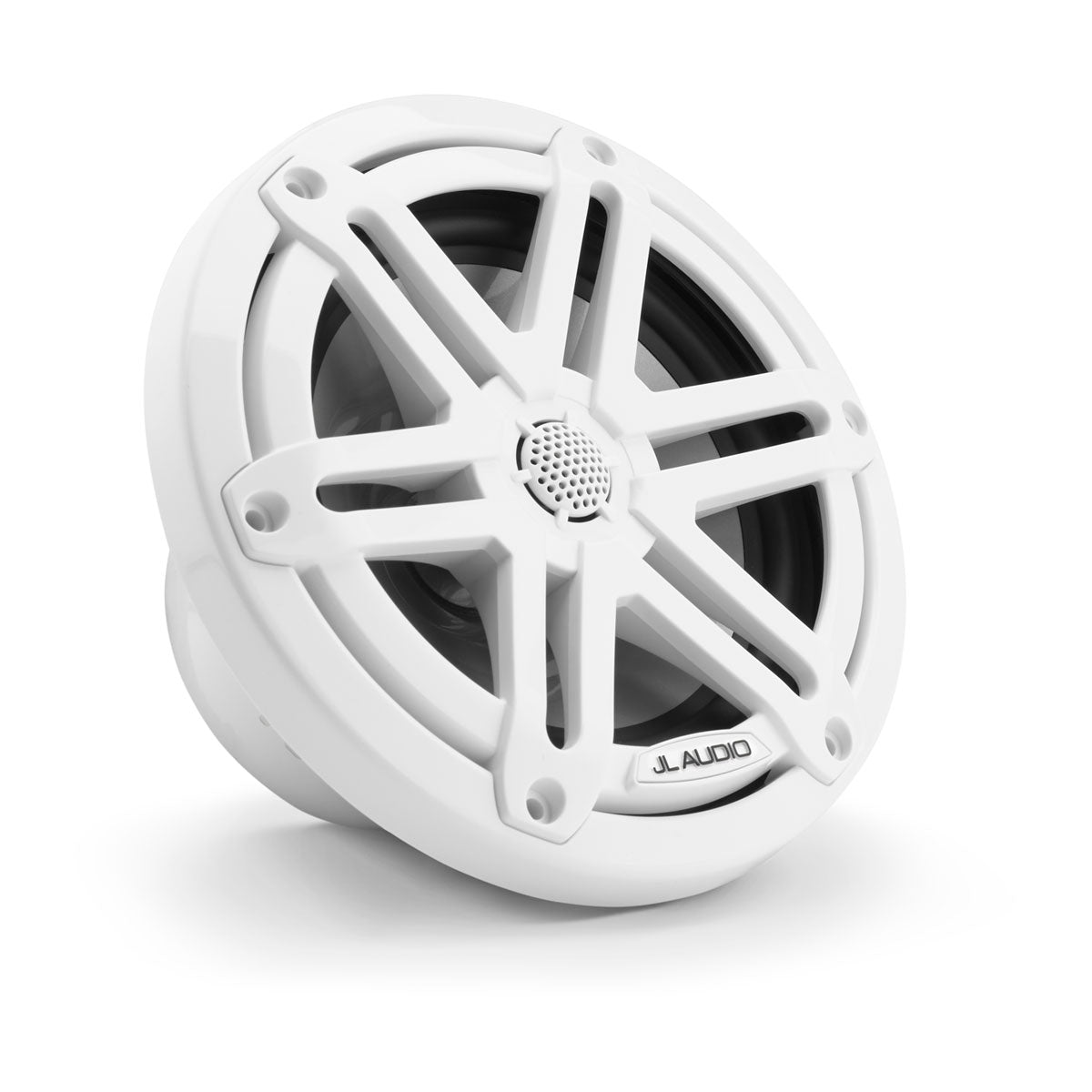

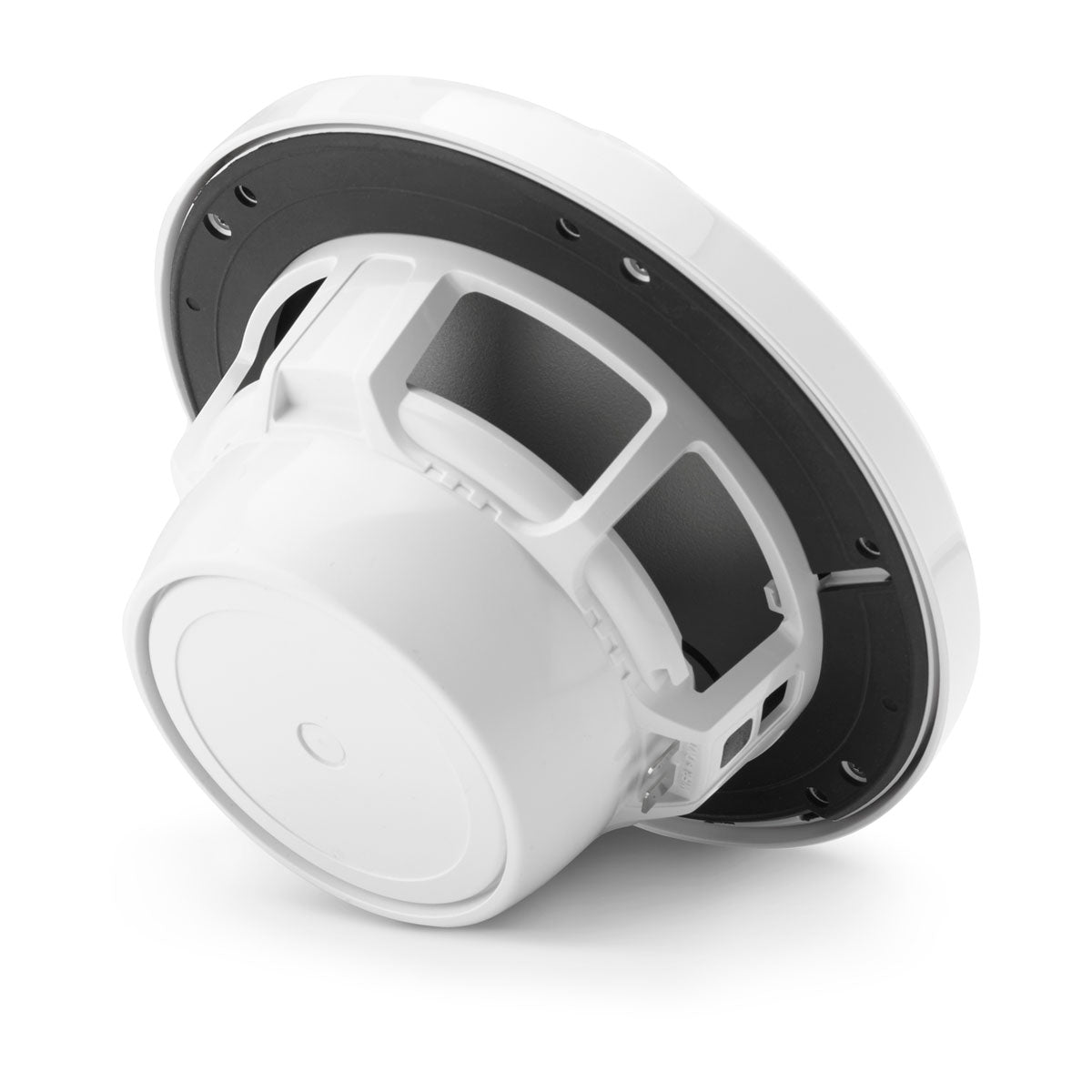

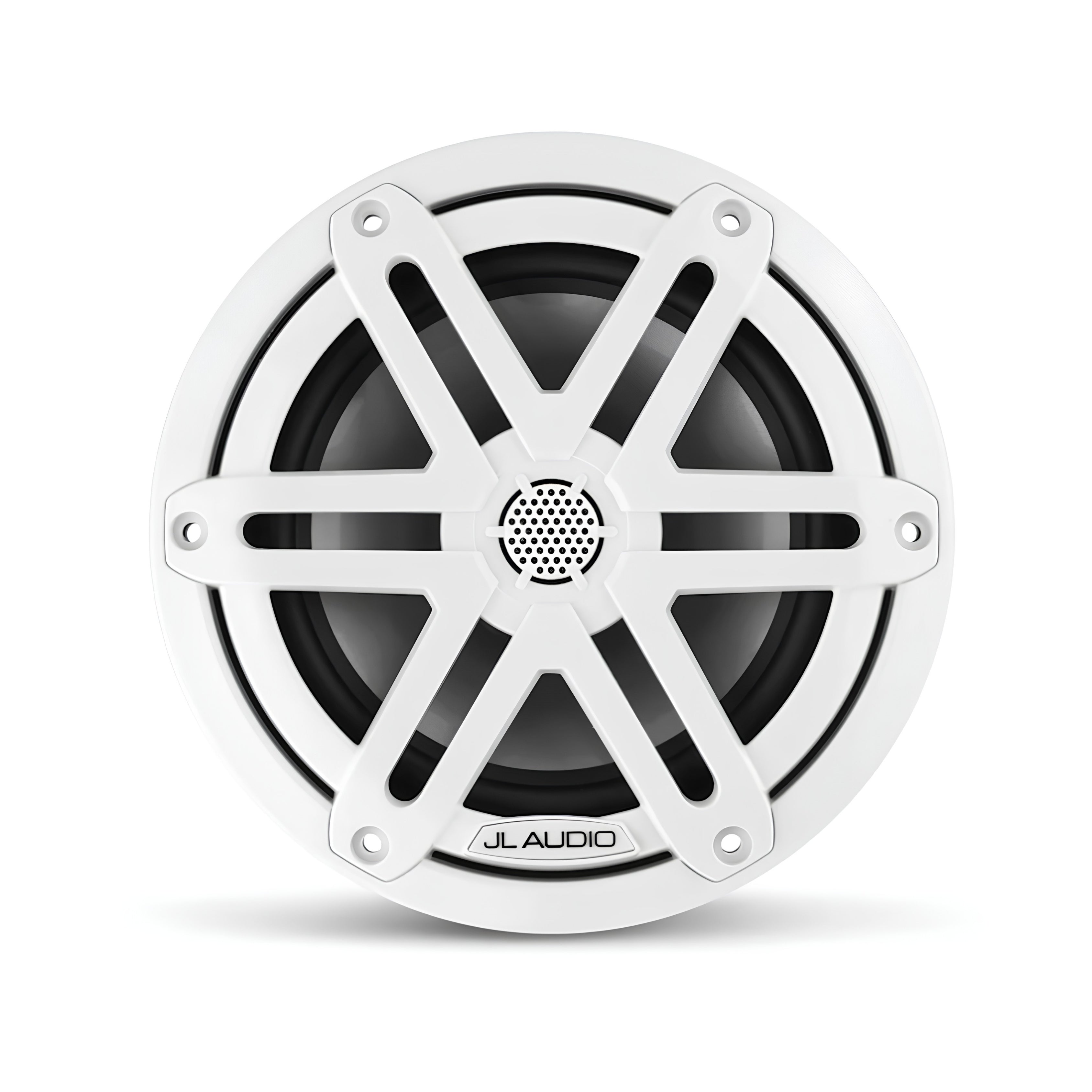

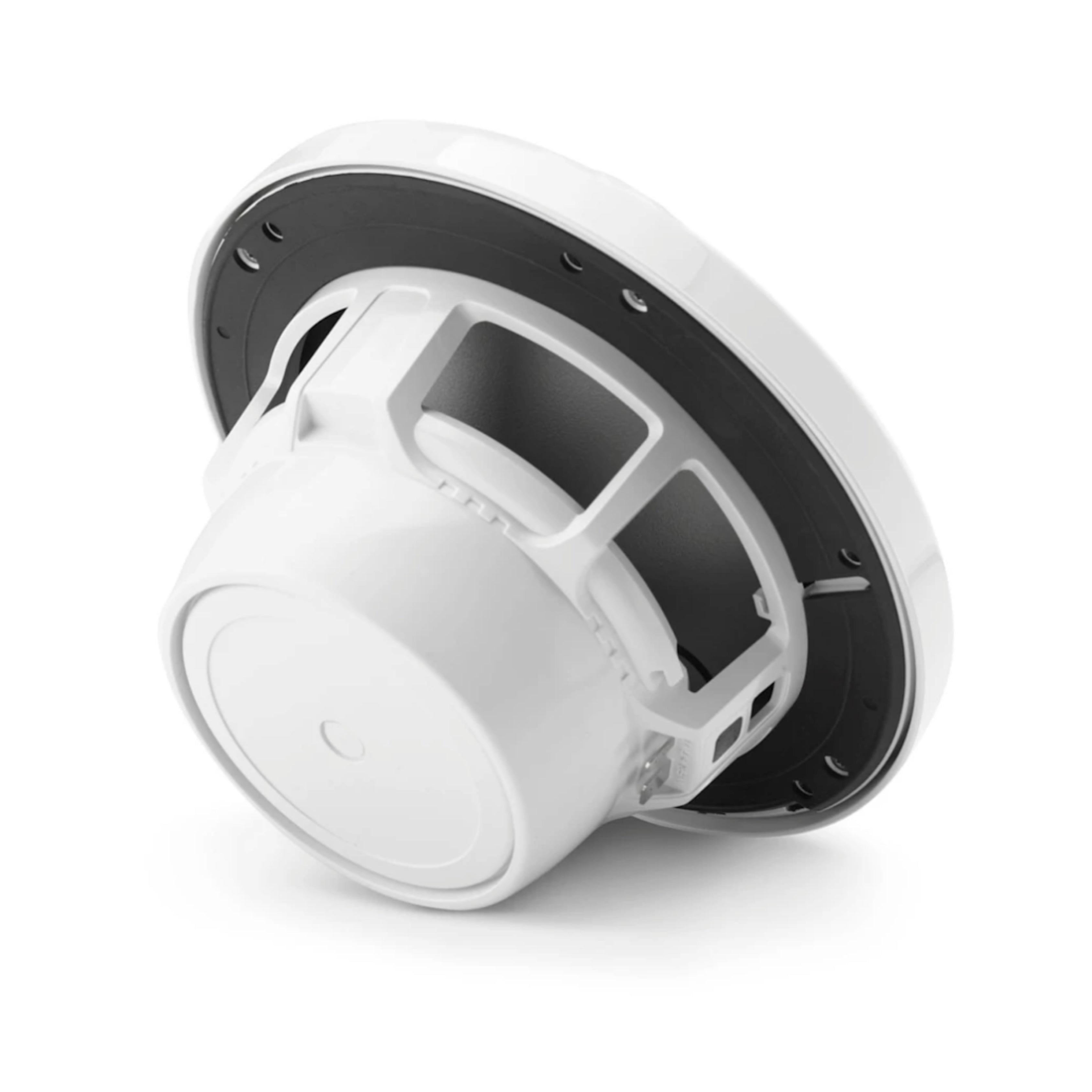

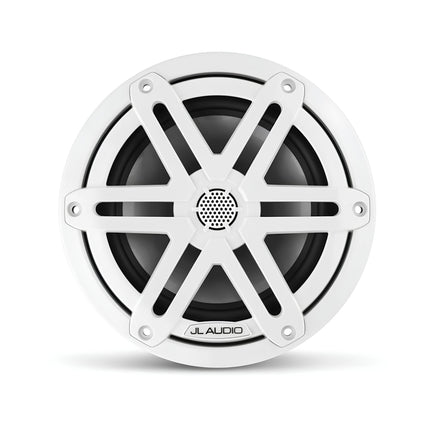

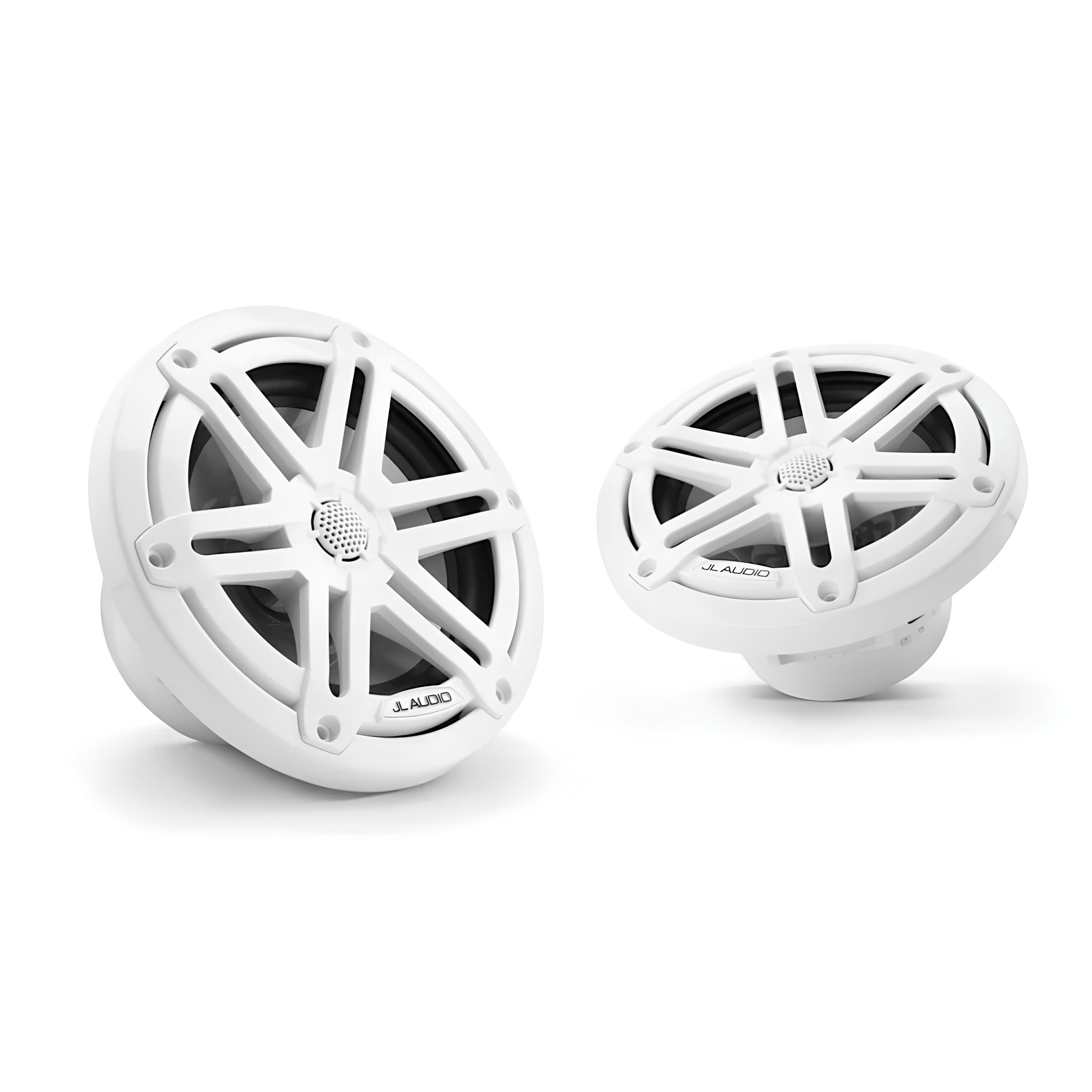

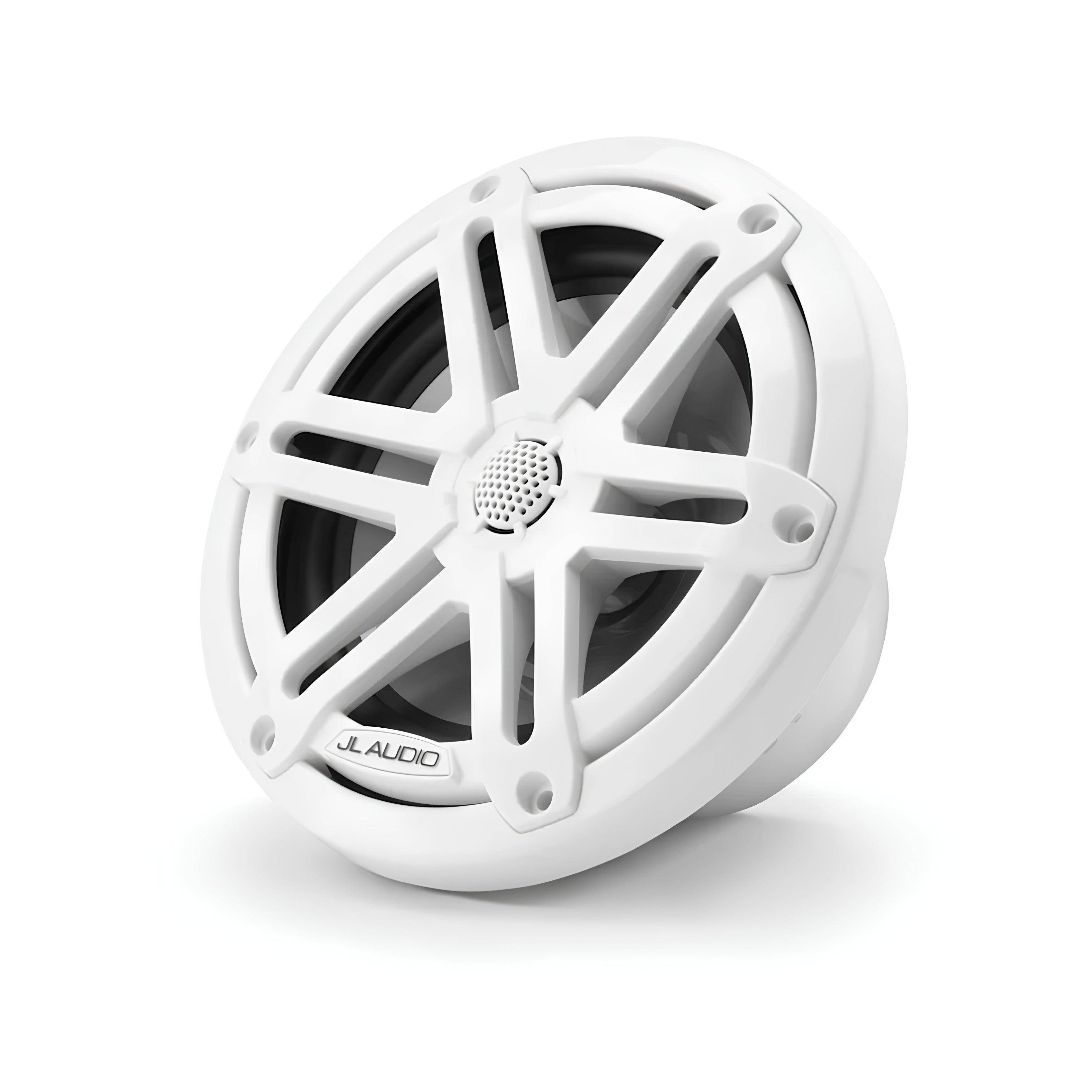

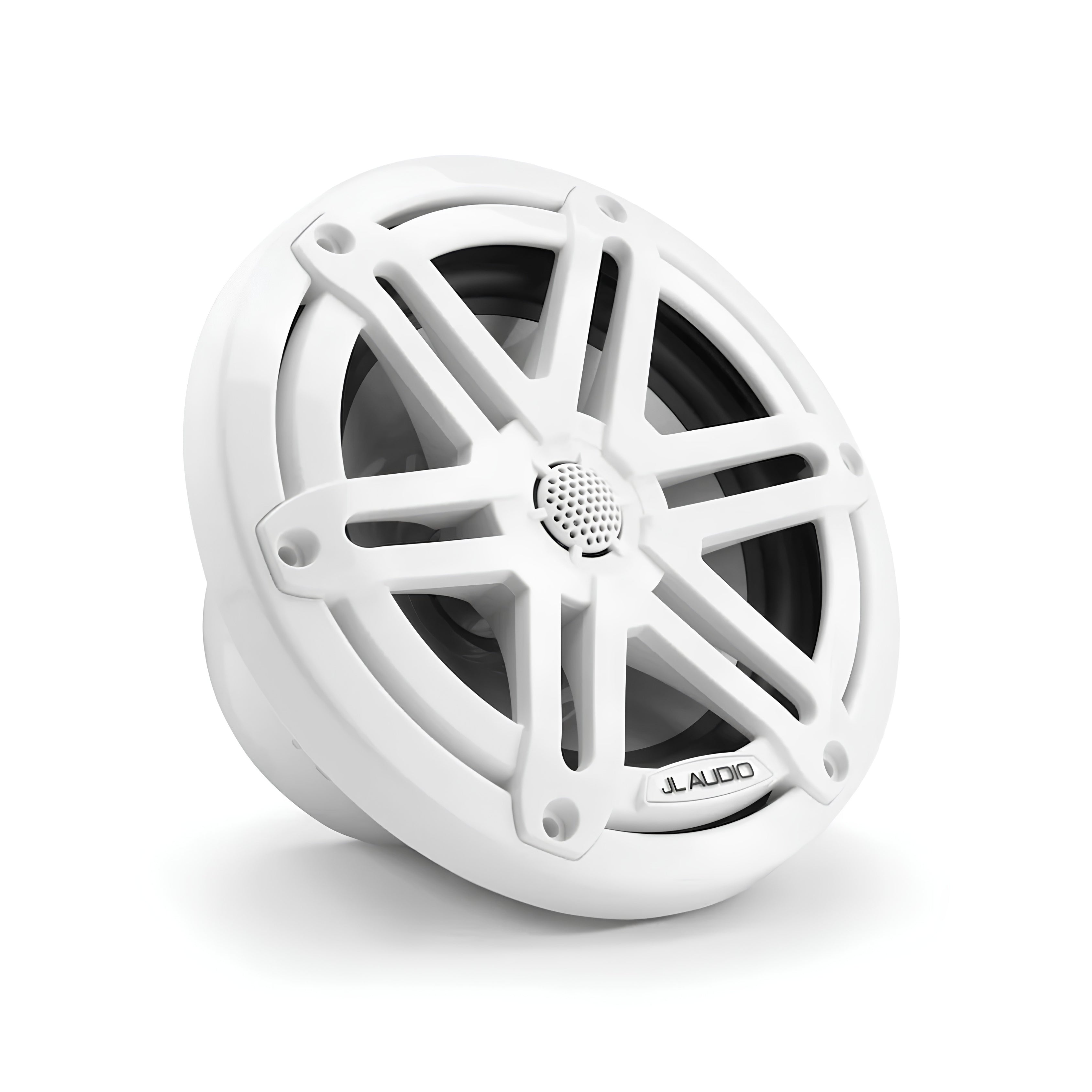

JL Audio JLA-010-03063-00 M3 6.5" Marine Speakers - White Sport Grille
Premium marine audio engineered for Australian conditions — modern sport styling meets professional offshore performance.
Product Overview
The JL Audio M3 6.5" marine speakers with white sport grille deliver professional-grade sound quality in a contemporary design built for harsh saltwater environments. Engineered with injection-moulded mica-filled polypropylene cones and 19mm silk dome tweeters, these coaxial speakers handle 60W RMS continuous power with 89.5 dB sensitivity across a 55 Hz-25 kHz frequency range. The white sport grille provides UV-resistant protection with a modern aesthetic and includes JL Audio logo badges, while stainless steel mounting hardware ensures long-term reliability in Australian coastal conditions. Ideal for boats, personal watercraft, and marine applications where contemporary styling and audio performance matter.
Features & Benefits
Corrosion-Resistant Marine Construction: Mica-filled polypropylene cones and stainless steel hardware withstand constant saltwater exposure, UV radiation, and temperature extremes common in Australian coastal waters, offshore fishing grounds, and extended blue-water cruising.

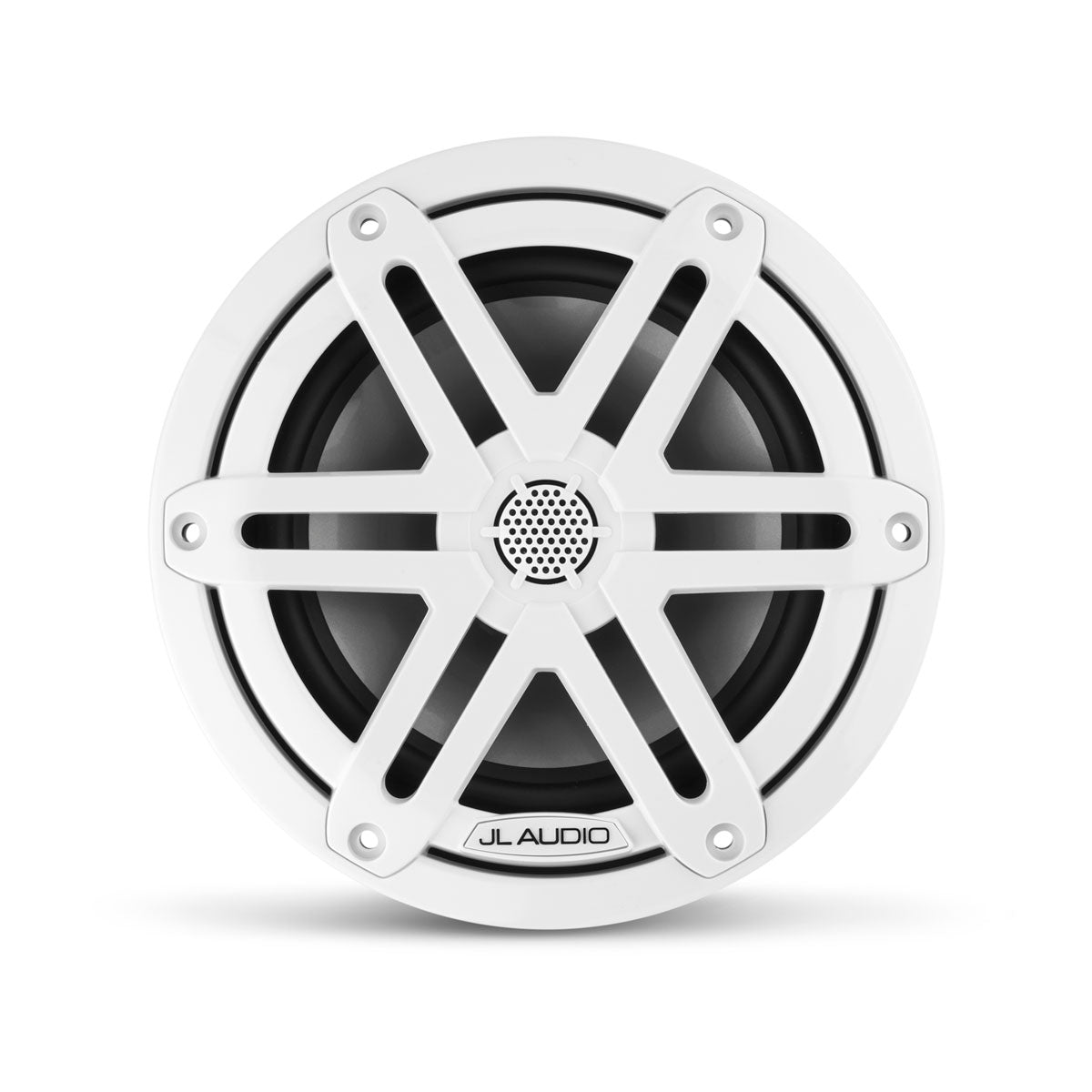

Sport Grille Design: Modern white sport grille with 26mm protrusion provides UV-resistant protection while maintaining a contemporary aesthetic perfect for modern boat styling, performance watercraft, or updated vessel refits. Includes JL Audio logo badges for branded appearance.
Wide Frequency Response: 55 Hz-25 kHz range delivers clear vocal reproduction and extended bass response critical for cutting through engine noise, wind, and water splash during high-speed cruising, offshore work, or coastal navigation.
Efficient Power Handling: 60W RMS rating with 89.5 dB sensitivity means strong output from moderate amplifier power (20-120W recommended), preserving battery capacity during extended trips away from shore power or multi-day fishing expeditions.
Universal Mounting Compatibility: 127-133mm mounting hole range fits standard 5"-5.25" marine speaker cutouts in fibreglass consoles, hardtops, and tower enclosures without custom fabrication, oversized mounting rings, or dashboard modifications.
Silk Dome Tweeter Design: 19mm soft dome provides smooth high-frequency extension without the harshness common in metal tweeters, reducing listening fatigue during long fishing runs, multi-day coastal cruising, or extended offshore passages.
Technical Specs
| Specification |
Value |
| Speaker Type |
2-way coaxial marine speaker |
| Woofer Size |
165mm (6.5") |
| Tweeter Size |
19mm (0.75") silk dome |
| Continuous Power Handling |
60W RMS |
| Recommended Amplifier Power |
20-120W per channel |
| Nominal Impedance |
4Ω |
| Sensitivity |
89.5 dB (1W/1m) |
| Frequency Response |
55 Hz-25 kHz (±3 dB) |
| Overall Diameter |
175mm (6.90") |

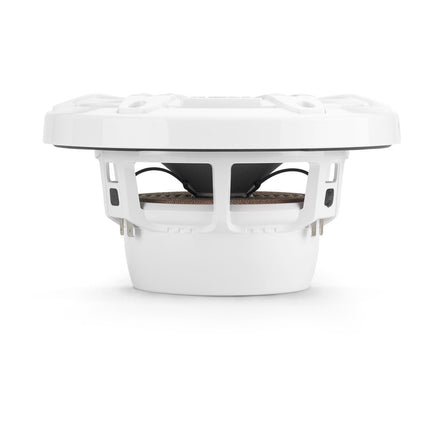

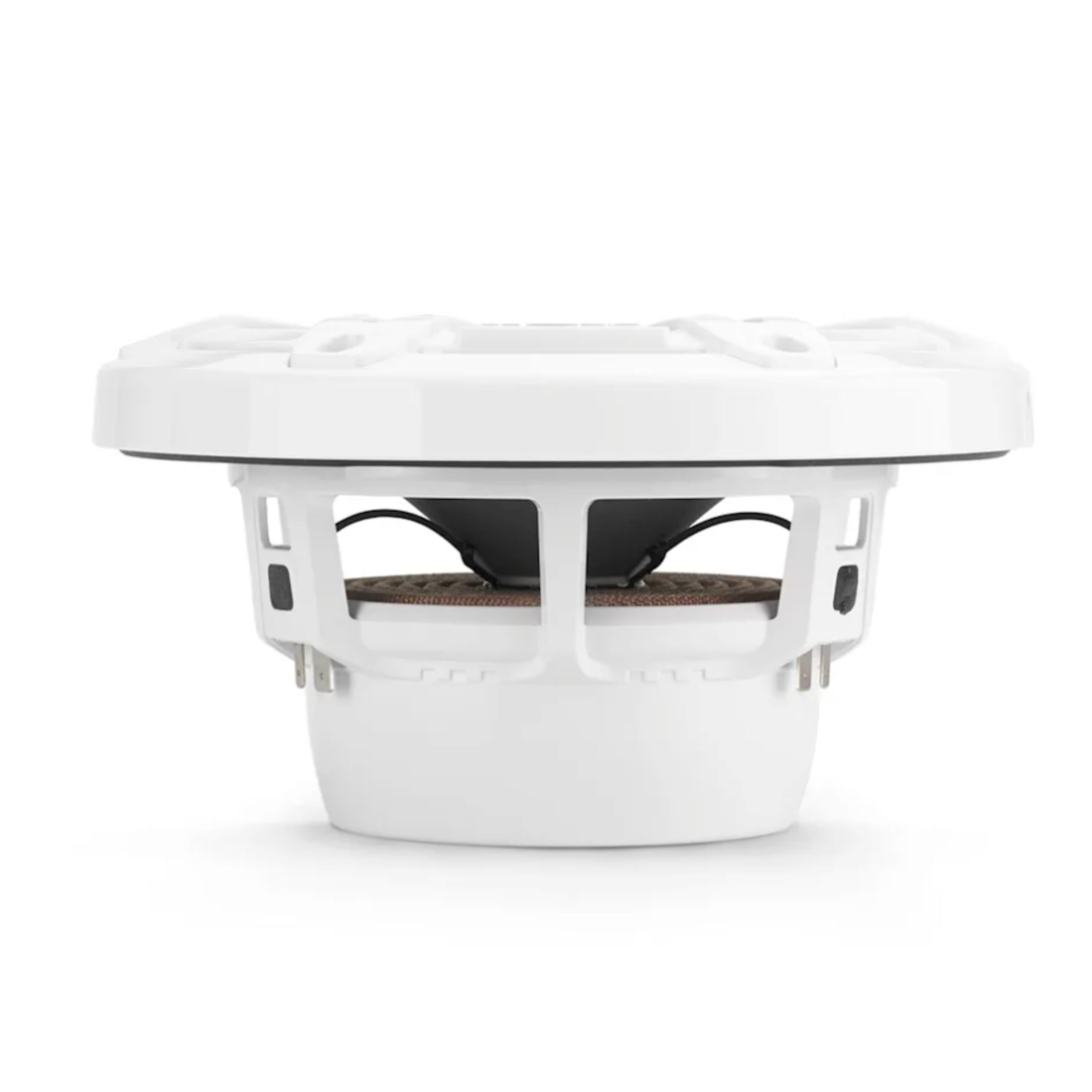

| Mounting Depth |
96mm (3.79") |
| Mounting Depth Clearance Required |
71mm (2.78") |
| Frontal Grille Protrusion |
26mm (1.01") |
| Mounting Hole Diameter |
127-133mm (5.00"-5.25") |
| Bolt Hole Circle |
156mm (6.125") |
| Cone Material |
Injection-moulded mica-filled polypropylene |
| Grille Colour |
White sport finish |
| Grille Style |
Sport (with logo badges) |
| LED Lighting |
Not available on this model |
| Speaker Connection |
Spade connectors |
| Mounting Hardware |
Stainless steel screws and washers included |
| Accessories Included |
Logo badges (sport models) |
| Warranty Period |
3 years |
| Part Number |
JLA-010-03063-00 |
Compatible With / Goes Well With
- Fusion Apollo MS-RA800 marine stereo
- JL Audio MediaMaster 55 stereo
- JL Audio AP amplifiers with Bluetooth technology
- JL Audio MHD marine amplifiers
- JL Audio MVi marine amplifiers
- JL Audio MX marine and powersports amplifiers
- JL Audio XDM car and marine amplifiers
- JL Audio M3 marine subwoofers
- Boats with 127-133mm (5"-5.25") speaker cutouts
- Fibreglass hardtops, consoles, and tower enclosures
- Personal watercraft (PWC) audio systems
- Wakeboard towers and T-top installations
- Centre console fishing boats
- Performance watercraft
- Modern boat refits
- Aluminium marine craft with sealed speaker housings
Caution: Verify mounting depth clearance (71mm minimum) before installation. This sport model does not feature RGB LED lighting—select model JLA-010-03064-00 for LED functionality.
Frequently Asked Questions
Will these speakers fit my existing 6.5" marine speaker cutouts?
These speakers accommodate 127-133mm (5.00"-5.25") mounting holes with a 156mm bolt circle, fitting most standard marine speaker installations without modification.
How much amplifier power do I need to drive these speakers?
JL Audio recommends 20-120W RMS per channel with the 60W RMS rating providing optimal performance around 40-80W from a quality marine amplifier.
Do these white sport grille speakers have LED lighting?
No, this model (JLA-010-03063-00) does not include LED lighting. For RGB LED functionality, select model JLA-010-03064-00 with LED-equipped white sport grille.
What mounting depth clearance is required behind the speaker?
You'll need 71mm clearance behind the mounting surface, with the speaker requiring 96mm total depth including the 26mm frontal grille protrusion.
Can these speakers handle full saltwater immersion?
While marine-grade and corrosion-resistant, these speakers are designed for splash-resistant mounting locations, not continuous submersion—install in cockpit areas protected from direct water pooling.
