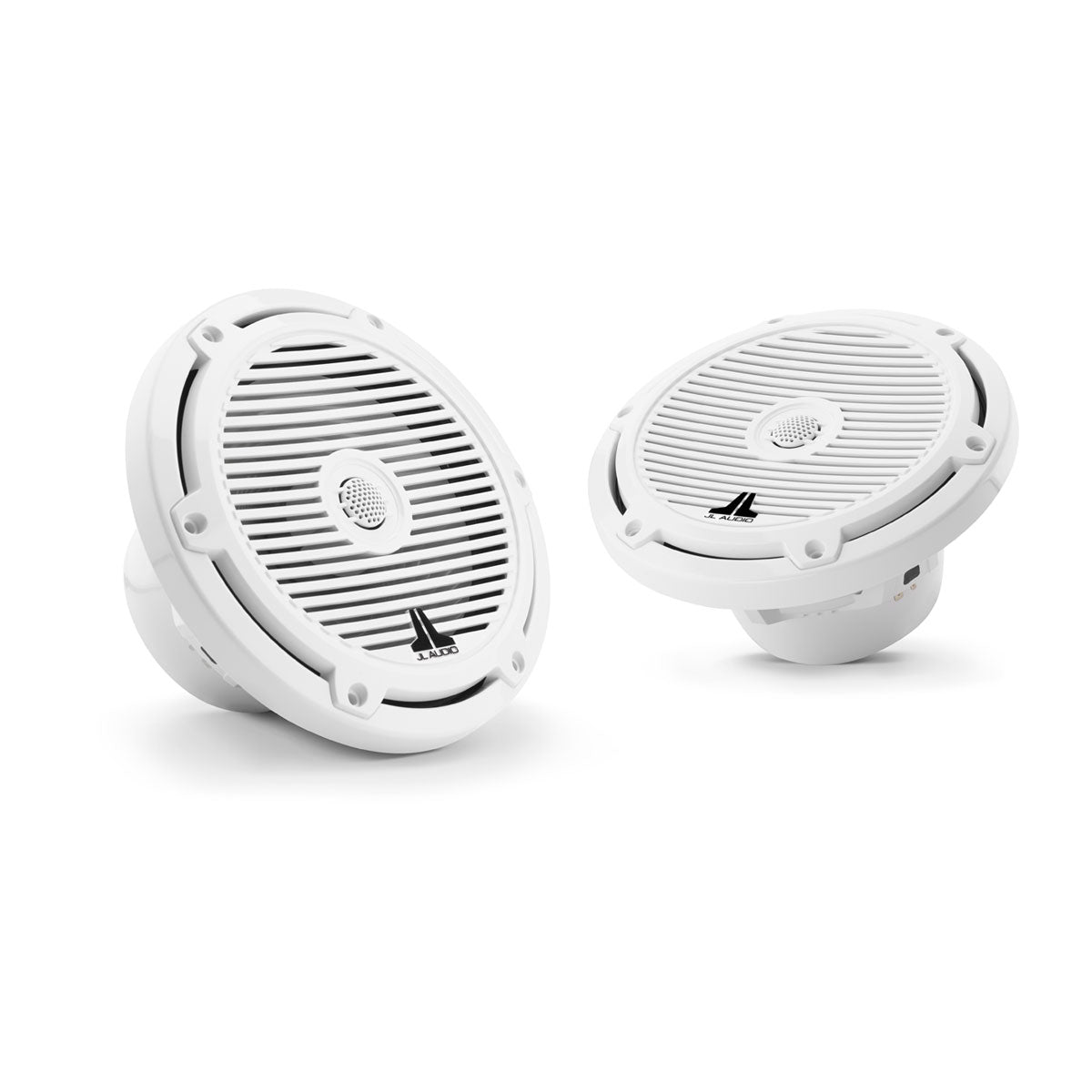

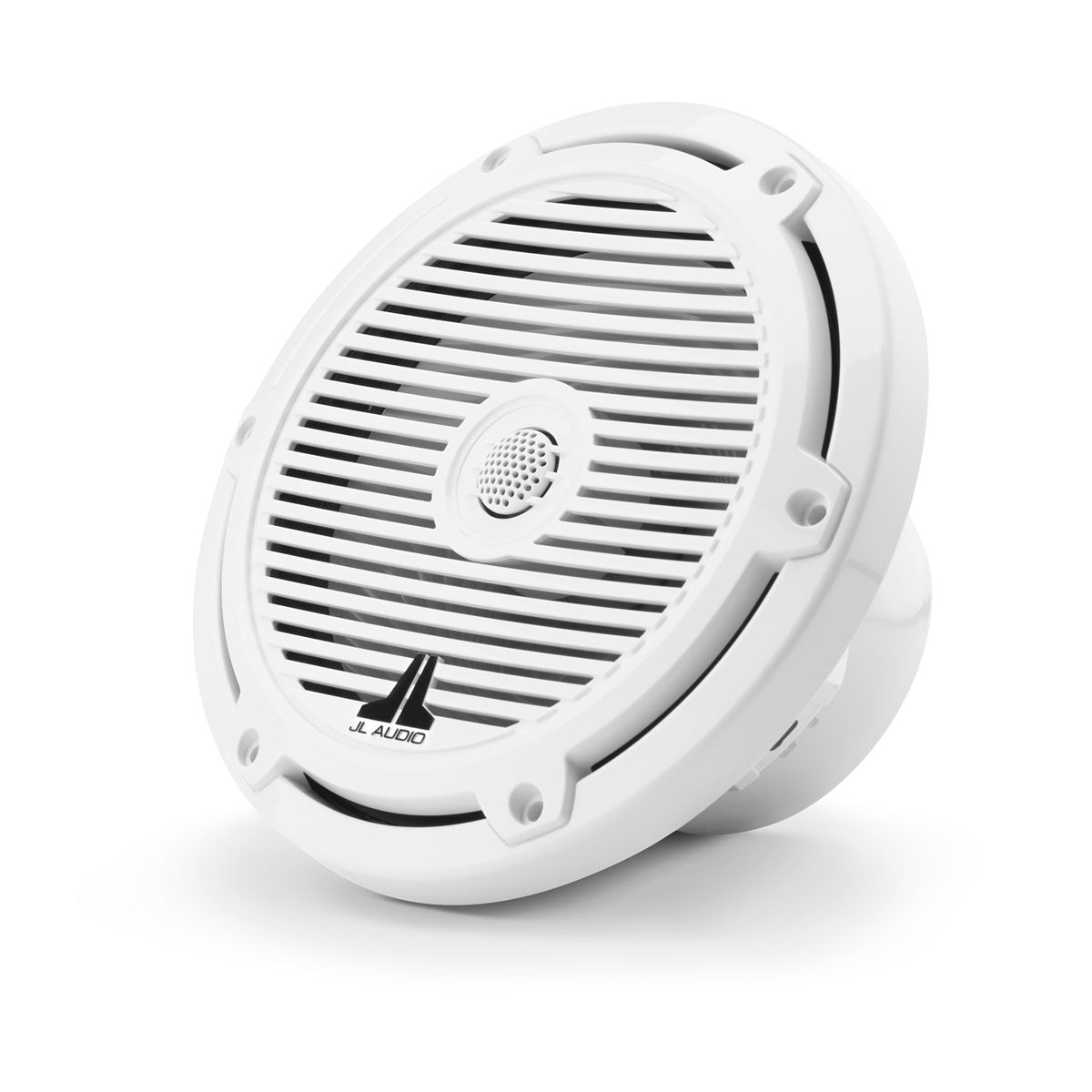

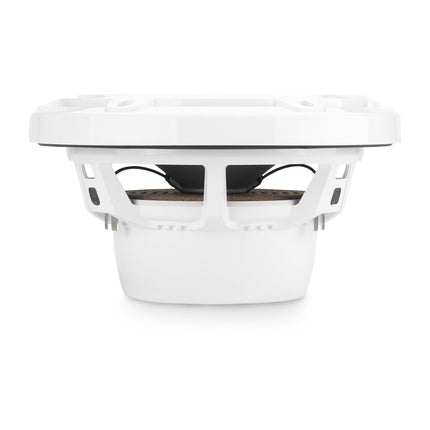

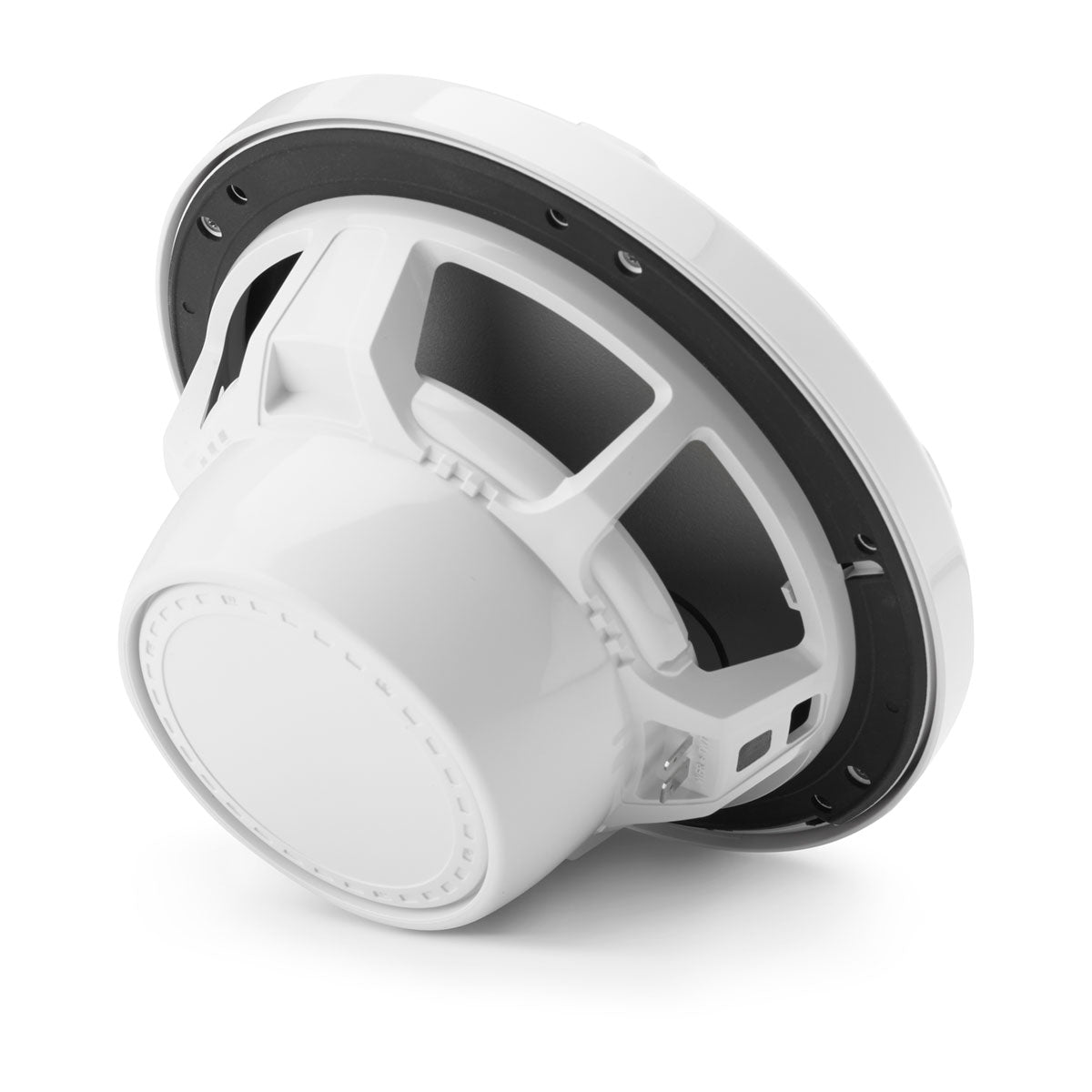

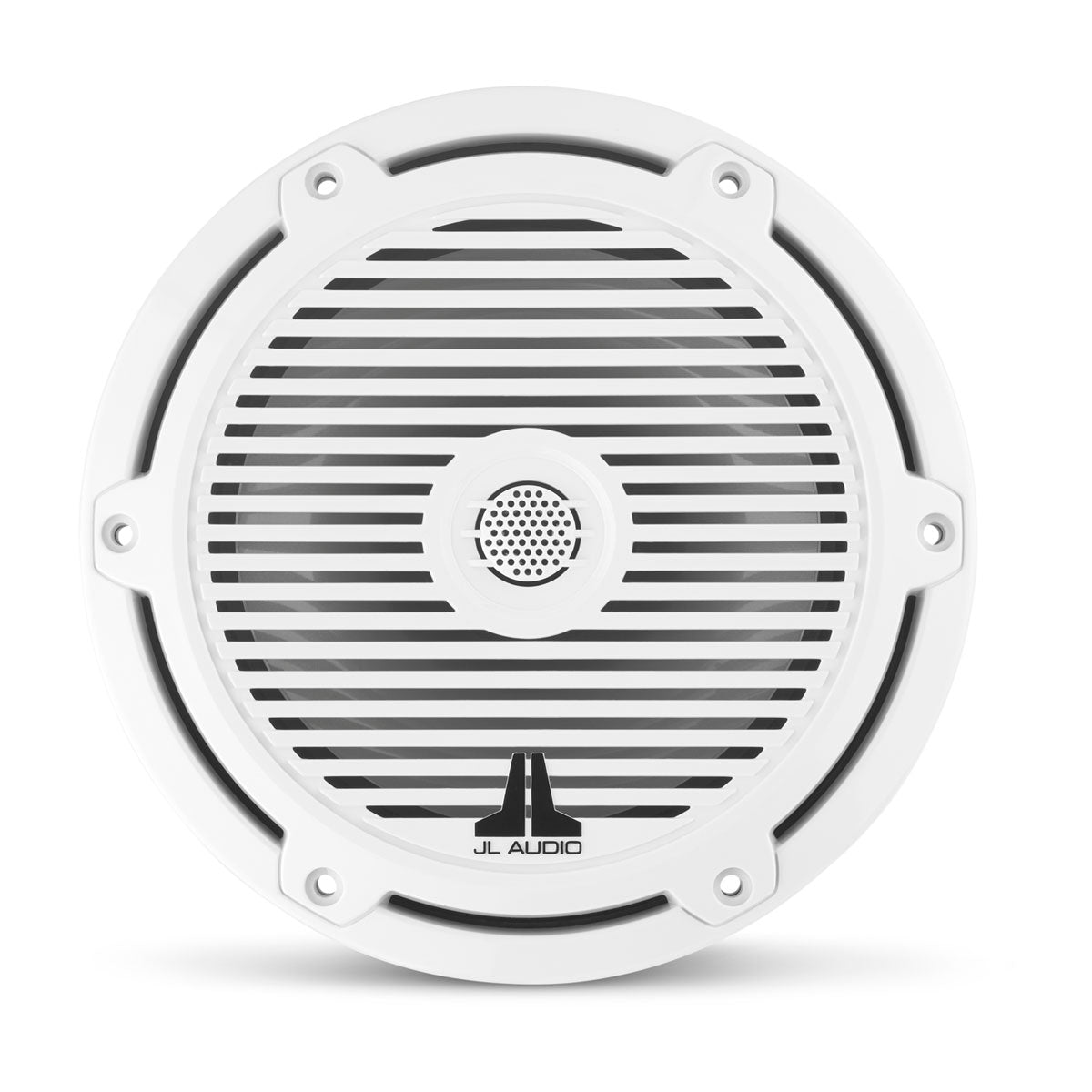

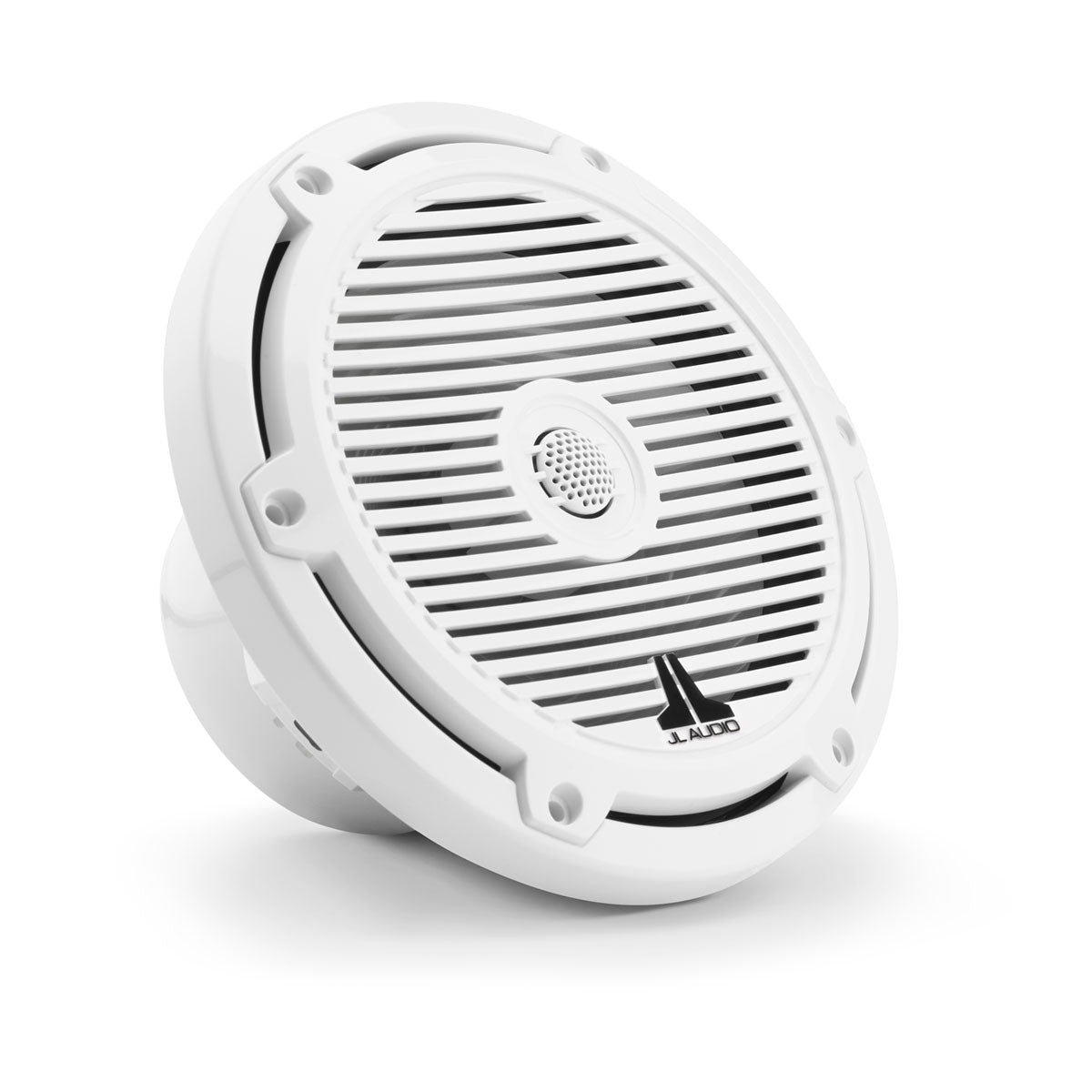

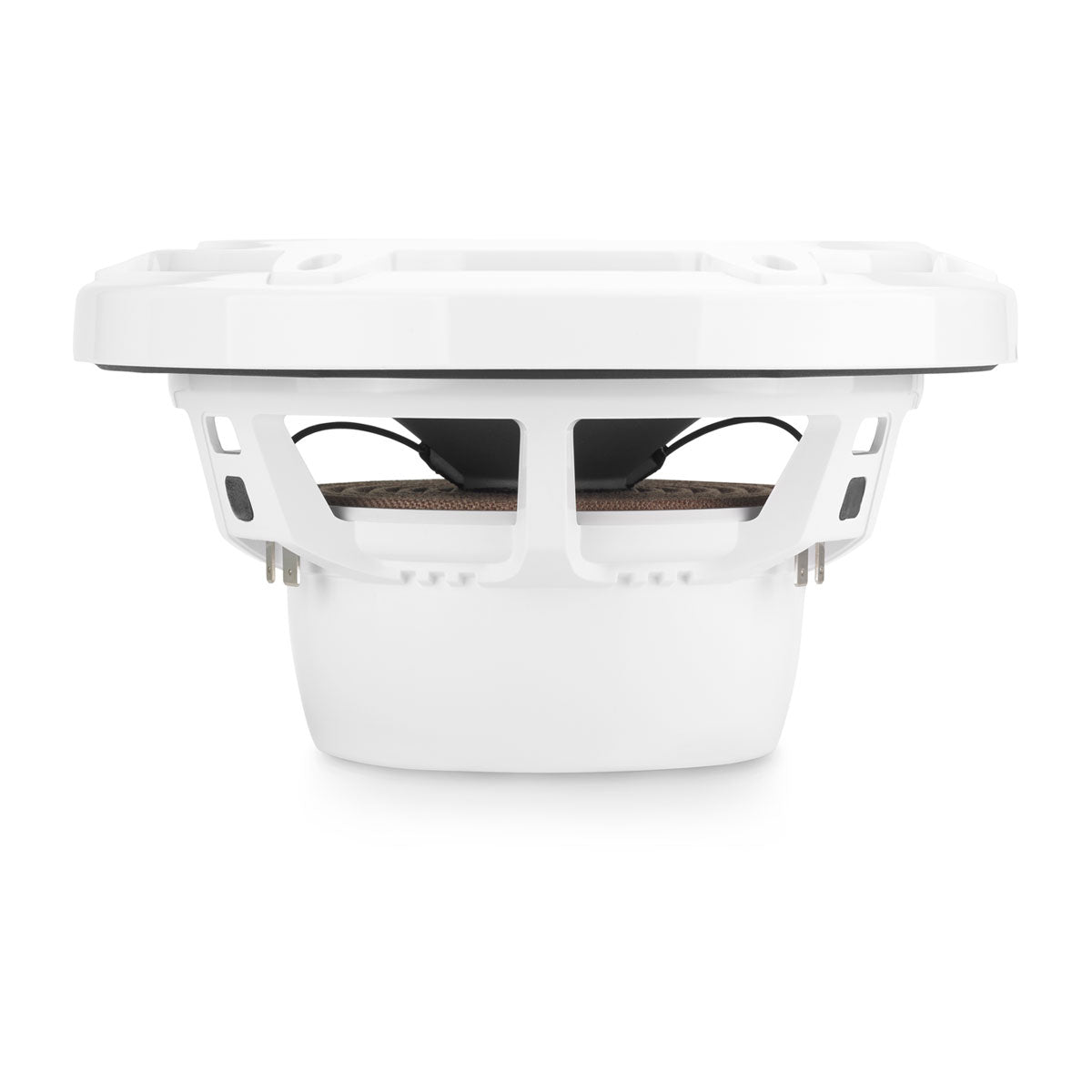

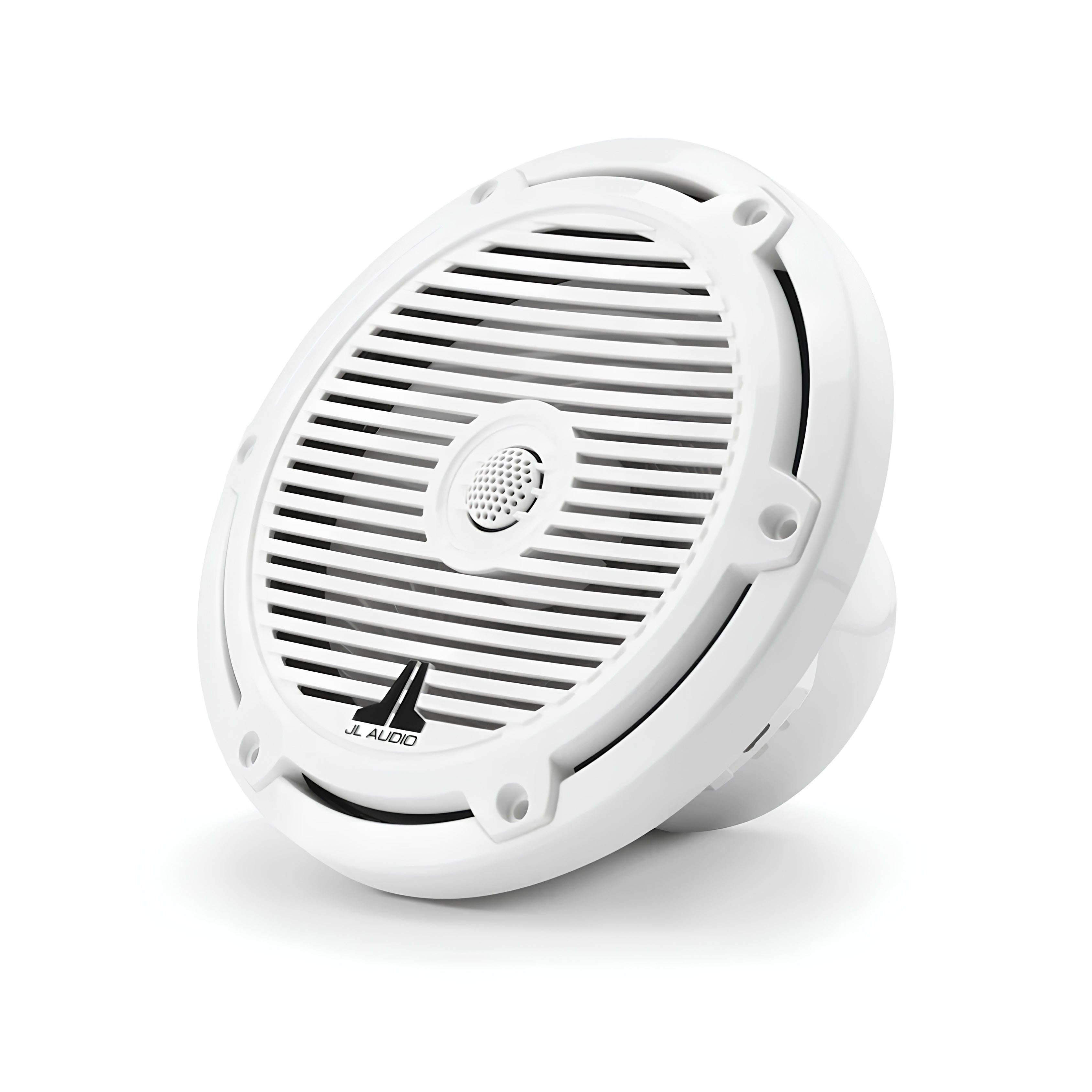

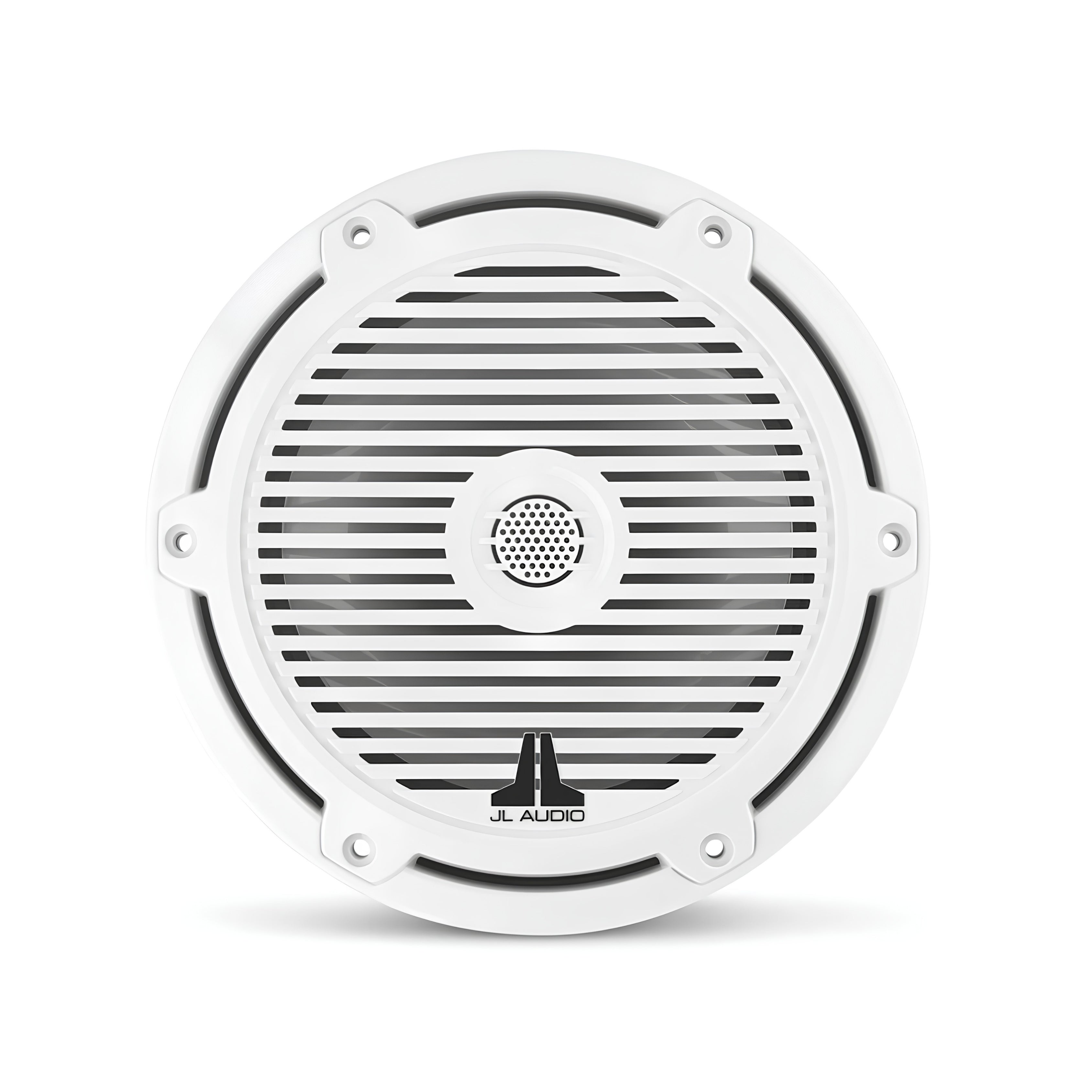

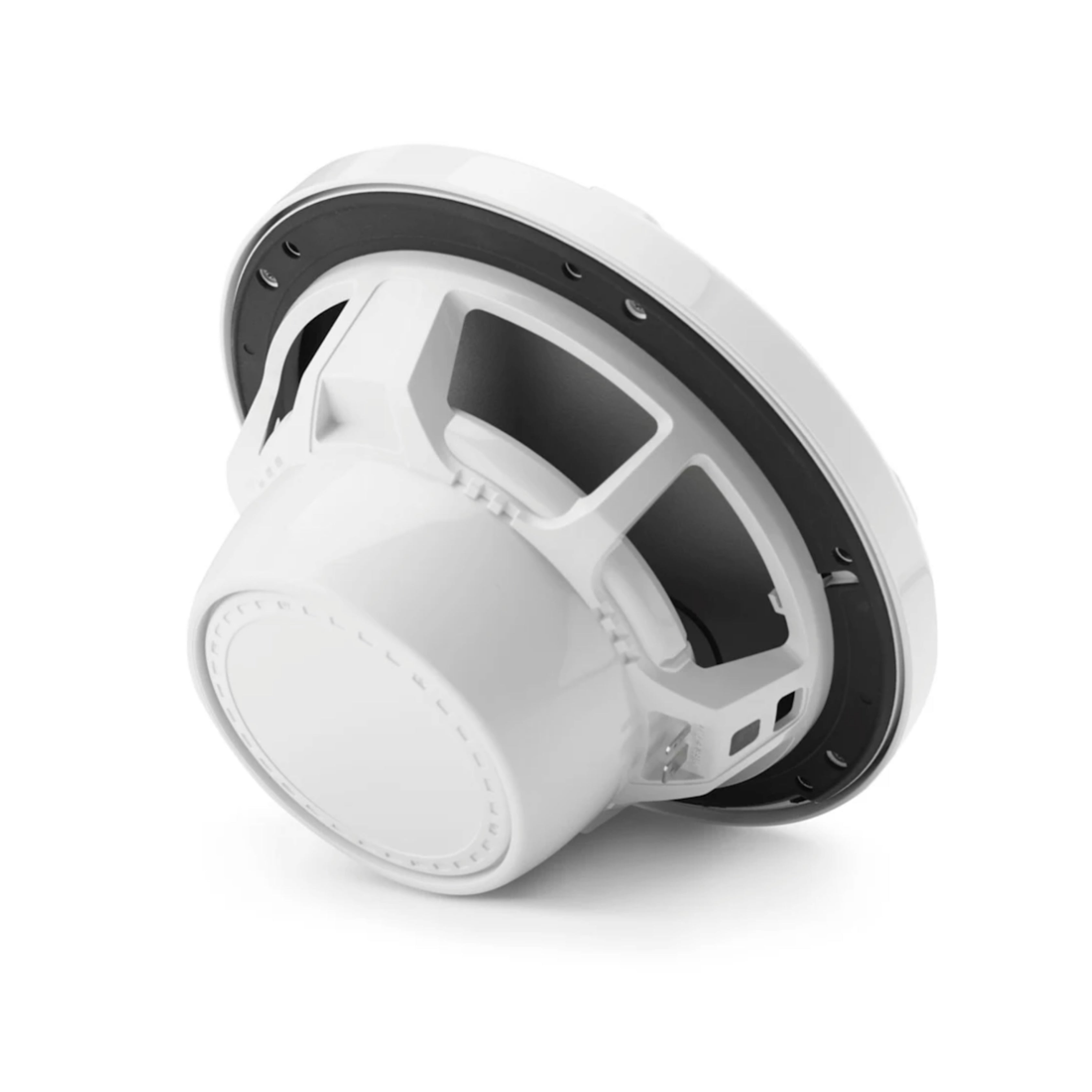

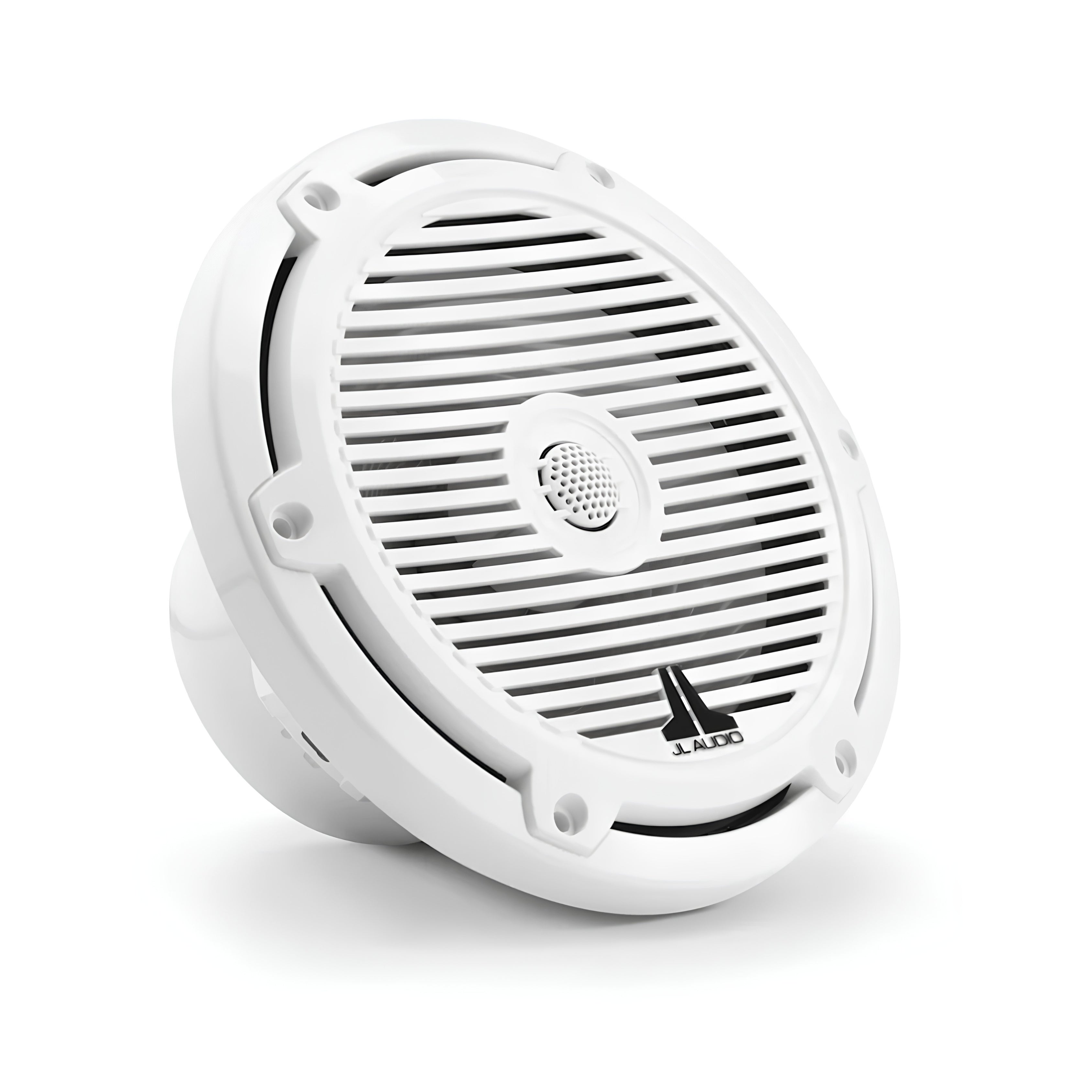

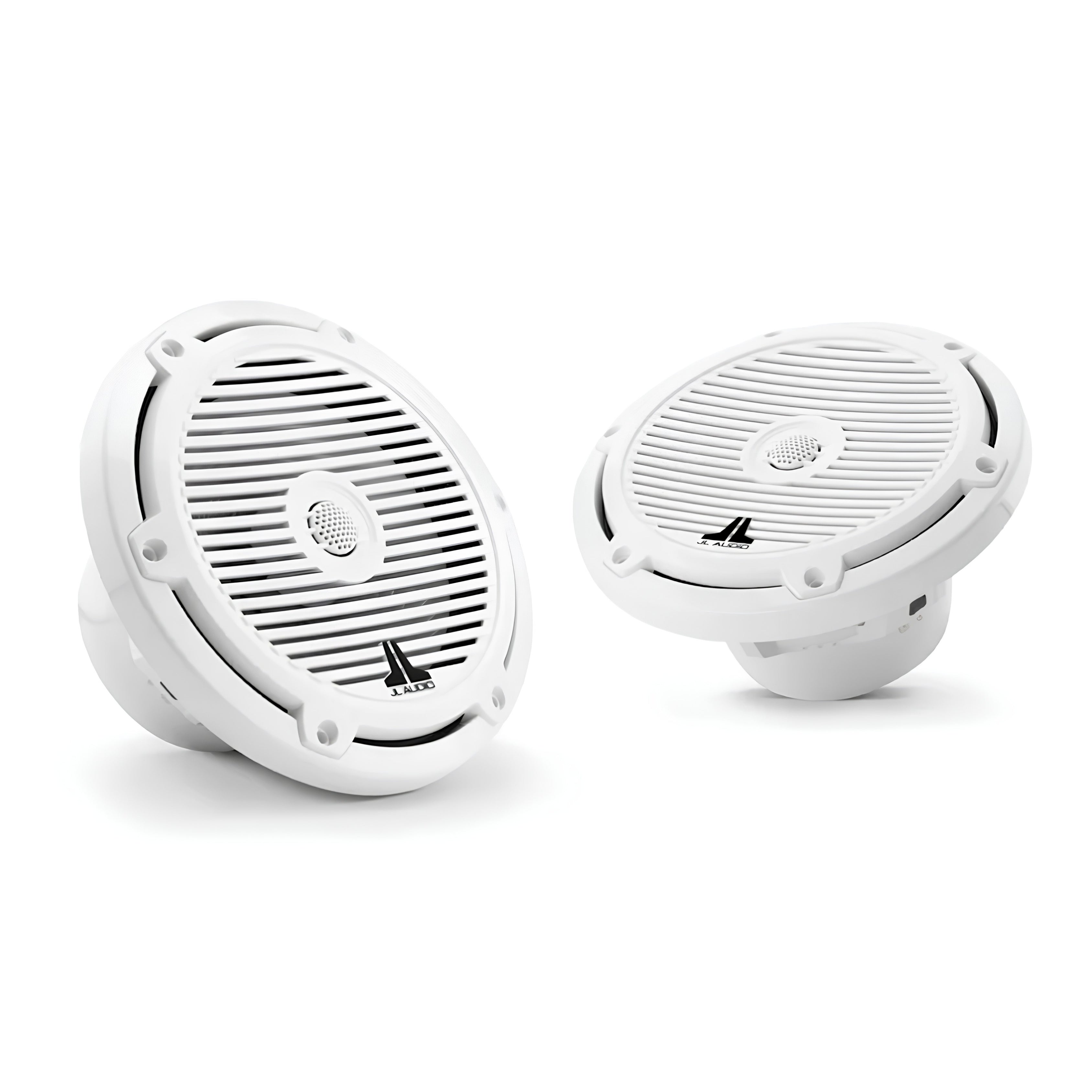

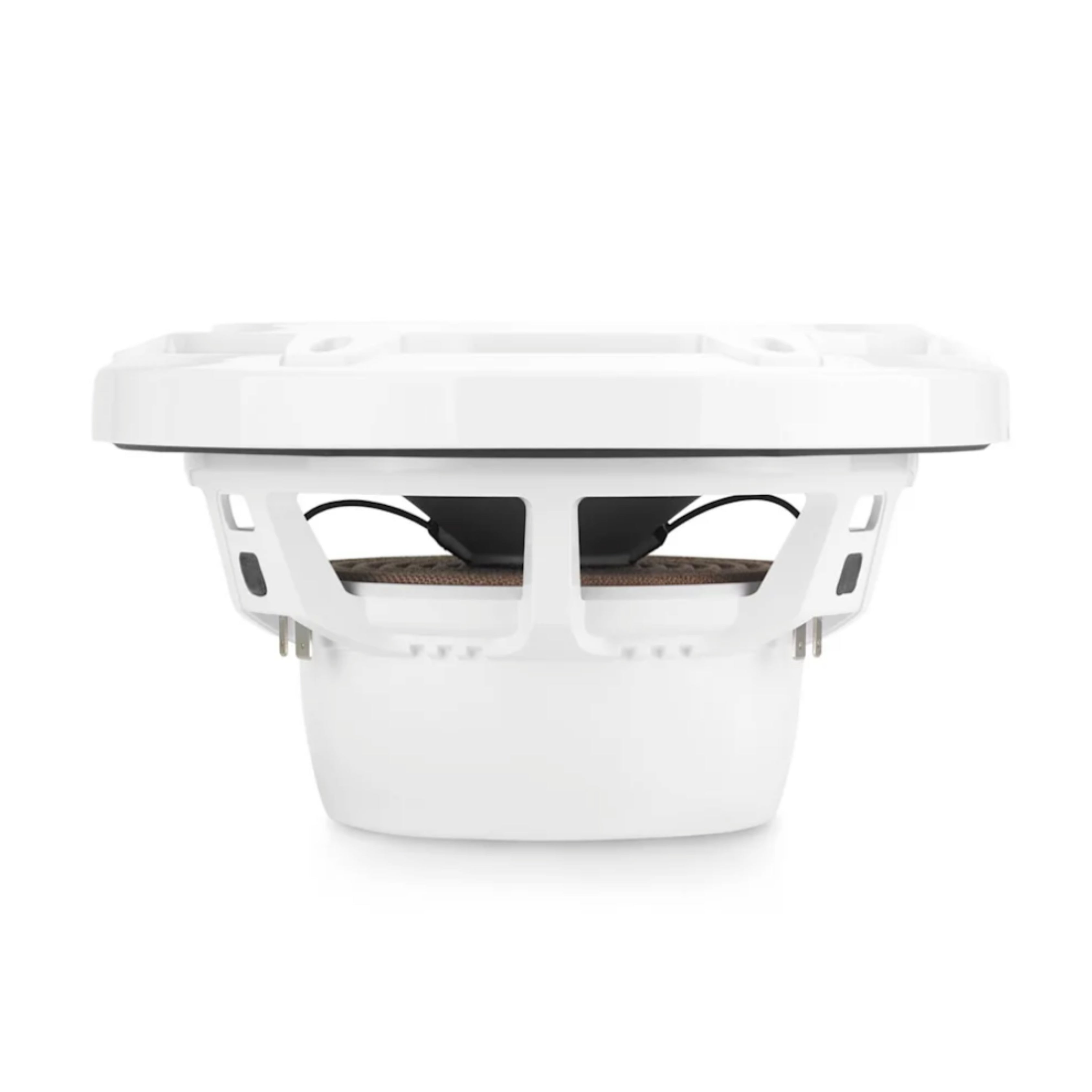

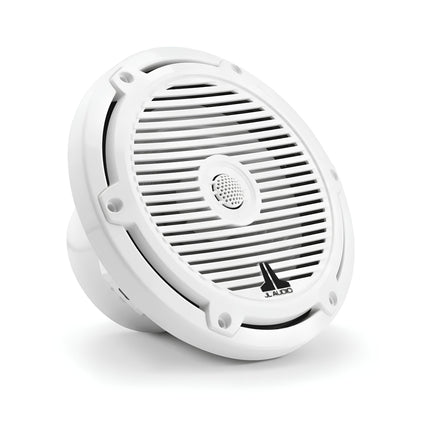

JL Audio JLA-010-03065-00 M3 7.7" Marine Speakers - White Classic Grille
Premium large-format marine audio engineered for Australian conditions — extended bass performance meets timeless classic styling.
Product Overview
The JL Audio M3 7.7" marine speakers with white classic grille deliver professional-grade sound quality with enhanced low-frequency extension in a clean, traditional design built for harsh saltwater environments. Engineered with injection-moulded mica-filled polypropylene cones and 19mm silk dome tweeters, these larger coaxial speakers handle 70W RMS continuous power with 90.5 dB sensitivity across an impressive 45 Hz-25 kHz frequency range. The white classic grille provides UV-resistant protection with a low-profile aesthetic, while stainless steel mounting hardware ensures long-term reliability in Australian coastal conditions. Ideal for larger boats, centre consoles, and commercial vessels where increased bass output and clean traditional aesthetics matter without RGB lighting complexity.
Features & Benefits
Corrosion-Resistant Marine Construction: Mica-filled polypropylene cones and stainless steel hardware withstand constant saltwater exposure, UV radiation, and temperature extremes common in Australian coastal waters, offshore fishing grounds, and extended blue-water cruising.
Extended Bass Response: 45 Hz low-frequency extension delivers deeper bass output compared to smaller 6.5" models, providing more impactful sound reproduction for larger vessels, open cockpit areas, or high-ambient-noise environments without requiring subwoofer supplementation.
Increased Power Handling: 70W RMS continuous rating with 90.5 dB sensitivity enables higher output levels suitable for larger boats, commercial applications, or environments requiring elevated volume levels to overcome engine and wind noise.
Classic Grille Design: Low-profile white classic grille with 26mm protrusion provides UV-resistant protection while maintaining a traditional, understated aesthetic perfect for classic boat styling, professional commercial vessel applications, or owners preferring timeless design without LED effects.
Universal Large-Format Mounting: 159mm mounting hole diameter accommodates standard large-format marine speaker cutouts in fibreglass consoles, hardtops, and tower enclosures, providing straightforward installation in vessels designed for 7.7"-8" speakers.
Silk Dome Tweeter Design: 19mm soft dome provides smooth high-frequency extension without the harshness common in metal tweeters, reducing listening fatigue during long fishing runs, multi-day coastal cruising, or extended offshore passages.
Technical Specs
| Specification |
Value |
| Speaker Type |
2-way coaxial marine speaker |
| Woofer Size |
196mm (7.7") |
| Tweeter Size |
19mm (0.75") silk dome |
| Continuous Power Handling |
70W RMS |
| Recommended Amplifier Power |
20-140W per channel |
| Nominal Impedance |
4Ω |
| Sensitivity |
90.5 dB (1W/1m) |
| Frequency Response |
45 Hz-25 kHz (±3 dB) |
| Overall Diameter |
196mm (7.70") |
| Mounting Depth |
106mm (4.19") |
| Mounting Depth Clearance Required |
81mm (3.17") |
| Frontal Grille Protrusion |
26mm (1.02") |
| Mounting Hole Diameter |
159mm (6.25") |
| Bolt Hole Circle |
176mm (6.92") |
| Cone Material |
Injection-moulded mica-filled polypropylene |
| Grille Colour |
White classic finish |
| Grille Style |
Classic (low-profile, no LED) |
| LED Lighting |
Not available on classic models |
| Speaker Connection |
Spade connectors |
| Mounting Hardware |
Stainless steel screws and washers included |
| Warranty Period |
3 years |
| Part Number |
JLA-010-03065-00 |
Compatible With / Goes Well With
- Fusion Apollo MS-RA800 marine stereo
- JL Audio MediaMaster 55 stereo
- JL Audio AP amplifiers with Bluetooth technology
- JL Audio MHD marine amplifiers
- JL Audio MVi marine amplifiers
- JL Audio MX marine and powersports amplifiers
- JL Audio XDM car and marine amplifiers
- JL Audio M3 marine subwoofers
- Boats with 159mm (6.25") large-format speaker cutouts
- Fibreglass hardtops, consoles, and tower enclosures
- Wakeboard towers and T-top installations
- Centre console fishing boats (7.5m+)
- Large offshore vessels
- Commercial fishing vessels
- Classic boat restorations
- Aluminium marine craft with sealed speaker housings
Caution: Verify mounting depth clearance (81mm minimum) and mounting hole diameter (159mm) before installation. This model requires larger cutouts than standard 6.5" speakers. Classic models do not feature RGB LED lighting—select Sport models for LED functionality.
Frequently Asked Questions
Will these 7.7" speakers fit my existing 6.5" speaker cutouts?
No, these 7.7" speakers require 159mm mounting holes compared to 127-133mm for 6.5" models. You'll need larger cutouts or vessels originally equipped for 7.7"-8" speakers.
How much amplifier power do I need to drive these speakers?
JL Audio recommends 20-140W RMS per channel with the 70W RMS rating providing optimal performance around 50-100W from a quality marine amplifier.
Do these classic grille speakers have LED lighting?
No, LED lighting is only available on JL Audio M3 Sport models—these white classic grille speakers focus on traditional aesthetics without RGB illumination.
What's the advantage of 7.7" speakers over 6.5" models?
The larger 7.7" woofer delivers extended bass response down to 45 Hz (vs 55 Hz) and handles 70W RMS (vs 60W), providing more impactful sound for larger vessels or open-air installations.
What mounting depth clearance is required behind the speaker?
You'll need 81mm clearance behind the mounting surface, with the speaker requiring 106mm total depth including the 26mm frontal grille protrusion.
