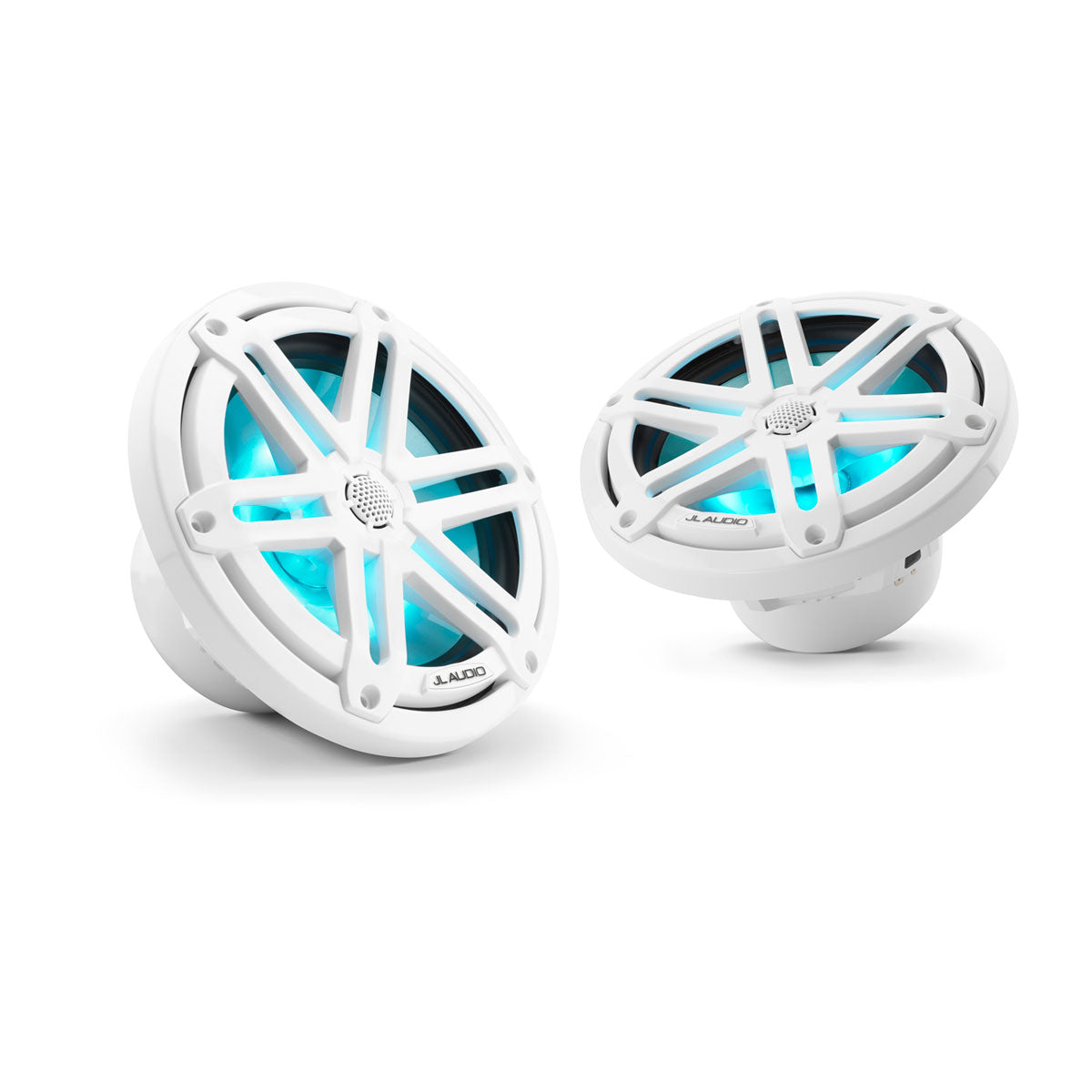

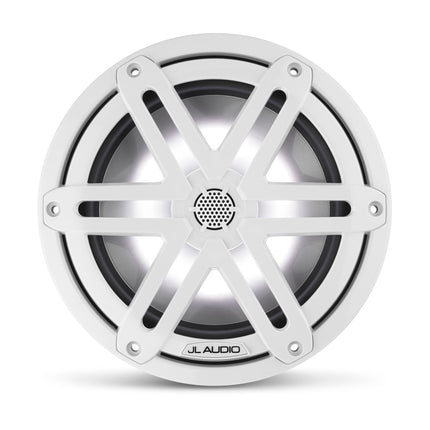

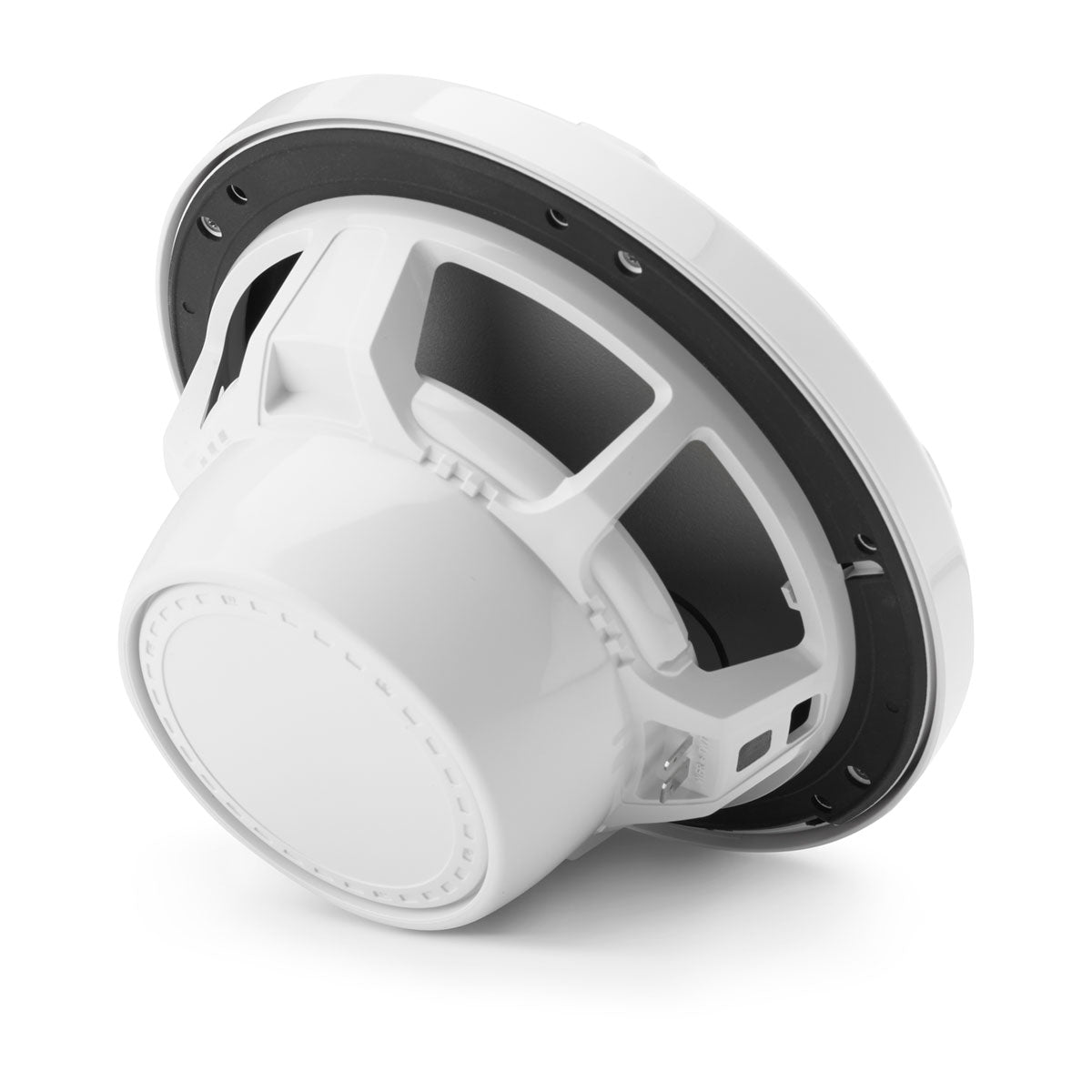

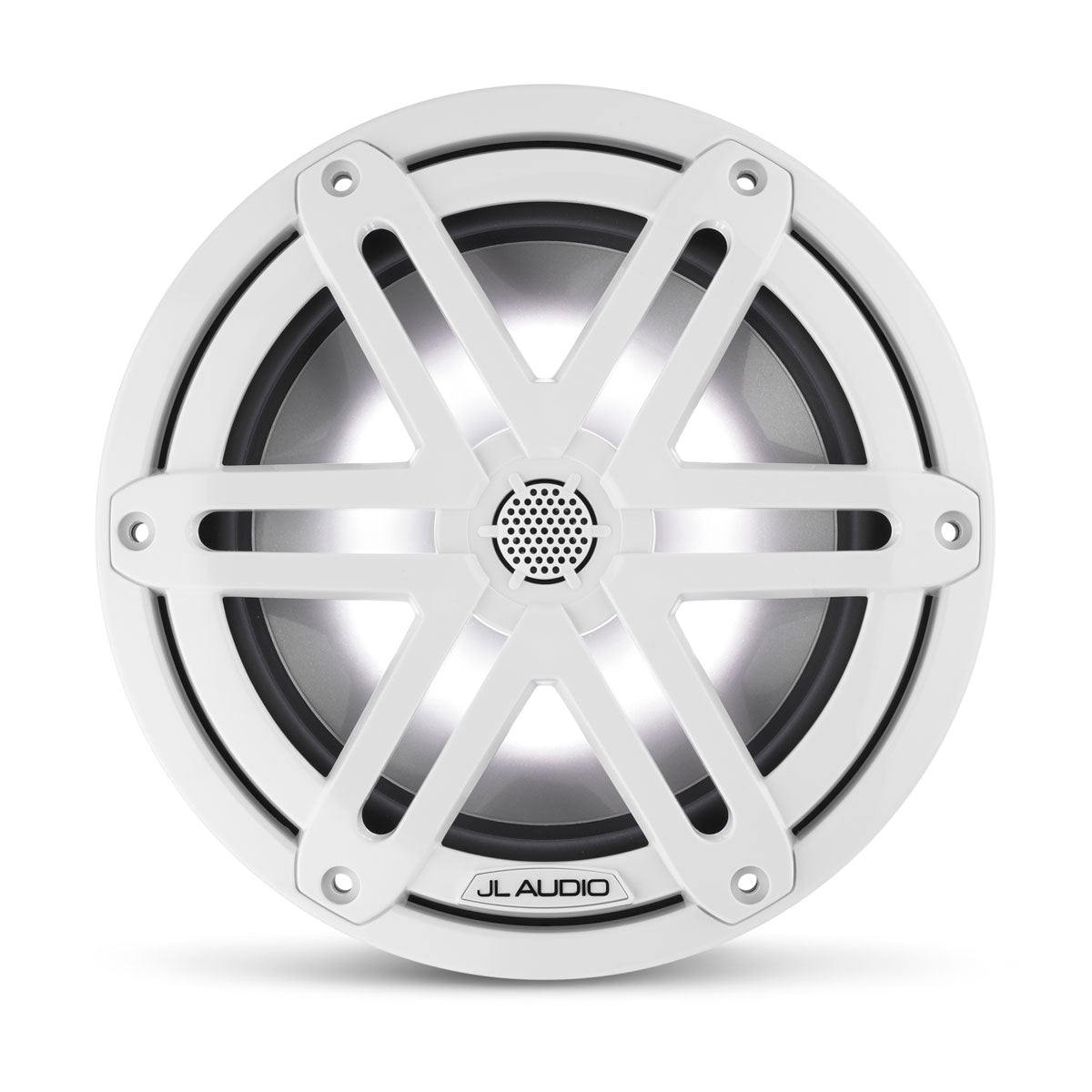

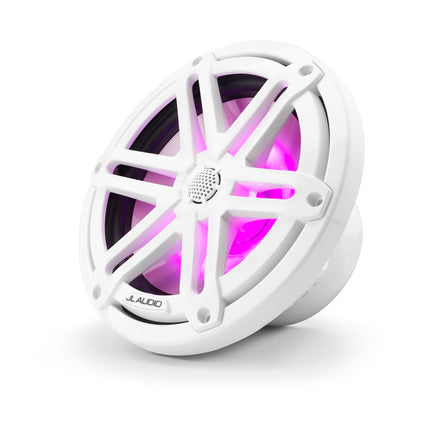

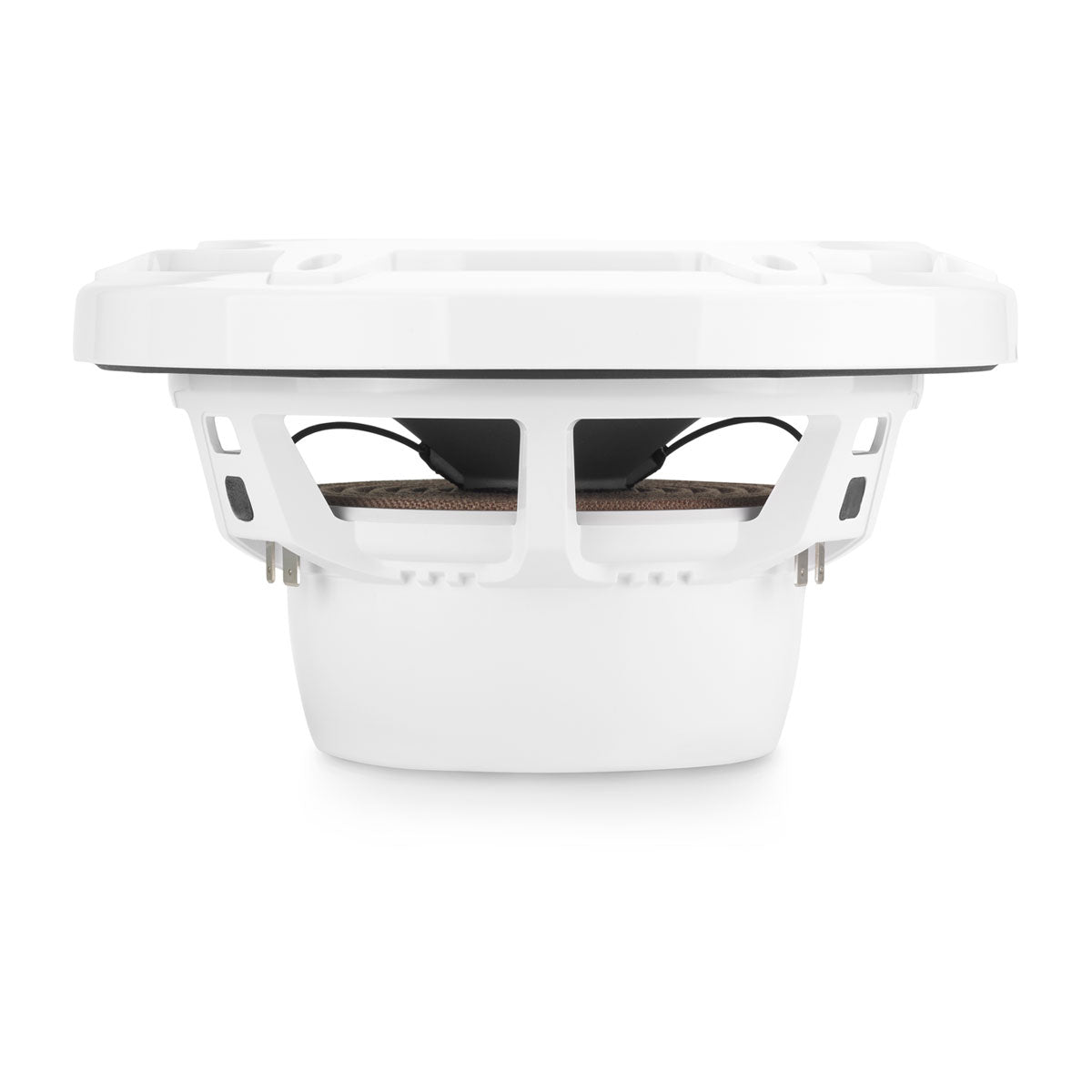

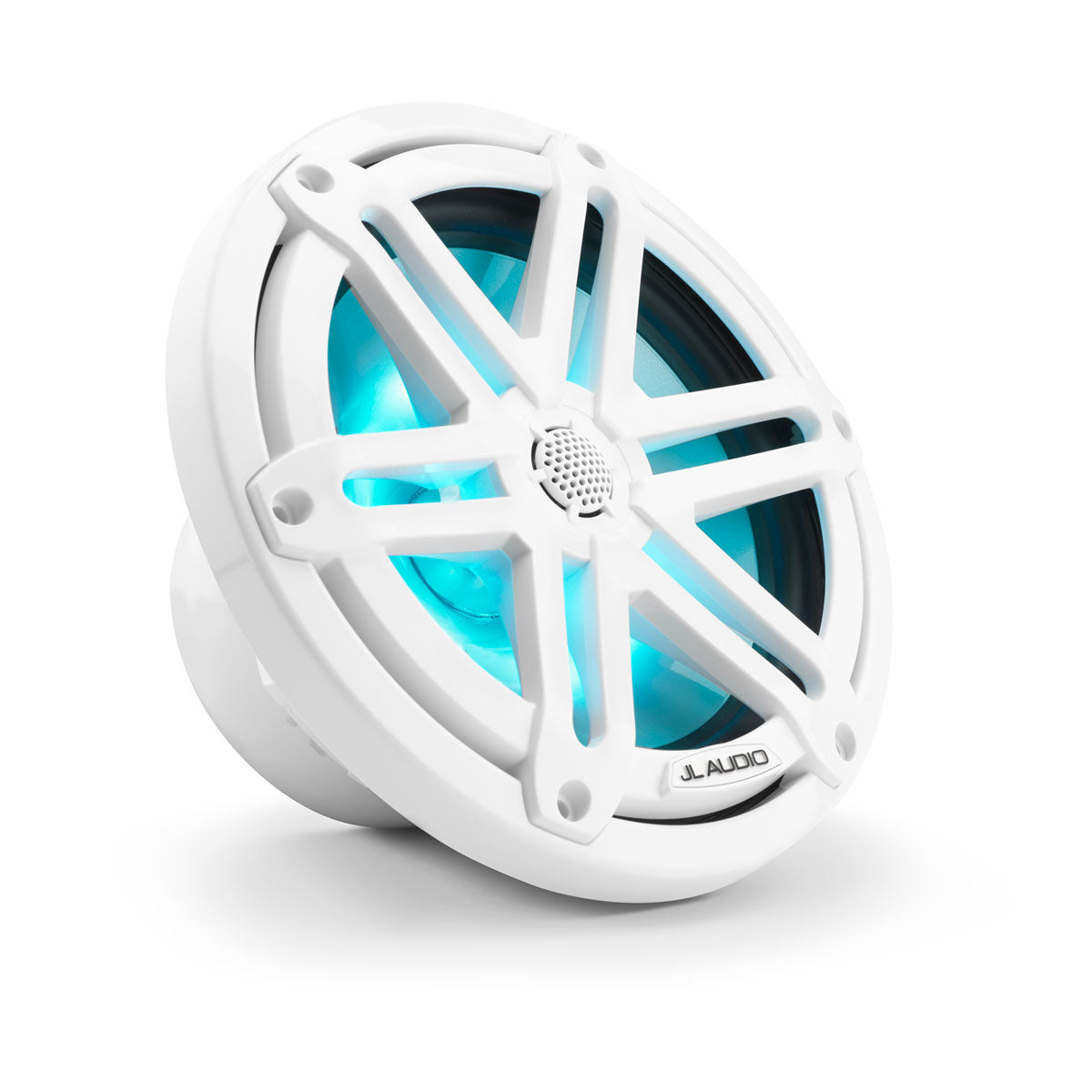

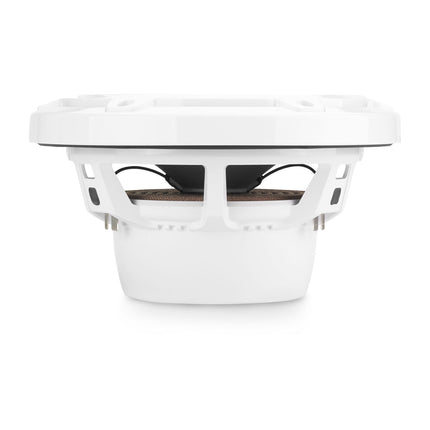

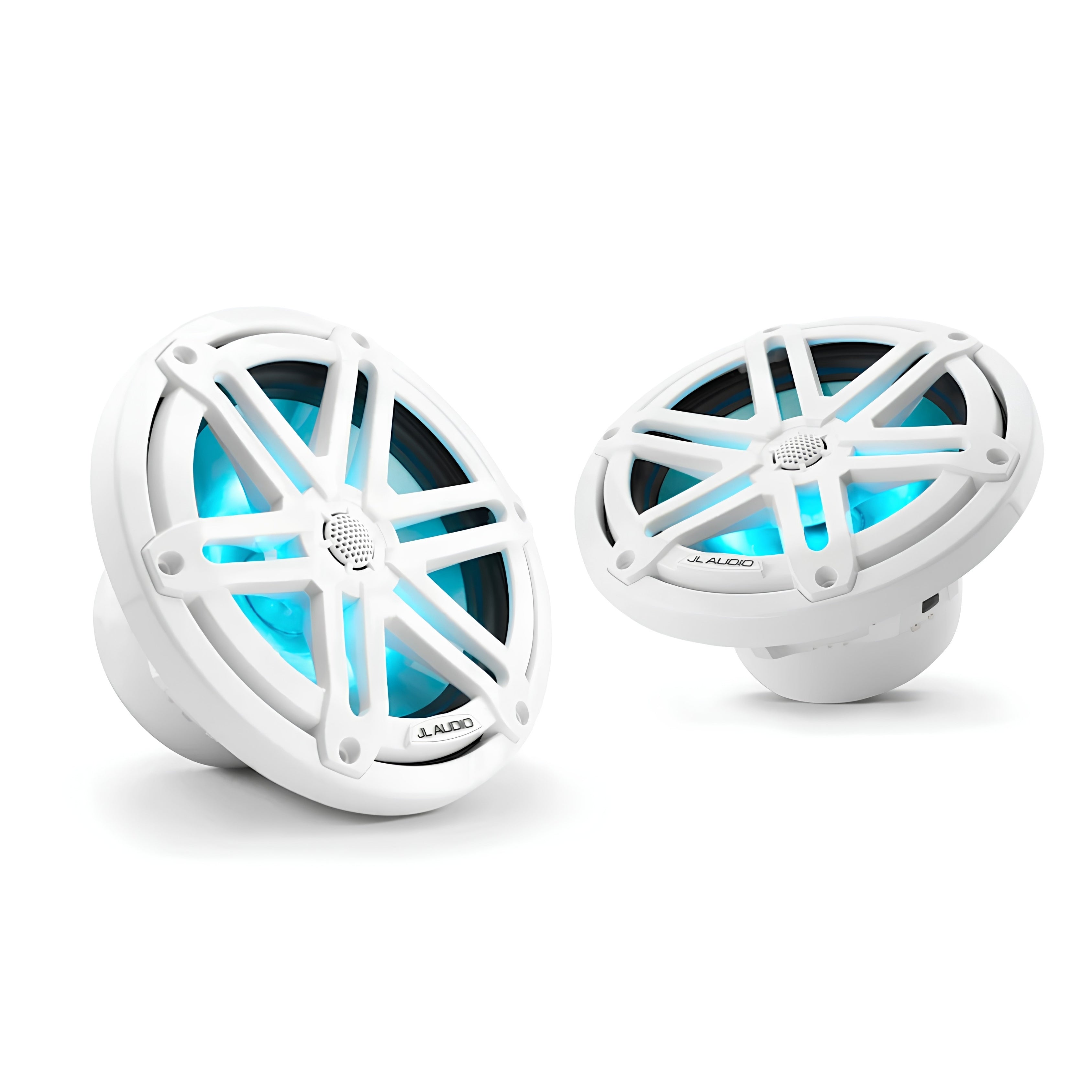

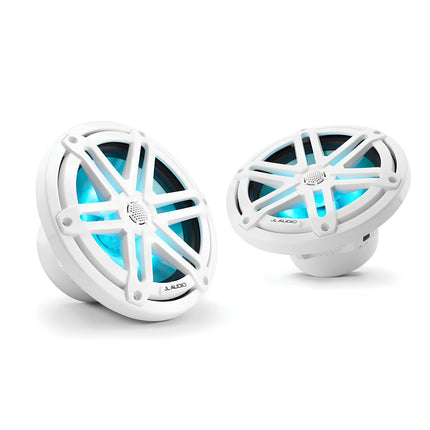

JL Audio JLA-010-03069-00 M3 7.7" Marine Speakers - White Sport Grille with LED
Premium large-format marine audio with RGB illumination — extended bass performance meets customisable lighting and contemporary white styling.
Product Overview
The JL Audio M3 7.7" marine speakers with white sport grille and RGB LED lighting deliver professional-grade sound quality with enhanced low-frequency extension and customisable illumination in a contemporary design built for harsh saltwater environments. Engineered with injection-moulded mica-filled polypropylene cones and 19mm silk dome tweeters, these larger coaxial speakers handle 70W RMS continuous power with 90.5 dB sensitivity across an impressive 45 Hz-25 kHz frequency range. The white sport grille provides UV-resistant protection with a modern aesthetic and includes JL Audio logo badges, while the RGB LED system offers colour-matched cockpit lighting. Stainless steel mounting hardware ensures long-term reliability in Australian coastal conditions. Ideal for larger boats, centre consoles, and tower installations where increased bass output, contemporary styling, and visual customisation are priorities.
Features & Benefits
Corrosion-Resistant Marine Construction: Mica-filled polypropylene cones and stainless steel hardware withstand constant saltwater exposure, UV radiation, and temperature extremes common in Australian coastal waters, offshore fishing grounds, and extended blue-water cruising.

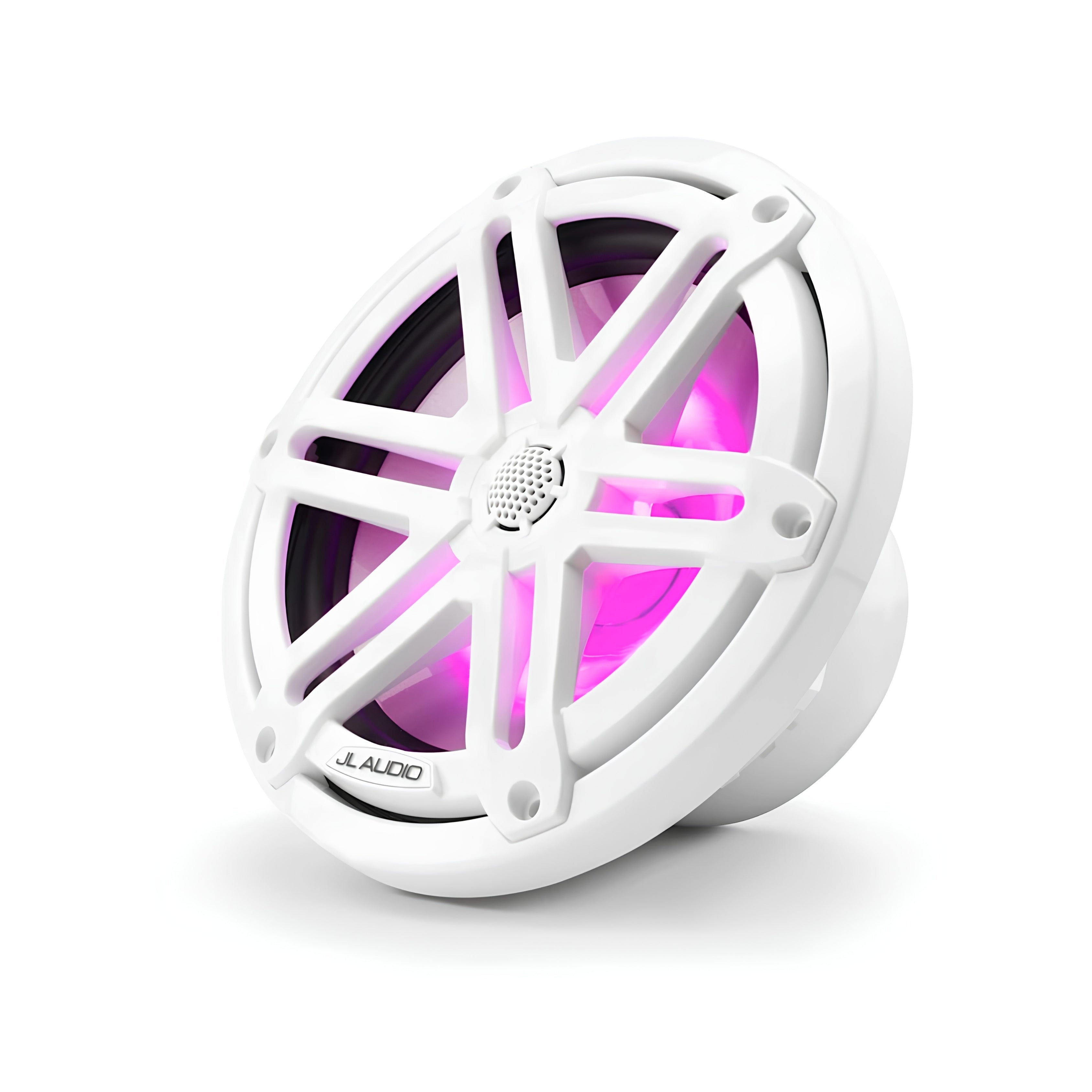

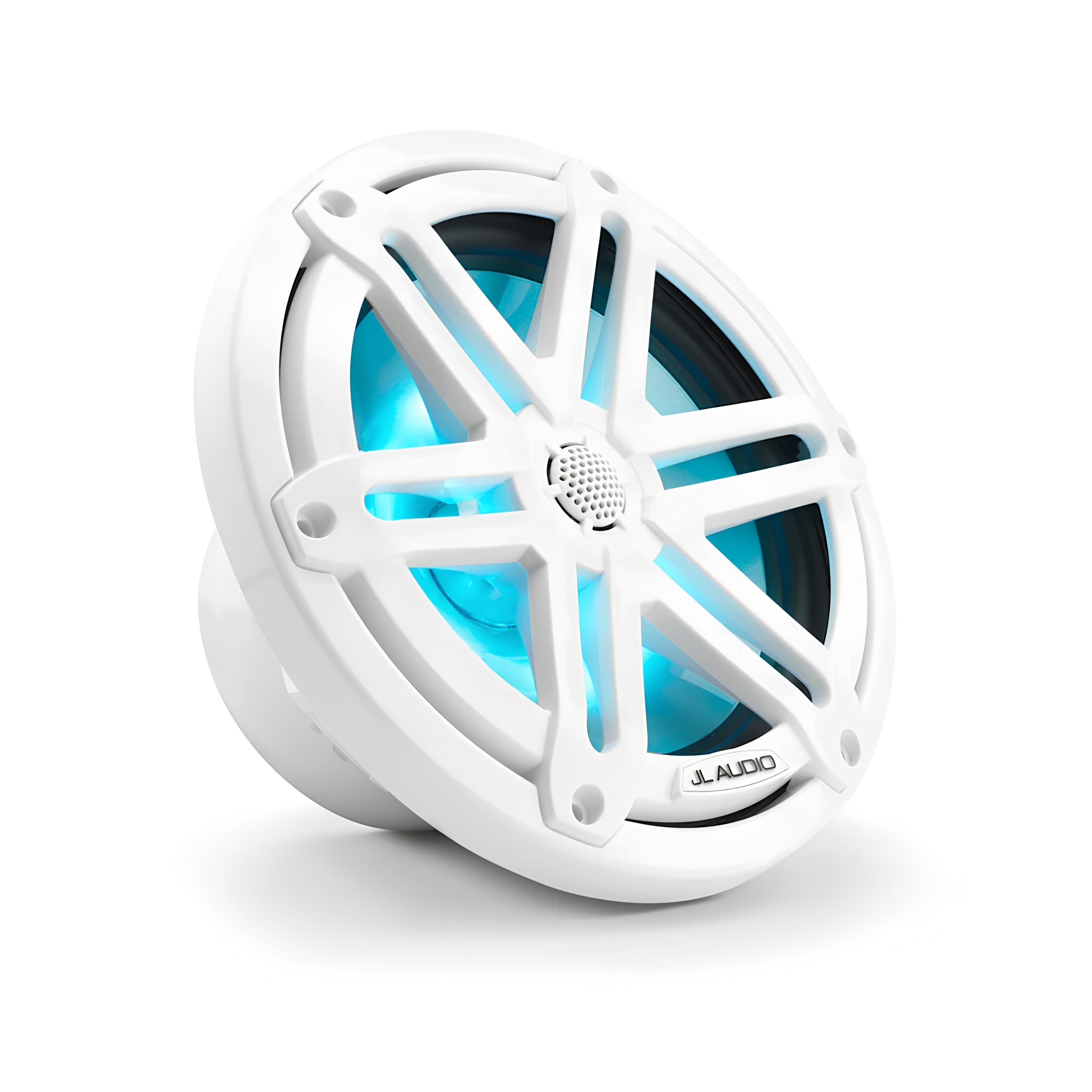

RGB LED Illumination System: Customisable lighting operates on 10-14.4 VDC with 108mA draw, allowing colour-matched cockpit aesthetics for night fishing, wakeboarding sessions, or entertaining at anchor without draining house batteries or requiring additional lighting circuits.
Extended Bass Response: 45 Hz low-frequency extension delivers deeper bass output compared to smaller 6.5" models, providing more impactful sound reproduction for larger vessels, open cockpit areas, or high-ambient-noise environments without requiring subwoofer supplementation.
Increased Power Handling: 70W RMS continuous rating with 90.5 dB sensitivity enables higher output levels suitable for larger boats, commercial applications, or environments requiring elevated volume levels to overcome engine and wind noise.

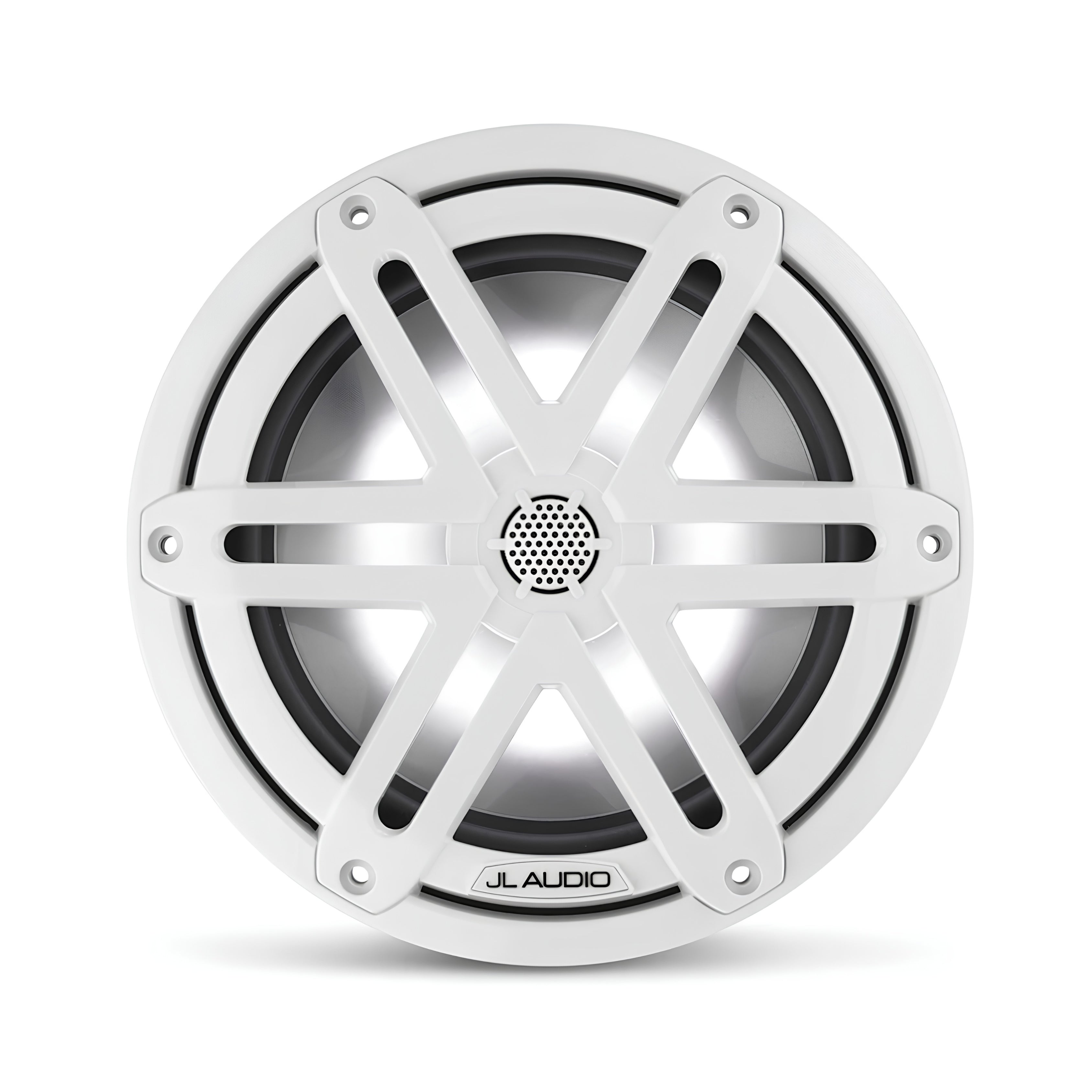

White Sport Grille Design: Modern white sport grille with 28mm protrusion provides UV-resistant protection while maintaining a contemporary aesthetic perfect for modern boat styling, performance watercraft, or updated vessel refits. Includes JL Audio logo badges for branded appearance.
Silk Dome Tweeter Design: 19mm soft dome provides smooth high-frequency extension without the harshness common in metal tweeters, reducing listening fatigue during long fishing runs, multi-day coastal cruising, or extended offshore passages.
Technical Specs
| Specification |
Value |
| Speaker Type |
2-way coaxial marine speaker |
| Woofer Size |
196mm (7.7") |
| Tweeter Size |
19mm (0.75") silk dome |
| Continuous Power Handling |
70W RMS |
| Recommended Amplifier Power |
20-140W per channel |
| Nominal Impedance |
4Ω |
| Sensitivity |
90.5 dB (1W/1m) |
| Frequency Response |
45 Hz-25 kHz (±3 dB) |
| Overall Diameter |
196mm (7.70") |
| Mounting Depth |
108mm (4.27") |
| Mounting Depth Clearance Required |
81mm (3.17") |
| Frontal Grille Protrusion |
28mm (1.10") |
| Mounting Hole Diameter |
159mm (6.25") |
| Bolt Hole Circle |
176mm (6.92") |
| Cone Material |
Injection-moulded mica-filled polypropylene |
| Grille Colour |
White sport finish |
| Grille Style |
Sport (with logo badges) |
| LED Supply Voltage |
10-14.4 VDC |
| LED Maximum Current Draw |
108mA at 14.4 VDC |
| Speaker Connection |
Spade connectors |
| LED Connection |
Flying lead with 4-conductor 22 AWG wire |
| Mounting Hardware |
Stainless steel screws and washers included |
| Accessories Included |
Logo badges (sport models) |
| Warranty Period |
3 years |
| Part Number |
JLA-010-03069-00 |
Compatible With / Goes Well With
- Fusion Apollo MS-RA800 marine stereo
- JL Audio MediaMaster 55 stereo
- JL Audio AP amplifiers with Bluetooth technology
- JL Audio MHD marine amplifiers
- JL Audio MVi marine amplifiers
- JL Audio MX marine and powersports amplifiers
- JL Audio XDM car and marine amplifiers
- JL Audio M3 marine subwoofers
- RGB LED controllers (12V DC compatible)
- Boats with 159mm (6.25") large-format speaker cutouts
- Fibreglass hardtops, consoles, and tower enclosures
- Wakeboard towers and T-top installations
- Centre console fishing boats (7.5m+)
- Large offshore vessels
- Performance watercraft
- Aluminium marine craft with sealed speaker housings
Caution: Verify mounting depth clearance (81mm minimum) and mounting hole diameter (159mm) before installation. This model requires larger cutouts than standard 6.5" speakers. LED functionality requires separate wiring to 12V DC power source and optional RGB controller for colour customisation.
Frequently Asked Questions
Will these 7.7" speakers fit my existing 6.5" speaker cutouts?
No, these 7.7" speakers require 159mm mounting holes compared to 127-133mm for 6.5" models. You'll need larger cutouts or vessels originally equipped for 7.7"-8" speakers.
How much amplifier power do I need to drive these speakers?
JL Audio recommends 20-140W RMS per channel with the 70W RMS rating providing optimal performance around 50-100W from a quality marine amplifier.
Are the LED lights controllable separately from the audio?
The RGB LED system operates independently via flying lead connection, allowing integration with vessel lighting controllers or standalone RGB control modules for full colour customisation.
What's the advantage of 7.7" speakers over 6.5" models?
The larger 7.7" woofer delivers extended bass response down to 45 Hz (vs 55 Hz) and handles 70W RMS (vs 60W), providing more impactful sound for larger vessels or open-air installations.
What mounting depth clearance is required behind the speaker?
You'll need 81mm clearance behind the mounting surface, with the speaker requiring 108mm total depth including the 28mm frontal grille protrusion—10mm more than 6.5" sport models.
