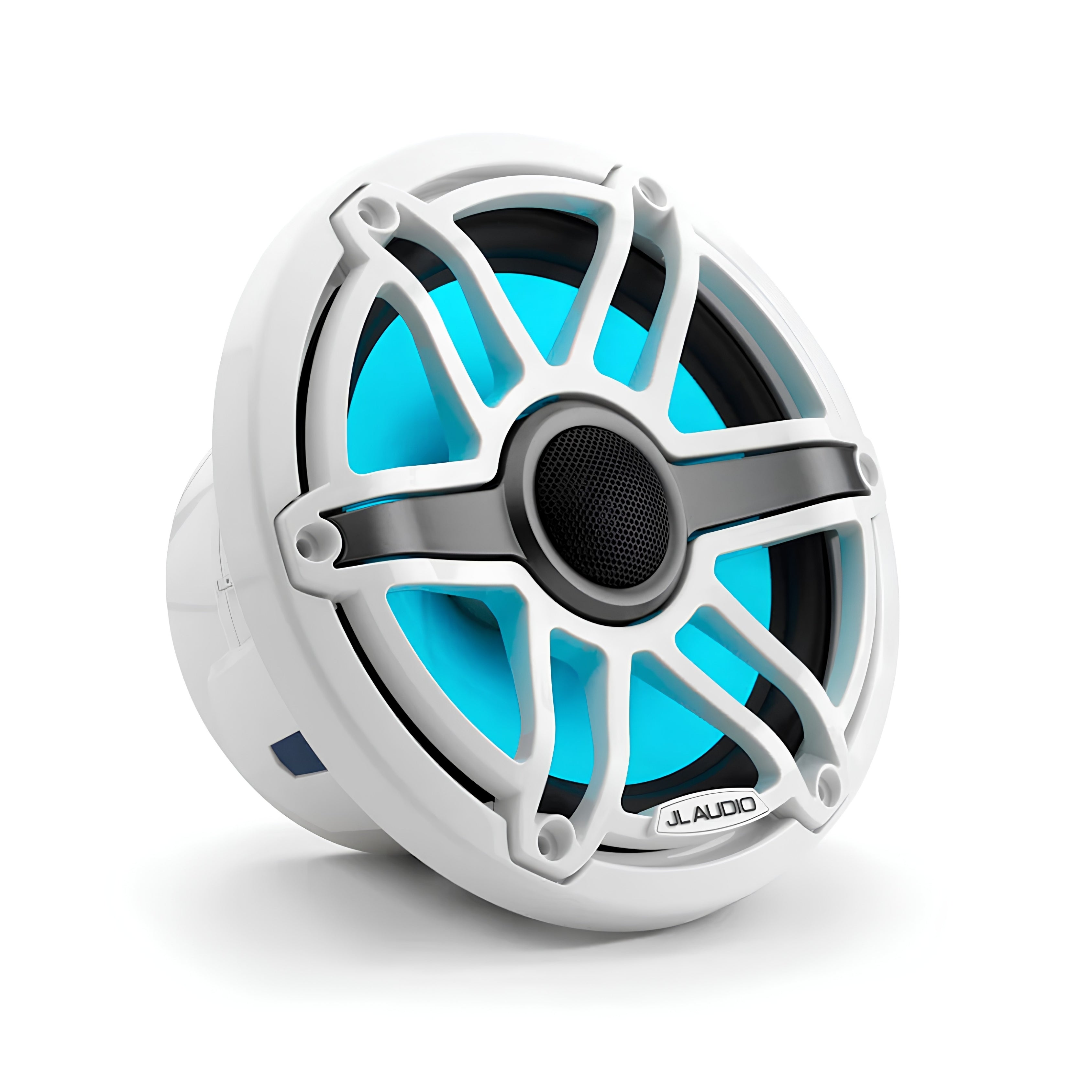

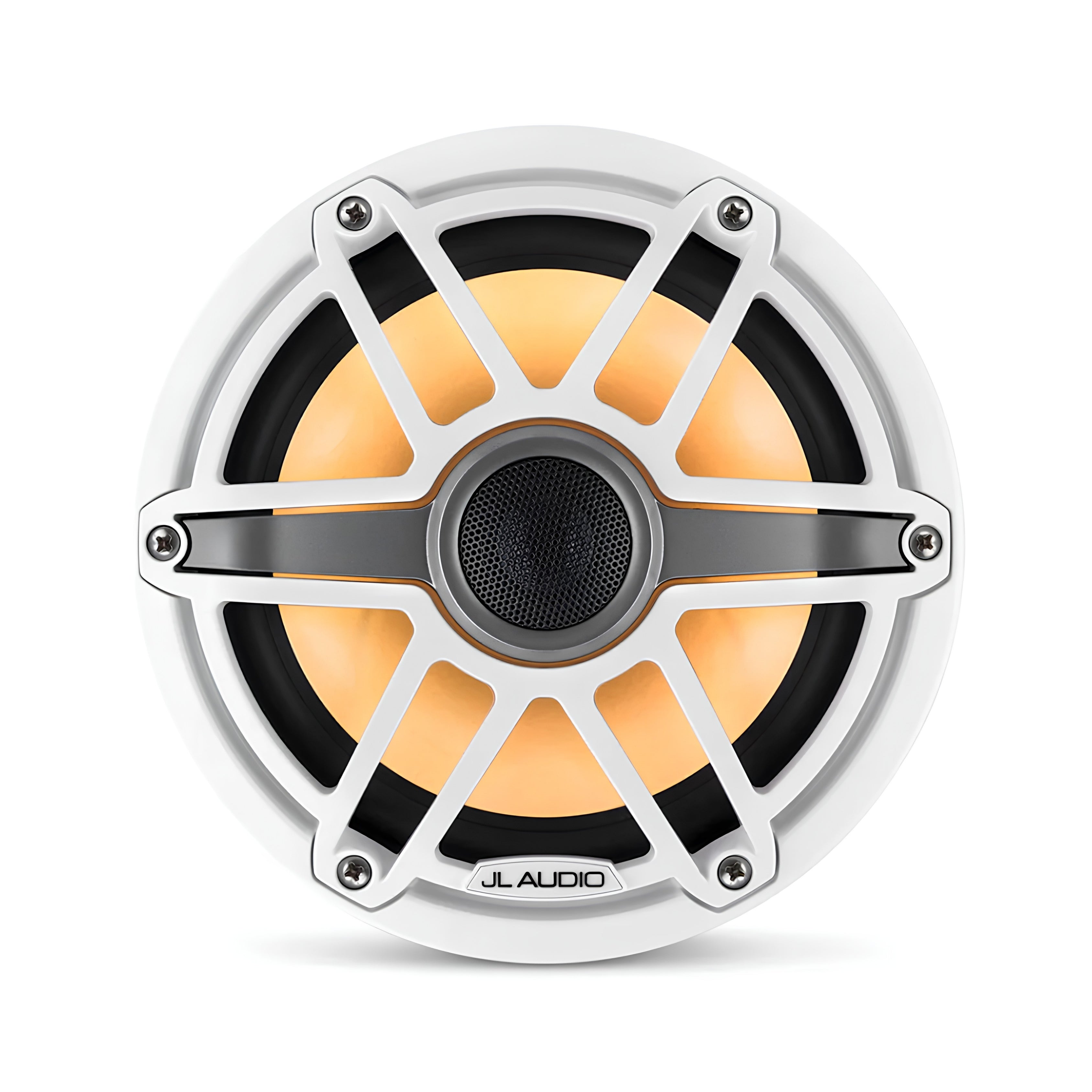

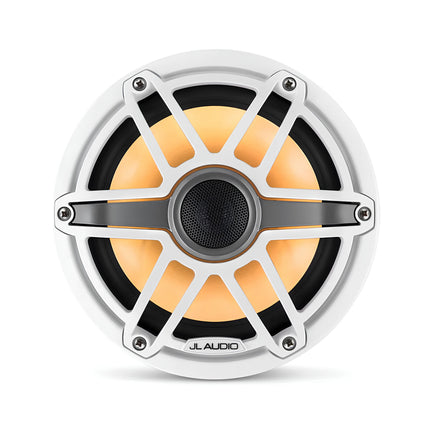

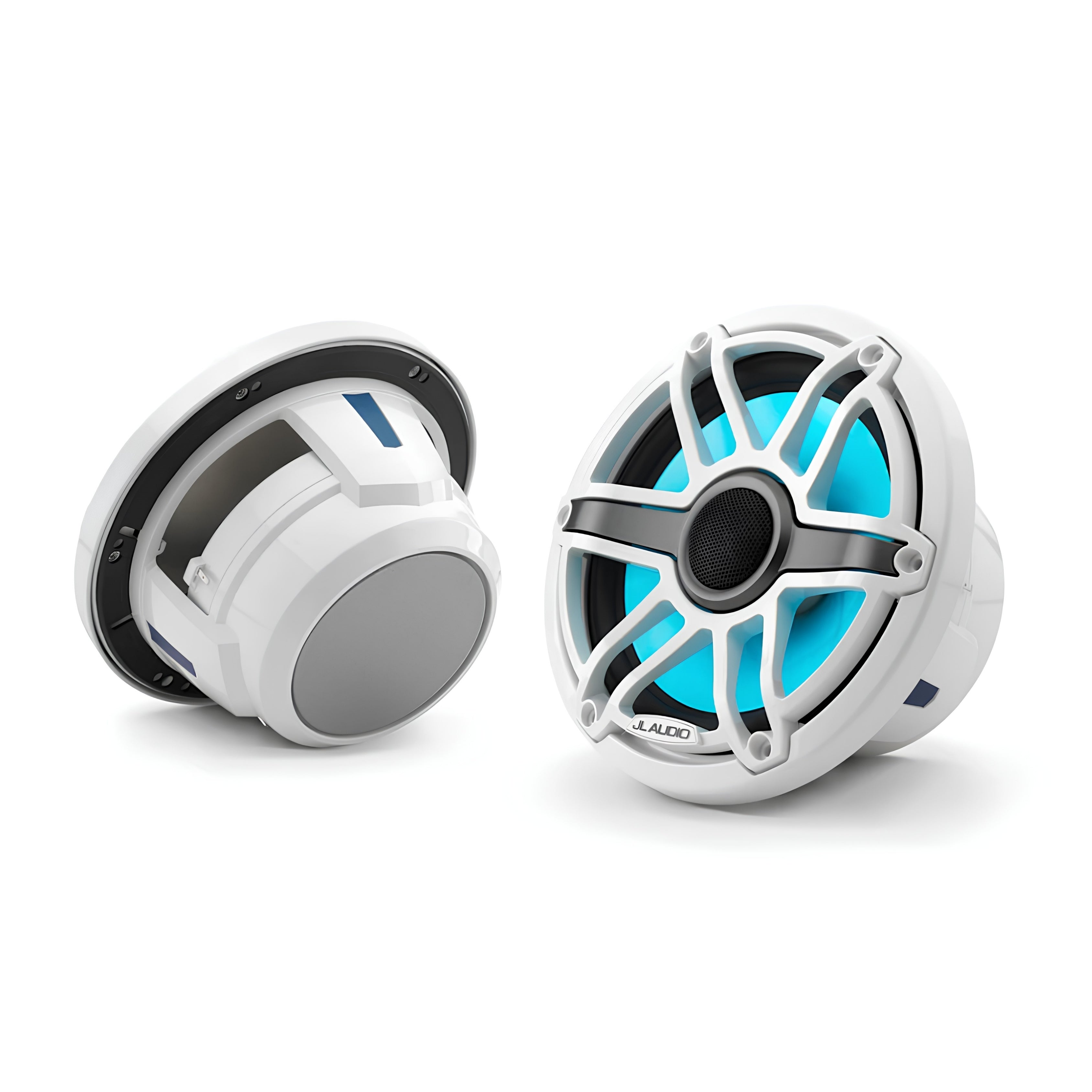

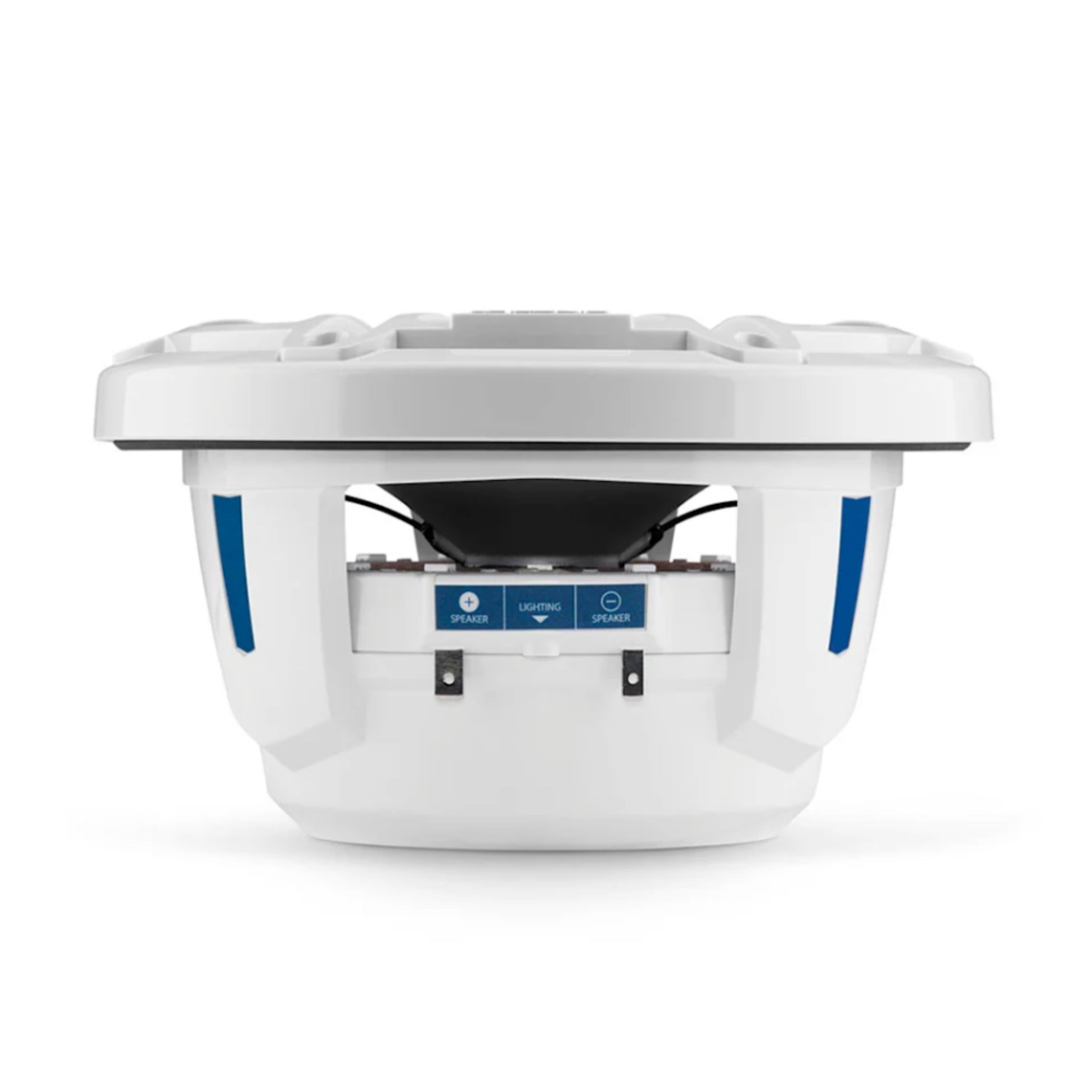

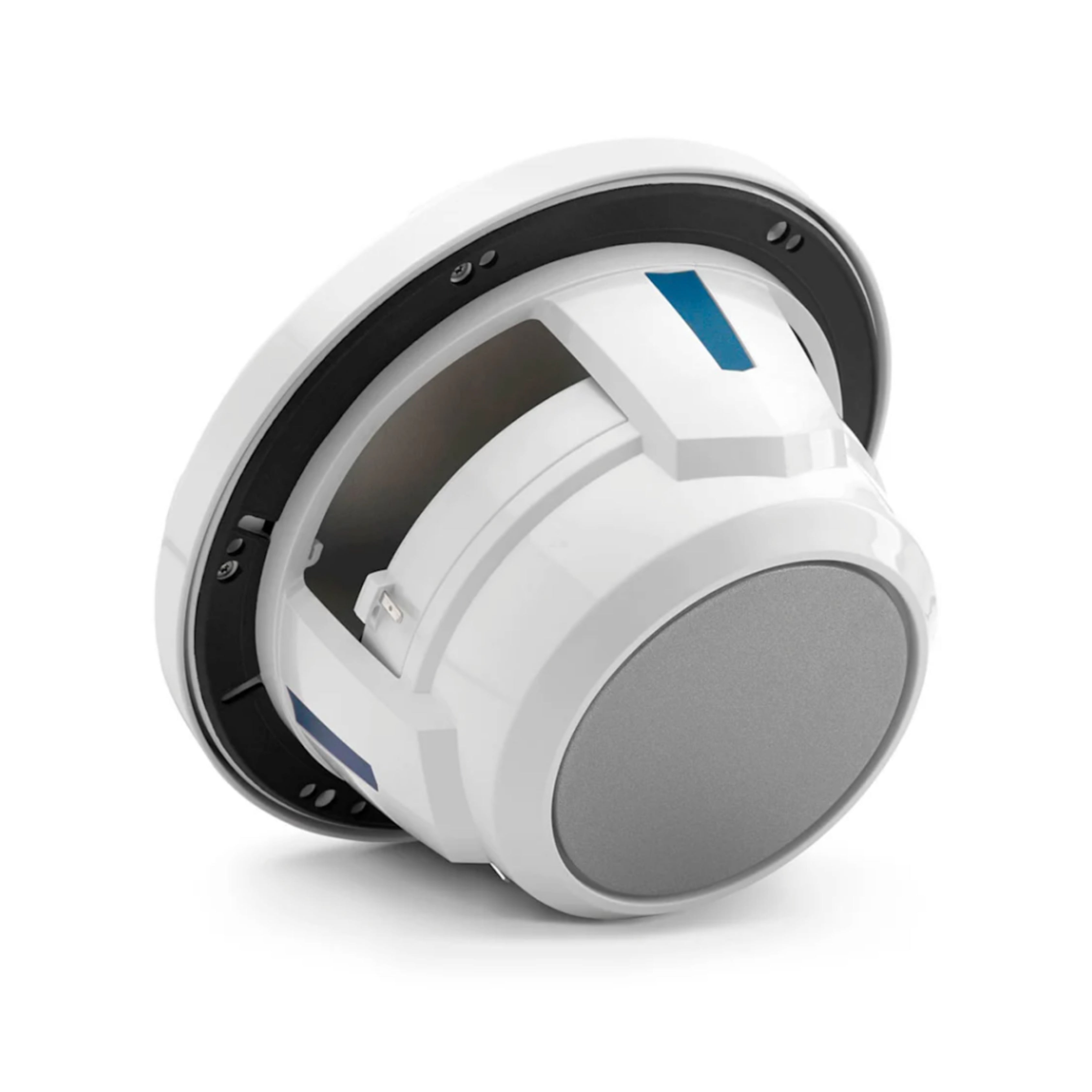

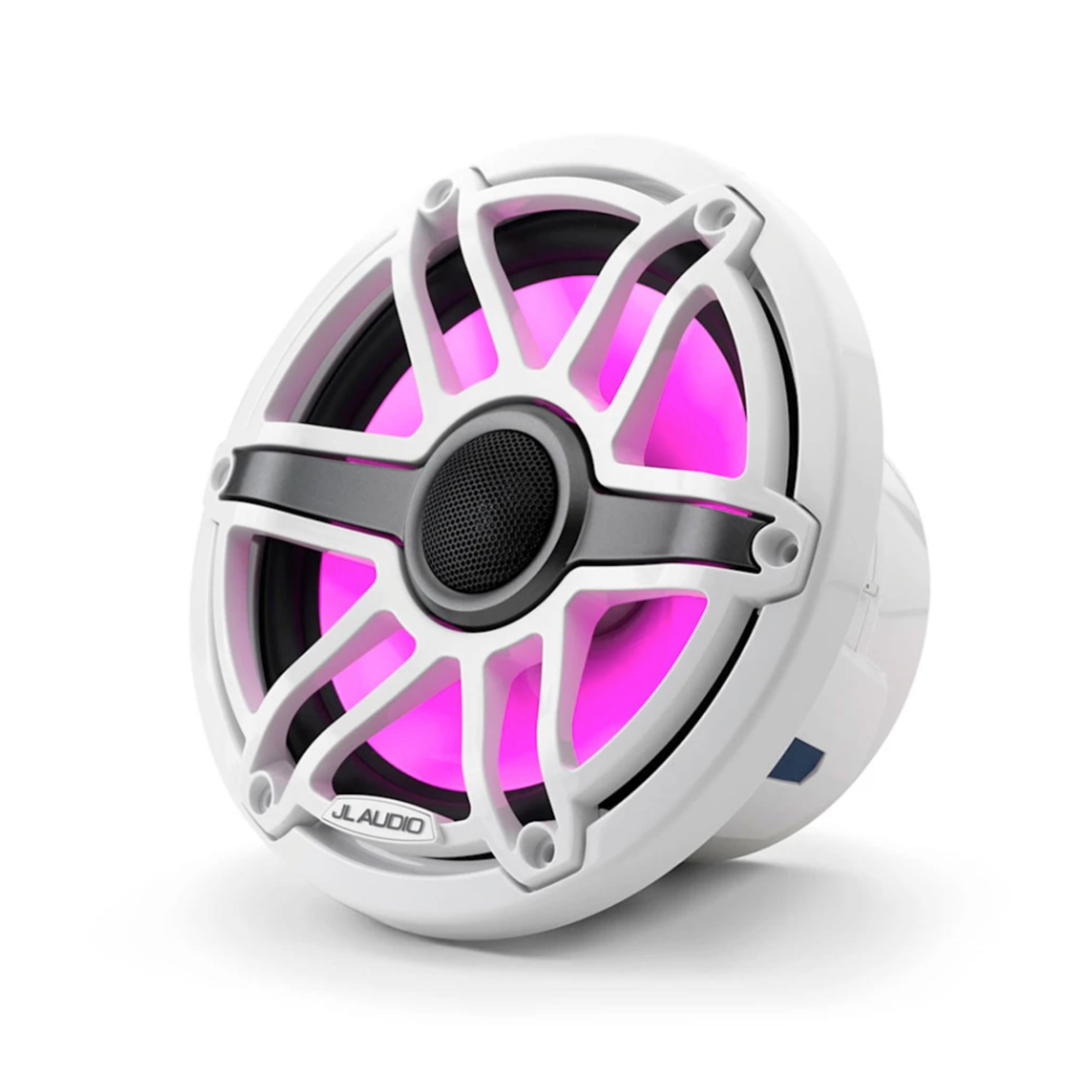

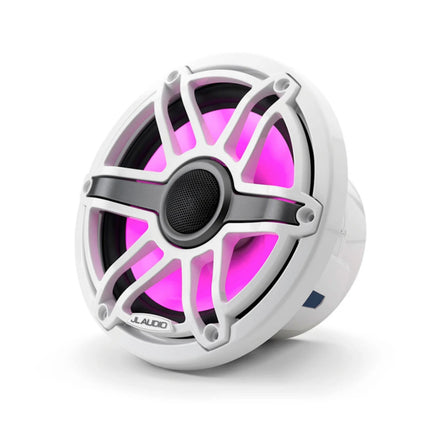

JL Audio JLA-010-03074-00 M6 7.7" Marine Speakers - White Sport Grille
High-output marine audio with LED illumination and classic styling — M6 Sport series delivers increased power handling with Transflective™ lighting and white grille aesthetics for Australian offshore conditions.
Product Overview
The JL Audio M6 7.7" marine speakers with white sport grilles deliver reference-grade sound quality with integrated Transflective™ LED lighting in a corrosion-resistant package. Engineered with injection-moulded mica-filled polypropylene cones and 25mm silk dome tweeters, these coaxial speakers handle 100W RMS continuous power with 91 dB sensitivity across a 45 Hz-25 kHz frequency range. The larger 7.7" format provides enhanced bass response and increased output compared to 6.5" models, while white sport grilles offer traditional marine aesthetics combined with modern multi-colour LED illumination for versatile vessel installations.
Features & Benefits
7.7" High-Output Format: Larger driver diameter delivers increased cone area and bass extension down to 45 Hz compared to 6.5" speakers, providing fuller low-frequency reproduction critical for cutting through engine noise, wind, and water splash during high-speed cruising or offshore fishing operations.
100W RMS Power Handling: Enhanced thermal management and robust voice coil construction supports continuous 100W power with 200W peak capacity, enabling higher output levels and dynamic headroom for demanding marine entertainment systems, multi-zone installations, and amplified audio configurations.

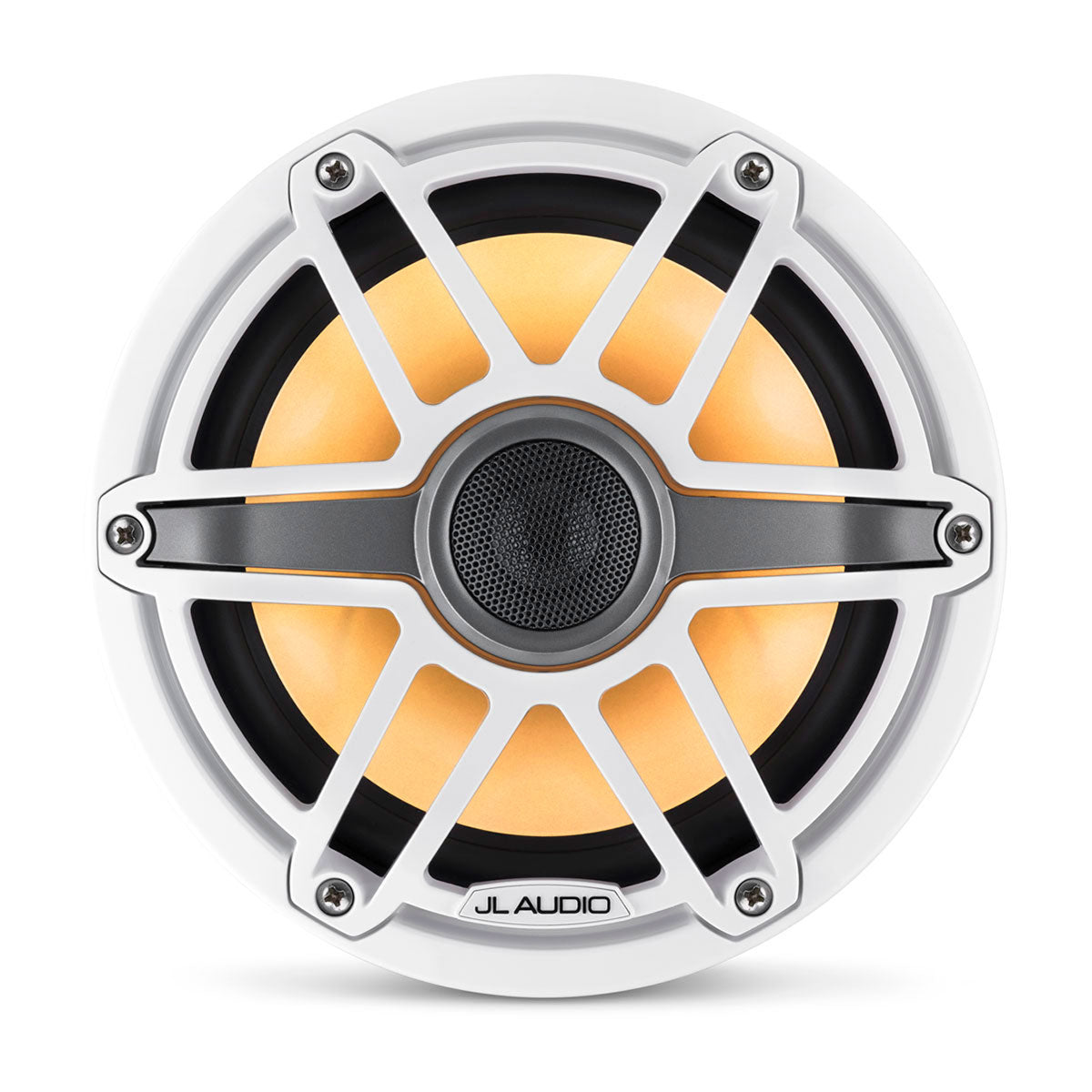

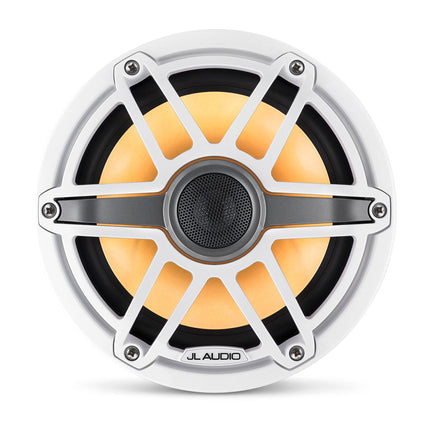

White Sport Grille Design: Traditional white finish combines aggressive sport styling with marine-grade UV-resistant construction, offering classic aesthetic presence ideal for fishing boats, recreational vessels, and centre console craft requiring traditional marine appearance with modern performance capabilities.

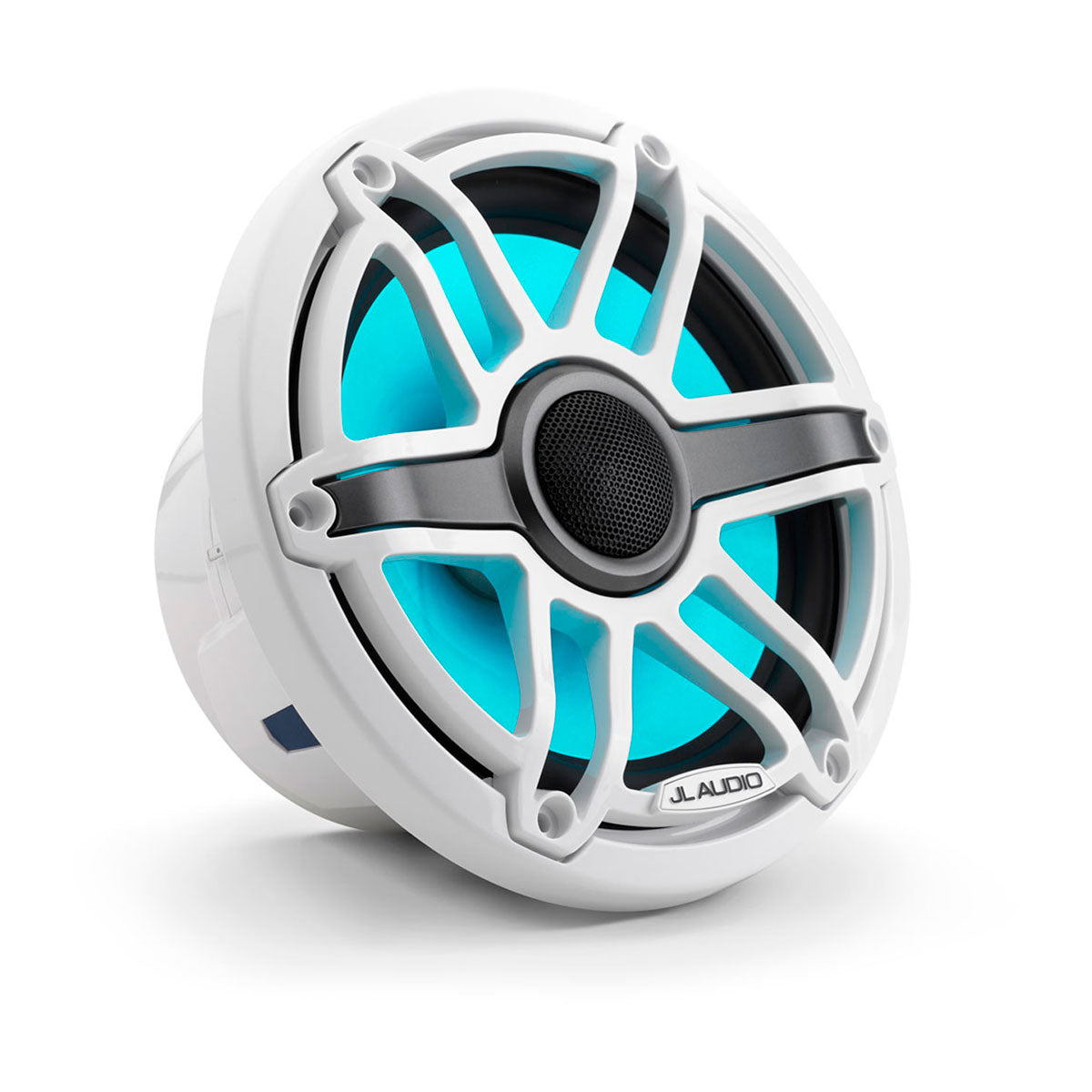

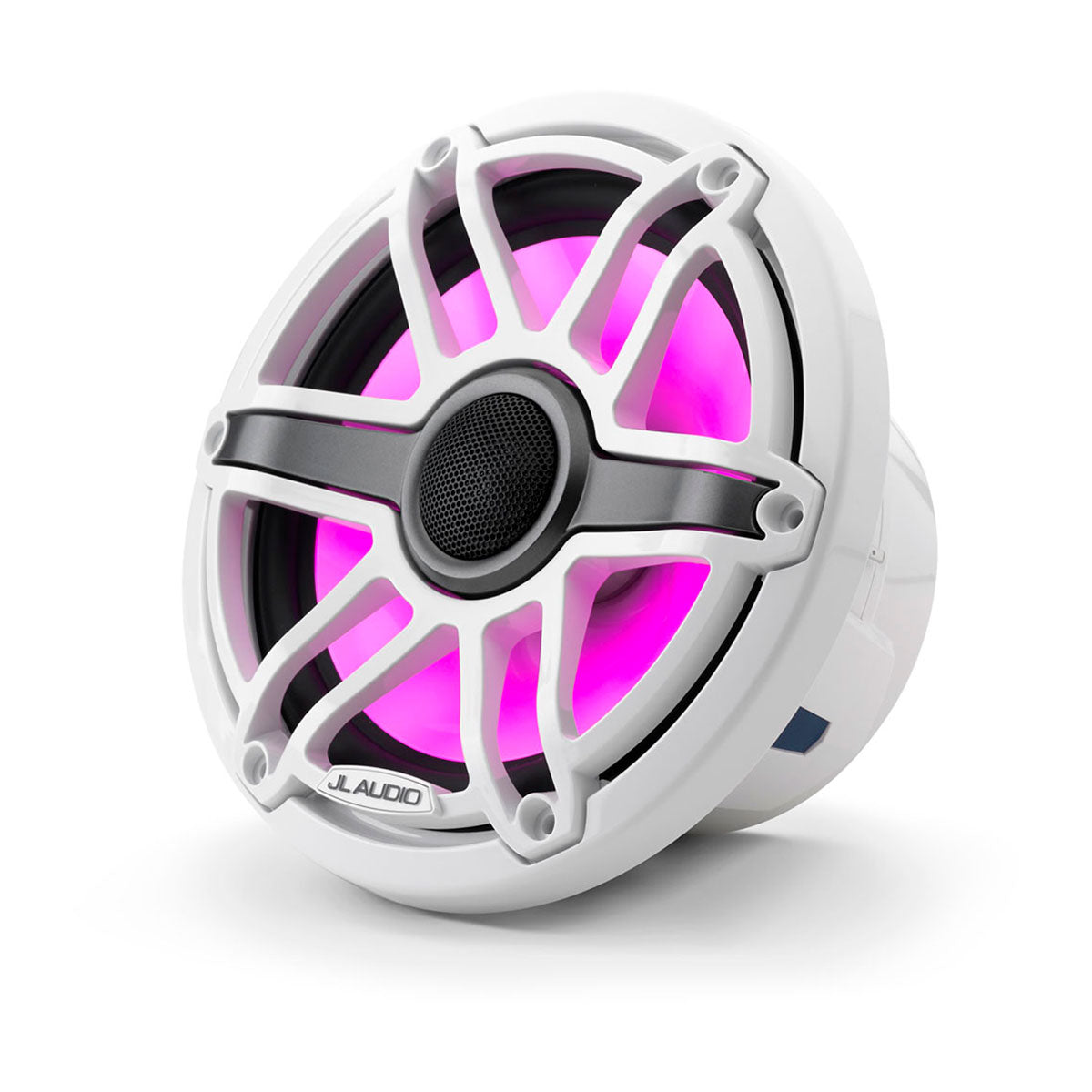

Transflective™ LED Lighting System: Integrated multi-colour LED illumination with 10-14.4 VDC operation creates stunning visual effects during night cruising, dock parties, or offshore entertainment, with 324mA current draw enabling vibrant lighting without excessive battery drain in marine electrical systems.
25mm Silk Dome Tweeter: Premium 1-inch soft dome tweeter provides enhanced high-frequency output and wider dispersion compared to smaller tweeters, ensuring clear vocal reproduction and detailed audio imaging across broader listening areas in open cockpit environments and flybridge installations.
Enhanced Sensitivity Rating: 91 dB efficiency (1W/1m) provides 1.5 dB increased output over 6.5" models, maximizing performance from moderate amplifier power while reducing system requirements for battery-conscious installations and direct head unit connection without external amplification.
Extended Frequency Response: 45 Hz-25 kHz range delivers deep bass extension and extended high-frequency clarity, providing full-range audio reproduction with enhanced low-end impact critical for music genres requiring substantial bass presence including electronic, hip-hop, and rock music.
Marine-Grade Corrosion Protection: Fully marinized component construction with UV-resistant materials, sealed motor structures, and corrosion-resistant hardware provides reliable long-term performance in harsh saltwater environments including coastal cruising, offshore fishing, and tropical marine conditions with sustained exposure to spray, humidity, and sunlight.
Mica-Filled Polypropylene Cone Technology: Advanced injection-moulded cone material delivers exceptional rigidity, controlled damping characteristics, and superior moisture resistance compared to paper or treated fabric cones, ensuring consistent audio performance in high-humidity marine environments with temperature fluctuations and continuous vibration.
Easy LED Integration: Flying lead with 4-conductor 20 AWG wire simplifies LED wiring integration with compatible marine head units or dedicated LED controllers, enabling colour customization, brightness adjustment, and synchronized lighting effects across multi-zone marine audio systems.
Technical Specs
| Specification |
Value |
| Speaker Type |
2-way coaxial marine speaker |
| Woofer Size |
196mm (7.7") |
| Tweeter Size |
25mm (1") silk dome |
| Continuous Power Handling |
100W RMS |
| Recommended Amplifier Power |
40-200W per channel |
| Nominal Impedance |
4Ω |
| Sensitivity |
91 dB (1W/1m) |
| Frequency Response |
45 Hz-25 kHz (±3 dB) |
| Overall Diameter |
196mm (7.70") |

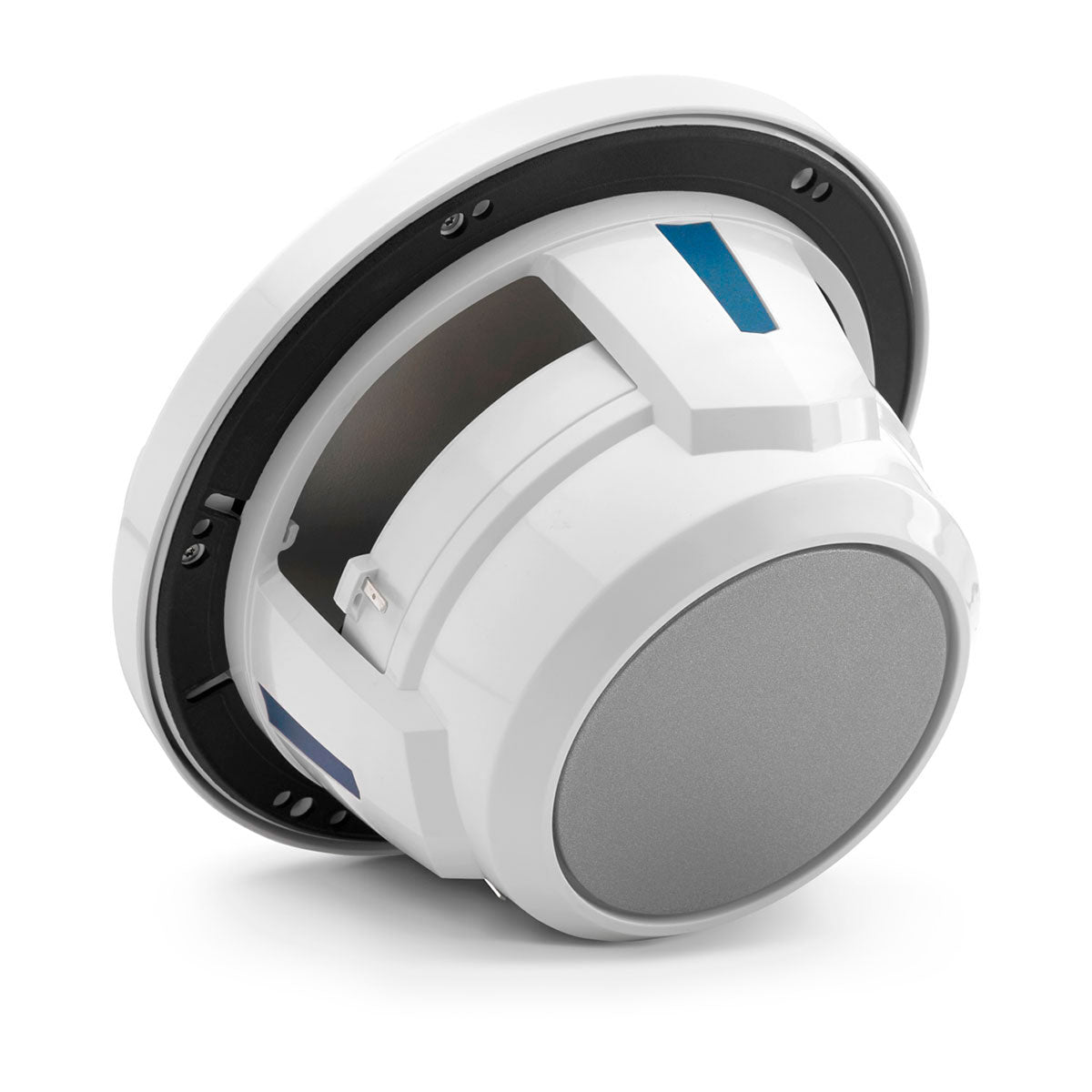

| Mounting Depth |
112mm (4.4") |
| Mounting Depth Clearance Required |
84mm (3.32") |
| Frontal Grille Protrusion |
27mm (1.08") |
| Mounting Hole Diameter |
159mm (6.25") |
| Bolt Hole Circle |
176mm (6.92") |
| Cone Material |
Injection-moulded mica-filled polypropylene |
| Grille Colour |
White sport finish |
| Grille Style |
Sport (performance styling) |
| LED Lighting |
Yes - Transflective™ multi-colour |
| LED Supply Voltage |
10-14.4 VDC |
| LED Load Current |
324mA @ 14.4 VDC |
| LED Connection |
Flying lead with 4-conductor 20 AWG wire |

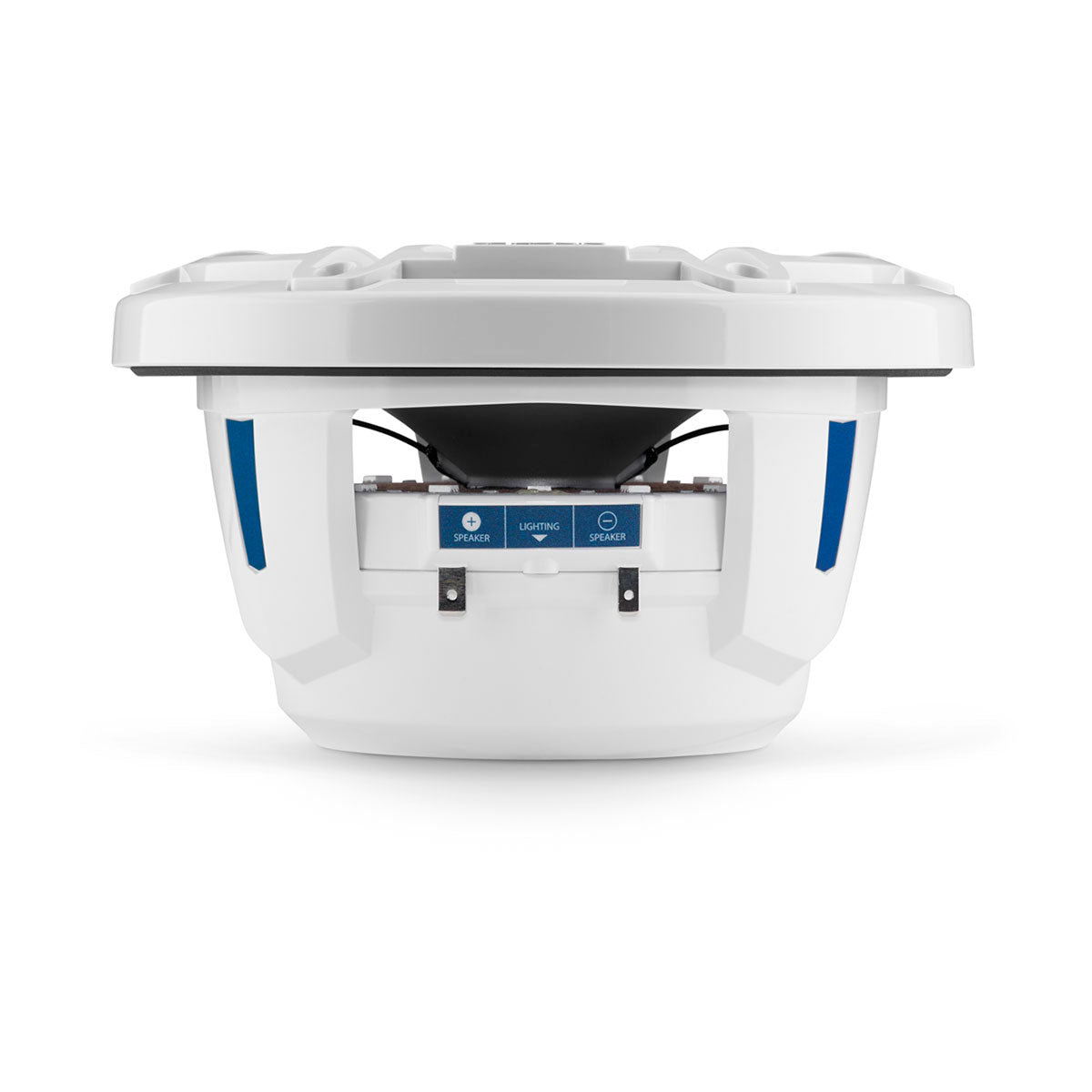

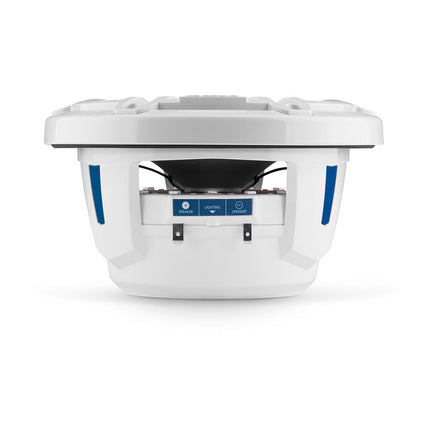

| Speaker Connection |
Spade connectors |
| Mounting Hardware |
Stainless steel screws and washers included |

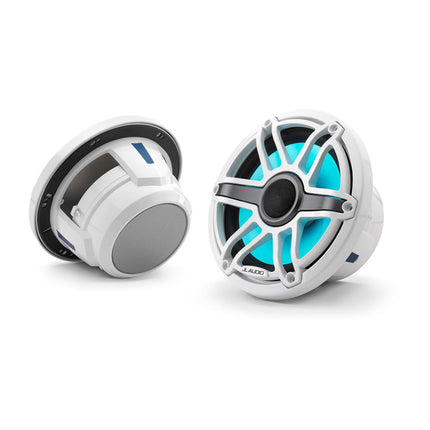

| Quantity |
Pair (two speakers) |
| Warranty Period |
3 years |
| Part Number |
JLA-010-03074-00 |
Compatible With / Goes Well With
- Fusion Apollo MS-RA800 marine stereo with LED control
- JL Audio MHD marine amplifiers
- JL Audio MVi marine amplifiers
- JL Audio XDM car and marine amplifiers
- JL Audio M6 marine subwoofers
- JL Audio M6 marine thin-line subwoofers
- JL Audio M7 marine subwoofers
- LED-compatible marine head units
- Fishing boats with 159mm speaker cutouts
- Centre console boats requiring high output
- Bowriders with LED integration
- Recreational cruisers with white trim
- Wake boats and ski boats
- Pontoon boats with entertainment systems
- Bay boats with cockpit audio
Caution: Verify mounting depth clearance (84mm minimum) and mounting hole diameter (159mm) before installation. Sport models require LED wiring connection for lighting functionality. Ensure marine electrical system can support 324mA LED current draw per speaker pair. 7.7" models require LARGER cutouts than 6.5" speakers.
Frequently Asked Questions
What's the advantage of 7.7" speakers over 6.5" models?
The 7.7" format provides enhanced bass extension down to 45 Hz (versus 55 Hz), increased power handling (100W vs 75W), and 1.5 dB higher sensitivity. This translates to fuller low-frequency reproduction, higher output capability, and improved performance for larger vessels or demanding installations.
Do these speakers come as a pair or individually?
This model is sold as a PAIR (two speakers) for complete stereo installation. Package includes two speakers with white sport grilles, mounting hardware, LED wiring harnesses, and mounting template for both units.
How do I connect the LED lighting on these Sport speakers?
Sport models include flying leads with 4-conductor 20 AWG wire. Connect to compatible marine head units with LED control outputs or use dedicated LED controllers. Wire colour coding enables multi-colour illumination and brightness adjustment through compatible control systems.
What mounting depth clearance is required for 7.7" M6 speakers?
You'll need 84mm clearance behind the mounting surface, with the speaker requiring 112mm total depth including the 27mm frontal grille protrusion for sport models. Verify adequate clearance before installation in shallow mounting locations.
Can I use these speakers without connecting the LED lighting?
Yes, speakers function perfectly without LED connection. The audio performance is identical whether LEDs are connected or not. Simply leave the LED flying leads disconnected if you don't require lighting functionality, or tape them off to prevent corrosion.
