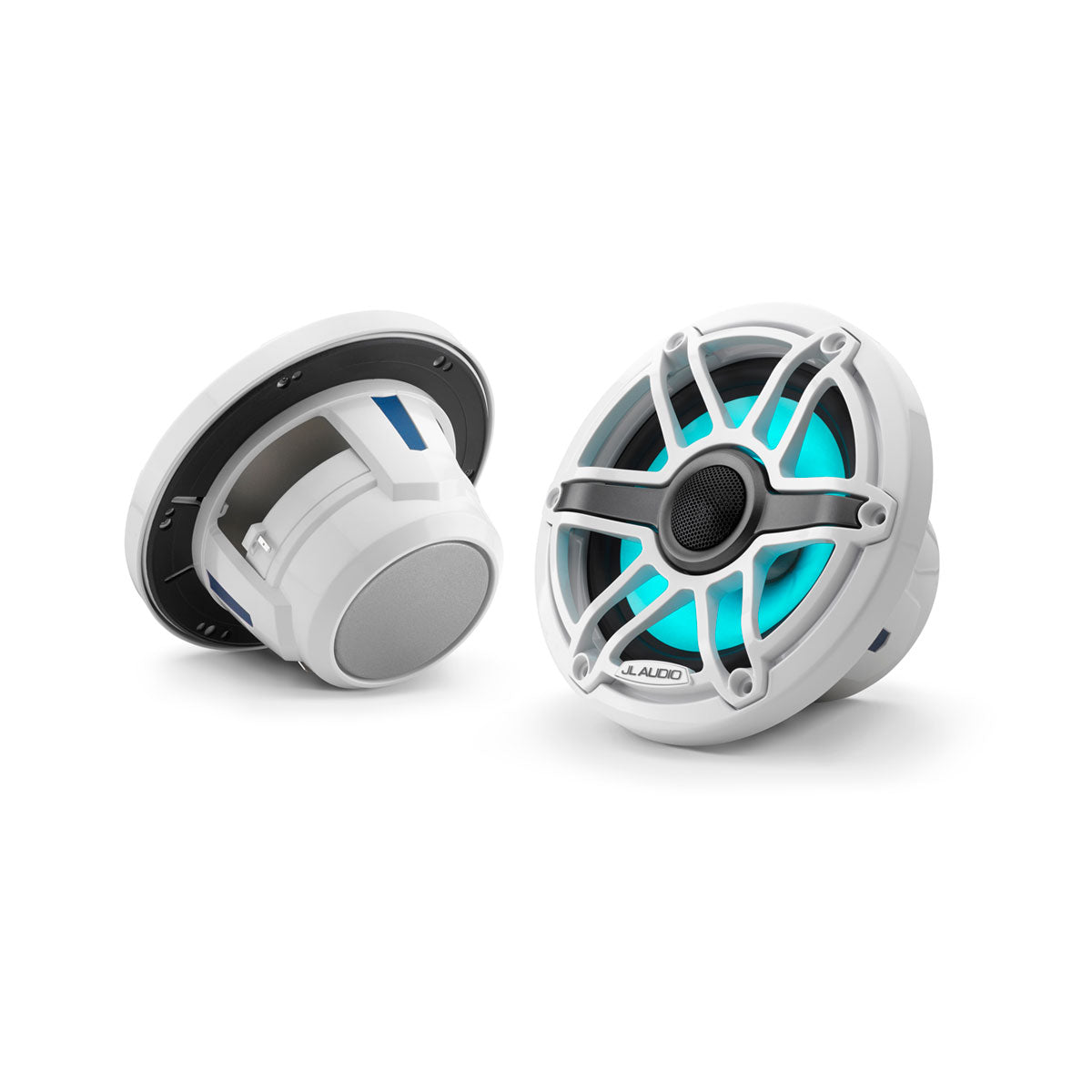

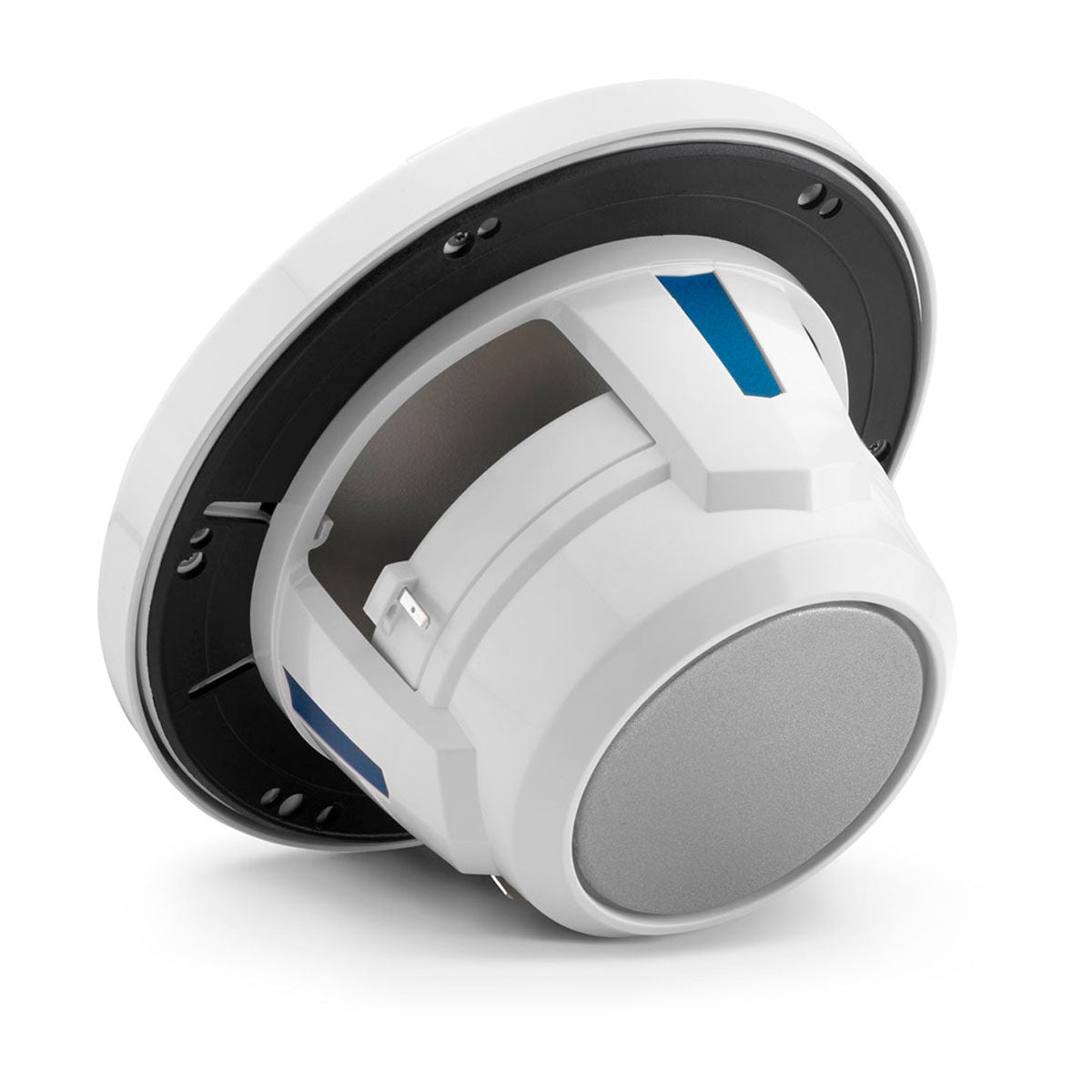

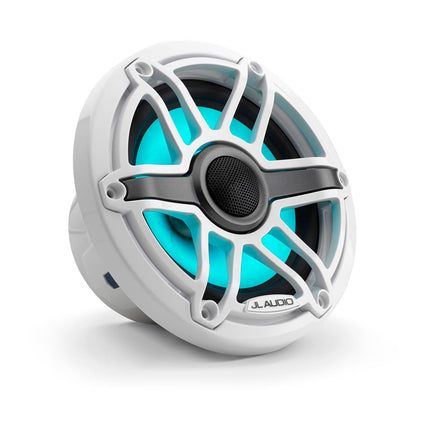

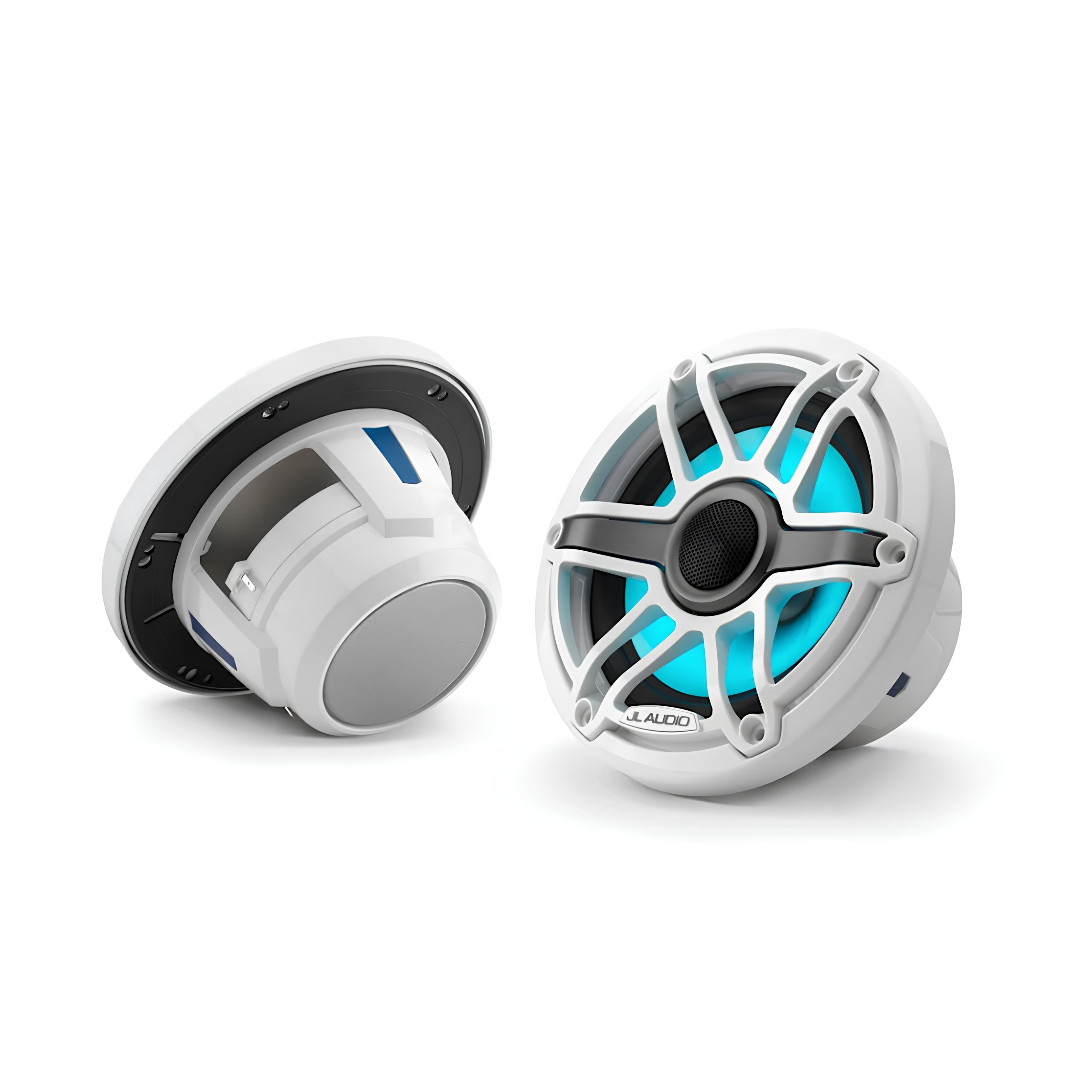

JL Audio JLA-010-03093-00 M6 6.5" Marine Speakers - White Sport Grille with LED
Advanced marine audio with Transflective LED technology — M6 series performance delivers superior sound quality and daylight-visible illumination for Australian offshore conditions.
Product Overview
The JL Audio M6 6.5" marine speakers with white sport grille and Transflective LED lighting deliver reference-grade sound quality with advanced illumination technology in a corrosion-resistant package. Engineered with injection-moulded mica-filled polypropylene cones and 20mm silk dome tweeters, these coaxial speakers handle 75W RMS continuous power with 89.5 dB sensitivity across a 55 Hz-25 kHz frequency range. The M6 series represents JL Audio's advanced marine speaker lineup, offering increased power handling and Transflective LED technology that remains visible even in direct sunlight conditions. The white sport grille provides UV-resistant protection with contemporary aesthetics, while stainless steel mounting hardware ensures long-term reliability in Australian coastal environments. Ideal for boats, personal watercraft, and marine applications where premium audio performance and high-output illumination are equally important.
Features & Benefits

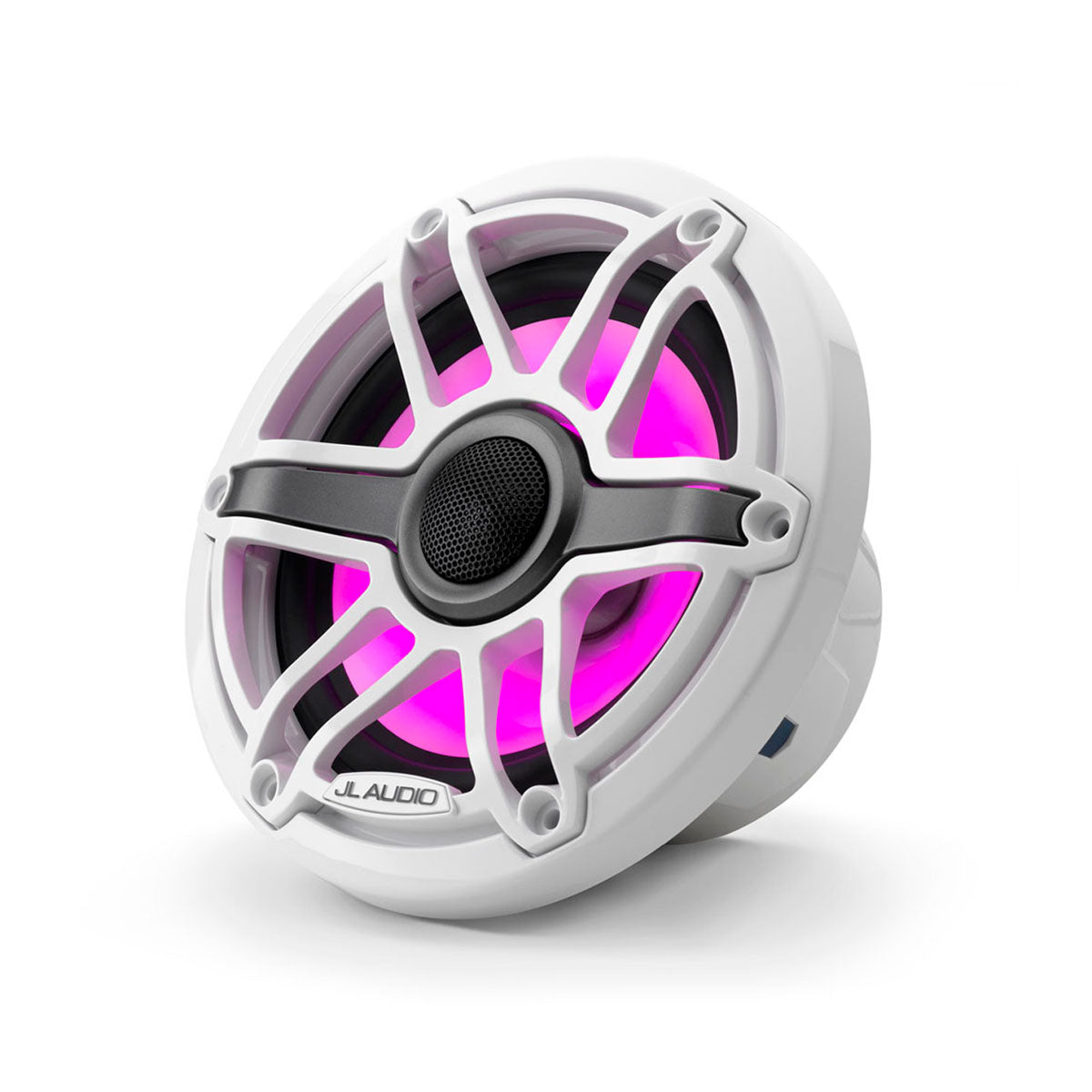

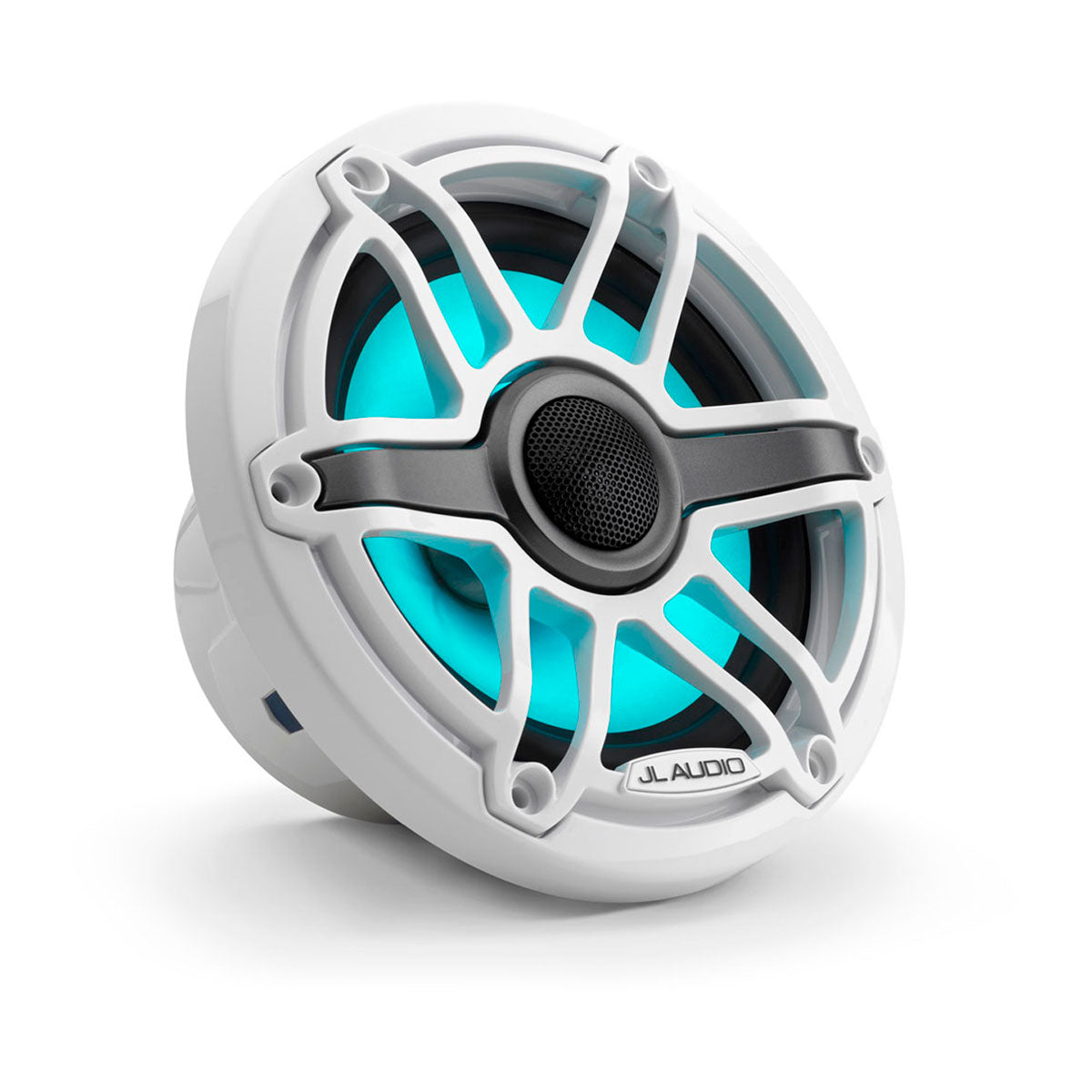

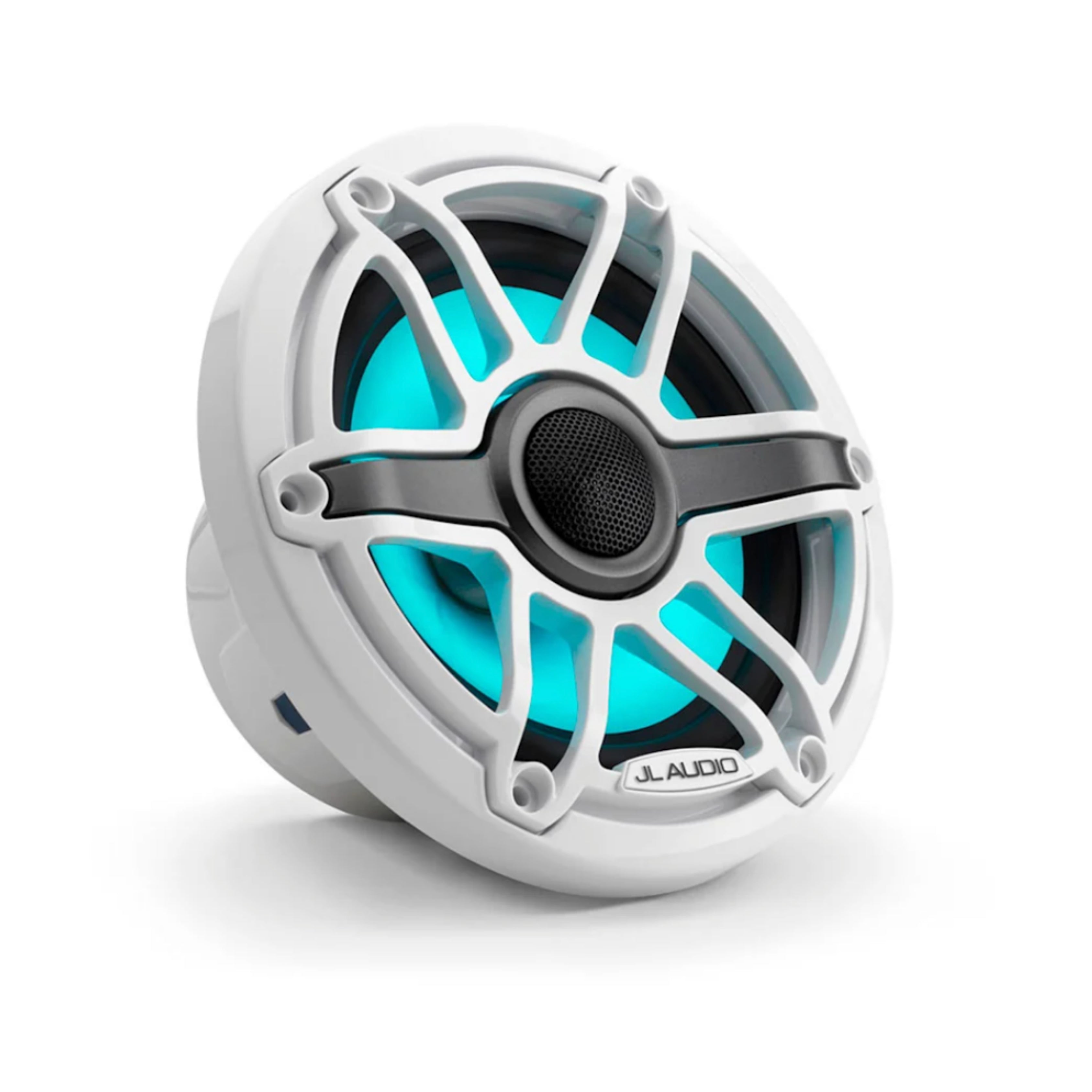

Transflective LED Technology: High-output LED illumination with 324mA draw remains visible in direct sunlight conditions unlike conventional RGB systems, providing daytime and night-time visual impact for offshore activities, dockside entertainment, or coastal cruising with superior brightness compared to standard marine speaker lighting.
Increased Power Handling: 75W RMS continuous rating with 25-150W recommended amplifier power provides 25% more power capacity than M3 series (60W), enabling higher output levels suitable for larger vessels, open-cockpit applications, or environments requiring elevated volume to overcome ambient noise.
Corrosion-Resistant Marine Construction: Mica-filled polypropylene cones and stainless steel hardware withstand constant saltwater exposure, UV radiation, and temperature extremes common in Australian coastal waters, offshore fishing grounds, and extended blue-water cruising applications.
Wide Frequency Response: 55 Hz-25 kHz range delivers clear vocal reproduction and extended bass response critical for cutting through engine noise, wind, and water splash during high-speed cruising, offshore work, or coastal navigation with full-range audio reproduction.
Universal Mounting Compatibility: 127-133mm mounting hole range fits standard 5"-5.25" marine speaker cutouts in fibreglass consoles, hardtops, and tower enclosures without custom fabrication, oversized mounting rings, or dashboard modifications, providing straightforward installation.

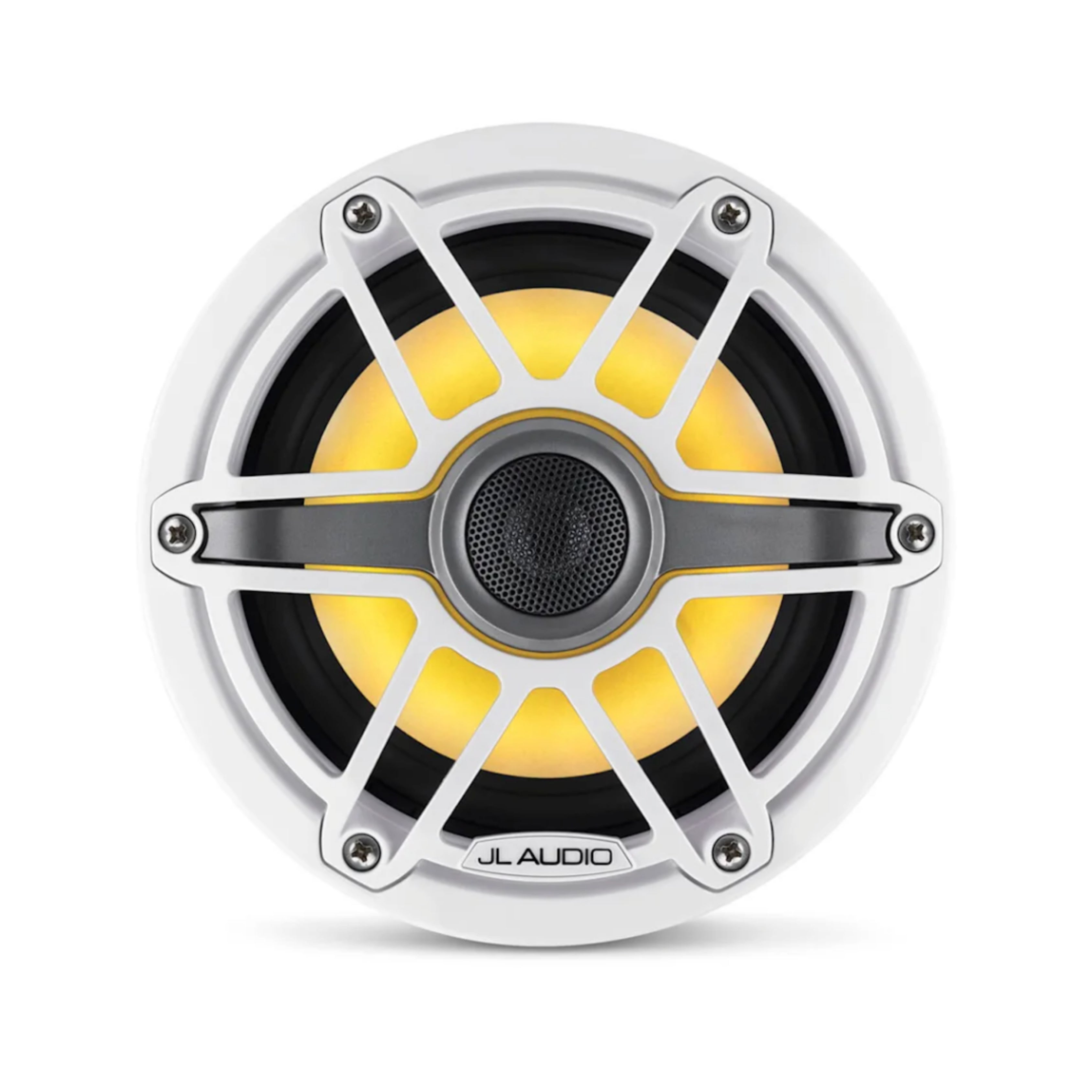

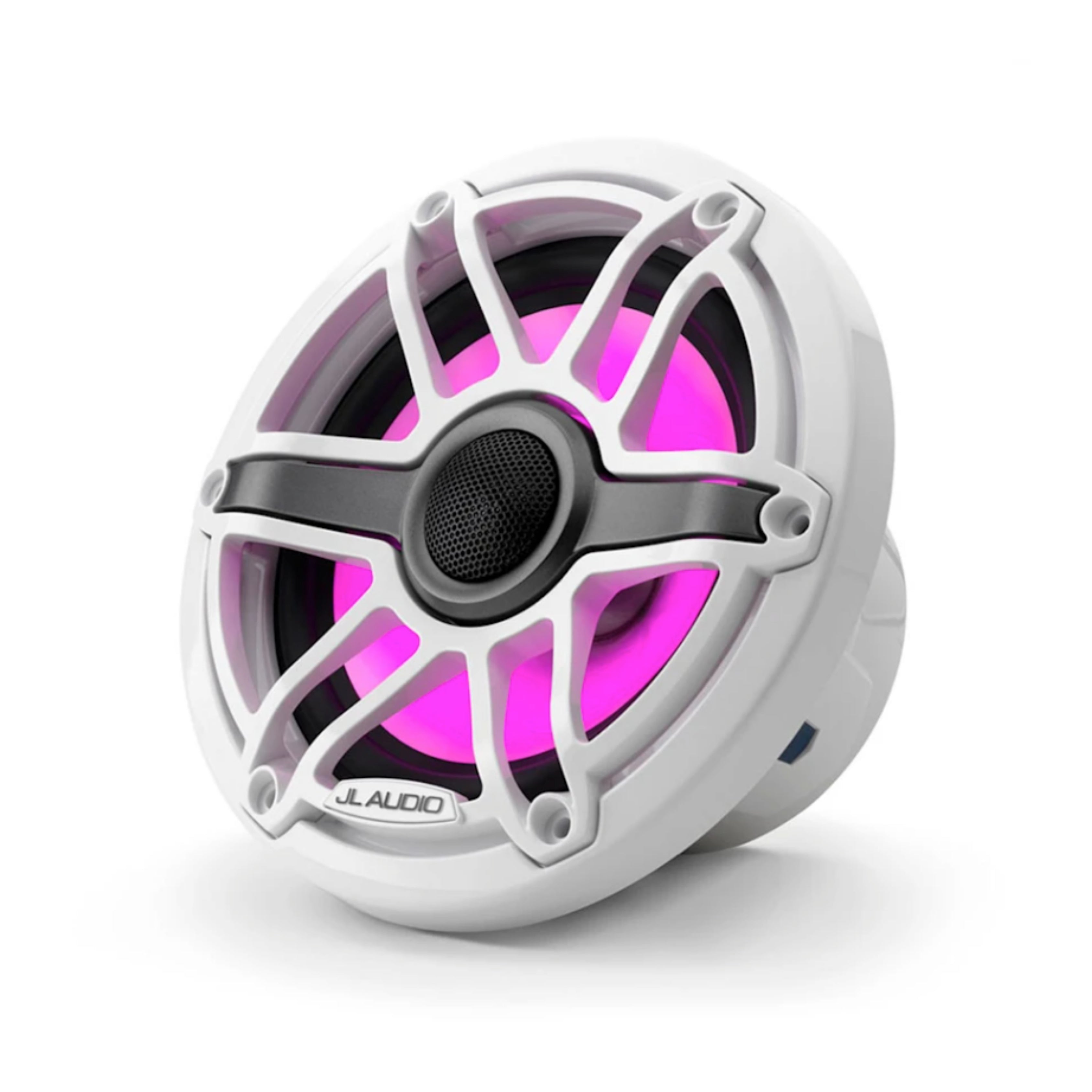

White Sport Grille Design: Modern white sport finish with 26mm protrusion provides UV-resistant protection while maintaining contemporary aesthetic perfect for modern boat styling, performance watercraft, or updated vessel refits requiring premium appearance.
Technical Specs
| Specification |
Value |
| Speaker Type |
2-way coaxial marine speaker |
| Woofer Size |
165mm (6.5") |
| Tweeter Size |
20mm (0.8") silk dome |
| Continuous Power Handling |
75W RMS |
| Recommended Amplifier Power |
25-150W per channel |
| Nominal Impedance |
4Ω |
| Sensitivity |
89.5 dB (1W/1m) |
| Frequency Response |
55 Hz-25 kHz (±3 dB) |
| Overall Diameter |
175mm (6.90") |
| Mounting Depth |
102mm (4.02") for sport |
| Mounting Depth Clearance Required |
76mm (3.00") |
| Frontal Grille Protrusion |
26mm (1.02") |
| Mounting Hole Diameter |
127-133mm (5.00"-5.25") |
| Bolt Hole Circle |
156mm (6.13") |
| Cone Material |
Injection-moulded mica-filled polypropylene |
| Grille Colour |
White sport finish |
| Grille Style |
Sport |
| LED Technology |
Transflective (high-output, daylight visible) |
| LED Supply Voltage |
10-14.4 VDC |
| LED Maximum Current Draw |
324mA at 14.4 VDC |

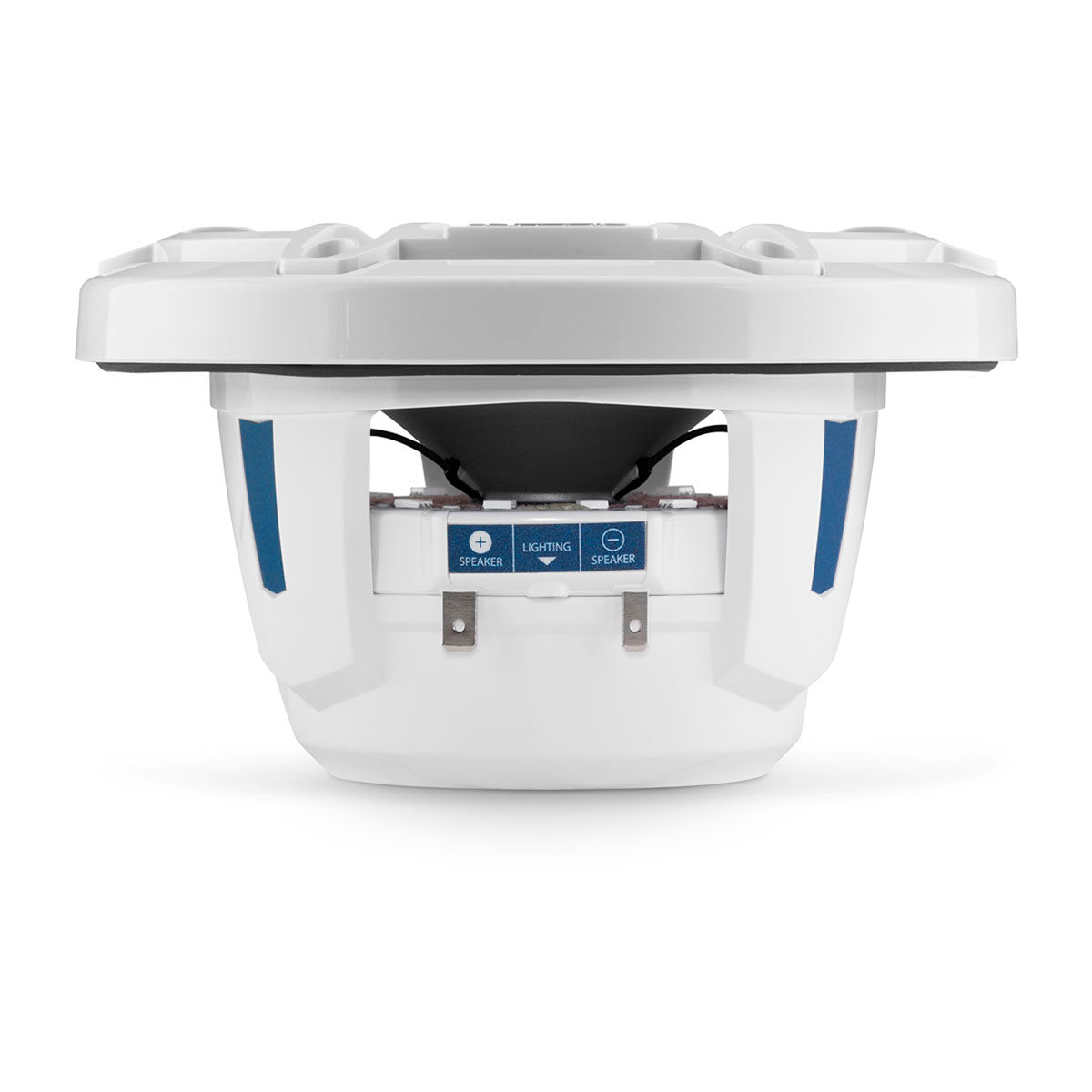

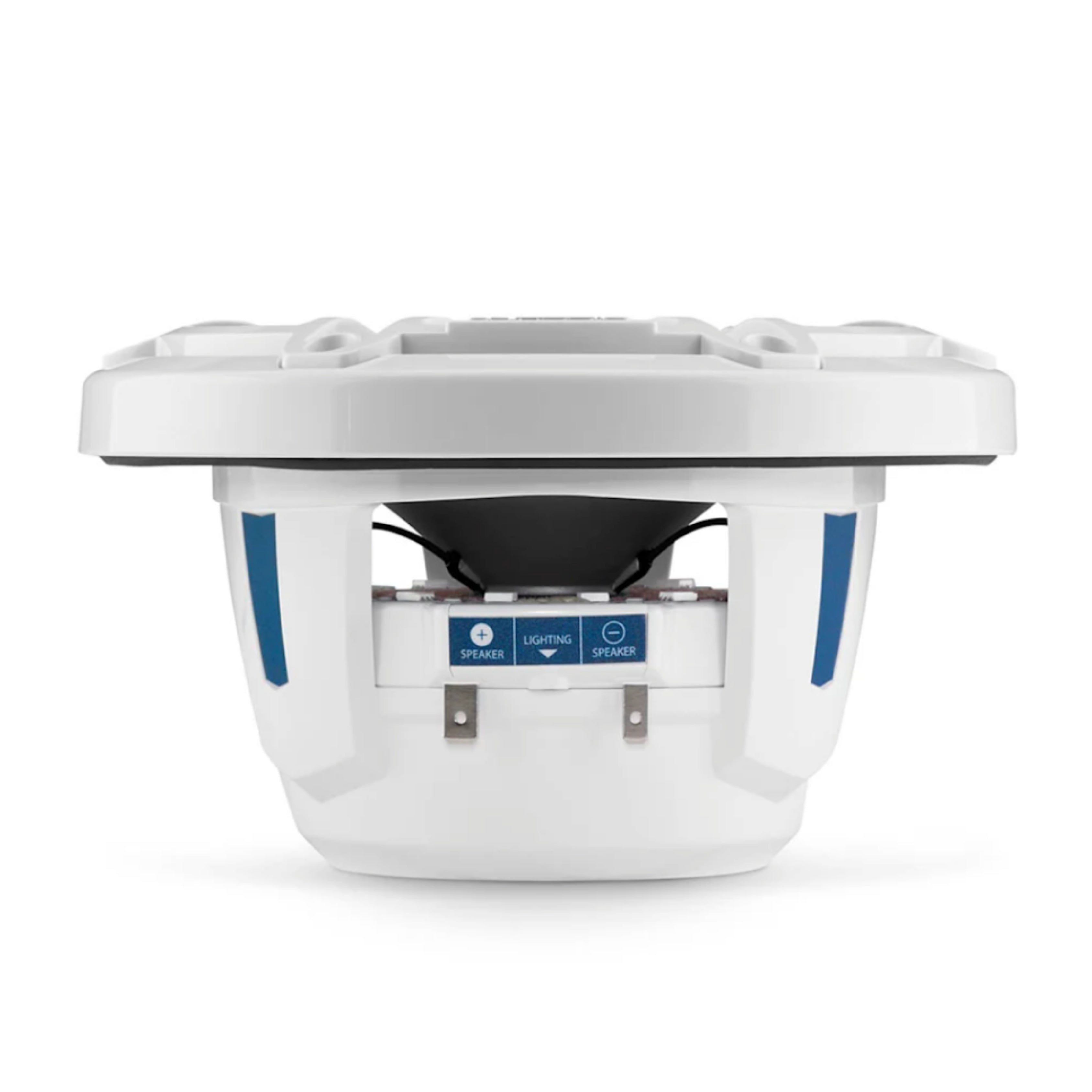

| Speaker Connection |
Spade connectors |
| LED Connection |
Flying lead with 4-conductor 20 AWG wire |
| Mounting Hardware |
Stainless steel screws and washers included |
| Warranty Period |
3 years |
| Part Number |
JLA-010-03093-00 |
Compatible With / Goes Well With
- Fusion Apollo MS-RA800 marine stereo
- JL Audio MHD marine amplifiers
- JL Audio MVi marine amplifiers
- JL Audio XDM car and marine amplifiers
- JL Audio M6 marine subwoofers
- JL Audio M6 marine thin-line subwoofers
- JL Audio M7 marine subwoofers
- Transflective LED controllers (12V DC compatible)
- Boats with 127-133mm (5"-5.25") speaker cutouts
- Fibreglass hardtops, consoles, and tower enclosures
- Personal watercraft (PWC) audio systems
- Wakeboard towers and T-top installations
- Centre console fishing boats
- Performance watercraft
- Modern boat refits
- Aluminium marine craft with sealed speaker housings
Caution: Verify mounting depth clearance (76mm minimum) before installation. LED functionality requires separate wiring to 12V DC power source and optional controller for Transflective LED customisation.
Frequently Asked Questions
Will these speakers fit my existing 6.5" marine speaker cutouts?
These speakers accommodate 127-133mm (5.00"-5.25") mounting holes with a 156mm bolt circle, fitting most standard marine speaker installations without modification.
How much amplifier power do I need to drive these M6 speakers?
JL Audio recommends 25-150W RMS per channel with the 75W continuous rating providing optimal performance around 50-100W from a quality marine amplifier.
What makes Transflective LED different from RGB lighting?
Transflective LED technology provides high-output illumination visible even in direct sunlight conditions, unlike conventional RGB systems that are only visible at night or in low-light conditions.
What's the difference between M6 and M3 series marine speakers?
M6 series offers increased power handling (75W vs 60W), Transflective LED technology (vs RGB), and enhanced component quality for superior audio performance compared to M3 series.
What mounting depth clearance is required behind the speaker?
You'll need 76mm clearance behind the mounting surface, with the speaker requiring 102mm total depth including the 26mm frontal grille protrusion.
