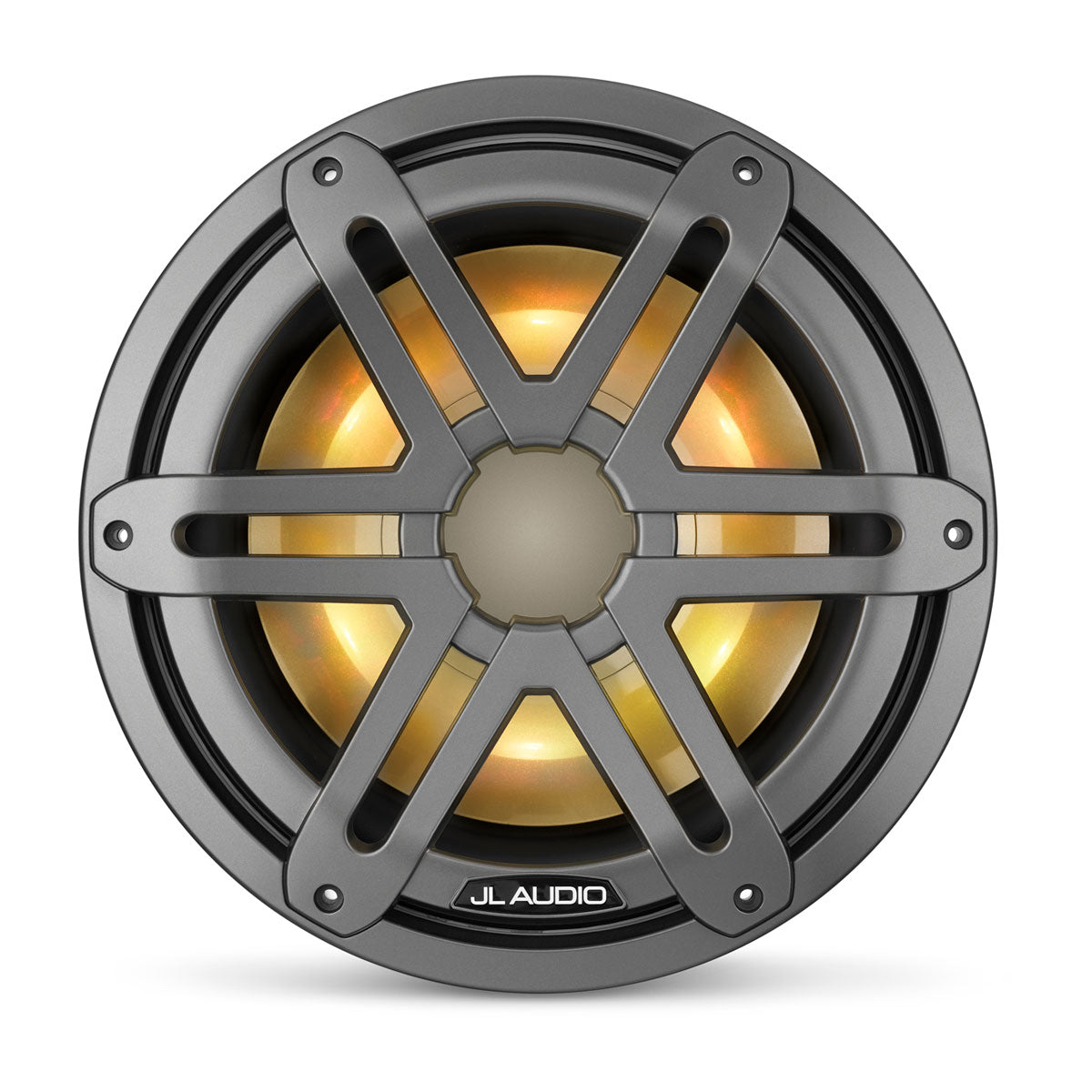

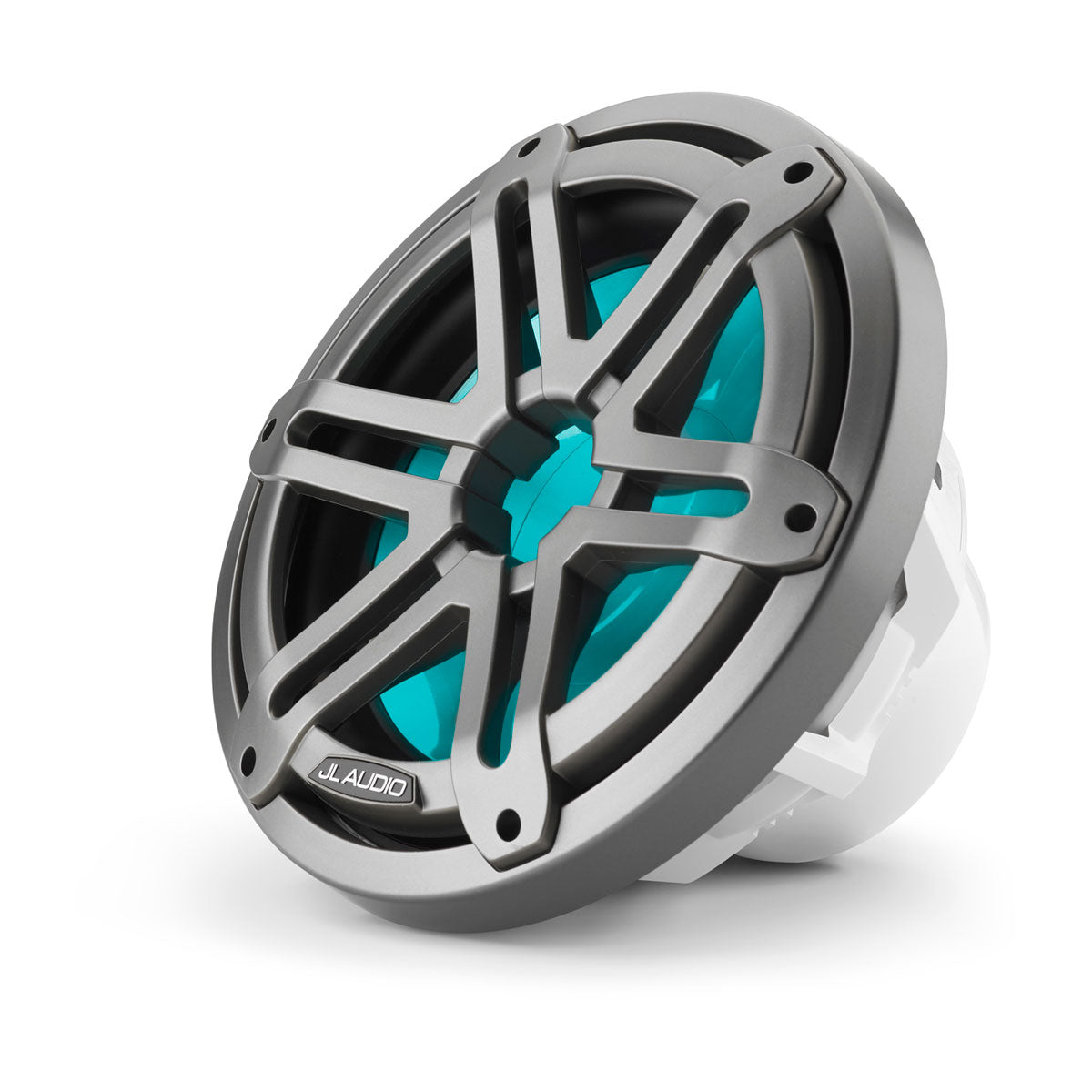

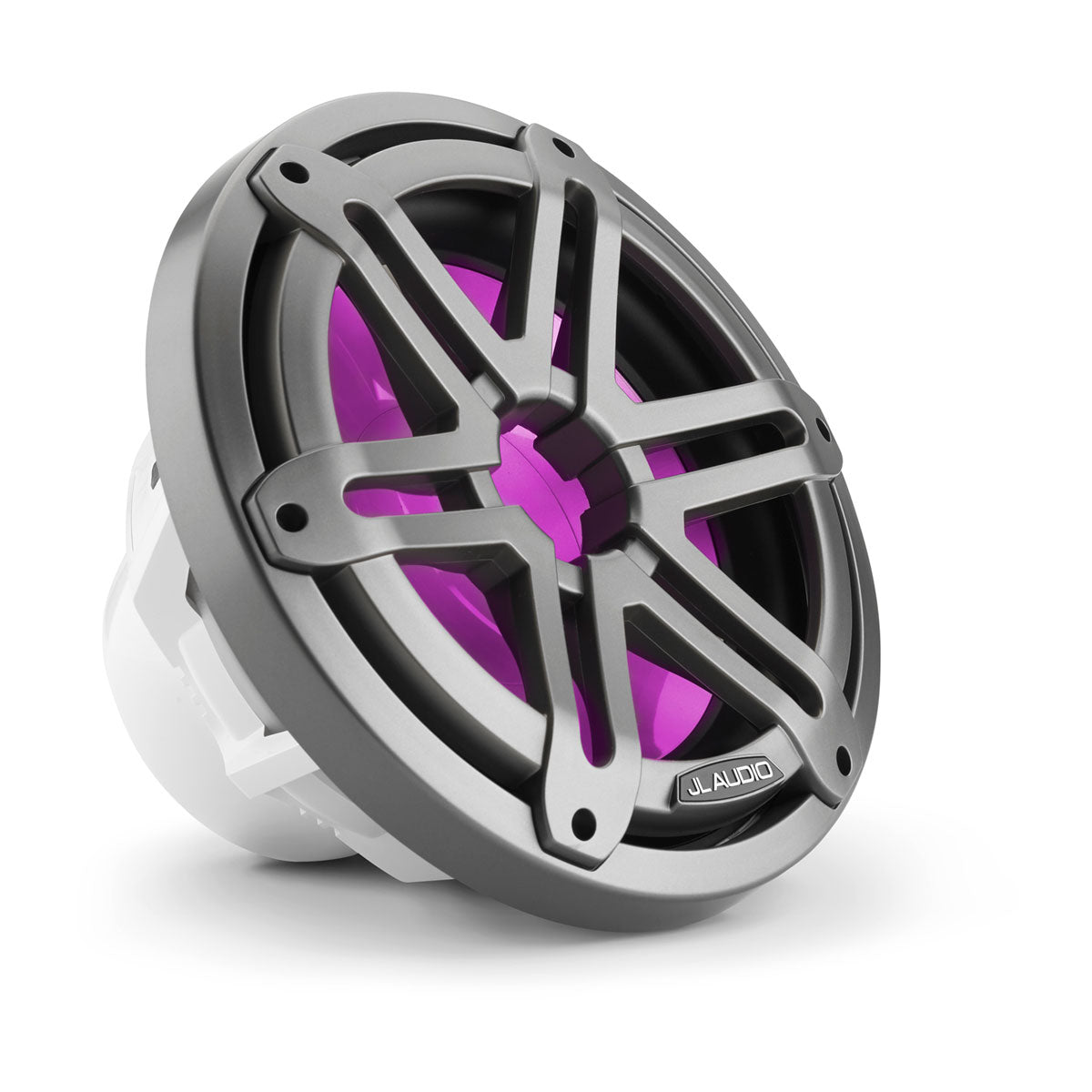

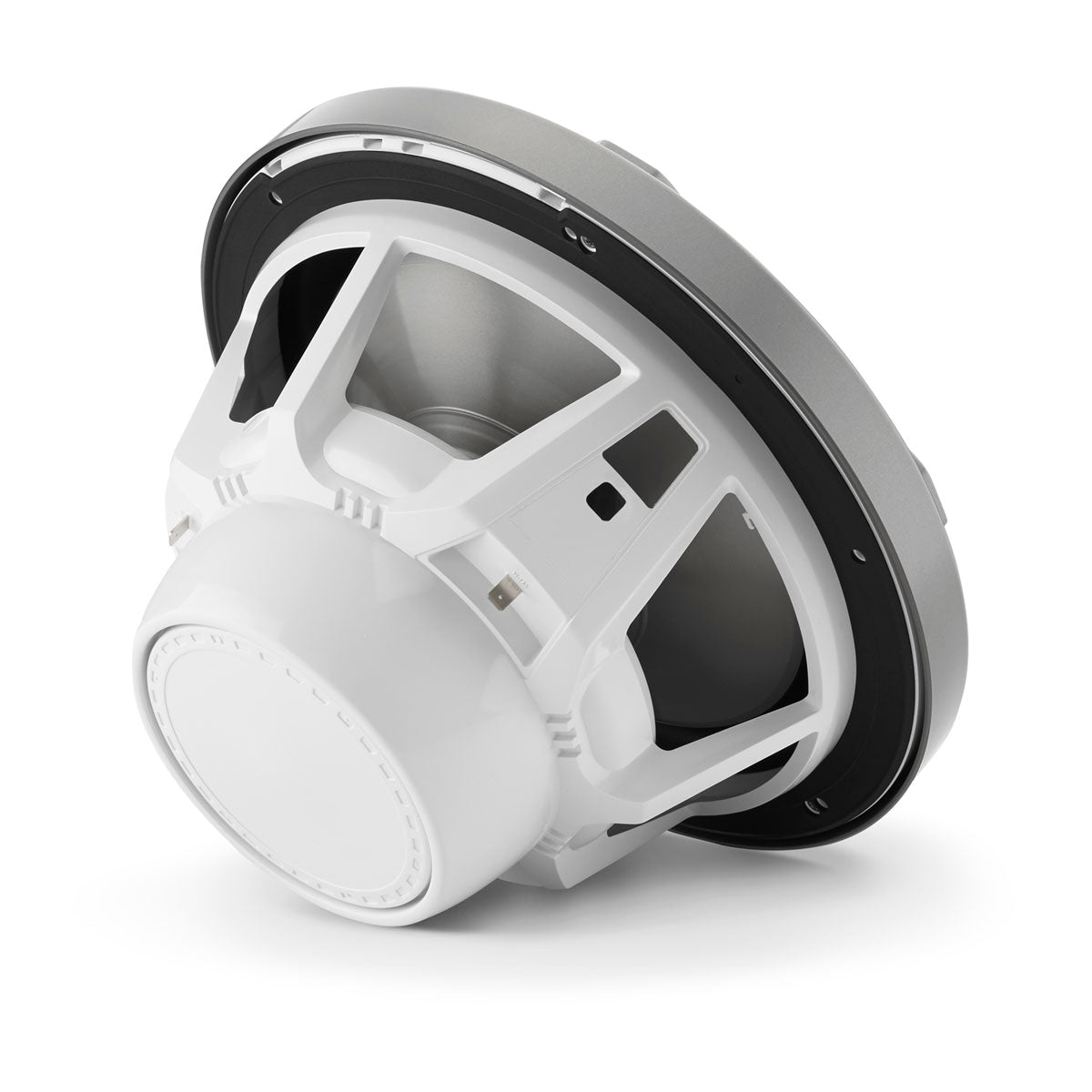

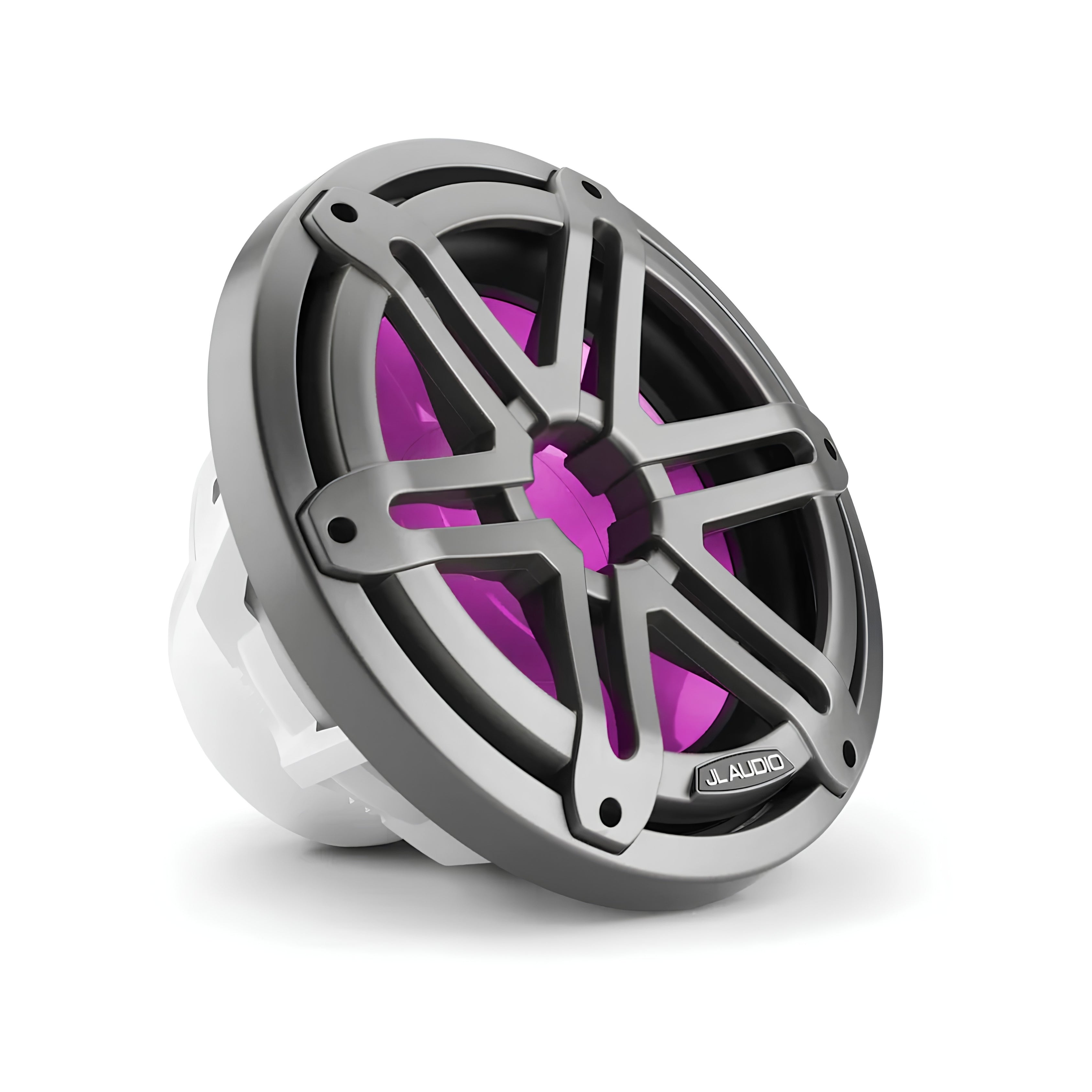

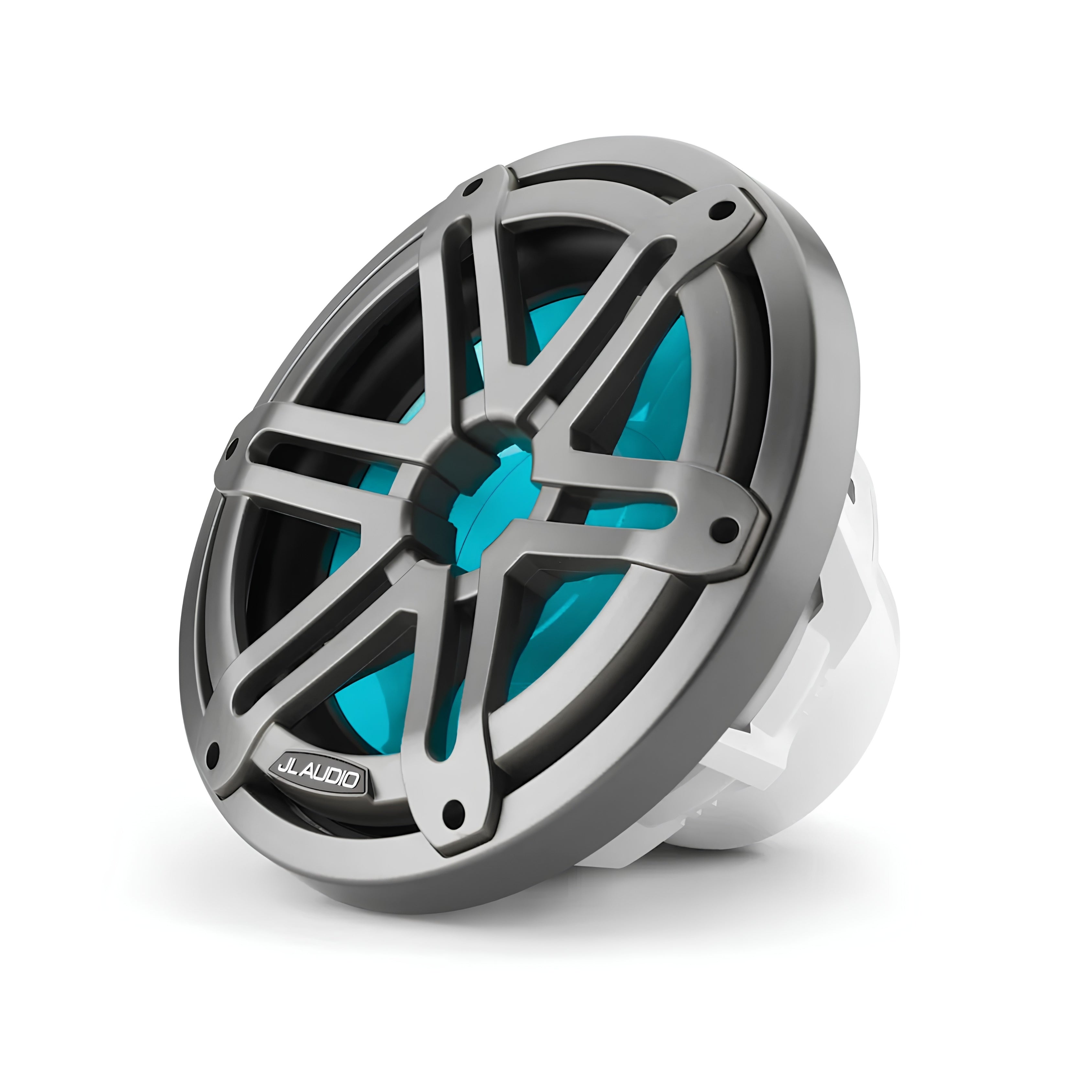

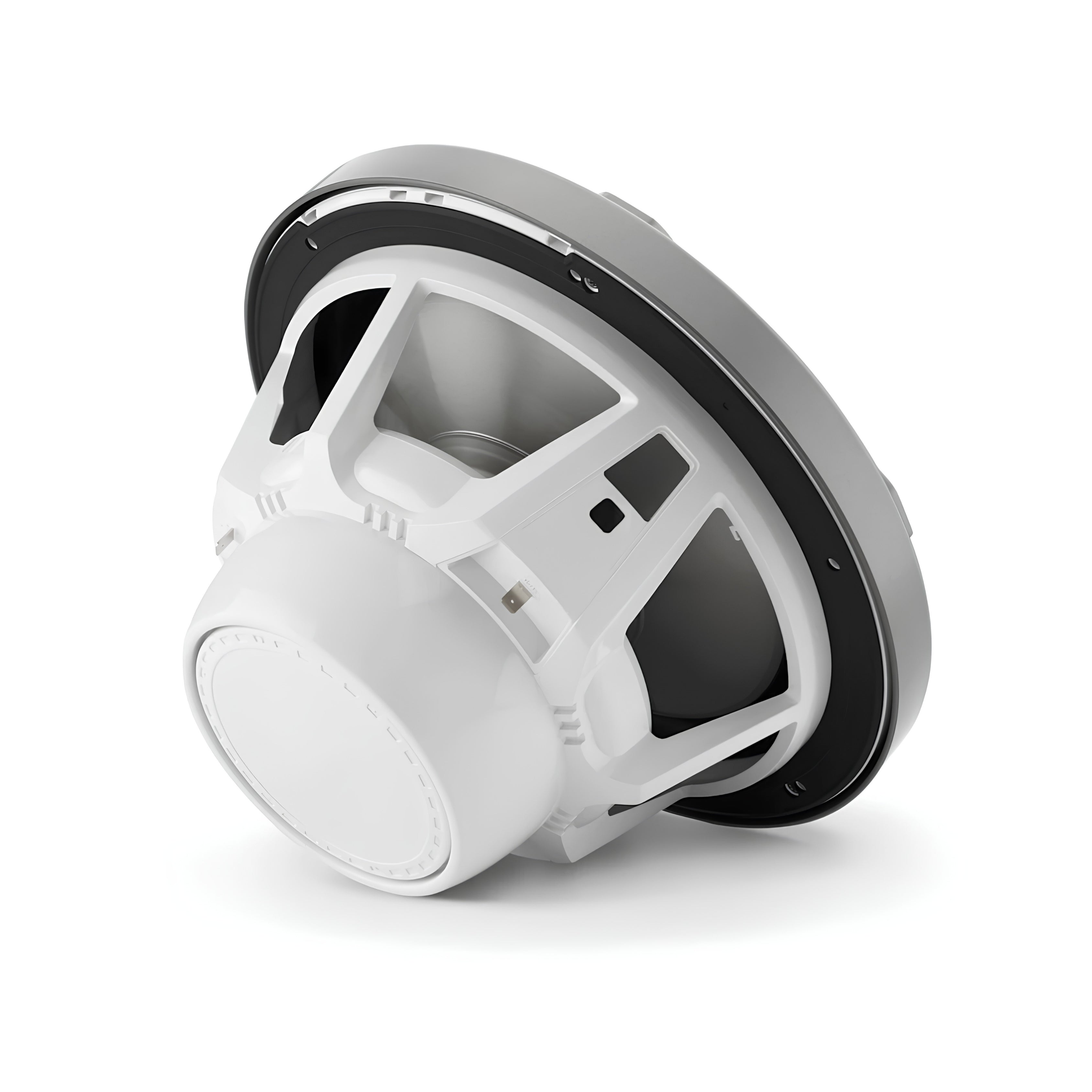

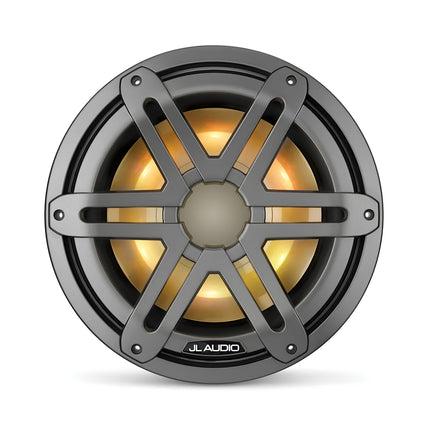

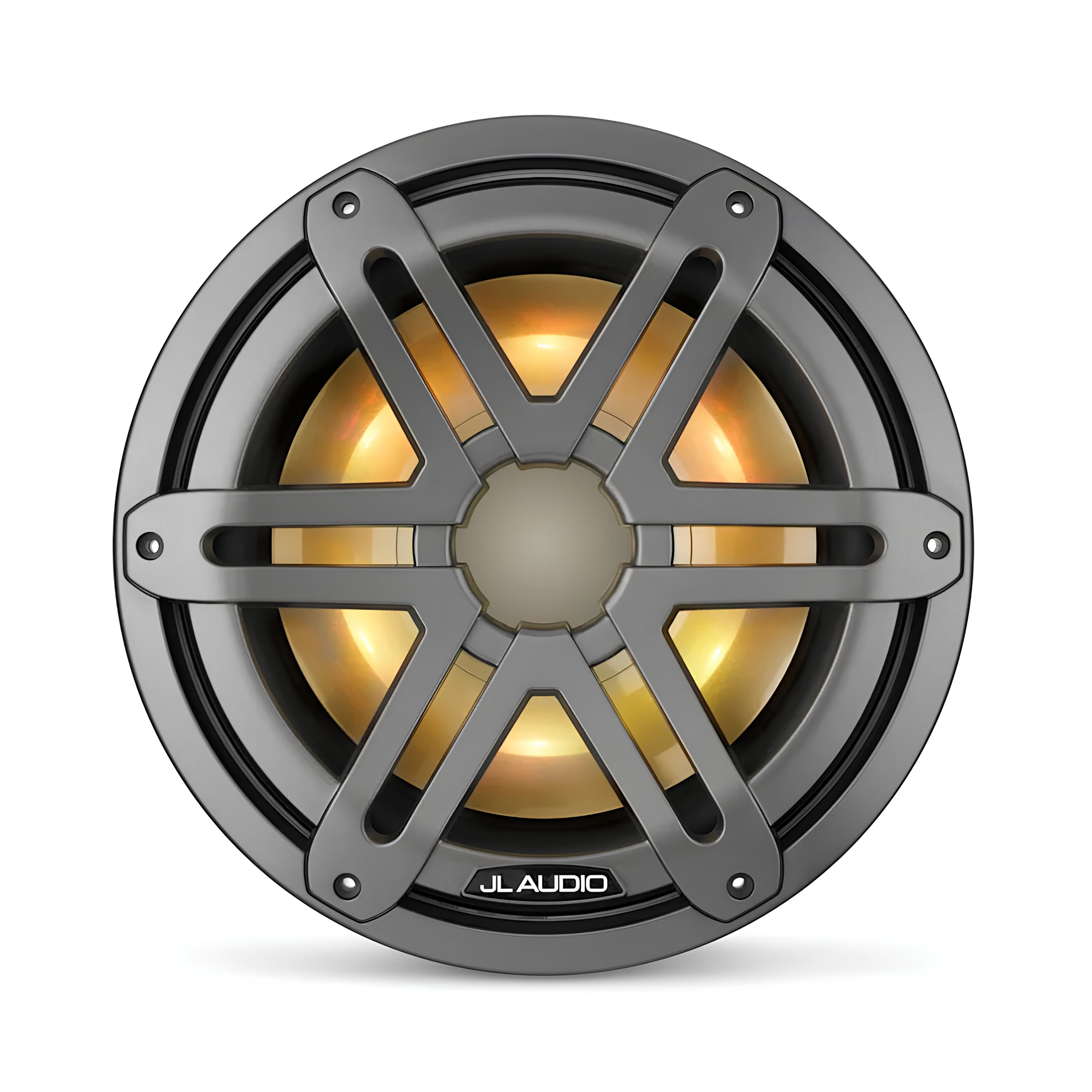

JL Audio JLA-010-03264-00 M3 Marine Subwoofer - 10" Marine Subwoofer with LED and Grey Sport Grille
Premium 10-inch marine subwoofer with integrated RGB LED lighting, infinite baffle design, and 175-watt power handling for powerful bass reproduction in marine environments.
Product Overview
The JL Audio M3 10" Marine Subwoofer (JLA-010-03264-00) delivers powerful, accurate bass reproduction specifically engineered for demanding marine environments. This premium marine subwoofer features a Grey Sport grille with integrated RGB LED lighting that creates impressive visual effects during evening operation while delivering serious low-frequency performance. The infinite baffle design enables installation without requiring dedicated sealed or ported enclosures, simplifying installation by allowing free-air mounting in storage compartments, under seats, behind panels, or in any location with adequate rear volume. The mica-filled polypropylene cone resists UV degradation and saltwater corrosion while delivering excellent bass response and long excursion capability. Rated at 175 watts RMS continuous power handling with 50-175W recommended amplifier power, this subwoofer produces substantial bass output when properly powered. The 10.7mm one-way linear excursion (Xmax) enables deep, distortion-free bass reproduction even at higher volume levels. For sealed enclosure installations, the optimized 56.6-liter net internal volume delivers excellent transient response with 42.9 Hz F3 low-frequency extension. The 4-ohm nominal impedance matches standard monoblock marine amplifiers for optimal power transfer. Spade connector terminals provide secure connections resistant to marine vibration and corrosion. Sold individually with Grey Sport grille, stainless steel mounting hardware, RGB LED flying lead, and logo badge included, the M3 10" marine subwoofer represents the ideal solution for boats requiring powerful bass reproduction with modern styling and visual impact.
Features & Benefits
Infinite baffle design enables free-air installation without requiring sealed or ported enclosures, simplifying installation by allowing mounting in storage compartments, under seats, behind cabin panels, or any location with adequate rear volume (typically large enclosed spaces like engine compartments or cabin areas). Marine-grade construction features mica-filled polypropylene cone that resists UV degradation from sun exposure, saltwater corrosion, humidity, and temperature extremes, ensuring long-term performance and reliability in harsh marine environments. Integrated RGB LED lighting illuminates the Grey Sport grille with customizable colors (red, green, blue, and combinations), creating impressive visual effects that enhance boat aesthetics during evening operation and low-light conditions. Substantial 175-watt RMS power handling with 50-175W recommended amplifier range accommodates everything from compact monoblock amplifiers to high-output marine subwoofer amplification for maximum bass impact. Generous 10.7mm one-way linear excursion (Xmax) enables deep, distortion-free bass reproduction by allowing large cone movement without exceeding mechanical limits, critical for producing powerful low-frequency output in outdoor marine environments. Well-damped infinite baffle parameters (Qts 0.754) ensure controlled bass response without excessive boominess when properly installed in adequate rear volume. Sealed enclosure compatibility with optimized 56.6-liter net internal volume delivers tight, accurate bass with 42.9 Hz F3 extension for installations where dedicated sealed enclosures are preferred. 4-ohm nominal impedance matches standard monoblock marine amplifiers and provides optimal power transfer for efficient bass reproduction. Spade connector terminals provide secure electrical connections that resist vibration and corrosion better than bare wire connections in marine environments. Grey Sport grille provides sophisticated modern aesthetic that complements contemporary boat styling while RGB LED illumination enhances visual appeal. Low-profile grille protrusion (40mm / 1.58") minimizes installation depth requirements from mounting surface. Mounting dimensions accommodate 8.875" cutouts with 5" mounting depth clearance, fitting most marine subwoofer locations. Stainless steel mounting hardware resists saltwater corrosion for long-term secure installation.
Technical Specifications
| Specification |
Details |
| Model |
JLA-010-03264-00 M3 Marine Subwoofer |
| Configuration |
Infinite Baffle Marine Subwoofer |
| Subwoofer Size |
10 inches |
| Grille Style |
Grey Sport with RGB LED |
| LED Lighting |
RGB (red, green, blue) |
| Quantity |
1 subwoofer (sold individually) |
| Power Handling (RMS) |
175 watts |
| Recommended Amp Power |
50-175W RMS |
| Sensitivity |
87.23 dB @ 1W/1m |
| Nominal Impedance |
4 ohms |
| Cone Material |
Mica-filled polypropylene |
| One-Way Xmax |
10.7 mm (0.42 inches) |
| Free Air Resonance (Fs) |
41.84 Hz |
| Total Q (Qts) |
0.754 |
| Equivalent Volume (Vas) |
36.53 liters |
| Effective Piston Area (Sd) |
0.0327 m² |
| DC Resistance (Re) |
3.957 ohms |
| LED Supply Voltage |
10-14.4 VDC |
| LED Current Draw (Max) |
108 mA @ 14.4 VDC |
| Overall Diameter |
273 mm (10.75 inches) |
| Overall Depth |
203 mm (6.58 inches) |
| Mounting Depth Required |
127 mm (5.0 inches) |
| Grille Protrusion |
40 mm (1.58 inches) |
| Mounting Hole |
225 mm (8.875 inches) |
| Bolt Hole Circle |
247 mm (9.71 inches) |
| Driver Displacement |
0.052 cu ft (1.47 liters) |
| Sealed Enclosure Volume |
56.6 liters net internal |
| Sealed F3 (-3dB) |
42.9 Hz |
| Sealed Fc (resonance) |
53.66 Hz |
| Sealed Qtc |
0.967 |
| Speaker Connections |
Spade connectors |
| LED Connection |
Flying lead, 4-conductor 22 AWG |
| Weight |
2.94 kg (6.5 lbs) |
| Marine Environment |
UV and saltwater corrosion resistant |
| Warranty |
3 years |
| Included Accessories |
Grille (attached), 6x stainless screws, 6x stainless washers, logo badge |
Compatible With / Goes Well With
JL Audio Marine Amplifiers: MX Marine and Powersports Amplifiers - specifically MX300/1 or MX500/1 monoblocks for subwoofer amplification delivering 50-175W RMS, MVi Marine Amplifiers with dedicated subwoofer channels, MHD Marine Amplifiers, XDM Car and Marine Amplifiers, AP Amplifiers with subwoofer capability
JL Audio Source Units: MediaMaster 55 Stereo with external subwoofer amplification, MediaMaster 105 Stereo with dedicated subwoofer zone control for multi-zone bass management
JL Audio Marine Speakers: M3 Marine Speakers (6.5" or 7.7" models), M3 Enclosed Tower Speakers, VeX Enclosed System for complete full-range and bass reproduction throughout vessel
System Integration: Fusion Apollo MS-RA800 marine stereo for alternative source unit, RGB LED controllers for synchronized lighting effects with other boat lighting systems, M-RBC-1 or MHD-RLC remote bass controls for cockpit-accessible subwoofer level adjustment
Installation Applications: Free-air mounting in large storage compartments, under-seat installations with adequate rear volume, behind-panel cabin installations, sealed enclosure construction for optimized bass response, cockpit installations where bass reinforcement is needed
Installation Requirements: Monoblock amplification providing 50-175W RMS, 8.875" mounting hole cutout, minimum 5" clearance behind mounting surface, adequate rear volume for infinite baffle operation (large enclosed space) OR sealed enclosure construction per specifications (56.6L net internal volume), RGB LED controller for color selection and lighting effects (sold separately)
Frequently Asked Questions
What's the difference between infinite baffle and sealed enclosure installation for this subwoofer? Infinite baffle installation mounts the subwoofer in a large enclosed space (storage compartment, under seat with cabin volume behind it, engine compartment) without a dedicated sealed enclosure, relying on the boat's existing volume as the "enclosure." This simplifies installation but requires adequate rear volume and may produce slightly less controlled bass. Sealed enclosure installation uses a dedicated sealed box with 56.6 liters net internal volume, providing tighter, more controlled bass with optimized 42.9 Hz F3 response and better transient response. Choose infinite baffle for simplified installation; choose sealed enclosure for optimum performance and tighter bass control.
Can I power this subwoofer with the MediaMaster 55's built-in amplification? No, the MediaMaster 55's built-in amplification is designed for full-range speakers, not subwoofers. The M3 subwoofer requires dedicated monoblock amplification providing 50-175W RMS. The MediaMaster 55 (and MM105) have dedicated subwoofer RCA pre-outputs specifically for connecting to external monoblock amplifiers like the MX300/1, MX500/1, or other JL Audio monoblocks. Use the source unit's subwoofer output connected to a monoblock amplifier which then powers the M3 subwoofer.
How do I control the RGB LED lighting colors? The RGB LEDs connect to your boat's 12V DC electrical system (10-14.4V) via the included 4-conductor 22 AWG flying lead and require an RGB LED controller (sold separately) to change colors and create lighting effects. Without a controller, LEDs illuminate in a default color. Marine-specific RGB controllers offer wireless control via smartphone apps, enabling color selection, brightness adjustment, and synchronized effects with other boat RGB lighting including speakers, underwater lights, and accent lighting. The 108mA current draw adds minimal electrical load.
What rear volume is required for infinite baffle installation? For infinite baffle installations, the rear volume should ideally be several times the driver's Vas (36.53 liters). A minimum of 150-200 liters (approximately 5-7 cubic feet) of rear volume is recommended for proper infinite baffle operation, though larger volumes (300+ liters) provide better performance. Common infinite baffle locations include large storage compartments, under-seat areas with cabin volume access, or engine compartments. Ensure the rear volume is reasonably sealed from the front to prevent front-to-rear wave cancellation. For smaller available volumes, build a sealed enclosure per specifications instead.
How does the M3 10" compare to larger 12" marine subwoofers? The M3 10" offers 175W power handling, 10.7mm Xmax, and 42.9 Hz F3 in sealed enclosures with more compact installation requirements (8.875" mounting hole, 5" depth). Larger 12" subwoofers typically offer higher power handling (200-300W+), greater Xmax for deeper bass, lower frequency extension, and greater output capability, but require larger mounting holes (typically 11"+) and more depth clearance (6"+). Choose the 10" for space-constrained installations, moderate power systems (up to 175W), or boats where compact subwoofer mounting is critical. Choose 12" models for maximum bass output, lowest frequency extension, and installations accommodating larger dimensions.
