Description

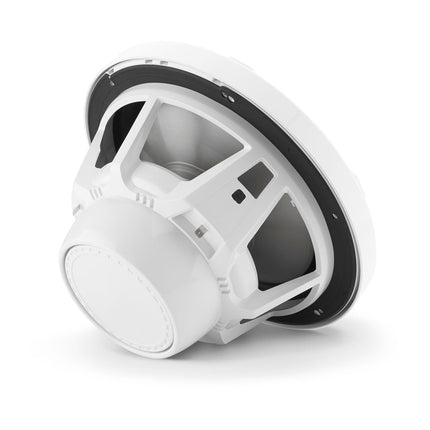

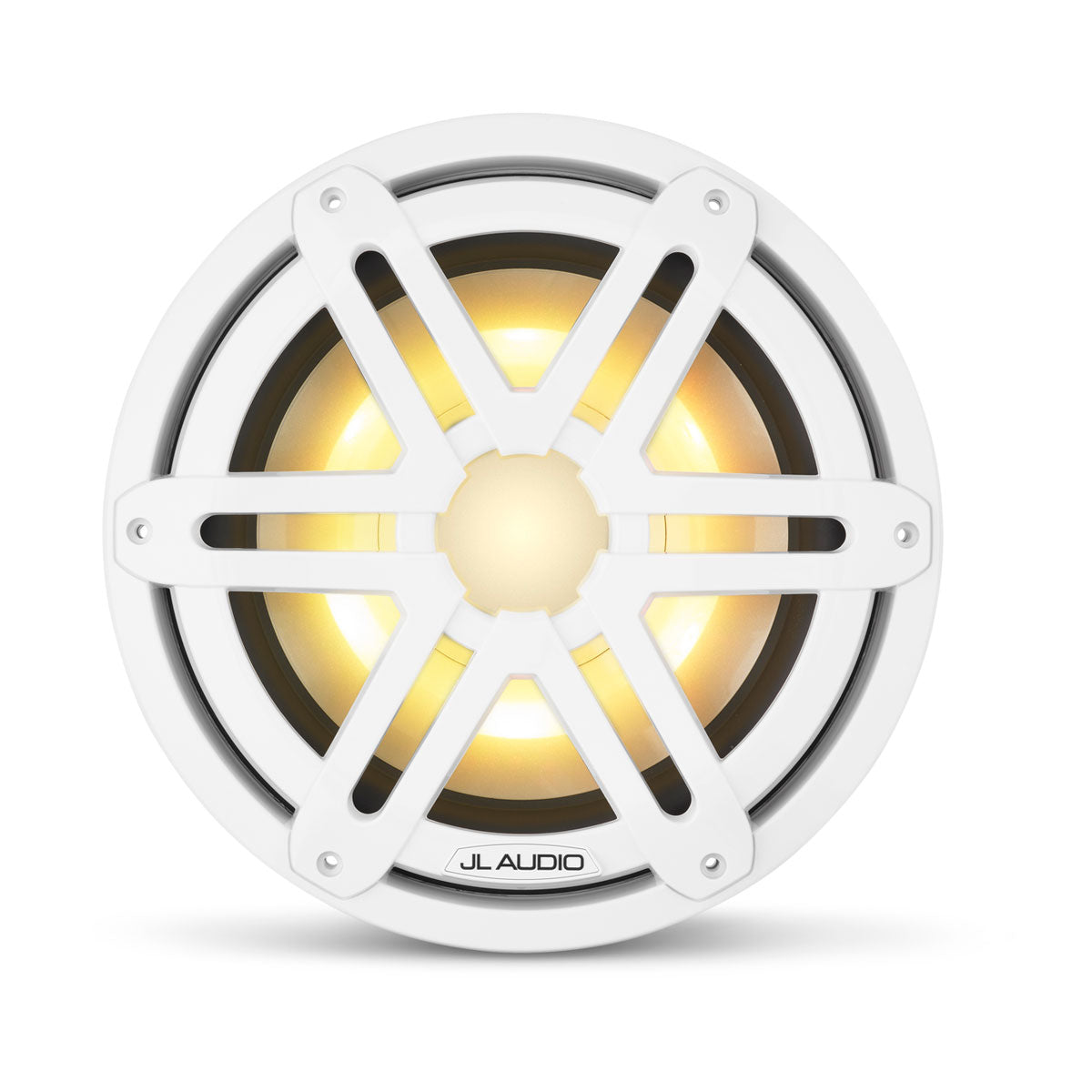

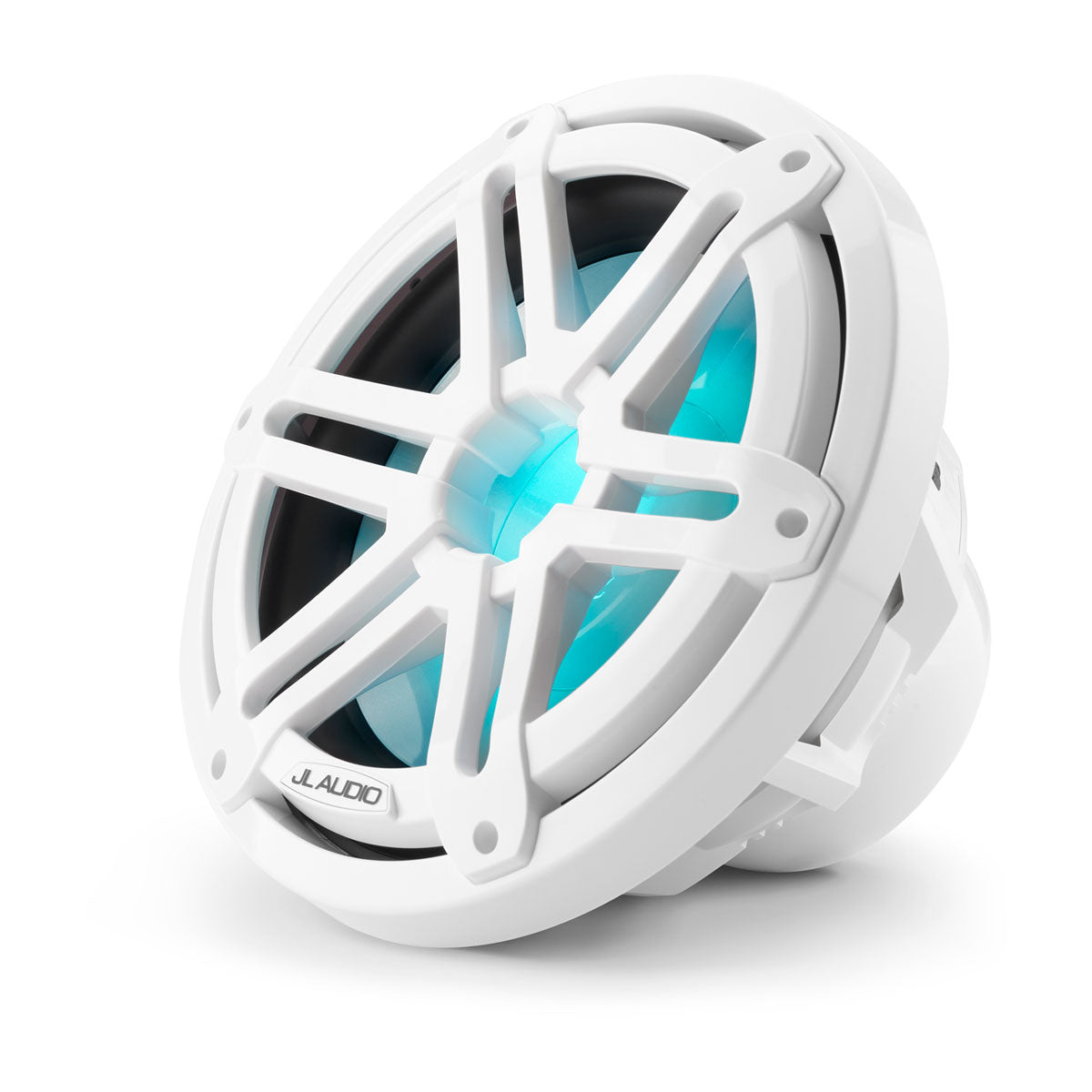

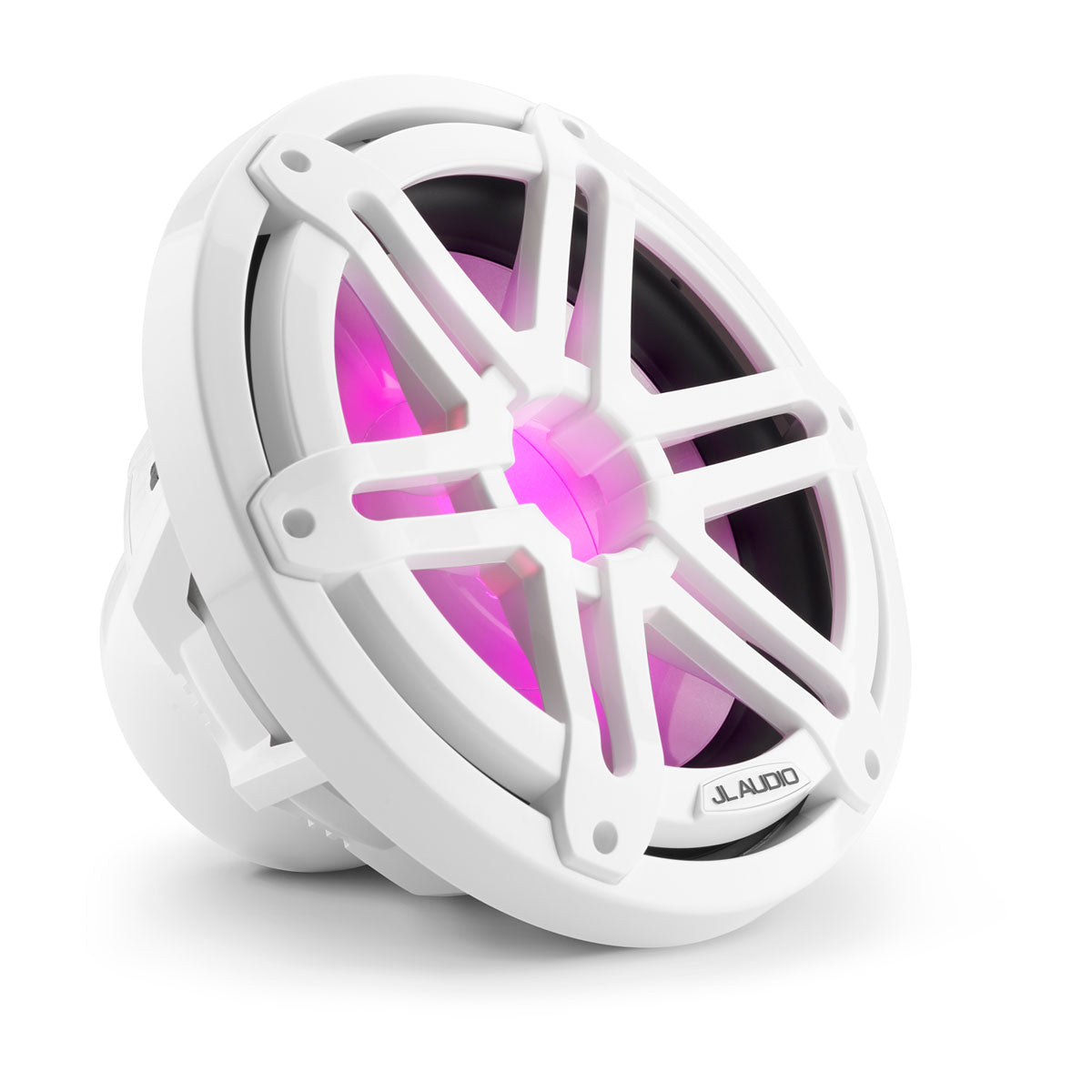

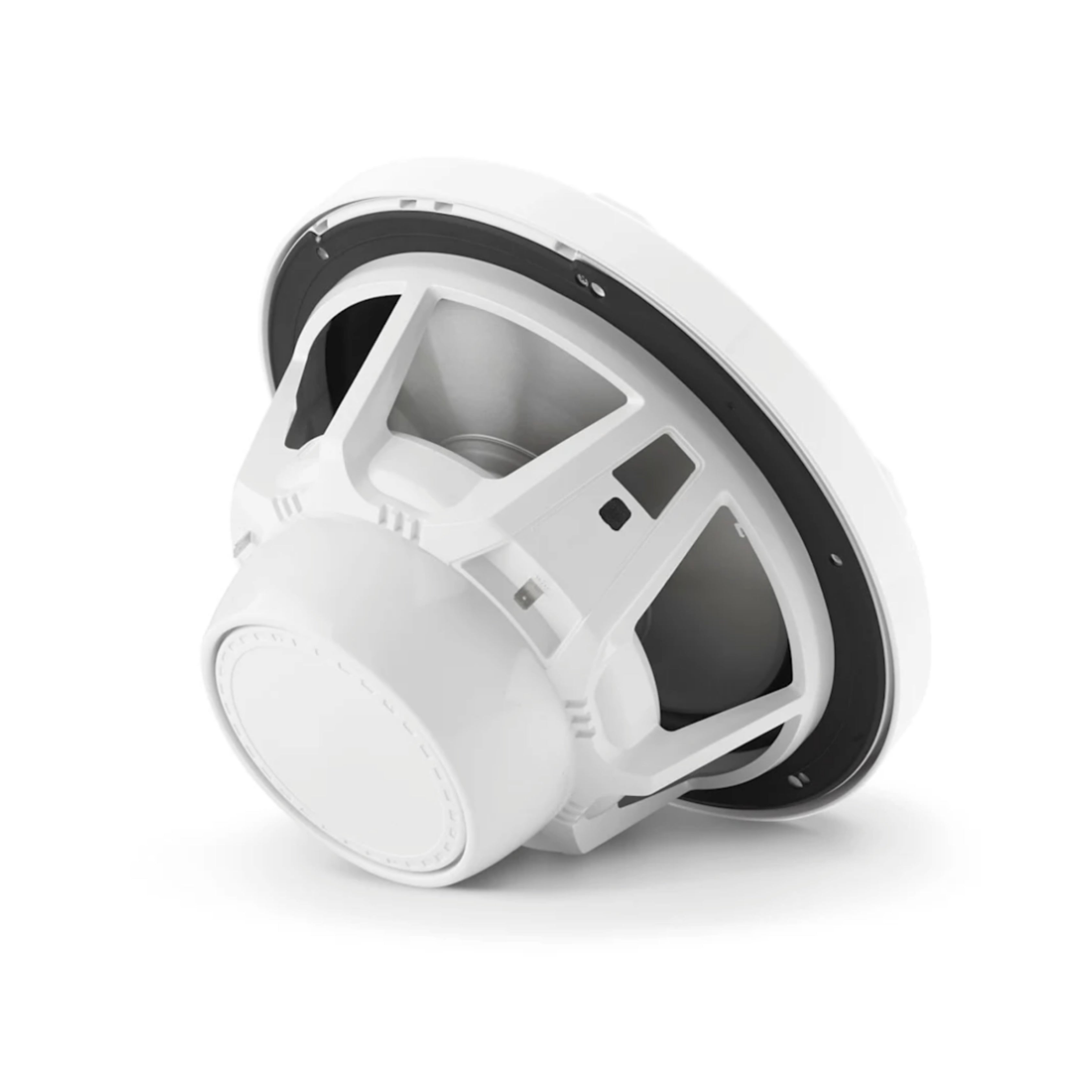

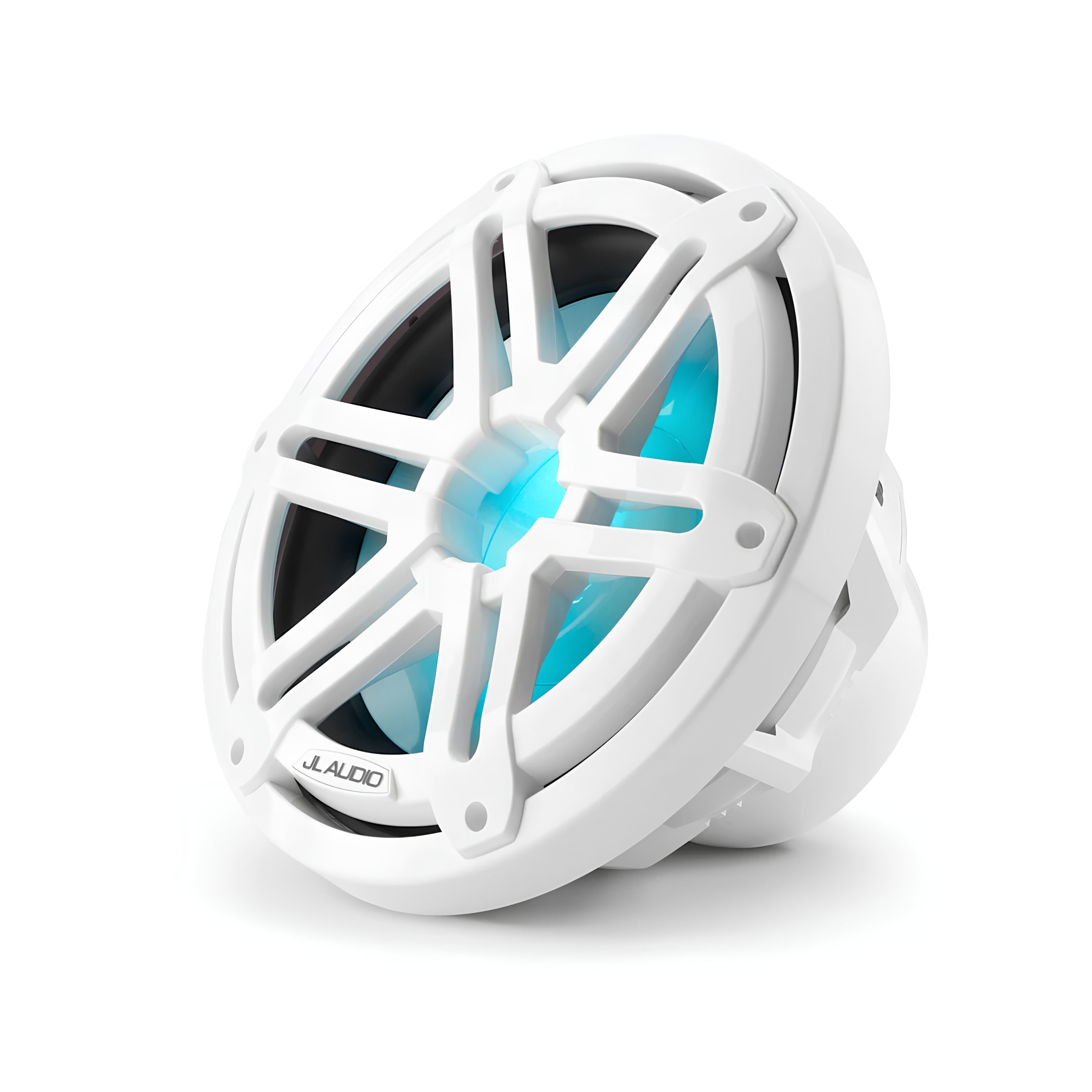

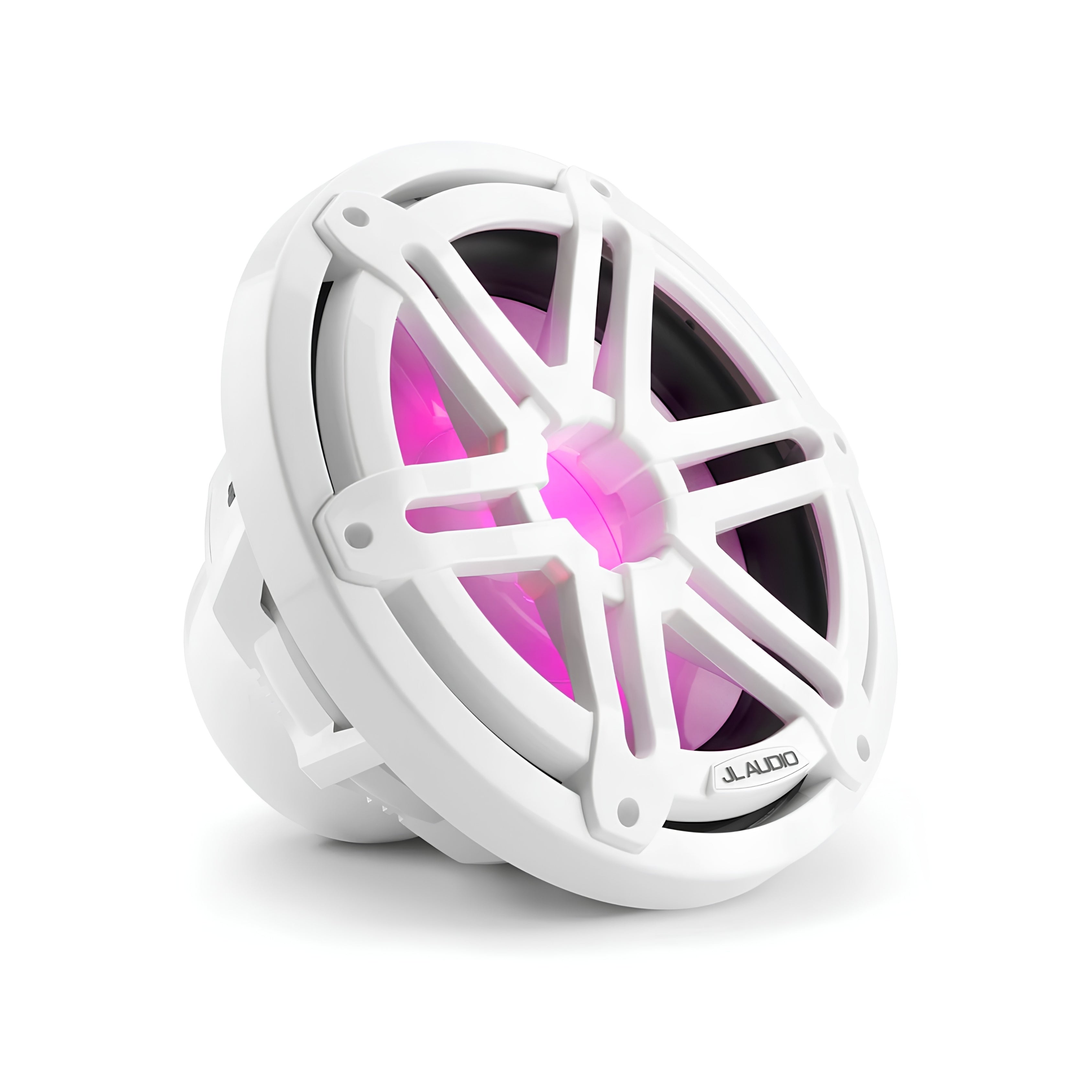

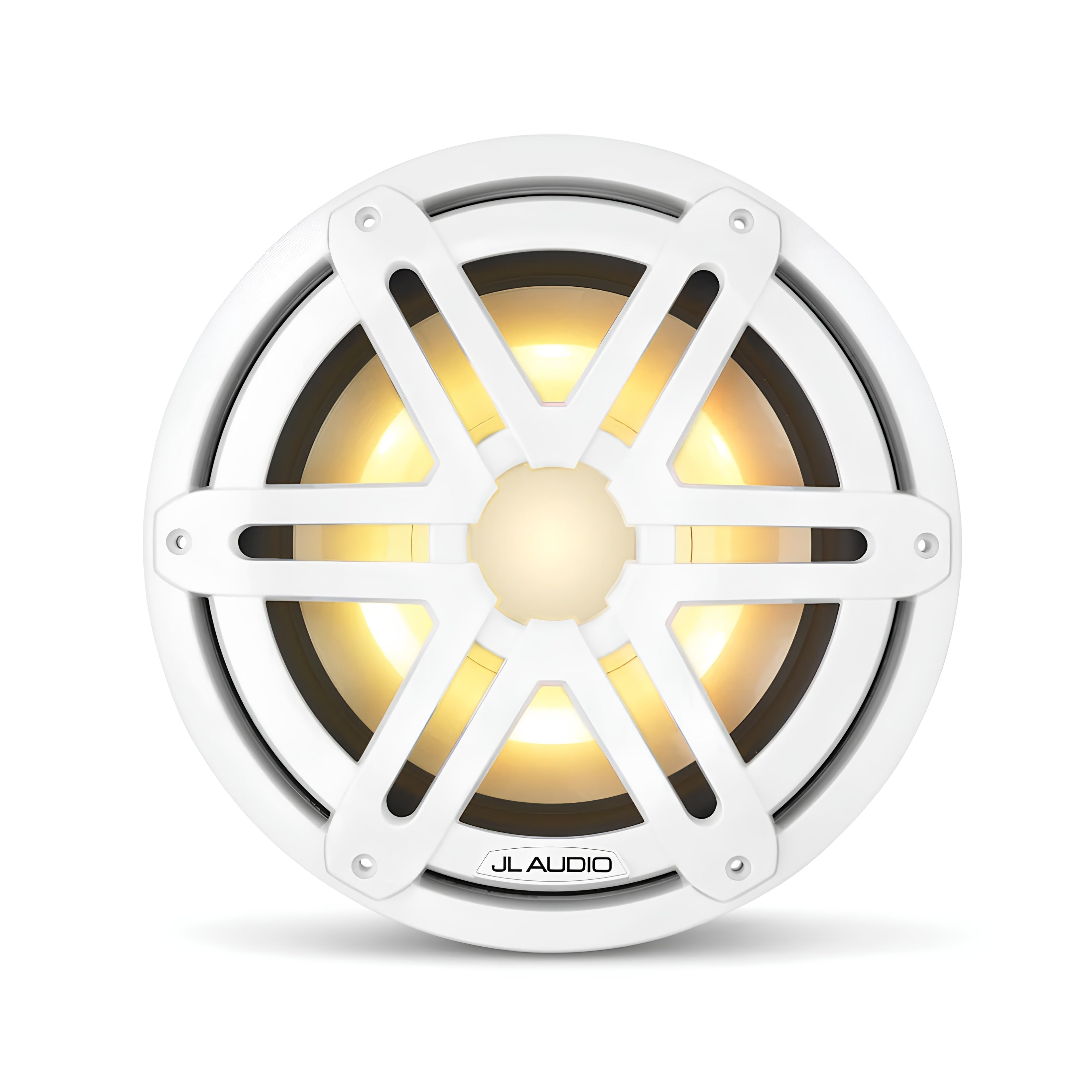

JL Audio JLA-010-03265-00 M3 Marine Subwoofer - 10" Marine Subwoofer with LED and White Sport Grille
Premium 10-inch marine subwoofer with integrated RGB LED lighting, infinite baffle design, and 175-watt power handling for powerful bass reproduction in traditional white marine styling.
Product Overview
The JL Audio M3 10" Marine Subwoofer (JLA-010-03265-00) delivers powerful, accurate bass reproduction specifically engineered for demanding marine environments with traditional white marine aesthetics. This premium marine subwoofer features a White Sport grille with integrated RGB LED lighting that creates impressive visual effects during evening operation while maintaining classic marine styling and delivering serious low-frequency performance. The infinite baffle design enables installation without requiring dedicated sealed or ported enclosures, simplifying installation by allowing free-air mounting in storage compartments, under seats, behind panels, or in any location with adequate rear volume. The mica-filled polypropylene cone resists UV degradation and saltwater corrosion while delivering excellent bass response and long excursion capability. Rated at 175 watts RMS continuous power handling with 50-175W recommended amplifier power, this subwoofer produces substantial bass output when properly powered. The 10.7mm one-way linear excursion (Xmax) enables deep, distortion-free bass reproduction even at higher volume levels. For sealed enclosure installations, the optimized 56.6-liter net internal volume delivers excellent transient response with 42.9 Hz F3 low-frequency extension. The 4-ohm nominal impedance matches standard monoblock marine amplifiers for optimal power transfer. Spade connector terminals provide secure connections resistant to marine vibration and corrosion. Sold individually with White Sport grille, stainless steel mounting hardware, RGB LED flying lead, and logo badge included, the M3 10" marine subwoofer with White Sport grille combines traditional marine appearance with modern LED lighting technology for powerful bass reproduction in boats prioritizing classic styling.
Features & Benefits
Infinite baffle design enables free-air installation without requiring sealed or ported enclosures, simplifying installation by allowing mounting in storage compartments, under seats, behind cabin panels, or any location with adequate rear volume (typically large enclosed spaces like engine compartments or cabin areas). Marine-grade construction features mica-filled polypropylene cone that resists UV degradation from sun exposure, saltwater corrosion, humidity, and temperature extremes, ensuring long-term performance and reliability in harsh marine environments. Integrated RGB LED lighting illuminates the White Sport grille with customizable colors (red, green, blue, and combinations), creating impressive visual effects that enhance boat aesthetics during evening operation while maintaining traditional white marine styling during daytime. White Sport grille provides timeless marine aesthetics that complement white gel coat hulls, white towers, and classic boat styling common throughout the marine industry. Substantial 175-watt RMS power handling with 50-175W recommended amplifier range accommodates everything from compact monoblock amplifiers to high-output marine subwoofer amplification for maximum bass impact. Generous 10.7mm one-way linear excursion (Xmax) enables deep, distortion-free bass reproduction by allowing large cone movement without exceeding mechanical limits, critical for producing powerful low-frequency output in outdoor marine environments. Well-damped infinite baffle parameters (Qts 0.754) ensure controlled bass response without excessive boominess when properly installed in adequate rear volume. Sealed enclosure compatibility with optimized 56.6-liter net internal volume delivers tight, accurate bass with 42.9 Hz F3 extension for installations where dedicated sealed enclosures are preferred. 4-ohm nominal impedance matches standard monoblock marine amplifiers and provides optimal power transfer for efficient bass reproduction. Spade connector terminals provide secure electrical connections that resist vibration and corrosion better than bare wire connections in marine environments. Low-profile grille protrusion (40mm / 1.58") minimizes installation depth requirements from mounting surface. Mounting dimensions accommodate 8.875" cutouts with 5" mounting depth clearance, fitting most marine subwoofer locations. Stainless steel mounting hardware resists saltwater corrosion for long-term secure installation.
Technical Specifications
| Specification |
Details |
| Model |
JLA-010-03265-00 M3 Marine Subwoofer |
| Configuration |
Infinite Baffle Marine Subwoofer |
| Subwoofer Size |
10 inches |
| Grille Style |
White Sport with RGB LED |
| LED Lighting |
RGB (red, green, blue) |
| Quantity |
1 subwoofer (sold individually) |
| Power Handling (RMS) |
175 watts |
| Recommended Amp Power |
50-175W RMS |
| Sensitivity |
87.23 dB @ 1W/1m |
| Nominal Impedance |
4 ohms |
| Cone Material |
Mica-filled polypropylene |
| One-Way Xmax |
10.7 mm (0.42 inches) |
| Free Air Resonance (Fs) |
41.84 Hz |
| Total Q (Qts) |
0.754 |
| Equivalent Volume (Vas) |
36.53 liters |
| Effective Piston Area (Sd) |
0.0327 m² |
| DC Resistance (Re) |
3.957 ohms |
| LED Supply Voltage |
10-14.4 VDC |
| LED Current Draw (Max) |
108 mA @ 14.4 VDC |
| Overall Diameter |
273 mm (10.75 inches) |
| Overall Depth |
203 mm (6.58 inches) |
| Mounting Depth Required |
127 mm (5.0 inches) |
| Grille Protrusion |
40 mm (1.58 inches) |
| Mounting Hole |
225 mm (8.875 inches) |
| Bolt Hole Circle |
247 mm (9.71 inches) |
| Driver Displacement |
0.052 cu ft (1.47 liters) |
| Sealed Enclosure Volume |
56.6 liters net internal |
| Sealed F3 (-3dB) |
42.9 Hz |
| Sealed Fc (resonance) |
53.66 Hz |
| Sealed Qtc |
0.967 |
| Speaker Connections |
Spade connectors |
| LED Connection |
Flying lead, 4-conductor 22 AWG |
| Weight |
2.94 kg (6.5 lbs) |
| Marine Environment |
UV and saltwater corrosion resistant |
| Warranty |
3 years |
| Included Accessories |
Grille (attached), 6x stainless screws, 6x stainless washers, logo badge |
Compatible With / Goes Well With
JL Audio Marine Amplifiers: MX Marine and Powersports Amplifiers - specifically MX300/1 or MX500/1 monoblocks for subwoofer amplification delivering 50-175W RMS, MVi Marine Amplifiers with dedicated subwoofer channels, MHD Marine Amplifiers, XDM Car and Marine Amplifiers, AP Amplifiers with subwoofer capability
JL Audio Source Units: MediaMaster 55 Stereo with external subwoofer amplification, MediaMaster 105 Stereo with dedicated subwoofer zone control for multi-zone bass management
JL Audio Marine Speakers: M3 Marine Speakers (6.5" or 7.7" models), M3 Enclosed Tower Speakers, VeX Enclosed System for complete full-range and bass reproduction throughout vessel
System Integration: Fusion Apollo MS-RA800 marine stereo for alternative source unit, RGB LED controllers for synchronized lighting effects with other boat lighting systems, M-RBC-1 or MHD-RLC remote bass controls for cockpit-accessible subwoofer level adjustment
Installation Applications: Free-air mounting in large storage compartments, under-seat installations with adequate rear volume, behind-panel cabin installations, sealed enclosure construction for optimized bass response, cockpit installations where bass reinforcement is needed
Installation Requirements: Monoblock amplification providing 50-175W RMS, 8.875" mounting hole cutout, minimum 5" clearance behind mounting surface, adequate rear volume for infinite baffle operation (large enclosed space) OR sealed enclosure construction per specifications (56.6L net internal volume), RGB LED controller for color selection and lighting effects (sold separately)
Frequently Asked Questions
What's the difference between White Sport and Grey Sport grille models? The White Sport and Grey Sport models are identical in audio performance, specifications, and LED functionality—the only difference is grille color. White Sport provides traditional marine aesthetics that complement white gel coat hulls, white towers, and classic boat styling common in the marine industry. Grey Sport offers modern contrast particularly for boats with grey or dark color schemes. Both feature RGB LED lighting with identical electrical specifications and lighting capabilities. Choose White Sport for traditional marine appearance that matches classic white boat styling; choose Grey Sport for contemporary aesthetics on boats with darker color schemes.
Can I use this subwoofer without building a sealed enclosure? Yes, the M3 10" is designed for infinite baffle installation, meaning you can mount it in a large enclosed space (storage compartment, under seat with cabin volume, engine compartment) without building a dedicated sealed enclosure. The rear volume of your boat's existing structure acts as the "enclosure." Ensure adequate rear volume (150-200+ liters minimum) and reasonable sealing between front and rear to prevent wave cancellation. However, building a dedicated sealed enclosure per specifications (56.6L net internal) provides optimized performance with tighter bass control and 42.9 Hz F3 extension for best results.
How does the White Sport grille with RGB LEDs look during daytime operation? During daytime, the White Sport grille maintains professional, traditional marine appearance identical to classic white marine subwoofer grilles. The RGB LEDs are not visible when unpowered or during bright sunlight, preserving clean aesthetics. The white grille blends seamlessly with white gel coat hulls and white interior appointments. At night or in low-light conditions, the RGB LEDs illuminate the grille with customizable colors, transforming appearance from traditional daytime styling to modern illuminated aesthetics during evening operation—providing best of both worlds for owners wanting traditional appearance with modern lighting capability.
What monoblock amplifier do you recommend for this subwoofer? For optimal performance, the JL Audio MX500/1 monoblock amplifier (500W @ 2Ω, 300W @ 4Ω) provides excellent power matching, delivering clean power within the 50-175W recommended range while providing headroom for dynamic bass transients. The MX300/1 (300W @ 2Ω, 160W @ 4Ω) also works well for moderate bass output applications. Both MX monoblocks feature IPX7 waterproof rating, compact dimensions ideal for marine installations, and M-RBC-1 remote bass control compatibility for cockpit adjustment. Pair 4-ohm subwoofer impedance with monoblock 4-ohm output for proper impedance matching and maximum power transfer within the 175W RMS handling limit.
Can I install two of these subwoofers for increased bass output? Yes, dual 10" M3 subwoofers provide significantly greater bass output and lower distortion at high volumes compared to a single subwoofer. Wire two 4-ohm subwoofers in parallel for 2-ohm total load, requiring monoblock amplification stable at 2 ohms delivering up to 350W total (175W per subwoofer). Alternatively, wire in series for 8-ohm load if your amplifier is not 2-ohm stable. Dual subwoofers also improve bass distribution throughout the boat and reduce individual driver excursion at any given output level, extending reliability. Ensure your monoblock amplifier can handle the combined impedance load and total power requirements.
