Description

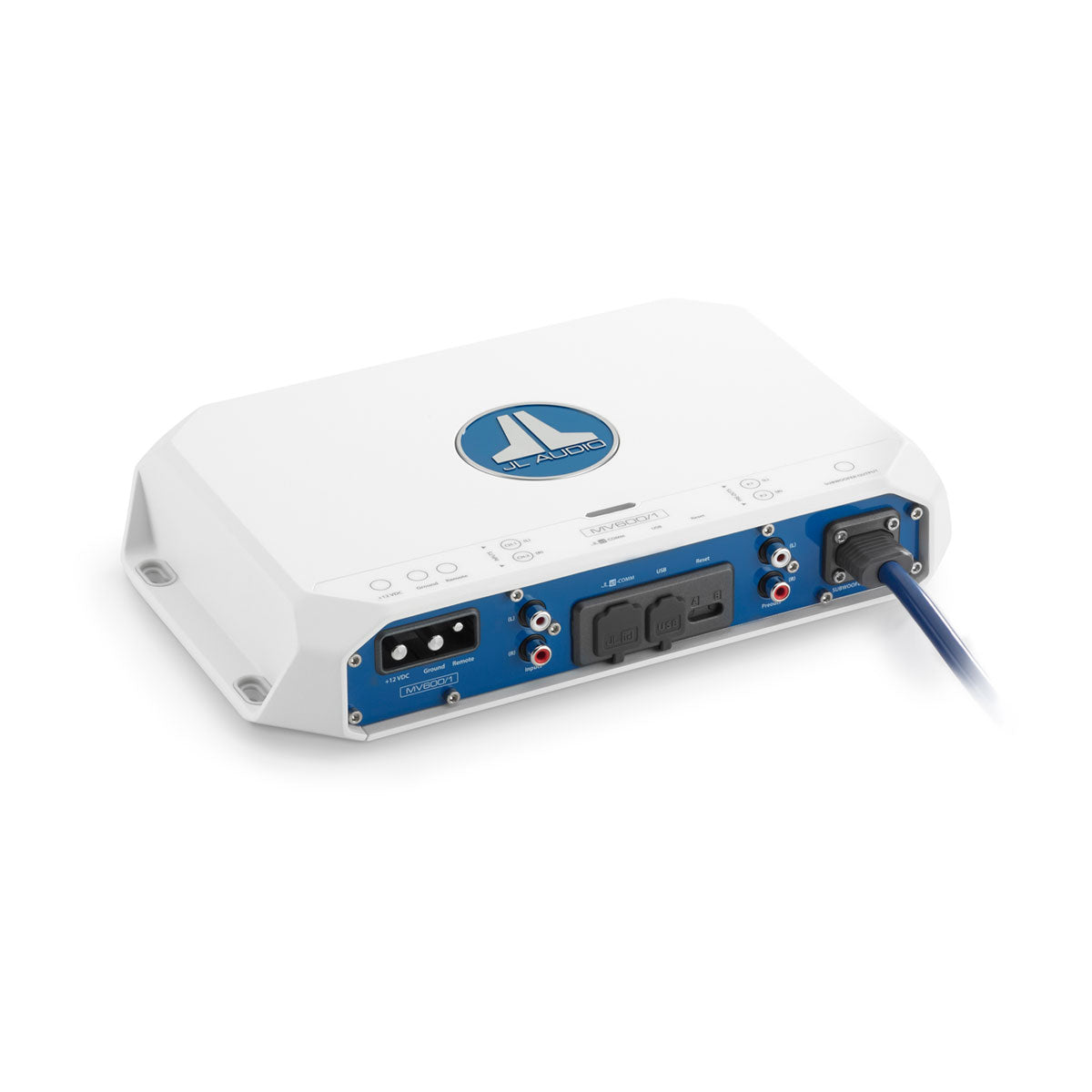

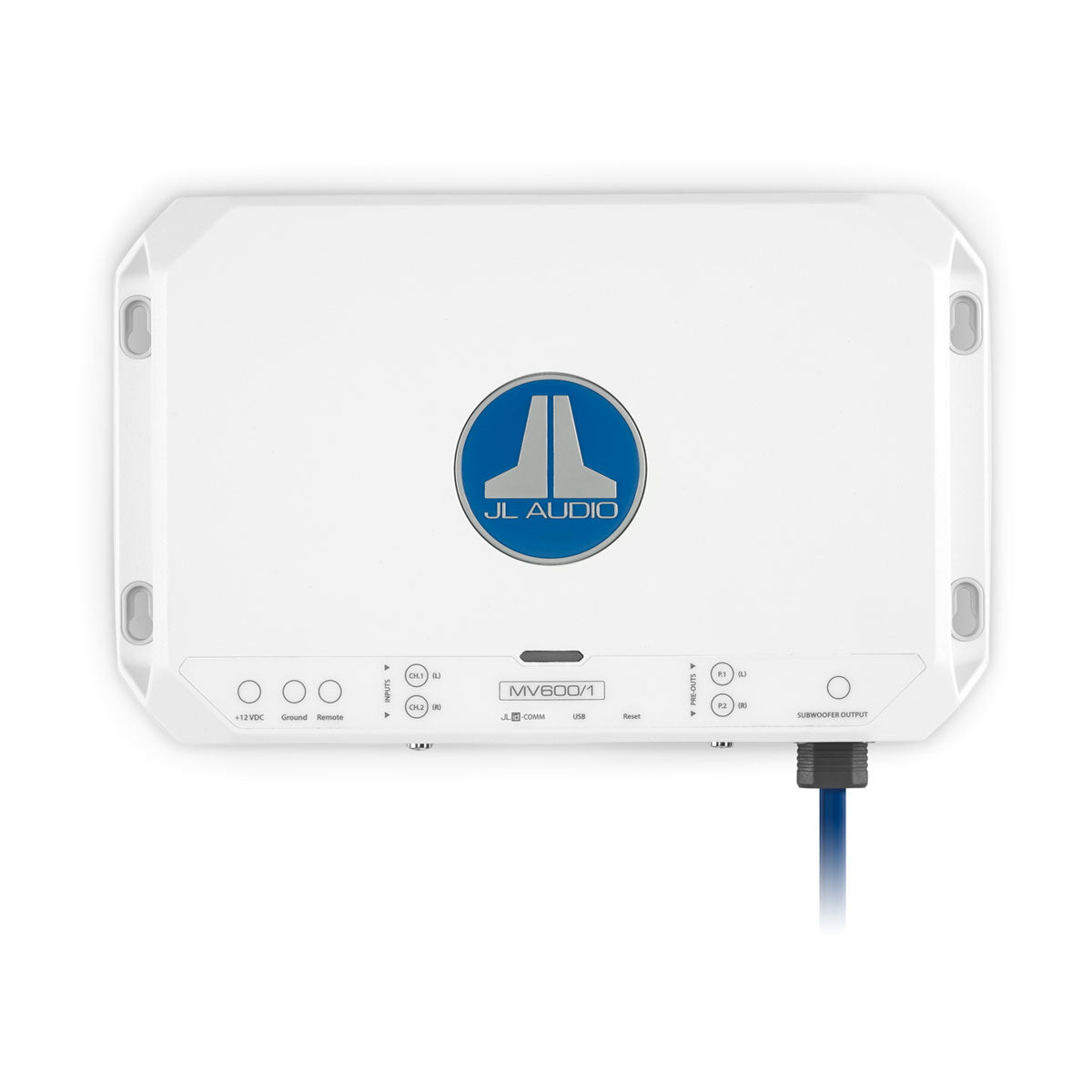

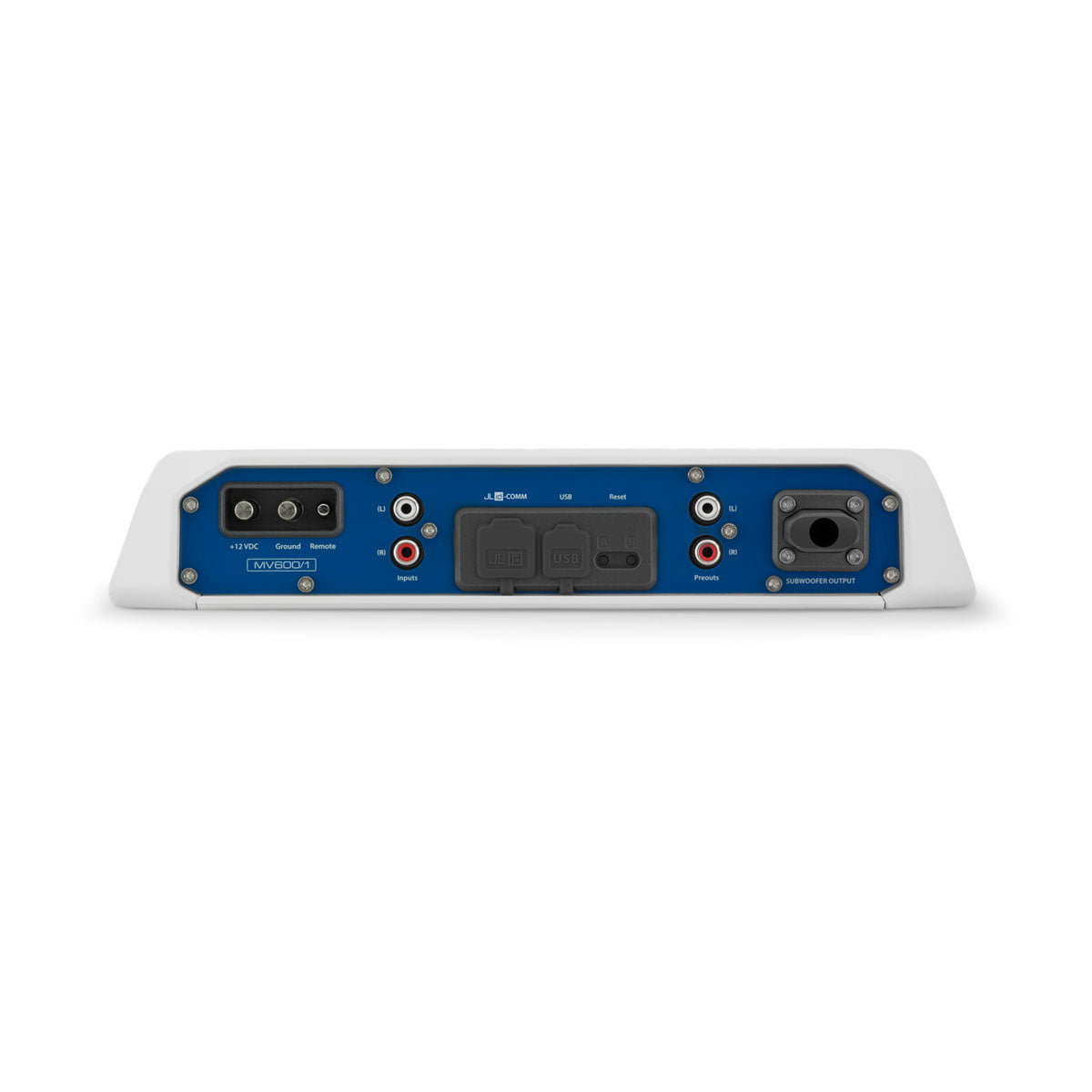

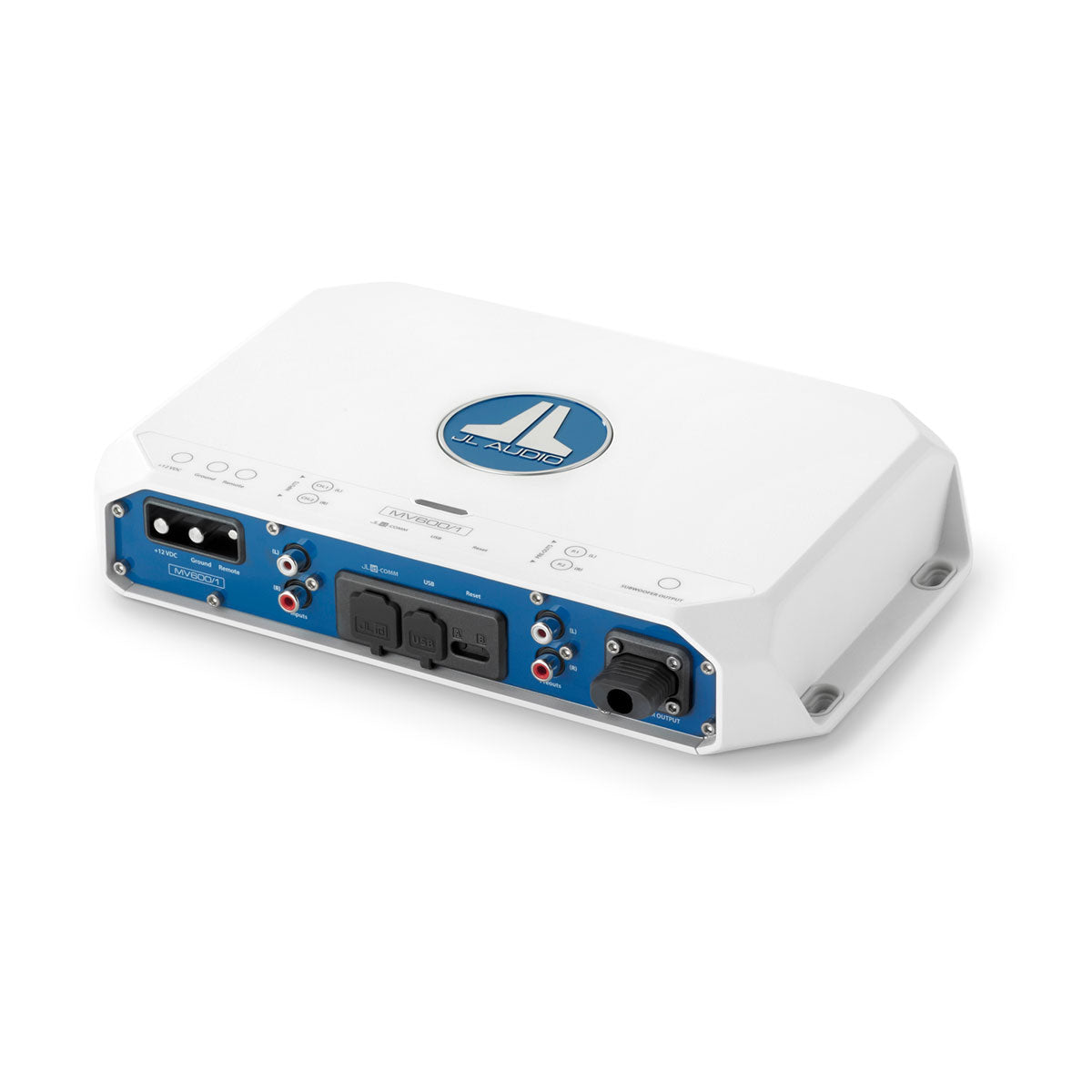

JL Audio JLA-010-03334-00 MVi Marine Amplifier - Monoblock Car and Marine Subwoofer Amplifier
Compact monoblock marine subwoofer amplifier with intelligent DSP control and IPX2 weather protection for powerful bass in space-limited installations.
Product Overview
The JL Audio MVi Monoblock 600W Marine Amplifier (JLA-010-03334-00) delivers dedicated subwoofer power in a compact chassis designed specifically for space-constrained marine and automotive installations. This Class D monoblock amplifier combines 600 watts of output capability with advanced digital signal processing to provide exceptional low-frequency performance and reliability in harsh environments. The IPX2-rated enclosure protects sophisticated circuitry from marine moisture and splashing, while the smaller footprint (11.20" width) enables installation in tight spaces where larger amplifiers won't fit. USB connectivity enables precise tuning via JL Audio's TüN software, allowing optimization of subsonic filters, crossovers, and equalization for your specific subwoofer and vessel acoustics. With frequency response optimized for subwoofer duty (12 Hz-500 Hz) and excellent damping factor for tight bass control, this amplifier delivers professional-grade low-end response. Compatible with JL Audio's complete range of marine subwoofers including M3, M6, M6 Thin-Line, and M7 models, the MVi 600W monoblock provides the foundation for serious boat audio that thrives in saltwater conditions.
Features & Benefits
The 600-watt monoblock configuration delivers 600 watts RMS at 2 ohms (500W at 12.5V input) or 400 watts at 4 ohms, providing substantial power for single or dual subwoofer installations in a compact package. Class D amplification achieves maximum efficiency with minimal heat generation, essential for enclosed marine installations where ventilation is limited and space is at a premium. Advanced digital signal processing through USB connectivity allows precise tuning of subsonic filters, low-pass crossovers, equalization, phase adjustment, and output levels specifically for your subwoofer and boat acoustics. The frequency response optimized for bass reproduction (12 Hz-500 Hz) ensures energy is focused where subwoofers need it most. Strong damping factor exceeding 125 at both 4 and 2 ohms provides firm control over subwoofer cone movement for articulate, punchy bass response without sloppiness. IPX2 water and dust rating protects against splashing and marine moisture when mounted vertically with connections downward. Compact chassis dimensions (11.20" x 2.05" x 6.93") and lighter weight (5.0 lbs) enable installation in locations where full-size amplifiers cannot fit, such as under seats, behind panels, or in small storage compartments.
Technical Specifications
| Specification |
Details |
| Model |
JLA-010-03334-00 MVi Marine Amplifier |
| Configuration |
Monoblock Subwoofer Amplifier |
| Amplifier Class |
Class D |
| Power @ 14.4V / 4Ω |
400W RMS x 1 channel |
| Power @ 14.4V / 2Ω |
600W RMS x 1 channel |
| Power @ 12.5V / 4Ω |
300W RMS x 1 channel |
| Power @ 12.5V / 2Ω |
500W RMS x 1 channel |
| Total System Power |
600 watts |
| Frequency Response |
12 Hz - 500 Hz (+0/-1dB) |
| Signal-to-Noise Ratio |
90 dB (analog inputs, rated power) |
| SNR @ 1W |
64 dB (analog inputs) |
| THD+N @ Rated Power |
<1% @ 2Ω |
| Damping Factor |
>125 @ 4Ω, >125 @ 2Ω (50 Hz) |
| Input Voltage Range |
250 mV - 8V RMS (RCA) |
| Operating Voltage |
10-15 VDC |
| Water/Dust Rating |
IPX2 (vertical mount) |
| Fuse Rating |
50A |
| Recommended Fuse Type |
AFS, AGU, or MaxiFuse™ |
| Min. Wire Gauge |
4 AWG (power/ground) |
| Dimensions (W x H x D) |
285 x 52 x 176 mm (11.20" x 2.05" x 6.93") |
| Weight |
2.27 kg (5.0 lbs) |
| Warranty |
3 years |
| Included Accessories |
Power connector, speaker harnesses, 6ft USB cable, RCA covers, mounting hardware, Allen wrenches |
Compatible With / Goes Well With
JL Audio Marine Subwoofers: M3 Marine Subwoofer, M6 Marine Subwoofer, M6 Marine Thin-Line Subwoofer, M7 Marine Subwoofer (single or dual configurations), VeX Enclosed System
JL Audio Source Units: MediaMaster 55 Stereo, MediaMaster 105 Stereo, JL Audio Receivers for signal source and system integration
System Components: JLid Communication and Network Bridge (MVi-HUB) for multi-amplifier networking, zone control, and advanced system management when combined with additional MVi amplifiers
Installation Requirements: 4 AWG copper power and ground wiring, 50A fuse (AFS/AGU/MaxiFuse), vertical mounting location with downward-facing connections for IPX2 rating, PC/Mac with USB for TüN software tuning, sealed or ported subwoofer enclosure matched to amplifier power output
Frequently Asked Questions
What's the main advantage of this 600W model compared to the 1000W version? The 600W model offers a significantly smaller footprint (11.20" vs 13.96" width) and lighter weight (5.0 lbs vs 5.6 lbs), enabling installation in space-constrained locations like under seats, behind small access panels, or in compact storage compartments where the larger 1000W amplifier won't fit. It also requires less electrical current (50A vs 80A fuse), reducing wiring and electrical system demands while still providing substantial subwoofer power for most marine applications.
Can this amplifier power two marine subwoofers effectively? Yes, wire two 4-ohm subwoofers in parallel for a 2-ohm load delivering 600W total, or two 2-ohm subs in series for 4 ohms and 400W. For a single 10-inch or 12-inch marine subwoofer, 600 watts provides excellent output. For dual subwoofer configurations, ensure combined power handling exceeds amplifier output and that each subwoofer can handle its share of divided power (300W each at 2-ohm parallel, 200W each at 4-ohm series).
Is 600 watts sufficient for outdoor marine audio where bass can be lost to wind and water? Absolutely. When properly installed in an appropriate enclosure and tuned correctly, 600 watts provides substantial bass output for most recreational boats. The key is proper enclosure design, subwoofer selection, and DSP tuning. A well-tuned 600W system with quality marine subwoofers often outperforms poorly tuned 1000W+ systems. The MVi's advanced DSP capabilities through TüN software ensure you're extracting maximum performance from available power.
What makes this suitable for both car and marine applications? The IPX2 water resistance protects against splashing in both marine and automotive environments (particularly open vehicles, convertibles, or car wash exposure). The compact dimensions suit tight installation spaces common in both boats and vehicles. The 10-15 VDC operating voltage matches standard 12V electrical systems in cars and boats. However, the conformal coating, marine-grade hardware, and enhanced corrosion resistance make it particularly well-suited for saltwater marine applications where standard car amplifiers would quickly corrode.
How does the smaller size affect heat dissipation and reliability? Class D amplifier technology operates at 80-90% efficiency, generating minimal heat regardless of chassis size. The compact design incorporates adequate heatsinking for the 600W output level. The smaller thermal load compared to the 1000W model actually benefits reliability in enclosed spaces. When mounted vertically with proper clearance (recommended 2-3 inches on all sides), the amplifier dissipates heat effectively without requiring external cooling fans or elaborate ventilation systems.
