Description

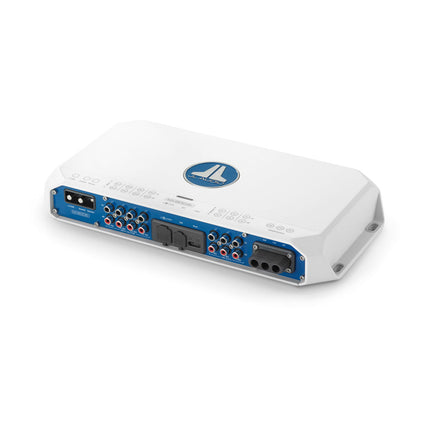

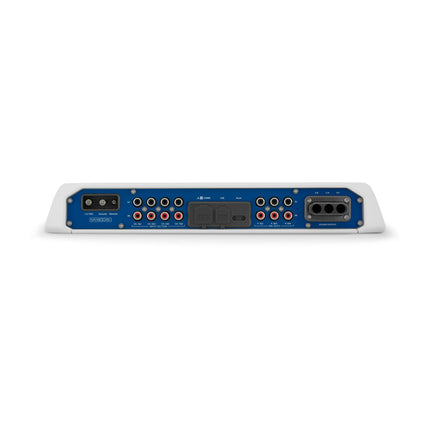

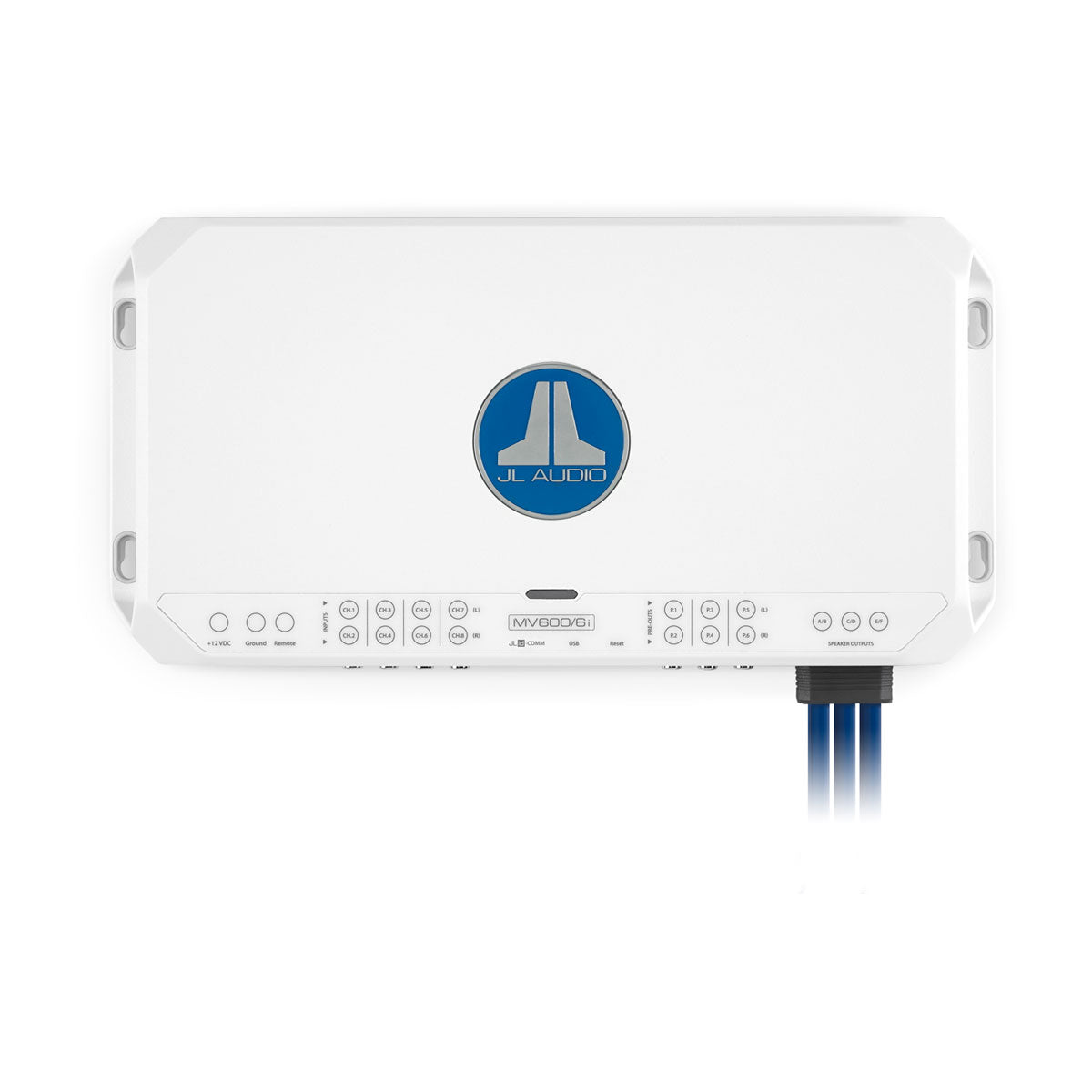

JL Audio JLA-010-03338-00 MVi Marine Amplifier - 6 Channel Full-Range Car and Marine Amplifier
Professional DSP-equipped multi-zone amplification with advanced tuning capability — MVi 6-channel amplifier delivers 100 watts per channel with integrated digital signal processing and USB computer tuning for precision six-speaker or three-zone audio system optimization across Australian offshore vessels.
Product Overview
The JL Audio MVi 6-channel marine amplifier delivers professional-grade audio amplification with integrated digital signal processing featuring 100 watts RMS per channel at 2Ω impedance (75W @ 4Ω) and 200 watts bridged capability per pair for total 600-watt system power output across six independent channels. Designed with IPX2 water and dust ingress protection when mounted vertically with connections pointed downward, this Class-D amplifier features comprehensive DSP functionality including parametric equalization, time alignment, crossover control, and system tuning accessible via USB computer connectivity. Operating across 10-15V DC voltage range with advanced thermal management and chassis dimensions (355mm x 176mm x 52mm), the MVi enables professional installation in equipment compartments, helm consoles, or below-deck locations. Compatible with JL Audio MediaMaster source units, M3/M6/M7 marine speakers, marine subwoofers, and MVi-HUB communication bridge for networked multi-amplifier systems, this amplifier serves recreational boats, fishing vessels, and marine audio installations requiring six-speaker configuration, three-zone audio distribution, or bi-amped three-speaker systems with three-year warranty coverage across Australian waters.
Features & Benefits
Six-Channel Versatility: 6-channel architecture delivers 100W x 6 RMS at 2Ω enabling diverse system configurations including six independent speakers for helm/cockpit/cabin/tower coverage, three-zone audio distribution (2 channels per zone), bi-amped three-speaker systems, or three bridged pairs at 200W each for high-power applications with DSP optimization per channel.
Integrated Digital Signal Processing: Comprehensive DSP functionality includes 8-band parametric EQ per channel, adjustable crossovers (high-pass/low-pass/band-pass), time alignment up to 10 milliseconds, phase control, and signal routing enabling precision acoustic tuning matching vessel-specific acoustics, speaker characteristics, and multi-zone listening environment optimization impossible with analog amplifiers.
Multi-Zone Audio Distribution: Six independent channels enable professional three-zone audio distribution with two channels per zone (helm, cockpit, cabin) featuring independent volume control, source selection, and DSP optimization per zone, simplifying complex marine audio installations requiring simultaneous different content across multiple vessel areas.
USB Computer Tuning Interface: Included 6-foot USB A/B cable enables connection to Windows/Mac computers running JL Audio tuning software providing graphical interface for adjusting all DSP parameters, creating system presets, monitoring real-time signal levels, and storing custom configurations for professional system optimization across all six channels.
IPX2 Environmental Protection: Water and dust ingress protection (when mounted vertically with connections downward) withstands marine spray, humidity, and environmental exposure common in equipment compartments and helm console installations, ensuring reliable operation in demanding saltwater conditions without requiring additional protective enclosures across Australian coastal environments.
MVi-HUB Network Compatibility: Optional MVi-HUB communication bridge enables networked multi-amplifier systems with centralized control, coordinated DSP processing, and system-wide configuration management across multiple MVi amplifiers for complex multi-zone marine audio installations requiring professional integration capabilities beyond single-amplifier coverage.
Technical Specs
| Specification |
Details |
| Model |
MVi 6-Channel (600W Total) |
| Amplifier Class |
Class-D |
| Channels |
6-channel full-range |
| RMS Power @ 4Ω |
75W x 6 (14.4V input, <1% THD) |
| RMS Power @ 2Ω |
100W x 6 (14.4V input, <1% THD) |
| Bridged Power @ 4Ω |
200W x 3 (pairs bridged) |
| Total Power Output |
600W RMS maximum |
| Operating Voltage |
10-15V DC |
| Physical Dimensions |
355mm W x 176mm D x 52mm H (13.96" x 6.93" x 2.05") |
| Weight |
2.54 kg (5.6 lbs) |
| Water/Dust Rating |
IPX2 (vertical mount, connections downward) |
| Signal-to-Noise Ratio |
99 dB below rated power (A-weighted) |
| Damping Factor @ 4Ω |
>100 at 50 Hz |
| THD+N @ Rated Power |
<1% @ 2Ω per channel |
| Frequency Response |
12 Hz - 24 kHz (+0, -1dB) |
| Input Voltage Range |
250mV - 16V RMS |
| DSP Features |
8-band parametric EQ, crossovers, time alignment, phase control |
| Tuning Interface |
USB computer connectivity |
| Network Capability |
MVi-HUB compatible |
| Fuse Rating |
50 amps |
| Recommended Fuse Type |
AFS, AGU, or MaxiFuse |
| Power Wire Gauge |
Minimum 4 AWG copper |
| Included Accessories |
USB cable, power connector, speaker harnesses, mounting hardware |
| Warranty |
3 years manufacturer warranty |
Compatible With / Goes Well With
JL Audio Marine Speakers: M3 marine speakers (6.5", 7.7", 8.8" coaxials), M6 marine speakers (6.5", 7.7", 8.8" coaxials), M3/M6 enclosed tower speakers receiving 75-100W RMS per speaker across six channels for comprehensive helm, cockpit, cabin, and tower speaker coverage.
JL Audio Marine Subwoofers: M3 marine subwoofers, M6 marine subwoofers, M7 marine subwoofers running in bridged mode (200W x 3 @ 4Ω) for triple subwoofer configurations or bi-amped speaker/subwoofer systems across multiple zones.
JL Audio Source Units: MediaMaster 105 marine stereo, MediaMaster 55 marine stereo, JL Audio marine receivers with multi-zone preamp outputs providing high-voltage signal transmission for optimal noise rejection and amplifier matching.
MVi-HUB Communication Bridge: JLid communication and network bridge (MVi-HUB) enabling networked multi-amplifier systems with centralized control, coordinated DSP processing, and system-wide configuration management for complex installations.
Installation Accessories: Marine-grade amplifier wiring kits (4-gauge minimum), 50A fuses (AFS/AGU/MaxiFuse), marine distribution blocks, waterproof RCA cables, sealed wire connectors, laptop computer for DSP tuning and system optimization.
Frequently Asked Questions
What computer software is required to access the DSP tuning features? JL Audio provides free Windows and Mac compatible tuning software downloadable from their website. Connect the included USB cable between amplifier and computer to access comprehensive DSP controls including parametric EQ, crossovers, time alignment, and all system parameters through graphical user interface across all six channels.
Can I use this amplifier for three-zone audio distribution on my boat? Yes, the 6-channel configuration is ideal for three-zone systems with two channels per zone (helm, cockpit, cabin). Each zone can have independent DSP tuning, volume control, and speaker optimization. Use source unit zone outputs or MVi-HUB for advanced multi-zone control with different content per zone.
How does the 6-channel compare to using two separate amplifiers? The 6-channel MVi consolidates all amplification into single chassis reducing installation complexity, equipment costs, power/ground wiring, and space requirements. Integrated DSP enables coordinated tuning across all channels impossible with separate amplifiers, while maintaining identical per-channel power output and audio quality specifications.
What does IPX2 rating mean and how should I mount the amplifier? IPX2 protection guards against water drops falling at angles up to 15 degrees from vertical when amplifier is mounted vertically with connections pointed downward. This configuration allows water drainage away from connections while protecting against dripping water and condensation in equipment compartments.
Do I need the MVi-HUB for basic operation or is it only for multi-amplifier systems? The MVi-HUB is optional and only required for networked multi-amplifier installations or advanced multi-zone control with different sources per zone. Single MVi amplifiers operate independently with full DSP functionality via direct USB connection to computer for tuning. MVi-HUB adds centralized control for complex systems.
