Description

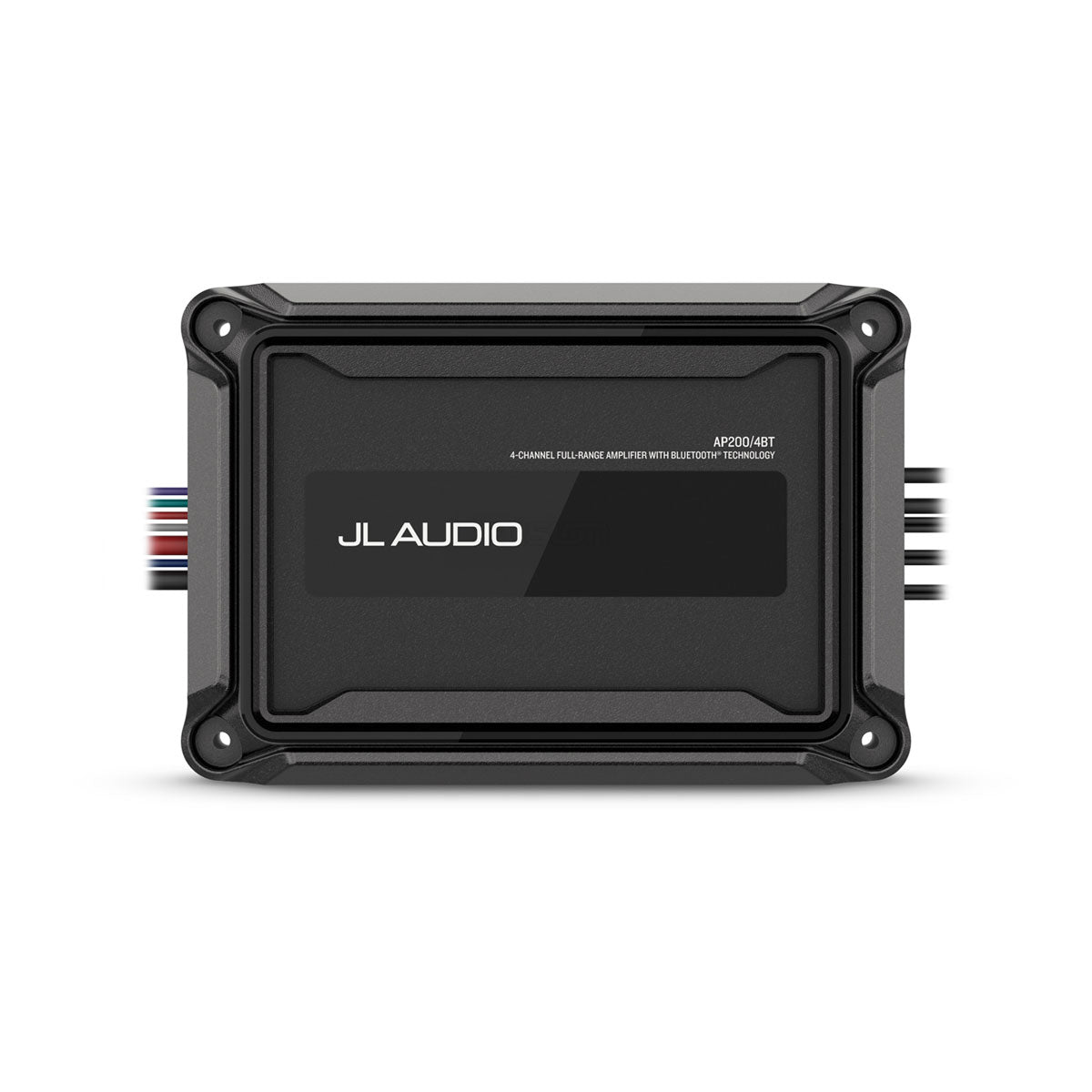

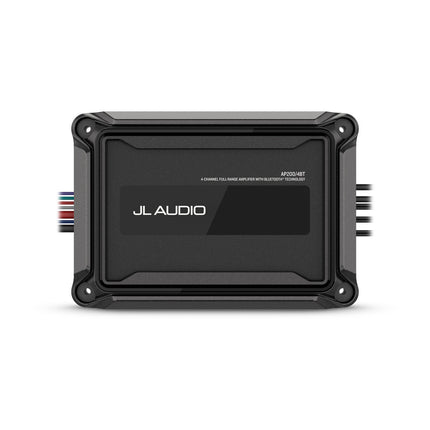

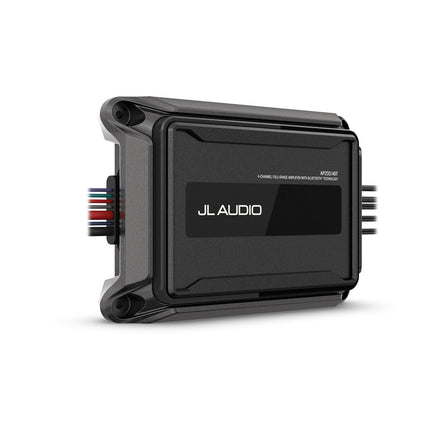

JL Audio JLA-010-03431-00 AP 4-Channel Compact Marine Amplifier - Premium Bluetooth-Enabled Marine Amplifier with IP67 Water and Dust Protection, 40W x 4 RMS Class-D Amplification, 100W x 2 Bridged Output, Adjustable Bass Boost EQ, Wireless Remote Controller, Ultra-Compact Design, Surface and Flush Mounting Options, and Professional Marine Audio Performance for Space-Efficient Boat Audio Installations
Achieve powerful efficient marine amplification in ultra-compact form using JL Audio JLA-010-03431-00 AP 4-Channel Compact Marine Amplifier—featuring innovative Bluetooth wireless technology enabling wireless audio streaming directly to amplifier without requiring separate source unit for standalone marine audio system configurations or supplemental streaming capability alongside traditional source units, robust IP67 water and dust protection rating ensuring complete dust-tight seal and protection against powerful water jets from any direction safeguarding internal electronics from harsh saltwater spray, moisture intrusion, and environmental exposure, substantial 40W x 4 RMS continuous power output at 4-ohm loads (14.4V input with less than 1% THD) providing sufficient amplification for four marine speakers or two-channel configurations, enhanced 50W x 4 RMS output at 2-ohm loads accommodating low-impedance speakers for increased power delivery, flexible 100W x 2 RMS bridged output capability combining channels for two-channel high-power applications or dedicated subwoofer driving requiring substantial bass amplification, advanced Class-D amplifier topology delivering exceptional power efficiency reducing heat generation and current draw enabling compact dimensions and reliable operation in confined marine equipment compartments where traditional Class AB amplifiers impractical, ultra-compact dimensions (185mm width x 125mm depth x 47mm height / 7.28" x 4.9" x 1.86") significantly smaller than traditional marine amplifiers enabling installation in tight spaces, under helm panels, behind dash areas, or small equipment compartments where conventional amplifiers cannot fit, adjustable bass boost EQ providing 0 to +18dB gain at 37Hz enhancing low-frequency response for systems requiring additional bass impact without dedicated subwoofers or supplementing existing subwoofer systems, included wireless remote controller enabling convenient volume adjustment, source selection, and system control from dash-mounted or panel-mounted location with flush or surface mounting options, comprehensive installation hardware package including surface mounting cup with screws, amplifier mounting hardware, flush mounting template for remote controller, waterproof gasket for remote controller, and complete documentation, wide input sensitivity range (200mV-8V RMS) with switchable low (200mV-2V RMS) and high (800mV-8V RMS) settings accommodating various source unit output levels, excellent signal-to-noise ratio (>70dB referred to 1W, A-weighted, 20Hz-20kHz) ensuring clean amplification with minimal background noise, full-range frequency response (20Hz-20kHz, +0/-1dB) delivering accurate reproduction across entire audible spectrum from deep bass to high treble, extensive protection circuits including input under/over voltage protection, over-temperature protection, and output short circuit protection safeguarding amplifier and connected speakers from damage, wide operating voltage range (9-16 VDC) accommodating standard 12V marine electrical systems with tolerance for voltage fluctuations, extreme operating temperature range (-20°C to 65°C / -4°F to 149°F) ensuring reliable performance from cold winter storage to hot summer operation in exposed marine environments, minimal standby current consumption (<1mA) preventing battery drain when system powered but not actively playing, efficient idle current draw (700-750mA) minimizing electrical system impact during operation, 35A fuse protection with compatibility for AFS, AGU, or MaxiFuse types, 4 AWG minimum copper power and ground wire gauge recommendations ensuring adequate current delivery and voltage stability, extensive compatibility with premium marine speaker brands including Fusion EL Series, FM Series, SM Series, XS Series marine speakers and subwoofers, JL Audio M3 Marine Speakers, M3 Marine Subwoofers, and M3 Enclosed Tower Speakers, three-year manufacturer warranty demonstrating JL Audio confidence in product reliability and construction quality, and proven JL Audio marine audio engineering delivering professional-grade compact amplification solution for recreational boats, fishing vessels, pontoon boats, center console boats, personal watercraft, sailing yachts, and space-constrained marine applications requiring powerful reliable amplification with Bluetooth streaming capability, IP67 environmental protection, and flexible installation options in ultra-compact form factor.
Product Overview
JL Audio JLA-010-03431-00 AP 4-channel compact marine amplifier with Bluetooth technology, IP67 water/dust rating, 40W x 4 RMS @ 4 ohm (50W x 4 @ 2 ohm), 100W x 2 bridged, Class-D efficiency, bass boost EQ, and wireless remote controller. Ultra-compact marine amplifier delivering professional performance in space-efficient design.

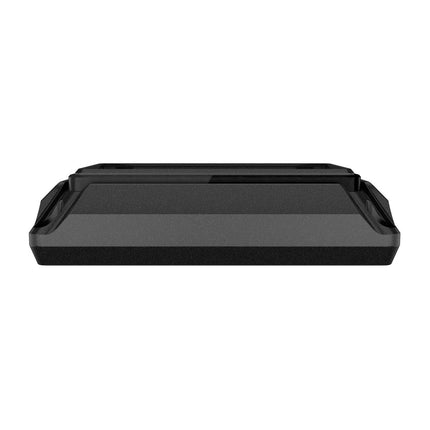

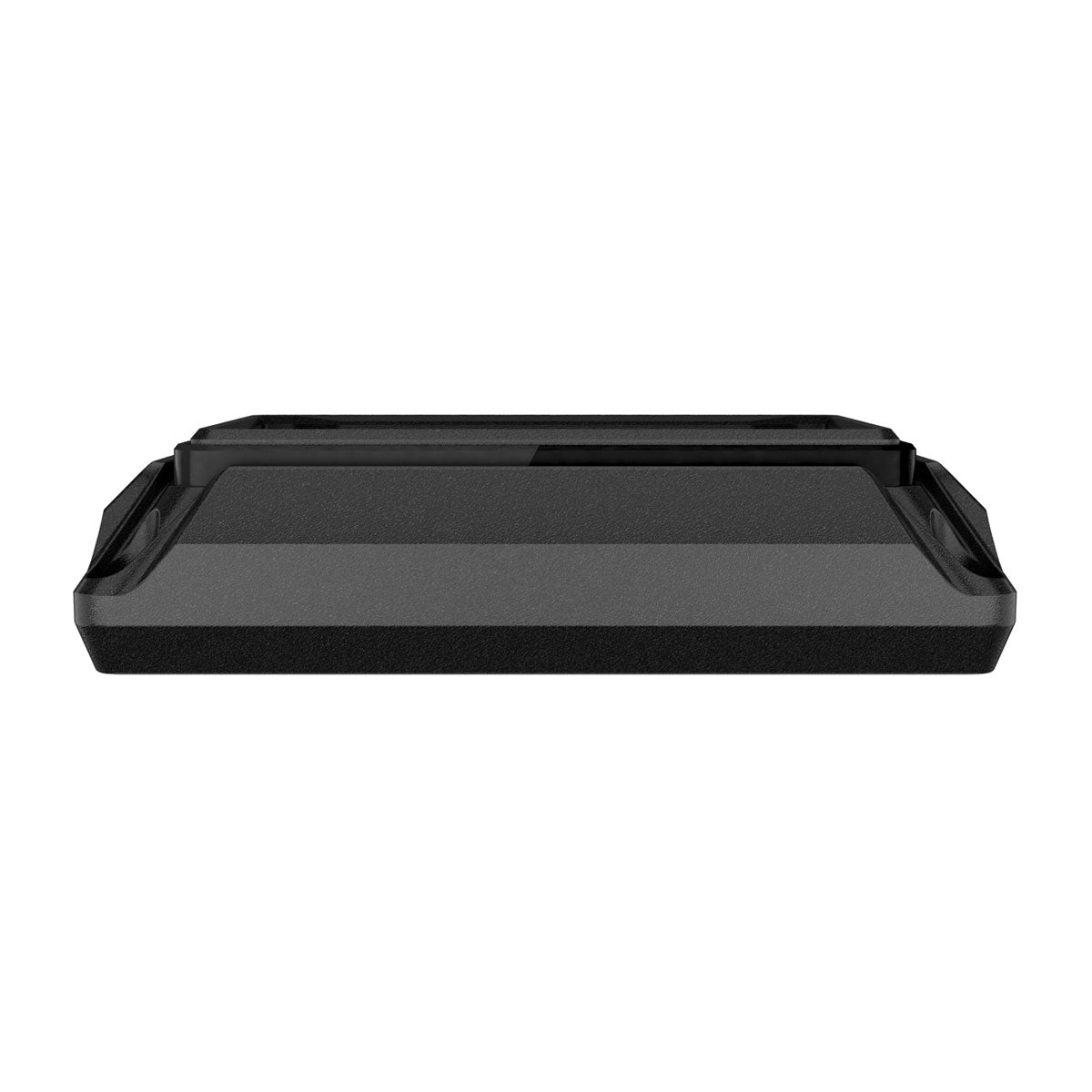

Ultra-compact dimensions (185mm x 125mm x 47mm / 7.28" x 4.9" x 1.86") significantly smaller than traditional marine amplifiers. Enables installation in tight spaces under helm panels, behind dash areas, small equipment compartments, or confined locations where conventional amplifiers cannot fit. Compact form factor does not compromise performance or reliability.
IP67 water and dust protection rating provides complete dust-tight seal and protection against powerful water jets from any direction. Suitable for exposed marine installations, equipment compartments with moisture exposure, or locations experiencing saltwater spray. IP67 certification ensures reliable operation in harsh marine environments.
Advanced Class-D amplifier topology delivers exceptional power efficiency reducing heat generation compared to traditional Class AB designs. Lower heat output enables compact dimensions, reduces cooling requirements, and improves reliability in confined spaces. Efficient operation minimizes current draw from vessel electrical system.
Substantial power output: 40W x 4 RMS @ 4 ohm (14.4V input, <1% THD) for four-channel speaker configurations, 50W x 4 RMS @ 2 ohm for enhanced output with low-impedance speakers, 100W x 2 RMS bridged combining channels for two-channel high-power applications or dedicated subwoofer driving.
Bluetooth wireless technology enables direct audio streaming to amplifier without separate source unit. Standalone marine audio system configurations using smartphones or tablets as audio source. Supplemental streaming capability alongside traditional wired source units. Wireless convenience eliminating cable connections for portable devices.
Adjustable bass boost EQ provides 0 to +18dB gain at 37Hz. Enhances low-frequency response for systems without dedicated subwoofers. Supplements existing subwoofer systems requiring additional bass impact. Adjustable from no boost (flat response) to maximum +18dB at 37Hz enabling customized bass response.

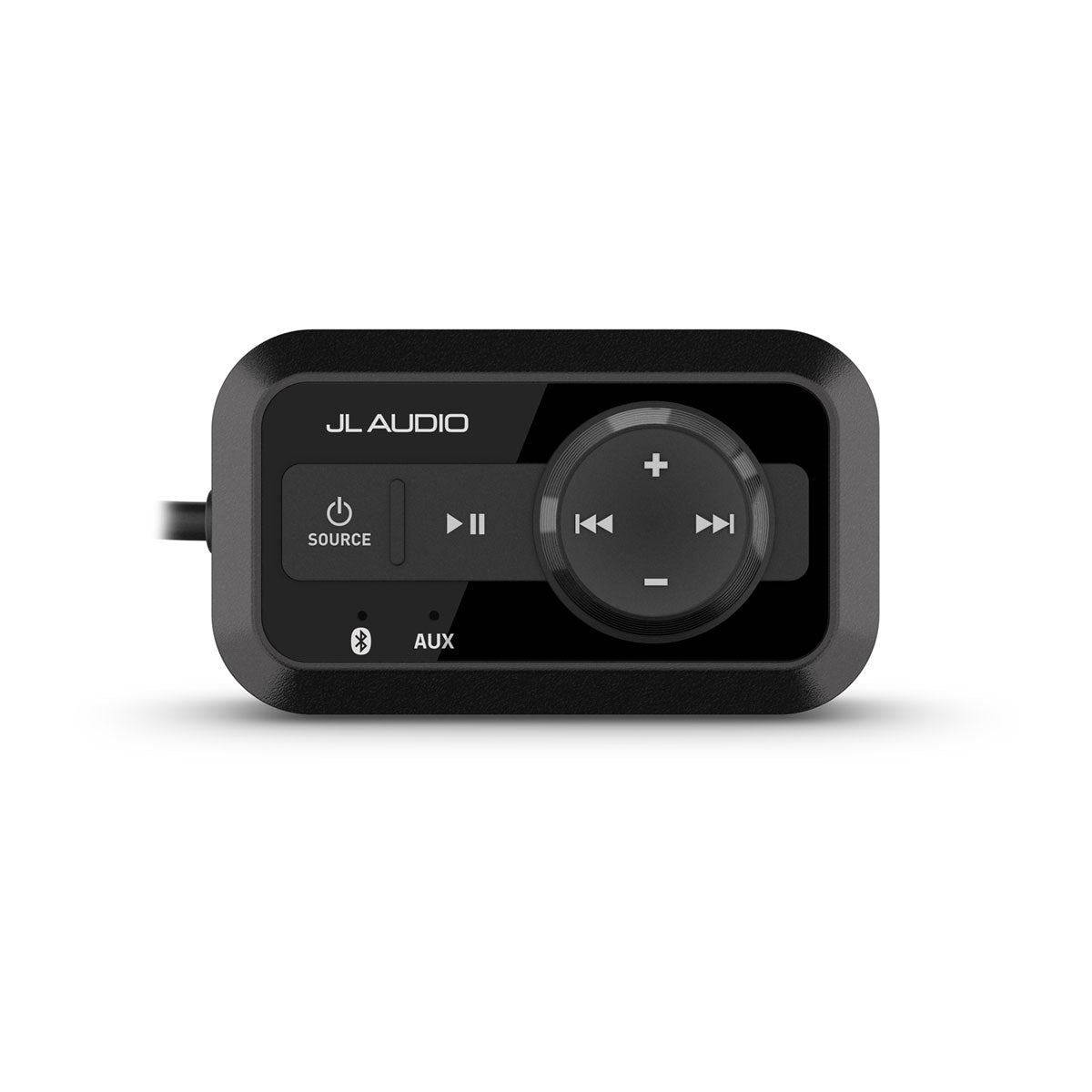

Included wireless remote controller provides convenient dash-mounted or panel-mounted control. Volume adjustment, source selection, system control from accessible location. Flush mounting option with included template and waterproof gasket for clean integrated appearance. Surface mounting option with included cup for simpler installation. Remote eliminates need to access amplifier location for adjustments.
Wide input sensitivity range (200mV-8V RMS) with switchable settings. Low setting (200mV-2V RMS) for aftermarket source units with standard output levels. High setting (800mV-8V RMS) for OEM source units or high-output aftermarket units. Switchable sensitivity accommodates various source equipment without requiring additional adapters.
Excellent signal-to-noise ratio (>70dB) ensures clean amplification with minimal background noise. Full-range frequency response (20Hz-20kHz, +0/-1dB) delivers accurate reproduction across entire audible spectrum. Professional audio performance maintaining signal fidelity throughout amplification process.
Comprehensive protection circuits: input under/over voltage protection preventing damage from electrical system fluctuations, over-temperature protection shutting down amplifier if excessive heat detected, output short circuit protection safeguarding amplifier and speakers from wiring faults or speaker failures.
Wide operating voltage range (9-16 VDC) accommodates 12V marine electrical systems with tolerance for voltage variations. Extreme operating temperature range (-20°C to 65°C) ensures reliable performance across seasonal temperature variations and exposed marine installations.
Minimal standby current (<1mA) prevents battery drain when powered but inactive. Efficient idle current (700-750mA) minimizes electrical system impact. 35A fuse protection with AFS, AGU, or MaxiFuse compatibility. 4 AWG minimum power/ground wire gauge recommended.
Extensive compatibility with Fusion EL, FM, SM, and XS Series marine speakers, subwoofers, and tower speakers. JL Audio M3 Marine Speakers, Subwoofers, and Enclosed Tower Speakers. Fusion Sound-Panel and in-ceiling speakers. Three-year manufacturer warranty.

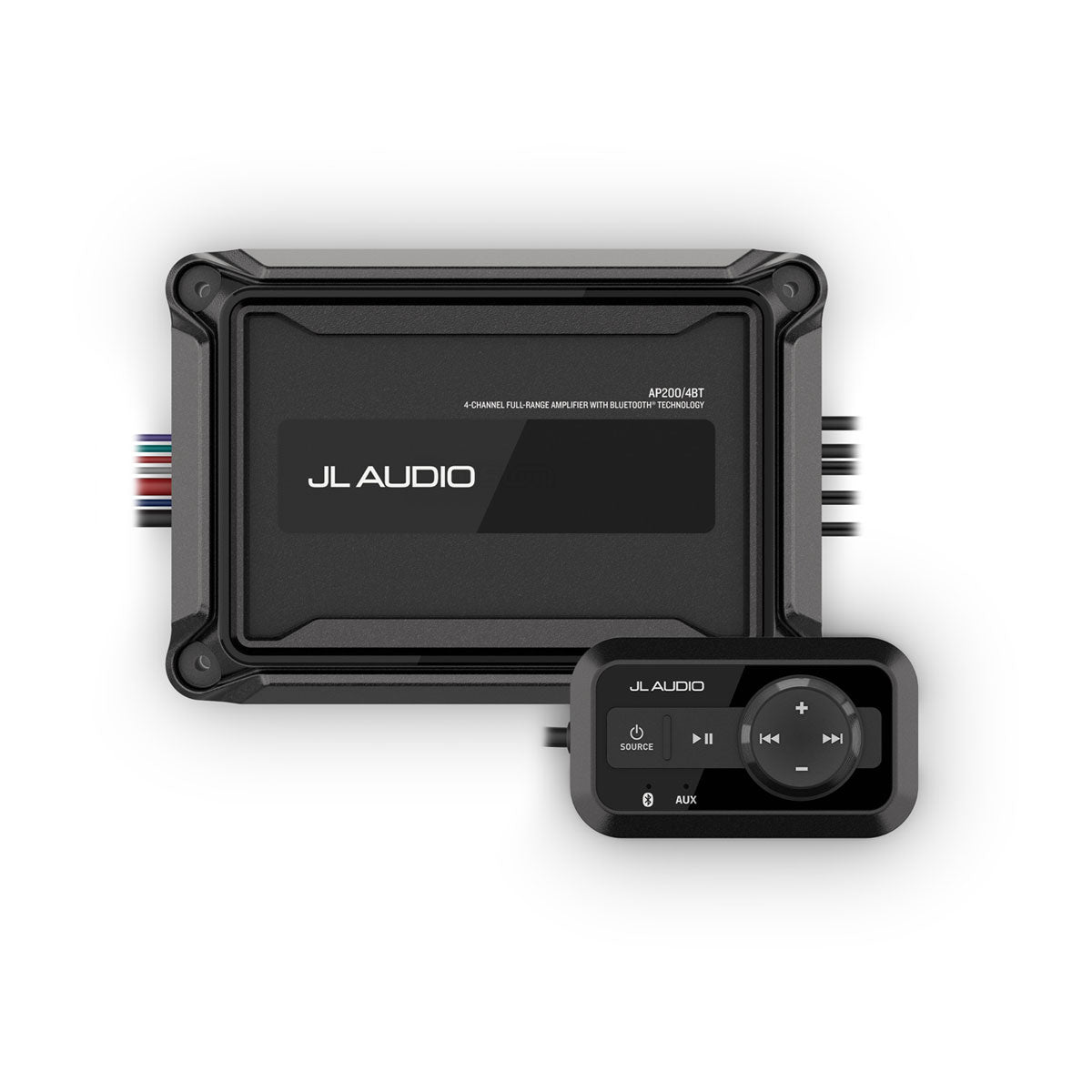

Complete installation package: 4-channel amplifier with Bluetooth, wireless remote controller, surface mounting cup with screws, amplifier mounting hardware, flush mounting template, waterproof gasket for remote, comprehensive documentation.
4-Channel Class-D Amplification - Advanced Class-D amplifier topology delivering 40W x 4 RMS @ 4 ohm (50W x 4 @ 2 ohm) with exceptional power efficiency, reduced heat generation, and compact form factor enabling installation in tight marine spaces.
IP67 Water and Dust Protection - Robust IP67 environmental protection rating providing complete dust-tight seal and protection against powerful water jets from any direction ensuring reliable operation in harsh saltwater spray, moisture exposure, and demanding marine environments.
Bluetooth Wireless Technology - Integrated Bluetooth connectivity enabling direct wireless audio streaming to amplifier from smartphones, tablets, or Bluetooth devices without requiring separate source unit for standalone system configurations or supplemental streaming capability.
Ultra-Compact Dimensions - Space-efficient design (185mm x 125mm x 47mm / 7.28" x 4.9" x 1.86") significantly smaller than traditional marine amplifiers enabling installation under helm panels, behind dash areas, small equipment compartments, or confined locations.
100W x 2 Bridged Output - Flexible bridged operation combining channels delivering 100W x 2 RMS for two-channel high-power applications, dedicated subwoofer driving, or systems requiring substantial power output from compact amplifier.
Adjustable Bass Boost EQ - Variable bass boost control providing 0 to +18dB gain at 37Hz enhancing low-frequency response for systems without dedicated subwoofers or supplementing existing bass systems with adjustable bass enhancement.
Wireless Remote Controller - Included wireless remote controller with flush and surface mounting options enabling convenient dash-mounted or panel-mounted volume control, source selection, and system management without accessing amplifier location.
Switchable Input Sensitivity - Wide input sensitivity range (200mV-8V RMS) with switchable low (200mV-2V RMS) and high (800mV-8V RMS) settings accommodating aftermarket and OEM source units with various output levels.
Excellent Signal-to-Noise Ratio - Superior signal-to-noise ratio (>70dB referred to 1W, A-weighted) ensuring clean amplification with minimal background noise maintaining audio fidelity and professional sound quality.
Full-Range Frequency Response - Complete frequency response coverage (20Hz-20kHz, +0/-1dB) delivering accurate reproduction across entire audible spectrum from deep bass frequencies to high treble ensuring balanced natural sound.
Comprehensive Protection Circuits - Multiple protection systems including input under/over voltage protection, over-temperature protection, and output short circuit protection safeguarding amplifier and connected speakers from damage.
Extreme Operating Temperature Range - Wide operating temperature range (-20°C to 65°C / -4°F to 149°F) ensuring reliable performance from cold winter storage to hot summer operation in exposed marine installations.
Minimal Current Draw - Efficient power management with minimal standby current (<1mA) preventing battery drain and low idle current (700-750mA) reducing electrical system impact during operation.
Premium Marine Speaker Compatibility - Extensive compatibility with Fusion and JL Audio premium marine speaker brands including EL, FM, SM, and XS Series speakers, subwoofers, tower speakers, and M3 Marine audio products.
Three-Year Warranty - Comprehensive three-year manufacturer warranty demonstrating JL Audio confidence in product reliability, construction quality, and long-term marine performance.
Complete Installation Package - Comprehensive installation hardware including wireless remote controller, surface mounting cup, amplifier mounting screws, flush mounting template, waterproof gasket, and complete documentation.
Technical Specifications
| Specification |
Details |
| Model |
AP (4-Channel Compact Marine Amplifier) |
| Part Number |
JLA-010-03431-00 |
| Brand |
JL Audio |
| Product Type |
Marine Amplifier (4-Channel with Bluetooth) |
| Channels |
4 |
| Amplifier Class |
Class-D |
| Dimensions (W x D x H) |
185 x 125 x 47 mm (7.28" x 4.9" x 1.86") |
| Water/Dust Rating |
IP67 |
| Operating Voltage |
9-16 VDC |
| Operating Temperature Range |
-20°C to 65°C (-4°F to 149°F) |
| Rated Power @ 4 Ohm |
40W x 4 RMS (14.4V input, <1% THD) |
| Rated Power @ 2 Ohm |
50W x 4 RMS (14.4V input, <1% THD) |
| Bridged Power Output |
100W x 2 RMS |
| Frequency Response |
20 Hz - 20 kHz (+0, -1dB) |
| Signal-to-Noise Ratio |
> 70 dB (A-weighted, 20 Hz - 20 kHz, referred to 1W) |
| THD+N @ Rated Power |
<1% @ 4 Ω per channel |
| Input Sensitivity @ RCA |
200mV - 8V RMS |
| Input Voltage Range |
Low: 200mV - 2V RMS / High: 800mV - 8V RMS (switchable) |
| Input Impedance |
11 kΩ (High) / 20 kΩ (Low) |
| Bass Boost EQ |
0 to +18 dB @ 37 Hz (adjustable) |
| Current Draw (Standby) |
<1 mA |
| Current Draw (Idle) |
700-750 mA |
| Fuse Rating |
35 A |
| Recommended Fuse Types |
AFS, AGU, or MaxiFuse |
| Min. Power/Ground Wire Gauge |
4 AWG copper wire |
| Protection Circuits |
Input under/over voltage, over-temperature, output short circuit |
| Bluetooth Technology |
Yes (integrated) |
| Remote Controller |
Wireless remote included |
| Mounting Options |
Surface mount (cup included) or flush mount (template included) |
| Warranty |
3 years |
| Compatible Speakers |
Fusion EL/FM/SM/XS Series, JL Audio M3 Marine Speakers/Subwoofers |
| Included Accessories |
Remote controller, surface mounting cup with screws, amplifier mounting screws, flush mounting template, waterproof gasket, documentation |
Frequently Asked Questions
Q: What does IP67 rating mean and where can I install this amplifier?
A: IP67 rating provides comprehensive environmental protection: "IP" = Ingress Protection standard, "6" = complete dust-tight protection (no dust ingress possible), "7" = protection against powerful water jets from any direction and temporary immersion up to 1 meter depth for 30 minutes. JL Audio AP amplifier suitable for: exposed marine equipment compartments experiencing saltwater spray, under-helm installations with potential moisture exposure, cockpit mounting locations with weather exposure, cabin installations requiring dust and moisture protection. IP67 certification ensures reliable operation in harsh marine environments with saltwater spray, rain, and humidity. Not designed for: continuous underwater submersion, permanent mounting below waterline. Installation requirements: ensure connections properly sealed using marine-grade connectors and heat shrink, verify mounting location allows drainage preventing water pooling around amplifier, maintain proper orientation allowing water runoff if temporary immersion occurs. IP67 protection significantly exceeds typical marine amplifier ratings (often IP65 or lower) providing superior environmental durability. Regular maintenance: inspect mounting location for water intrusion, verify connections remain sealed, clean amplifier exterior removing salt deposits. Properly installed IP67-rated amplifier provides reliable long-term performance in demanding marine environments.
Q: Can I use this amplifier without a traditional marine stereo head unit?
A: Yes—JL Audio AP amplifier features integrated Bluetooth technology enabling standalone operation without traditional source unit. Bluetooth operation: pair smartphone, tablet, or Bluetooth-enabled device directly with amplifier, stream music wirelessly to amplifier without separate head unit, control playback from mobile device, adjust volume using included wireless remote controller. Standalone system advantages: simplified installation eliminating source unit requirement, reduced equipment cost (no separate head unit purchase), clean helm appearance without visible head unit, ideal for vessels with limited dash space or minimal audio requirements. Supplemental use: AP amplifier also functions alongside traditional source units—connect wired RCA inputs from existing head unit while retaining Bluetooth capability for supplemental wireless streaming. Bluetooth limitations: requires charged mobile device onboard vessel for audio source, weather protection required for mobile device (IP67 rating protects amplifier not connected devices), mobile device battery life considerations for extended listening. Typical applications: small boats requiring simple audio system without full-featured head unit, secondary audio zones supplementing primary system, retrofit installations adding Bluetooth without replacing existing equipment, budget-conscious installations minimizing equipment quantity. If comprehensive control features required (AM/FM radio, NMEA 2000 integration, multi-zone control): traditional source unit plus AP amplifier provides complete solution. For basic Bluetooth streaming with volume control: AP amplifier functions as complete standalone system.
Q: What is the difference between 4-channel, bridged, and 2-ohm operation?
A: JL Audio AP amplifier supports multiple operating configurations: 4-channel operation (40W x 4 @ 4 ohm): connect four speakers (two front, two rear, or four distributed locations), each channel delivers 40W RMS, ideal for standard four-speaker marine systems, maintains independent control of each speaker. 4-channel operation (50W x 4 @ 2 ohm): connect four 2-ohm speakers for increased power output, each channel delivers 50W RMS (25% more power than 4-ohm), requires speakers rated for 2-ohm operation, increased current draw from electrical system. Bridged operation (100W x 2): combine channel pairs (channels 1+2 and 3+4) for two high-power outputs, delivers 100W RMS per bridged pair (2.5x power of single 4-ohm channel), ideal for subwoofer applications requiring substantial power, reduces total speaker quantity to two, bridged configuration requires specific wiring (consult documentation). Configuration selection depends on: number of speakers in system (four speakers = 4-channel, two speakers = bridged), power requirements (standard speakers = 4-channel, subwoofers or high-power speakers = bridged), speaker impedance (verify speaker specifications before selecting configuration). Most marine audio systems use 4-channel @ 4 ohm configuration powering four marine speakers. Bridged configuration ideal for: dedicated subwoofer installations, tower speaker applications requiring high power, two-speaker stereo systems in small boats. Cannot simultaneously use 4-channel and bridged modes—select single configuration based on system requirements. Consult installation documentation for proper wiring diagrams ensuring safe reliable operation.
Q: How do I install and use the wireless remote controller?
A: JL Audio AP amplifier includes wireless remote controller with flexible mounting options: Installation methods: Flush mounting (clean integrated appearance): use included flush mounting template marking cutout dimensions on dash or panel, cut mounting hole following template specifications, install included waterproof gasket around cutout preventing water intrusion, insert remote controller into cutout from front side, secure from rear using mounting hardware, gasket provides weather-tight seal and IP protection. Surface mounting (simpler installation): attach included surface mounting cup to dash or panel using provided screws, insert remote controller into mounting cup, secure with retaining mechanism, surface mount provides quick installation without cutting dashboard. Remote controller functions: volume adjustment controlling amplifier output level, source selection switching between inputs (Bluetooth, wired RCA), system power control, bass boost adjustment (if accessible from remote), wireless operation eliminating cable between remote and amplifier. Mounting location selection: choose accessible location easily reached from driver/operator position, avoid locations subject to direct sun exposure (reducing LCD visibility or causing heat buildup), ensure mounting surface provides adequate backing for secure attachment, verify wireless signal reaches amplifier from chosen location (typically reliable within typical helm/cockpit distances), avoid areas with excessive vibration or impact risk. Waterproof gasket importance: gasket critical for flush-mounted installations maintaining environmental protection, improper gasket installation compromises weather resistance allowing water intrusion, verify gasket properly seated during installation. Remote pairing: remote typically pre-paired with amplifier from factory, if pairing required consult documentation for pairing procedure. Wireless operation eliminates need to access amplifier location for volume adjustments or source changes providing convenient control from helm position. Professional installation recommended for flush mounting requiring dashboard cutting.
Q: What wire gauge and fusing do I need for installation?
A: JL Audio AP amplifier requires proper power and ground wiring for safe reliable operation: Minimum wire gauge: 4 AWG copper wire recommended for power and ground connections, 4 AWG provides adequate current capacity for amplifier's 35A fuse rating with minimal voltage drop, undersized wire causes voltage drop reducing amplifier performance and creating fire hazard from excessive heat, use marine-grade tinned copper wire resisting corrosion in saltwater environments. Fuse requirements: 35A fuse rated capacity, install fuse within 18 inches of battery positive terminal (marine electrical standards), accepted fuse types: AFS (automotive fuse), AGU (glass tube fuse), MaxiFuse (blade-style high-current fuse), use marine-grade fuse holder with weather protection. Wiring calculation factors: amplifier maximum current draw determines wire gauge requirement, longer wire runs require heavier gauge compensating for increased resistance, ambient temperature affects wire current capacity, consult marine electrical code or wiring charts for specific installation requirements. Ground connection importance: ground wire equally important as power wire (use same 4 AWG gauge), connect directly to vessel negative bus bar or battery negative terminal, ensure clean metal-to-metal contact at ground point removing paint or corrosion, poor ground connections cause operational issues and potential damage. Installation best practices: use marine-grade crimp connectors or solder connections with marine heat shrink, avoid household electrical supplies (non-marine grade corrodes quickly), route power wires through proper channels avoiding chafing or heat sources, label all connections for future service, verify connections tight and secure. Professional installation recommended ensuring proper wire gauge selection, fuse placement, and connection methods meeting marine electrical standards and preventing electrical hazards. Improper wiring voids warranty and creates safety risks.
