Description

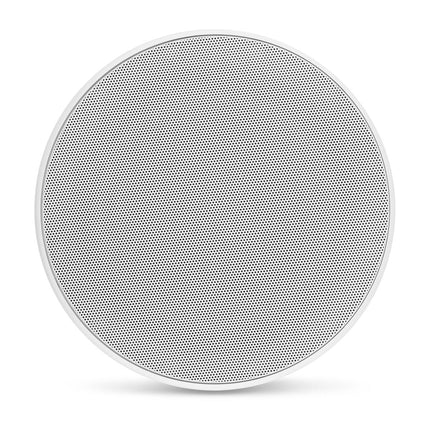

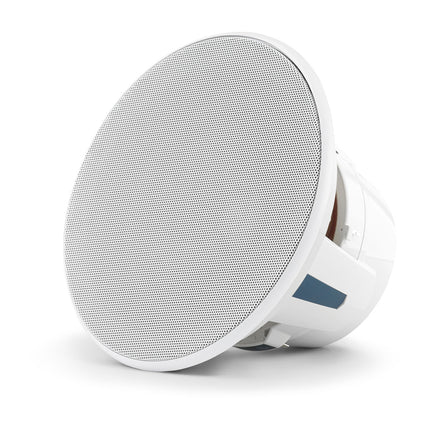

JL Audio JLA-010-03915-00 M6 8" Marine Subwoofer - White Luxe Grille
Premium low-profile marine bass reproduction with sophisticated styling — M6 8" subwoofer with Luxe grille delivers high-output low-frequency performance in ultra-slim 12mm profile design for Australian offshore conditions requiring discreet premium aesthetics.
Product Overview
The JL Audio M6 8" marine subwoofer with white luxe grille delivers reference-grade bass reproduction in a corrosion-resistant package with ultra-low-profile design for infinite baffle or enclosed installations. Engineered with injection-moulded mica-filled polypropylene cone and 14mm linear excursion capability, this marine subwoofer handles 200W RMS continuous power with 86.8 dB sensitivity. The luxe grille features sophisticated low-profile styling with only 12mm frontal protrusion and 260mm overall diameter, providing premium aesthetics for high-end vessels, yacht installations, and luxury cruisers requiring discreet bass reinforcement with included grille removal tool for convenient maintenance.
Features & Benefits
Ultra-Low-Profile Luxe Design: Premium white luxe grille with only 12mm frontal protrusion (versus 35mm on classic models) delivers sophisticated flush-mount aesthetics ideal for luxury yacht interiors, premium cabin installations, and high-end vessels requiring discreet subwoofer integration without visual intrusion into living spaces.
Dual-Configuration Versatility: Engineered for both infinite baffle (free-air) and enclosed (sealed/ported box) installations with optimized Thiele-Small parameters (Qts 0.787, Vas 15.29L), enabling flexible mounting options including under-seat locations, bulkhead installations, or custom enclosures matching available space constraints in diverse vessel configurations.
High-Excursion Bass Performance: 14mm one-way linear excursion (Xmax) with injection-moulded mica-filled polypropylene cone delivers deep low-frequency extension and high output capability handling 200W RMS continuous power with minimal distortion, enabling authoritative bass reproduction for rock, electronic, and contemporary music genres in open-air marine environments.
Included Grille Removal Tool: Luxe models include specialized grille removal tool enabling quick grille access for cleaning, maintenance, or aesthetic customization without damaging premium low-profile grille finish, simplifying long-term ownership and maintenance procedures in marine environments.
Marine-Grade Construction: Fully marinized components including UV-resistant cone materials, sealed motor structure, tinned-lead connections, and corrosion-resistant basket withstand harsh saltwater environments with extended service life in Australian coastal conditions including saltwater spray exposure, high humidity, temperature extremes, and UV degradation.
Professional JL Audio Engineering: Backed by JL Audio's marine audio expertise with precision-matched Thiele-Small parameters (Fs 54.92Hz, Qes 0.852, Qms 10.314) ensuring predictable performance in recommended enclosure configurations, comprehensive two-year warranty coverage, and proven reliability across recreational boating, fishing vessels, and commercial marine applications.
Technical Specs
| Specification |
Details |
| Subwoofer Size |
8 inches (203mm) |
| Grille Style |
White Luxe (Low-Profile) |
| Power Handling (RMS) |
200W continuous |
| Recommended Amplifier Power |
50-200W RMS |
| Sensitivity |
86.8 dB @ 1W/1m |
| Impedance |
4Ω nominal |
| Frequency Response |
31-500Hz (ported enclosure) |
| Cone Material |
Injection-moulded mica-filled polypropylene |
| Linear Excursion (Xmax) |
14mm one-way |
| Installation Type |
Infinite baffle or enclosed |
| Physical Diameter (Luxe) |
260mm (10.25") |
| Mounting Depth |
162mm (6.37") |
| Cutout Diameter (Luxe) |
219mm (8.625") |
| Bolt Circle (Luxe) |
235mm (9.27") |
| Grille Protrusion (Luxe) |
12mm (0.48") - ultra-low-profile |
| Mounting Clearance (Luxe) |
160mm (6.30") |
| Driver Displacement (Luxe) |
2.07L (0.073 cu ft) |
| Thiele-Small Parameters |
Fs: 54.92Hz, Qts: 0.787, Vas: 15.29L |
| Sealed Enclosure Volume |
56.6L net (F3: 51.78Hz) |
| Ported Enclosure Volume |
42.5L net (tuned 37Hz, F3: 31.26Hz) |
| Speaker Connections |
Spade connectors |
| Mounting Hardware |
Six stainless steel screws and washers |
| Included Accessories |
Grille removal tool (Luxe models) |
| Warranty |
2 years manufacturer warranty |
Compatible With / Goes Well With
Marine Source Units: Fusion Apollo MS-RA800 marine stereo, JL Audio marine head units with dedicated subwoofer outputs providing adjustable crossover control, bass boost EQ, and high-voltage preamp signals for optimal subwoofer integration in marine audio systems.
Marine Amplifiers: JL Audio MHD Marine Amplifier (monoblock configuration), JL Audio MVi Marine Amplifier, JL Audio MX Marine and Powersports Amplifiers, JL Audio XDM Car and Marine Amplifier providing 50-200W RMS power delivery with marine-grade construction and IP67 water resistance.
Marine Speaker Systems: JL Audio M6 Marine Speakers (6.5", 7.7", 8.8" coaxials), JL Audio M6 Enclosed Tower Speakers, JL Audio VeX Enclosed System providing full-range reproduction complementing subwoofer low-frequency output for complete marine audio solutions.
Installation Accessories: Marine-grade amplifier wiring kits (8-gauge or larger), sealed distribution blocks, marine fuse holders, waterproof RCA cables, sealed speaker wire, stainless steel mounting hardware, acoustic gasket material for sealed installations.
Enclosure Options: Custom fibreglass enclosures, marine-grade MDF sealed boxes, ported enclosures (42.5L tuned 37Hz), under-seat enclosures, console-mounted enclosures providing optimized acoustic performance matching vessel-specific installation requirements.
Frequently Asked Questions
What makes the Luxe grille different from the Classic and Sport grilles? The Luxe grille features an ultra-low-profile design with only 12mm frontal protrusion (versus 35mm for Classic), 260mm overall diameter, and sophisticated satin white finish. It includes a specialized grille removal tool and provides premium flush-mount aesthetics ideal for luxury yacht interiors and high-end vessel installations requiring discreet styling.
Can this subwoofer be installed without an enclosure in infinite baffle configuration? Yes, the M6 8" is specifically engineered for infinite baffle (free-air) installation with optimized Thiele-Small parameters (Qts 0.787) allowing direct mounting in sealed compartments, under seats, or bulkheads without requiring dedicated enclosure construction, simplifying installation while delivering excellent bass performance.
What amplifier power do I need to drive this subwoofer effectively? JL Audio recommends 50-200W RMS amplifier power at 4Ω impedance for optimal performance. Minimum 50W RMS provides adequate output for casual listening, while 150-200W RMS delivers maximum output capability for high-performance applications. Match amplifier impedance to subwoofer's 4Ω rating for proper power delivery.
How does the mounting cutout differ from Classic models? The Luxe model requires a larger 219mm (8.625") cutout diameter versus 187mm (7.375") for Classic models due to the wider grille design. However, the mounting depth remains the same at 162mm. The larger cutout accommodates the premium low-profile grille while maintaining the same driver performance.
Is the grille removal tool necessary for installation and maintenance? Yes, the included grille removal tool is specifically designed for the Luxe grille's low-profile design, enabling safe removal without damaging the premium finish. This tool simplifies cleaning, maintenance, and aesthetic customization throughout the subwoofer's service life in marine environments.
