Description

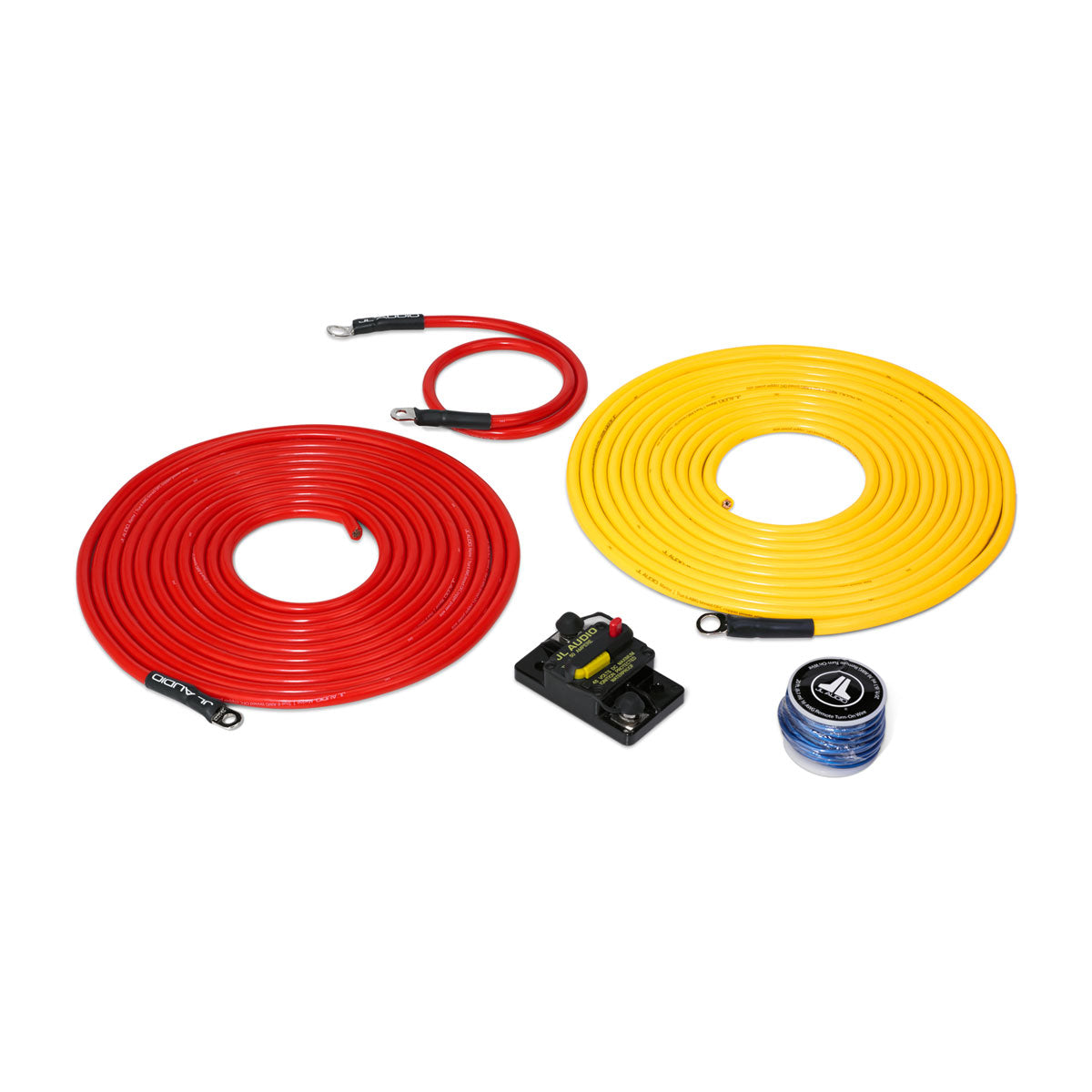

JL Audio JLA-010-13418-00 XMD-PCS50A-1-L20 Premium Power Marine Connection Kit - 6 AWG Single Amplifier Kit
Complete marine-grade amplifier power installation kit with tinned OFC copper wiring, 50-amp circuit breaker, and ABYC-compliant color-coded cables for single amplifier installations within 20 feet of battery.
Product Overview
The JL Audio XMD-PCS50A-1-L20 Premium Power Marine Connection Kit (JLA-010-13418-00) provides everything needed for professional-grade power connections in marine audio installations where the amplifier is located within 20 feet of the battery. This comprehensive kit features true AWG-spec 6 gauge pure oxygen-free copper (OFC) wire that's been tinned to combat corrosion in harsh saltwater environments. Unlike entry-level kits using undersized copper-clad aluminum (CCA) wire, this premium kit ensures maximum current delivery and long-term reliability across extended cable runs. The ABYC-standard color-coded wiring (red for positive, yellow for ground) follows marine industry best practices for safe, code-compliant installations. The included 50-amp marine circuit breaker provides critical overcurrent protection that's resettable and more convenient than traditional fuse holders. Pre-attached power ring terminals eliminate the need for separate crimping on key connections, while 18 feet of remote turn-on wire accommodates signal routing from source unit to amplifier. The kit's 20-foot power wire length (2 feet + 18 feet sections) and 20-foot ground wire optimize installations in mid-size to large boats where amplifiers are mounted at substantial distances from batteries, such as bowriders with stern-mounted amplifiers, cruisers with cockpit-to-cabin installations, or larger center consoles with distributed component placement.
Features & Benefits
True AWG-specification 6 gauge wire ensures accurate wire sizing, unlike CCA cables marketed deceptively as equivalent gauges, providing proper current-carrying capacity for amplifiers drawing up to 50 amps continuous across extended distances. Pure oxygen-free copper (OFC) construction delivers superior electrical conductivity compared to copper-clad aluminum, reducing voltage drop and maximizing amplifier performance even on 20-foot runs where resistance becomes critical. Tinned copper conductors resist corrosion from saltwater exposure, humidity, and marine environmental factors that rapidly degrade standard bare copper in marine applications. ABYC-standard color coding (red positive, yellow ground, blue remote) follows American Boat and Yacht Council guidelines for safe marine electrical installations. The 50-amp marine circuit breaker provides resettable overcurrent protection without the need to carry spare fuses, offers convenient reset functionality after tripping, and meets marine safety standards for electrical protection. Pre-attached power ring terminals on power and ground wires eliminate the need for field crimping on battery and distribution connections, ensuring secure connections with proper crimp quality. The 20-foot power wire configuration (split into 2-foot and 18-foot sections) accommodates installations requiring routing through multiple compartments, bow-to-stern runs, or complex cable paths in larger vessels. Twenty feet of yellow ground wire ensures adequate length for proper grounding even when optimal ground points are distant from amplifier location. Eighteen feet of blue 16 AWG remote turn-on wire provides ample length for signal routing through multiple compartments from head unit to amplifier location.
Technical Specifications
| Specification |
Details |
| Model |
JLA-010-13418-00 XMD-PCS50A-1-L20 |
| Kit Configuration |
Single Amplifier, 12V Systems |
| Wire Gauge |
6 AWG |
| Wire Type |
Pure OFC, Tinned Copper |
| Wire Specification |
True AWG-spec (not undersized) |
| Current Rating |
50 Amperes continuous |
| Battery Distance |
Within 20 feet |
| Power Wire (Red) |
2ft + 18ft sections (20ft total) |
| Ground Wire (Yellow) |
20 feet |
| Remote Wire (Blue) |
18 feet, 16 AWG |
| Overcurrent Protection |
50A Marine Circuit Breaker (XMD-MCB-50) |
| Power Terminals |
Pre-attached power rings |
| Color Coding |
ABYC-standard (Red/Yellow/Blue) |
| Marine Environment |
Tinned for corrosion resistance |
| Included Accessories |
Circuit breaker mounting hardware |
| Standards Compliance |
ABYC marine electrical standards |
| Application |
Marine and powersports 12V systems |
| Warranty |
Standard JL Audio warranty |
Compatible With / Goes Well With
JL Audio Marine Amplifiers: MVi Marine Amplifiers (monoblock and multi-channel models drawing up to 50A), MX Marine and Powersports Amplifiers (MX280/4, MX300/1, MX500/1, MX600/3), MHD Marine Amplifiers, XDM Car and Marine Amplifiers, AP Amplifiers, AP Amplifiers with Bluetooth Technology for single-amplifier installations in larger vessels
Installation Requirements: 12V marine battery or electrical system, amplifier location within 20 feet of battery, suitable grounding point (engine block, grounding bus bar, or hull ground), mounting location for circuit breaker near battery, cable routing path through bulkheads or compartments
System Applications: Bowriders with stern-mounted amplifiers, cruisers with helm-to-cabin installations, larger center console boats with distributed components, pontoon boats with full-length amplifier placement, larger UTV and side-by-side audio systems, sailboats with distant amplifier mounting, express cruisers with cockpit-to-berth wiring runs
Additional Wiring: JL Audio XMD-WHTAIC2 series RCA interconnects (12ft or 25ft lengths for extended runs), JL Audio marine speaker wire for amplifier-to-speaker connections, additional grounding wire if multiple ground points are needed for optimal system performance
Frequently Asked Questions
How does the 20-foot length benefit larger vessel installations? The 20-foot length accommodates installations where batteries are located in bow storage compartments and amplifiers are mounted in stern areas, helm-to-cabin runs in cruisers, or center console boats over 23 feet where component spacing exceeds compact boat dimensions. The extended length eliminates the need for wire splicing (which creates high-resistance connections) and allows proper cable routing through bulkheads, along stringers, and around obstacles while maintaining adequate service loops at connections. For boats where the straight-line distance exceeds 15 feet or routing complexity adds significant length, this kit ensures proper installation without compromises.
Will I experience voltage drop issues with 20 feet of 6 AWG wire? Properly sized 6 AWG pure OFC copper maintains excellent performance across 20-foot runs for amplifiers drawing up to 50 amps. At 50 amps continuous draw, voltage drop will be approximately 1.0 volt across the 20-foot positive run, which is within acceptable limits for marine audio systems. The tinned OFC construction ensures consistent conductivity without the resistance increases that plague CCA wire. For optimal performance, ensure both power and ground connections are clean and tight, and verify proper grounding to minimize total circuit resistance.
When should I choose the 20-foot kit versus the 10-foot version? Measure your actual routing path from battery positive terminal to amplifier location, including vertical runs, horizontal distances, bulkhead penetrations, and proper cable management slack. Choose the 20-foot kit when your measurement exceeds 8 feet for power routing or when component placement requires routing through multiple compartments. The 20-foot kit accommodates boats typically 22 feet or larger, or smaller boats with complex routing requirements. Never splice shorter kits to achieve needed length—always select the appropriate kit for your installation distance.
Can I use this kit for multiple amplifiers by splitting the power wire? This kit is designed for single amplifier installations. For multiple amplifiers, each amplifier should have its own dedicated power wire run from a distribution block or separate circuit breakers at the battery. Using distribution blocks or splitting power creates voltage drop issues and potential safety hazards. For multi-amplifier systems, consider using multiple single-amplifier kits or dedicated multi-amplifier distribution systems with proper fusing/breaker protection for each amplifier.
How do I route 20 feet of wire through my boat without creating a mess? Plan your routing path before installation, following existing wire runs or creating new paths through access panels. Use the included wire ties plus additional marine-grade ties to secure power and ground wires every 12-18 inches along the routing path. Keep power and ground wires together (twisted or tied) to minimize electromagnetic interference. Use grommets where wires pass through bulkheads or panels to prevent chafing. Route away from heat sources, sharp edges, and moving parts. In bilge areas, secure wiring above potential water levels. Create service loops at both battery and amplifier ends to accommodate maintenance access without stressing connections.
