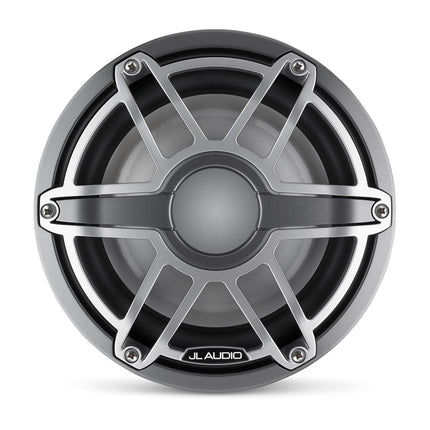

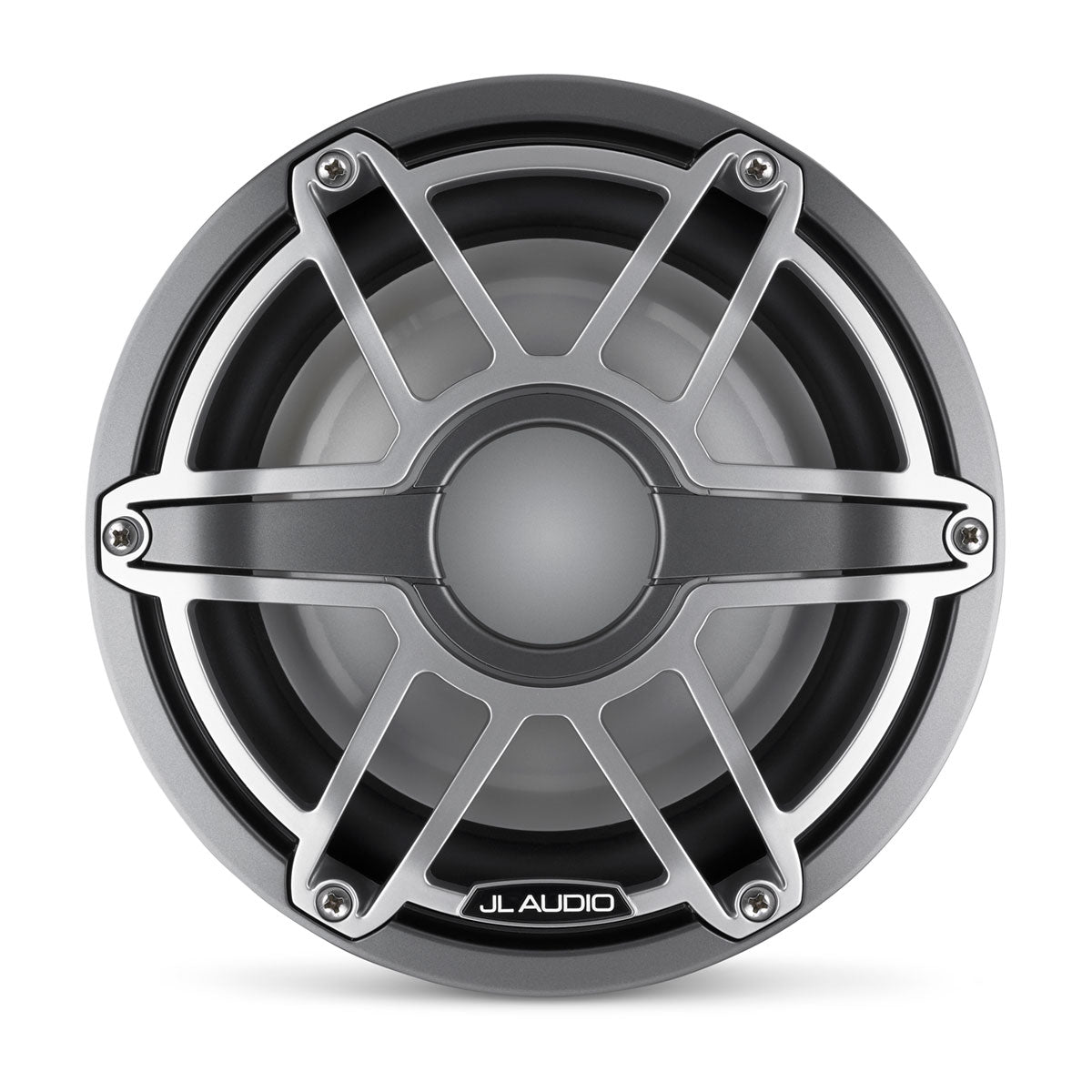

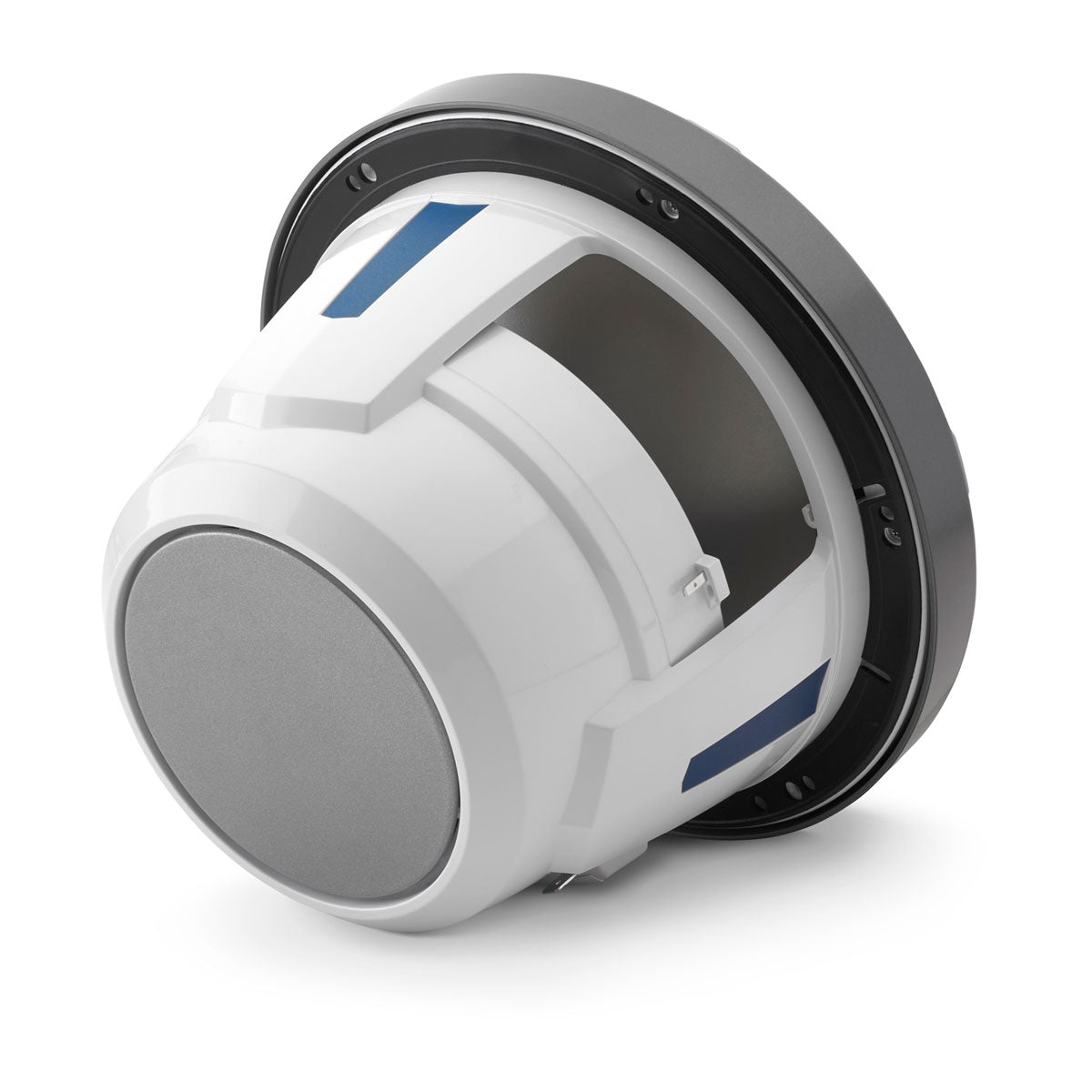

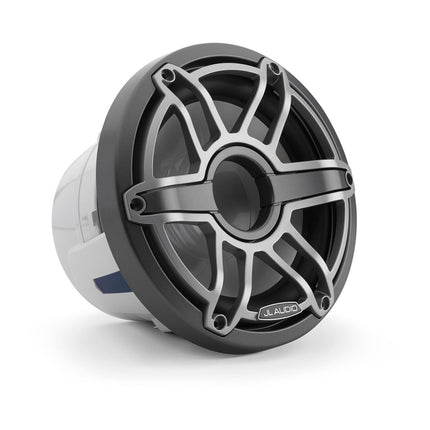

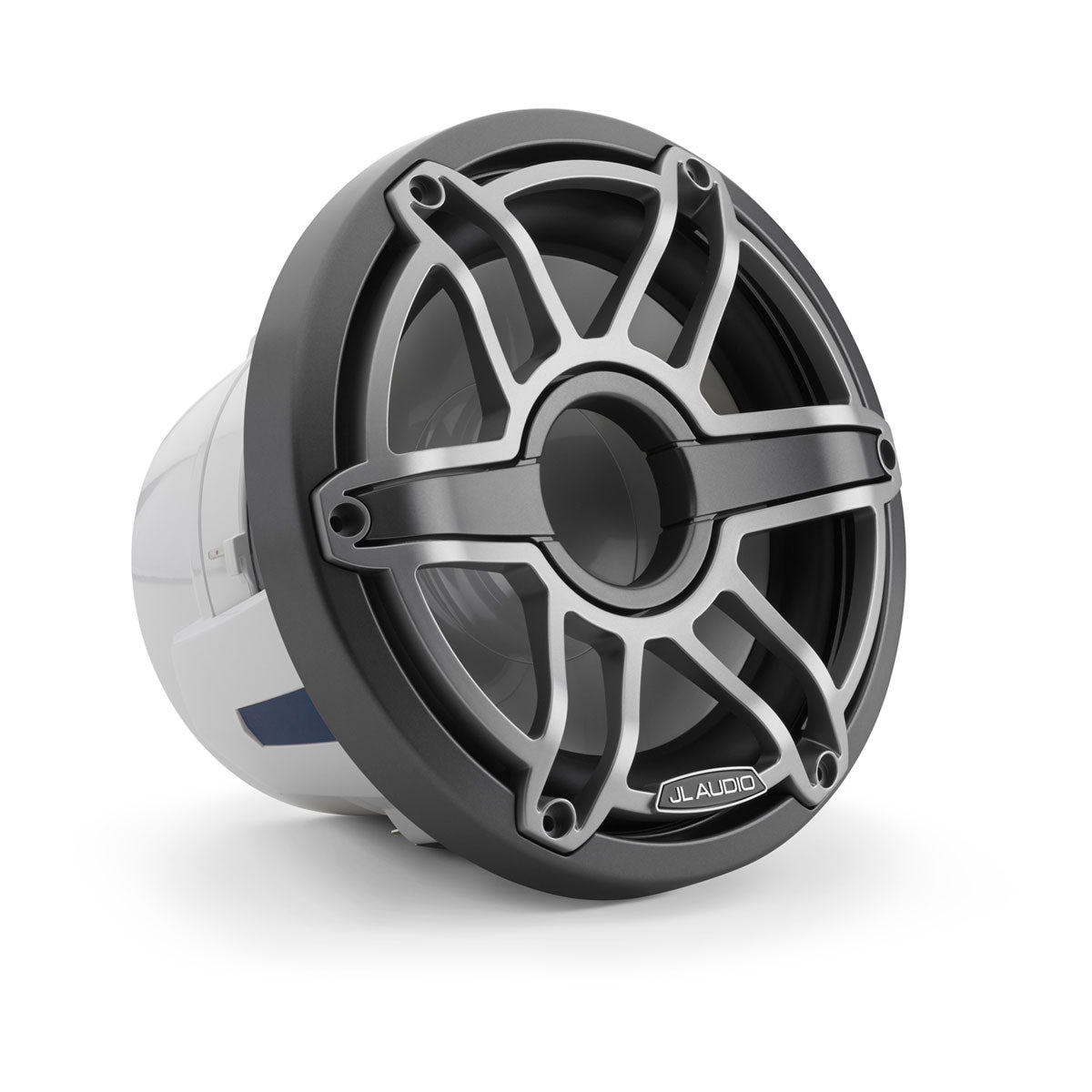

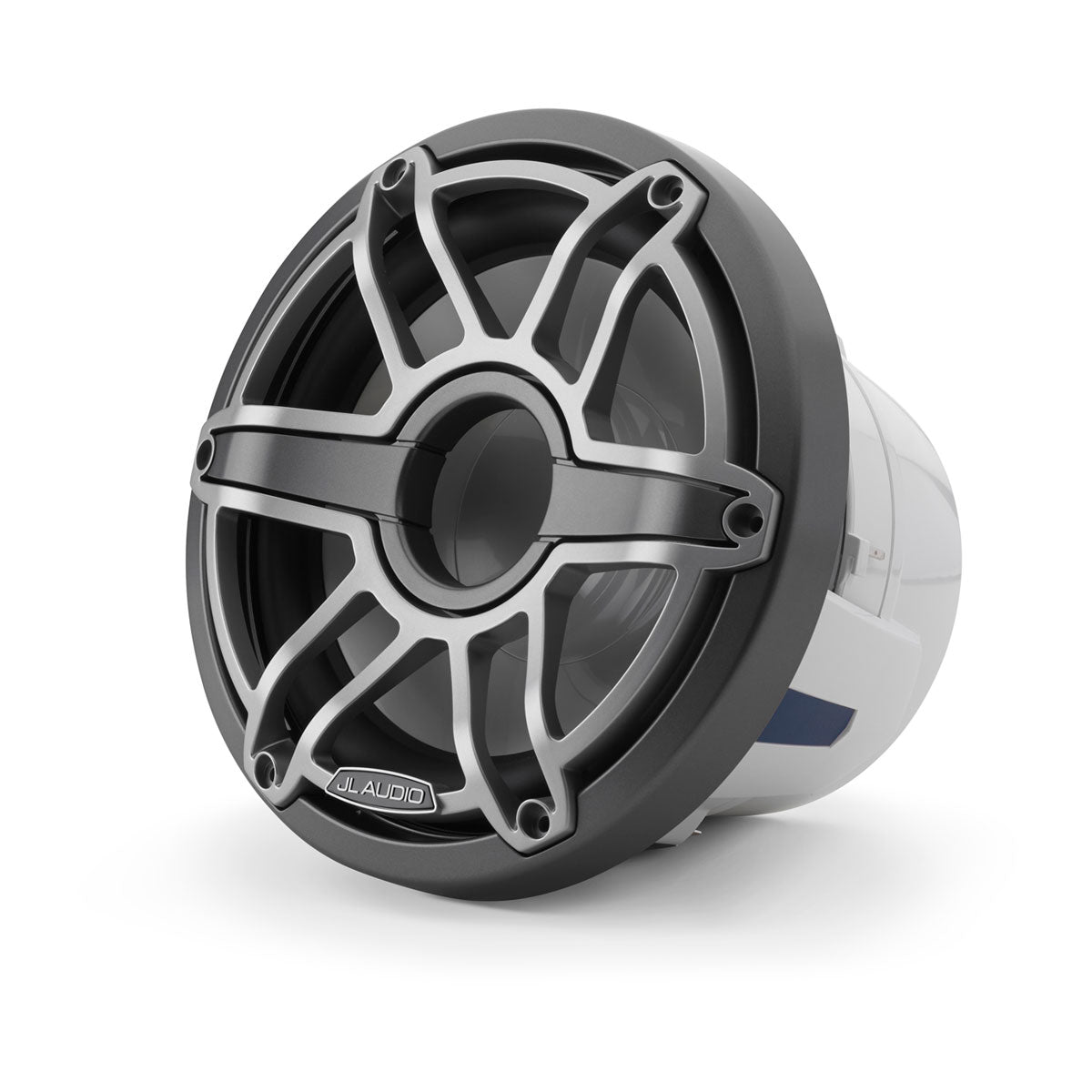

JL Audio JLA-010-03275-00 M6 Marine Subwoofer - 8" with Titanium Sport Grille
Premium compact marine subwoofer engineered for space-efficient bass performance with aggressive titanium sport styling and versatile installation options for demanding marine environments.
Product Overview
The JL Audio M6 8" Marine Subwoofer with Titanium Sport Grille delivers exceptional low-frequency performance in a compact footprint designed specifically for the harsh marine environment. The Sport series features a titanium sport grille that provides aggressive styling with robust protection and a distinctive metallic finish that complements modern boat aesthetics. This subwoofer is engineered for flexible installation, supporting both infinite baffle and enclosed configurations to accommodate space-constrained boat layouts where larger subwoofers won't fit. The mica-filled polypropylene cone and robust motor structure deliver 200W RMS continuous power handling with exceptional 14mm excursion capability. The compact 8" design makes it ideal for installations under seats, in storage compartments, or other locations where space is limited but impactful bass is still desired.
Features & Benefits
-
Compact 8" Design: Space-efficient footprint fits where larger subwoofers won't, ideal for smaller boats or tight installations
-
Titanium Sport Grille: Distinctive metallic finish provides aggressive styling with enhanced protection and durability
-
Versatile Installation Options: Designed for both infinite baffle (free-air) and enclosed applications with optimized parameters
-
High Power Handling: 200W RMS continuous power handling with 400W peak capability delivers authoritative bass in compact package
-
Exceptional Excursion: 14mm one-way linear excursion (Xmax) provides maximum output from compact driver size
-
Marine-Grade Construction: Sealed motor structure and UV-resistant materials ensure long-term reliability in saltwater environments
-
Mica-Filled Polypropylene Cone: Injection-molded cone provides excellent stiffness-to-weight ratio for accurate bass reproduction
-
Optimized Thiele-Small Parameters: Engineered for predictable performance in both sealed and ported enclosure designs
-
Sealed Motor Structure: Prevents water intrusion and corrosion in critical voice coil components
-
Professional Spade Terminals: Reliable connections ensure optimal signal transfer and easy installation
-
Stainless Steel Mounting Hardware: Marine-grade screws and washers resist corrosion in harsh saltwater environments
-
Complete Installation Kit: Includes mounting hardware for professional installation
Technical Specs
| Specification |
Details |
| Model |
JLA-010-03275-00 |
| Subwoofer Size |
8" (203mm) |
| Grille Style |
Titanium Sport |
| Configuration |
Infinite baffle or enclosed-use |
| Power Handling (Cont.) |
200W RMS |
| Power Handling (Peak) |
400W |
| Impedance |
4 ohms |
| Sensitivity |
86.8 dB @ 1W/1m |
| Recommended Amp Power |
50-200W RMS |
| Cone Material |
Injection-molded mica-filled polypropylene |
| Physical Diameter |
224mm (8.80") |
| Physical Depth |
164mm (6.45") |
| Mounting Diameter Clearance |
127mm (5") |
| Frontal Grille Protrusion |
37mm (1.45") |
| Mounting Hole |
187mm (7.375") |
| Bolt Hole Circle |
202mm (7.97") |
| Driver Displacement |
0.93L (0.033 cu ft) |
| Free Air Resonance (Fs) |
54.92 Hz |
| One-Way Linear Excursion (Xmax) |
14mm (0.53") |
| Effective Piston Area (Sd) |
0.0227 m² |
| Total Q (Qts) |
0.787 |
| Equivalent Compliance (Vas) |
15.29L |
| Connection Type |
Spade connectors |
| Warranty |
2 years |
| Weight |
3.90 kg (8.70 lbs) |
Compatible With / Goes Well With
Essential Amplifiers:
- JL Audio MVi Marine Amplifiers (monoblock or multi-channel for dedicated subwoofer power)
- JL Audio MHD Marine Amplifiers (high-output mono amplifiers)
- JL Audio MX Marine and Powersports Amplifiers (versatile power delivery)
- JL Audio XDM Car and Marine Amplifiers (flexible installation options)
Source Units:
- Fusion Apollo MS-RA800 Marine Stereo (subwoofer control and bass management)
- JL Audio MediaMaster marine source units (seamless system integration)
System Building:
- JL Audio M6 Marine Speakers (full-range in-boat audio)
- JL Audio M6 Enclosed Tower Speakers (complete marine audio system)
- JL Audio VeX Enclosed Systems (alternative pre-built subwoofer solutions)
Installation Options:
- Custom sealed enclosure (recommended 56.6L configuration)
- Custom ported enclosure (recommended 42.5L configuration)
- Infinite baffle/free-air installation in suitable locations
- Compact under-seat or storage compartment installations
- Marine-grade speaker wire (12AWG recommended for subwoofer runs)
Frequently Asked Questions
Q: What's the advantage of the 8" size compared to the 10" M6 subwoofer?
A: The 8" model offers a more compact footprint that fits in tighter spaces while still delivering substantial bass output. With 14mm excursion (higher than the 10" model's 13mm), it maximizes output from its smaller cone area. It's ideal for boats where space is limited or when installing under seats, in storage areas, or other constrained locations.
Q: What amplifier power should I use with this subwoofer?
A: The M6 8" performs best with 100-200 watts RMS from a dedicated monoblock amplifier. The compact design makes it efficient, so even 100-150 watts provides excellent bass output for most applications. Higher power levels up to 200W maximize output capability.
Q: Can I use this subwoofer in an infinite baffle configuration?
A: Yes, the M6 8" is designed for both infinite baffle (free-air) and enclosed installations. For infinite baffle mounting, ensure adequate air space behind the subwoofer (the boat's interior cavity acts as the enclosure). The sealed enclosure recommendation is 56.6L, while ported designs require 42.5L for optimal performance.
Q: What's the difference between the Titanium Sport grille and other M6 grille options?
A: Titanium Sport grilles feature a distinctive metallic finish with aggressive mesh design for enhanced styling and protection. Classic grilles offer traditional appearance, while Luxe grilles provide ultra-low 12mm profile design. Sport models have a 37mm protrusion compared to 12mm for Luxe versions.
Q: How much mounting depth do I need for installation?
A: The M6 8" Sport requires 127mm (5") of clearance behind the mounting surface. The overall depth including the grille is 164mm (6.45"). The physical diameter is 224mm (8.80"), making it significantly more compact than the 10" model. Always verify clearance before cutting mounting holes.
