Description

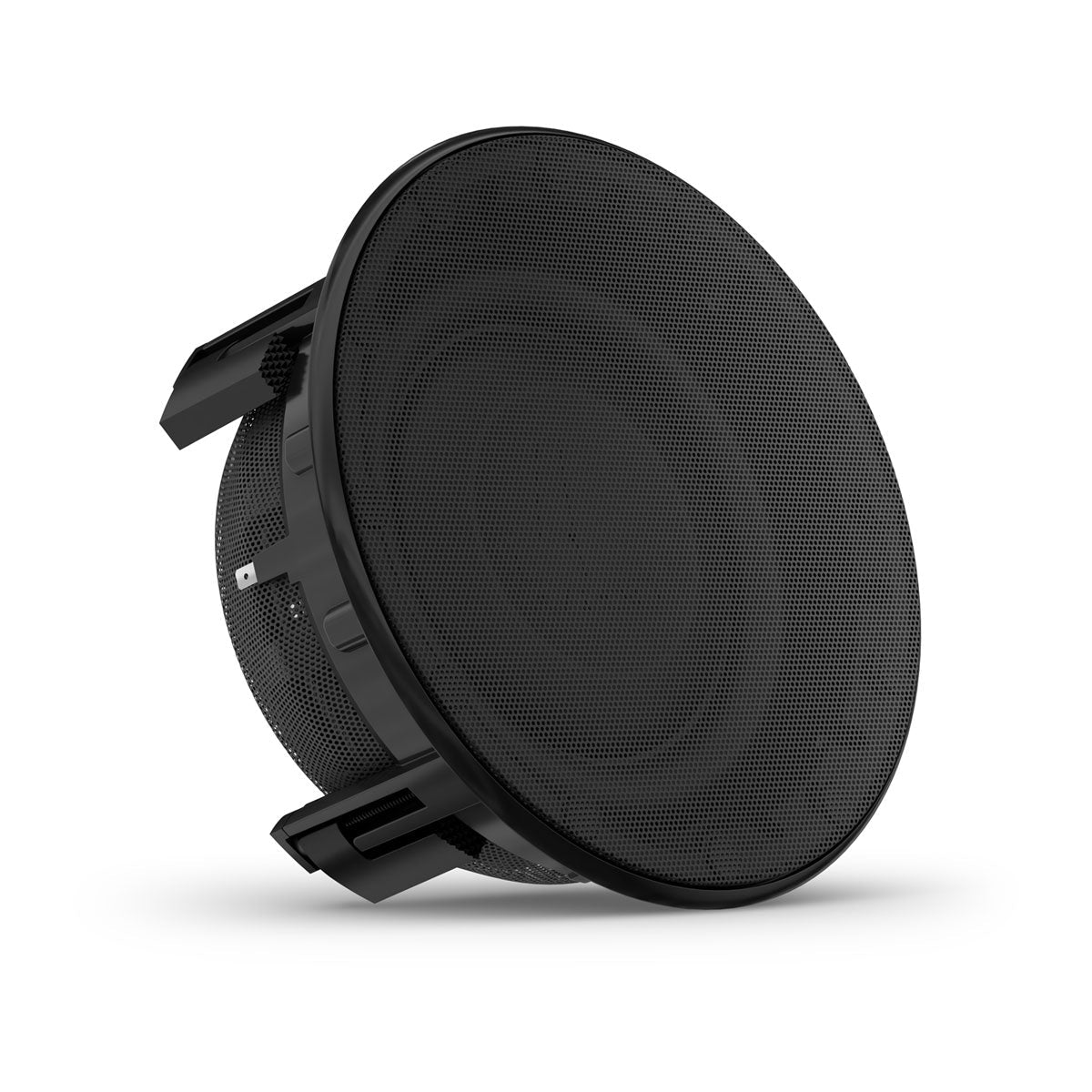

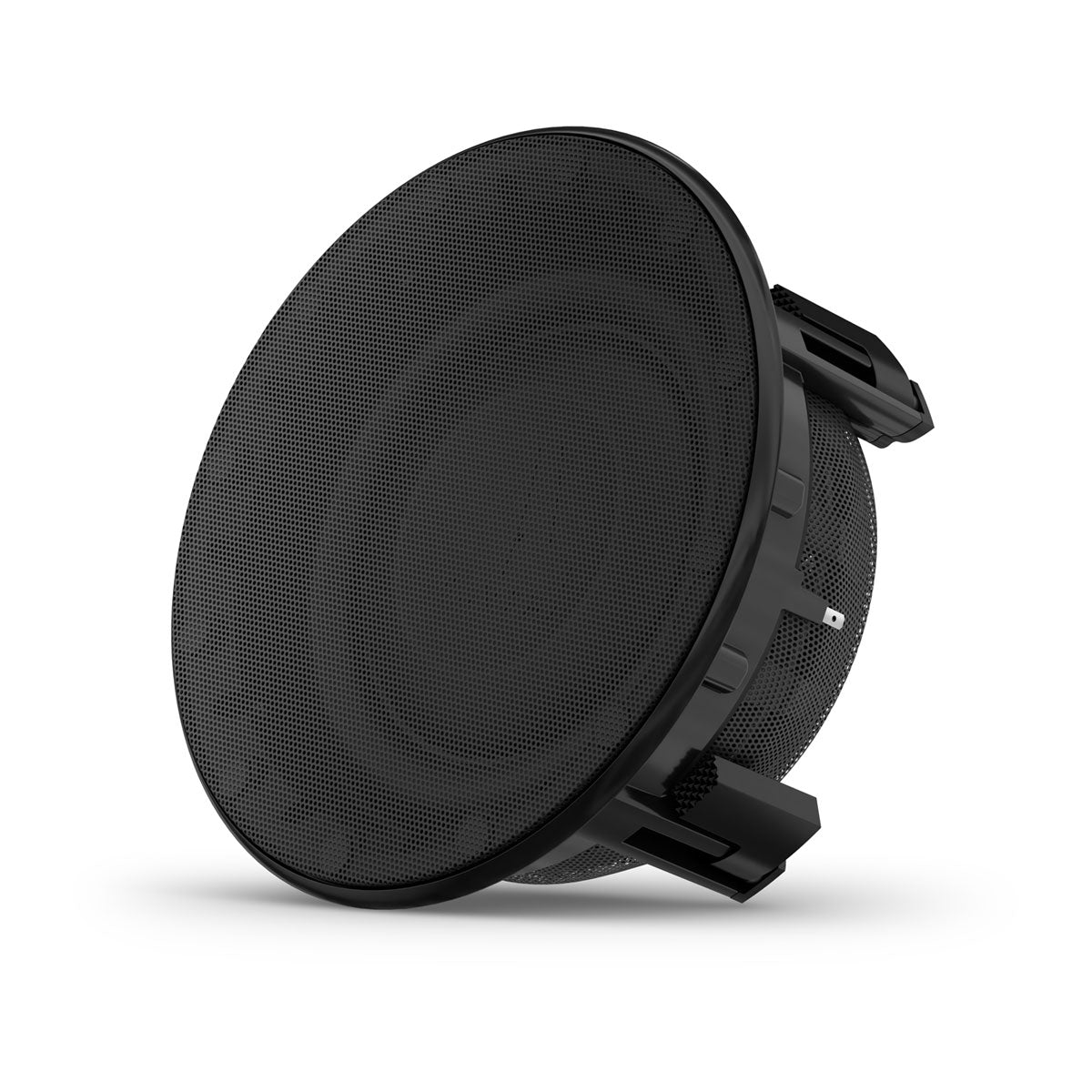

JL Audio JLA-010-03875-10 M6 Marine Thin-Line Subwoofer - 8" with Round, Black Luxe Grille
Premium ultra-shallow marine subwoofer engineered for exceptional bass performance in space-constrained installations, featuring sophisticated black luxe styling and IPX5 water resistance.
Product Overview
The JL Audio M6 8" Marine Thin-Line Subwoofer with Round Black Luxe Grille delivers exceptional low-frequency performance in an ultra-compact profile designed specifically for space-constrained marine installations. With only 107mm mounting depth, this thin-line subwoofer fits where traditional subwoofers simply cannot, making it ideal for under-seat installations, shallow compartments, or any location with limited depth clearance. The Luxe series features a round satin black grille with ultra-low 10mm profile design that provides elegant styling while maintaining robust protection. Despite its compact dimensions, the thin-line subwoofer delivers impressive 250W RMS power handling with 10mm excursion capability. The IPX5 water and dust rating ensures reliable operation even when exposed to water spray, while the infinite baffle design eliminates the need for a sealed enclosure. The 8-ohm impedance provides flexible amplifier compatibility and reduced power draw.
Features & Benefits
-
Ultra-Shallow Profile: Only 96.5mm mounting depth clearance fits in locations where traditional subwoofers won't
-
IPX5 Water and Dust Rating: Certified protection against water jets from any direction ensures reliable operation in wet marine environments
-

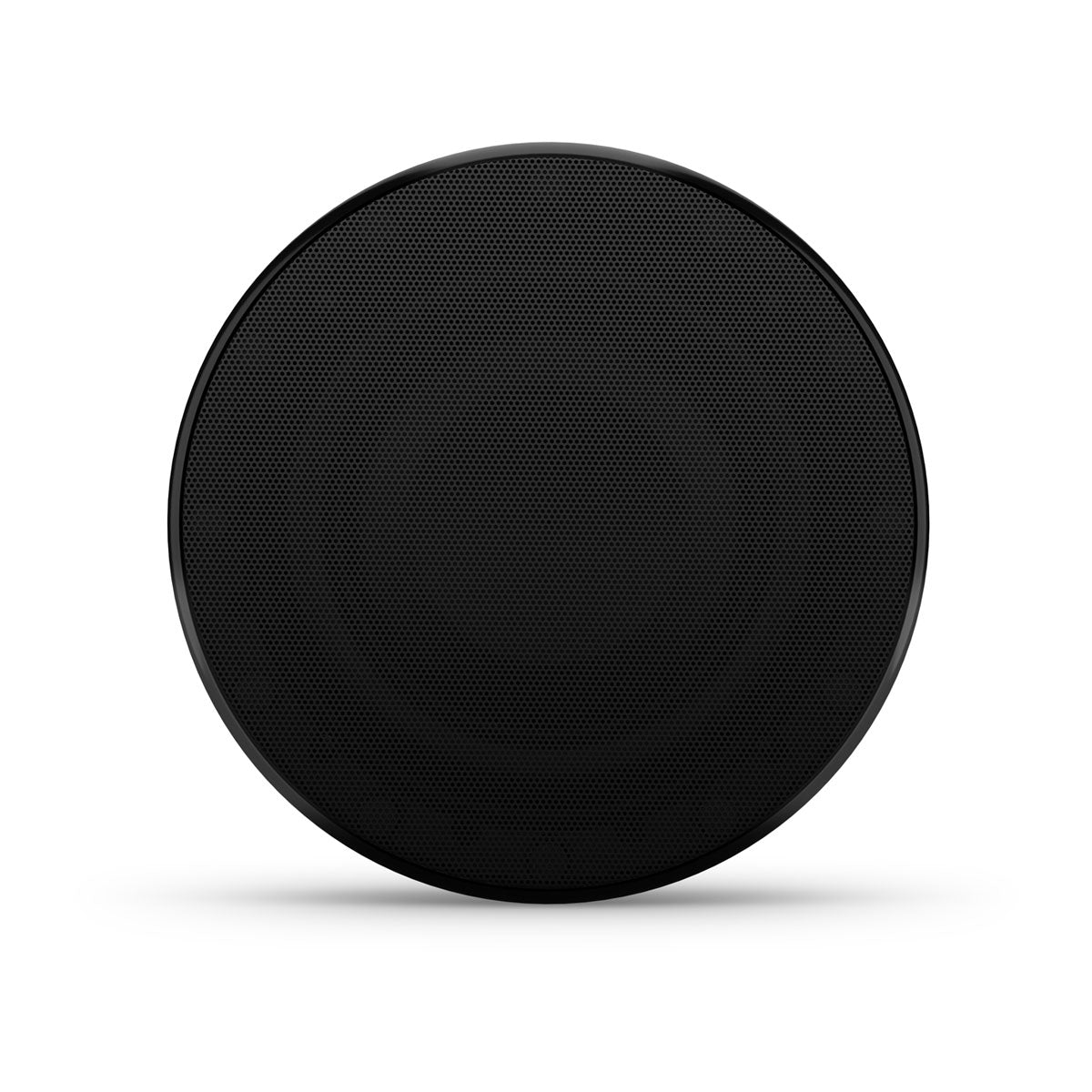

Round Black Luxe Grille: Sophisticated ultra-low 10mm profile design with satin finish for elegant integration
-
High Power Handling: 250W RMS continuous power handling delivers authoritative bass from compact form factor
-
8-Ohm Impedance: Higher impedance reduces amplifier load and power draw, ideal for multi-speaker marine systems
-
Infinite Baffle Design: Free-air mounting eliminates the need for enclosure, simplifying installation and saving space
-
Mica-Filled Polypropylene Cone: Injection-molded cone provides excellent stiffness-to-weight ratio for accurate bass reproduction
-
10mm Linear Excursion: Exceptional Xmax for ultra-shallow design allows high output with controlled distortion
-
Marine-Grade Construction: Sealed components and UV-resistant materials ensure long-term reliability in saltwater environments
-
Compass Safe: 235cm (93") safe distance from marine compass systems prevents interference with navigation
-
Flexible Panel Mounting: Accommodates panel thickness from 6mm to 41mm for versatile installation options
-
Professional Spade Terminals: Reliable connections ensure optimal signal transfer and easy installation
-
Grille Removal Tool Included: Dedicated tool allows easy access for servicing and maintenance
-
3-Year Warranty: Extended coverage provides confidence in long-term reliability
Technical Specs
| Specification |
Details |
| Model |
JLA-010-03875-10 |
| Subwoofer Size |
8" (203mm) thin-line |
| Grille Style |
Round, Black Luxe (Satin Black) |
| Configuration |
Infinite baffle (free-air) |
| Power Handling (Cont.) |
250W RMS |
| Power Handling (Peak) |
500W |
| Impedance |
8 ohms |
| Sensitivity |
83.2 dB @ 1W/1m |
| Recommended Amp Power |
50-200W RMS |
| Cone Material |
Injection-molded mica-filled polypropylene |
| Physical Diameter |
254mm (10") |
| Physical Depth |
107mm (4.2") |
| Mounting Depth Clearance |
96.5mm (3.8") |
| Frontal Grille Protrusion |
10mm (0.4") |
| Mounting Hole |
229mm (8.96") |
| Mounting Panel Thickness |
Min: 6mm (0.25"), Max: 41mm (1.625") |
| Driver Displacement |
1.53L (0.054 cu ft) |
| Free Air Resonance (Fs) |
37.98 Hz |
| One-Way Linear Excursion (Xmax) |
10mm (0.40") |
| Effective Piston Area (Sd) |
0.0211 m² (32.705 in²) |
| Total Q (Qts) |
0.679 |
| Equivalent Compliance (Vas) |
17.31L (0.61 cu ft) |
| Water and Dust Rating |
IPX5 |
| Compass Safe Distance |
235cm (93") |
| Connection Type |
Spade connectors |
| Warranty |
3 years |
| Weight |
3.4 kg (7.5 lbs) |
Compatible With / Goes Well With
Essential Amplifiers:
- JL Audio MVi Marine Amplifiers (monoblock or multi-channel for dedicated subwoofer power)
- JL Audio MHD Marine Amplifiers (high-output mono amplifiers)
- JL Audio XDM Car and Marine Amplifiers (flexible installation options)
Source Units:
- Fusion Apollo MS-RA800 Marine Stereo (subwoofer control and bass management)
- Apollo RA670 (integrated system control)
- JL Audio MediaMaster marine source units (seamless system integration)
System Building:
- JL Audio M6 Marine Speakers (full-range in-boat audio)
- JL Audio M6 Enclosed Tower Speakers (complete marine audio system)
Installation Accessories:
- Mounting template (included)
- Grille removal tool (included)
- Marine-grade speaker wire (12AWG or 14AWG recommended)
Frequently Asked Questions
Q: How does the thin-line subwoofer compare to the standard M6 8" subwoofer?
A: The thin-line model requires only 96.5mm mounting depth versus 127-160mm for the standard M6 8" (depending on grille style). It uses 8-ohm impedance (vs 4-ohm) and offers the same 250W RMS power handling. The thin-line design sacrifices some low-frequency extension for dramatically reduced depth, making it ideal for under-seat and shallow-compartment installations.
Q: What does IPX5 water resistance mean for marine use?
A: IPX5 rating means the subwoofer is protected against water jets from any direction. It can handle spray, rain, and splashing water, making it suitable for cockpit installations or areas that may get wet. However, it's not designed for submersion or constant water exposure.
Q: Can I install this subwoofer without an enclosure?
A: Yes, the M6 thin-line subwoofer is designed for infinite baffle (free-air) mounting. Simply mount it to a panel or bulkhead with adequate air space behind it. The boat's interior cavity acts as the enclosure. No custom box building is required, which saves significant space and installation complexity.
Q: What amplifier power should I use with this 8-ohm subwoofer?
A: The thin-line subwoofer performs optimally with 100-200 watts RMS. Because it's 8-ohms (versus the typical 4-ohm), you'll need about half the power compared to a 4-ohm subwoofer to achieve the same output. This reduces amplifier load and power draw, making it ideal for marine systems.
Q: How much clearance do I need behind the mounting surface?
A: You need only 96.5mm (3.8") of clearance behind the mounting surface, making this one of the shallowest marine subwoofers available. The mounting panel can be 6-41mm thick. Total installed depth including the grille is only 107mm (4.2"). Always verify clearance and ensure adequate air space behind the subwoofer for proper operation.
