Description
Purpose-built marine cable that combines speaker and LED illumination wiring in one corrosion-resistant jacket engineered specifically for JL Audio's LED-equipped marine speakers and subwoofers.
Product Overview

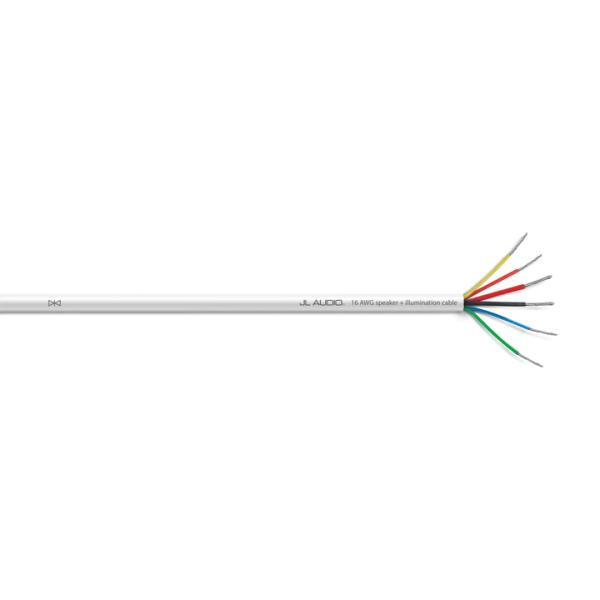

The JL Audio XM-WHTMFC is a 25-foot multifunction marine cable designed to simplify installations of LED-equipped marine speakers and subwoofers. This 6-conductor cable combines two 16 AWG oxygen-free copper speaker leads with four 20 AWG illumination leads under a single marine-grade white PVC jacket. Fine-strand construction delivers superior flexibility for routing through tight spaces in boat hulls, while stannum (tin) plating on all conductors provides long-term corrosion resistance in harsh saltwater environments. Compatible with JL Audio's M-Series and MX-Series marine speakers featuring RGB or white LED lighting systems.
Key Specifications
- 6-conductor configuration: 2 × 16 AWG speaker leads + 4 × 20 AWG LED power leads
- Cable length: 25 feet (7.6 metres)
- Conductor material: Oxygen-free copper (OFC) with stannum plating
- Wire gauge: 16 AWG for audio signal, 20 AWG for illumination power
- Jacket material: Marine-grade white PVC
- Construction: Fine-strand for enhanced flexibility
- Part number: JLA-010-13422-00
- Format: Sold by the length (not spooled)
Features & Benefits
All-in-One Cable Solution
Eliminates the need to run separate speaker and LED power cables—saves installation time and reduces clutter in tight mounting locations like helm consoles or tower enclosures.
Premium OFC Copper Conductors
Oxygen-free copper delivers superior conductivity compared to copper-clad aluminium alternatives, ensuring clean audio signal transmission and stable LED performance without voltage drop over the 25-foot run.
Stannum-Plated Corrosion Protection
Tin plating on all conductors prevents oxidation and galvanic corrosion in marine environments—critical for Australian saltwater and tropical humidity conditions where unprotected copper degrades rapidly.
Fine-Strand Flexibility
High strand-count construction allows the cable to flex and route through narrow gaps, around gunwales, and through bulkheads without kinking—makes retrofitting existing boats significantly easier.
Marine-Grade White PVC Jacket
UV-resistant white outer jacket withstands continuous sun exposure on deck-mounted speakers and blends seamlessly with white gel coat finishes common on Australian boats.
Optimised for JL Audio LED Systems
Four dedicated 20 AWG illumination leads support RGB colour-changing or white LED speaker lighting systems found in JL Audio's M6, M7, M10, and MX marine speakers—enables full lighting control functionality.
Technical Specs
- Cable length: 25 ft / 7.6 m
- Total conductors: 6
- Speaker wire: 2 × 16 AWG OFC
- LED wire: 4 × 20 AWG OFC
- Conductor plating: Stannum (tin)
- Strand type: Fine-strand (flexible)
- Jacket material: Marine-grade PVC
- Jacket colour: White
- Temperature rating: Not specified
- Sold as: Cut length (non-spooled)
Compatible With / Goes Well With
Confirmed JL Audio Marine Speakers:
- JL Audio M6 Series marine speakers (6.5", 7.7", 8.8" models with LED)
- JL Audio M7 Series marine speakers with RGB lighting
- JL Audio M10 Series subwoofers with LED illumination
- JL Audio MX Series tower speakers featuring LED systems
Installation Accessories:
- JL Audio marine speaker mounting hardware
- Heat-shrink marine connectors (12–16 AWG)
- Marine-grade terminal blocks for LED wiring
- Cable management clips and UV-resistant zip ties
Note: Verify your JL Audio speaker model includes LED lighting before purchasing—non-LED models only require standard 2-conductor speaker wire.
Frequently Asked Questions
What length do I need for my boat installation?
25 feet suits most cabin-to-deck runs, helm-to-transom speaker pairs, or tower speaker installations on boats up to 7 metres. For longer runs or multi-speaker systems, order multiple cables or consider JL Audio's 50-foot variant (XM-WHTMFC-50).
Will this cable work with non-JL Audio marine speakers?
Yes, if your speakers use separate audio and LED power connections. The 16 AWG speaker leads are universal, while the four 20 AWG leads can power any 12V LED system—just match polarity carefully for RGB applications.
Is the white jacket UV-resistant for Australian sun exposure?
JL Audio specifies marine-grade PVC, which typically includes UV stabilisers. While not explicitly rated by the manufacturer, the white jacket is designed for above-deck installations and should handle Australian coastal UV—consider additional UV-resistant conduit for permanent direct-sun exposure.
Can I cut this cable to custom lengths?
Yes, the cable is sold as a cut length and can be trimmed as needed. Use marine-grade heat-shrink connectors and seal all terminations with adhesive-lined heat shrink to maintain corrosion resistance.
Does this cable meet Australian marine electrical standards?
The cable uses OFC conductors and marine-grade jacketing suitable for 12V DC systems. While JL Audio doesn't explicitly reference AS 3004/3008 standards, the construction meets typical requirements for low-voltage boat wiring—consult a marine electrician for commercial vessel installations.
