Description

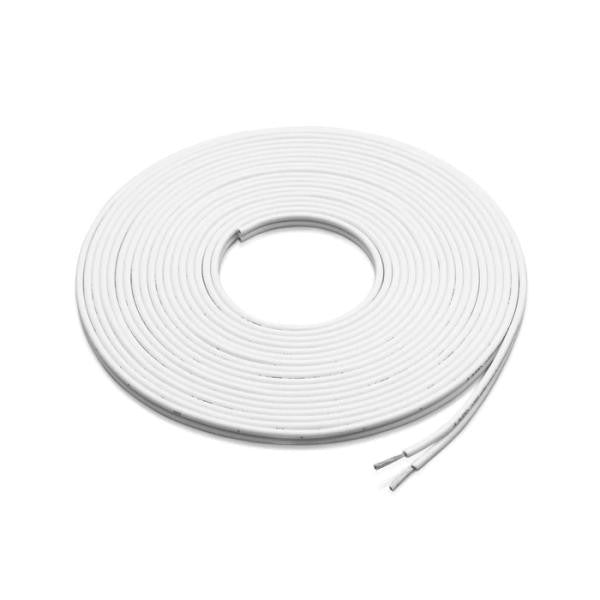

Premium 16 AWG marine-grade speaker cable engineered with tinned OFC copper for superior corrosion resistance in Australian coastal environments.
Product Overview
The JL Audio XM-WHTSC16 premium speaker cable delivers reliable signal transmission for marine speaker systems in Australian boats, caravans, and outdoor entertainment installations. Featuring true 16 AWG specification with pure oxygen-free copper (OFC) wire construction, this parallel conductor cable ensures minimal resistance signal transmission across 25-foot (7.62-metre) runs. The tinned copper construction provides exceptional corrosion resistance—critical for Australian coastal boating, saltwater exposure, and marine environments where standard copper wire rapidly deteriorates from salt spray and moisture ingress.
The soft, flexible white PVC jacket enables easy routing through tight bilge spaces, bulkhead penetrations, overhead panels, and cramped equipment bays common in boats and caravans. Unlike stiff speaker cables that resist bending and create installation challenges, the XM-WHTSC16's flexible construction simplifies wire runs around corners, through conduit, and along existing cable bundles. The white jacket colour provides aesthetic compatibility with white gelcoat interiors, headliners, and panel surfaces typical in marine vessels, maintaining clean professional appearance in visible installations. Ideal for connecting marine speakers, tower speakers, cabin audio systems, or outdoor entertainment zones where corrosion resistance and signal integrity matter.
Key Specifications
- True 16 AWG specification (not undersized like budget cables)
- Pure oxygen-free copper (OFC) wire construction
- Tinned copper for marine-grade corrosion resistance
- Parallel conductor configuration
- Soft, flexible white PVC jacket
- Length: 25 feet (7.62 metres) per spool
- Minimal resistance signal transmission
- Marine-ready construction
- Weight: Not specified
- Warranty: Not specified
Features & Benefits
True 16 AWG OFC Copper Construction
Genuine 16 AWG wire gauge—not the undersized conductors common in budget speaker cables that claim 16 AWG but measure smaller. Pure oxygen-free copper (OFC) provides superior conductivity compared to copper-clad aluminum (CCA) wire found in inferior cables. The OFC construction ensures minimal signal loss across 25-foot runs, maintaining clean audio reproduction without high-frequency roll-off or power loss that degrades speaker performance. Critical for marine tower speakers, long cabin runs, or distributed audio systems where wire resistance accumulates.
Tinned Copper for Marine Corrosion Resistance
The tinned copper construction prevents the green oxidation (verdigris) that destroys standard copper wire in marine environments. Tin plating creates a protective barrier against salt spray, bilge moisture, and the corrosive conditions encountered in Australian coastal boating from tropical Queensland to Southern Ocean conditions. Unlike bare copper that corrodes within months of marine exposure, tinned copper maintains conductivity and connection integrity for years. Essential for deck penetrations, bilge routing, or any installation exposed to weather and saltwater spray.
Soft, Flexible PVC Jacket
The pliable white PVC insulation enables easy routing through tight spaces, sharp corners, and bulkhead penetrations without kinking or resisting installation. The flexibility simplifies wire runs through crowded equipment bays, overhead panels with limited access, or existing cable bundles in finished vessels. The soft jacket also reduces strain on speaker terminals and connection points—stiff wire creates mechanical stress that loosens terminals over time, especially in mobile applications subject to vibration and movement.
Parallel Conductor Configuration
The parallel conductor design (two insulated wires side-by-side rather than twisted pair) simplifies termination and connection. Easily separate conductors for connection to binding posts, spade terminals, or screw terminals without unwinding twisted pairs. The parallel configuration also maintains consistent conductor spacing along the entire run, ensuring predictable electrical characteristics and eliminating impedance variations caused by inconsistent twist patterns in poorly manufactured twisted cables.
White Jacket for Marine Aesthetics
The white PVC jacket matches common marine interior colours—white gelcoat, headliners, cabin panels, and overhead surfaces typical in boats. Visible wire runs maintain clean professional appearance without the visual clash of black cables against white backgrounds. The white colour also makes wire identification easier during troubleshooting or system modifications—white speaker cable stands out against bilge areas, behind-panel spaces, and equipment bay environments where black wire disappears.
25-Foot Length for Flexible Installations
The 25-foot (7.62-metre) spool length accommodates typical marine and caravan speaker installations: helm to cockpit speakers, cabin to tower speakers, source unit to rear entertainment zones, or amplifier to distributed speaker locations. The single continuous length eliminates mid-run splices that create connection points vulnerable to corrosion and signal degradation. Sufficient length for most small-to-medium vessel installations while minimizing waste compared to 50-foot or 100-foot spools inappropriate for compact projects.
Minimal Resistance Signal Transmission
The combination of true 16 AWG conductor size and pure OFC copper construction ensures low resistance across 25-foot runs. Low resistance means maximum power transfer from amplifier to speaker—the speaker receives more of the amplifier's output without loss to wire resistance. This maintains bass impact, midrange clarity, and high-frequency extension that inferior cables compromise. Particularly important for marine tower speakers on long cable runs where resistance accumulation degrades performance.
Technical Specs
Wire Specifications:
-
Gauge: True 16 AWG
-
Conductor material: Pure oxygen-free copper (OFC)
-
Conductor treatment: Tinned for corrosion resistance
-
Conductor configuration: Parallel (side-by-side)
Jacket Specifications:
-
Material: PVC (polyvinyl chloride)
-
Colour: White
-
Flexibility: Soft, pliable construction
-
Marine-grade: Yes (tinned copper, corrosion-resistant jacket)
Physical Specifications:
-
Length: 25 feet (7.62 metres)
-
Weight: Not specified
-
Warranty: Not specified
Application:
- Marine speaker system connections
- Tower speaker installations
- Cabin audio system wiring
- Caravan and RV audio installations
- Outdoor entertainment zone wiring
Important Note: This is a 25-foot continuous length spool. For installations requiring different lengths, measure your specific wire runs before ordering. Standard practice is to add 10-15% additional length for routing flexibility, drip loops, and service slack.
Compatible With / Goes Well With
Speaker Applications:
- Marine coaxial speakers (all sizes: 6", 6.5", 6×9", 7.7", 8.8")
- Marine component speaker systems
- Marine tower speakers
- Wakeboard tower speakers
- Cabin entertainment speakers
- Outdoor speakers under awnings/annexes
Installation Accessories:
- Marine-grade heat shrink tubing for connection protection
- Dielectric grease for terminal corrosion prevention
- Wire ferrules or spade connectors for secure terminations
- Cable ties (UV-resistant for exposed runs)
- Split loom tubing for wire bundling and protection
- Weatherproof grommets for bulkhead penetrations
- Marine sealant for deck penetrations
Tools Required:
- Wire strippers (16 AWG compatible)
- Crimping tool (if using connectors)
- Multimeter (for continuity testing)
- Heat gun (for heat shrink application)
- Cable pulling lubricant (for conduit runs)
System Compatibility:
- Marine amplifiers with binding post or screw terminals
- Marine head units with speaker-level outputs
- Marine speakers with various terminal types (binding posts, push terminals, screw terminals)
- Distributed audio systems requiring multiple speaker runs
Wire Run Planning:
- 16 AWG suitable for speaker runs up to 50 feet (15 metres) for 4Ω speakers
- For runs exceeding 50 feet, consider upgrading to 14 AWG or 12 AWG
- For subwoofers or high-power applications, consider 14 AWG or heavier gauge
- Always use matched wire gauge for both positive and negative conductors
Caution: While 16 AWG is suitable for most marine speaker applications, very long runs (over 50 feet) or high-power subwoofers may benefit from heavier gauge wire to minimize resistance. Calculate wire gauge requirements based on your specific speaker impedance, amplifier power, and wire run distance.
Frequently Asked Questions
Is 16 AWG wire sufficient for my marine tower speakers?
Yes, for typical tower speaker installations. 16 AWG handles runs up to 50 feet (15 metres) for 4Ω speakers without significant power loss. Tower speakers typically fall within this range. For extremely long tower runs exceeding 50 feet or high-power competition applications, consider 14 AWG or 12 AWG wire.
What does "tinned" copper mean and why does it matter?
Tinning applies a thin tin coating over the copper conductor. This prevents the green corrosion (copper oxide/verdigris) that forms when bare copper is exposed to salt, moisture, and air. In marine environments, untinned copper corrodes rapidly, increasing resistance and eventually failing. Tinned copper maintains conductivity and connection integrity for years in saltwater conditions.
Can I use this speaker cable in my caravan or RV?
Absolutely. The marine-grade construction (tinned copper, flexible PVC jacket) provides reliability in caravans, motorhomes, and recreational vehicles. The corrosion resistance benefits any mobile application exposed to moisture, condensation, or varying environmental conditions during Australian touring from tropical regions to alpine areas.
How do I properly terminate this speaker cable?
Strip 10-12mm of insulation from each conductor, twist the exposed strands tightly, and tin with solder if desired (helps prevent strand fray). For binding posts, wrap bare wire clockwise around post and tighten. For screw terminals, insert tinned wire and tighten screw. For crimped connections, use marine-grade crimp connectors with heat shrink for moisture protection.
Is 25 feet enough for my boat's speaker installation?
Measure your specific wire runs before ordering. For typical applications: helm to cockpit speakers (15-20 feet), cabin head unit to tower speakers (20-40 feet depending on vessel size), amplifier to distributed cabin speakers (varies). Add 10-15% extra length for routing around obstacles, drip loops at penetrations, and service slack. For runs requiring more than 25 feet, order multiple spools or longer length options.
