JL Audio JLA-010-13649-00 XMD-PCS30A Premium Marine Amplifier Connection Kit - 9 AWG, 12V, Single Amplifier, within 12' of Battery
Professional-grade marine wiring solution with tinned OFC copper and ABYC-compliant colour coding for safe, corrosion-resistant amplifier installations.
Product Overview

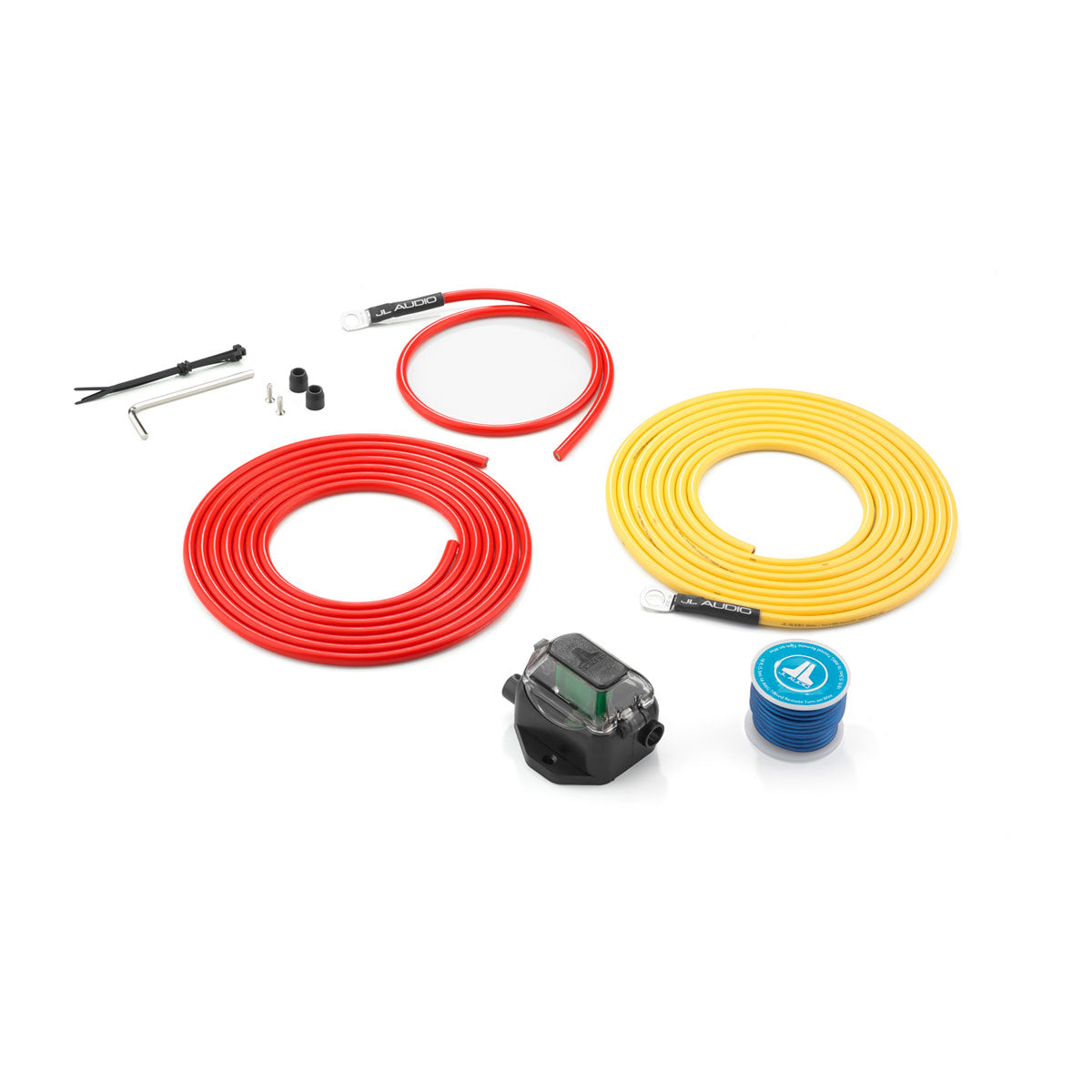

The JL Audio XMD-PCS30A is a complete marine amplifier wiring kit engineered to ABYC (American Boat and Yacht Council) standards for safe, reliable power delivery in harsh saltwater environments. This kit includes everything needed to install a single amplifier within 12 feet of the battery, featuring true AWG-spec 9 AWG tinned pure oxygen-free copper wire that resists corrosion from salt spray and humidity. The red, yellow, and blue ABYC-standard colour coding ensures proper polarity identification during installation and future servicing.
Designed for amplifiers drawing up to 30 amps, this kit includes a MAXI fuse and holder for circuit protection, pre-attached power rings for secure battery connections, and sufficient wire lengths to route cleanly through typical boat installations. The tinned copper construction provides superior conductivity while preventing the green oxidation common to untreated marine wiring. Compatible with JL Audio's complete range of marine amplifiers including MX, MHD, MVi, AP, and XDM series.
Features & Benefits
Tinned OFC Copper Construction: Pure oxygen-free copper wire with complete tin plating prevents corrosion from saltwater exposure, maintaining optimal conductivity and preventing voltage drop even after years of marine service.
ABYC-Compliant Colour Coding: Red power, yellow ground, and blue remote turn-on wiring follows American Boat and Yacht Council standards, ensuring safe installations that meet marine electrical codes and simplify troubleshooting.
30 Amp MAXI Fuse Protection: Inline fuse and holder protects your amplifier and vessel's electrical system from short circuits and overload conditions, meeting insurance and safety requirements for marine installations.
Pre-Attached Power Rings: Factory-crimped ring terminals on battery connection points eliminate DIY termination errors, ensuring gas-tight connections that won't corrode or work loose from vibration and wave impacts.
True AWG Specification Wire: Genuine 9 AWG conductor sizing delivers rated current capacity without the undersized "CCA" wire found in budget kits, preventing voltage drop and amplifier underperformance.
Complete 12-Foot Run Capability: Two-foot and ten-foot power wire sections plus twelve-foot ground wire accommodate installations from helm to transom areas in most centre consoles, bowriders, and pontoon boats.
Marine-Grade Wire Ties Included: Four heavy-duty cable ties secure wire runs to stringers and bulkheads, preventing chafe damage from engine vibration and maintaining clean, professional installations.
Hex Wrench for Amplifier Terminals: Included 4mm hex key fits JL Audio amplifier power terminals, eliminating the search for proper tools during installation.
Technical Specs
| Specification |
Value |
| Model |
JLA-010-13649-00 XMD-PCS30A-1-L12 |
| Application |
Single Amplifier, within 12' of Battery |
| Power Wire Gauge |
9 AWG |
| Ground Wire Gauge |
9 AWG |
| Remote Wire Gauge |
16 AWG |
| Wire Material |
Tinned Pure OFC Copper |
| Maximum Current Rating |
30 Amps |
| Operating Voltage |
12V DC |
| Power Wire Length |
2 feet + 10 feet (12 feet total) |
| Ground Wire Length |
12 feet |
| Remote Turn-On Wire Length |
18 feet |
| Power Wire Colour |
Red (ABYC Standard) |
| Ground Wire Colour |
Yellow (ABYC Standard) |
| Remote Wire Colour |
Blue (ABYC Standard) |
| Fuse Type |
30A MAXI Fuse |
| Fuse Holder |
XD-MFBW-MAXI Included |
| Power Ring Terminals |
Pre-attached to power and ground |
| Wire Ties Included |
4 x 4-inch |
| Hex Wrench Size |
4mm |
| ABYC Compliant |
Yes |
| Maximum Install Distance |
12 feet from battery |
Compatible With / Goes Well With
- JL Audio MX Marine and Powersports Amplifiers
- JL Audio MHD Marine Amplifiers
- JL Audio MVi Marine Amplifiers
- JL Audio AP Amplifiers with Bluetooth
- JL Audio XDM Car and Marine Amplifiers
- Marine amplifiers rated up to 30A continuous draw
- 12V marine electrical systems
- Single amplifier installations
- Centre console boats
- Bowrider and pontoon boat audio systems
Caution: This kit is designed for amplifiers within 12 feet of the battery drawing maximum 30 amps. Longer runs or higher-power amplifiers require larger gauge wire kits (XMD-PCS50A series available separately).
Frequently Asked Questions
What size amplifier will this kit support?
This 9 AWG kit handles amplifiers drawing up to 30 amps continuously, suitable for most 200-400 watt marine amplifiers. Check your amplifier's fuse rating to confirm compatibility.
Why is tinned copper important for marine applications?
Tinning prevents copper oxidation from salt exposure. Untinned wire develops green corrosion that increases resistance, causing voltage drop and potential connection failures in marine environments.
Can I use this kit for through-hull installations?
Yes, the ABYC-compliant colour coding and tinned construction meet marine standards. Ensure all connections are sealed with heat-shrink tubing and protected from direct water exposure.
Does this include speaker wire?
No, this is a power connection kit only. Speaker wire should be purchased separately based on your speaker locations and impedance requirements.
Will this work with non-JL Audio amplifiers?
Absolutely. The standard gauge sizing and ring terminals are compatible with any marine amplifier requiring 9 AWG power wire and 30A fusing within 12 feet.
