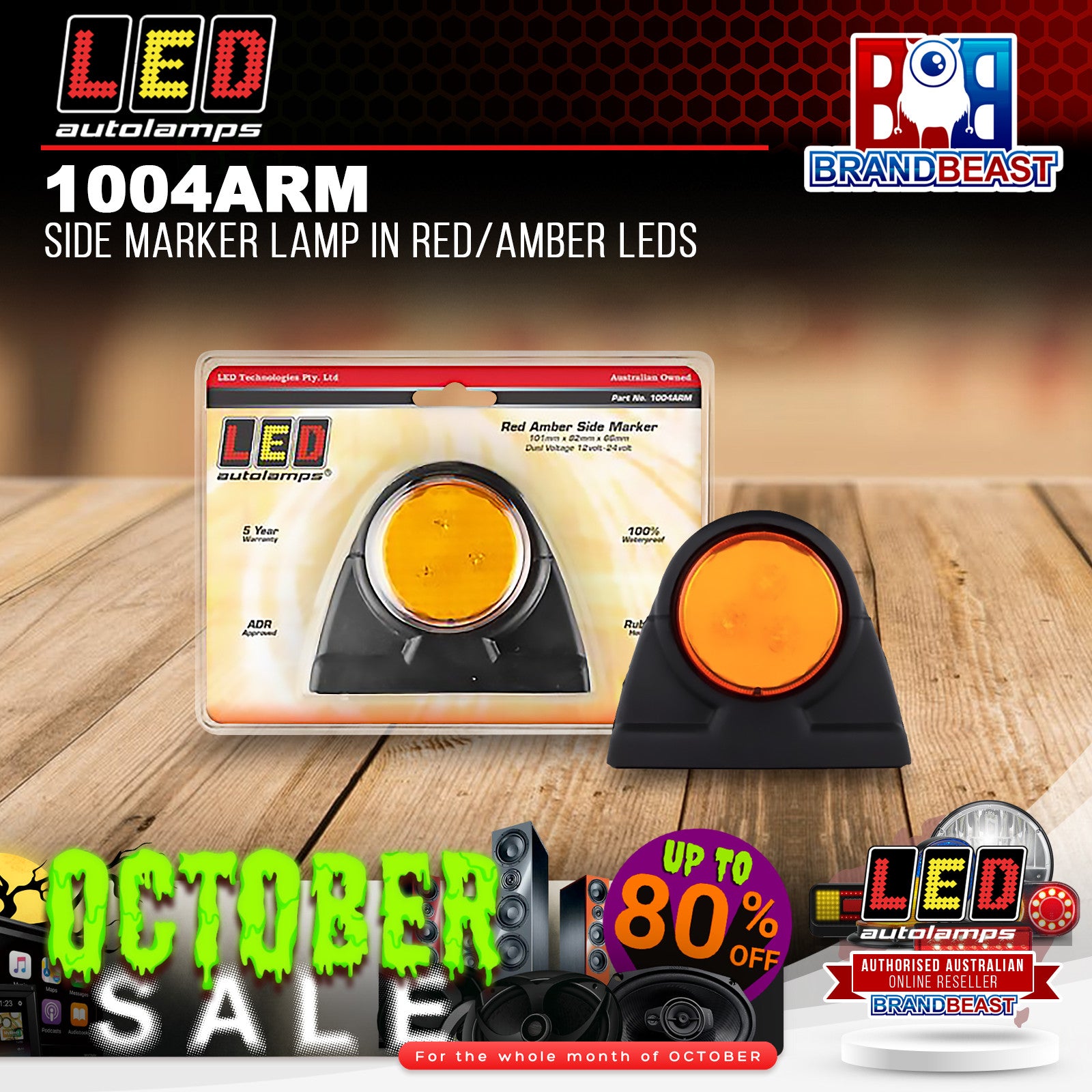

LED Autolamps 1004ARM Side Marker Lamp Red and Amber LED 12-24V ADR Approved IP67 Rubber Housing
The LED Autolamps 1004ARM is a side marker lamp with red and amber LEDs, suitable for 12V and 24V systems. ADR approved, IP67 waterproof, rubber housing construction. Five-year warranty. Sold individually.
Product overview
The 1004ARM is suited to trailer, caravan, truck, and heavy vehicle side marker applications where both red and amber indication is required in a single unit. The rubber housing provides durability in demanding outdoor and road environments. IP67 waterproof rating confirms full submersion capability. ADR approved for Australian road use. Operates across 12V and 24V systems, making it compatible with both passenger vehicle trailers and commercial vehicle applications.
Features and benefits
Red and amber LED combination: Provides both red and amber side marker indication in a single unit.
12V and 24V compatible: Suits passenger vehicle trailers, caravans, trucks, and heavy vehicles.
ADR approved: Compliant for road use in Australia.
IP67 fully waterproof and submersible: Suited to outdoor, trailer, and off-road environments.
Rubber housing: Durable, impact-resistant rubber construction.
Five-year warranty.
Sold individually.
Technical specs
| Specification |
Detail |
| SKU |
1004ARM |
| Brand |
LED Autolamps |
| Type |
Side marker lamp |
| LED Colour |
Red/Amber |
| Light Type |
LED |
| Operating Voltage |
12V to 24V |
| Housing Material |
Rubber |
| Dimensions |
101mm (L) x 66mm (W) x 82mm (H) |
| Weight |
0.2kg |
| Waterproof Rating |
IP67 |
| ADR Approved |
Yes |
| Sold As |
Each |
| Warranty |
Five years |
Frequently asked questions
Is the 1004ARM ADR approved? Yes. The 1004ARM carries ADR approval for Australian road use.
What voltage does the 1004ARM operate on? The 1004ARM operates on both 12V and 24V systems, making it suited to passenger vehicle trailers, caravans, trucks, and commercial vehicles.
What does the red and amber LED combination indicate? The 1004ARM provides both red and amber side marker indication. Confirm the correct installation position and function for your specific application against ADR requirements before purchasing.
Is the 1004ARM suitable for submersion? Yes. The IP67 rating confirms the 1004ARM is fully dustproof and submersible in water up to 1 metre for up to 30 minutes, suited to trailer and off-road applications exposed to water and road spray.
Is the 1004ARM sold as a single unit or a pair? Sold individually.
