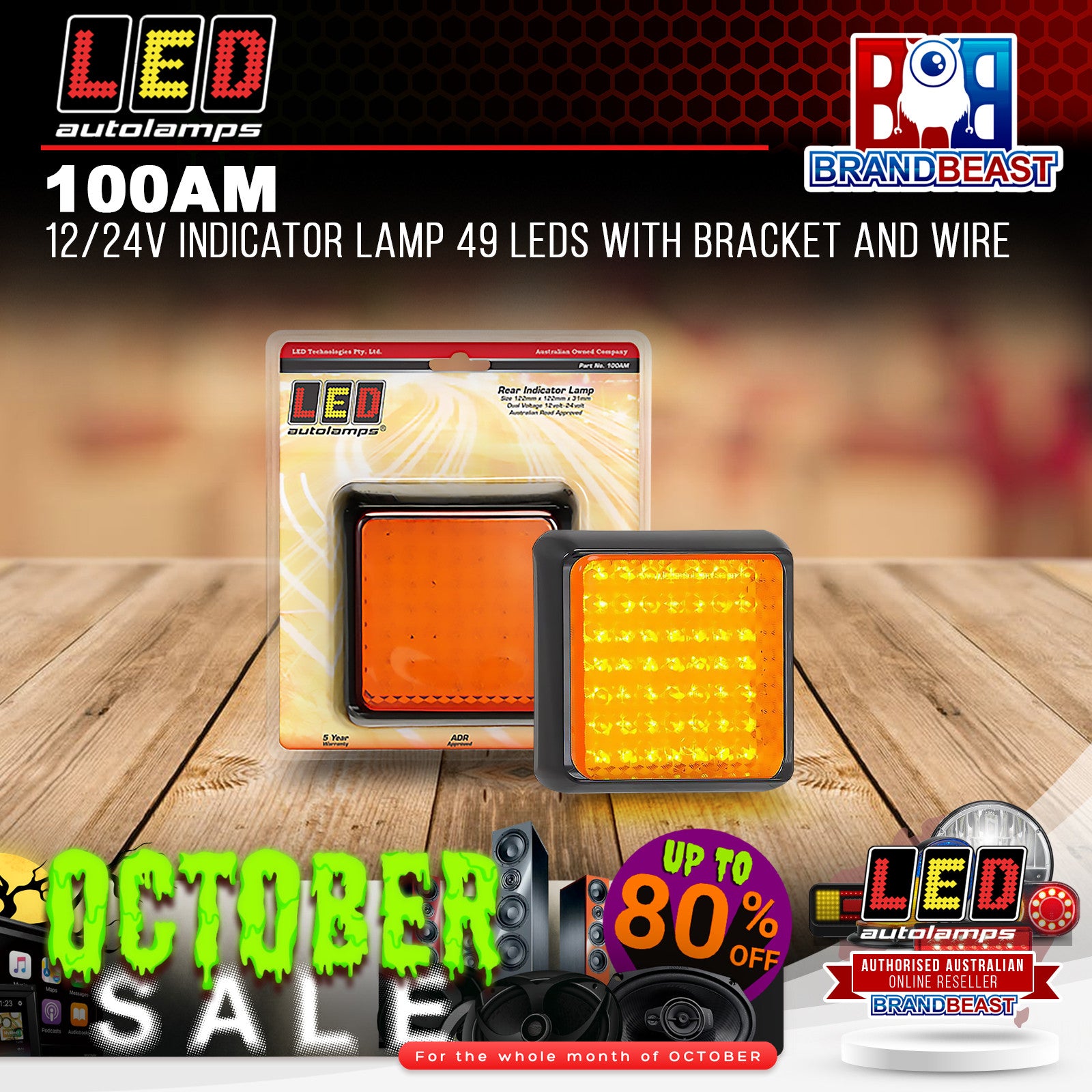

LED Autolamps 100AM 12-24V Amber LED Indicator Lamp 49 LEDs 122mm Square with Mounting Bracket and Pre-Wired Lead ADR Approved IP67
The LED Autolamps 100AM is a 12-24V amber LED rear indicator lamp with 49 LEDs in a 122mm square housing. ADR approved (6/00 Cat 2a, CRN 33156), IP67 waterproof, clip-in replaceable lens, and supplied with a mounting bracket and pre-wired lead. Black housing. Five-year warranty.
Product overview
The 100AM is part of the LED Autolamps Original Square Series, providing a traditional square form factor suited to trailers, caravans, trucks, and commercial vehicles. The 49-LED array draws 0.38A at 13.8V across a 12V to 24V operating range. The clip-in replaceable lens simplifies servicing without replacing the full lamp assembly. Mounting centres are 70mm. The mounting bracket and pre-wired lead are included for straightforward installation. ADR 6/00 Cat 2a compliance and CRN 33156 confirm Australian road approval.
Features and benefits
49 amber LEDs: High-brightness indicator output in the Original Square Series 122mm format.
12V and 24V compatible: Suits trailers, caravans, trucks, and commercial vehicles across both system voltages.
ADR approved (6/00 Cat 2a, CRN 33156): Compliant for road use in Australia.
IP67 fully waterproof and submersible: Suited to trailer, caravan, and off-road applications.
Clip-in replaceable lens: Lens can be replaced without removing or replacing the full lamp assembly.
Mounting bracket and pre-wired lead included: Ready for installation out of the box.
70mm mounting centres.
Black housing.
Five-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
100AM |
| Brand |
LED Autolamps |
| Type |
Rear indicator lamp |
| LED Count |
49 |
| LED Colour |
Amber |
| Operating Voltage |
12V to 24V |
| Current Draw |
0.38A at 13.8V |
| Housing Colour |
Black |
| Housing Shape |
Square |
| Dimensions |
122mm x 122mm x 31mm |
| Mounting Centres |
70mm |
| Mount Type |
Surface mount |
| Connector |
Pre-wired |
| Lens |
Clip-in replaceable |
| Waterproof Rating |
IP67 |
| ADR Compliance |
6/00 Cat 2a, CRN 33156 |
| Weight |
0.28kg |
| Manufactured In |
China (Taiwan) |
| Warranty |
Five years |
Frequently asked questions
Is the 100AM ADR approved? Yes. The 100AM holds ADR approval 6/00 Cat 2a with CRN 33156, confirming compliance for road use in Australia as a rear indicator lamp.
What voltage does the 100AM operate on? The 100AM operates on 12V and 24V systems, making it suited to trailers, caravans, trucks, and commercial vehicles.
What is the clip-in replaceable lens? The 100AM features a clip-in lens that can be removed and replaced without removing or replacing the full lamp body. This simplifies servicing if the lens is damaged.
What are the mounting centres for the 100AM? The 100AM has 70mm mounting centres between fixing points. Confirm this suits your mounting location before purchasing.
Is the 100AM suitable for submersion? Yes. The IP67 rating confirms the 100AM is fully dustproof and submersible in water up to 1 metre for up to 30 minutes.
