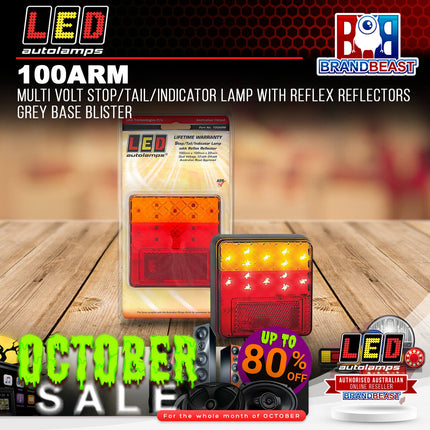

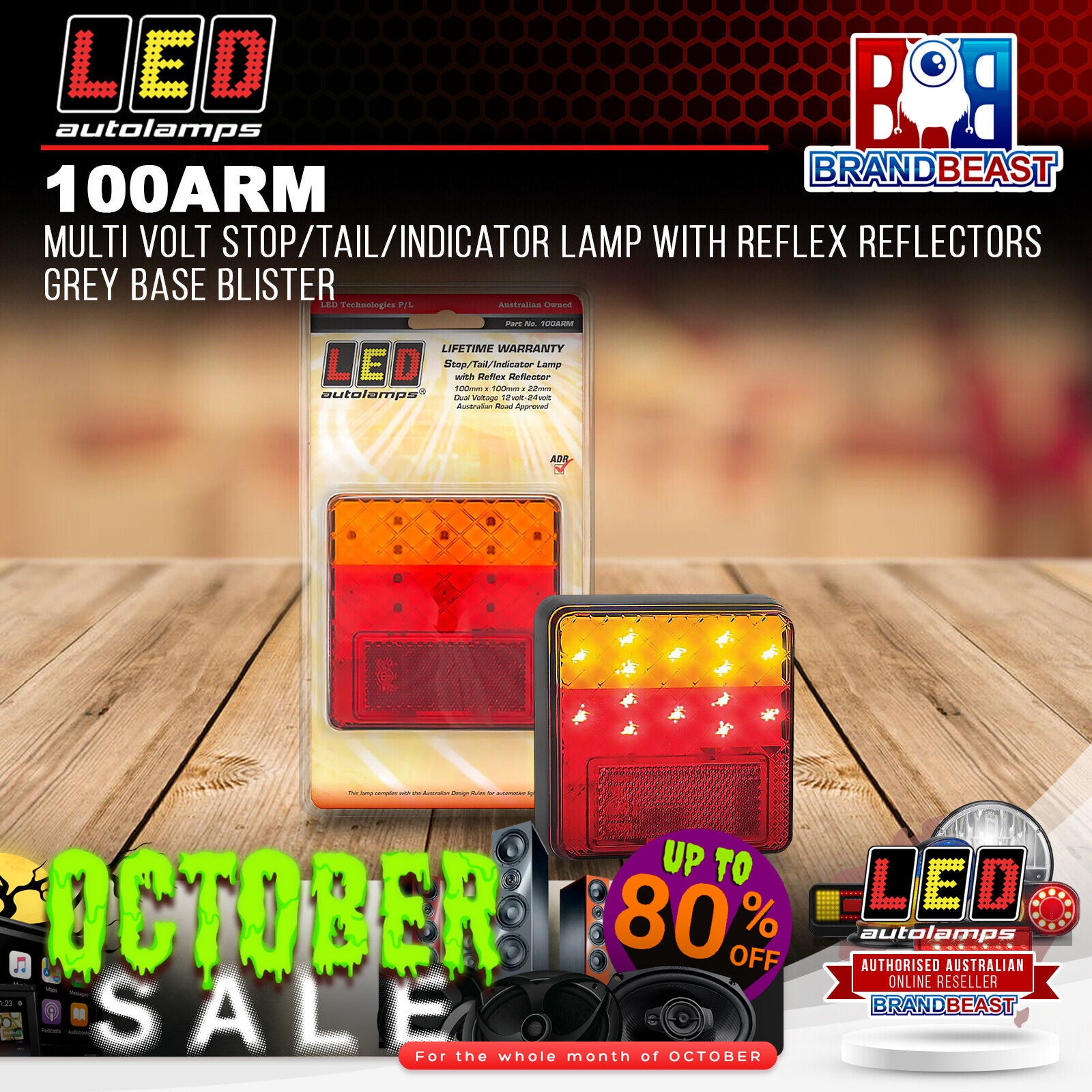

LED Autolamps 100ARM Multi Volt Stop Tail Indicator Lamp with Reflex Reflectors Grey Base 100mm Square 12-24V ADR Approved IP67
The LED Autolamps 100ARM is a 12-24V LED combination lamp covering stop, tail, and indicator functions with integrated reflex reflectors, in a 100mm square low-profile format with a grey base. Diamond pattern lens. ADR approved (stop/tail CRN 37986, indicator CRN 37985, reflector CRN 38102), IP67 waterproof, surface mount, pre-wired. Five-year warranty.
Product overview
The 100ARM is a premium trailer lamp in the LED Autolamps 100 series square range. The 100mm x 100mm x 22mm low-profile housing suits flush or near-flush surface mounting on trailer rear panels. The diamond pattern lens and reflex reflectors provide enhanced visibility. Mounting centres are 70mm. Current draw at 13.8V: stop 0.13A, tail 0.04A, indicator 0.12A. The pre-wired lead simplifies installation. ADR compliance is confirmed individually for stop/tail, indicator, and reflector functions.
Features and benefits
Stop, tail, indicator, and reflex reflector in one unit: Multi-function low-profile combination lamp for trailer rear lighting.
Diamond pattern lens: Enhanced optical output and visibility.
100mm x 100mm x 22mm low-profile housing: Compact square format suited to trailer rear panels.
Grey base with black housing: Matches common trailer trim finishes.
12V and 24V compatible: Suits light vehicle trailers, caravans, and heavy transport.
ADR approved: Stop/tail CRN 37986, indicator CRN 37985, reflector CRN 38102.
IP67 fully waterproof and submersible: Suited to trailer and off-road applications.
Pre-wired lead with 70mm mounting centres.
Five-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
100ARM |
| Brand |
LED Autolamps |
| Type |
Stop/tail/indicator combination lamp with reflectors |
| LED Type |
LED |
| Operating Voltage |
12V to 24V |
| Current Draw (Stop) |
0.13A at 13.8V |
| Current Draw (Tail) |
0.04A at 13.8V |
| Current Draw (Indicator) |
0.12A at 13.8V |
| Housing Colour |
Black |
| Base Colour |
Grey |
| Dimensions |
100mm x 100mm x 22mm |
| Mounting Centres |
70mm |
| Mount Type |
Surface mount |
| Connector |
Pre-wired |
| Lens Pattern |
Diamond |
| Waterproof Rating |
IP67 |
| ADR Stop/Tail |
CRN 37986 |
| ADR Indicator |
CRN 37985 |
| ADR Reflector |
CRN 38102 |
| Weight |
0.28kg |
| Manufactured In |
China (Taiwan) |
| Warranty |
Five years |
Frequently asked questions
Is the 100ARM ADR approved? Yes. The 100ARM holds individual ADR approvals for stop/tail (CRN 37986), indicator (CRN 37985), and reflector (CRN 38102), confirming compliance for road use in Australia.
What voltage does the 100ARM operate on? The 100ARM operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, and heavy transport applications.
What are the mounting centres for the 100ARM? The 100ARM has 70mm mounting centres between fixing points. Confirm this suits your mounting location before purchasing.
What is the current draw of the 100ARM? At 13.8V: stop draws 0.13A, tail draws 0.04A, and indicator draws 0.12A.
Is the 100ARM suitable for submersion? Yes. The IP67 rating confirms the 100ARM is fully dustproof and submersible in water up to 1 metre for up to 30 minutes, suited to trailer and off-road environments.
