Description

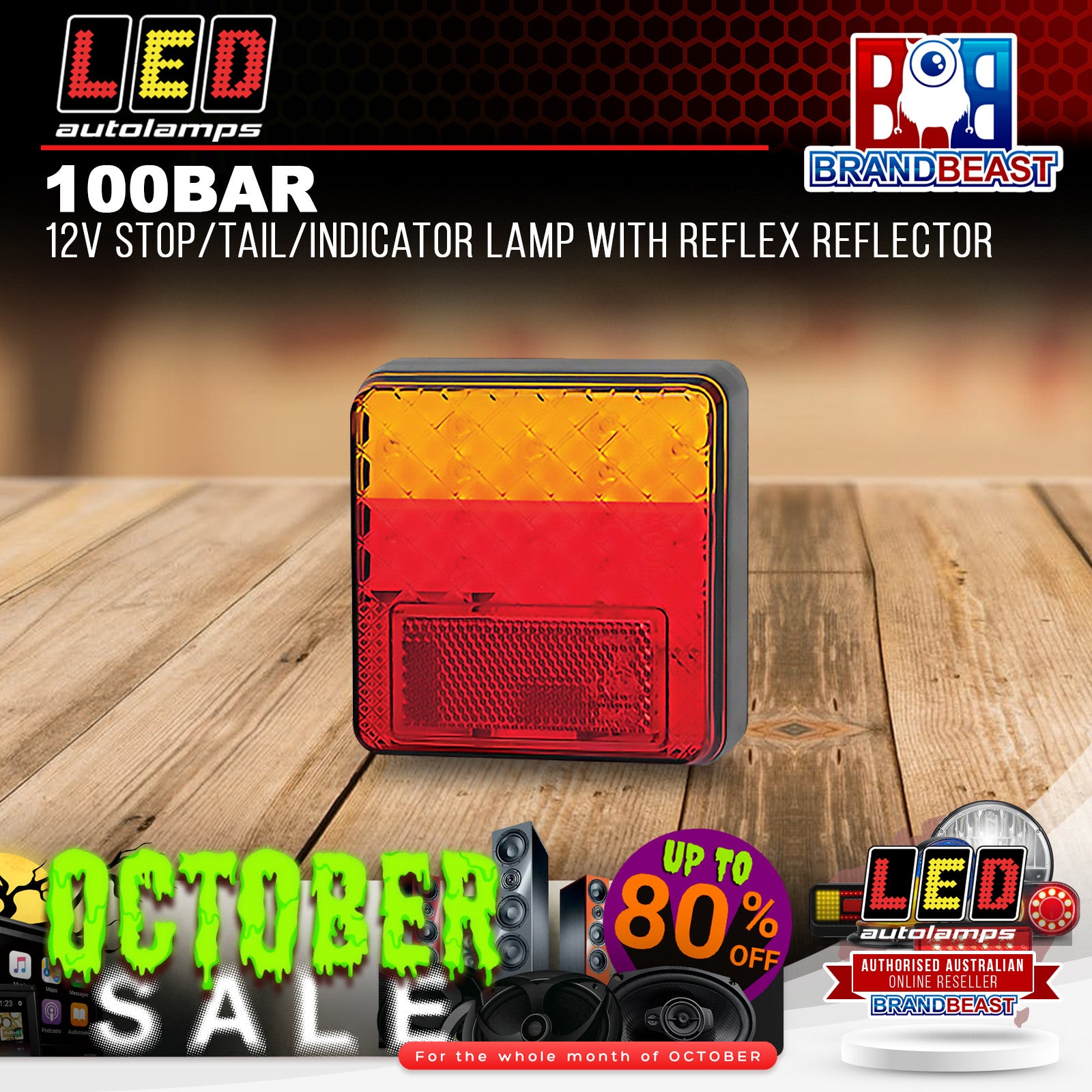

LED Autolamps 100BAR 12-24V LED Stop Tail Indicator Lamp with Reflex Reflector 100mm Square Diamond Lens ADR Approved IP67
The LED Autolamps 100BAR is a 12-24V LED combination lamp covering stop, tail, indicator, and reflex reflector functions in a 100mm square low-profile black housing. Diamond pattern lens, 4-pin connector, ADR approved (stop/tail ADR 49/00, indicator ADR 6/00 Cat 2a, reflector ADR 47/00), IP67 rated, and fully submersible with corrosion-protected tinned copper wiring. Surface mount with 70mm mounting centres. Sold individually.
Product overview
The 100BAR provides stop, tail, indicator, and reflex reflector functions in a 100mm x 100mm x 22mm low-profile square housing suited to surface mounting on trailer rear panels. The diamond pattern lens enhances optical output and visibility. Current draw: stop 0.13A, tail 0.04A, indicator 0.12A. The 4-pin connector and corrosion-protected tinned copper wiring suit demanding outdoor and marine-adjacent trailer environments. Mounting centres are 70mm. IP67 rated and fully submersible.
Features and benefits
Stop, tail, indicator, and reflex reflector in one unit: Multi-function 100mm square combination lamp.
Diamond pattern lens: Enhanced optical output and visibility.
100mm x 100mm x 22mm low-profile housing: Compact square format for trailer rear panel surface mounting.
ADR approved: Stop/tail ADR 49/00, indicator ADR 6/00 Cat 2a, reflector ADR 47/00.
IP67 fully waterproof and fully submersible.
Corrosion-protected tinned copper wiring: Suited to outdoor and marine-adjacent environments.
4-pin connector.
70mm mounting centres.
Black housing.
Technical specs
| Specification |
Detail |
| SKU |
100BAR |
| Brand |
LED Autolamps |
| Type |
Stop/tail/indicator combination lamp with reflector |
| Light Type |
LED |
| Operating Voltage |
12V to 24V |
| Current Draw (Stop) |
0.13A |
| Current Draw (Tail) |
0.04A |
| Current Draw (Indicator) |
0.12A |
| Housing Colour |
Black |
| Dimensions |
100mm x 100mm x 22mm |
| Lens Pattern |
Diamond |
| Mounting Centres |
70mm |
| Mount Type |
Surface mount |
| Connector |
4-pin |
| Wiring |
Tinned copper, corrosion protected |
| Waterproof Rating |
IP67 |
| Submersible |
Yes |
| ADR Stop/Tail |
ADR 49/00 |
| ADR Indicator |
ADR 6/00 Cat 2a |
| ADR Reflector |
ADR 47/00 |
| Weight |
0.187kg |
| Manufactured In |
China (Taiwan) |
| Sold As |
Each |
| Warranty |
Five years |
Frequently asked questions
Is the 100BAR ADR approved? Yes. The 100BAR holds ADR approval for stop/tail (ADR 49/00), indicator (ADR 6/00 Cat 2a), and reflector (ADR 47/00), confirming compliance for road use in Australia.
What voltage does the 100BAR operate on? The 100BAR operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles.
What is the current draw of the 100BAR? Stop draws 0.13A, tail draws 0.04A, and indicator draws 0.12A.
What are the mounting centres on the 100BAR? The 100BAR has 70mm mounting centres between fixing points. Confirm this suits your mounting location before purchasing.
Is the 100BAR fully submersible? Yes. The 100BAR is IP67 rated and fully submersible, with corrosion-protected tinned copper wiring suited to demanding outdoor and marine-adjacent environments.
