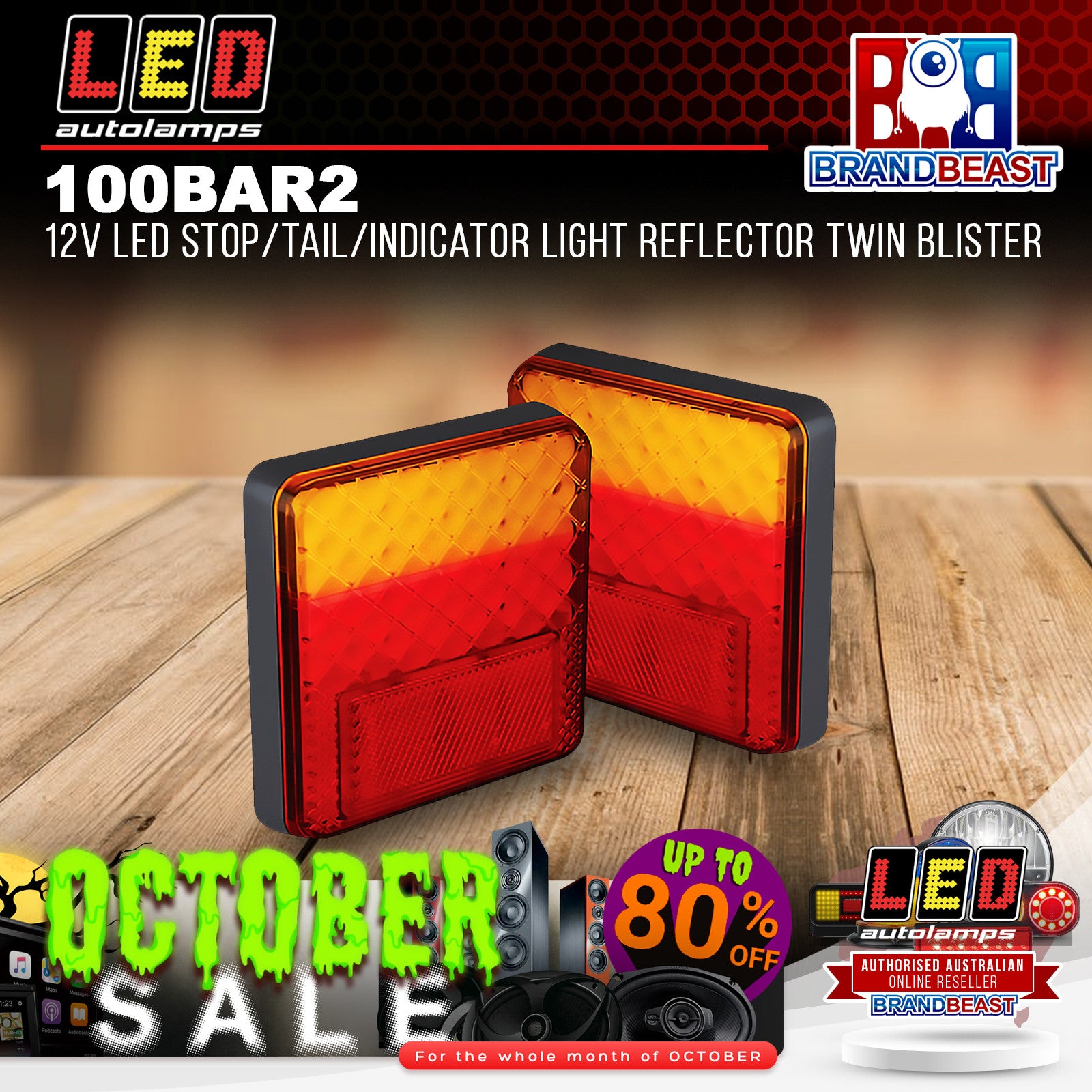

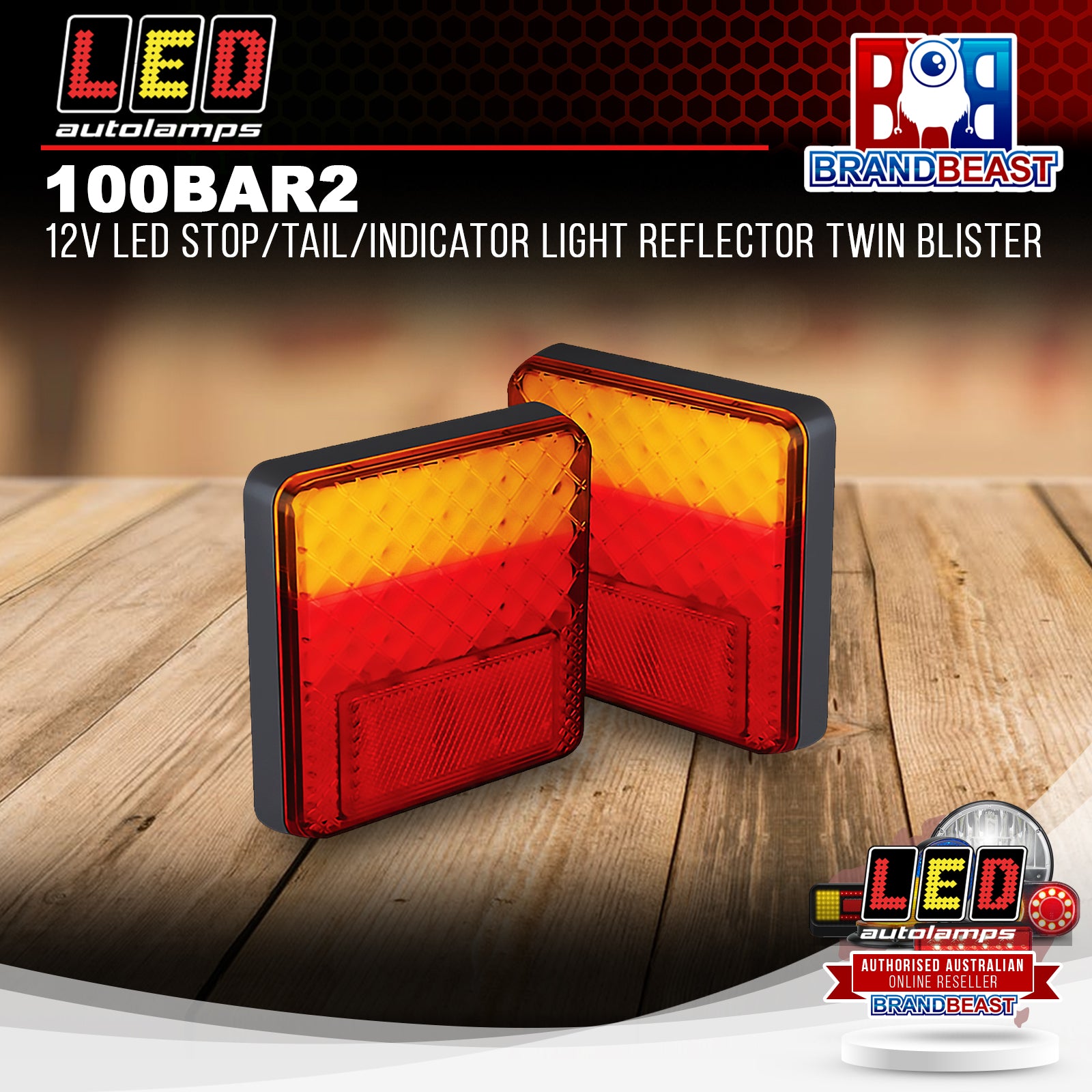

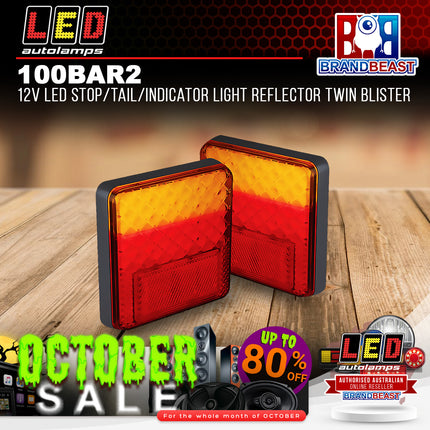

LED Autolamps 100BAR2 12V LED Stop Tail Indicator Lamp with Reflex Reflector 100mm Square Diamond Lens ADR Approved IP67 Twin Pack
The LED Autolamps 100BAR2 is a twin pack of 12V LED combination lamps covering stop, tail, indicator, and reflex reflector functions in a 100mm square low-profile black housing. Diamond pattern lens, pre-wired connector, ADR approved (stop/tail ADR 49/00, indicator ADR 6/00 Cat 2a, reflector ADR 47/00), IP67 rated, fully submersible with corrosion-protected tinned copper wiring. 70mm mounting centres. Five-year warranty. Sold as a twin blister pack.
Product overview
The 100BAR2 is the twin pack version of the 100BAR, providing two matched lamps in a single blister pack for a complete left and right rear trailer lighting installation. The 100mm x 100mm x 22mm low-profile housing suits surface mounting on trailer rear panels. Diamond pattern lens enhances optical output and visibility. Current draw at 13.8V: stop 0.13A, tail 0.04A, indicator 0.12A. Corrosion-protected tinned copper wiring suits demanding outdoor environments. Mounting centres are 70mm. 12V only.
Features and benefits
Twin pack: Two matched lamps for a complete left and right trailer lighting installation.
Stop, tail, indicator, and reflex reflector in one unit: Multi-function 100mm square combination lamp.
Diamond pattern lens: Enhanced optical output and visibility.
100mm x 100mm x 22mm low-profile housing: Compact square format for trailer rear panel surface mounting.
ADR approved: Stop/tail ADR 49/00, indicator ADR 6/00 Cat 2a, reflector ADR 47/00.
IP67 fully waterproof and fully submersible.
Corrosion-protected tinned copper wiring: Suited to outdoor environments.
Pre-wired connector with 70mm mounting centres.
Black housing.
Five-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
100BAR2 |
| Brand |
LED Autolamps |
| Type |
Stop/tail/indicator combination lamp with reflector |
| Light Type |
LED |
| Operating Voltage |
12V |
| Current Draw (Stop) |
0.13A at 13.8V |
| Current Draw (Tail) |
0.04A at 13.8V |
| Current Draw (Indicator) |
0.12A at 13.8V |
| Housing Colour |
Black |
| Dimensions |
100mm x 100mm x 22mm |
| Lens Pattern |
Diamond |
| Mounting Centres |
70mm |
| Mount Type |
Surface mount |
| Connector |
Pre-wired |
| Wiring |
Tinned copper, corrosion protected |
| Waterproof Rating |
IP67 |
| Submersible |
Yes |
| ADR Stop/Tail |
ADR 49/00 |
| ADR Indicator |
ADR 6/00 Cat 2a |
| ADR Reflector |
ADR 47/00 |
| Weight |
0.4kg |
| Sold As |
Twin pack |
| Manufactured In |
China (Taiwan) |
| Warranty |
Five years |
Frequently asked questions
Is the 100BAR2 ADR approved? Yes. The 100BAR2 holds ADR approval for stop/tail (ADR 49/00), indicator (ADR 6/00 Cat 2a), and reflector (ADR 47/00), confirming compliance for road use in Australia.
What is the difference between the 100BAR and the 100BAR2? The 100BAR is sold as a single lamp. The 100BAR2 is sold as a twin pack containing two matched lamps, suited to a complete left and right rear trailer installation in a single purchase.
What is the current draw of the 100BAR2? At 13.8V: stop draws 0.13A, tail draws 0.04A, and indicator draws 0.12A per lamp.
What are the mounting centres on the 100BAR2? Each lamp has 70mm mounting centres between fixing points. Confirm this suits your mounting location before purchasing.
Is the 100BAR2 fully submersible? Yes. The 100BAR2 is IP67 rated and fully submersible, with corrosion-protected tinned copper wiring suited to demanding outdoor environments.
