Description

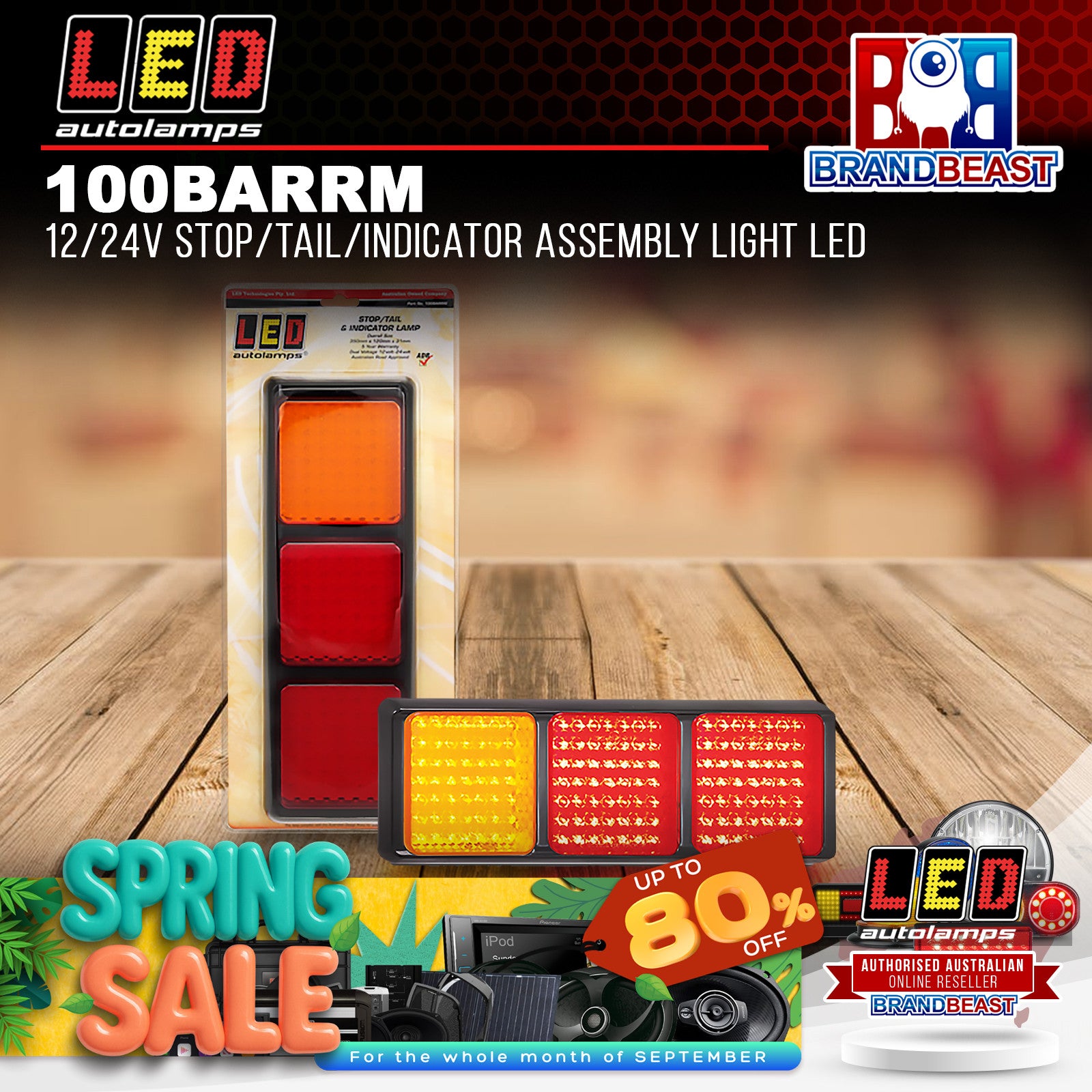

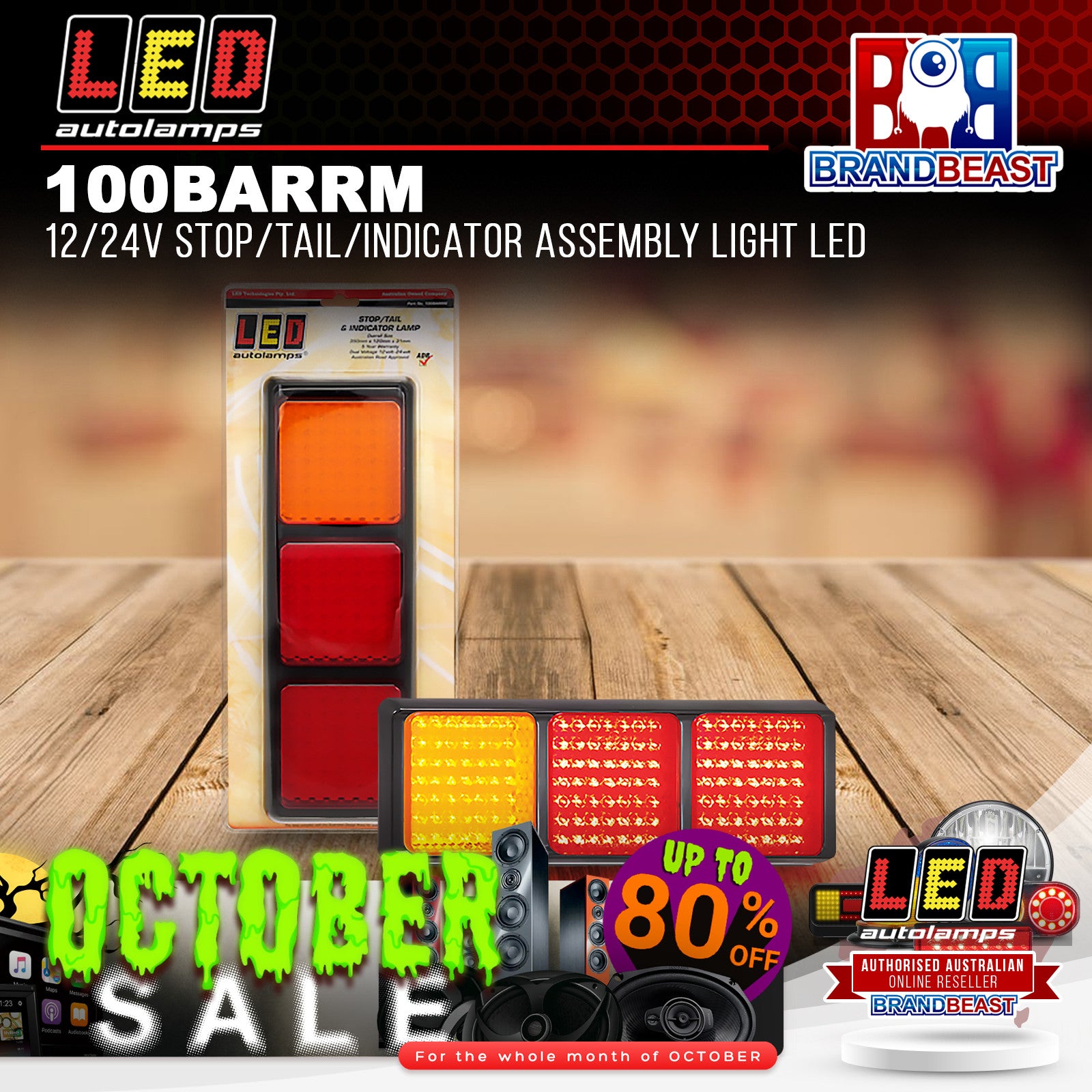

LED Autolamps 100BARRM 12-24V LED Stop Tail Indicator Assembly Light 350mm with Individual Replaceable Lenses ADR Approved IP67
The LED Autolamps 100BARRM is a 12-24V LED stop/tail/indicator combination lamp assembly in a 350mm x 120mm x 31mm black housing. ADR approved (stop/tail CRN 33402, indicator CRN 33156), IP67 waterproof, individual replaceable lenses, surface mount, pre-wired. 290mm mounting centres. Five-year warranty.
Product overview
The 100BARRM is a larger format multi-module LED lamp assembly suited to trailers, caravans, and commercial vehicles requiring a combined stop, tail, and indicator cluster in a single unit. The 350mm housing with 290mm mounting centres suits wider trailer rear panels. Individual lens replacements allow each lens section to be serviced independently without replacing the full assembly. Current draw at 13.8V: stop 0.38A, tail 0.04A, indicator 0.38A. ADR compliance is confirmed individually for stop/tail (CRN 33402) and indicator (CRN 33156) functions. IP67 rated and 12-24V compatible across light vehicle and heavy transport applications.
Features and benefits
Stop, tail, and indicator in a single 350mm assembly: Combined lamp cluster for trailer, caravan, and commercial vehicle rear lighting.
Individual replaceable lenses: Each lens section can be replaced independently without removing or replacing the full assembly.
12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.
ADR approved: Stop/tail CRN 33402, indicator CRN 33156.
IP67 fully waterproof and submersible: Suited to outdoor and trailer environments.
290mm mounting centres: Suited to wider trailer rear panels.
Pre-wired connector.
Black housing.
Five-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
100BARRM |
| Brand |
LED Autolamps |
| Type |
Stop/tail/indicator combination assembly |
| Light Type |
LED |
| Operating Voltage |
12V to 24V |
| Current Draw (Stop) |
0.38A at 13.8V |
| Current Draw (Tail) |
0.04A at 13.8V |
| Current Draw (Indicator) |
0.38A at 13.8V |
| Housing Colour |
Black |
| Dimensions |
350mm x 120mm x 31mm |
| Mounting Centres |
290mm |
| Mount Type |
Surface mount |
| Connector |
Pre-wired |
| Lens |
Individual replaceable |
| Waterproof Rating |
IP67 |
| ADR Stop/Tail |
CRN 33402 |
| ADR Indicator |
CRN 33156 |
| Weight |
0.7kg |
| Manufactured In |
China (Taiwan) |
| Warranty |
Five years |
Frequently asked questions
Is the 100BARRM ADR approved? Yes. The 100BARRM holds ADR approval for stop/tail (CRN 33402) and indicator (CRN 33156), confirming compliance for road use in Australia.
What voltage does the 100BARRM operate on? The 100BARRM operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles.
What does individual lens replacement mean? The 100BARRM features individually replaceable lens sections for each lamp function. If one lens is damaged, only that section needs to be replaced rather than the full assembly, reducing servicing cost and downtime.
What are the mounting centres on the 100BARRM? The 100BARRM has 290mm mounting centres. Confirm this suits your mounting location before purchasing.
What is the current draw of the 100BARRM? At 13.8V: stop draws 0.38A, tail draws 0.04A, and indicator draws 0.38A.
