Description

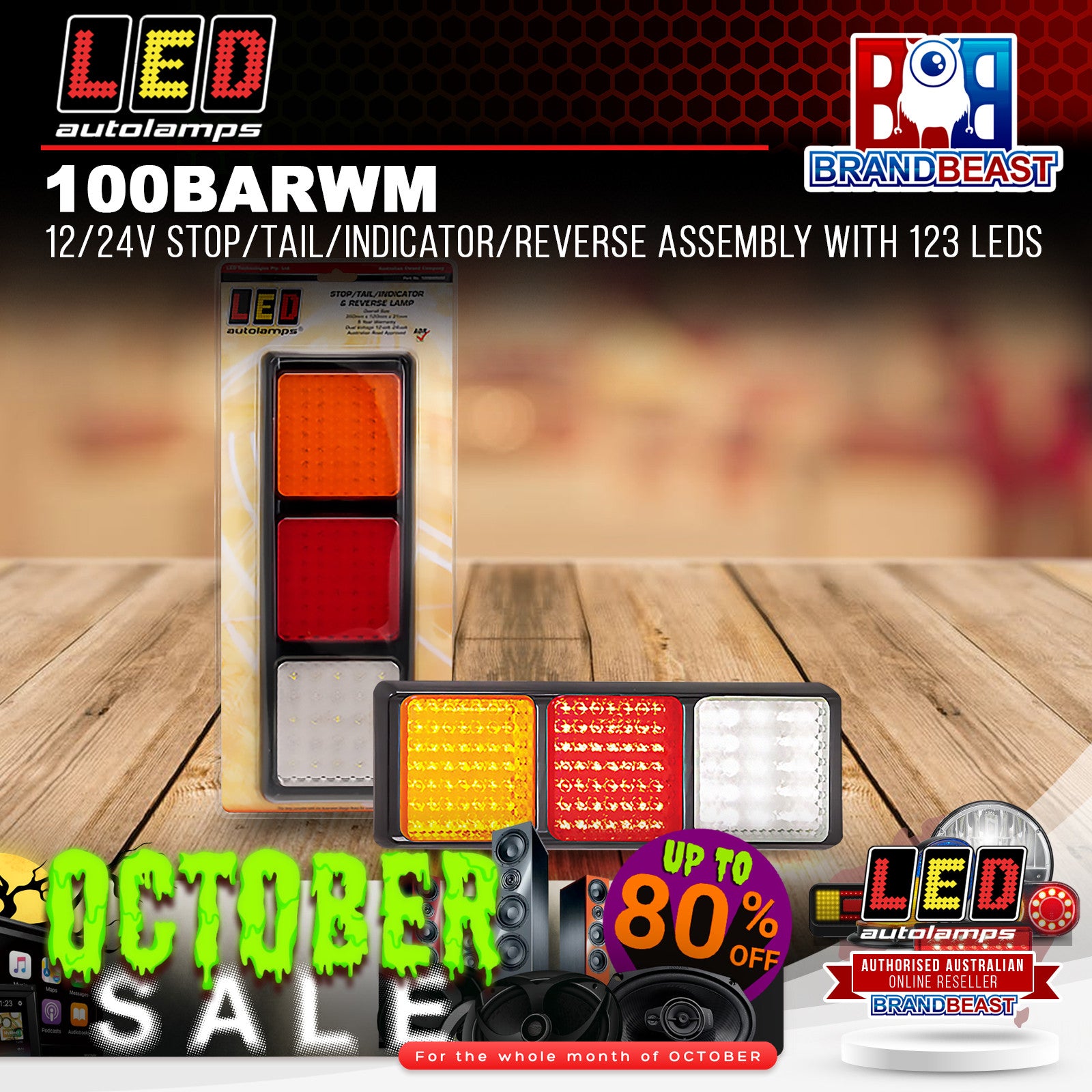

LED Autolamps 100BARWM 12-24V LED Stop Tail Indicator Reverse Assembly 123 LEDs 350mm Individual Replaceable Lenses ADR Approved IP67
The LED Autolamps 100BARWM is a 12-24V LED combination lamp assembly covering stop, tail, indicator, and reverse functions with 123 LEDs in a 350mm x 120mm x 31mm black housing. ADR approved (stop/tail CRN 33402, indicator CRN 33156, reverse CRN 35793), IP67 waterproof, individual replaceable lenses, surface mount, pre-wired. 290mm mounting centres. Five-year warranty.
Product overview
The 100BARWM adds a reverse lamp function to the 100BARRM assembly, providing four lighting functions in a single 350mm unit. With 123 LEDs across the stop, tail, indicator, and reverse modules, it is suited to trailers, caravans, and commercial vehicles that require a complete rear lighting cluster including reversing light in one assembly. Individual lens replacements allow each lens section to be serviced independently without replacing the full assembly. Current draw at 13.8V: stop 0.33A, tail 0.06A, indicator 0.31A, reverse 0.17A. ADR compliance confirmed for stop/tail, indicator, and reverse functions. 290mm mounting centres suit wider trailer rear panels. 12-24V compatible across light vehicle and heavy transport applications.
Features and benefits
Stop, tail, indicator, and reverse in a single 350mm assembly: Four-function LED cluster for trailers, caravans, and commercial vehicles.
123 LEDs: High-output LED array across all four functions.
Individual replaceable lenses: Each lens section can be replaced independently without removing or replacing the full assembly.
12V and 24V compatible: Suits light vehicle trailers, caravans, trucks, and heavy transport.
ADR approved: Stop/tail CRN 33402, indicator CRN 33156, reverse CRN 35793.
IP67 fully waterproof and submersible: Suited to outdoor and trailer environments.
290mm mounting centres: Suited to wider trailer rear panels.
Pre-wired connector.
Black housing.
Five-year warranty.
Technical specs
| Specification |
Detail |
| SKU |
100BARWM |
| Brand |
LED Autolamps |
| Type |
Stop/tail/indicator/reverse combination assembly |
| Light Type |
LED |
| LED Count |
123 |
| Operating Voltage |
12V to 24V |
| Current Draw (Stop) |
0.33A at 13.8V |
| Current Draw (Tail) |
0.06A at 13.8V |
| Current Draw (Indicator) |
0.31A at 13.8V |
| Current Draw (Reverse) |
0.17A at 13.8V |
| Housing Colour |
Black |
| Dimensions |
350mm x 120mm x 31mm |
| Mounting Centres |
290mm |
| Mount Type |
Surface mount |
| Connector |
Pre-wired |
| Lens |
Individual replaceable |
| Waterproof Rating |
IP67 |
| ADR Stop/Tail |
CRN 33402 |
| ADR Indicator |
CRN 33156 |
| ADR Reverse |
CRN 35793 |
| Weight |
0.7kg |
| Manufactured In |
China (Taiwan) |
| Warranty |
Five years |
Frequently asked questions
Is the 100BARWM ADR approved? Yes. The 100BARWM holds ADR approval for stop/tail (CRN 33402), indicator (CRN 33156), and reverse (CRN 35793), confirming compliance for road use in Australia.
What is the difference between the 100BARWM and the 100BARRM? The 100BARRM covers stop, tail, and indicator. The 100BARWM adds a reverse lamp function and includes 123 LEDs across the four modules. Both share the same 350mm housing, 290mm mounting centres, and individual replaceable lens design.
What does individual lens replacement mean? The 100BARWM features individually replaceable lens sections for each lamp function. If one lens is damaged, only that section needs to be replaced rather than the full assembly, reducing servicing cost and downtime.
What voltage does the 100BARWM operate on? The 100BARWM operates on 12V and 24V systems, making it suited to light vehicle trailers, caravans, trucks, and commercial vehicles.
What is the current draw of the 100BARWM? At 13.8V: stop draws 0.33A, tail draws 0.06A, indicator draws 0.31A, and reverse draws 0.17A.
