Description

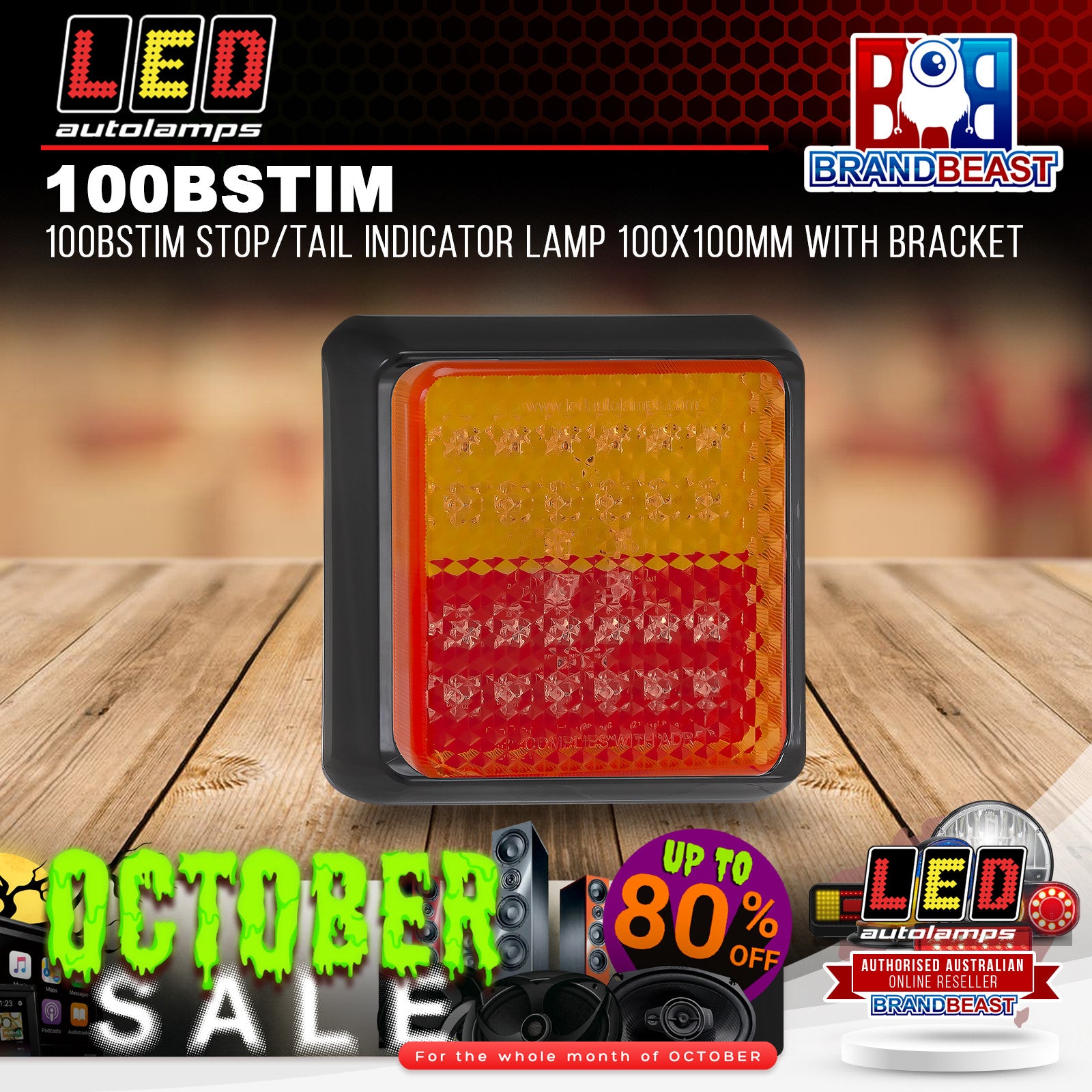

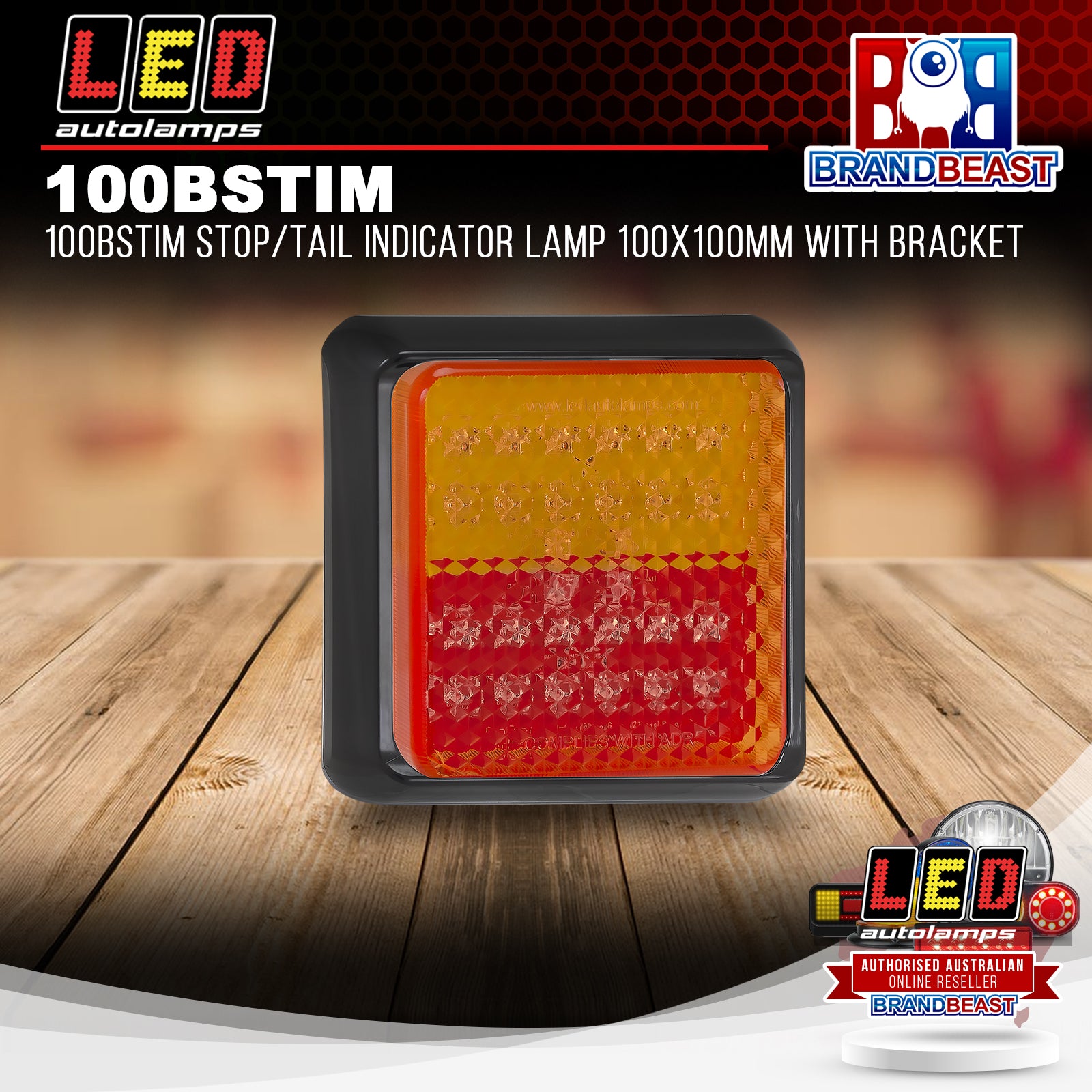

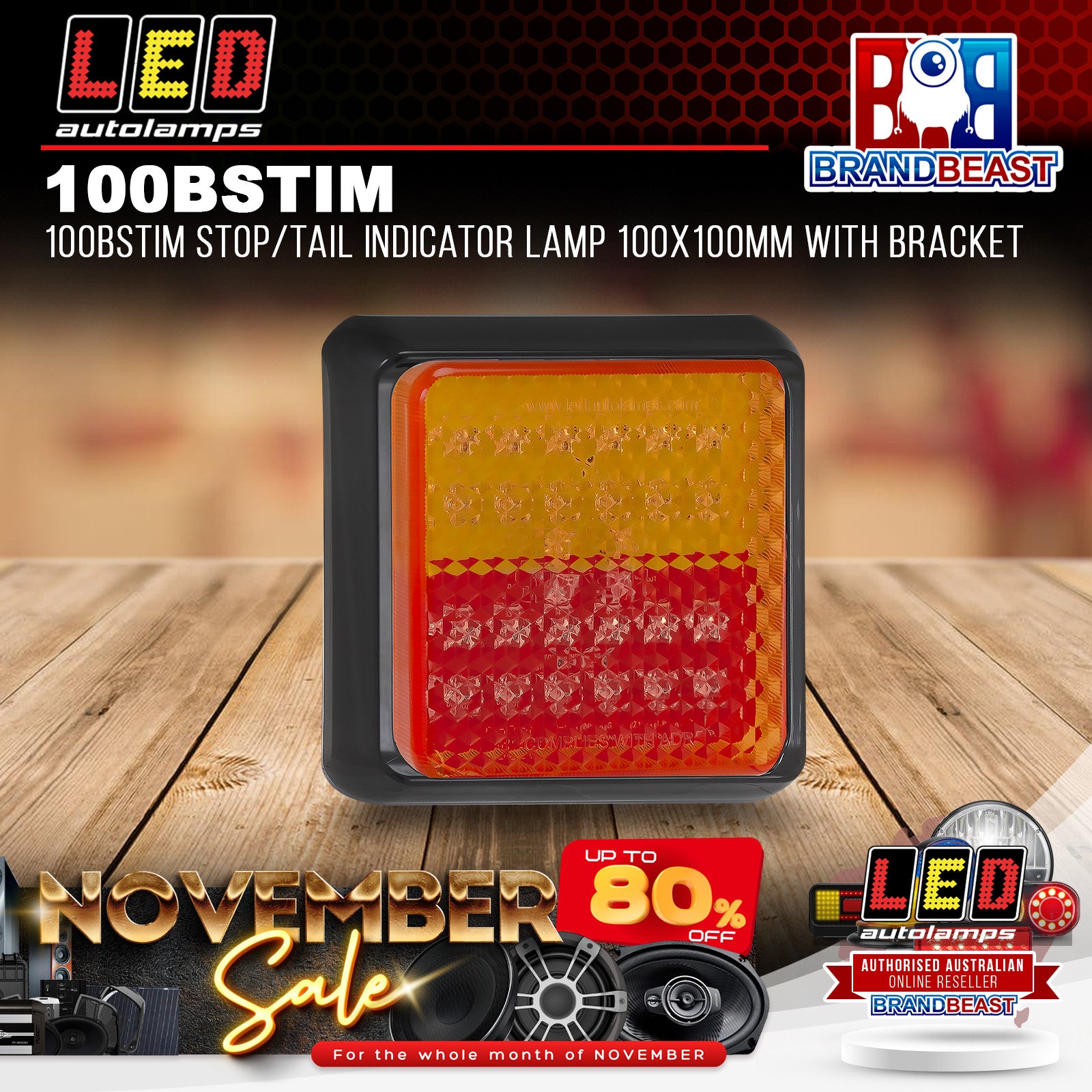

LED Autolamps 100BSTIM Stop Tail and Indicator Lamp 100x100mm with Bracket
An ADR road-approved LED stop, tail, and indicator lamp from the LED Autolamps Original Square Series, the 100BSTIM features an IP67 rating, clip-in replaceable lens, surface mount bracket, pre-wired connector, and operates across 12-24V DC, backed by a 5-year warranty.
Product Overview
The LED Autolamps 100BSTIM is a combined stop, tail, and indicator lamp from the Original Square Series, designed for surface mount installation on trailers, caravans, and commercial vehicles. The unit measures 122 x 122 x 31mm overall with a centre-to-centre mounting distance of 70mm and is housed in a black housing. The clip-in replaceable lens allows lens replacement without full unit replacement if the lens is damaged. The 100BSTIM operates across a 12-24V DC voltage range and draws 0.17A for stop, 0.04A for tail, and 0.18A for indicator functions at 13.8V. IP67-rated for waterproof and dustproof protection, ADR road approved with individual compliance numbers for stop, tail, and indicator functions, and supplied with a bracket in blister packaging.
Features & Benefits
Original Square Series Design: The 100BSTIM is from LED Autolamps' Original Square Series, featuring the distinctive 100x100mm square lamp profile suited to trailers, caravans, and commercial vehicles.
ADR Road Approved: The 100BSTIM holds ADR road approval (CTA060218) with individual compliance numbers for stop (CRN35781), tail (CRN35782), and indicator (CRN35783) functions, confirming it meets Australian Design Rules requirements for on-road use.
IP67 Waterproof and Dustproof Rating: The IP67 rating provides full dust ingress protection and waterproof protection against temporary immersion, suited to exposed trailer and caravan mounting locations.
Clip-In Replaceable Lens: The clip-in lens design allows the lens to be replaced without replacing the full lamp unit, reducing long-term maintenance costs if the lens is scratched or damaged.
Combined Stop, Tail, and Indicator Functions: The 100BSTIM combines stop, tail, and indicator functions in a single compact unit, reducing the number of individual lamp assemblies required and simplifying wiring.
12-24V DC Operating Range: The 100BSTIM operates across 12-24V DC, making it compatible with both 12V passenger vehicle and trailer systems and 24V commercial vehicle and trailer systems.
Surface Mount with Bracket Included: The 100BSTIM is supplied with a surface mount bracket for secure installation to trailer, caravan, or vehicle body panels with a 70mm centre-to-centre mounting distance.
Pre-Wired Connector: The lamp is supplied pre-wired for straightforward connection to the trailer or vehicle wiring harness without requiring additional connector assembly.
5-Year Warranty: The 100BSTIM is backed by a 5-year LED Autolamps warranty.
Technical Specs
| Specification |
Detail |
| SKU |
100BSTIM |
| Brand |
LED Autolamps |
| Series |
Original Square Series |
| Light Style |
Stop, Tail, and Indicator |
| Light Type |
LED |
| Housing Colour |
Black |
| Overall Dimensions |
122mm x 122mm x 31mm |
| Mount Centre-to-Centre |
70mm |
| Mount Type |
Surface Mount |
| Input Voltage |
12-24V DC |
| Current Draw - Stop |
0.17A at 13.8V |
| Current Draw - Tail |
0.04A at 13.8V |
| Current Draw - Indicator |
0.18A at 13.8V |
| IP Rating |
IP67 |
| Lens |
Clip-In Replaceable |
| Connector |
Pre-Wired |
| ADR Approval |
CTA060218 |
| Stop Compliance |
CRN35781 |
| Tail Compliance |
CRN35782 |
| Indicator Compliance |
CRN35783 |
| Weight |
0.28kg |
| Packaging |
Blister |
| Warranty |
5 Years |
Compatible With
The 100BSTIM is compatible with 12V and 24V DC trailer, caravan, and vehicle electrical systems. ADR road approved for on-road use in Australia. Confirm mounting clearance and wiring requirements for your specific trailer or vehicle before purchase.
Frequently Asked Questions
Is the 100BSTIM ADR approved for on-road use in Australia?
Yes. The 100BSTIM holds ADR approval (CTA060218) with individual compliance numbers for stop (CRN35781), tail (CRN35782), and indicator (CRN35783) functions, confirming it meets Australian Design Rules requirements for on-road use.
Can the lens on the 100BSTIM be replaced if damaged?
Yes. The 100BSTIM features a clip-in replaceable lens design, allowing the lens to be replaced without replacing the full lamp unit if the lens is scratched or damaged.
Is the 100BSTIM suitable for 24V vehicles and trailers?
Yes. The 100BSTIM operates across a 12-24V DC voltage range, making it compatible with both 12V and 24V vehicle and trailer electrical systems.
What is the mounting centre-to-centre distance of the 100BSTIM?
The 100BSTIM has a mounting centre-to-centre distance of 70mm. Confirm this measurement suits your specific mounting panel and bracket location before purchase.
Does the 100BSTIM include a mounting bracket?
Yes. The 100BSTIM is supplied with a surface mount bracket for installation to trailer, caravan, or vehicle body panels.
